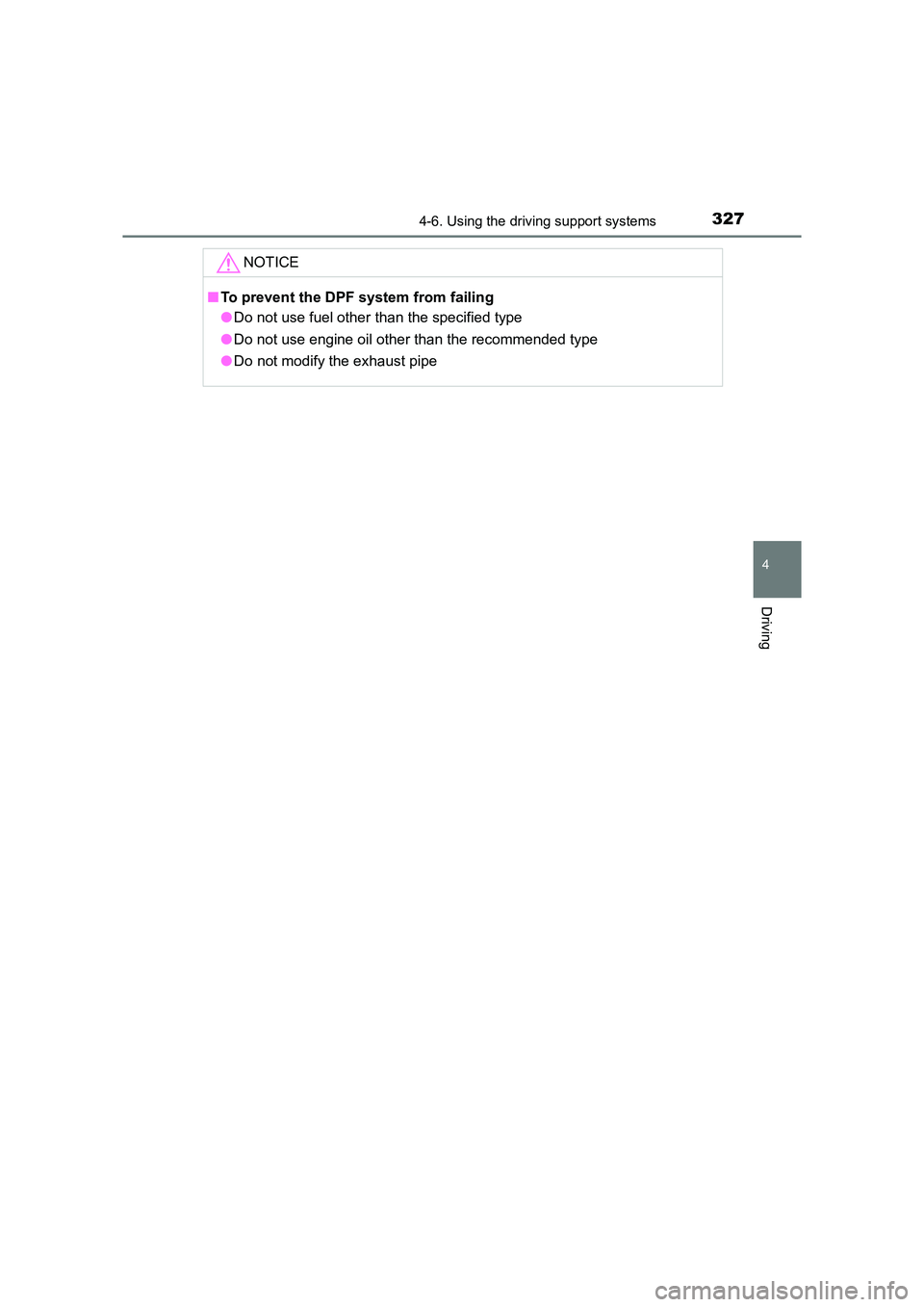

3274-6. Using the driving support systems
AURIS Touring Sports_EE (12K53E)
4
Driving
NOTICE
■To prevent the DPF system from failing
●Do not use fuel other than the specified type
● Do not use engine oil other than the recommended type
● Do not modify the exhaust pipe

5037-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care
■When removing the wheel ornament (vehicles with a wheel cap clip)
Remove the wheel ornament using the
wheel cap clip.
WARNING
■ When replacing wheels
●Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in a loss of handling control.
● Never use an inner tube in a leaking wheel which is designed for a tube-
less tire. Doing so may result in an accident, causing death or serious
injury.
■ When installing the wheel nuts
●Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing an acci-
dent and resulting in death or serious injury. Remove any oil or grease
from the wheel bolts or wheel nuts.
■ Use of defective wheels prohibited (vehicles with aluminum wheels)
Do not use cracked or deformed wheels.
Doing so could cause the tire to leak air during driving, possibly causing an
accident.
● Be sure to install the wheel nuts with the
tapered ends facing inward. Installing
the nuts with the tapered ends facing
outward can cause the wheel to break
and eventually cause the wheel to come
off while driving, which could lead to an
accident resulting in death or serious
injury.
Tapered
portion

6169-1. Specifications
AURIS Touring Sports_EE (12K53E)
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred

6189-1. Specifications
AURIS Touring Sports_EE (12K53E)
Recommended viscosity (SAE):
“Toyota Genuine Motor Oil SAE
0W-20 for Downsized Turbo
Gasoline Engines” is filled into
your Toyota vehicle at manufac-
turing, and SAE 0W-20 is the
best choice for good fuel econ-
omy and good starting in cold
weather.
If SAE 0W-20 oil is not available, SAE 5W-30 oil may be used.
However, it should be replaced with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum
Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-
Conserving” means that the oil
has fuel-saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
Temperature range anticipated
before next oil change
Preferred
1
2

6199-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
X1ND-TV engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-30 is explained here as an example): • The 0W in 0W-30 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated
before next oil change
Preferred
