2016 TOYOTA AURIS TOURING SPORTS Owners Manual

6099-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
*1: Unladen vehicles
*2: Vehicles with 195/65R15 tires
*3: Vehicles with 205/55R16 tires
*4: Vehicles with 215/45R17 tires
*5: Vehicles with 225/45R17 tires
*6: Vehicles with a Multidrive
*7: Vehicles with a manual transmission

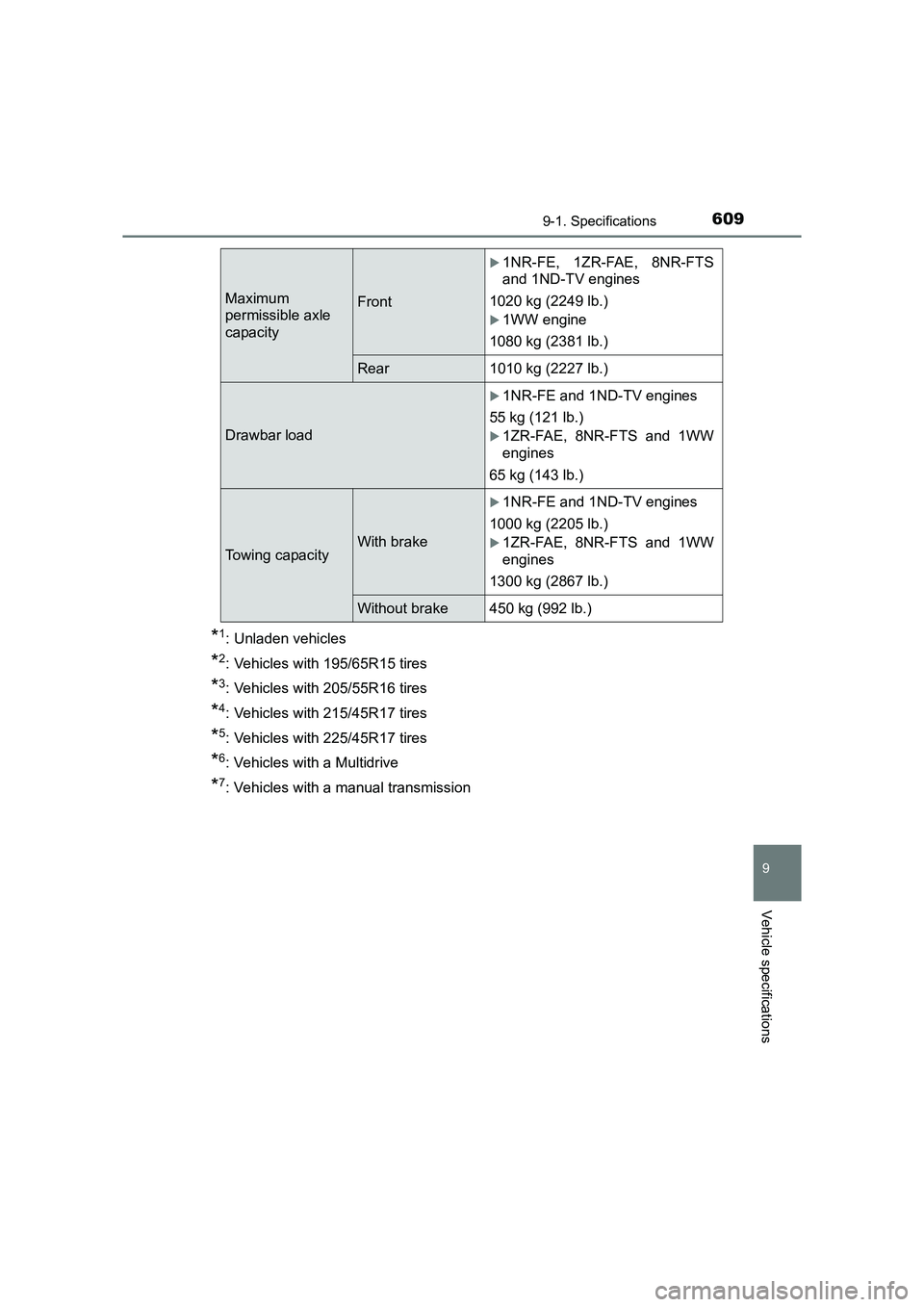

Maximum
permissible axle
capacityFront
X1NR-FE, 1ZR-FAE, 8NR-FTS
and 1ND-TV engines
1020 kg (2249 lb.)
X1WW engine
1080 kg (2381 lb.)
Rear 1010 kg (2227 lb.)
Drawbar load
X1NR-FE and 1ND-TV engines
55 kg (121 lb.)
X1ZR-FAE, 8NR-FTS and 1WW
engines
65 kg (143 lb.)
Towing capacityWith brake
X1NR-FE and 1ND-TV engines
1000 kg (2205 lb.)
X1ZR-FAE, 8NR-FTS and 1WW
engines
1300 kg (2867 lb.)
Without brake 450 kg (992 lb.)

6109-1. Specifications
AURIS Touring Sports_EE (12K53E)■

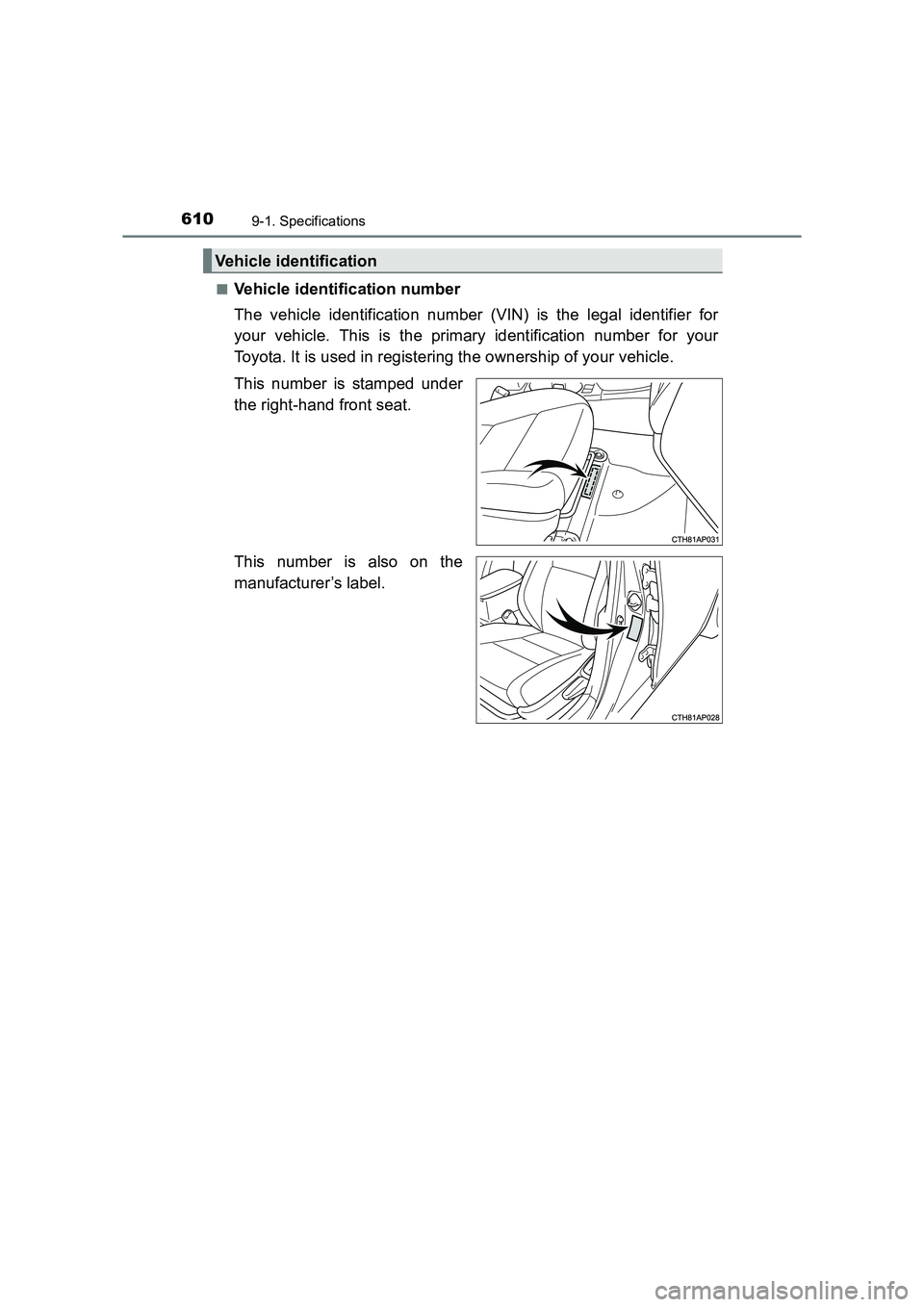

Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
This number is also on the
manufacturer’s label.
Vehicle identification

6119-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications

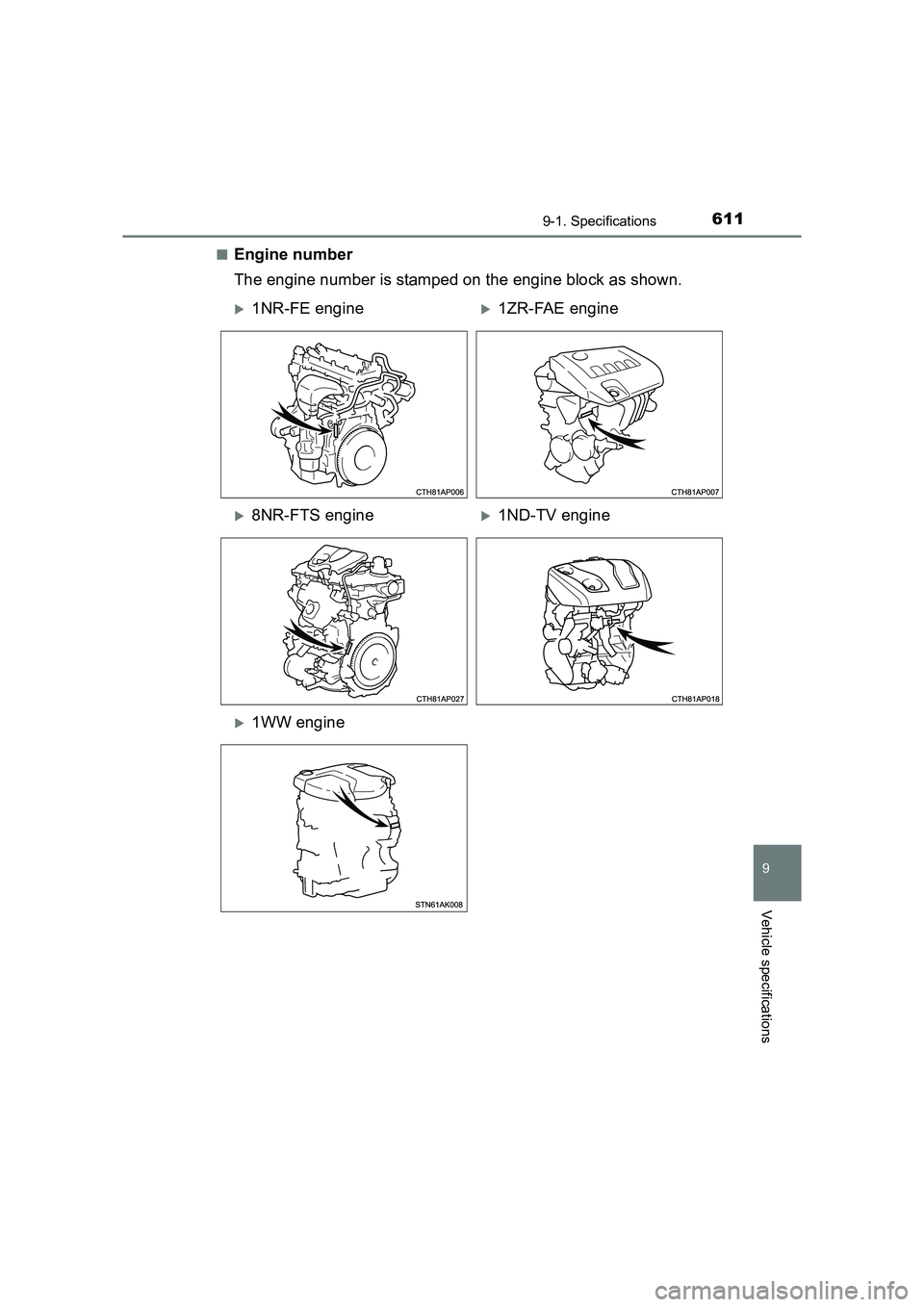

■Engine number
The engine number is stamped on the engine block as shown.
X1NR-FE engineX1ZR-FAE engine
X8NR-FTS engineX1ND-TV engine
X1WW engine

6129-1. Specifications
AURIS Touring Sports_EE (12K53E)
X1NR-FE and 1ZR-FAE engines
Engine
Model1NR-FE, 1ZR-FAE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke
X1NR-FE engine
72.5 × 80.5 mm (2.85 × 3.17 in.)
X1ZR-FAE engine
80.5 × 78.5 mm (3.17 × 3.09 in.)
Displacement
X1NR-FE engine
1329 cm
3 (81.1 cu. in.)
X1ZR-FAE engine
1598 cm
3 (97.5 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension
X1NR-FE engine
Automatic adjustment
X1ZR-FAE engine
7.6  10.0 mm (0.30  0.39 in.)
*
*
: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb force (used belt)
Generator
Water pump
Air
conditioning
compressorCrankshaft

6139-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
X8NR-FTS engine
X1ND-TV and 1WW engines
Model8NR-FTS
Ty p e4-cylinder in line, 4-cycle, gasoline (with turbo-
charger)
Bore and stroke71.5 × 74.5 mm (2.82 × 2.93 in.)
Displacement1197 cm3 (73.0 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Model 1ND-TV, 1WW
Ty p e 4-cylinder in line, 4-cycle, diesel (with turbo-
charger)
Bore and stroke
X1ND-TV engine
73.0 × 81.5 mm (2.87 × 3.21 in.)
X1WW engine
78.0 × 83.6 mm (3.07 × 3.29 in.)
Displacement
X1ND-TV engine
1364 cm
3 (83.2 cu. in.)
X1WW engine
1598 cm
3 (97.52 cu. in.)
Valve clearance
(engine cold)
X1ND-TV engine
Intake: 0.11  0.17 mm (0.004  0.007 in.)
Exhaust: 0.14  0.20 mm (0.006  0.008 in.)
X1WW engine
Automatic adjustment
Drive belt tension Automatic adjustment

6149-1. Specifications
AURIS Touring Sports_EE (12K53E)
XGasoline engine
XDiesel engine
NOTICE
■Drive belt type (1ND-TV engine)
The high strength drive belt is used fo r the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength dr ive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)
Fuel type
EU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number48 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)

6159-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■
Engine oil selection
X1NR-FE and 1ZR-FAE engines
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil

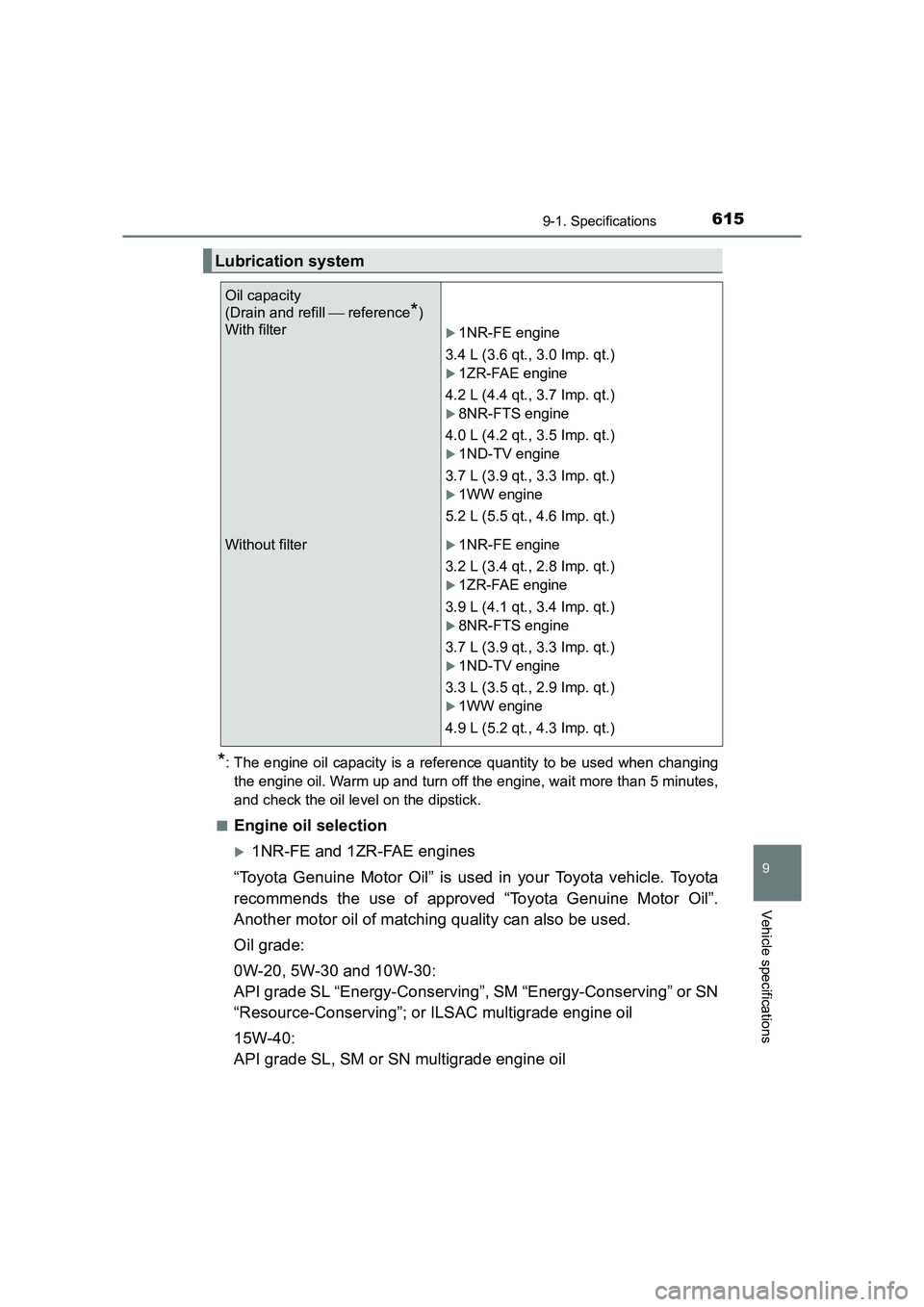

Lubrication system
Oil capacity
(Drain and refill  reference
*)
With filter
X1NR-FE engine
3.4 L (3.6 qt., 3.0 Imp. qt.)
X1ZR-FAE engine
4.2 L (4.4 qt., 3.7 Imp. qt.)
X8NR-FTS engine
4.0 L (4.2 qt., 3.5 Imp. qt.)
X1ND-TV engine
3.7 L (3.9 qt., 3.3 Imp. qt.)
X1WW engine
5.2 L (5.5 qt., 4.6 Imp. qt.)
Without filterX1NR-FE engine
3.2 L (3.4 qt., 2.8 Imp. qt.)
X1ZR-FAE engine
3.9 L (4.1 qt., 3.4 Imp. qt.)
X8NR-FTS engine
3.7 L (3.9 qt., 3.3 Imp. qt.)
X1ND-TV engine
3.3 L (3.5 qt., 2.9 Imp. qt.)
X1WW engine
4.9 L (5.2 qt., 4.3 Imp. qt.)

6169-1. Specifications
AURIS Touring Sports_EE (12K53E)

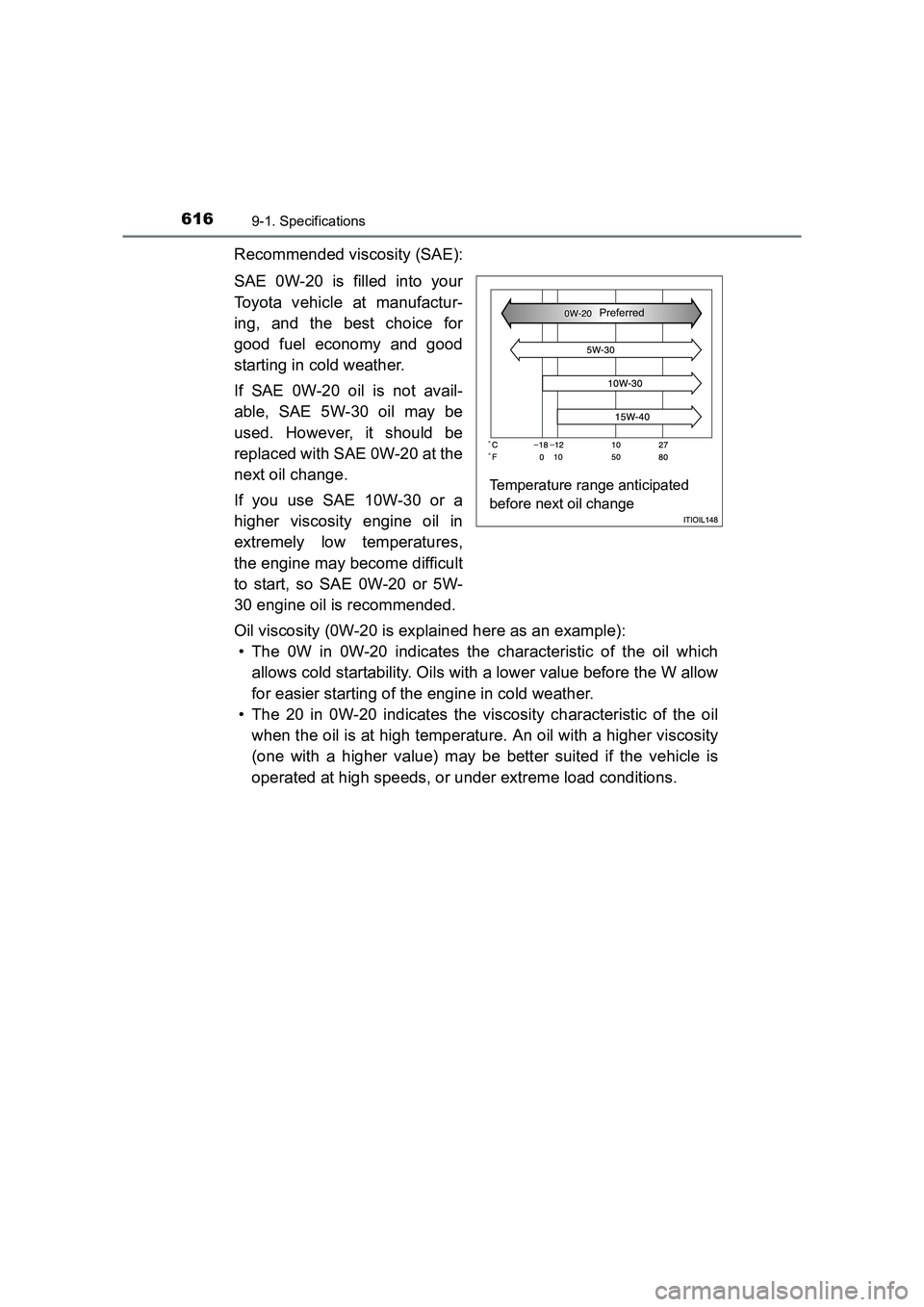

Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Oil viscosity (0W-20 is explained here as an example):• The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred
