2016 PEUGEOT 108 Owners Manual

87
108_en_Chap04_conduite_ed01-2016
Switching on
F Press the end of the control stalk: the speed limiter mode is selected but is not
switched on.
F

S
witch the speed limiter on by pulling the
control stalk towards you, if the speed
displayed is suitable (by default, the last
speed programmed). Once the function is selected, you can modify
the speed setting by:
-

b
y pushing the control stalk up to increase
the setting,
-
b
y pushing the control stalk down to
decrease the setting.
A brief push on the control stalk modifies the
speed setting by + or - 1 mph (km/h).
A maintained push on the control stalk modifies
the speed setting by + or - 5 mph (km/h).
Adjusting the speed limit
setting
You do not have to switch the speed
limiter on in order to set the speed.
Pause
F You can temporarily stop the the speed limiter by pulling the control stalk towards
you again: the display confirms that it has
been stopped (Pause).
F

P
ull the control stalk towards you again to
restore the speed limiter.
4
Driving

88
108_en_Chap04_conduite_ed01-2016
Switching off
F Press the end of the control stalk. th e display of information related to the
speed limiter disappears.
operating fault
Illumination of this warning lamp in
the instrument panel indicates a fault
with the speed limiter.
Have it checked by a P
e

uge
Ot

dealer or a qualified workshop.
th

e use of mats not approved by
P
e

uge
Ot
may inter fere with the
operation of the speed limiter.
to a

void any risk of jamming of the
pedals:
-

e
nsure that the mat is secured
c o r r e c t l y,
-

d
o not fit one mat on top of another.
temporarily exceeding the
programmed speed
F Press f irmly on the accelerator pedal,
going beyond the point of resistance ,
to
exceed the programmed speed limit.
th

e speed limiter is deactivated temporarily
and the displayed programmed speed flashes.
As soon as the vehicle's speed returns to the
programmed value, the limiter operates again:
the display of the programmed speed becomes
steady again. An audible signal accompanies the
flashing of the programmed speed
when exceeding the speed is not due to
an action by the driver (steep hill...).
Driving

89
108_en_Chap04_conduite_ed01-2016
Speed limiter (Vti 68 engine)
System which prevents the vehicle from exceeding the speed programmed by the driver.
th

e speed limiter is switched on manually:
this can be done whatever the speed of the
vehicle. However, if you are driving at less than
20 mph (30 km/h), the programmed speed will
be fixed at 20 mph (30 km/h).
th

e speed limiter is paused by operation of the
control.
th

e programmed speed can be exceeded
temporarily by pressing the accelerator firmly
beyond the point of resistance.
to r

eturn to the programmed speed, simply
release the accelerator pedal until the vehicle
returns to the programmed speed limit.
th

e programmed limit speed is erased
when switching off the ignition.
Steering mounted controls
the controls are grouped together on this
control stalk at the steering wheel.
1.
S

peed limiter on / off: by pressing the end
of the control stalk.
2.
P

rogramming the speed
D

ecrease the setting: by pushing the
control stalk down.
3.
R

estore speed limiter
I

ncrease the setting: by pushing the control
stalk up.
4.
P

ause speed limiter: by pulling the control
stalk towards you.
Displays in the instrument panel
the information is grouped together in the
instrument panel screen.
5.
S

peed limiter on / pause indication.
6.
Spe

ed value setting.
the speed limiter cannot, in any
circumstances, replace the need to
observe speed limits, nor can it replace the
need for vigilance on the part of the driver.
If you choose to display other information
(trip A for example), the speed limiter
information is automatically displayed again
after about 6 seconds.
4
Driving

90
108_en_Chap04_conduite_ed01-2016
F Press the end of the control stalk: the speed limiter is switched on.
F

A
ccelerate or decelerate to attain the
desired speed.
F

P
ush the control stalk down and release, to
programme the speed.


t
h
e speed at which the vehicle is running
at the moment when you release the
control stalk becomes the programmed
speed.
Adjusting the speed limit
setting
Once a speed is programmed, you can modify
it by pushing and releasing the control stalk:
-

u
p to increase the speed setting,
-

d
own to reduce the speed setting.
A brief push on the control stalk modifies the
speed setting by + or - 1 mph (km/h).
A maintained push on the control stalk modifies
the speed setting by + or - 5 mph (km/h).
Switching on
this indicator lamp comes on in the
instrument panel.
Pause
F You can temporarily stop the the speed limiter by pulling the control stalk towards
you.
F

P
ush the control stalk up to restore
operation of the speed limiter with the
same speed setting.
Driving

91
108_en_Chap04_conduite_ed01-2016

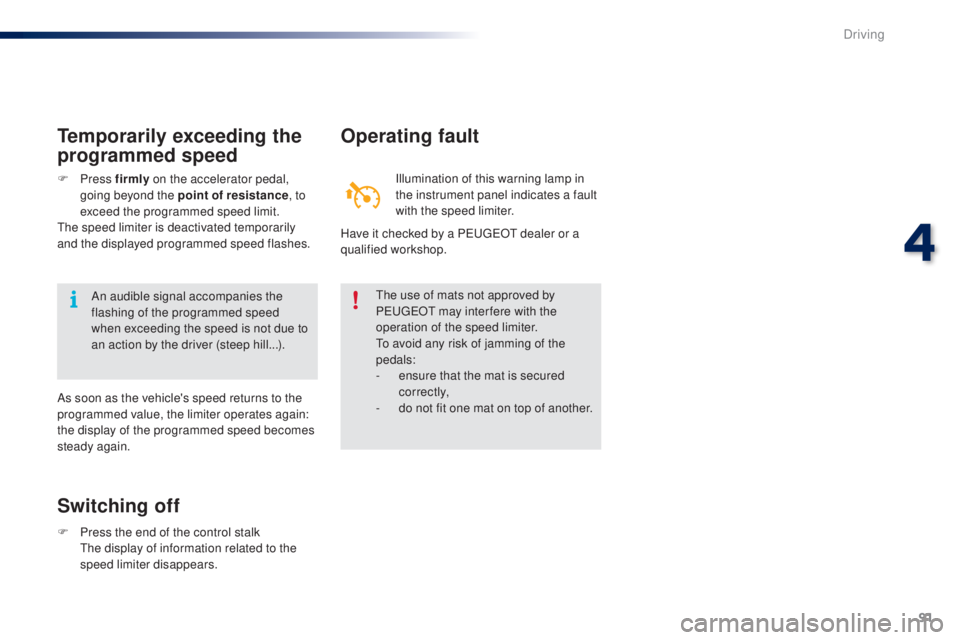

Switching off
F Press the end of the control stalk th e display of information related to the
speed limiter disappears.
operating fault
Illumination of this warning lamp in
the instrument panel indicates a fault
with the speed limiter.
th

e use of mats not approved by
P
e

uge
Ot
may inter fere with the
operation of the speed limiter.
to a

void any risk of jamming of the
pedals:
-

e
nsure that the mat is secured
c o r r e c t l y,
-

d
o not fit one mat on top of another.
temporarily exceeding the
programmed speed
F Press f irmly on the accelerator pedal,
going beyond the point of resistance ,
to
exceed the programmed speed limit.
th

e speed limiter is deactivated temporarily
and the displayed programmed speed flashes. Have it checked by a P
e

uge
Ot
dealer or a
qualified workshop.
An audible signal accompanies the
flashing of the programmed speed
when exceeding the speed is not due to
an action by the driver (steep hill...).
As soon as the vehicle's speed returns to the
programmed value, the limiter operates again:
the display of the programmed speed becomes
steady again.
4
Driving

92
108_en_Chap04_conduite_ed01-2016
Reversing camera
the reversing camera is activated automatically when reverse gear is engaged.
th
e reversing camera cannot in any
circumstances replace the need for the
vigilance on the part of the driver.
th

e image is provided in the touch screen
only, with an indication of the limit of the rear
bumpers (red line) and the general direction of
the vehicle (blue lines).
Clean the reversing camera regularly
using a soft, dry cloth.
th

e field of vision covered by the camera is
limited: objects in the immediate proximity of
the bumper or located below it are not visible.
th

e camera's wide-angle lens deforms the
image presented in the screen: the distances
visible in the screen may be different from
the true distances.
t
h
is deformation varies
according to the loading of the vehicle and the
slope of the road.
High pressure jet washing
When washing your vehicle, do not
direct the lance within 30 cm of the
camera lens. Never reverse the vehicle looking only
at the screen.
It is normal to be able to see part of the number
plate at the bottom of the screen.
Driving

93
108_en_Chap04_conduite_ed01-2016

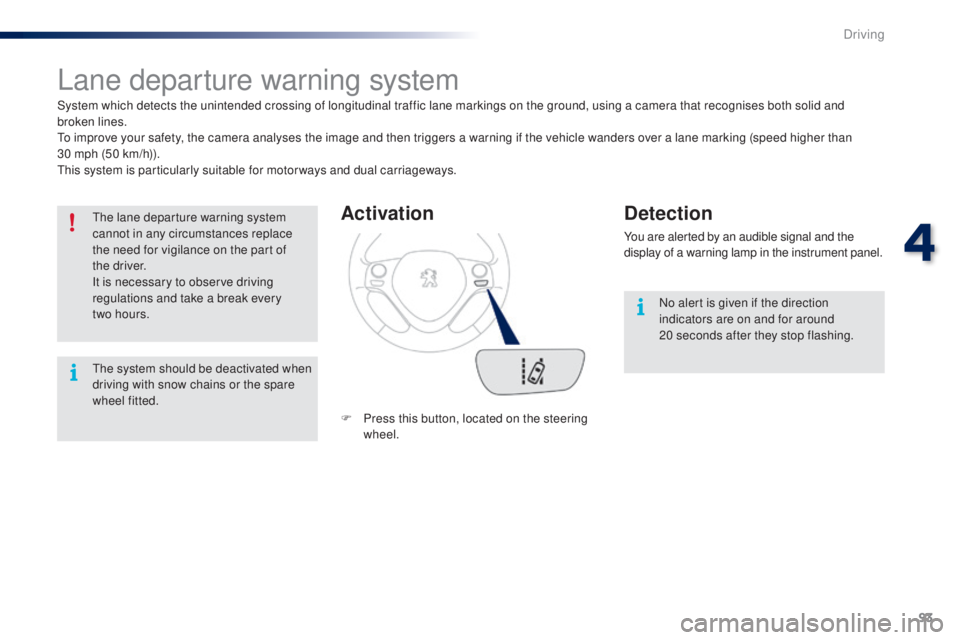

Lane departure warning system
System which detects the unintended crossing of longitudinal traffic lane markings on the ground, using a camera that recognises both solid and
broken lines.
to i
mprove your safety, the camera analyses the image and then triggers a warning if the vehicle wanders over a lane marking (speed higher than
30
mph (50 km/h)).
th

is system is particularly suitable for motorways and dual carriageways.
th

e lane departure warning system
cannot in any circumstances replace
the need for vigilance on the part of
the


driver.
It is necessary to observe driving
regulations and take a break every
two
hours.
Activation
F Press this button, located on the steering wheel.
Detection
You are alerted by an audible signal and the
display of a warning lamp in the instrument panel.
No alert is given if the direction
indicators are on and for around
20
seconds after they stop flashing.
th

e system should be deactivated when
driving with snow chains or the spare
wheel fitted.
4
Driving

94
108_en_Chap04_conduite_ed01-2016
Deactivation
op
erating fault
Displays in the instrument panel
the detection may be impeded:
-
i f the ground markings are worn,
-

i
f there is little contrast between the markings on the ground and the road sur face,
-

i
f the windscreen is dirty,
-

i
n certain extreme weather conditions: fog, heavy showers, bright sunlight or direct
exposure to the sun (low sun, leaving a tunnel...) and shadows. F

P
ress this button again.
th

e status of the system remains in the
memory when the ignition is switched off.
In the event of a malfunction, this (orange)
warning lamp comes on in the instrument panel.
Contact a Pe ugeOt dealer or a qualified
workshop without delay.
Display in the instrument panel
Comments
th

e function has been activated (green indicator).
th

e system has identified a marking on the ground (green
indicator).
the

system is alerting you that a road marking is being crossed
(green and orange warning).
th

e display of this warning is accompanied by an audible signal.
