2016 PEUGEOT 108 Owners Manual

175
108_en_Chap08_en-cas-pannes_ed01-2016
FuseN° Rating
(A) Functions
27 7. 5VSC system
28 60Passenger compartment fusebox
29** 125***Heated rear screen and door mirror heating - Heated seats
-
el

ectric fabric roof - ABS system - VSC system - Cooling fan -
Front foglamps - L
eD

daytime running lamps
30 50
ele

ctronic gearbox
40 Stop & Start
31 50Power steering
32 50*
Cooling fan
30
40
33 50ABS system - VSC system
34 10Spare fuse
* Pure
te

ch 82 engine.
** V
ti 6

8 engine.
***
t
h

is fuse must be replaced only by a
P
e

uge
Ot

dealer or a qualified workshop.
8
In the event of a breakdown

176
108_en_Chap08_en-cas-pannes_ed01-2016
FuseN° Rating
(A) Functions
35 20Spare fuse
36 30Spare fuse
37 20Heated rear screen and door mirror heating
38 30ABS system - VSC system
39 7. 5Front foglamps - Instrument panel - Display screen
40 7. 5L
e
D
daytime running lamps
41 15Right hand heated seat
42 20
ele

ctric fabric roof
43 15Left hand heated seat
In the event of a breakdown

177
108_en_Chap08_en-cas-pannes_ed01-2016
12 V battery
the battery is located under the bonnet.
For access to the (+) terminal:
F
r
elease the bonnet using the interior lever,
then the exterior safety catch,
F

r
aise the bonnet and secure it with its stay,
F

l
ift the plastic cover for access to
the (+)


terminal.
Access to the battery
Procedure for starting the engine using another battery or charging a discharged battery.
Before doing any work
Immobilise the vehicle: apply the
parking brake, put the gearbox in
neutral, then switch off the ignition.
Check that all electrical equipment is
switched off.
th

e presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a P
e

uge
Ot

dealer
or a qualified workshop is essential
when replacing or disconnecting the
battery. After refitting the battery, the Stop &
Start system will only be active after a
continuous period of immobilisation of the
vehicle, a period which depends on the
climatic conditions and the state of charge
of the battery (up to about 8 hours).
Do not push the vehicle to start the
engine if you have an
etg electronic
gearbox.
general points
Lead-acid starter batteries
Batteries contain harmful substances
such as sulphuric acid and lead.
th

ey must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
ta

ke used remote control batteries and
vehicle batteries to a special collection
point. Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.
8
In the event of a breakdown

178
108_en_Chap08_en-cas-pannes_ed01-2016
Starting using another battery
F Start the engine of the vehicle with the good battery and leave it running for a
few


minutes.
F

O
perate the starter on the broken down
vehicle and let the engine run.
I

f the engine does not start straight
away, switch off the ignition and wait a
few
moments before trying again.
Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
b o o s t e r.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
th

e two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
en

sure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running. F

W
ait until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.
F

R
efit the plastic cover to the (+) terminal,
if
your vehicle has one.
F

A
llow the engine to run for at least
30
minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.
When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.
F

R

aise the plastic cover on the (+) terminal,
if your vehicle has one.
F

C

onnect the red cable to the positive
terminal (+) of the flat battery A (at the

(+)
of the slave battery B or the booster. F

C
onnect one end of the green or black
cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle).
F
C
onnect the other end of the green or black
cable to the earth point C on the broken
down vehicle.
In the event of a breakdown

179
108_en_Chap08_en-cas-pannes_ed01-2016
Never try to charge a frozen battery.
If the battery has been frozen, have it
checked by a P
e
uge
Ot
dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
Charging the battery using
a battery charger
F Disconnect the battery from the vehicle.
F F ollow the instructions for use provided by
the manufacturer of the charger.
F

C
onnect the battery starting with the
positive terminal (+).
F

C
heck that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.Before disconnecting the battery
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows, the fabric roof and the
doors before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a P
e

uge
Ot
dealer or a
qualified workshop.
8
In the event of a breakdown

180
108_en_Chap08_en-cas-pannes_ed01-2016

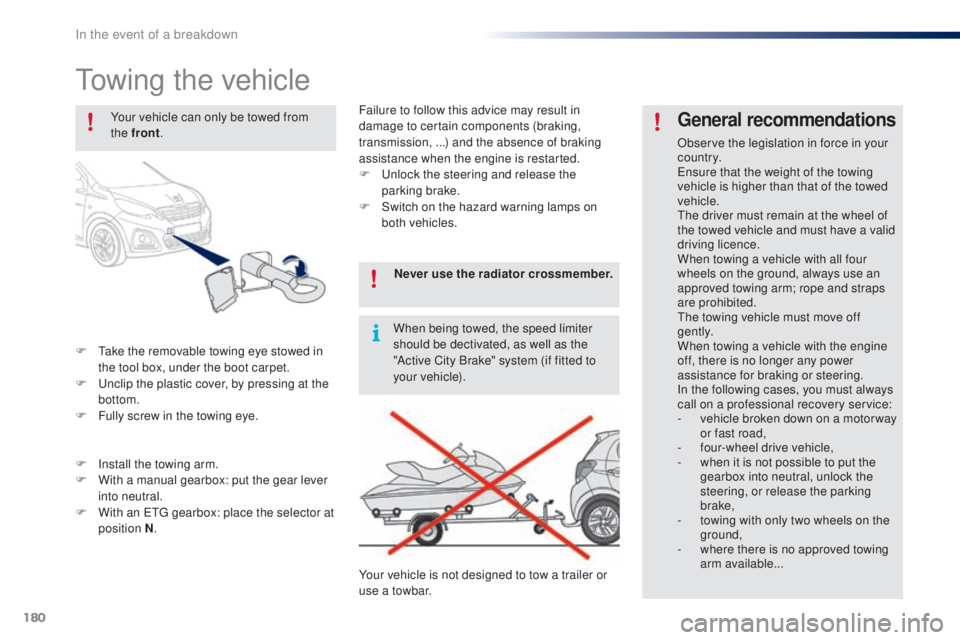

towing the vehicle
F take the removable towing eye stowed in the tool box, under the boot carpet.
F
u
n
clip the plastic cover, by pressing at the
bottom.
F

F
ully screw in the towing eye.
general recommendations
Observe the legislation in force in your
c o unt r y.
en
sure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
th

e driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing arm; rope and straps
are prohibited.
th

e towing vehicle must move off
g e nt l y.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always
call on a professional recovery service:
-

v
ehicle broken down on a motor way
or fast road,
-
f

our-wheel drive vehicle,
-

w
hen it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,
-

t
owing with only two wheels on the
ground,
-

w
here there is no approved towing
arm available...
Your vehicle can only be towed from
the front
.
F

I

nstall the towing arm.
F

W

ith a manual gearbox: put the gear lever
into neutral.
F

W

ith an
etg
gearbox: place the selector at
position N . Never use the radiator crossmember.
When being towed, the speed limiter
should be dectivated, as well as the
"Active City Brake" system (if fitted to
your vehicle).
Your vehicle is not designed to tow a trailer or
use a towbar. Failure to follow this advice may result in
damage to certain components (braking,
transmission, ...) and the absence of braking
assistance when the engine is restarted.
F
u
n

lock the steering and release the
parking brake.
F

S

witch on the hazard warning lamps on
both vehicles.
In the event of a breakdown

181
108_en_Chap09_caracteristiques-techniques_ed01-2016
Petrol engineVti 6 8Vti 6 8 S&SPurete ch 82
ge

arbox Manual

(5 - speed)
et

g
e
lectronic
(5 - speed) Manual
(5 - speed) Manual
(5 - speed)
Model code:
P... SCFBB
SCFBC ...B1A
...H1A ...P1A
...W1A SCFBB
SCFBC ...B1C
...H1C ...P1C
...W1C SCFB2
SCFB3 ...B1B
...H1B ...P1B
...W1B AHM
t

B
AHM
t

C...B1A
...H1A ...P1A
...W1A
Cubic capacity (cc) 9989989981 19 9
Bore x stroke (mm) 71 x 8471 x 8471 x 8475 x 90.5
e

u standard maximum power (kW)* 51515160
Max power engine speed (rpm) 6 0006 0006 000 5 750
e

u standard max torque (Nm) 959595118
Max torque engine speed (rpm) 4 3004 3004 300 2 750
Fuel
u

nleaded petrol
Catalytic converter Ye s
en

gine oil capacity in litres (with filter
replacement) 3.2
3.23.23.25
*
t
h
e maximum power corresponds to the value type-approved on a test bed, under conditions defined in e
u
ropean legislation
(Directive 1999/99/
eC

).
engines
...B1: 3 -door version.
...H1 : 5 -door version. ...P1
: 3 -door convertible version.
...W1 : 5 -door convertible version.
9
technical data

182
108_en_Chap09_caracteristiques-techniques_ed01-2016
engineVti 6 8Vti 6 8 S&SPurete ch 82
ge

arbox Manual

(5 - speed)
e

tg electronic
(5 - speed) Manual

(5 - speed) Manual
(5 - speed)
Model code:
P... SCFBB
SCFBC ...B1A
...H1A ...P1A
...W1A SCFBB
SCFBC ...B1C
...H1C ...P1C
...W1C SCFB2
SCFB3 ...B1B
...H1B ...P1B
...W1B AHM
t

B
AHM
t

C...B1A
...H1A ...P1A
...W1A
Kerb weight 840860 855865
un

laden weiight* 915935 930940
gr

oss vehicle weight (
gV
W) 1 2401 2401 2401 240
gr

oss train weight (
g
t
W
) 1 2401 2401 2401 240
Weights (in kg)
the design of your vehicle does not permit the fitting of a towbar.
*
t
h

e unladen weight is equal to the kerb weight + driver (75 kg).
...B1
: 3 -door version.
...H1 : 5 -door version. ...P1
: 3 -door convertible version.
...W1 : 5 -door convertible version.
technical data
