2016 PEUGEOT 108 Owners Manual

151
108_en_Chap07_info-pratiques_ed01-2016
Checks
12 V battery
the battery does not require any maintenance.
However, check regularly that the terminals
are correctly tightened (versions without quick
release terminals) and that the connections
are clean.Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.
Air filter and passenger compartment filter
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
oil filter
unless otherwise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Other wise, have them checked by a PeugeOt dealer or a qualified workshop.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary .
A clogged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.
When carrying out any operation on the 12 V
battery, refer to the corresponding section for
details of the precautions to be taken before
starting work.
Manual gearbox
the gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.
Clutch
the clutch is operated mechanically and
requires regular adjustment.
Refer to the manufacturer's service schedule
for information on when the adjustment should
be checked.
In the event of an operating fault
(difficulty moving off, for example),
contact a P
e

uge
Ot
dealer or a
qualified workshop.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried
out only by a P
e

uge
Ot

dealer or a
qualified workshop.
7
Practical information

152
108_en_Chap07_info-pratiques_ed01-2016
etg gearbox
the etg gearbox does not require
any maintenance (no oil change).
Refer to the manufacturer's service
schedule for information on when this
unit should be checked.
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to
Brake pads
For information on checking brake
disc wear, contact a Pe ugeOt
dealer or a qualified workshop.
Brake disc wearOnly use products recommended by
Pe ugeOt or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, P
e

uge
Ot
selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must
be checked, even between two
services.
Checking this system must be done by a
P
e

uge
Ot
dealer or a qualified workshop.
have the condition of the brakes checked, even
between vehicle services.
un

less there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
to a

void damaging the electrical units,
never use a high pressure jet wash in
the engine compartment.
Practical information

153
108_en_Chap08_en-cas-pannes_ed01-2016
Comprising a compressor and a sealant
cartridge, it allows the temporary repair of
a tyre so that you can drive to the nearest
garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.
temporary puncture repair kit
Composition of the kit
1. 12 V compressor, with integral pressure gauge.
2.
S

ealant cartridge, with integral hose.
3.
Spe

ed limit sticker.
th

e speed limit sticker must be secured
to the interior of the vehicle in the
driver's field of vision, to remind you
that a wheel is in temporary use.th
is kit is installed in the storage box, under the
boot floor.
th

e vehicle's electric system allows the
connection of the compressor for long
enough to inflate a tyre after a puncture
repair.
Do not exceed a speed of 50 mph
(80
km/h) when driving with a tyre
repaired using this type of kit.
Access to the kit
8
In the event of a breakdown

154
108_en_Chap08_en-cas-pannes_ed01-2016
F uncoil the pipe stowed under the compressor.
F

C
onnect the pipe from the compressor to
the sealant cartridge.
F
t
u
rn the the sealant cartridge and secure it
in the cut-out provided on the compressor.

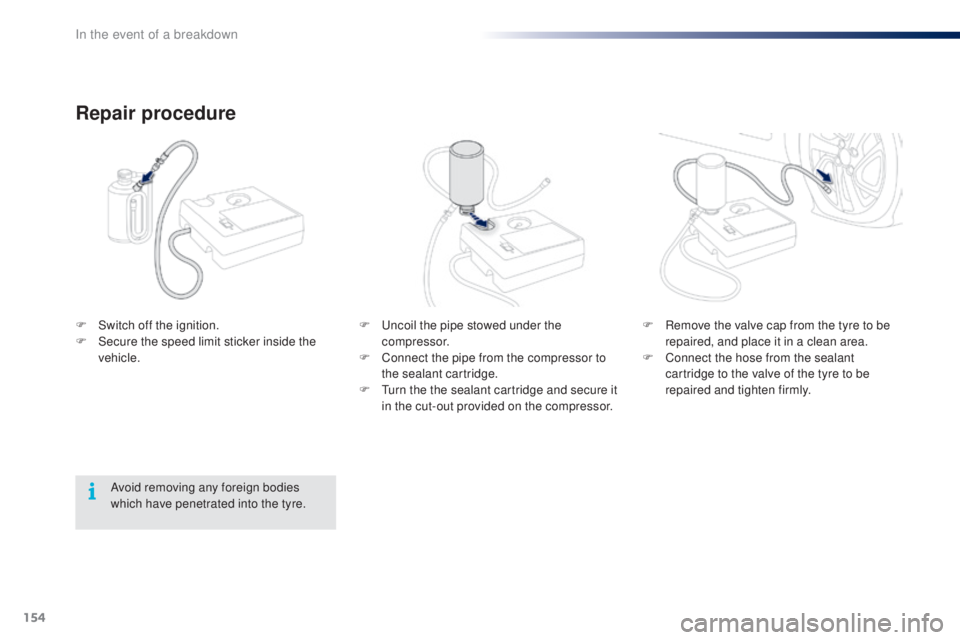

Repair procedure
Avoid removing any foreign bodies
which have penetrated into the tyre. F

R
emove the valve cap from the tyre to be
repaired, and place it in a clean area.
F
C
onnect the hose from the sealant
cartridge to the valve of the tyre to be
repaired and tighten firmly.
F

S

witch off the ignition.
F

S

ecure the speed limit sticker inside the
vehicle.
In the event of a breakdown

155
108_en_Chap08_en-cas-pannes_ed01-2016
F Check that the compressor switch is at the "o" position.
F
u
n
coil fully the electric cable, stowed under
the compressor.
F

C
onnect compressor's plug to the vehicle's
12 V socket.
F

S
witch on the ignition.
ta
ke care, the sealant product is
harmful if swallowed and causes
irritation to the eyes.
Keep this product out of the reach of
children.
th

e use-by date is marked on the
cartridge.
After use, do not discard the
cartridge by the roadside, take it to a
P
e

uge
Ot
dealer or an authorised
waste disposal site.
Don't forget to obtain a new sealant
cartridge, available from a P
e

uge
Ot

dealer or a qualified workshop. If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a P
e
uge
Ot
dealer or a qualified
workshop for assistance.
F S tart the compressor by placing the switch
at the " I" position and leave it running until
the tyre pressure reaches 2.0 bar.


t
h
e sealant product is injected into the tyre
under pressure; do not disconnect the pipe
from the valve during this operation (risk of
splashing and stains).
8
In the event of a breakdown

156
108_en_Chap08_en-cas-pannes_ed01-2016

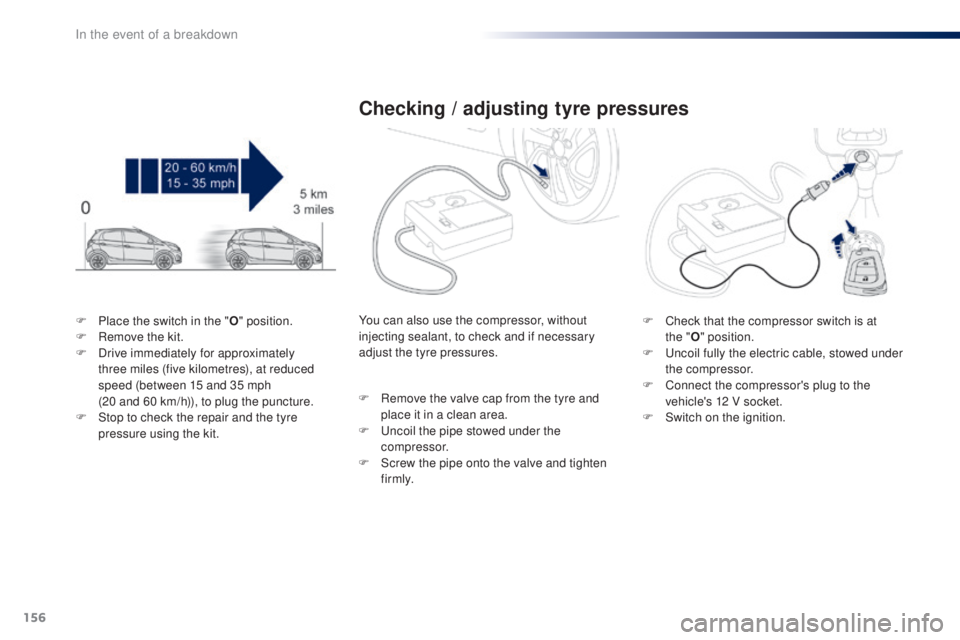

F Place the switch in the "o" position.
F R emove the kit.
F

D
rive immediately for approximately
three
miles (five kilometres), at reduced
speed (between 15 and 35 mph
(20 and 60
km/h)), to plug the puncture.
F

S
top to check the repair and the tyre
pressure using the kit.
Checking / adjusting tyre pressures
F Check that the compressor switch is at the "o" position.
F
u
n
coil fully the electric cable, stowed under
the compressor.
F

C
onnect the compressor's plug to the
vehicle's 12 V socket.
F

S
witch on the ignition.
You can also use the compressor, without
injecting sealant, to check and if necessary
adjust the tyre pressures.
F

R

emove the valve cap from the tyre and
place it in a clean area.
F
u
n

coil the pipe stowed under the
compressor.
F

S

crew the pipe onto the valve and tighten
f i r m l y.
In the event of a breakdown

157
108_en_Chap08_en-cas-pannes_ed01-2016
Should the pressure of one or more
tyres be adjusted, it is necessary to
reinitialise the under-inflation detection
system.
For more information on under-inflation
detection, refer to the corresponding
section.
Tyre under-inflation
detection
After repair of the tyre, the warning
lamp will remain on until the system is
reinitialised.
For more information on under-inflation
detection, refer to the corresponding
section.

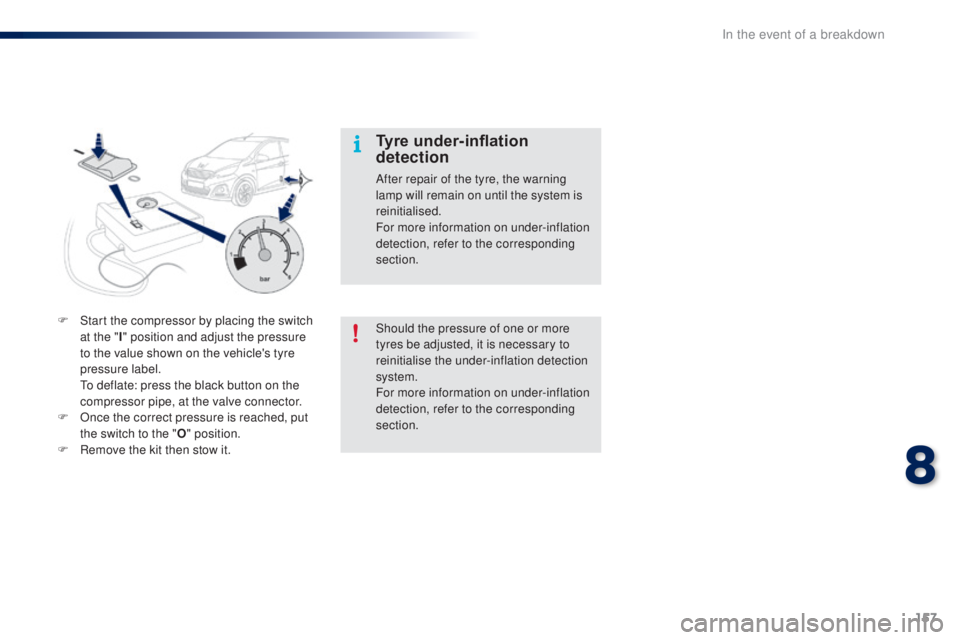

F

S

tart the compressor by placing the switch
at the " I" position and adjust the pressure
to the value shown on the vehicle's tyre
pressure label.


t
o d

eflate: press the black button on the
compressor pipe, at the valve connector.
F

O

nce the correct pressure is reached, put
the switch to the "
o"

position.
F

R

emove the kit then stow it.
8
In the event of a breakdown

158
108_en_Chap08_en-cas-pannes_ed01-2016
Spare wheel
F As far as possible, immobilise the vehicle on level, stable, non-slippery ground.
F

A
pply the parking brake.
F

S
witch off the ignition ("
oFF" m

ode for
vehicles fitted with "Keyless
e
n
try and
Starting").
F
e
n
gage first gear or reverse for a manual
gearbox.
F

P
lace the gear selector at position N for an
e

tg
el
ectronic gearbox.
Parking the vehicle
Procedure for replacing a wheel with a damaged tyre by the spare wheel using the tools supplied with the vehicle.
F
I
f necessary, chock the wheel diagonally
opposite the wheel to be changed.
F

Y
ou must ensure that the occupants leave
the vehicle and wait in a safe location.
In the event of a breakdown
