2016 PEUGEOT 108 Owners Manual

MODE
239
108_en_Chap10b_Autoradio-toyota-2_ed01-2016

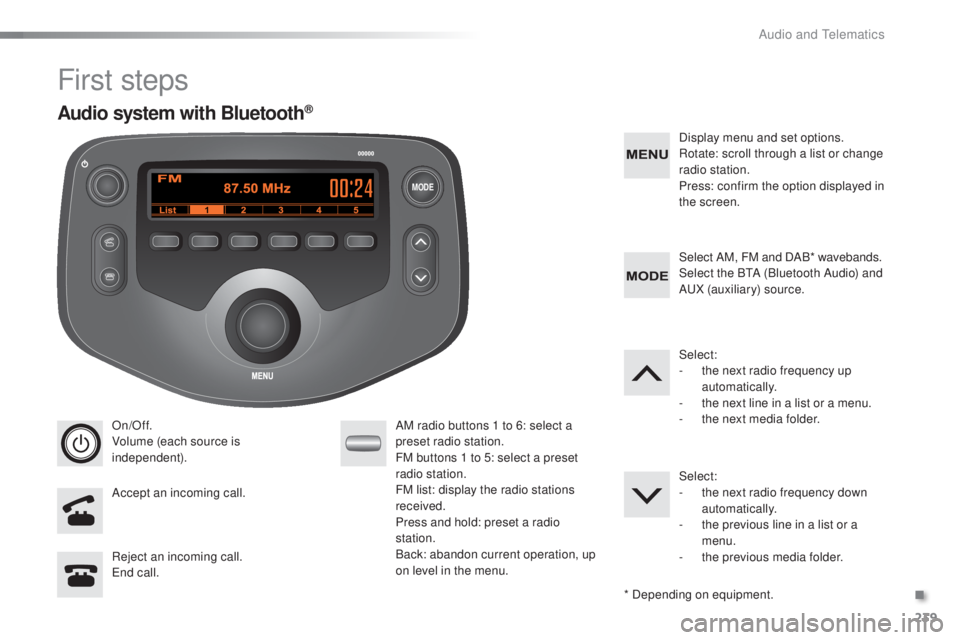

First steps
On/Off.
Volume (each source is
independent).
Accept an incoming call. AM radio buttons 1 to 6: select a
preset radio station.
FM buttons 1 to 5: select a preset
radio station.
FM list: display the radio stations
received.
Press and hold: preset a radio
station.
Back: abandon current operation, up
on level in the menu.Display menu and set options.
Rotate: scroll through a list or change
radio station.
Press: confirm the option displayed in
the screen.
Reject an incoming call.
en
d call. Select AM, FM and DAB* wavebands.
Select the B
tA (

Bluetooth Audio) and
A
uX
(auxiliary) source.
Select:
-
t
he next radio frequency up
automatically.
-
t
he next line in a list or a menu.
- t he next media folder.
Select:
-

t
he next radio frequency down
automatically.
-

t
he previous line in a list or a
menu.
-

t
he previous media folder.
* Depending on equipment.
Audio system with Bluetooth®
.
Audio and telematics

MODE
240
108_en_Chap10b_Autoradio-toyota-2_ed01-2016

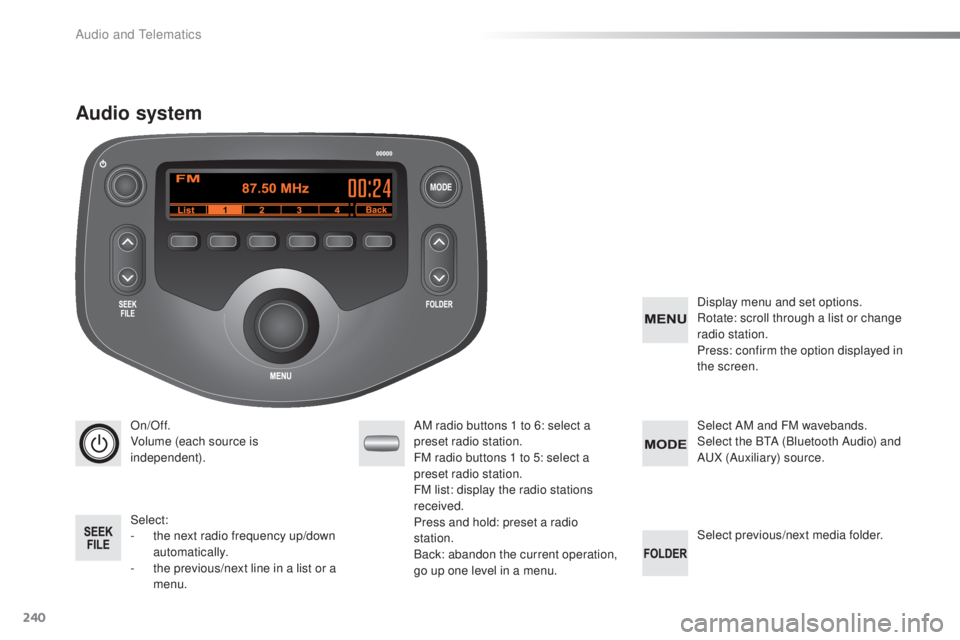

On/Off.
Volume (each source is
independent).
Select:
-

t
he next radio frequency up/down
automatically.
-

t
he previous/next line in a list or a
menu. AM radio buttons 1 to 6: select a
preset radio station.
FM radio buttons 1 to 5: select a
preset radio station.
FM
list: display the radio stations
received.
Press and hold: preset a radio
station.
Back: abandon the current operation,
go up one level in a menu. Display menu and set options.
Rotate: scroll through a list or change
radio station.
Press: confirm the option displayed in
the screen.
Select AM and FM
wavebands.
Select the BtA ( Bluetooth Audio) and
A
uX

(Auxiliary) source.
Select previous/next media folder.
Audio system
Audio and telematics

241
108_en_Chap10b_Autoradio-toyota-2_ed01-2016
Steering mounted controls
Select AM and FM wavebands
and BtA (
Bluetooth Audio) and / or
A
uX

(Auxiliary) sources.
Press and hold: Mute / restore
sound from the radio or pause media
sources. Increase volume.
Decrease volume.
Reject the incoming call.
en

d the call in progress.
Radio: change to preset radio
stations in ascending order.
Media: next track.
Radio: change to preset radio
stations in descending order.
Media: previous track.
Accept an incoming call.
.
Audio and telematics

242
108_en_Chap10b_Autoradio-toyota-2_ed01-2016
Radio
Selecting a station Presetting a station
Press on "MoD e" t o select the FM or
AM waveband. Press on "
MoD e" t o select the FM or
AM waveband.
tu

rn the dial to carry out a manual
search down/up for radio stations.
In FM mode, press the " List" button
to display the list of stations received
locally.
Press on "
upd

ate" to refresh the list. Press and hold one of the buttons to
preset the current radio station.
t
h
e
name of the station is displayed and
an audible signal confirms the preset.
Briefly press one of the buttons to
carry out an automatic search down/
up for radio stations.
Briefly press one of these buttons to
start an automatic search up/down
for frequencies.
Press one of the buttons to select the
chosen radio station then confirm.
the

surroundings (hills, buildings,
tunnel, parking, under ground...) may
prevent reception, including RDS
alternative frequencies, frequency
search.
th

is phenomenon is normal in the
propagation of radio waves and does
not in any way imply a fault with the
audio system.
Alternative frequencies
(AF) / RDS
Press on " MeN u" t o display the list.
tu

rn the knob to select " Radio" then
press to confirm.
tu

rn the knob to select " FM AF" then
press to activate or deactivate the
frequency.
tu

rn the knob the select " Region
Code " then press to activate or
deactivate.
When alternative frequencies (AF) is
activated, the system selects the best
RDS frequency (Region code) for the
station being listened to.
However, in certain conditions, tracking
of a station is not available throughout
the whole country, as radio stations do
not cover 100% of the country. When
reception becomes poor, the frequency
changes to a regional station.
Audio and telematics

243
108_en_Chap10b_Autoradio-toyota-2_ed01-2016

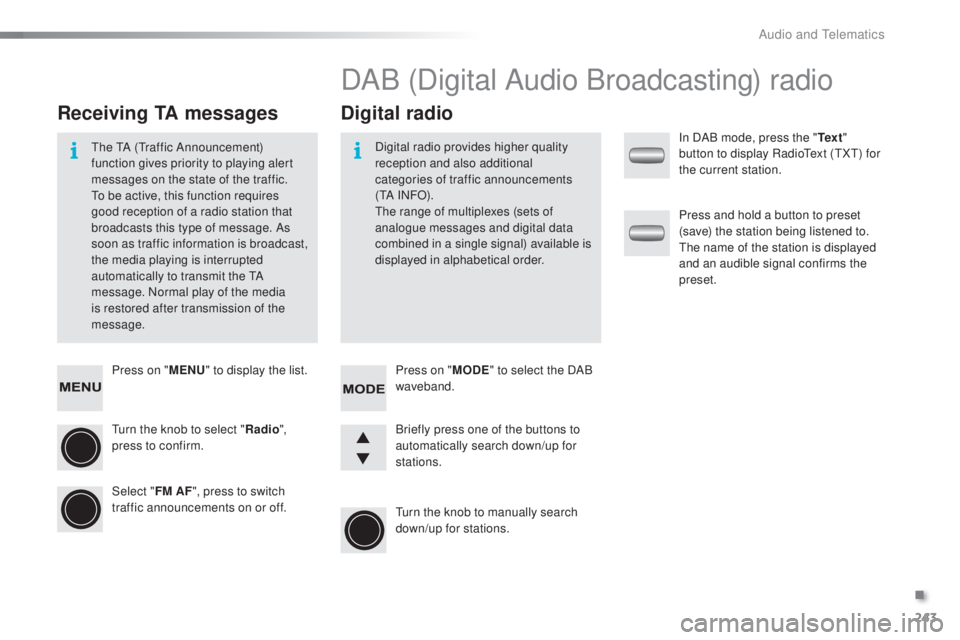

Press on "MeN u" t o display the list.
tu

rn the knob to select " Radio",
press to confirm.
Select " FM AF", press to switch
traffic announcements on or off.
Receiving tA messages Digital radio
the tA (traffic Announcement)
function gives priority to playing alert
messages on the state of the traffic.
to b

e active, this function requires
good reception of a radio station that
broadcasts this type of message. As
soon as traffic information is broadcast,
the media playing is interrupted
automatically to transmit the
t
A
m

essage. Normal play of the media
is restored after transmission of the
message. Digital radio provides higher quality
reception and also additional
categories of traffic announcements
(
t

A I N FO) .
th

e range of multiplexes (sets of
analogue messages and digital data
combined in a single signal) available is
displayed in alphabetical order.
DAB (Digital Audio Broadcasting) radio
Press on " MoD e" t o select the DAB
waveband.
tu

rn the knob to manually search
down/up for stations. Briefly press one of the buttons to
automatically search down/up for
stations. In DAB mode, press the "
t

e x t
"
button to display Radio
te
xt (
tXt) f
or
the current station.
Press and hold a button to preset
(save) the station being listened to.
th
e name of the station is displayed
and an audible signal confirms the
preset.
.
Audio and telematics

244
108_en_Chap10b_Autoradio-toyota-2_ed01-2016

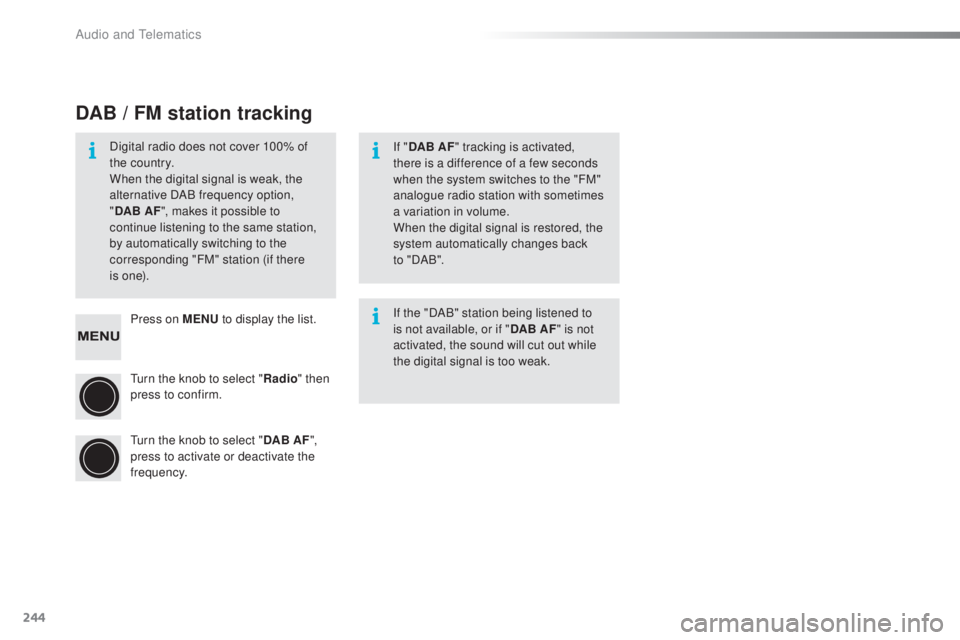

Press on MeNu t o display the list.
tu

rn the knob to select " Radio" then
press to confirm.
tu

rn the knob to select " DAB AF",
press to activate or deactivate the
frequency.
DAB / FM station tracking
Digital radio does not cover 100% of
the country.
When the digital signal is weak, the
alternative DAB frequency option,
" DAB AF ", makes it possible to
continue listening to the same station,
by automatically switching to the
corresponding "FM" station (if there
i s


o n e). If "
DAB AF " tracking is activated,
there is a difference of a few seconds
when the system switches to the "FM"
analogue radio station with sometimes
a variation in volume.
When the digital signal is restored, the
system automatically changes back
to


" DA B ".
If the "DAB" station being listened to
is not available, or if " DAB AF" is not
activated, the sound will cut out while
the digital signal is too weak.
Audio and telematics

245
108_en_Chap10b_Autoradio-toyota-2_ed01-2016

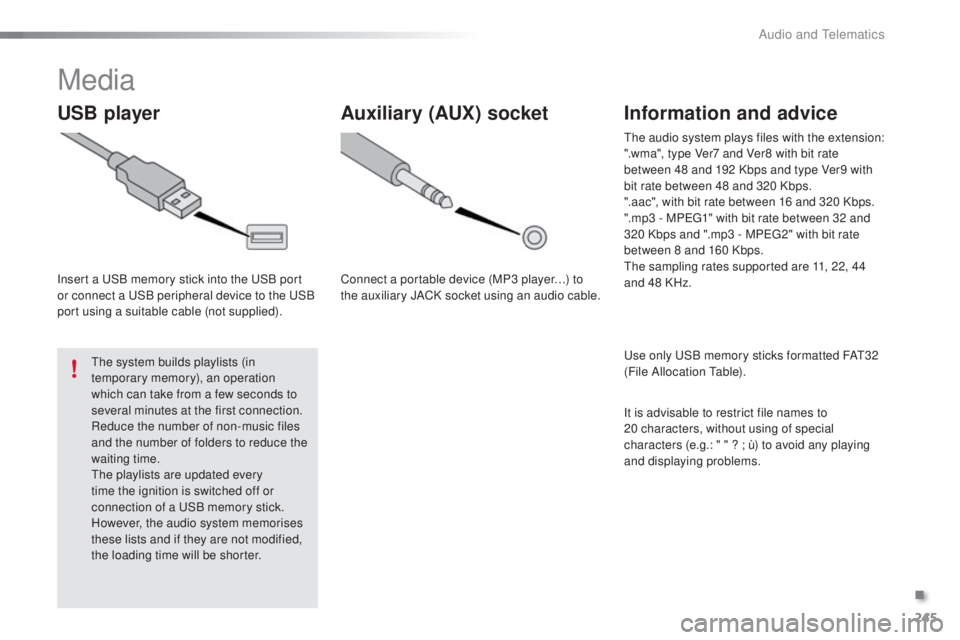

Media
uSB player
Insert a uSB memory stick into the uS B port
or connect a uS B peripheral device to the uS B
port using a suitable cable (not supplied).
th

e system builds playlists (in
temporary memory), an operation
which can take from a few seconds to
several minutes at the first connection.
Reduce the number of non-music files
and the number of folders to reduce the
waiting time.
th

e playlists are updated every
time the ignition is switched off or
connection of a
u
S
B memory stick.
However, the audio system memorises
these lists and if they are not modified,
the loading time will be shorter.
Auxiliary (AuX ) socket
Connect a portable device (MP3 player…) to
the auxiliary JACK socket using an audio cable.
Information and advice
use only uS B memory sticks formatted FAt3 2
(File Allocation ta ble).
th
e audio system plays files with the extension:
".wma", type Ver7 and Ver8 with bit rate
between 48 and 192 Kbps and type Ver9 with
bit rate between 48 and 320 Kbps.
".aac", with bit rate between 16 and 320 Kbps.
".mp3 - MP
e
g
1
" with bit rate between 32 and
320 Kbps and ".mp3 - MP
e
g
2
" with bit rate
between 8 and 160 Kbps.
th
e sampling rates supported are 11, 22, 44
and 48 KHz.
It is advisable to restrict file names to
20


characters, without using of special
characters (e.g.: " " ?
; ù) to avoid any playing
and displaying problems.
.
Audio and telematics

246
108_en_Chap10b_Autoradio-toyota-2_ed01-2016
Audio streaming Connecting Apple® players
Streaming allows audio files on your telephone
to be played via the vehicle's speakers.
You can also view, activate or deactivate
system settings related to the Bluetooth
function.Select "Bluetooth", then "
Pairing".
Press on " M
eN

u
" t
o display the list.
tu

rn the knob to select "Bluetooth",
press to display the list.
Once connected for streaming, the
telephone is considered as a media
source.
If play does not start automatically, it
may be necessary to start audio play
from the telephone. Connect the Apple
® player to the uS
B port
using a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
th

e classifications available are those of the
portable device connected (artists / albums
/
genres / tracks / playlists / audio books
/
podcasts).
th

e default classification used is by artist. t
o
m

odify the classification used, return to the
first level of the menu then select the desired
classification (playlists for example) and
confirm to go down through the menu to the
desired track.
th

e version of software in the audio system
may not be compatible with the generation of
your Apple
® p l aye r.
Connect the telephone: see the "
tel

ephone
"
section.
th

e system accepts
u
S

B mass storage
devices or Apple
® players via the uS B ports. th
e adaptor cable is not supplied.
Control of the peripheral device is with the
audio system controls.
Other peripherals, not recognised on
connection, must be connected to the auxiliary
socket using a Jack cable (not supplied).
th

e system can alternatively read files via the
Bluetooth
® system and the uS B port.
It is recommended that the u
S
B cable
for the portable device is used.
