2016 PEUGEOT 108 Owners Manual

15
108 _en_Chap01_instrument- de-bord_ed01-2016

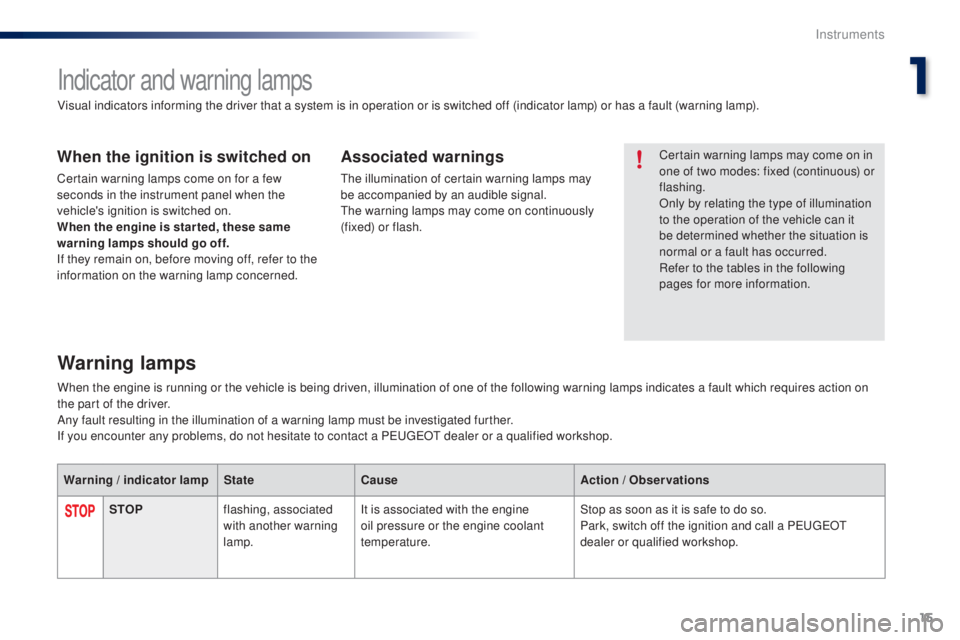

Indicator and warning lamps
Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred.
Refer to the tables in the following
pages for more information.
Visual indicators informing the driver that a system is in operation or is switched off (indicator lamp) or has a fault (warning lamp).When the ignition is switched on
Certain warning lamps come on for a few
seconds in the instrument panel when the
vehicle's ignition is switched on.
When the engine is star ted, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.
Associated warnings
the illumination of certain warning lamps may
be accompanied by an audible signal.
th

e warning lamps may come on continuously
(fixed) or flash.
Warning lamps
StoP f lashing, associated
with another warning
lamp. It is associated with the engine
oil pressure or the engine coolant
temperature. Stop as soon as it is safe to do so.
Park, switch off the ignition and call a Pe
ugeOt
dealer or qualified workshop.
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further.
If you encounter any problems, do not hesitate to contact a P
e

uge
Ot
dealer or a qualified workshop.
Warning / indicator lamp StateCause Action / o
b
servations
1
Instruments

16
Brakingfixed.th e braking system fluid level has
dropped significantly.to p up with brake fluid recommended by Pe ugeOt.
I f the problem persists, have the system checked by a
P
e

uge
Ot
dealer or a qualified workshop.
th

e braking system has a fault. Stop as soon as it is safe to do so.Park, switch off the ignition and contact a P
e

uge
Ot

dealer or a qualified workshop.
Warning / indicator lamp
StateCause Action / o
b
servations
en

gine oil
pressure fixed, associated with
the S
tO

P warning
lamp.
th

e engine oil pressure is too low. Stop as soon it is safe to do so.Park, switch off the ignition and contact a P
e

uge
Ot

dealer or a qualified workshop.
Coolant
temperature flashing (V
ti 6

8
e
ngine
only).
the

temperature of the engine
coolant is increasing. Drive gently.
fixed.
the

temperature of the engine
coolant is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
checking up the level; top up if necessary.
If the problem persists, contact a P
e

uge
Ot
dealer or
qualified workshop.
Anti-lock
Braking System
(ABS) fixed.
th

e anti-lock braking system has a
fault.
th

e vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
P
e

uge
Ot
dealer or a qualified workshop without
d e l ay.
Instruments

17
108 _en_Chap01_instrument- de-bord_ed01-2016
Low fuel levelfixed, accompanied by
an audible signal. When it first comes on there remains
approximately 5 litres of fuel
in the
tank. You must refuel as soon as possible to avoid running
out of fuel.
th

is warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is
made.
Fuel tank capacity: approximately 35 litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
Battery charge fixed.
th

e battery charging circuit has a
fault (dirty or loose terminals, slack or
cut alternator belt, ...). Contact a P
e

uge
Ot
dealer or a qualified workshop.
em
ission control
system fixed.
th
e emission control system has a
fault. Contact a P
e
uge
Ot
dealer or a qualified workshop
without delay.
en
gine fault
fixed. A major fault has been detected that
does not have a specific warning lamp. You must contact a P
e
uge
Ot
dealer or a qualified
workshop.
Dynamic
stability control
and traction
control (DSC/
tR

C)
flashing.
th
e DSC/
tR
C system is in action.
th
e system optimises traction and improves the
directional stability of the vehicle.
fixed.
th
e DSC/
tR
C system has a fault. Have it checked by a P
e
uge
Ot
dealer or a qualified
workshop.
Warning / indicator lamp
StateCause Action / o
b
servations
1
Instruments

18
Front seat beltsflashing accompanied
by an audible signal.th e driver has not fastened or has
unfastened their seat belt.
the

front passenger has unfastened
their seat belt. Pull the strap then insert the tongue in the buckle.
Warning / indicator lamp
StateCause Action / o
b
servations
el

ectric power
steering flashing or fixed,
accompanied by an
audible signal.
th

e electric power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a P
e

uge
Ot
dealer or qualified
workshop.
Airbags
fixed. One of the airbags or seat belt
pretensioners has a fault. Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
e

tg electronic
gearbox fixed.
th

e etg electronic gearbox has a
fault. Contact a P
e

uge
Ot
dealer or a qualified workshop
without delay.
Clutch flashing, accompanied
by an audible signal.
th

e clutch temperature is too high. Stop as soon as it is safe to do so, place the etg
electronic gearbox selector in position N , and wait
about 15 minutes for the clutch to cool down.
Instruments

19
108 _en_Chap01_instrument- de-bord_ed01-2016
Stop & Star t
(Vti 68 S&S
engine) flashing.th
e Stop & Start system has a fault. Have the system checked by a Pe ugeOt dealer or a
qualified workshop.
Speed limiter fixed.
th

e speed limiter has a fault.Have it checked by a P
e

uge
Ot
dealer or a qualified
workshop.
Door(s) open /
Boot open fixed, accompanied by
an audible signal. A door or the boot is still open. Close the door or boot.
Warning / indicator lamp
StateCause Action / o
b
servations
und

er-inflation
fixed.
th
e pressure in one or more wheels
is too low. Check the pressure of the tyres as soon as possible.
th
is check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information, refer to the "
un
der-inflation
detection" section.
1
Instruments

20
Warning / indicator lampStateCause Action / ob servations
Keyless e
n
tr y
and Starting
system flashing quickly.
th

e steering column has not been
unlocked. Change to "
oFF
" m

ode, then "
oN" m

ode and turn the
wheel slightly to unlock the steering column.
flashing, accompanied
by an audible signal.
th

e battery in the electronic key is
discharged. Replace the battery.
Refer to the corresponding section.
You are leaving the vehicle without
activating "
oFF " m

ode.With the electronic key on your person, press the
S
tA

R
t/
S
tO
P button to change to "
oFF" m

ode.
th

e electronic key has not been
detected. Check that you have the electronic key with you.
th

e Keyless e
n
try and Starting
system has a fault. Have the system checked by a P
e

uge
Ot
dealer or a
qualified workshop.
Lane departure
warning system flashing (orange),
accompanied by an
audible signal. A lane marking is being crossed, on
the right.
tu

rn the wheel in the other direction to return to the
correct trajectory.
For more information, refer to the corresponding
section.
A lane marking is being crossed, on
the left.
fixed.
th

e lane departure warning system
has a fault. Have the system checked by a P
e

uge
Ot
dealer or a
qualified workshop.
Active City
Brake flashing, accompanied
by an audible signal.
th

e Active City Brake system is in
action.
th

e system optimises braking to avoid a collision.
For more information, refer to the corresponding
section.
flashing.
th

e Active City Brake system has a
fault. Have the system checked by a P
e

uge
Ot
dealer or a
qualified workshop.
Instruments

21
108 _en_Chap01_instrument- de-bord_ed01-2016

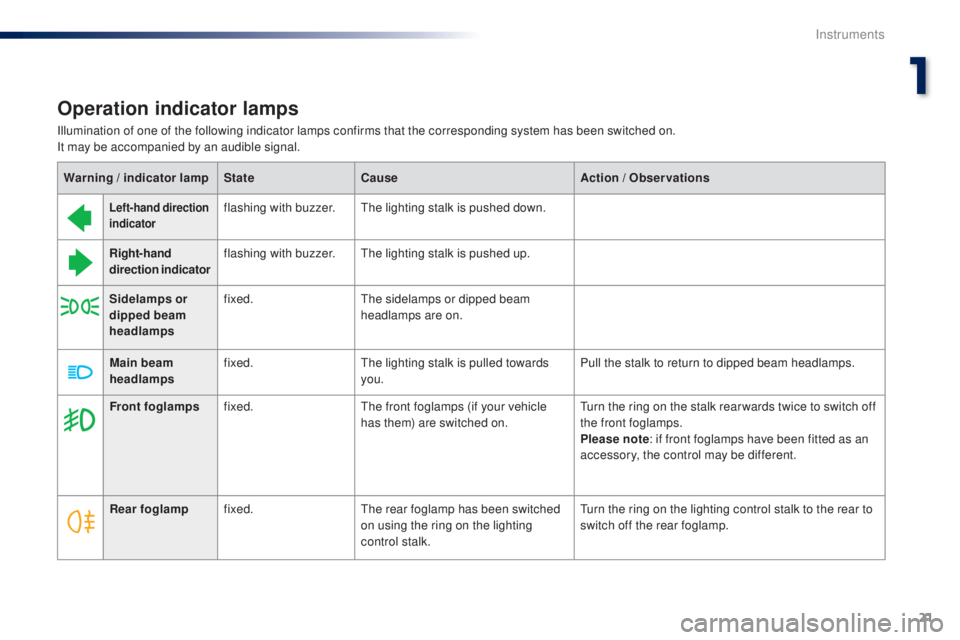

operation indicator lamps
Left-hand direction
indicatorflashing with buzzer.th e lighting stalk is pushed down.
Right-hand
direction indicator flashing with buzzer.
th

e lighting stalk is pushed up.
Sidelamps or
dipped beam
headlamps fixed.
th

e sidelamps or dipped beam
headlamps are on.
Main beam
headlamps fixed.
th

e lighting stalk is pulled towards
you. Pull the stalk to return to dipped beam headlamps.
Warning / indicator lamp
StateCause Action / o
b
servations
Illumination of one of the following indicator lamps confirms that the corresponding system has been switched on.
It may be accompanied by an audible signal.
Rear foglamp fixed.
th

e rear foglamp has been switched
on using the ring on the lighting
control stalk.
tu

rn the ring on the lighting control stalk to the rear to
switch off the rear foglamp.
Front foglamps
fixed.
th

e front foglamps (if your vehicle
has them) are switched on.
tu

rn the ring on the stalk rear wards twice to switch off
the front foglamps.
Please note : if front foglamps have been fitted as an
accessory, the control may be different.
1
Instruments

22
Parking brakefixed, accompanied by
an audible signal.th e parking brake is applied or not
properly released. Release the parking brake to switch off the warning
lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For more information on the parking brake, refer to the
corresponding section.
Warning / indicator lamp
StateCause Action / o
b
servations
Passenger's
front airbag fixed in the seat belt
and passenger's front
airbag warning lamps
display.
th

e control switch, located in the
glove box, has been placed in the
"
o
N
" position.
the

passenger's front airbag is activated.
In this case, do not install a rear ward facing child seat.
Stop & Star t
(V
ti 6

8 S&S
engine) fixed.
When the vehicle stops (red lights,
traffic jams...) the Stop & Start system
has put the engine into S
tO

P mode.
th
e indicator lamp goes off and the engine restarts
automatically in S
tA

R
t
mode, as soon as you want to
move off.
Keyless
e
n
tr y
and Starting
system fixed.
th

e conditions for starting are met. For more information, refer to the "Starting - switching off the engine with the Keyless
e
n
try and Starting
system" section.
flashing slowly.
th

e vehicle is in "ACC" mode.
th

e accessories (audio system,
12V socket...) can be used.
Instruments
