2016 PEUGEOT 108 Owners Manual

23
108 _en_Chap01_instrument- de-bord_ed01-2016

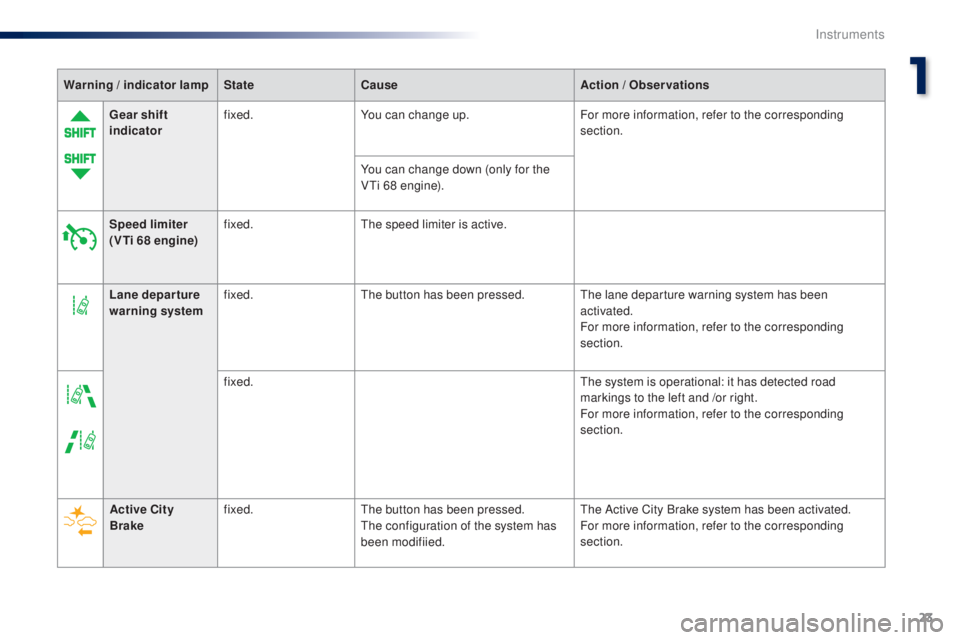

Warning / indicator lampStateCause Action / ob servations
ge

ar shift
indicator fixed.
You can change up. For more information, refer to the corresponding
section.
You can change down (only for the
V
ti 6

8 engine).
Speed limiter
(V
ti 6

8 engine)fixed.
th

e speed limiter is active.
Lane departure
warning system fixed.
th

e button has been pressed.
th
e lane departure warning system has been
activated.
For more information, refer to the corresponding
section.
fixed.
th

e system is operational: it has detected road
markings to the left and /or right.
For more information, refer to the corresponding
section.
Active City
Brake fixed.
th

e button has been pressed.
th

e configuration of the system has
been modifiied.
th

e Active City Brake system has been activated.
For more information, refer to the corresponding
section.
1
Instruments

24
Passenger's
front airbagfixed, in the seat belt
and front passenger's
airbag warning lamps
display.th
e control switch, located in the
glove box, is set to the oFF p
osition.the passenger's front airbag is deactivated.
You can install a "rear ward facing" child seat on the
front seat unless there is a fault with the airbags
(Airbag warning lamp on).
tr

action control
(
tR

C) fixed.
A brief press has been made on the
button.
th

e traction control (
tR
C) system is
deactivated. Press the button to activate the system.
th

e t
R
C system is activated automatically when the
vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).
For more information, refer to the corresponding
section.
Dynamic
stability control
(DSC) fixed.
Vehicle stationary, the button
has been pressed for more than
3


seconds.
th

e traction control (
tR
C) and
dynamic stability control (DSC)
systems are deactivated. Press this button to activate the systems.
th

e DSC system is activated automatically when the
vehicle is started.
For more information, refer to the corresponding
section.
Warning / indicator lamp
StateCause Action / o
b
servations
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.th
is is may be accompanied by an audible signal.
Instruments

25
108 _en_Chap01_instrument- de-bord_ed01-2016
Warning / indicator lampStateCause Action / ob servations
Stop & Star t
( V
t

i 68 S&S
engine) fixed.
th

e Stop & Start system has been
deactivated. Reactivate the system by pressing the button again.
For more information, refer to the corresponding
section.
Active City
Brake fixed.
th

e Active City Brake system has
been deactivated. Reactivate the system by pressing the button again.
For more information, refer to the corresponding
section.
1
Instruments

26
Indicators
total/trip distance
recorder
Press one of the buttons 1 to alternate the
distance display:
-
t
otal with " o
D
o
" (

odometer) displayed,
-

t
rip with "
t
RIP" displayed.
to r

eset the trip recorder to zero, when
it is displayed, press and hold one of the
two
buttons 1 .
When the ignition is switched on, the distance
recorder selected when the engine was
switched off is displayed.th
is indicates the quantity of fuel available:
- 1/ 1 and six bars, the fuel tank is full.
-

R
and one bar, the fuel tank is on the
reserve.
Low fuel level
Fuel gauge
At least 5 litres must be added after
running out of fuel.
You have approximately 5 litres remaining.
When the low level in the fuel tank is
reached, this warning lamp comes on
in the instrument panel, accompanied
by an audible signal.
Instruments

27
108 _en_Chap01_instrument- de-bord_ed01-2016
tr i p c o m p u t e r
System that gives you information on the journey in progress (range, fuel consumption…).
Information display
F Press one of theses buttons to display the various trip computer tabs in turn:
-
t
h
e total distance.
-
t
h
e trip "A".
-
t
h
e trip "B" .
-
t
h
e Stop & Start partial time counter*.
-
t
h
e Stop & Start global time counter*.
-


t
h
e ambient temperature*.
-
t
h
e current fuel consumption.
-


t
h
e average fuel consumption.
-


t
he
remaining range.
-


t
h
e average speed.
-
t
h
e lighting dimmer.
trip reset
F When the trip required is displayed, press one of the two " DISP" buttons for more
than two seconds.
t

r i p s "A" and "B" are independent but their
use is identical.
For example, trip "A" can be used for daily
figures, and trip "B" for monthly figures.
* Depending on version.
Ambient temperature
In certain situations, the ambient temperature
may only be displayed after a delay or not at all, in
particular:
- when stationary or at low speed (less than about 18 mph (25 km/h),
- where there is too much variation in temperature (entering or leaving a garage, a tunnel...),
- during very short journeys (less than about 2 minutes).
Lighting dimmer
When driving at night, this function allows
certain displays in the instrument panel to be
switched off to reduce visual fatigue for the
driver.
It operates only when the sidelamps are on.
F

W
hen the "Lighting dimmer" menu
is displayed, press and hold one of
the " DISP " buttons for access to the
adjustment.
F
t
h
en make repeated presses on one of the
two " DISP " buttons to increase or reduce
the brightness.


t
h
e display flashes to show you the
brightness chosen.
1
Instruments

28
With the touch screen
From the Menu page in the touch screen:
F Sel ect the " Vehicle information " tab.
th

e "
tr
ip information " window is displayed
with the following information:
-
"Average speed ",
-
"
ela
psed time ",
-
"Range ",
-

t
he current fuel consumption, presented in
graphical form.
th

e "
er
ase" button resets the fuel consumption
data in the touch screen and the instrument
panel. If your vehicle has a touch screen, you can
view information on the current journey.
trip computer, a few definitions
Range
(miles or km)th e distance which can still be travelled with
the fuel remaining in the tank (related to the
average fuel consumption over the last few
miles (kilometres) travelled).
th

is value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
When the fuel level is low, the message
"Lo
F
u
e
L
" is displayed.
If only a small amount of fuel is added, the
range may not be recalculated.
Current fuel consumption
(mpg or l/100 km or km/l)
Calculated over the last few seconds.
Stop & Start time counter
(minutes / seconds or hours / minutes)
If your vehicle is fitted with Stop & Start,
a
time counter calculates the time spent in
S
tO

P mode during a journey.
It resets to zero every time the ignition is
switched on.
Average fuel consumption
(mpg or l/100 km or km/l)
Calculated since the last trip computer reset.
Average speed
(mph or km/h)
Calculated since the last trip computer reset.
Instruments

29
108 _en_Chap01_instrument- de-bord_ed01-2016

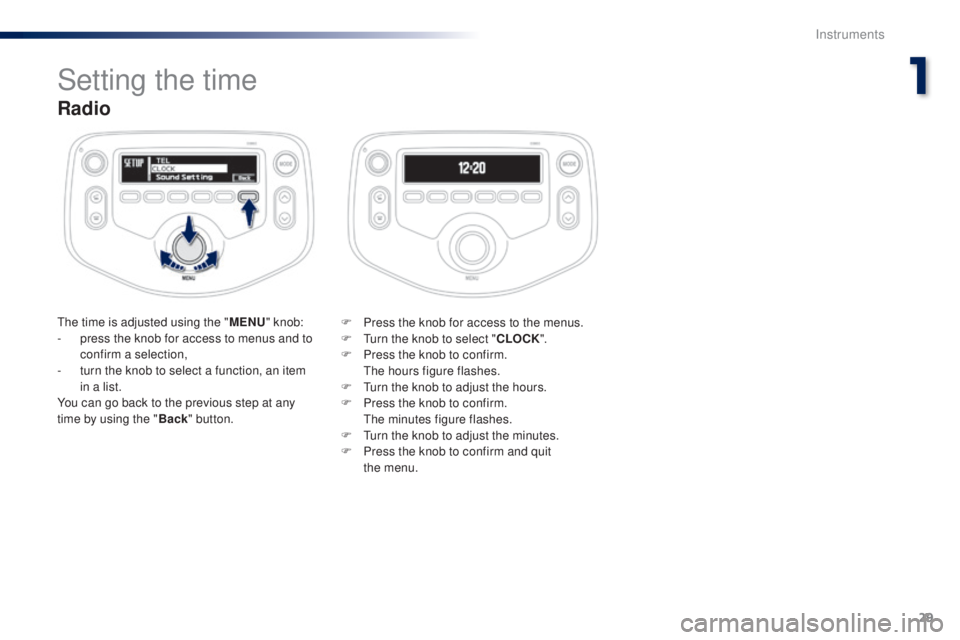

Radio
the time is adjusted using the "MeN u" knob:
- p ress the knob for access to menus and to
confirm a selection,
-

t
urn the knob to select a function, an item
in a list.
You can go back to the previous step at any
time by using the " Back" button. F
P ress the knob for access to the menus.
F
t
u
rn the knob to select "CL
o
C
K".
F

P
ress the knob to confirm.


t
h
e hours figure flashes.
F
t
u
rn the knob to adjust the hours.
F

P
ress the knob to confirm.


t
h
e minutes figure flashes.
F
t
u
rn the knob to adjust the minutes.
F

P
ress the knob to confirm and quit
the


menu.
Setting the time
1
Instruments

30

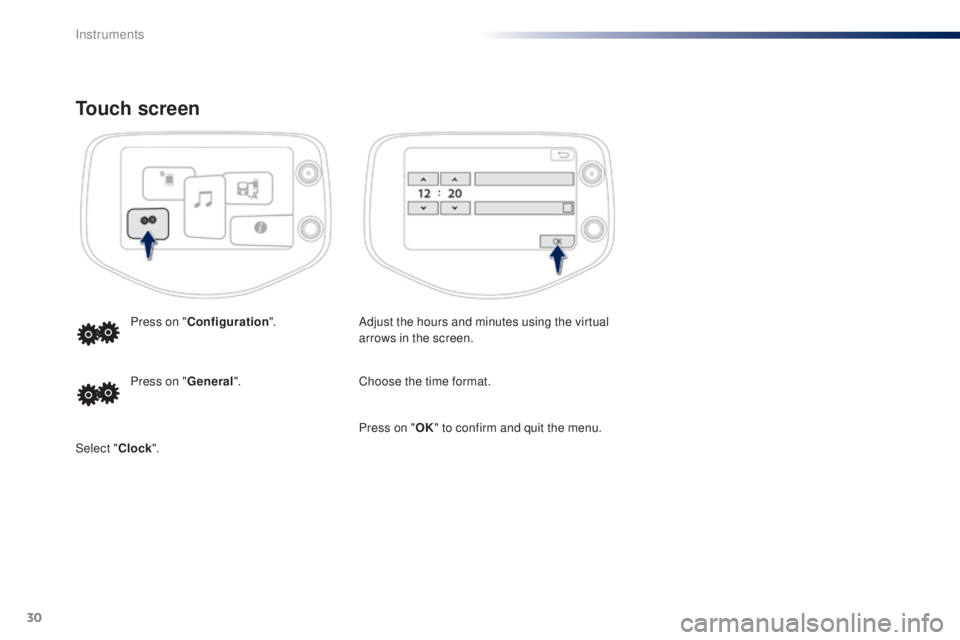

touch screen
Adjust the hours and minutes using the virtual
arrows in the screen.
Press on "
Configuration ".
Choose the time format.
Press on "
gen

eral ".
Select " Clock". Press on "
oK
" t

o confirm and quit the menu.
Instruments
