2016 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

4–129
When Driving
Rear View Monitor
Displayable Range on the Screen
The images on the screen may be different from the actual conditions.


(Screen display)
(Actual view)
Object Trunk lid (4-door)/
garnish (5-door)
Bumper

N O T E



y The displayable range varies depending on the vehicle and road conditions.



y The displayable range is limited. Objects under the bumper or around the bumper ends
cannot be displayed.



y The distance appearing in the displayed image is different from the actual distance
because the rear view parking camera is equipped with a speci¿ c lens.




y Some optionally installed vehicle accessories may be picked up by the camera. Do not
install any optional parts that can interfere with the camera view, such as illuminating
parts or parts made of reÀ ective material.




y It may be dif¿ cult to see the display under the following conditions, however, it does not
indicate a malfunction.



y In darkened areas.



y When the temperature around the lens is high/low.



y When the camera is wet such as on a rainy day or during periods of high humidity.



y When foreign material such as mud is stuck around the camera.



y When the camera lens reÀ ects sunlight or headlight beams.



y Image display may be delayed if the temperature around the camera is low.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–130
When Driving
Rear View Monitor
Viewing the Display
Guide lines which indicate the width of the vehicle (yellow) are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.

b
a

a) Vehicle width guide lines (yellow)
These guide lines serve as a reference to the approximate width of the vehicle.
b) Distance guide lines.
These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).

The red and yellow lines indicate the points about 50 cm (19 in) for the red line and 100
cm (39.3 in) for the yellow lines from the rear bumper (at the center point of each of the
lines).

CAUTION
The guide lines on the screen are fi xed lines. They are not synced to the driver's turning
of the steering wheel. Always be careful and check the area to the vehicle's rear and the
surrounding area directly with your eyes while backing up.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–131
When Driving
Rear View Monitor

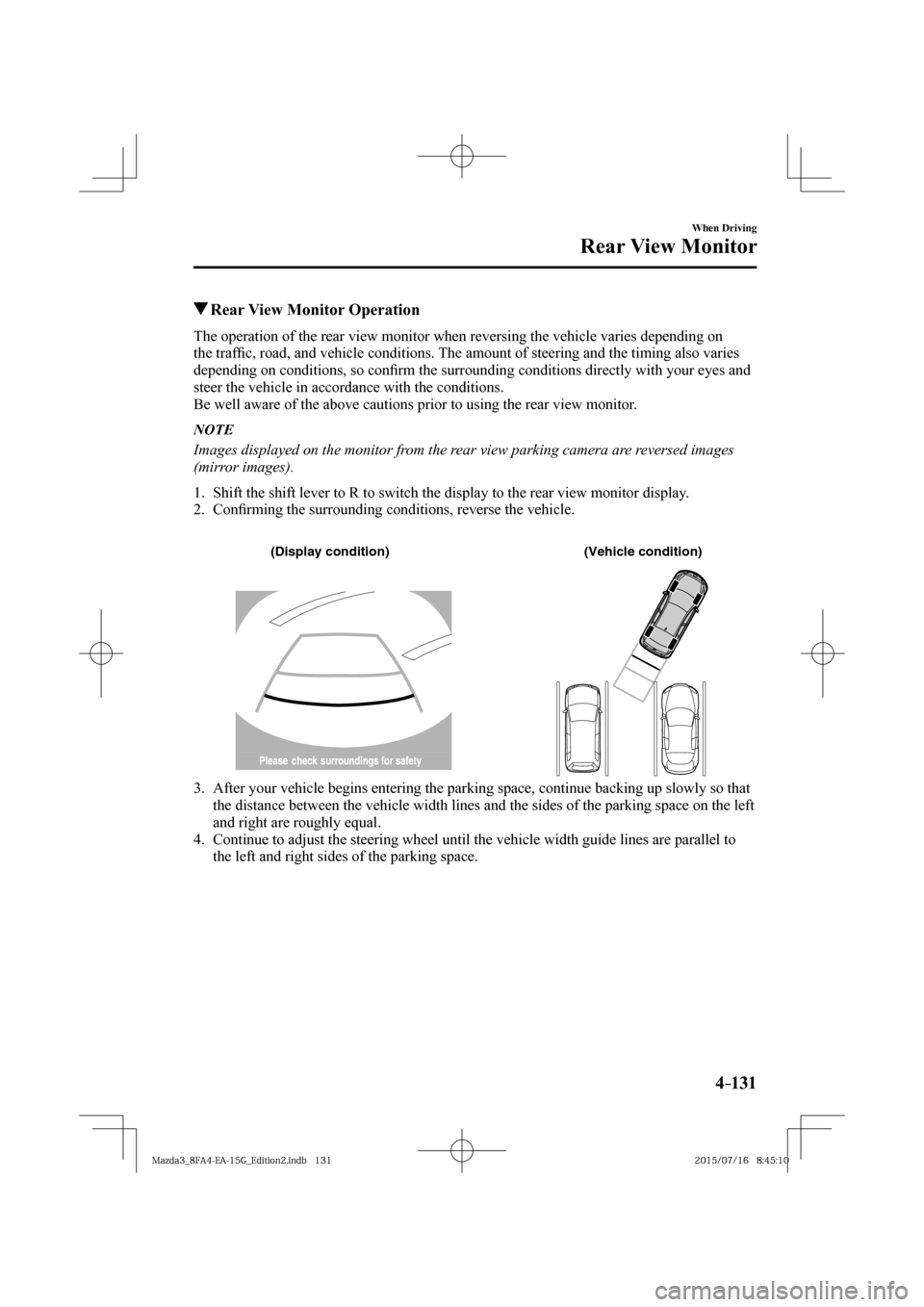

Rear View Monitor Operation
The operation of the rear view monitor when reversing the vehicle varies depending on
the traf¿ c, road, and vehicle conditions. The amount of steering and the timing also varies
depending on conditions, so con¿ rm the surrounding conditions directly with your eyes and
steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
N O T E
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).

1. Shift the shift lever to R to switch the display to the rear view monitor display.
2. Con¿ rming the surrounding conditions, reverse the vehicle.


(Display condition) (Vehicle condition)

3. After your vehicle begins entering the parking space, continue backing up slowly so that
the distance between the vehicle width lines and the sides of the parking space on the left
and right are roughly equal.
4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to
the left and right sides of the parking space.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–132
When Driving
Rear View Monitor
5. Once they are parallel, straighten the wheels and back your vehicle slowly into the
parking space. Continue checking the vehicle's surroundings and then stop the vehicle
in the best possible position. (If the parking space has division lines, check whether the
vehicle width guide lines are parallel to them.)


(Display condition) (Vehicle condition)

6. When the shift lever is shifted from R to another shift lever position, the screen returns to
the previous display.
N O T E
Because there may be a difference between the displayed image, such as indicated below,
and the actual conditions when parking, always verify the safety at the rear of the vehicle
and the surrounding area directly with your eyes.



y In the image of the parking space (or garage) displayed below, even though the back end
and distance guide lines appear parallel in the monitor, they may not actually be parallel
on the ground.



y When parking in a space with a division line on only one side of the parking space, the
division line and the vehicle width guide line may appear parallel on the monitor, but they
may not actually be parallel on the ground.



.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–133
When Driving
Rear View Monitor
Variance Between Actual Road Conditions and Displayed Image
Some variance occurs between the actual road and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may cause
a variance in distance perspective.
When the vehicle is tilted due to the weight of passengers and load
When the vehicle rear is lowered, the object displayed on the screen appears farther than the
actual distance.

VarianceObject
When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.

Appears
farther than
actual
distanceAppears
closer than
actual
distance
Object at actual
position Object at actual position
Object on screen
A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object.Object on screen

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–134
When Driving
Rear View Monitor
Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a À at surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.

A
A
C B
CB
(Actual distance) B>C=A
Sensed distance on screen A>B>C(Screen display)
(Actual condition)

Picture Quality Adjustment
WARNING
Always adjust the picture quality of the rear view monitor while the vehicle is stopped:
Do not adjust the picture quality of the rear view monitor while driving the vehicle.
Adjusting the picture quality of the rear view monitor such as brightness, contrast, color,
and tint while driving the vehicle is dangerous as it could distract your attention from the
vehicle operation which could lead to an accident.

Picture quality adjustment can be done while the shift lever is in reverse (R).
There are four settings which can be adjusted including, brightness, contrast, tint, and color.
When adjusting, pay suf¿ cient attention to the vehicle surroundings.

1. Select the icon on the screen to display the tabs.
2. Select the desired tab item.
3. Adjust the brightness, contrast, tint, and color using the slider.
If you need to reset, press the reset button.
4. Select the
icon on the screen to close the tab.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–1*Some models.
5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.



Climate Control System..................................................................... 5-2
Operating Tips ............................................................................... 5-2
Vent Operation .............................................................................. 5-3
Manual Climate Control ............................................................... 5-5
Automatic Climate Control ........................................................... 5-9
Dual-Zone Automatic Climate Control ....................................... 5-12

Audio System .................................................................................... 5-16
Antenna ....................................................................................... 5-16
Operating Tips for Audio System ............................................... 5-17
Audio Set (Type A) ..................................................................... 5-25
Audio Set (Type B) ..................................................................... 5-36
Audio Control Switch Operation
* ............................................... 5-57
AUX/USB/iPod mode ................................................................. 5-59

Bluetooth
® ......................................................................................... 5-77
Bluetooth®* .................................................................................. 5-77
Bluetooth® Hands-Free (Type A)* ............................................... 5-99
Bluetooth® Hands-Free (Type B)* ............................................. 5-105
Bluetooth® Audio (Type A)* ...................................................... 5-115
Bluetooth® Audio (Type B)* ...................................................... 5-117
Troubleshooting* ....................................................................... 5-131

Interior Equipment ........................................................................ 5-134
Sunvisors ................................................................................... 5-134
Interior Lights ........................................................................... 5-135
Accessory Sockets .................................................................... 5-137
Cup Holder ................................................................................ 5-138
Bottle Holder ............................................................................. 5-139
Storage Compartments .............................................................. 5-140
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–2
Interior Features
Climate Control System
O p e r a t i n g T i p s













y Operate the climate control system with
the engine running.



y To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine is
not running.



y Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system ef¿ ciency.




y Use the climate control system to defog
the windows and dehumidify the air.



y The recirculate mode should be used
when driving through tunnels or while in
a traf¿ c jam, or when you would like to
shut off outside air for quick cooling of
the interior.



y Use the outside air position for
ventilation or windshield defrosting.



y If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the climate control system.

(With A/C switch)





y Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.



y Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
ef¿ cient.

 The refrigerant speci¿ cations are
indicated on a label attached to the
inside of the engine compartment. Check
the label before re¿ lling the refrigerant.
If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.
  For details, consult an Authorized
Mazda Dealer.


Label
