When Driving

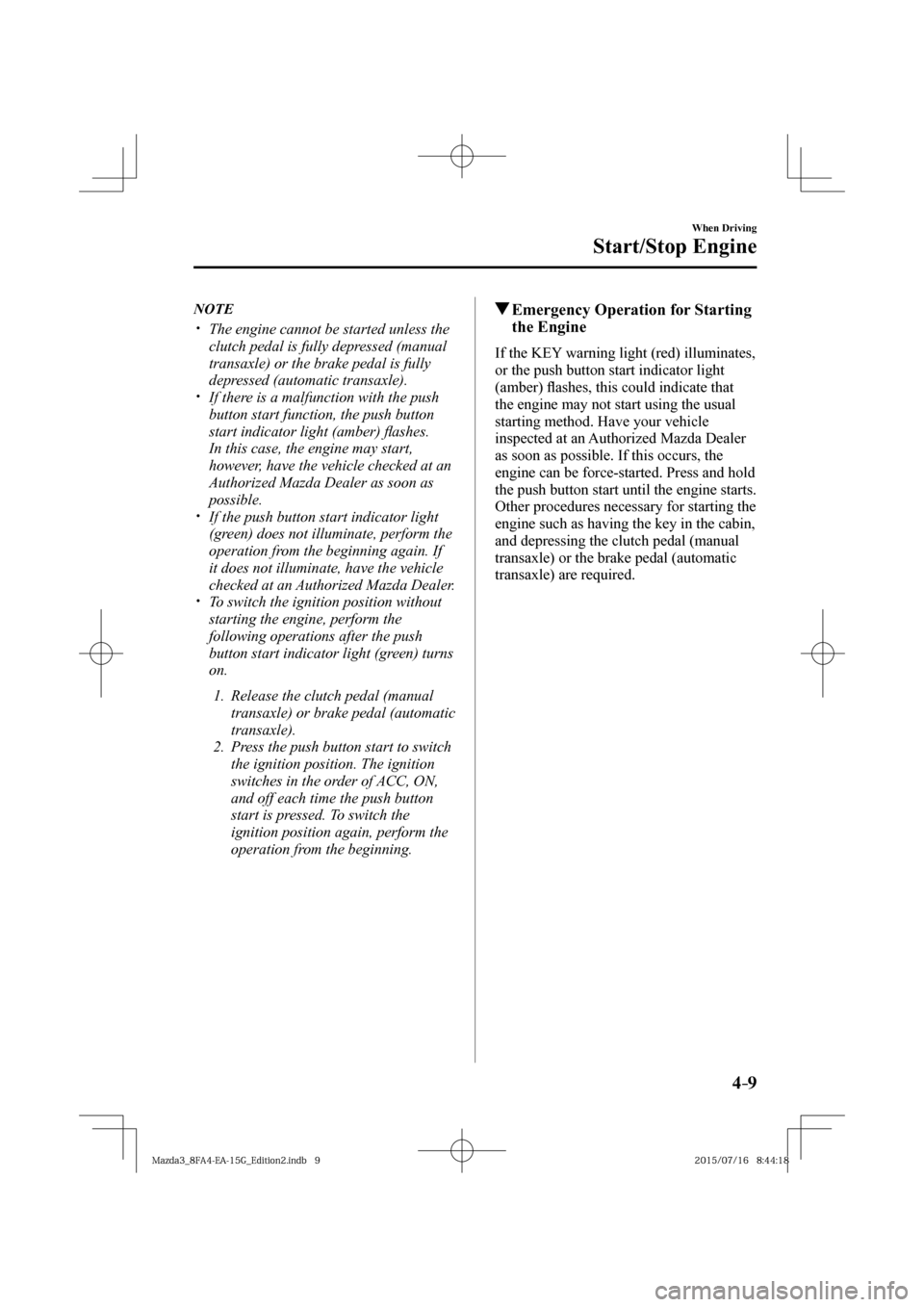

Start/Stop Engine
N O T E



y The engine cannot be started unless the
clutch pedal is fully depressed (manual
transaxle) or the brake pedal is fully
depressed (automatic transaxle).



y If there is a malfunction with the push
button start function, the push button
start indicator light (amber) À ashes.
In this case, the engine may start,
however, have the vehicle checked at an
Authorized Mazda Dealer as soon as
possible.



y If the push button start indicator light
(green) does not illuminate, perform the
operation from the beginning again. If
it does not illuminate, have the vehicle
checked at an Authorized Mazda Dealer.



y To switch the ignition position without
starting the engine, perform the
following operations after the push
button start indicator light (green) turns
on.

1. Release the clutch pedal (manual
transaxle) or brake pedal (automatic
transaxle).
2. Press the push button start to switch
the ignition position. The ignition
switches in the order of ACC, ON,
and off each time the push button
start is pressed. To switch the
ignition position again, perform the
operation from the beginning.


Emergency Operation for Starting
the Engine
If the KEY warning light (red) illuminates,
or the push button start indicator light
(amber) À ashes, this could indicate that
the engine may not start using the usual
starting method. Have your vehicle
inspected at an Authorized Mazda Dealer
as soon as possible. If this occurs, the
engine can be force-started. Press and hold
the push button start until the engine starts.
Other procedures necessary for starting the
engine such as having the key in the cabin,
and depressing the clutch pedal (manual
transaxle) or the brake pedal (automatic
transaxle) are required.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–10
When Driving
Start/Stop Engine

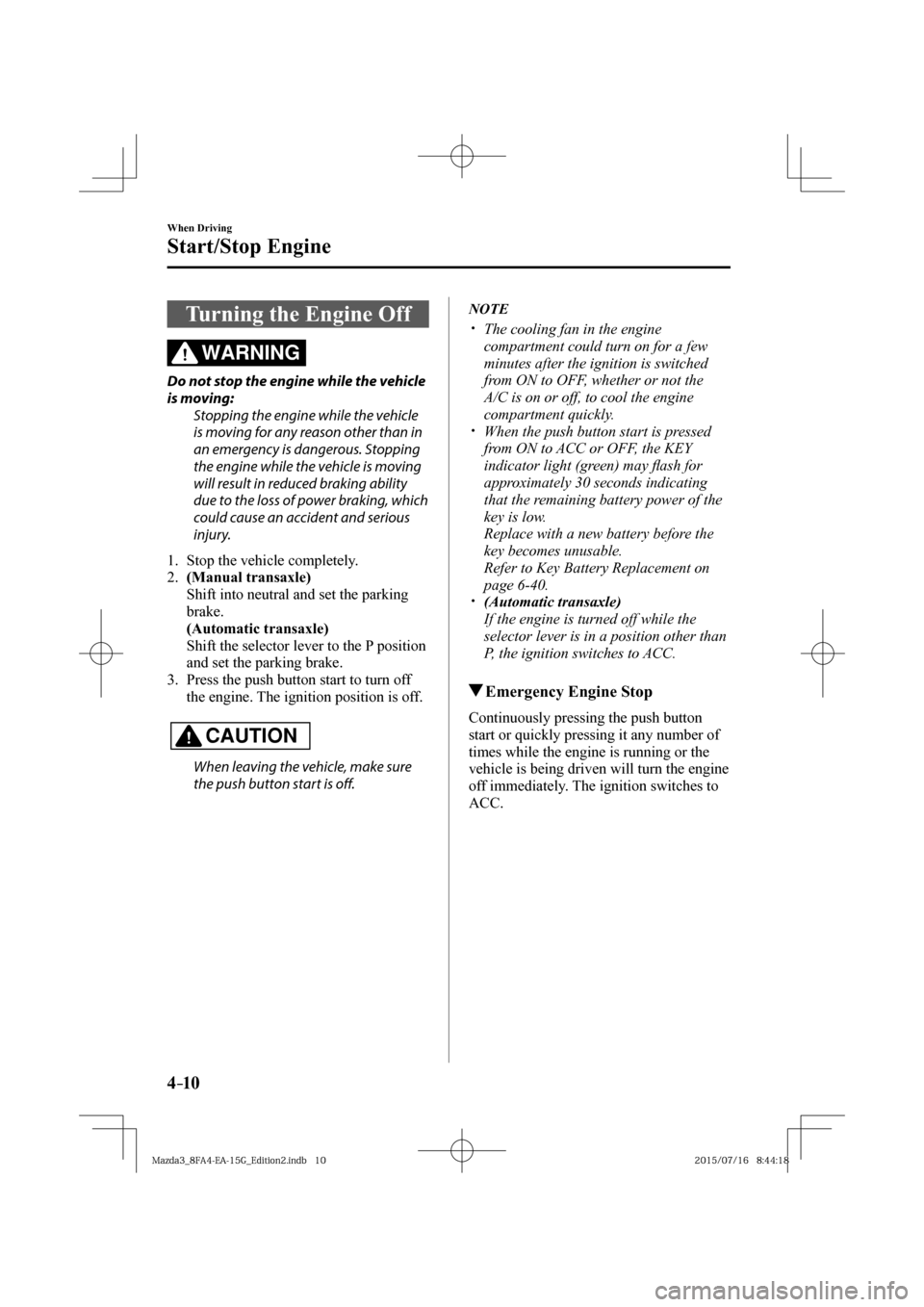

Turning the Engine Off
WARNING
Do not stop the engine while the vehicle
is moving:
Stopping the engine while the vehicle
is moving for any reason other than in
an emergency is dangerous. Stopping
the engine while the vehicle is moving
will result in reduced braking ability
due to the loss of power braking, which
could cause an accident and serious
injury.

1. Stop the vehicle completely.
2. (Manual transaxle)
Shift into neutral and set the parking
brake.
(Automatic transaxle)
Shift the selector lever to the P position
and set the parking brake.
3. Press the push button start to turn off
the engine. The ignition position is off.

CAUTION
When leaving the vehicle, make sure
the push button start is off .

N O T E




y The cooling fan in the engine
compartment could turn on for a few
minutes after the ignition is switched
from ON to OFF, whether or not the
A/C is on or off, to cool the engine
compartment quickly.



y When the push button start is pressed
from ON to ACC or OFF, the KEY
indicator light (green) may À ash for
approximately 30 seconds indicating
that the remaining battery power of the
key is low.
  Replace with a new battery before the
key becomes unusable.
  Refer to Key Battery Replacement on
page 6-40 .



y (Automatic transaxle)
 If the engine is turned off while the
selector lever is in a position other than
P, the ignition switches to ACC.

Emergency Engine Stop
Continuously pressing the push button
start or quickly pressing it any number of
times while the engine is running or the
vehicle is being driven will turn the engine
off immediately. The ignition switches to
ACC.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–11
When Driving
Instrument Cluster and Display
Meters and Gauges

Type A
Type B
Type C
Steering Switch (Digital Speedometer Type)
(Analog Speedometer Type (With Tachometer))
(Analog Speedometer Type (Without Tachometer))
Some models.
Instrument Cluster





Speedometer .......................................................................................................... page 4-12



Odometer, Trip Meter and Trip Meter Selector .................................................... page 4-12



Tachometer ............................................................................................................ page 4-14



Fuel Gauge ............................................................................................................ page 4-14



Dashboard Illumination......................................................................................... page 4-15



Outside Temperature Display ................................................................................ page 4-16



Cruise Control Set Vehicle Speed Display ............................................................ page 4-16



Active Driving Display ......................................................................................... page 4-18
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–12
When Driving
Instrument Cluster and Display


Trip Computer and INFO Switch .......................................................................... page 4-16



Speed Unit Selector ............................................................................................... page 4-12
Speedometer
The speedometer indicates the speed of the
vehicle.
Speed Unit Selector (Type A
Instrument Cluster)
In some countries, you may have to
change the speed units between km/h and
mph.
Press the speed unit selector for 1.5
seconds or more.
The speed units for the speedometer will
change between km/h and mph.


Speedometer
Speed unit selector

Odometer, Trip Meter and Trip
Meter Selector
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector while one of them is displayed.
The selected mode will be displayed. Type A/Type B


Press the selector
Press the selector
Press the selector Odometer
Trip meter A
Trip meter B

Ty p e C


Press the selector
Press the selector
Press the selector Odometer
Trip meter A
Trip meter B

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–13
When Driving
Instrument Cluster and Display
N O T E
When the ignition is switched to ACC or
off, the odometer or trip meters cannot be
displayed, however, pressing the selector
can inadvertently switch the trip meters or
reset them during an approximate ten-
minute period in the following cases:



y After the ignition is switched to off from
ON.



y After the driver's door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.

For instance, trip meter A can record the
distance from the point of origin, and
trip meter B can record the distance from
where the fuel tank is ¿ lled.

When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter records the total distance
the vehicle is driven until the meter
is again reset. Return it to “0.0” by
depressing and holding the selector for
one second or more. Use this meter to
measure trip distances and to compute fuel
consumption.
N O T E



y (Vehicles with type B audio)
 If the fuel economy data is reset using
the fuel economy monitor, or trip A
is reset using the trip meter when the
function which synchronizes the fuel
economy monitor and the trip meter is
on, the fuel economy data and trip A are
reset simultaneously.
  Refer to Fuel Economy Monitor on page
4-69 .



y Only the trip meters record tenths of
kilometers (miles).



y The trip record will be erased when:



y The power supply is interrupted
(blown fuse or the battery is
disconnected).



y The vehicle is driven over 9999.9 km
(mile).


.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–14
When Driving
Instrument Cluster and Display
*Some models.
Tachometer *
The tachometer shows engine speed in
thousands of revolutions per minute (rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
T y p e A


*1The range varies depending on the type
of gauge.*
1Striped zone
*
1Red zone

T y p e B


*1The range varies depending on the type
of gauge.*
1Striped zone
*
1Red zone

N O T E
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.

Fuel Gauge
The fuel gauge shows approximately
how much fuel is remaining in the tank
when the ignition is switched ON. We
recommend keeping the tank over 1/4 full.
Type A/Type B instrument cluster


Full
1/4 Full

Type C instrument cluster


Full
1/4 Full

If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Warning/Indicator Lights on page
4-20 .
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–15
When Driving
Instrument Cluster and Display
N O T E



y After refueling, it may require some
time for the indicator to stabilize. In
addition, the indicator may deviate
while driving on a slope or curve since
the fuel moves in the tank.



y The display indicating a quarter or less
remaining fuel has more segments to
show the remaining fuel level in greater
detail.



y The direction of the arrow ( ) indicates
that the fuel-¿ ller lid is on the left side
of the vehicle.

Dashboard Illumination
When the position lights are turned
on with the ignition switched ON,
the brightness of the instrument panel
illumination is dimmed.
N O T E
When the position lights are turned on,
the position lights indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-40 .

The brightness of the instrument panel and
dashboard illuminations can be adjusted
by rotating the knob.



y The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.



y The brightness increases by rotating the
knob to the right.


Dim
Bright

Function for cancelling illumination
dimmer
The illumination dimmer can be canceled
by rotating the dashboard illumination
knob to the right until a beep sound is
heard while the instrument cluster is
dimmed with the ignition switched ON.
If the instrument cluster's visibility is
reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.
N O T E



y When the illumination dimmer is
canceled, the instrument cluster cannot
be dimmed even if the position lights are
turned on.



y When the illumination dimmer is
canceled, the screen in the center
display switches to constant display of
the daytime screen.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–16
When Driving
Instrument Cluster and Display
*Some models.
Outside Temperature Display *
When the ignition is switched ON, the
outside temperature is displayed.



N O T E
Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and vehicle
conditions:



y Signi¿ cantly cold or hot
temperatures.



y Sudden changes in outside
temperature.



y The vehicle is parked.



y The vehicle is driven at low speeds.

The outside temperature unit can be
switched between Celsius and Fahrenheit
using the following procedure.

1. Press the INFO button with the ignition
switched off and continue pressing the
INFO button for 5 seconds or longer
while switching the ignition ON. The
outside temperature display À ashes.
2. Press the up
or down part of the
INFO switch to change the outside
temperature unit.
3. Press and hold the INFO button for 3
seconds or longer while the outside
temperature display is À ashing. The
outside temperature display illuminates.

Cruise Control Set Vehicle Speed
Display *
The vehicle speed preset using the cruise
control is displayed.



Trip Computer and INFO Switch *
The following information can be selected
by pressing the up
or down part of the
INFO switch with the ignition switched
ON.



y Approximate distance you can travel on
the available fuel



y Average fuel economy



y Current fuel economy



y Average vehicle speed
If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.
Distance-to-empty mode
This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.

The distance-to-empty will be calculated
and displayed every second.



.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC
