2016 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

9–11
Speci¿ cations
Speci¿ cations
Standard tire
(U.S.A. and Canada)
Tire size InÀ ation pressure
Front Rear
P205/60R16 91H 250 kPa (36 psi) 250 kPa (36 psi)
215/45R18 89W 250 kPa (36 psi) 250 kPa (36 psi)

(Mexico)
Tire size InÀ ation pressure
Front Rear
P205/60R16 91H 250 kPa (2.5 bar, 36 psi) 250 kPa (2.5 bar, 36 psi)

Tire size InÀ ation pressure
Up to 3 persons —Full load
215/45R18 89W Front 240 kPa (2.4 bar, 35 psi) 280 kPa (2.8 bar, 41 psi)
Rear 230 kPa (2.3 bar, 33 psi) 300 kPa (3.0 bar, 44 psi)
1 person's weight: About 75 kg

Temporary spare tire
Tire size InÀ ation pressure
T125/70D16 96M 420 kPa (60 psi)

Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
108—147 N•m (12—14 kgf•m, 80—108 ft•lbf)
Fuses
Refer to Fuses on page 6-63 .
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










9–12
Speci¿ cations
Personalization Features
Personalization Features
The following personalization features can be set or changed by an Authorized Mazda
Dealer. Consult an Authorized Mazda Dealer for details.
Additionally, some of the personalization features can be changed by the customer
depending on the feature.
Personalization features which can be changed differ depending on the market and
speci¿ cation.

Settings can be changed by operating the center display screen.

Settings can be changed by operating the vehicle switches.

Settings can be changed by an Authorized Mazda Dealer.
Item Feature Factory
Setting Available
Settings Settings change method

Safety Forward
Obstruction
Warning
(FOW)
Refer to
Forward
Obstruction
Warning
(FOW) on
page 4-95 . The system can be
changed so that
Forward Obstruction
Warning (FOW) does
not operate.
*1 On On/Off

Refer to
Settings
on page
5-55 . — —
The distance at
which the collision
warning activates can
be changed. Near Near/Far

Refer to
Settings
on page
5-55 . — —
The volume of the
collision warning can
be changed. High High/Low/
Off

Refer to
Settings
on page
5-55 . — —
Smart City
Brake Support
(SCBS)
Refer to
Smart City
Brake Support
(SCBS) on
page 4-106 . The system can be
changed so that
Smart City Brake
Support (SCBS) does
not operate.
*1 On On/Off
Refer to
Settings on
page
5-55 . — —
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










9–13
Speci¿ cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method

Safety Lane
Departure
Warning
System
(LDWS)
Refer to Lane
Departure
Warning
System
(LDWS) on
page 4-80 . The warning
sound for the Lane
Departure Warning
System (LDWS) can
be changed.
*2 Beep Beep/
Rumbl.

Refer to
Settings
on page
5-55 . —


The
volume
of the
warning
sound for
the Lane
Departure
Warning
System
(LDWS)
can be
changed. Rumbl. High High/Mid/
Low

Refer to
Settings
on page
5-55 . —


Beep High High/Low

Refer to
Settings
on page
5-55 . —


The sensitivity of the
warning for the Lane
Departure Warning
System (LDWS) can
be changed. Low High/Low

Refer to
Settings
on page
5-55 . —


The warning timing
in which the Lane
Departure Warning
System (LDWS)
determines that
the vehicle may be
deviating from its
lane can be changed. Before At/Before

Refer to
Settings
on page
5-55 . —


Blind Spot
Monitoring
(BSM) system
Refer to
Blind Spot
Monitoring
(BSM) System
on page
4-86 . The volume of the
BSM warning beep
can be changed.
*3 High High/
L o w /
O f f

Refer to
Settings
on page
5-55 . —


.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










9–14
Speci¿ cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method

Vehicle Power door
lock
Refer to Auto
Lock/Unlock
Function on
page 3-16 . Changes the auto
lock/unlock function
setting for all the
doors according to
the vehicle speed,
the vehicle power
supply condition,
and the selector lever
position. Lock: When
Driving
Unlock:
IGN Off Lock: Out
of Park
Unlock: In
Park/
Lock:
Shifting
Out of
Park/
Lock:
When
Driving
Unlock:
IGN Off/
Lock:
When
Driving/
O f f

Refer to
Settings
on page
5-55 .
Refer to Auto
Lock/Unlock
Function on
page 3-16 .

Keyless entry
system
Refer to
Keyless Entry
System on
page 3-3 . The method for
unlocking the doors
using the transmitter
can be changed. Driver's:
Once, All
Doors:
Twice All Doors:
Once/
Driver's:
Once, All
Doors:
Twice

Refer to
Settings
on page
5-55 .
Refer to
Transmitter
on page
3-4 .

The time required for
the doors to relock
automatically after
unlocking with the
transmitter can be
changed. 60 seconds 90 seconds/
60 seconds/
30 seconds

Refer to
Settings
on page
5-55 . —


.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










9–15
Speci¿ cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method

Vehicle Advanced
keyless entry
system
Refer to
Advanced
Keyless Entry
System on
page 3-9 . The volume of the
answer-back beep
during advanced
keyless entry system
operation can be
changed. Medium High/
Medium/
L o w /
O f f

Refer to
Settings
on page
5-55 .

Refer to
Locking,
Unlocking
with Request
Switch (With
the advanced
keyless
function) on
page 3-13 .

The function to
automatically lock
the doors when
leaving the vehicle
while carrying the
key can be changed. Off On/Off

Refer to
Settings
on page
5-55 . —


The method for
unlocking the doors
using the request
switch/transmitter
can be changed. Driver's:
Once, All
Doors:
Twice All Doors:
Once/
Driver's:
Once, All
Doors:
Twice

Refer to
Settings
on page
5-55 .

Refer to
Locking,
Unlocking
with Request
Switch (With
the advanced
keyless
function) on
page 3-13 .
Refer to
Transmitter
on page
3-4 .

The time required
for the doors to
relock automatically
after unlocking with
the request switch/
transmitter can be
changed. 60 seconds 90 seconds/
60 seconds/
30 seconds

Refer to
Settings
on page
5-55 . —


Illumination
entry
Refer to
Illuminated
Entry System
on page
5-136 . The time required for
the interior lamp to
turn off automatically
can be changed
(prevents battery
depletion when a
door is open/ajar). 30 minutes 60 minutes/
30 minutes/
10 minutes

Refer to
Settings
on page
5-55 . —


The time required for
the interior lamp to
turn off automatically
after all doors
are closed can be
changed. 15 seconds 60 seconds/
30 seconds/
15 seconds/
7.5 seconds

Refer to
Settings
on page
5-55 . —


.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










9–16
Speci¿ cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method

Vehicle Auto-wiper
control
Refer to
Windshield
Wipers and
Washer on
page 4-47 . The auto-wiper
control function can
be changed. On On/Off
*4

Refer to
Settings
on page
5-55 . —


Daytime
running lights
Refer to
Daytime
Running
Lights on page
4-45 . The function of the
daytime running
lights can be
changed. On On/
O f f — —


Auto headlight
off
*5
Refer to
Headlights on
page 4-40 . The time required
for headlights to turn
off after ignition is
switched off can be
changed. 30 seconds 120
seconds/
90 seconds/
60 seconds/
30 seconds/
O f f
*6

Refer to
Settings
on page
5-55 . —


Auto-light
control
Refer to
Headlights on
page 4-40 . The headlight
illumination on/
off timing based
on surrounding
lightness/darkness
can be changed. Medium High/
Med. High/
Medium/
Med. Low/
L o w

Refer to
Settings
on page
5-55 . —


High Beam
Control
System (HBC)
Refer to High
Beam Control
System (HBC)
on page 4-
77 . The High Beam
Control System
(HBC) function can
be changed.
*1 On On/Off

Refer to
Settings
on page
5-55 . —


Lights-on
reminder
*7
Refer to
Lights-On
Reminder on
page 7-35 . The volume of the
lights-on reminder
warning alarm can be
changed. Off High/Low/
Off
Refer to
Settings
on page
5-55 . —


Turn indicator
Refer to
Turn and
Lane-Change
Signals on
page 4-46 . The turn indicator
beep volume level
can be changed. High High/Low

Refer to
Settings
on page
5-55 . —


.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










9–17
Speci¿ cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method

Vehicle Three-À ash
turn signal
Refer to Three-
Flash Turn
Signal on page
4-47 . The three-time À ash
function can be
changed. On On/Off

Refer to
Settings
on page
5-55 . —


System Distance unit The distance unit can
be changed. mi or km mi/km

Refer to
Settings
on page
5-55 . —


Language The display language
can be changed.
*8 English English/
F r e n c h /
Spanish

Refer to
Settings
on page
5-55 . —


Temperature
unit The temperature unit
can be changed. °F or °C °F/°C

Refer to
Settings
on page
5-55 . —


Fuel
Economy
Monitor
Refer
to Fuel
Economy
Monitor
on page
4-69 . Ending display Setting can be
changed so that the
ending display of
the Fuel Economy
Monitor is displayed. Off On/Off

Refer
to Fuel
Economy
Monitor
on page
4-69 . —


Fuel economy
resetting
procedure Setting can be
changed so that the
fuel economy reset is
linked with the trip
meter reset. Off On/Off

Refer
to Fuel
Economy
Monitor
on page
4-69 . —


.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC

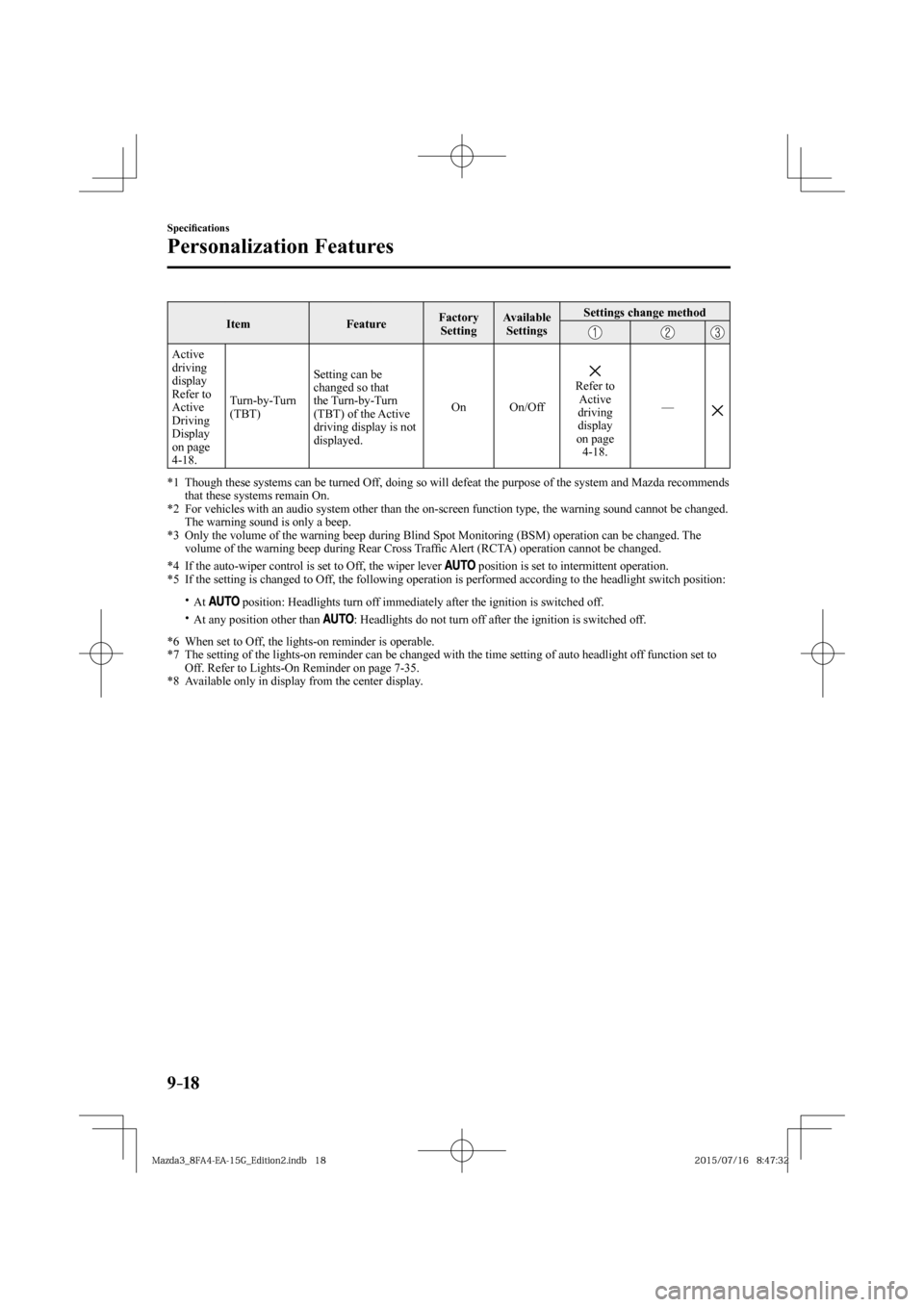

9–18
Speci¿ cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method

Active
driving
display
Refer to
Active
Driving
Display
on page
4-18 . Turn-by-Turn
(TBT) Setting can be
changed so that
the Turn-by-Turn
(TBT) of the Active
driving display is not
displayed. On On/Off

Refer to
Active
driving
display
on page
4-18 . —


*1 Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda recommends
that these systems remain On.
*2 For vehicles with an audio system other than the on-screen function type, the warning sound cannot be changed.
The warning sound is only a beep.
*3 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation can be changed. The
volume of the warning beep during Rear Cross Traf¿ c Alert (RCTA) operation cannot be changed.
*4 If the auto-wiper control is set to Off, the wiper lever
position is set to intermittent operation.
*5 If the setting is changed to Off, the following operation is performed according to the headlight switch position:
y A t position: Headlights turn off immediately after the ignition is switched off.
y At any position other than : Headlights do not turn off after the ignition is switched off. *6 When set to Off, the lights-on reminder is operable.
*7 The setting of the lights-on reminder can be changed with the time setting of auto headlight off function set to
Off. Refer to Lights-On Reminder on page 7-35 .
*8 Available only in display from the center display.



.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC
