When Driving
ABS/TCS/DSC
DSC OFF Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched ON.
It also illuminates when the DSC OFF
switch is pressed and TCS/DSC is
switched off.
Refer to DSC OFF Switch on page 4-65 .

If the light remains illuminated and the
TCS/DSC is not switched off, take your
vehicle to an Authorized Mazda Dealer.
The DSC may have a malfunction.
DSC OFF Switch
Press the DSC OFF switch to turn off the
TCS/DSC. The DSC OFF indicator light
in the instrument cluster will illuminate.


Press the switch again to turn the TCS/
DSC back on. The DSC OFF indicator
light will turn off.
N O T E



y When DSC is on and you attempt to free
the vehicle when it is stuck, or drive
it out of freshly fallen snow, the TCS
(part of the DSC system) will activate.
Depressing the accelerator will not
increase engine power and freeing
the vehicle may be dif¿ cult. When this
happens, turn off the TCS/DSC.



y If the TCS/DSC is off when the engine
is turned off, it automatically activates
when the ignition is switched ON.



y Leaving the TCS/DSC on will provide
the best traction.



y If the DSC OFF switch is pressed and
held for 10 seconds or more, the DSC
OFF switch malfunction detection
function operates and the DSC system
activates automatically. The DSC OFF
indicator light turns off while the DSC
system is operative.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–66
When Driving
i-ELOOP
*Some models.
i-ELOOP *
On conventional vehicles, the kinetic energy that is generated when the vehicle is
decelerated by applying the brakes or during engine braking ends up being discarded as
heat. By utilizing this discarded kinetic energy to generate electricity and use it to power the
vehicle's electrical devices and accessories such as the A/C and audio, fuel consumption can
be reduced. Mazda's system for generating electricity from this kinetic energy is called the
Regenerative Braking System (i-ELOOP).

Electric components
Engine Components
Vehicle Systems:
Air-conditioning
Audio
Head-lights, etc
Accelerator OFF
Accelerator ONEnergy
regeneration
ChargeBattery
Battery Power
Power
Electric components
Engine Components
Vehicle Systems:
Air-conditioning
Audio
Head-lights, etc
Engine
Variable
Voltage
alternator
Variable
Voltage
alternator Engine
Tire TireCapacitor
CapacitorDC-DC converter
DC-DC converter
Kinetic energy
Electrical

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–67
When Driving
i-ELOOP

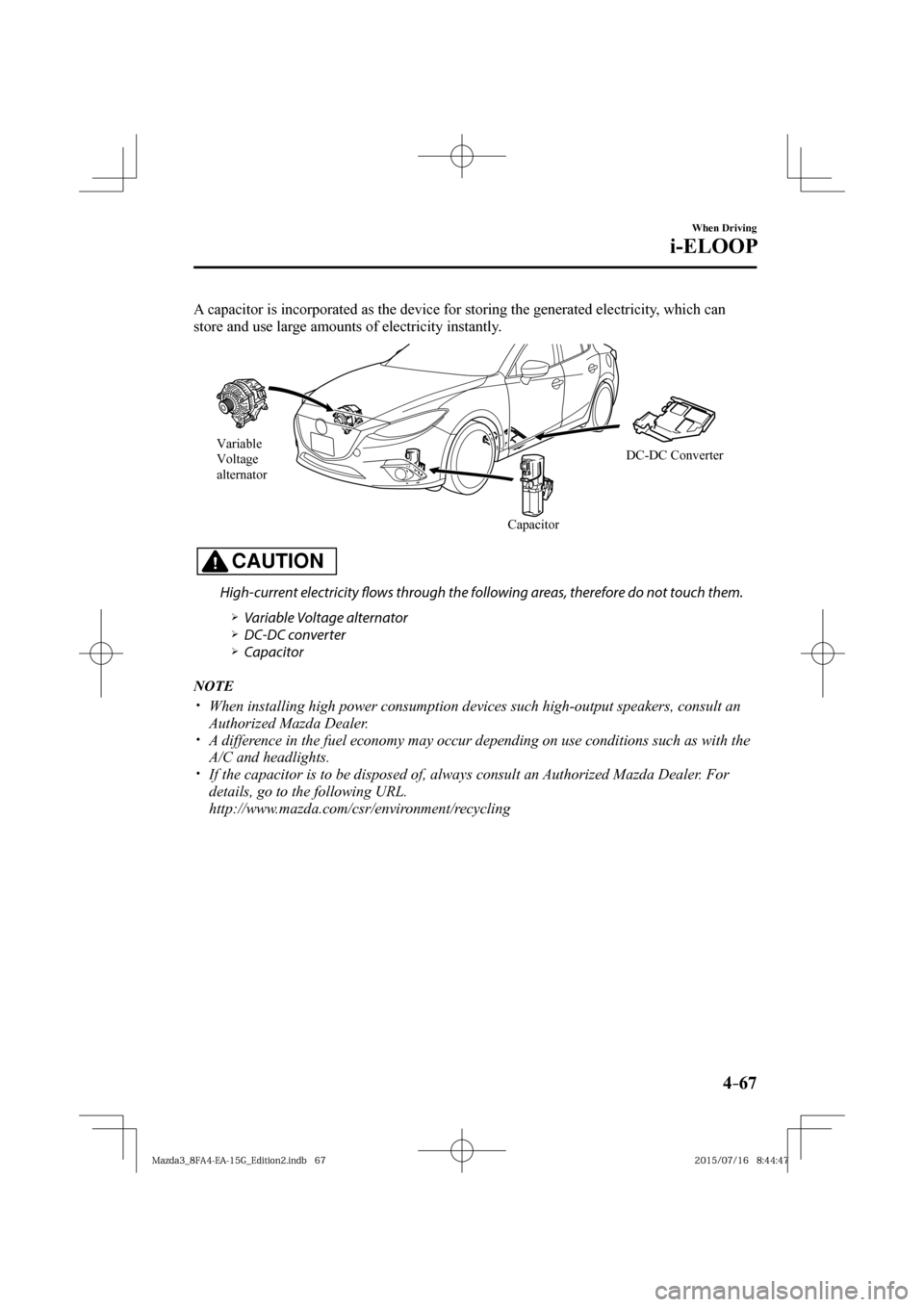

A capacitor is incorporated as the device for storing the generated electricity, which can
store and use large amounts of electricity instantly.

Variable
Voltage
alternator
CapacitorDC-DC Converter

CAUTION
High-current electricity fl ows through the following areas, therefore do not touch them.


¾ Variable Voltage alternator



¾ DC-DC converter



¾ Capacitor
N O T E




y When installing high power consumption devices such high-output speakers, consult an
Authorized Mazda Dealer.



y A difference in the fuel economy may occur depending on use conditions such as with the
A/C and headlights.



y If the capacitor is to be disposed of, always consult an Authorized Mazda Dealer. For
details, go to the following URL.
  http://www.mazda.com/csr/environment/recycling
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–68
When Driving
i-ELOOP

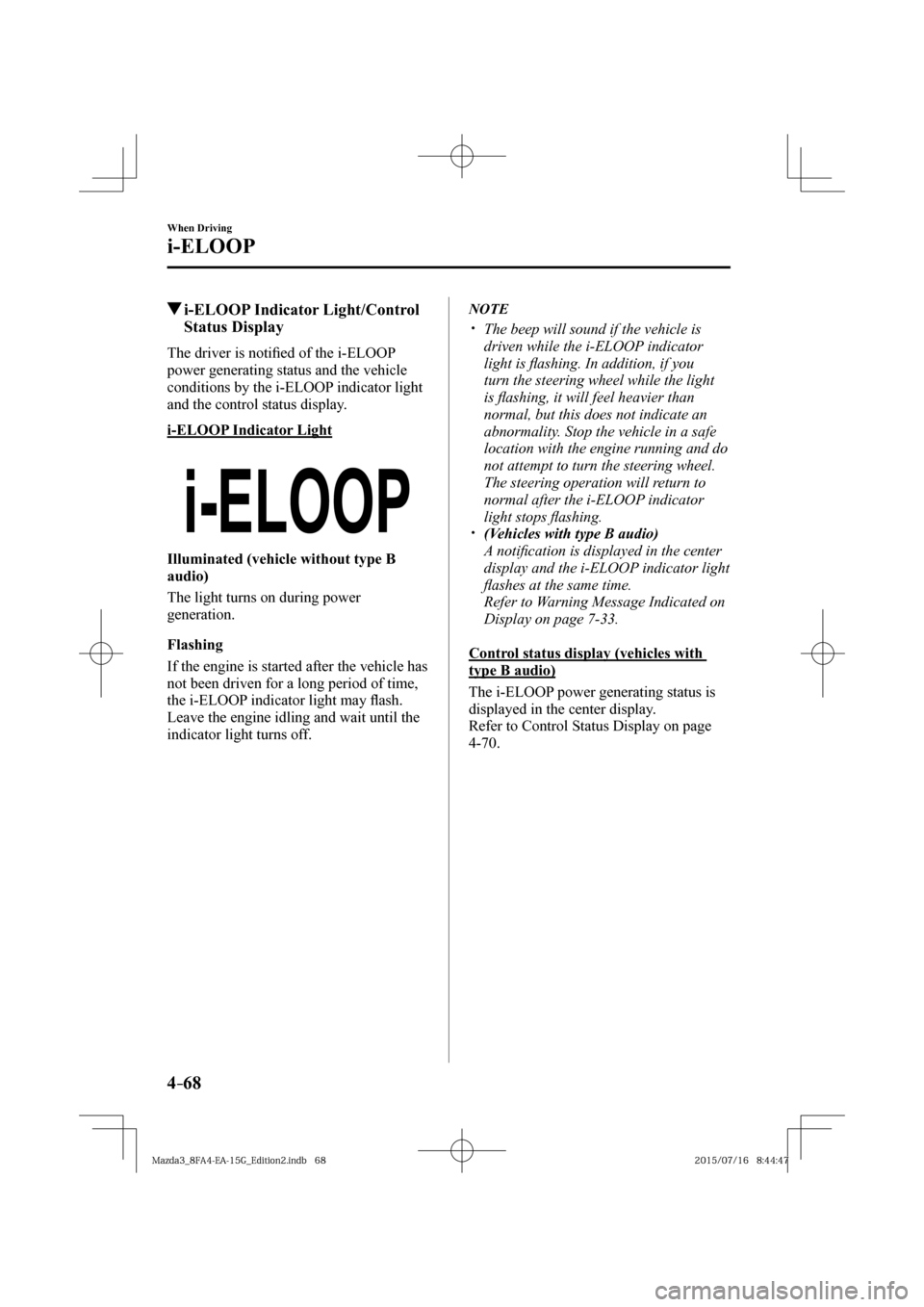

i-ELOOP Indicator Light/Control
Status Display
T h e d r i v e r i s n o t i¿ ed of the i-ELOOP
power generating status and the vehicle
conditions by the i-ELOOP indicator light
and the control status display.
i-ELOOP Indicator Light



Illuminated (vehicle without type B
audio)
The light turns on during power
generation.
Flashing
If the engine is started after the vehicle has
not been driven for a long period of time,
the i-ELOOP indicator light may À ash.
Leave the engine idling and wait until the
indicator light turns off.
N O T E



y The beep will sound if the vehicle is
driven while the i-ELOOP indicator
light is À ashing. In addition, if you
turn the steering wheel while the light
is À ashing, it will feel heavier than
normal, but this does not indicate an
abnormality. Stop the vehicle in a safe
location with the engine running and do
not attempt to turn the steering wheel.
The steering operation will return to
normal after the i-ELOOP indicator
light stops À ashing.




y (Vehicles with type B audio)
 A noti¿ cation is displayed in the center
display and the i-ELOOP indicator light
À ashes at the same time.

 Refer to Warning Message Indicated on
Display on page 7-33 .

Control status display (vehicles with
type B audio)
The i-ELOOP power generating status is
displayed in the center display.
Refer to Control Status Display on page
4-70 .
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–69
When Driving
Fuel Economy Monitor
*Some models.
Fuel Economy Monitor *
For vehicles with type B audio, the Control Status and Fuel Consumption are switched and
displayed by operating each icon in the display.
In addition, after completing a trip, the total energy ef¿ ciency to date is displayed in the
ending display when the ending display is turned on.

1. Select the icon on the home screen to display the applications screen.
2. Select the “Fuel Economy Monitor”.
3. Operate the commander switch or touch the screen and display the menu.
N O T E
When the menu is displayed by touching the screen, the display is hidden automatically after
6 seconds.

4. Select the icon in the menu and perform the operation. Each icon operates as follows:

Indication on display Control status

Hides the menu display.

Displays the application screen.

Switches the Fuel Economy Monitor in the order of
Control Status and Fuel Consumption.

Resets the fuel economy data.

Displays the following setting screen.
y Ending display on/off switching
y On/off switching for function which synchronizes
reset fuel economy data to trip meter (Trip A)

Fuel Consumption Display
Information regarding the fuel economy is displayed.

Indication on display Control status

Displays the fuel economy for the past 60 minutes.
y Displays the fuel economy every minute for the
past 1 to 10 minutes.

y Displays the fuel economy every 10 minutes for the
past 10 to 60 minutes.

Displays the average fuel economy over the past 5
resets and after the current reset.

Calculates the average fuel economy every minute
after vehicle travel begins, and displays it.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–70
When Driving
Fuel Economy Monitor
N O T E



y The fuel economy data can be reset by doing the following operation:



y Press the reset switch from the menu screen.



y When the function which synchronizes the fuel economy monitor and the trip meter is
on, reset trip A of the trip meter.



y Delete the average fuel economy information displayed in the trip computer.



y After resetting the fuel economy data, “-- -” is displayed while the average fuel economy
is calculated.

Control Status Display
The power generating status is displayed

Indication on display Control status

Displays the level of electricity generated by
regenerative braking.

Displays the amount of the electricity stored in the
capacitor.

Displays the status of the electricity stored in the
capacitor and being supplied to the electrical
devices (whole vehicle in display is illuminated
simultaneously).

Displays the accumulated fuel economy.

Ending Screen Display
If the ending display on the fuel economy monitor is on when the ignition is switched from
ON to OFF, the information regarding the fuel economy is displayed.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–71
When Driving
Drive Selection
*Some models.
Drive Selection *
Drive selection is a system to switch the vehicle's drive mode. When the sport mode
is selected, vehicle's response against accelerator operation is enhanced. This provides
additional quick acceleration which may be needed to safely make maneuvers such as lane
changes, merging onto freeways, or passing other vehicles.
CAUTION
Do not use the sport mode when driving on slippery roads such as wet or snow-covered
roads. It may cause tire slipping.

N O T E



y When the sport mode is selected, driving at higher engine speeds increases and it may
increase fuel consumption. Mazda recommends that you cancel the sport mode on normal
driving.



y Drive mode cannot be switched in the following conditions:



y ABS/TCS/DSC is operating



y The Mazda Radar Cruise Control (MRCC) system/cruise control is operating.



y Steering wheel is being operated abruptly

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–72
When Driving
Drive Selection
Drive Selection Switch
The SPORT mode indicator light in the
instrument cluster is illuminated while in
SPORT mode.



N O T E



y If the SET / SET Switch of the Mazda
Radar Cruise Control (MRCC) system/
cruise control is pressed while in
SPORT mode, SPORT mode is
automatically switched off.



y When the ignition is switched off,
SPORT mode is also switch off.



y When SPORT mode is selected, the
transaxle may automatically shift down
or the vehicle speed may accelerate
depending on the vehicle speed.

SPORT Mode Indicator Light

Type A
Type B

The light is illuminated while in SPORT
mode.
N O T E
The indicator light À ashes a few times to
indicate that the mode cannot be switched
to SPORT mode even if the drive select
switch is pressed under the following
conditions:



y ABS/TCS/DSC is operating



y The Mazda Radar Cruise Control
(MRCC) system/cruise control is
operating.



y The vehicle is making a turn or driving
on a curved road.

.B[EB@'"&"(@&EJUJPOJOEC
