2016 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

4–17
When Driving
Instrument Cluster and Display
N O T E



y Even though the distance-to-empty
display may indicate a suf¿ cient amount
of remaining driving distance before
refueling is required, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.



y The display may not change unless you
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.



y The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
(indicating the remaining fuel supply)
disappear.



y If there is no past fuel economy
information such as after ¿ rst
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.

Average fuel economy mode
This mode displays the average fuel
economy by calculating the total fuel
consumption and the total traveled
distance since purchasing the vehicle, re-
connecting the battery after disconnection,
or resetting the data. The average fuel
economy is calculated and displayed every
minute.



To clear the data being displayed, press the
INFO button for more than 1.5 seconds.
After pressing the INFO button, - - - L/100
km (- - - mpg) will be displayed for about
1 minute before the fuel economy is
recalculated and displayed.
Current fuel economy mode
This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance traveled.

Current fuel economy will be calculated
and displayed every 2 seconds.



When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) will be
displayed.
Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.



To clear the data being displayed, press the
INFO button for more than 1.5 seconds.
After pressing the INFO button, - - - km/h
(- - - mph) will be displayed for about
1 minute before the vehicle speed is
recalculated and displayed.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–18
When Driving
Instrument Cluster and Display
*Some models.

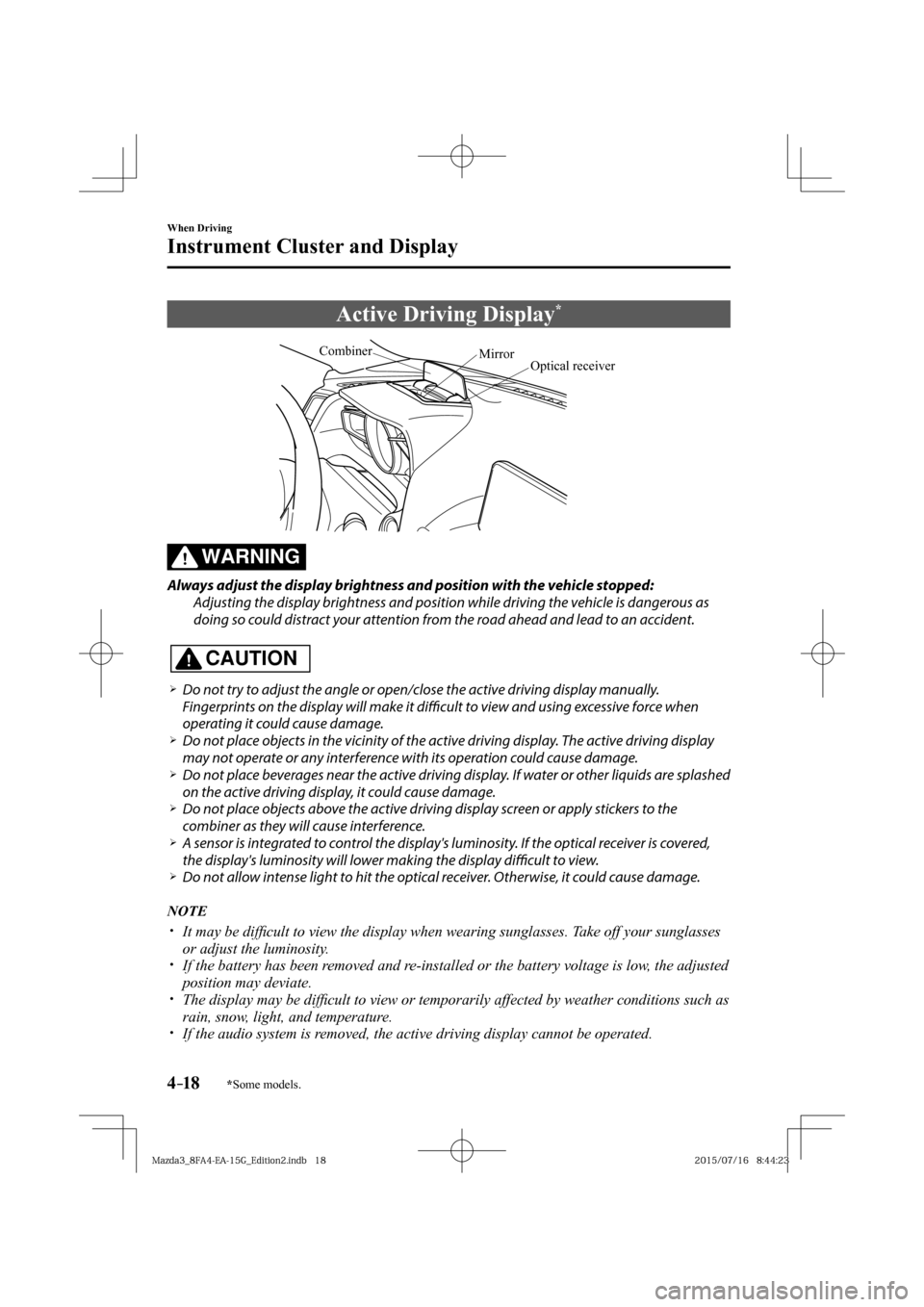

Active Driving Display *

Optical receiver Mirror Combiner

WARNING
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous as
doing so could distract your attention from the road ahead and lead to an accident.

CAUTION



¾ Do not try to adjust the angle or open/close the active driving display manually.
Fingerprints on the display will make it diffi cult to view and using excessive force when
operating it could cause damage.



¾ Do not place objects in the vicinity of the active driving display. The active driving display
may not operate or any interference with its operation could cause damage.



¾ Do not place beverages near the active driving display. If water or other liquids are splashed
on the active driving display, it could cause damage.



¾ Do not place objects above the active driving display screen or apply stickers to the
combiner as they will cause interference.



¾ A sensor is integrated to control the display's luminosity. If the optical receiver is covered,
the display's luminosity will lower making the display diffi cult to view.




¾ Do not allow intense light to hit the optical receiver. Otherwise, it could cause damage.
N O T E




y It may be dif¿ cult to view the display when wearing sunglasses. Take off your sunglasses
or adjust the luminosity.



y If the battery has been removed and re-installed or the battery voltage is low, the adjusted
position may deviate.



y The display may be dif¿ cult to view or temporarily affected by weather conditions such as
rain, snow, light, and temperature.



y If the audio system is removed, the active driving display cannot be operated.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–19
When Driving
Instrument Cluster and Display
The active driving display indicates the following information:


y Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings
 Refer to Mazda Radar Cruise Control (MRCC) on page 4-98 .



y Lane Departure Warning System (LDWS) Operation Conditions and Warnings
 Refer to Lane Departure Warning System (LDWS) on page 4-80 .



y Smart City Brake Support (SCBS) Operation Conditions and Warnings
 Refer to Smart City Brake Support (SCBS) on page 4-106 .



y Forward Obstruction Warning (FOW) Operation Conditions and Warnings
 Refer to Forward Obstruction Warning (FOW) on page 4-95 .



y Vehicle Speed Setting Using Cruise Control
 Refer to Cruise Control on page 4-119 .



y Turn-by-Turn (TBT) (Direction and Distance) and Lane Guidance



y Vehicle Speed
Each setting/adjustment for the active driving display can be performed on the center
display (Type B audio).

1. Select the ( ) icon on the home screen and display the Settings screen.
2. Select the AD-Disp tab.
3. Select the desired item and perform the setting/adjustment.


y
 Height : Active driving display position


y
 Brightness Control : Method for adjusting screen brightness (Automatically/Manually)


y
 Calibration : Brightness initialization setting (when selecting automatic adjustment)


y
 Brightness : Brightness adjustment (when selecting manual adjustment)


y
 Navigation : On/Off


y
 Active Driving Display : On/Off


y
 Reset
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–20
When Driving
Instrument Cluster and Display
Warning/Indicator Lights
Instrument Cluster varies depending on model and speci¿ cations.
Warning/Indicator lights will appear in any of the highlighted areas Type A
Type B
Type C
Center of Dashboard(Digital Speedometer Type)
(Analog Speedometer Type (With Tachometer))
(Analog Speedometer Type (Without Tachometer)) Instrument Cluster
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–21
When Driving
Instrument Cluster and Display
*Some models.
Warning Lights
These lights turn on or À ash to notify the user of the system operation status or a system
malfunction.

Signal Warning Lights Page

Master Warning Light *1 7-24

Brake System Warning Light *1*2 7-24

ABS Warning Light *1 7-24

Charging System Warning Light *1 7-24

Engine Oil Warning Light *1 7-24

Check Engine Light *1 7-24


(Red) High Engine Coolant Temperature Warning Light *1 7-24

* Automatic Transaxle Warning Light *1 7-24

Power Steering Malfunction Indicator Light *1 7-24

Air Bag/Front Seat Belt Pretensioner System Warning Light *1 7-24

Low Fuel Warning Light 7-24

Check Fuel Cap Warning Light *1 7-24

Seat Belt Warning Light 7-24

Door-Ajar Warning Light 7-24
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–22
When Driving
Instrument Cluster and Display
*Some models.
Signal Warning Lights Page

* Low Washer Fluid Level Warning Light 7-24


* Tire Pressure Monitoring System Warning Light *1 7-24


(Red) KEY Warning Light *1 7-24

(Amber)
* Forward Obstruction Warning/Smart City Brake Support (FOW/SCBS)
Warning Light *1 7-24


(Amber) * Lane Departure Warning System (LDWS) Warning Light *1*3 7-24


* Headlight Auto-Leveling Malfunction Indicator Light *1 7-24


(Amber) * High Beam Control System (HBC) Warning Light *1 7-24


(Amber) * Mazda Radar Cruise Control (MRCC) Warning Light *1 7-24
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2 The light turns on continuously when the parking brake is applied.
*3 The light turns on when the system on stand-by. The light À ashes when the system has a malfunction.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–23
When Driving
Instrument Cluster and Display
*Some models.
Indicator Lights
These lights turn on or À ash to notify the user of the system operation status or a system
malfunction.

Signal Indicator Lights Page

* BSM OFF Indicator Light 4-91


(Green) * Lane Departure Warning System (LDWS) Indicator Light 4-84


(Green) KEY Indicator Light 3-9


(Green) * High Beam Control System (HBC) Indicator Light 4-79

Wrench Indicator Light *1 4-25

TCS/DSC Indicator Light *1 4-63 ,
4-64

DSC OFF Indicator Light *1 4-65

* AFS OFF Indicator Light *1 4-76


(Red)
* Forward Obstruction Warning/Smart City Brake Support (FOW/SCBS)
Indicator Light *1 4-97 ,
4-110


* Forward Obstruction Warning/Smart City Brake Support (FOW/SCBS) OFF
Indicator Light *1 4-110

* i-ELOOP Indicator Light 4-68


(Blue) Low Engine Coolant Temperature Indicator Light 4-25
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–24
When Driving
Instrument Cluster and Display
*Some models.
Signal Indicator Lights Page


* Shift Position Indication 4-30

* SPORT Mode Indicator Light 4-72

Headlight High-Beam Indicator Light 4-44 ,
4-44

Turn Signal/Hazard Warning Indicator Lights 4-46 ,
4-54

Security Indicator Light *1 3-41

(Green)
* Mazda Radar Cruise Control (MRCC) Indicator Light 4-101


(Amber) * Cruise Main Indicator Light 4-120


(Green) * Cruise Set Indicator Light 4-120

Lights-On Indicator Light 4-40
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
