6–45
Maintenance and Care
Owner Maintenance
Replacing a Tire
WARNING
Always use tires that are in good
condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.

Replace all four tires at the same time:
Replacing just one tire is dangerous. It
could cause poor handling and poor
braking resulting in loss of vehicle
control. Mazda strongly recommends
that you replace all four tires at the
same time.

If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.
Replace the tire when this happens.

New treadTread wear indicator
Worn tread

You should replace the tire before the band
crosses the entire tread.
(With tire pressure monitoring system)
After adjusting the tire pressure,
initialization of the tire pressure
monitoring system is necessary to make
the system operate normally.
Refer to Tire Pressure Monitoring System
Initialization on page 4-126 .
N O T E
Tires degrade over time, even when
they are not being used on the road. It
is recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate
the aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-24 .

Temporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it is properly
inÀ ated and stored.
N O T E
The temporary spare tire condition
gradually deteriorates even if it has not
been used.

The temporary spare tire is easier to
handle because of its construction which
is lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.

Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-10 .

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC

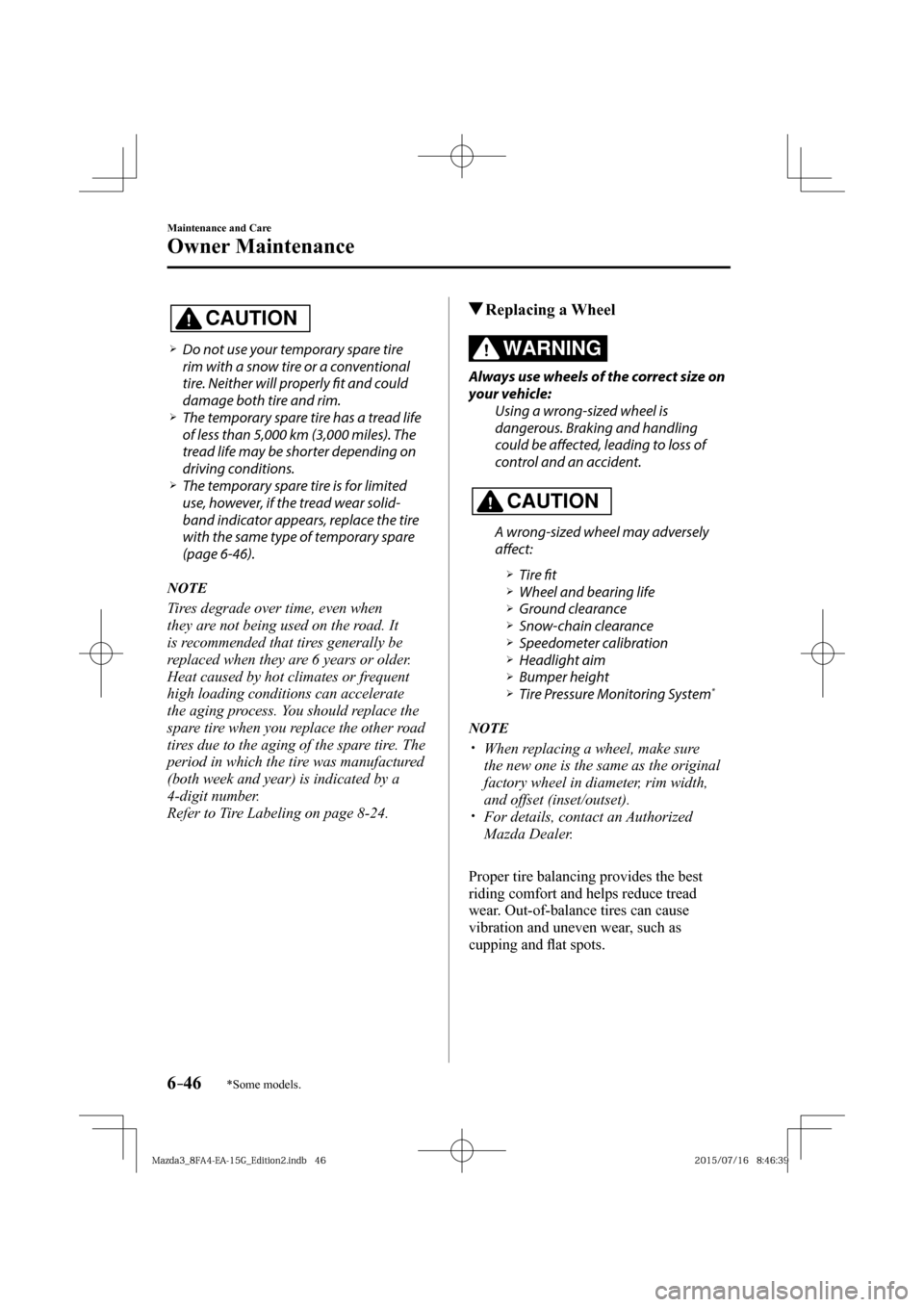

6–46
Maintenance and Care
Owner Maintenance
*Some models.
CAUTION



¾ Do not use your temporary spare tire
rim with a snow tire or a conventional
tire. Neither will properly fi t and could
damage both tire and rim.



¾ The temporary spare tire has a tread life
of less than 5,000 km (3,000 miles). The
tread life may be shorter depending on
driving conditions.



¾ The temporary spare tire is for limited
use, however, if the tread wear solid-
band indicator appears, replace the tire
with the same type of temporary spare
(page 6-46 ).

N O T E
Tires degrade over time, even when
they are not being used on the road. It
is recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate
the aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-24 .

Replacing a Wheel
WARNING
Always use wheels of the correct size on
your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be aff ected, leading to loss of
control and an accident.

CAUTION
A wrong-sized wheel may adversely
aff ect:




¾ Tire fi t



¾ Wheel and bearing life



¾ Ground clearance



¾ Snow-chain clearance



¾ Speedometer calibration



¾ Headlight aim



¾ Bumper height



¾ Tire Pressure Monitoring System *
N O T E




y When replacing a wheel, make sure
the new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).



y For details, contact an Authorized
Mazda Dealer.


Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and À at spots.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










6–47
Maintenance and Care
Owner Maintenance
Light Bulbs

Overhead lights (Front)/
Map lights
Vanity mirror
lights
Headlights (Low/High beam)
Daytime running lights/
Parking lightsHeadlights (Low beam)
Headlights (High beam)/
Daytime running lights Fog lights
Fog lights Front side-marker lights
Front side-marker lights Side turn signal lights Side turn signal lightsOverhead lights (Front)/
Map lights
Vanity mirror
lights
Some models.
Front turn signal lights
Front turn signal lights
Brake lights (LED type)
Brake lights/Taillights/Rear
side-marker lights (Bulb type)
Taillights/Rear side-marker
lights (LED type)Taillights/Rear side-marker
lights (LED type)
Rear turn signal lights
Taillights (Trunk lid side)
Reverse lights
High-mount brake light
License plate lightsTrunk light
Overhead light (Rear)Overhead light (Rear)
Brake lights (LED type)Luggage
compartment light
Brake lights/Taillights/Rear
side-marker lights (Bulb type)
Rear turn signal lights
Taillights (Liftgate side)
Reverse lights
High-mount brake light
License plate lights
4-Door 5-DoorWith Xenon Fusion Headlights
With Halogen Headlights

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










6–48
Maintenance and Care
Owner Maintenance
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement is
necessary.

Never touch the glass portion of a
halogen bulb with your bare hands
and always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it will
explode and serious injuries could be
caused by the fl ying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.

Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.

CAUTION
When removing the lens or lamp unit
using a fl athead screwdriver, make
sure that the fl athead screwdriver does
not contact the interior terminal. If
the fl athead screwdriver contacts the
terminal, a short circuit may occur.

N O T E



y To replace the bulb, contact an
Authorized Mazda Dealer.



y If the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.



y Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.

Replacing Exterior Light Bulbs
Headlights (With xenon fusion
headlights)
Low/High beam bulbs
You cannot replace the low/high beam
bulbs by yourself. The bulbs must be
replaced at an Authorized Mazda Dealer.
Headlights (With halogen headlights)
Low-beam bulbs
1. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right, and turn
off engine.
2. Make sure the headlight switch is off.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










6–49
Maintenance and Care
Owner Maintenance
3. Pull the center of each plastic retainer
and remove the retainers.


Removal
Installation

4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.


5. Disconnect the connector from the unit
by pressing the tab on the connector
with your ¿ nger and pulling the
connector downward.



6. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reÀ ector by
gently pulling it straight backward out
of the socket.



7. Install the new bulb in the reverse order
of the removal procedure.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










6–50
Maintenance and Care
Owner Maintenance
High-beam bulbs/Daytime running
lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.
3. Disconnect the connector from the unit
by pressing the tab on the connector
with your ¿ nger and pulling the
connector downward.



4. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reÀ ector by
gently pulling it straight backward out
of the socket.



5. Install the new bulb in the reverse order
of the removal procedure.

Daytime running lights/Parking lights
(With xenon fusion headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized Mazda
Dealer when the replacement is necessary.
Front turn signal lights, Parking lights/
Front side-marker lights (With halogen
headlights), Front side-marker lights
(With xenon fusion headlights)
1. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right, and turn
off engine.
2. Make sure the headlight switch is off.
3. Pull the center of each plastic retainer
and remove the retainers.


Removal
Installation

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










6–51
Maintenance and Care
Owner Maintenance
4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.



5. (Front turn signal lights)
Disconnect the connector from the unit
by pressing the tab on the connector
with your ¿ nger and pulling the
connector.



6. Turn the socket and bulb assembly
counterclockwise and remove it. 7. Disconnect the bulb from the socket.
Front turn signal lights



Parking lights/Front side-marker
lights (With halogen headlights),
Front side-marker lights (With
xenon fusion headlights)



8. Install the new bulb in the reverse order
of the removal procedure.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










6–52
Maintenance and Care
Owner Maintenance
*Some models.
Fog lights *
1. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right, and turn
off engine.
2. Make sure the fog light switch is off.
3. Pull the center of each plastic retainer
and remove the retainers.


Removal
Installation

4. Turn the screw counterclockwise and
remove it, and then partially peel back
the mudguard.


5. Disconnect the connector from the unit
by pressing the tab on the connector
with your ¿ nger and pulling the
connector downward.



6. Turn the socket and bulb assembly
to remove it. Carefully remove the
bulb from its socket in the reÀ ector by
gently pulling it straight backward out
of the socket.



7. Install the new bulb in the reverse order
of the removal procedure.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC
