2016 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

4–105
When Driving
i-ACTIVSENSE
N O T E



y The Mazda Radar Cruise Control
(MRCC) system may be canceled during
rain, fog, snow or other inclement
weather conditions, or the front surface
of the radiator grille is dirty.



y If the Mazda Radar Cruise Control
(MRCC) system has been temporarily
canceled, you can return to the
previously set vehicle speed by pressing
the RESUME switch after the following
conditions have been met.
 y All of the Mazda Radar Cruise
Control (MRCC) operation
conditions have been met.
 y A certain period of time has elapsed
since the system was automatically
canceled while driving for a long
time on a down slope.
 y If the SET/SET or RESUME switch
is pressed before a certain period of
time has elapsed since the system was
automatically canceled while driving
for a long time on a down slope,
“MRCC Not available” is displayed in
the display.



y If the OFF switch is pressed to cancel
the Mazda Radar Cruise Control
(MRCC), the system does not return to
the previously set speed even if the RES
switch is pressed.

Shift-up/Shift-down Request
Display (Manual Transaxle)
The shift-up or shift-down request display
in the active driving display may be
displayed while the Mazda Radar Cruise
Control (MRCC) system is operating.
When this occurs, shift gears because the
gear position is not appropriate.

Request Indication on display
Shift up


Shift down



N O T E



y If the gears are not shifted up even
though the shift-up request indication
is displayed, load will be applied
to the engine and the Mazda Radar
Cruise Control (MRCC) system may
be automatically canceled or engine
damage could occur.



y If the gears are not shifted down even
though the shift-down request indication
is displayed, the Mazda Radar Cruise
Control (MRCC) system may be
automatically canceled or engine
stalling could occur.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–106
When Driving
i-ACTIVSENSE
Smart City Brake Support (SCBS)
The Smart City Brake Support (SCBS) system is designed to reduce damage in the event
of a collision by operating the brake control (SCBS brake) when the system's laser sensor
(front) detects a vehicle ahead and determines that a collision with a vehicle ahead is
unavoidable. It may also be possible to avoid a collision if the relative speed between your
vehicle and a vehicle ahead is less than about 15 km/h (9.3 mph).
In addition, when the driver depresses the brake pedal while the system is in the operation
range at about 4 to 30 km/h (2 to 18 mph), the brakes are applied ¿ rmly and quickly to
assist. (Brake Assist (SCBS brake assist))


Laser sensor

WARNING
Do not rely on the Smart City Brake Support System (SCBS) as a substitute for safer
driving:
The Smart City Brake Support (SCBS) system cannot compensate for unsafe and reckless
driving, excessive speed, tailgating (following another vehicle too closely), and driving on
slippery roads such as wet, snowy, and icy roads (reduced tire friction and road contact
because of water on the road surface). You can still have an accident.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–107
When Driving
i-ACTIVSENSE
Do not rely completely on the Smart City Brake Support (SCBS) system:


¾ The Smart City Brake Support (SCBS) system is only designed to reduce damage in the
event of a collision. Over reliance on the system leading to the accelerator pedal or
brake pedal being mistakenly operated could result in an accident.



¾ The Smart City Brake Support (SCBS) is a system which operates in response to a
vehicle ahead. The system may not be able to detect or react to 2-wheeled vehicles or
pedestrians.



¾ The laser sensor (front) for the Smart City Brake Support (SCBS) system is installed near
the rearview mirror. To assure the correct operation of the Smart City Brake Support
(SCBS), heed the following cautions.


¾
 Do not apply stickers to the surface of the windshield near the laser sensor (front)
(including transparent stickers). Otherwise, the laser sensor (front) may not be able
to detect vehicles ahead which could result in an accident.


¾
 Do not apply coating agent to the windshield. Otherwise, the laser sensor (front)
may not be able to detect vehicles or obstructions in front which could result in an
accident.


¾
 Do not disassemble the laser sensor (front).


¾
 If cracks or damage caused by fl ying gravel or debris is visible near the laser sensor
(front), stop using the Smart City Brake Support (SCBS) system immediately and
have your vehicle inspected by an Authorized Mazda Dealer. If the vehicle continues
to be driven with cracks or scratch marks left on the windshield near the laser sensor
(front), the system may operate unnecessarily and cause an unexpected accident.
  Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page
4-110 .


¾
 When replacing the windshield wipers or windshield, consult an Authorized Mazda
Dealer.


Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles ahead. This will result in the Smart City Brake Support (SCBS) system not
operating normally or mistakenly operating, which could cause a serious accident.

Turn off the Smart City Brake Support (SCBS) when the vehicle is running on a chassis
roller or being towed:
Turn off the Smart City Brake Support (SCBS) system to prevent mistaken operation when
the vehicle is running on a chassis roller or being towed. See the next page on how to turn
off the Smart City Brake Support (SCBS).
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page 4-110 .

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–10 8
When Driving
i-ACTIVSENSE
CAUTION



¾ When driving off -road in areas where there is grass or forage, it is recommended that the
Smart City Brake Support (SCBS) system be turned off .




¾ Always use tires for all wheels that are of the specifi ed size, and the same manufacturer,
brand, and tread pattern. In addition, do not use tires with signifi cantly diff erent wear
patterns on the same vehicle as the Smart City Brake Support (SCBS) system may not
operate normally.



¾ The laser sensor (front) includes a function for detecting a soiled windshield and informing
the driver, however, depending on the conditions, it may not detect plastic shopping bags,
ice or snow on the windshield. In such cases, the system cannot accurately determine a
vehicle ahead and may not be able to operate normally. Always drive carefully and pay
attention to the road ahead.

N O T E



y The Smart City Brake Support (SCBS) system will not operate if the driver is deliberately
performing driving operations (accelerator pedal and steering wheel).



y The Smart City Brake Support (SCBS) system will operate under the following conditions.



y The engine is running.



y The Smart City Brake Support (SCBS) warning light (amber) does not illuminate.



y The vehicle speed is between about 4 to 30 km/h (2 to 18 mph).



y The Smart City Brake Support (SCBS) system is not turned off.



y The DSC operation is not turned off using the DSC OFF switch.



y The DSC is not malfunctioning.



y The Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a near-infrared
laser beam and receiving the beam reÀ ected off the reÀ ector of the vehicle ahead, and
then using it for the measurement. Consequently, the Smart City Brake Support (SCBS)
may not operate under the following conditions:



y ReÀ ection of the laser is poor due to the shape of the vehicle ahead.



y The vehicle ahead is signi¿ cantly dirty.



y Under bad weather condition, such as rain, fog and snow.



y The window washer is being used or the windshield wipers are not used when it's
raining.



y The windshield is dirty.



y The steering wheel is turned completely left or right, or the vehicle is accelerated
rapidly and comes close to the vehicle ahead.



y Trucks with low loading platforms and vehicles with an extremely low or high pro¿ le.



y Vehicles with certain shapes such as a vehicle carrier.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–109
When Driving
i-ACTIVSENSE
*Some models.



y Under the following conditions, the Smart City Brake Support (SCBS) system may not
operate normally.



y Heavy luggage is loaded in the luggage compartment or on the rear seat.



y If there is the possibility of partial contact with a vehicle ahead.



y When driving on continuously curving roads, and entering and exiting exits.



y Elongated luggage or cargo is loaded onto installed roof rails and covers the laser
sensor (front).



y Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.



y When towing a malfunctioning vehicle.



y In the following cases, the laser sensor (front) may inadvertently determine that there is a
vehicle ahead and the Smart City Brake Support (SCBS) system may operate.



y Objects on the road at the entrance to a curve.



y Vehicles passing in the opposite lane while making a curve.



y Metal objects, bumps, or protruding objects on the road.



y When passing through a toll gate.



y When passing under a vinyl curtain or À ag.



y Plastic objects such as pylons.



y Two-wheeled vehicles, pedestrians, animals or standing trees.



y Vehicle is driven with some of the tires having signi¿ cant wear.



y When the system operates, the user is noti¿ ed by the À ashing Smart City Brake Support
(SCBS) indicator light (red) and the active driving display * .


y The Smart City Brake Support (SCBS) warning light (amber) turns on when the system
has a malfunction.
  Refer to Warning Lights on page 4-21 .
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–110
When Driving
i-ACTIVSENSE
Smart City Brake Support (SCBS)
Indicator Light (Red)
If the Smart City Brake Support (SCBS) is
operating, the indicator light (red) À ashes.



Stopping the Smart City Brake
Support (SCBS) System Operation
The Smart City Brake Support (SCBS)
system can be temporarily deactivated.
Refer to Personalization Features on page
9-12 .
When the Smart City Brake Support
(SCBS) system is turned off, the Smart
City Brake Support (SCBS) OFF indicator
light turns on.



When the engine is restarted, the system
becomes operational.
N O T E
When the DSC OFF switch is pressed to
stop the DSC operation, the Smart City
Brake Support (SCBS) system operation
also stops and the Smart City Brake
Support (SCBS) OFF indicator light turns
on.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–111
When Driving
i-ACTIVSENSE

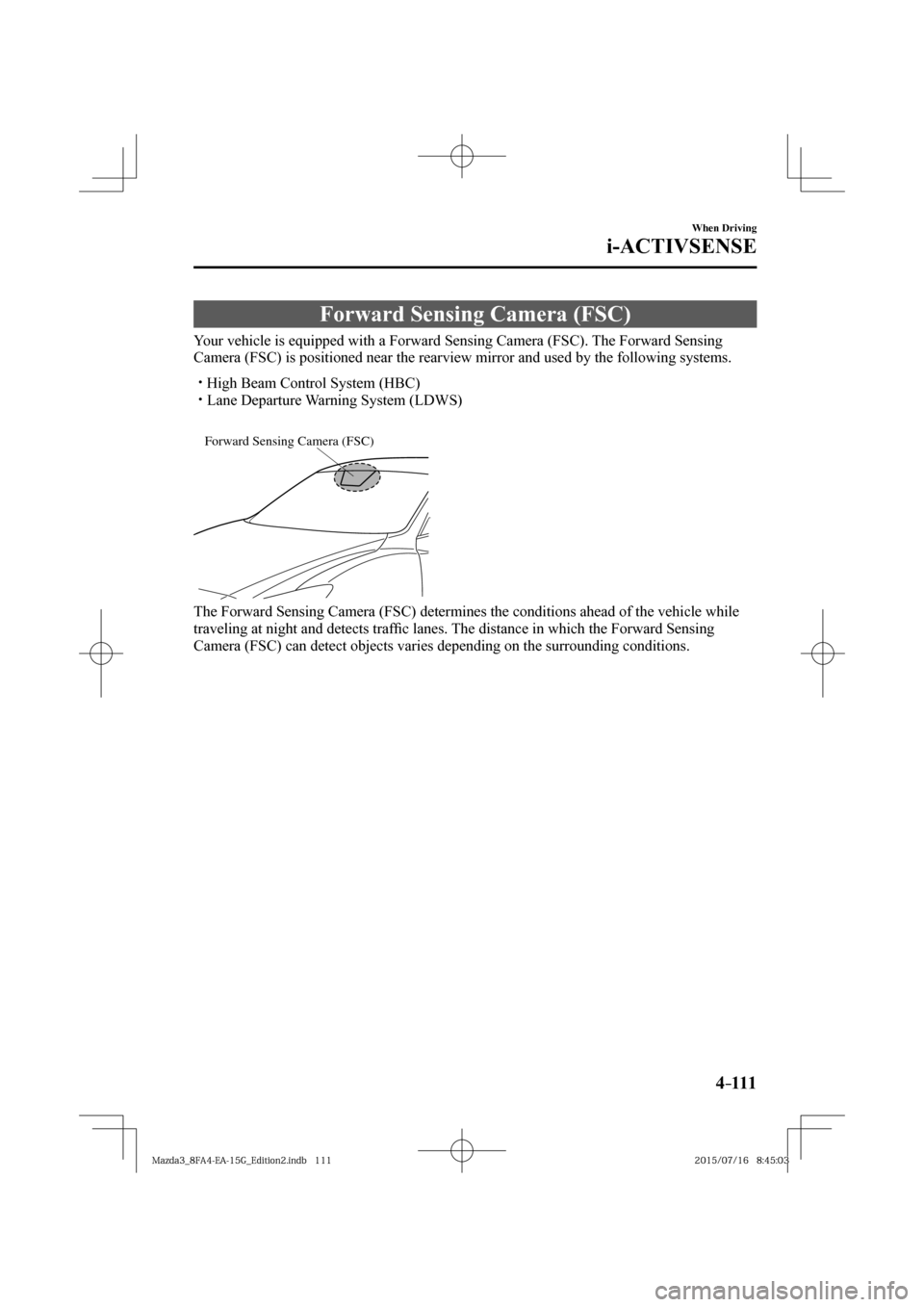

Forward Sensing Camera (FSC)
Your vehicle is equipped with a Forward Sensing Camera (FSC). The Forward Sensing
Camera (FSC) is positioned near the rearview mirror and used by the following systems.



y High Beam Control System (HBC)



y Lane Departure Warning System (LDWS)


Forward Sensing Camera (FSC)

The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while
traveling at night and detects traf¿ c lanes. The distance in which the Forward Sensing
Camera (FSC) can detect objects varies depending on the surrounding conditions.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










4–112
When Driving
i-ACTIVSENSE
CAUTION
Heed the following cautions to assure the correct operation of the Forward Sensing
Camera (FSC).



¾ Do not remove the Forward Sensing Camera (FSC) cover.



¾ Do not place objects on the dashboard which reÀ ect light.



¾ Do not apply accessories, stickers or ¿ lm to the windshield near the Forward
Sensing Camera (FSC). If there are objects in front of the Forward Sensing Camera
(FSC) lens, even a transparent sticker, they will cause the system to not operate
correctly.



¾ Always keep the windshield glass around the camera clean by removing dirt or
fogging. Use the windshield defroster to remove fogging on the windshield.



¾ When cleaning the windshield, do not allow glass cleaners or similar cleaning
agent to get on the Forward Sensing Camera (FSC) lens. In addition, do not touch
the Forward Sensing Camera (FSC) lens.



¾ Consult an Authorized Mazda Dealer regarding cleaning the interior side of the
windshield around the Forward Sensing Camera (FSC).



¾ Be careful not to scratch the Forward Sensing Camera (FSC) lens or allow it to get
dirty. Also, do no take the camera apart. Otherwise, it could result in damage or
malfunction.



¾ Consult an Authorized Mazda Dealer before performing repairs around the
Forward Sensing Camera (FSC).



¾ The Forward Sensing Camera (FSC) is installed to the windshield. Consult an
Authorized Mazda Dealer for windshield repair and replacement.



¾ When performing repairs around the rearview mirror, consult an Authorized Mazda
Dealer.



¾ Consult an Authorized Mazda Dealer regarding cleaning of the Forward Sensing
Camera (FSC) lens.



¾ Do not hit or apply strong force to the Forward Sensing Camera (FSC) or the area
around it. If strong force is applied, stop using the Lane Departure Warning System
(LDWS) and the High Beam Control System (HBC), and consult an Authorized
Mazda Dealer.



¾ The direction in which the Forward Sensing Camera (FSC) is pointed has been
¿ nely adjusted. Do not change the installation position of the Forward Sensing
Camera (FSC) or remove it. Otherwise, it could result in damage or malfunction.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC
