2016 MAZDA MODEL 3 HATCHBACK Owners Manual (in English)

5–107
Interior Features
Bluetooth®
Deleting from your favorites
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the favorites
list.
3. Select
.
4. Select
.
5. Select the contact information which
you would like to delete.
6. Select
.
Changing the display order of your
favorites list
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the favorites
list.
3. Select
.
4. Select
.
5. The contact can be moved after it is
selected.
6. Slide the contact or move it using the
commander switch, then select
.
Changing contact name of your
favorites
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the favorites
list.
3. Select
.
4. Select
.
5. Select the contact to display the
keyboard screen.
6. If a new name is input and
is
selected, the contact name is stored.

N O T E
If the contact is long-pressed when the
favorites list is displayed, the contact
information can be edited (deleted,
moved).

Telephone Number Input
N O T E
Practice this while parked until you are
con¿ dent you can do it while driving in a
non-taxing road situation. If you are not
completely comfortable, make all calls
from a safe parking position, and only
start driving when you can devote your full
attention to driving.

1. Select the icon on the home screen
to display the Communication screen.
2. When
is pressed, the dial pad
is displayed.
3. Input the telephone number using the
dial pad.
4. Select
to make the call.
Numeral or symbol entry
Use the dial pad.
Long-press the
to input +.
Select
to delete the currently input
value.
Long-press
to delete all input values.
Redial Function
Makes a call to the last person called
(latest person on outgoing call record)
from the mobile phone/vehicle.

1. Press the talk button.
2. Wait for the beep sound.
3. Say: “Redial”

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–10 8
Interior Features
Bluetooth®
Call back Function
Makes a call to the last person who called
your (latest person on incoming call
record) mobile phone/vehicle.

1. Press the talk button.
2. Wait for the beep sound.
3. Say: “Call back”

Mobile 911 (U.S.A./Canada only)
If the vehicle is involved in a moderate
to severe collision, a call is made
automatically to 911 from the connected
device. The “Emergency Assistance Call”
setting must be on.
Refer to Communication Settings on page
5-114 .
CAUTION
Though the system can be set to
not call 911, doing so will defeat
the purpose of the system. Mazda
recommends that the Mobile 911
system remain activated.

N O T E



y Mobile 911 is a secondary function
of the audio entertainment system.
Therefore, the mobile 911 function
does not assure that the call is always
made to 911 after an accident occurs.



y A Hands-free device must be paired and
connected. The 911 operator can verify
the vehicle's position information using
the Hands-free device GPS if equipped.
  The 911 operator can verify the
vehicle’s position information.

1. If the vehicle is involved in a moderate
to severe collision, noti¿ cation of the
call to 911 is made via audio and screen
display. To cancel the call, press

or hang-up
button within 10 seconds.
2. If
or hang-
up button is not pressed within 10
seconds, the call is made to 911
automatically.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–109
Interior Features
Bluetooth®
Receiving an Incoming Call
When an incoming call is received, the incoming call noti¿ cation screen is displayed. The
“Incoming Call Noti¿ cations” setting must be on.
Refer to Communication Settings on page 5-114 .
To accept the call, press the pick-up button on the audio control switch or select
on
the screen.
To reject the call, press the hang-up button on the audio control switch or select
on the
screen.
The following icons are displayed on the screen during a call. Icons which can be used differ
depending on use conditions.

Icon Function

Displays the Communication menu.

Ends the call.

Transferring a call from hands-free to a mobile phone
Communication between the Bluetooth ® unit and a device (mobile phone) is canceled, and
an incoming call will be received by the device (mobile phone) like a standard call.

Transferring a call from a device (mobile phone) to hands-free
Communication between devices (mobile phone) can be switched to Bluetooth ® Hands-
Free.

Mute
The microphone can be muted during a call.
When selected again, the mute is canceled.

A call is made to other person during a call and a 3-way call can be made. Select the contact
from the following to make a call.

: Call History is displayed.

: The phonebook is displayed.

: The dial pad is displayed. Input the phone number.
The device may be unusable depending on the contractual content.

The call on hold is made to make a 3-way call.
The device may be unusable depending on the contractual content.

Switches the call on hold.

DTMF (Dual Tone Multi-Frequency Signal) Transmission
This function is used when transmitting DTMF via the dial pad. The receiver of a DTMF
transmission is generally a home telephone answering machine or a company's automated
guidance call center.
Input the number using a dial pad.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–110
Interior Features
Bluetooth®
N O T E



y If the ignition is switched off during a
hands-free call, the line is transferred
to the device (Mobile phone)
automatically.



y If the DTMF code has two or more
digits or symbols, each one must be
transmitted individually.

Call Interrupt
A call can be interrupted to receive an
incoming call from a third party.
When
is selected or the pick-
up button on the steering wheel is pressed,
the current call is held and the system
switches to the new incoming call.
When
is selected, the current
call is ended and the system switches to
the new incoming call (GSM network
only).
When
is selected or the hang-up
button on the steering wheel is pressed, an
incoming call is refused.
N O T E



y The function may not be available
depending on the contractual content of
the mobile device.



y The function may not be operable
depending on the type of the telephone
network and the mobile device.

Receiving and Replying to
Messages (available only with
Email/SMS compatible phones)
SMS (Short Message Service) messages,
and E-mail received by connected devices
can be downloaded, displayed, and played
(read by the system).
Additionally, replies can also be made
to calls and messages in the received
messages.
Downloading messages
Up to 20 new messages can be
downloaded and displayed from a
connected device.
N O T E
For e-mail, 20 messages for each account
can be downloaded.

(Automatic downloading)
The “Auto Download Email” (E-mail)
or “Auto Download Text Message”
(SMS) setting must be on. A message
is downloaded automatically when the
Bluetooth
® unit is connected to the device.
Refer to Communication Settings on page
5-114 .
(Manually downloading)
When the “Auto Download Email”
(E-mail) or “Auto Download Text
Message” (SMS) setting is off, the
message is downloaded using the
following procedure.

1. Select the icon on the home screen
to display the Communication screen.
2. Select
or to display
the Inbox.
3. Select
.
4. Download will be started from the
mobile phone.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC

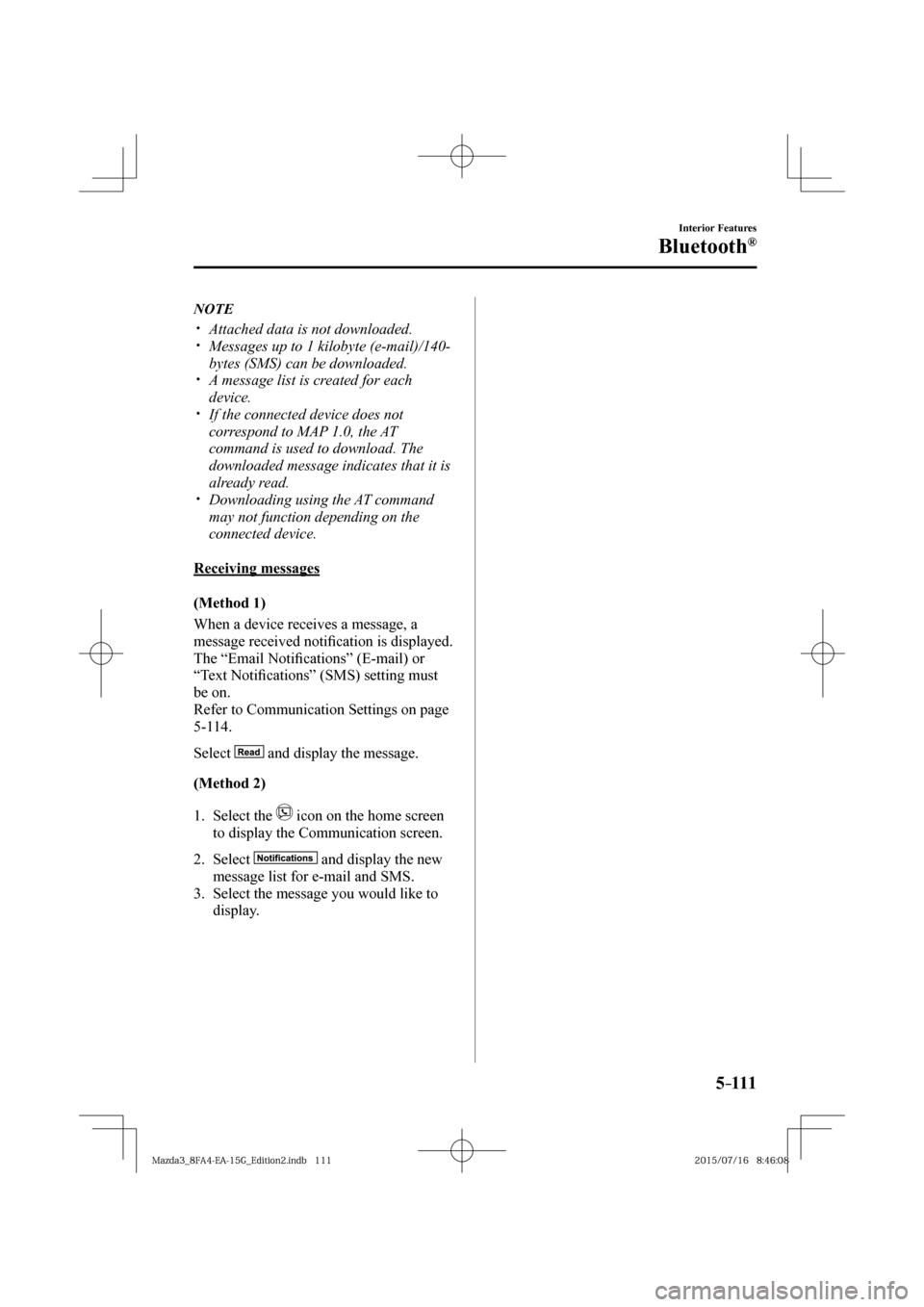

5–111
Interior Features
Bluetooth®
N O T E



y Attached data is not downloaded.



y Messages up to 1 kilobyte (e-mail)/140-
bytes (SMS) can be downloaded.



y A message list is created for each
device.



y If the connected device does not
correspond to MAP 1.0, the AT
command is used to download. The
downloaded message indicates that it is
already read.



y Downloading using the AT command
may not function depending on the
connected device.

Receiving messages
( M e t h o d 1 )
When a device receives a message, a
message received noti¿ cation is displayed.
The “Email Noti¿ cations” (E-mail) or
“Text Noti¿ cations” (SMS) setting must
be on.
Refer to Communication Settings on page
5-114 .
Select
and display the message.
(Method 2)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
and display the new
message list for e-mail and SMS.
3. Select the message you would like to
display.


.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–112
Interior Features
Bluetooth®
The following icons are displayed in the lower part of the details on the message. Icons
which can be used differ depending on use conditions.

Icon Function

Displays the Communication menu.

Displays the inbox.

Plays back a message.
When selected again, playback is temporarily stopped.

Displays the previous message.

Displays the next message.

Only replies to the sender of the currently displayed message.
Select the sentence on the displayed reply screen and select the sentence for sending from
the preset message.
Select .

(Only E-mail)
Replies to all members including CC.
Select the sentence on the displayed reply screen and select the sentence for sending from
the preset message.
Select
.

Makes a call to a person who sent a message.
For E-mail, this function may not work depending on the device.

Deletes a message.
The messages stored in a device is also deleted.

N O T E
Up to three preset messages can be selected.
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–113
Interior Features
Bluetooth®
Example of use (verify unread E-mail)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the inbox.



3. Select the unread message displayed in
bold.
4. The details of the message are
displayed and replying to the message,
making a call, or playback can be
performed.

Changing account for displaying
(E-mail only)
1. Select
.
2. Select the account which you would
like to display. Only the messages for
the selected account are displayed in
the inbox.

Editing preset messages
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
.
3. Select
.
4. Select the preset message which you
would like to edit. The keyboard screen
is displayed.
5. When the message is input and
is
selected, the message is stored as a
preset message.

N O T E



y Select the icon to change the
language.



y Select the icon to switch between
capitalized and lower-case characters.



y Select the icon to return to the
previous screen without storing the edit.

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










5–114
Interior Features
Bluetooth®
Communication Settings
Select the icon on the home screen to display the Communication screen.
Select
to change the setting.

Item Setting Function
Bluetooth
® — Go to Bluetooth ® setting menu.
Refer to Bluetooth ® Preparation (Type B) on page 5-94 .
Incoming Call
Noti¿ cations On/Off Noti¿ es when an incoming call is received.
Auto Download Text
Message On/Off Downloads SMS automatically when the Bluetooth
® unit is connected
to the device.
Text Noti¿ cations On/Off Noti¿ es when a new SMS is received.
Auto Download
Email
*1 On/Off Downloads E-mail automatically when the Bluetooth
® unit is connected
to the device.
Email Noti¿ cations On/Off Noti¿ es when a new Email is received.
Auto Download Call
History On/Off Downloads Call History automatically when the Bluetooth
® unit is
connected to the device.
Auto Download
Contacts
*1 On/Off Downloads the phonebook automatically when the Bluetooth
® unit is
connected to the device.
Ringtone Car/Phone/Off Changes the ringtone setting.
Phone Volume Adjusts using
the slider. Adjusts the conversation volume.
VR and Ringtone Adjusts using
the slider. Adjusts the voice guidance and ringtone volume.
Contacts Display
Order First Name,
Last Name Displays the contact information in alphabetical order of the ¿ rst name.
Last Name,
First Name Displays the contact information in alphabetical order of the last name.
Edit Preset Messages — Edits the preset message.
Refer to Receiving and Replying to Messages (available only with
E-mail/SMS compatible phones) on page 5-110 .
Emergency Assistance
Call On/Off Mobile Utilizes the Mobile 911 function.
Restore Factory
settings — Initializes all Communication Settings.
*1 Depending on the device, it may be necessary to acquire download permission on the device side.


.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC
