2016 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

4191
Features of your vehicle

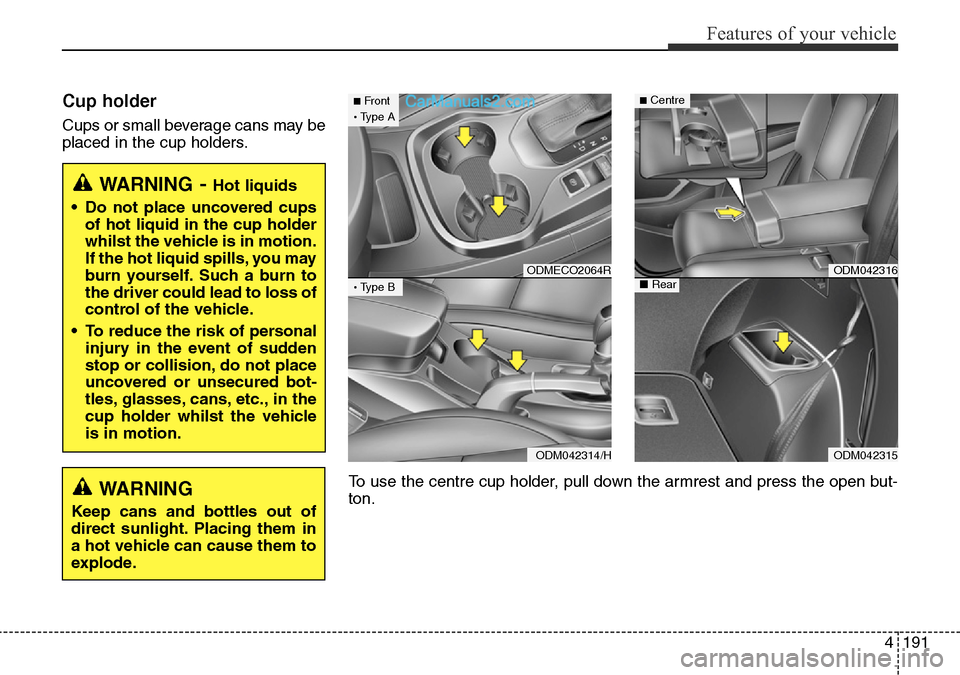

Cup holder
Cups or small beverage cans may be
placed in the cup holders.
WARNING- Hot liquids
• Do not place uncovered cups
of hot liquid in the cup holder
whilst the vehicle is in motion.
If the hot liquid spills, you may
burn yourself. Such a burn to
the driver could lead to loss of
control of the vehicle.
• To reduce the risk of personal
injury in the event of sudden
stop or collision, do not place
uncovered or unsecured bot-
tles, glasses, cans, etc., in the
cup holder whilst the vehicle
is in motion.
WARNING
Keep cans and bottles out of
direct sunlight. Placing them in
a hot vehicle can cause them to
explode.
ODMECO2064R
ODM042314/H
■Front·Type A
·Type B
ODM042316
ODM042315
■Centre
■Rear
To use the centre cup holder, pull down the armrest and press the open but-
ton.

Features of your vehicle
192 4

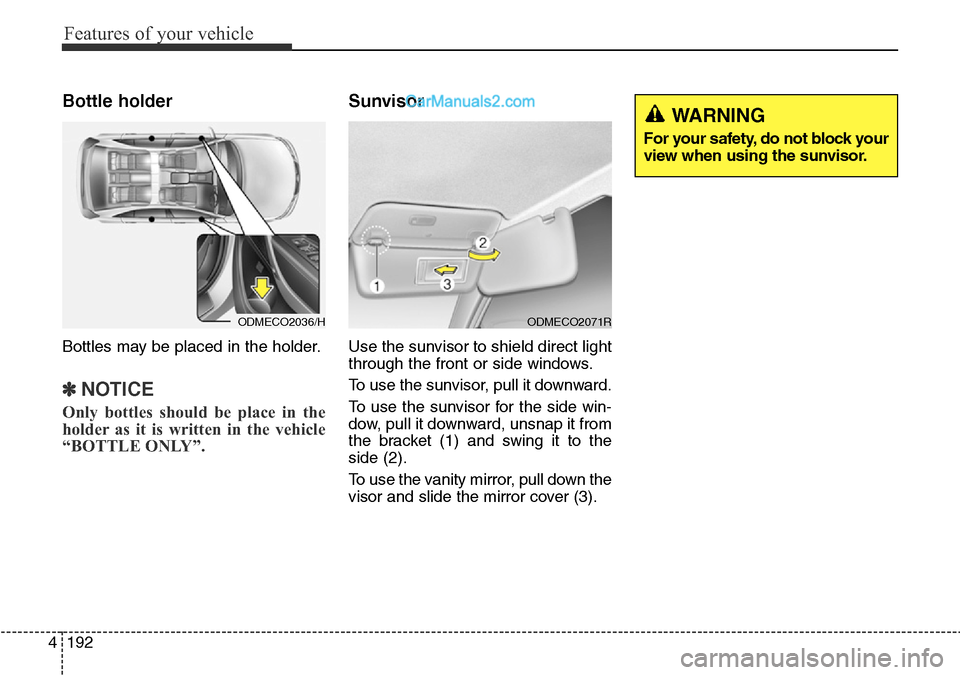

Bottle holder
Bottles may be placed in the holder.
✽NOTICE
Only bottles should be place in the
holder as it is written in the vehicle
“BOTTLE ONLY”.
Sunvisor
Use the sunvisor to shield direct light
through the front or side windows.
To use the sunvisor, pull it downward.
To use the sunvisor for the side win-
dow, pull it downward, unsnap it from
the bracket (1) and swing it to the
side (2).
To use the vanity mirror, pull down the
visor and slide the mirror cover (3).
WARNING
For your safety, do not block your
view when using the sunvisor.
ODMECO2036/HODMECO2071R

4193
Features of your vehicle

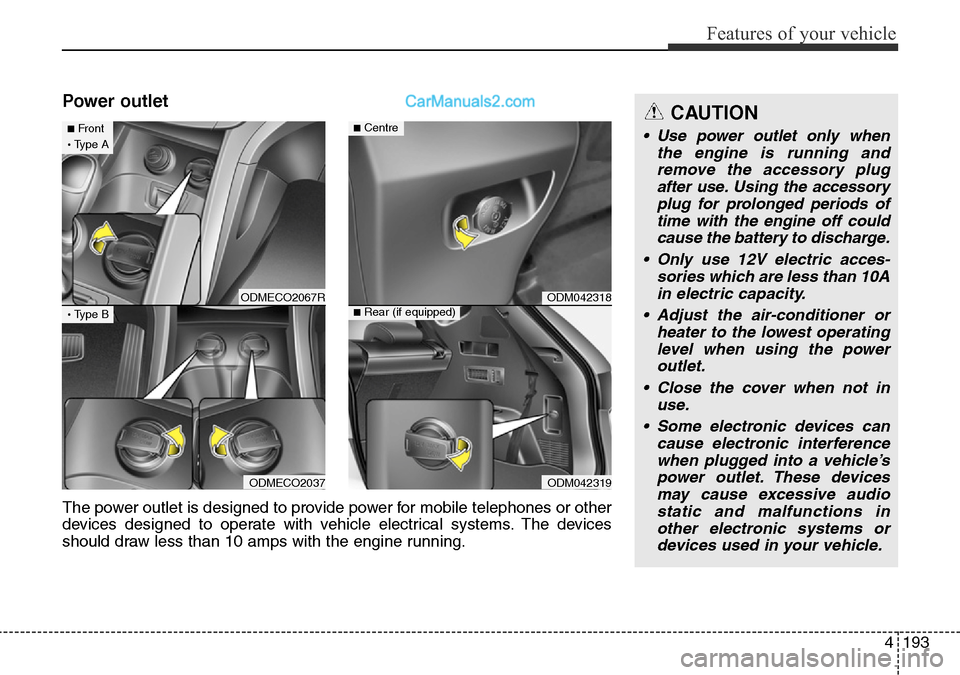

Power outletCAUTION
• Use power outlet only when
the engine is running and
remove the accessory plug
after use. Using the accessory
plug for prolonged periods of
time with the engine off could
cause the battery to discharge.
• Only use 12V electric acces-
sories which are less than 10A
in electric capacity.
• Adjust the air-conditioner or
heater to the lowest operating
level when using the power
outlet.
• Close the cover when not in
use.
• Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices
may cause excessive audio
static and malfunctions in
other electronic systems or
devices used in your vehicle.
ODMECO2067R
ODMECO2037
■Front·Type A
·Type B
ODM042318
ODM042319
■Centre
■Rear (if equipped)
The power outlet is designed to provide power for mobile telephones or other
devices designed to operate with vehicle electrical systems. The devices
should draw less than 10 amps with the engine running.

Features of your vehicle
194 4

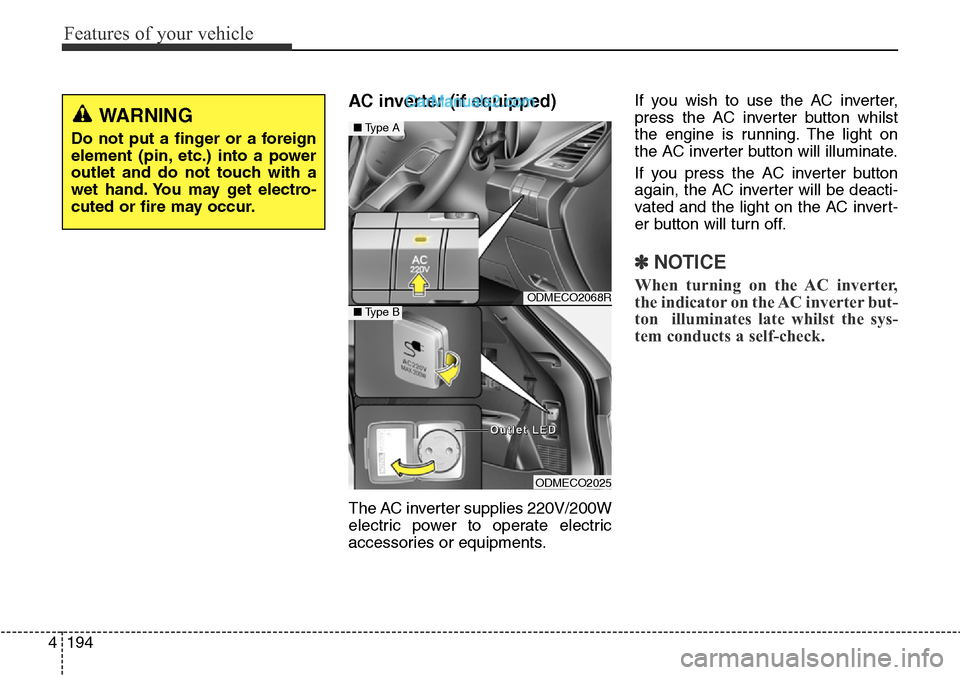

AC inverter (if equipped)
The AC inverter supplies 220V/200W
electric power to operate electric
accessories or equipments.If you wish to use the AC inverter,
press the AC inverter button whilst
the engine is running. The light on
the AC inverter button will illuminate.
If you press the AC inverter button
again, the AC inverter will be deacti-
vated and the light on the AC invert-
er button will turn off.
✽NOTICE
When turning on the AC inverter,
the indicator on the AC inverter but-
ton illuminates late whilst the sys-
tem conducts a self-check.ODMECO2068R
ODMECO2025
■Type A
■Type B
O O
u u
t t
l l
e e
t t

L L
E E
D D
WARNING
Do not put a finger or a foreign
element (pin, etc.) into a power
outlet and do not touch with a
wet hand. You may get electro-
cuted or fire may occur.

4195
Features of your vehicle

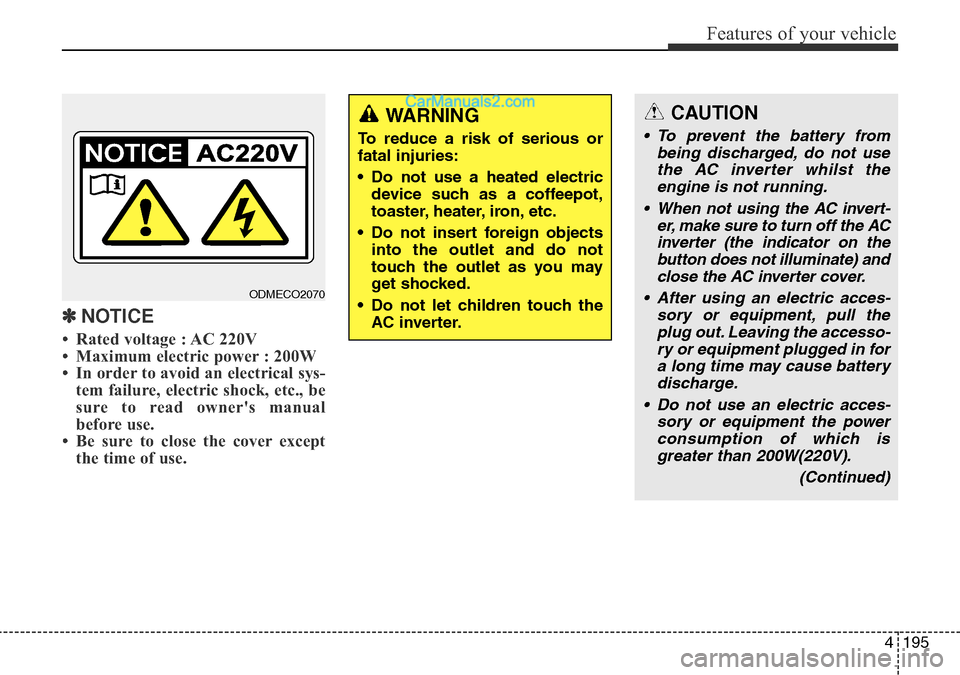

✽NOTICE
• Rated voltage : AC 220V
• Maximum electric power : 200W
• In order to avoid an electrical sys-
tem failure, electric shock, etc., be
sure to read owner's manual
before use.
• Be sure to close the cover except
the time of use.
CAUTION
• To prevent the battery from
being discharged, do not use
the AC inverter whilst the
engine is not running.
• When not using the AC invert-
er, make sure to turn off the AC
inverter (the indicator on the
button does not illuminate) and
close the AC inverter cover.
• After using an electric acces-
sory or equipment, pull the
plug out. Leaving the accesso-
ry or equipment plugged in for
a long time may cause battery
discharge.
• Do not use an electric acces-
sory or equipment the power
consumption of which is
greater than 200W(220V).
(Continued)
WARNING
To reduce a risk of serious or
fatal injuries:
• Do not use a heated electric
device such as a coffeepot,
toaster, heater, iron, etc.
• Do not insert foreign objects
into the outlet and do not
touch the outlet as you may
get shocked.
• Do not let children touch the
AC inverter.
ODMECO2070

Features of your vehicle
196 4

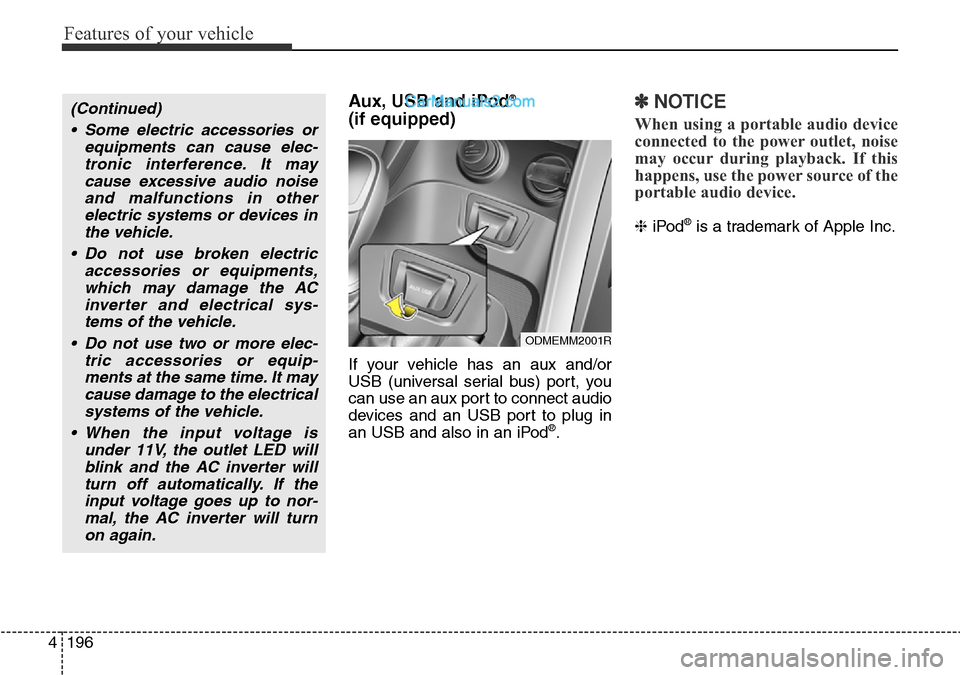

Aux, USB and iPod®
(if equipped)
If your vehicle has an aux and/or
USB (universal serial bus) port, you
can use an aux port to connect audio
devices and an USB port to plug in
an USB and also in an iPod
®.
✽NOTICE
When using a portable audio device
connected to the power outlet, noise
may occur during playback. If this
happens, use the power source of the
portable audio device.
❈iPod®is a trademark of Apple Inc.
(Continued)
• Some electric accessories or
equipments can cause elec-
tronic interference. It may
cause excessive audio noise
and malfunctions in other
electric systems or devices in
the vehicle.
• Do not use broken electric
accessories or equipments,
which may damage the AC
inverter and electrical sys-
tems of the vehicle.
• Do not use two or more elec-
tric accessories or equip-
ments at the same time. It may
cause damage to the electrical
systems of the vehicle.
• When the input voltage is
under 11V, the outlet LED will
blink and the AC inverter will
turn off automatically. If the
input voltage goes up to nor-
mal, the AC inverter will turn
on again.
ODMEMM2001R

4197
Features of your vehicle

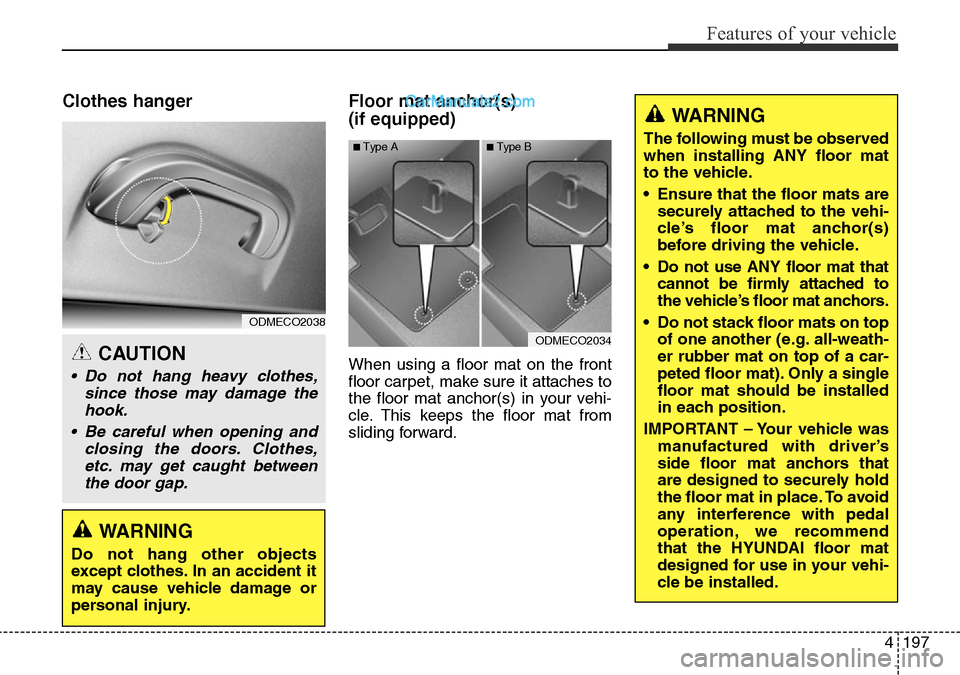

Clothes hanger Floor mat anchor(s)
(if equipped)
When using a floor mat on the front
floor carpet, make sure it attaches to
the floor mat anchor(s) in your vehi-
cle. This keeps the floor mat from
sliding forward.
ODMECO2034
■Type A■Type B
WARNING
The following must be observed
when installing ANY floor mat
to the vehicle.
• Ensure that the floor mats are
securely attached to the vehi-
cle’s floor mat anchor(s)
before driving the vehicle.
• Do not use ANY floor mat that
cannot be firmly attached to
the vehicle’s floor mat anchors.
• Do not stack floor mats on top
of one another (e.g. all-weath-
er rubber mat on top of a car-
peted floor mat). Only a single
floor mat should be installed
in each position.
IMPORTANT – Your vehicle was
manufactured with driver’s
side floor mat anchors that
are designed to securely hold
the floor mat in place. To avoid
any interference with pedal
operation, we recommend
that the HYUNDAI floor mat
designed for use in your vehi-
cle be installed.
ODMECO2038
CAUTION
• Do not hang heavy clothes,
since those may damage the
hook.
• Be careful when opening and
closing the doors. Clothes,
etc. may get caught between
the door gap.
WARNING
Do not hang other objects
except clothes. In an accident it
may cause vehicle damage or
personal injury.

Features of your vehicle
198 4

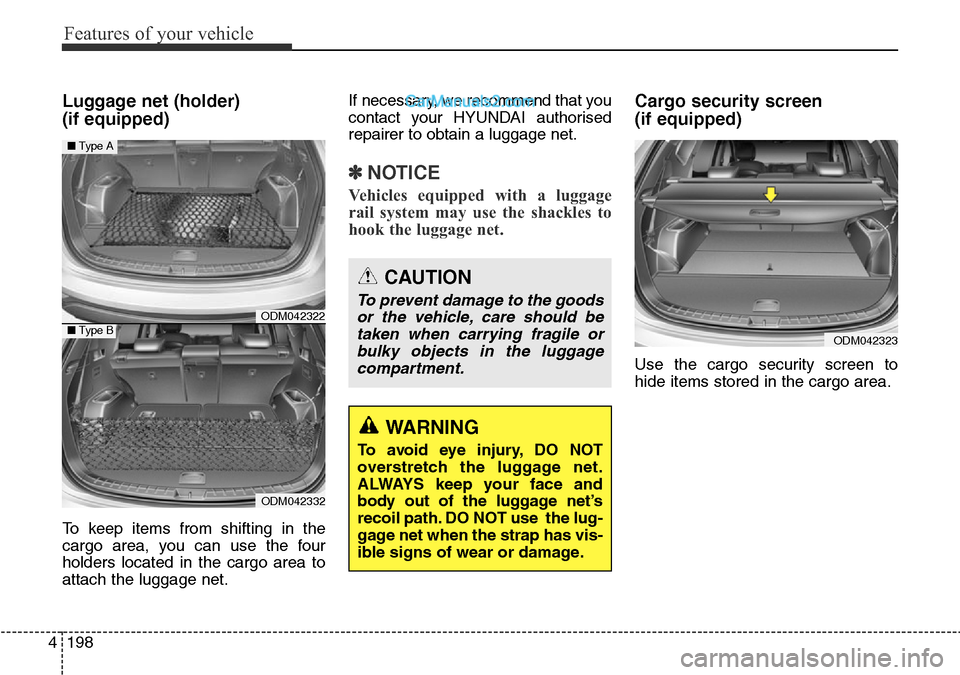

Luggage net (holder)
(if equipped)
To keep items from shifting in the
cargo area, you can use the four
holders located in the cargo area to
attach the luggage net.If necessary, we recommend that you
contact your HYUNDAI authorised
repairer to obtain a luggage net.
✽NOTICE
Vehicles equipped with a luggage
rail system may use the shackles to
hook the luggage net.
Cargo security screen
(if equipped)
Use the cargo security screen to
hide items stored in the cargo area.
CAUTION
To prevent damage to the goods
or the vehicle, care should be
taken when carrying fragile or
bulky objects in the luggage
compartment.
WARNING
To avoid eye injury, DO NOT
overstretch the luggage net.
ALWAYS keep your face and
body out of the luggage net’s
recoil path. DO NOT use the lug-
gage net when the strap has vis-
ible signs of wear or damage.
ODM042323
ODM042322
ODM042332
■Type A
■Type B
