Safety features of your vehicle
• The active bonnet lift system may
be activated when an impact is
detected by frontal collision without
pedestrians. If an animal, trash can
or other things are struck by your
vehicle.
• In certain high-speed frontal or
angled collisions, with car or barri-
er, the active bonnet lift system
may work.Active bonnet lift system non-
activation situation

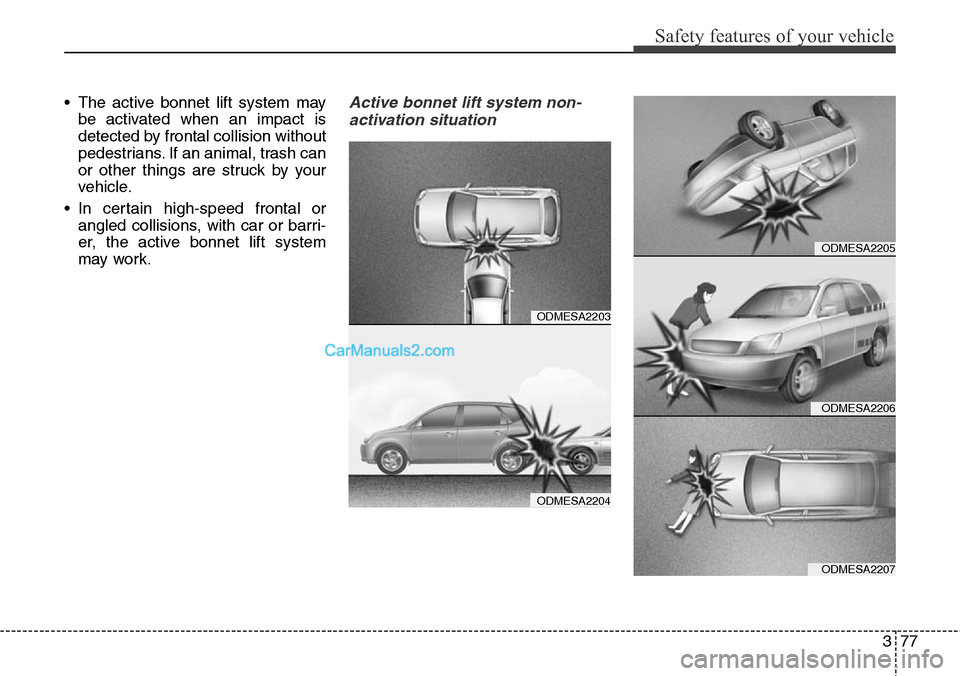

ODMESA2203
ODMESA2204
ODMESA2205
ODMESA2206
ODMESA2207

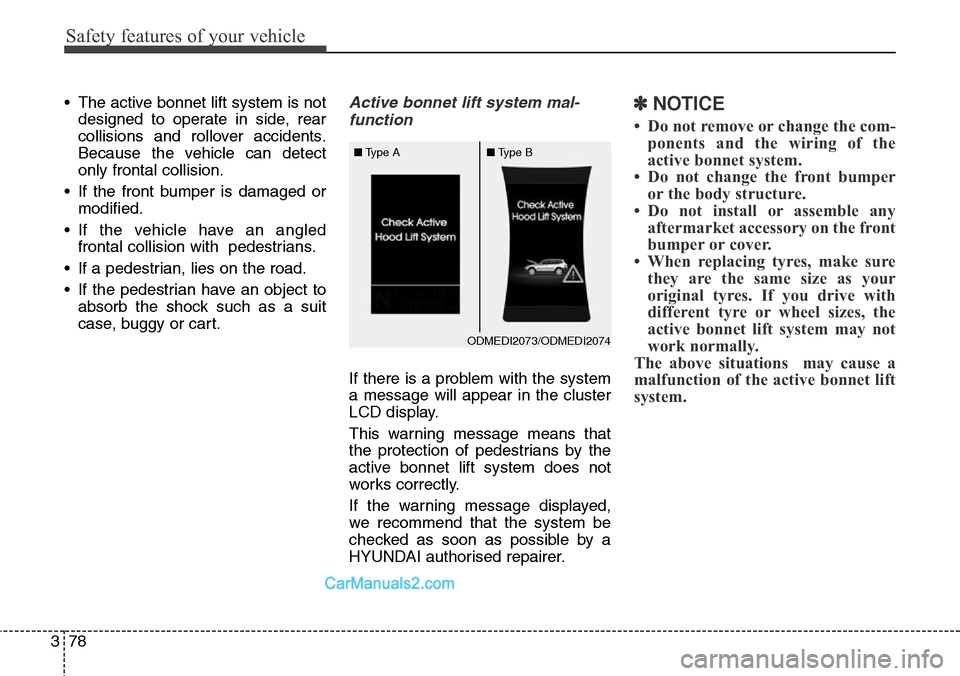

Safety features of your vehicle
78 3
• The active bonnet lift system is not
designed to operate in side, rear
collisions and rollover accidents.
Because the vehicle can detect
only frontal collision.
• If the front bumper is damaged or
modified.
• If the vehicle have an angled
frontal collision with pedestrians.
• If a pedestrian, lies on the road.
• If the pedestrian have an object to
absorb the shock such as a suit
case, buggy or cart.Active bonnet lift system mal-
function
If there is a problem with the system
a message will appear in the cluster
LCD display.
This warning message means that
the protection of pedestrians by the
active bonnet lift system does not
works correctly.
If the warning message displayed,
we recommend that the system be
checked as soon as possible by a
HYUNDAI authorised repairer.
✽NOTICE
• Do not remove or change the com-
ponents and the wiring of the
active bonnet system.
• Do not change the front bumper
or the body structure.
• Do not install or assemble any
aftermarket accessory on the front
bumper or cover.
• When replacing tyres, make sure
they are the same size as your
original tyres. If you drive with
different tyre or wheel sizes, the
active bonnet lift system may not
work normally.
The above situations may cause a
malfunction of the active bonnet lift
system.
ODMEDI2073/ODMEDI2074 ■Type A■Type B
