Your vehicle at a glance

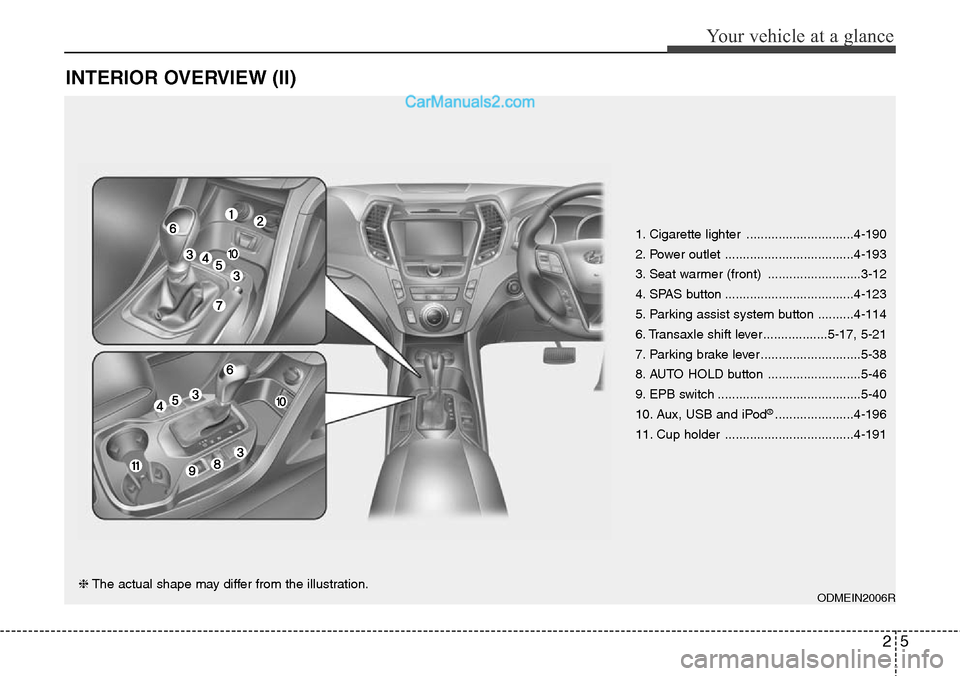

INTERIOR OVERVIEW (II)
1. Cigarette lighter ..............................4-190
2. Power outlet ....................................4-193
3. Seat warmer (front) ..........................3-12
4. SPAS button ....................................4-123
5. Parking assist system button ..........4-114
6. Transaxle shift lever ..................5-17, 5-21
7. Parking brake lever ............................5-38
8. AUTO HOLD button ..........................5-46
9. EPB switch ........................................5-40
10. Aux, USB and iPod
®......................4-196
11. Cup holder ....................................4-191
ODMEIN2006R❈The actual shape may differ from the illustration.

Your vehicle at a glance
6 2
INSTRUMENT PANEL OVERVIEW
1. Lighting control lever ......................4-134
2. Audio remote control buttons ..........4-203
3. Bluetooth hands-free buttons ..........4-253
4. Cruise control button ........................5-61
5. LCD display control buttons ..............4-69
6. Horn ..................................................4-55
7. Driver’s front air bag ..........................3-58
8. Wiper and washer control lever ......4-143
9. Ignition switch or Engine start/stop
button ........................................5-6, 5-10
10. Audio ............................................4-202
11. Hazard warning flasher ................4-132
12. Climate control system ......4-156, 4-167
13. Passenger’s front air bag ................3-58
14. Glove box ......................................4-186
ODMEIN2004R❈The actual shape may differ from the illustration.

27
Your vehicle at a glance

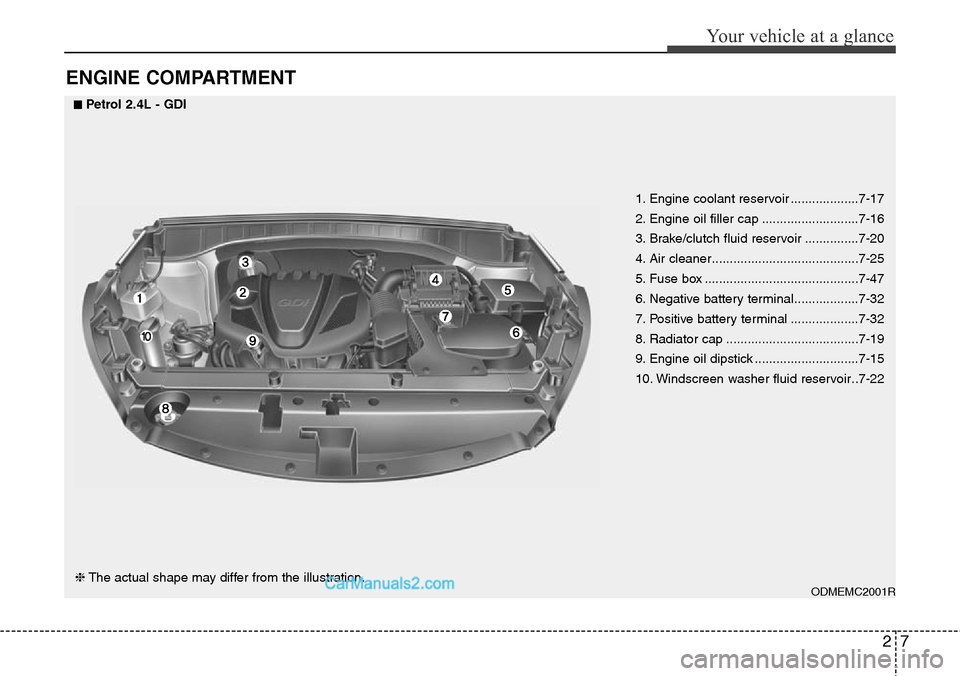

ENGINE COMPARTMENT
1. Engine coolant reservoir ...................7-17
2. Engine oil filler cap ...........................7-16
3. Brake/clutch fluid reservoir ...............7-20
4. Air cleaner.........................................7-25
5. Fuse box ...........................................7-47
6. Negative battery terminal..................7-32
7. Positive battery terminal ...................7-32
8. Radiator cap .....................................7-19
9. Engine oil dipstick .............................7-15
10. Windscreen washer fluid reservoir..7-22
ODMEMC2001R
■Petrol 2.4L - GDI
❈The actual shape may differ from the illustration.

Your vehicle at a glance
8 2
ODMNMC2023R
1. Engine coolant reservoir ...................7-17
2. Engine oil filler cap ...........................7-16
3. Brake/clutch fluid reservoir ...............7-20
4. Air cleaner.........................................7-25
5. Fuse box ...........................................7-47
6. Negative battery terminal..................7-32
7. Positive battery terminal ...................7-32
8. Radiator cap .....................................7-19
9. Engine oil dipstick .............................7-15
10. Windscreen washer fluid reservoir..7-22
11. Fuel filter .........................................7-24
■Diesel 2.0L/2.2L
❈The actual shape may differ from the illustration.

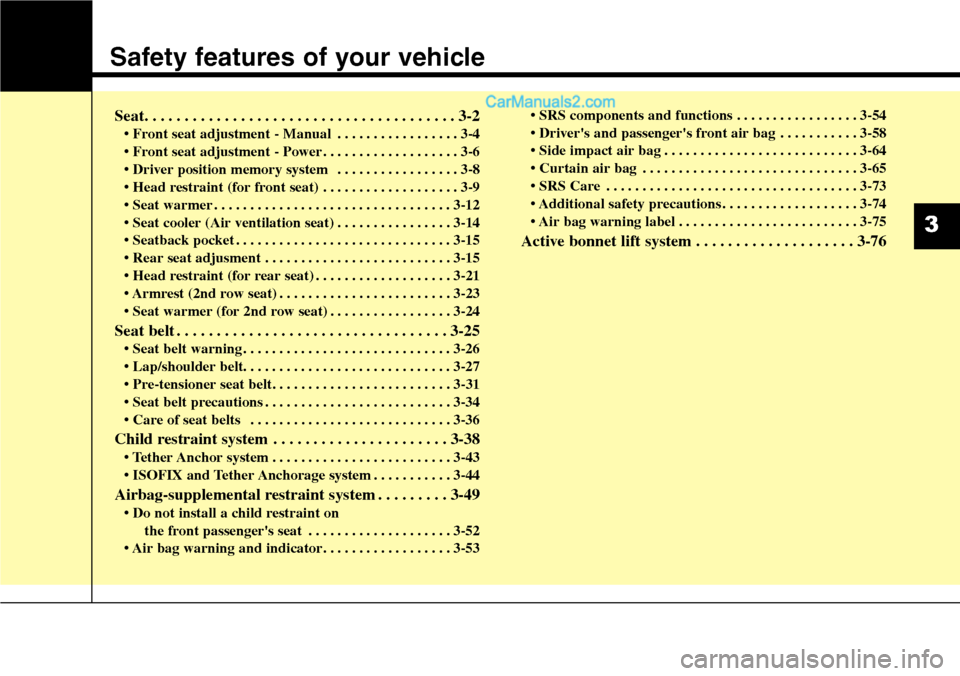

Safety features of your vehicle
Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Front seat adjustment - Manual . . . . . . . . . . . . . . . . . 3-4
• Front seat adjustment - Power . . . . . . . . . . . . . . . . . . . 3-6
• Driver position memory system . . . . . . . . . . . . . . . . . 3-8
• Head restraint (for front seat) . . . . . . . . . . . . . . . . . . . 3-9
• Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
• Seat cooler (Air ventilation seat) . . . . . . . . . . . . . . . . 3-14
• Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
• Rear seat adjusment . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
• Head restraint (for rear seat) . . . . . . . . . . . . . . . . . . . 3-21
• Armrest (2nd row seat) . . . . . . . . . . . . . . . . . . . . . . . . 3-23
• Seat warmer (for 2nd row seat) . . . . . . . . . . . . . . . . . 3-24
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
• Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
• Lap/shoulder belt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
• Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . 3-31
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-36
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-38
• Tether Anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
• ISOFIX and Tether Anchorage system . . . . . . . . . . . 3-44
Airbag-supplemental restraint system . . . . . . . . . 3-49
• Do not install a child restraint on
the front passenger's seat . . . . . . . . . . . . . . . . . . . . 3-52
• Air bag warning and indicator. . . . . . . . . . . . . . . . . . 3-53• SRS components and functions . . . . . . . . . . . . . . . . . 3-54
• Driver's and passenger's front air bag . . . . . . . . . . . 3-58
• Side impact air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-65
• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-73
• Additional safety precautions . . . . . . . . . . . . . . . . . . . 3-74
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-75
Active bonnet lift system . . . . . . . . . . . . . . . . . . . . 3-763

Safety features of your vehicle
2 3
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer* /
Seat cooler (air ventilation seat)*
(6) Head restraint
2nd row seat
(7) Forward and backward
(8) Seatback angle and folding
(9) Walk-in seat lever*
(10) Head restraint
(11) Armrest
(12) Seat warmer*
3rd row seat*
(13) Seatback folding
(14) Head restraint
* if equipped

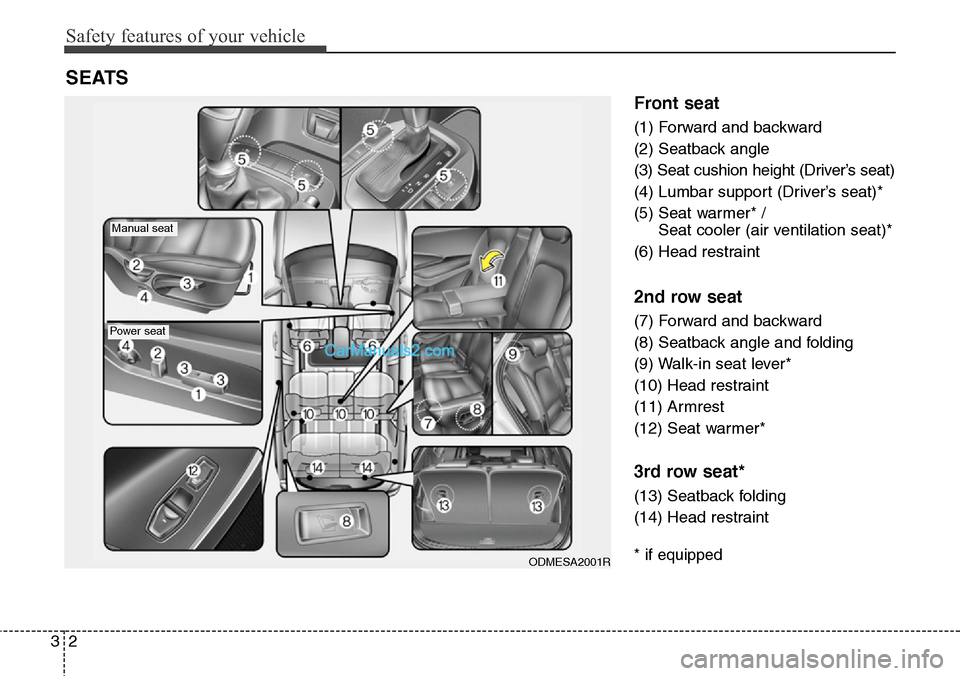

SEATS
ODMESA2001R
Manual seat
Power seat

33
Safety features of your vehicle

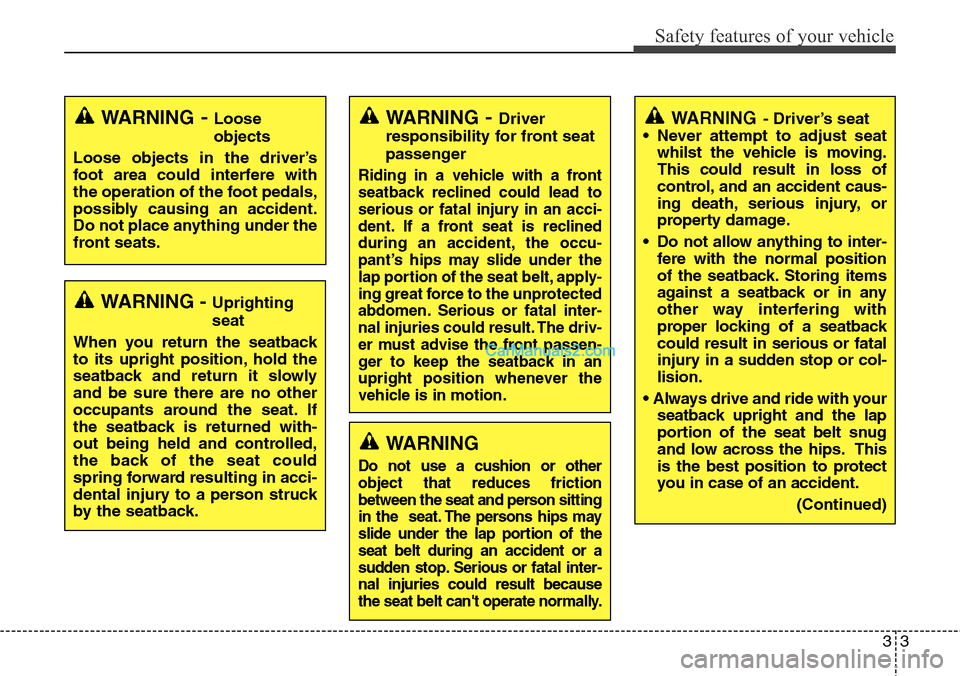

WARNING - Uprighting
seat
When you return the seatback
to its upright position, hold the
seatback and return it slowly
and be sure there are no other
occupants around the seat. If
the seatback is returned with-
out being held and controlled,
the back of the seat could
spring forward resulting in acci-
dental injury to a person struck
by the seatback.
WARNING- Loose
objects
Loose objects in the driver’s
foot area could interfere with
the operation of the foot pedals,
possibly causing an accident.
Do not place anything under the
front seats.WARNING- Driver
responsibility for front seat
passenger
Riding in a vehicle with a front
seatback reclined could lead to
serious or fatal injury in an acci-
dent. If a front seat is reclined
during an accident, the occu-
pant’s hips may slide under the
lap portion of the seat belt, apply-
ing great force to the unprotected
abdomen. Serious or fatal inter-
nal injuries could result. The driv-
er must advise the front passen-
ger to keep the seatback in an
upright position whenever the
vehicle is in motion.
WARNING
Do not use a cushion or other
object that reduces friction
between the seat and person sitting
in the seat. The persons hips may
slide under the lap portion of the
seat belt during an accident or a
sudden stop. Serious or fatal inter-
nal injuries could result because
the seat belt can't operate normally.
WARNING- Driver’s seat
• Never attempt to adjust seat
whilst the vehicle is moving.
This could result in loss of
control, and an accident caus-
ing death, serious injury, or
property damage.
• Do not allow anything to inter-
fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback
could result in serious or fatal
injury in a sudden stop or col-
lision.
• Always drive and ride with your
seatback upright and the lap
portion of the seat belt snug
and low across the hips. This
is the best position to protect
you in case of an accident.
(Continued)

Safety features of your vehicle
4 3

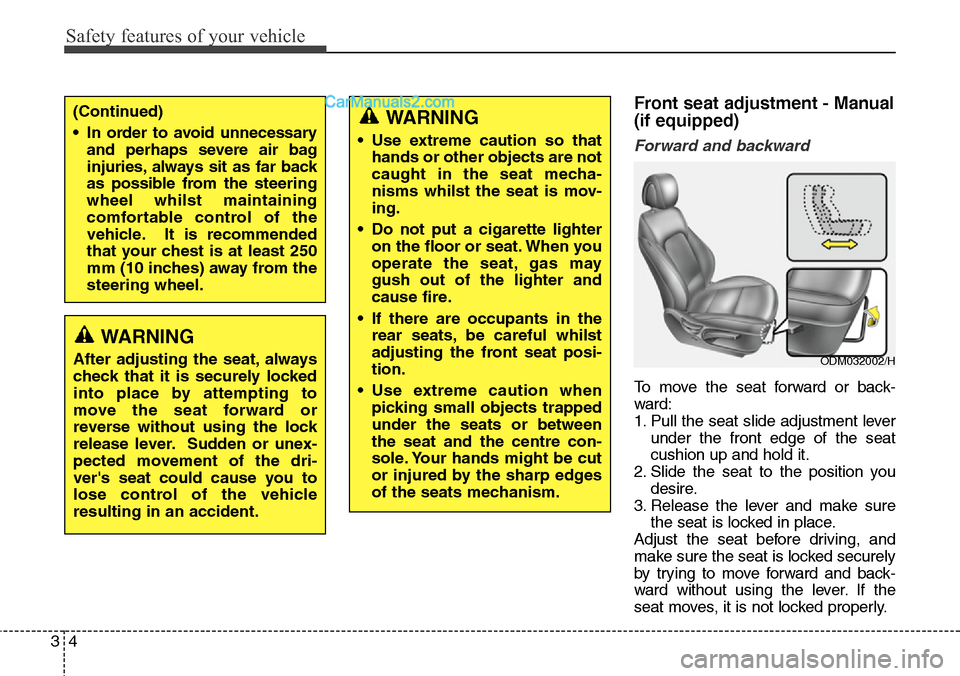

Front seat adjustment - Manual
(if equipped)
Forward and backward
To move the seat forward or back-
ward:
1. Pull the seat slide adjustment lever
under the front edge of the seat
cushion up and hold it.
2. Slide the seat to the position you
desire.
3. Release the lever and make sure
the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back-
ward without using the lever. If the
seat moves, it is not locked properly.
WARNING
After adjusting the seat, always
check that it is securely locked
into place by attempting to
move the seat forward or
reverse without using the lock
release lever. Sudden or unex-
pected movement of the dri-
ver's seat could cause you to
lose control of the vehicle
resulting in an accident.
(Continued)
• In order to avoid unnecessary
and perhaps severe air bag
injuries, always sit as far back
as possible from the steering
wheel whilst maintaining
comfortable control of the
vehicle. It is recommended
that your chest is at least 250
mm (10 inches) away from the
steering wheel.WARNING
• Use extreme caution so that
hands or other objects are not
caught in the seat mecha-
nisms whilst the seat is mov-
ing.
• Do not put a cigarette lighter
on the floor or seat. When you
operate the seat, gas may
gush out of the lighter and
cause fire.
• If there are occupants in the
rear seats, be careful whilst
adjusting the front seat posi-
tion.
• Use extreme caution when
picking small objects trapped
under the seats or between
the seat and the centre con-
sole. Your hands might be cut
or injured by the sharp edges
of the seats mechanism.
ODM032002/H
