2016 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

Specifications & Consumer information
10 8

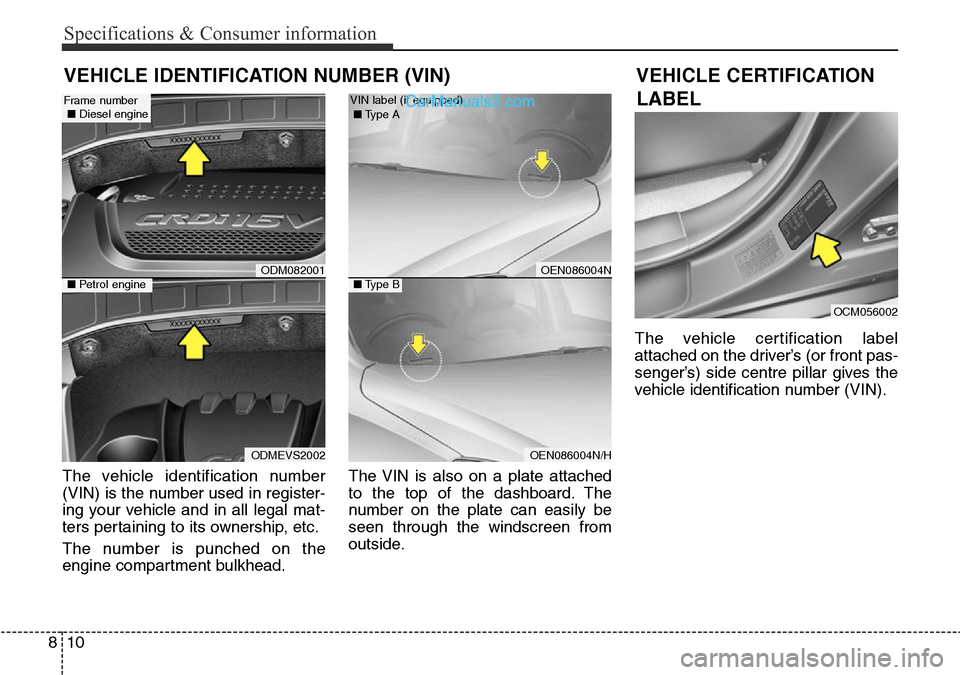

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the
engine compartment bulkhead.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windscreen from
outside.The vehicle certification label
attached on the driver’s (or front pas-
senger’s) side centre pillar gives the
vehicle identification number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN) VEHICLE CERTIFICATION
LABEL
OCM056002
ODM082001
ODMEVS2002
Frame number
■ Diesel engine
■ Petrol engineOEN086004N
OEN086004N/H VIN label (if equipped)
■Type B
■Type A

811
Specifications & Consumer information

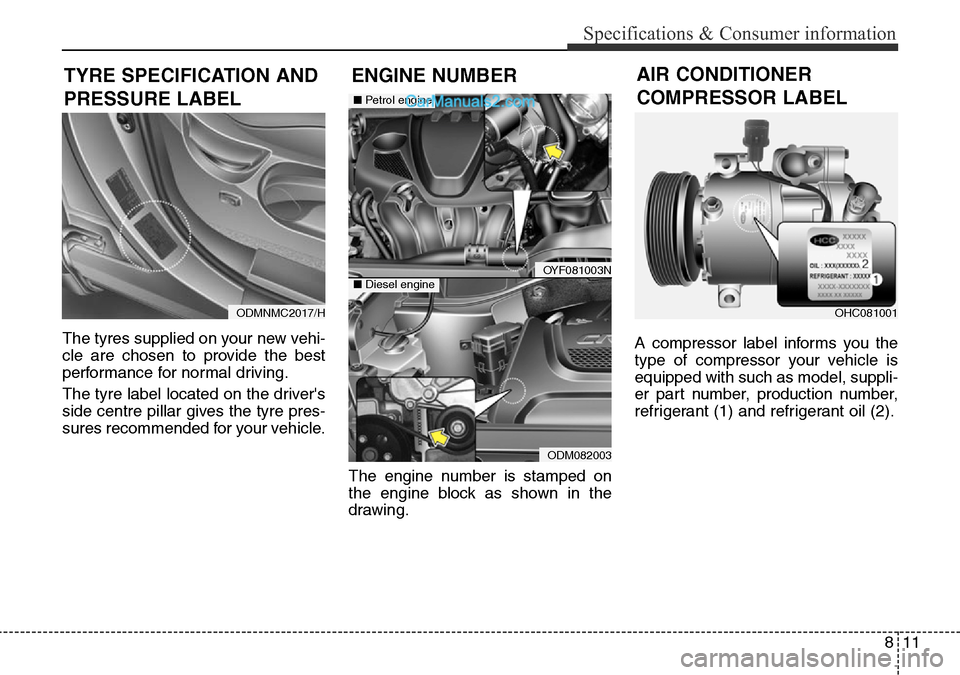

The tyres supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tyre label located on the driver's
side centre pillar gives the tyre pres-
sures recommended for your vehicle.
The engine number is stamped on
the engine block as shown in the
drawing.A compressor label informs you the
type of compressor your vehicle is
equipped with such as model, suppli-
er part number, production number,
refrigerant (1) and refrigerant oil (2).
TYRE SPECIFICATION AND
PRESSURE LABELENGINE NUMBER
ODMNMC2017/H
OYF081003N
ODM082003
■ Diesel engine
■ Petrol engine
OHC081001
AIR CONDITIONER
COMPRESSOR LABEL

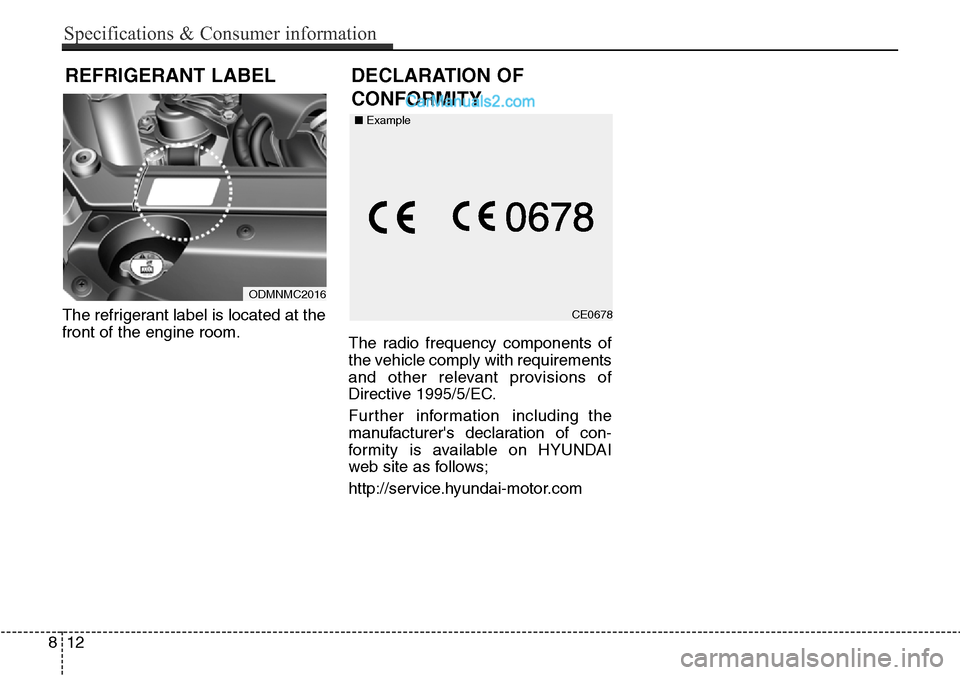

The refrigerant label is located at the
front of the engine room.
The radio frequency components of
the vehicle comply with requirements
and other relevant provisions of
Directive 1995/5/EC.
Further information including the
manufacturer's declaration of con-
formity is available on HYUNDAI
web site as follows;
http://service.hyundai-motor.com
812
Specifications & Consumer information
REFRIGERANT LABEL
ODMNMC2016
CE0678 ■Example
DECLARATION OF
CONFORMITY
