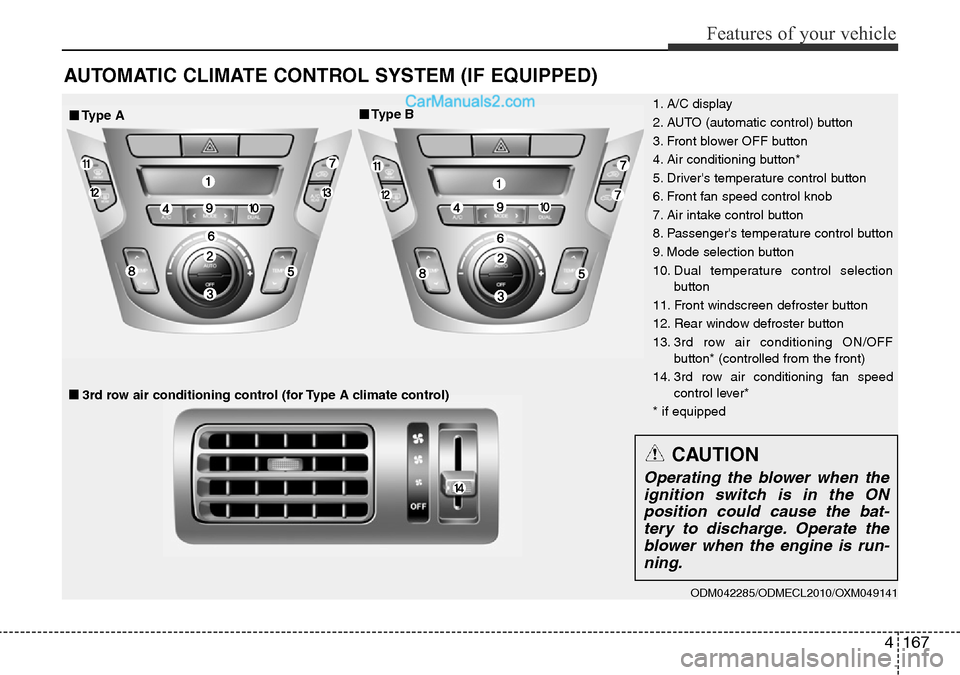

2016 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

4167
Features of your vehicle
AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)
ODM042285/ODMECL2010/OXM049141
1. A/C display
2. AUTO (automatic control) button
3. Front blower OFF button
4. Air conditioning button*
5. Driver's temperature control button
6. Front fan speed control knob
7. Air intake control button
8. Passenger's temperature control button
9. Mode selection button
10. Dual temperature control selection
button
11. Front windscreen defroster button
12. Rear window defroster button
13. 3rd row air conditioning ON/OFF
button* (controlled from the front)
14. 3rd row air conditioning fan speed
control lever*
* if equipped■■Type A■Type B
■■3rd row air conditioning control (for Type A climate control)
CAUTION
Operating the blower when the
ignition switch is in the ON
position could cause the bat-
tery to discharge. Operate the
blower when the engine is run-
ning.

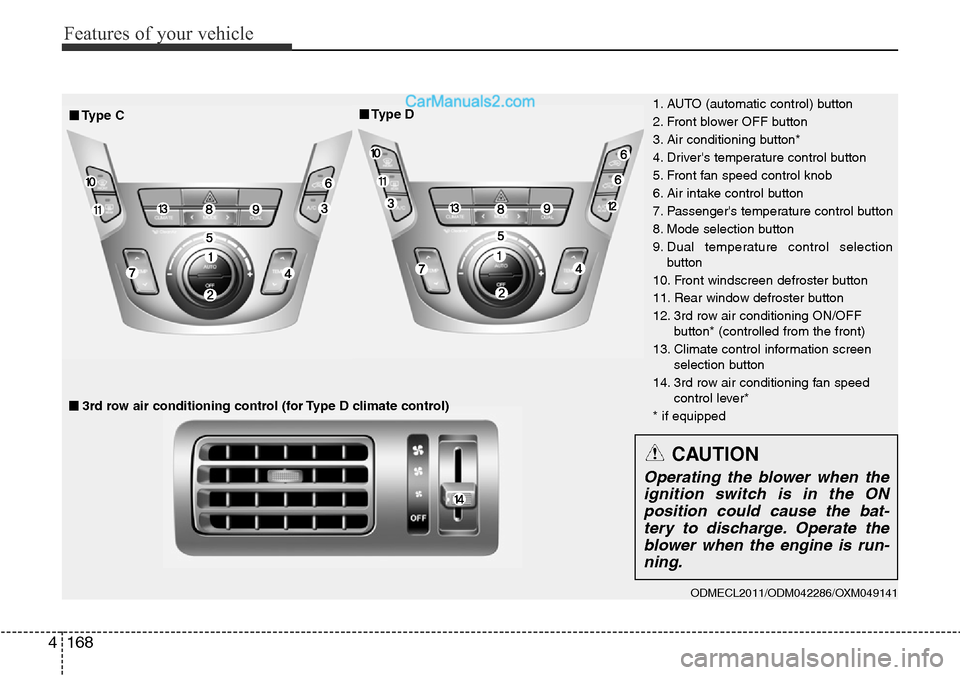

Features of your vehicle
168 4
ODMECL2011/ODM042286/OXM049141
1. AUTO (automatic control) button
2. Front blower OFF button
3. Air conditioning button*
4. Driver's temperature control button
5. Front fan speed control knob
6. Air intake control button
7. Passenger's temperature control button
8. Mode selection button
9. Dual temperature control selection
button
10. Front windscreen defroster button
11. Rear window defroster button
12. 3rd row air conditioning ON/OFF
button* (controlled from the front)
13. Climate control information screen
selection button
14. 3rd row air conditioning fan speed
control lever*
* if equipped■Type D
■3rd row air conditioning control (for Type D climate control)
■■Type C
CAUTION
Operating the blower when the
ignition switch is in the ON
position could cause the bat-
tery to discharge. Operate the
blower when the engine is run-
ning.

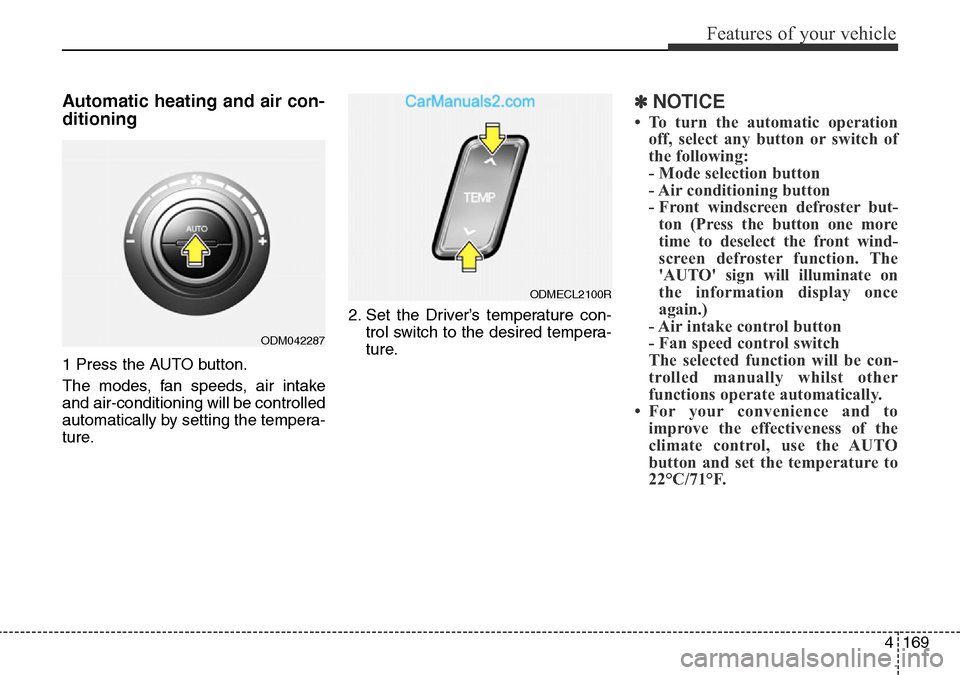

4169
Features of your vehicle
Automatic heating and air con-
ditioning
1 Press the AUTO button.
The modes, fan speeds, air intake
and air-conditioning will be controlled
automatically by setting the tempera-
ture.2. Set the Driver’s temperature con-
trol switch to the desired tempera-
ture.
✽NOTICE
• To turn the automatic operation
off, select any button or switch of
the following:
- Mode selection button
- Air conditioning button
- Front windscreen defroster but-
ton (Press the button one more
time to deselect the front wind-
screen defroster function. The
'AUTO' sign will illuminate on
the information display once
again.)
- Air intake control button
- Fan speed control switch
The selected function will be con-
trolled manually whilst other
functions operate automatically.
• For your convenience and to
improve the effectiveness of the
climate control, use the AUTO
button and set the temperature to
22°C/71°F.
ODM042287
ODMECL2100R

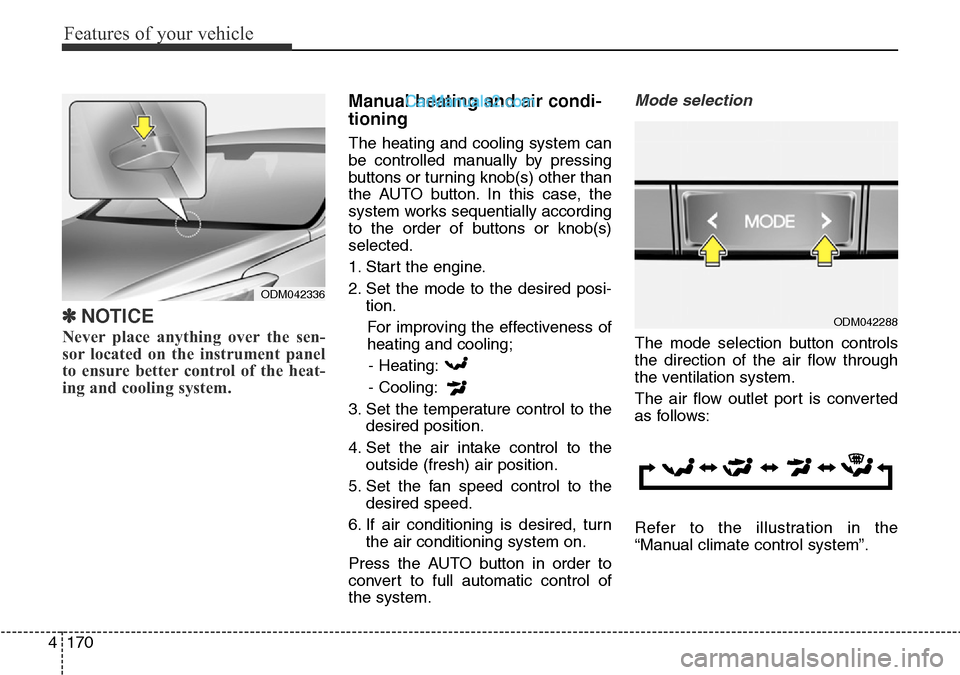

Features of your vehicle
170 4
✽NOTICE
Never place anything over the sen-
sor located on the instrument panel
to ensure better control of the heat-
ing and cooling system.
Manual heating and air condi-
tioning
The heating and cooling system can
be controlled manually by pressing
buttons or turning knob(s) other than
the AUTO button. In this case, the
system works sequentially according
to the order of buttons or knob(s)
selected.
1. Start the engine.
2. Set the mode to the desired posi-
tion.
For improving the effectiveness of
heating and cooling;
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to the
outside (fresh) air position.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn
the air conditioning system on.
Press the AUTO button in order to
convert to full automatic control of
the system.
Mode selection
The mode selection button controls
the direction of the air flow through
the ventilation system.
The air flow outlet port is converted
as follows:
Refer to the illustration in the
“Manual climate control system”.
ODM042336
ODM042288

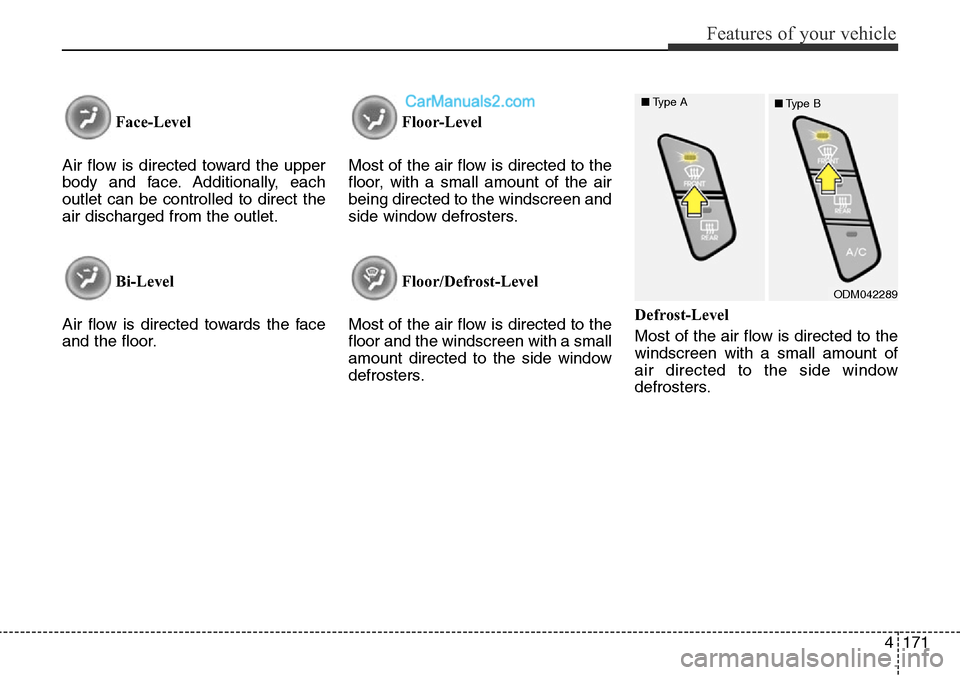

4171
Features of your vehicle
Face-Level
Air flow is directed toward the upper
body and face. Additionally, each
outlet can be controlled to direct the
air discharged from the outlet.
Bi-Level
Air flow is directed towards the face
and the floor.Floor-Level
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windscreen and
side window defrosters.
Floor/Defrost-Level
Most of the air flow is directed to the
floor and the windscreen with a small
amount directed to the side window
defrosters.Defrost-Level
Most of the air flow is directed to the
windscreen with a small amount of
air directed to the side window
defrosters.
ODM042289 ■Type A
■Type B

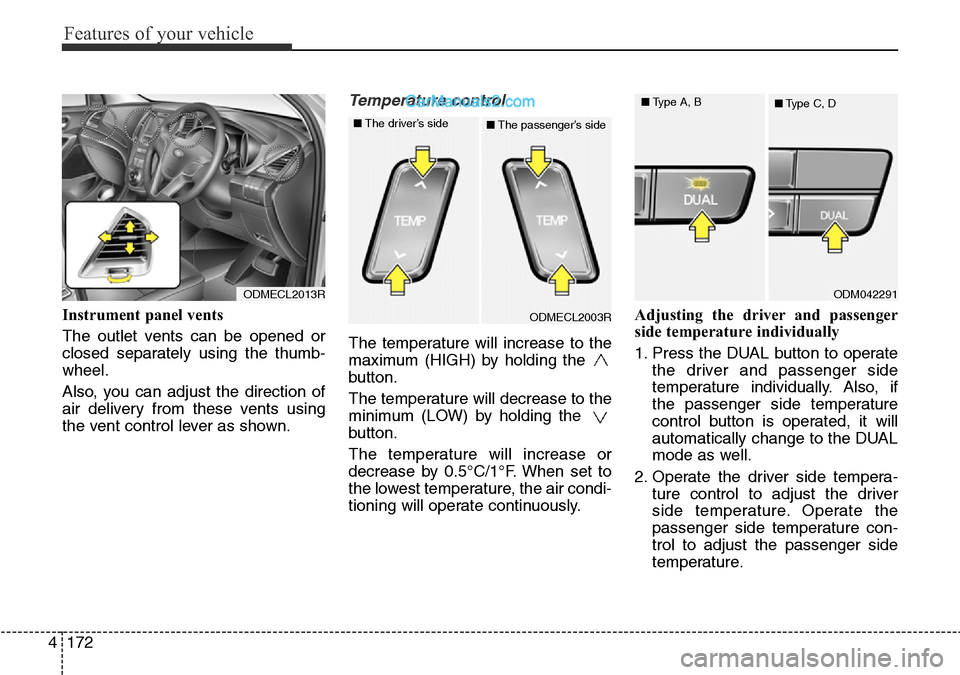

Features of your vehicle
172 4
Instrument panel vents
The outlet vents can be opened or
closed separately using the thumb-
wheel.
Also, you can adjust the direction of
air delivery from these vents using
the vent control lever as shown.
Temperature control
The temperature will increase to the
maximum (HIGH) by holding the
button.
The temperature will decrease to the
minimum (LOW) by holding the
button.
The temperature will increase or
decrease by 0.5°C/1°F. When set to
the lowest temperature, the air condi-
tioning will operate continuously.Adjusting the driver and passenger
side temperature individually
1. Press the DUAL button to operate
the driver and passenger side
temperature individually. Also, if
the passenger side temperature
control button is operated, it will
automatically change to the DUAL
mode as well.
2. Operate the driver side tempera-
ture control to adjust the driver
side temperature. Operate the
passenger side temperature con-
trol to adjust the passenger side
temperature.
ODMECL2013RODM042291 ■Type A, B
■Type C, D
ODMECL2003R ■The driver’s side
■The passenger’s side

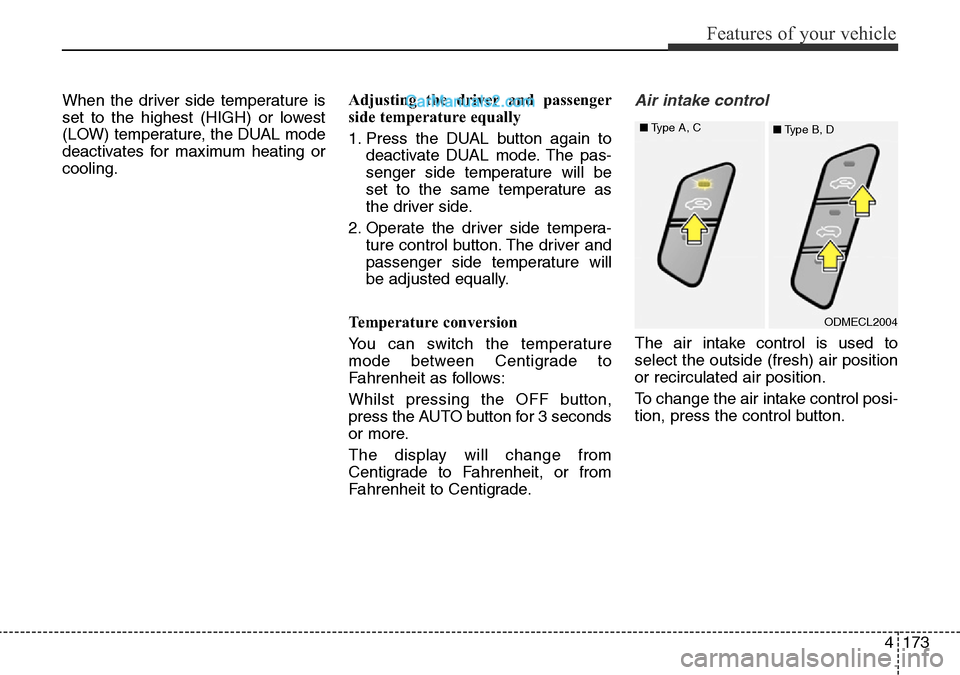

4173
Features of your vehicle
When the driver side temperature is
set to the highest (HIGH) or lowest
(LOW) temperature, the DUAL mode
deactivates for maximum heating or
cooling.Adjusting the driver and passenger
side temperature equally
1. Press the DUAL button again to
deactivate DUAL mode. The pas-
senger side temperature will be
set to the same temperature as
the driver side.
2. Operate the driver side tempera-
ture control button. The driver and
passenger side temperature will
be adjusted equally.
Temperature conversion
You can switch the temperature
mode between Centigrade to
Fahrenheit as follows:
Whilst pressing the OFF button,
press the AUTO button for 3 seconds
or more.
The display will change from
Centigrade to Fahrenheit, or from
Fahrenheit to Centigrade.Air intake control
The air intake control is used to
select the outside (fresh) air position
or recirculated air position.
To change the air intake control posi-
tion, press the control button.
ODMECL2004 ■Type A, C
■Type B, D

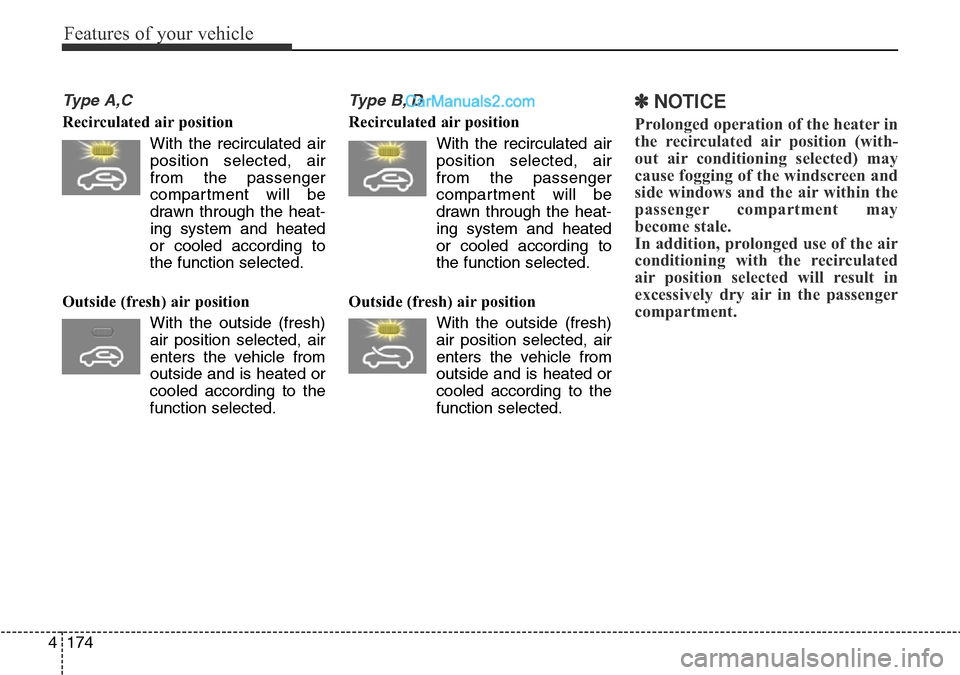

Features of your vehicle
174 4
Type A,C
Recirculated air position
With the recirculated air
position selected, air
from the passenger
compartment will be
drawn through the heat-
ing system and heated
or cooled according to
the function selected.
Outside (fresh) air position
With the outside (fresh)
air position selected, air
enters the vehicle from
outside and is heated or
cooled according to the
function selected.
Type B, D
Recirculated air position
With the recirculated air
position selected, air
from the passenger
compartment will be
drawn through the heat-
ing system and heated
or cooled according to
the function selected.
Outside (fresh) air position
With the outside (fresh)
air position selected, air
enters the vehicle from
outside and is heated or
cooled according to the
function selected.
✽NOTICE
Prolonged operation of the heater in
the recirculated air position (with-
out air conditioning selected) may
cause fogging of the windscreen and
side windows and the air within the
passenger compartment may
become stale.
In addition, prolonged use of the air
conditioning with the recirculated
air position selected will result in
excessively dry air in the passenger
compartment.
