2016 Hyundai Santa Fe Owner's Manual - RHD (UK, Australia)

Specifications & Consumer information
2 8

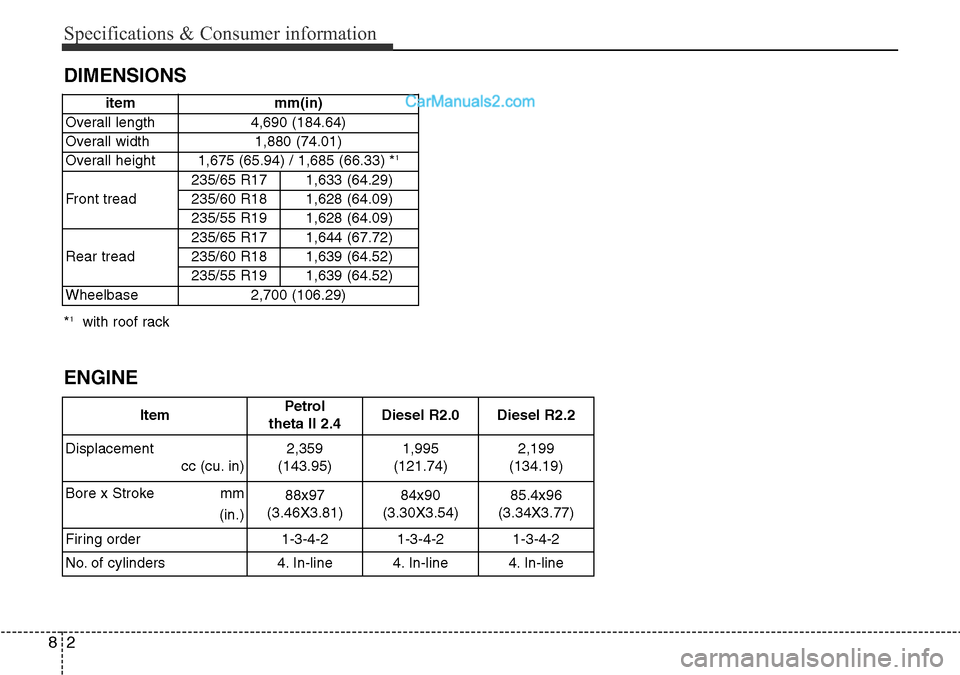

DIMENSIONS
*1with roof rack
ENGINE
ItemPetrol
theta II 2.4Diesel R2.0Diesel R2.2
Displacement
cc (cu. in)
2,359
(143.95)1,995
(121.74)2,199
(134.19)
Bore x Stroke mm
(in.)
88x97
(3.46X3.81)84x90
(3.30X3.54)85.4x96
(3.34X3.77)
Firing order
1-3-4-21-3-4-21-3-4-2
No. of cylinders
4. In-line4. In-line4. In-line
item mm(in)
Overall length 4,690 (184.64)
Overall width 1,880 (74.01)
Overall height 1,675 (65.94) / 1,685 (66.33) *
1
Front tread235/65 R17 1,633 (64.29)
235/60 R18 1,628 (64.09)
235/55 R19 1,628 (64.09)
Rear tread235/65 R17 1,644 (67.72)
235/60 R18 1,639 (64.52)
235/55 R19 1,639 (64.52)
Wheelbase 2,700 (106.29)

83
Specifications & Consumer information

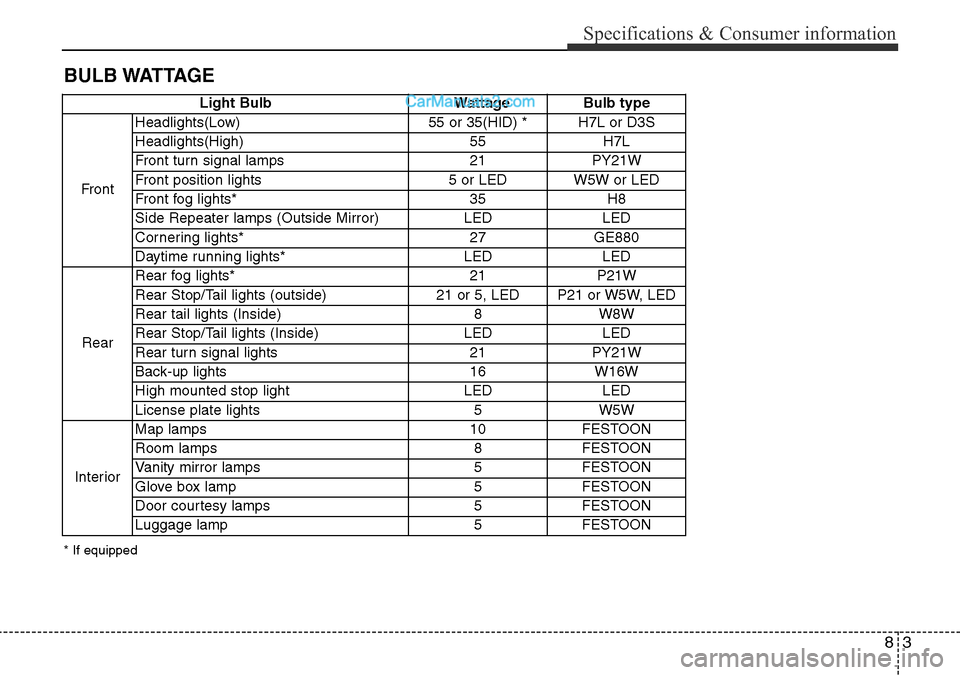

BULB WATTAGE
* If equipped
Light Bulb Wattage Bulb type
FrontHeadlights(Low) 55 or 35(HID) * H7L or D3S
Headlights(High) 55 H7L
Front turn signal lamps 21 PY21W
Front position lights 5 or LED W5W or LED
Front fog lights* 35 H8
Side Repeater lamps (Outside Mirror) LED LED
Cornering lights* 27 GE880
Daytime running lights* LED LED
RearRear fog lights* 21 P21W
Rear Stop/Tail lights (outside) 21 or 5, LED P21 or W5W, LED
Rear tail lights (Inside) 8 W8W
Rear Stop/Tail lights (Inside) LED LED
Rear turn signal lights 21 PY21W
Back-up lights 16 W16W
High mounted stop light LED LED
License plate lights 5 W5W
InteriorMap lamps 10 FESTOON
Room lamps 8 FESTOON
Vanity mirror lamps 5 FESTOON
Glove box lamp 5 FESTOON
Door courtesy lamps 5 FESTOON
Luggage lamp 5 FESTOON

Specifications & Consumer information
4 8

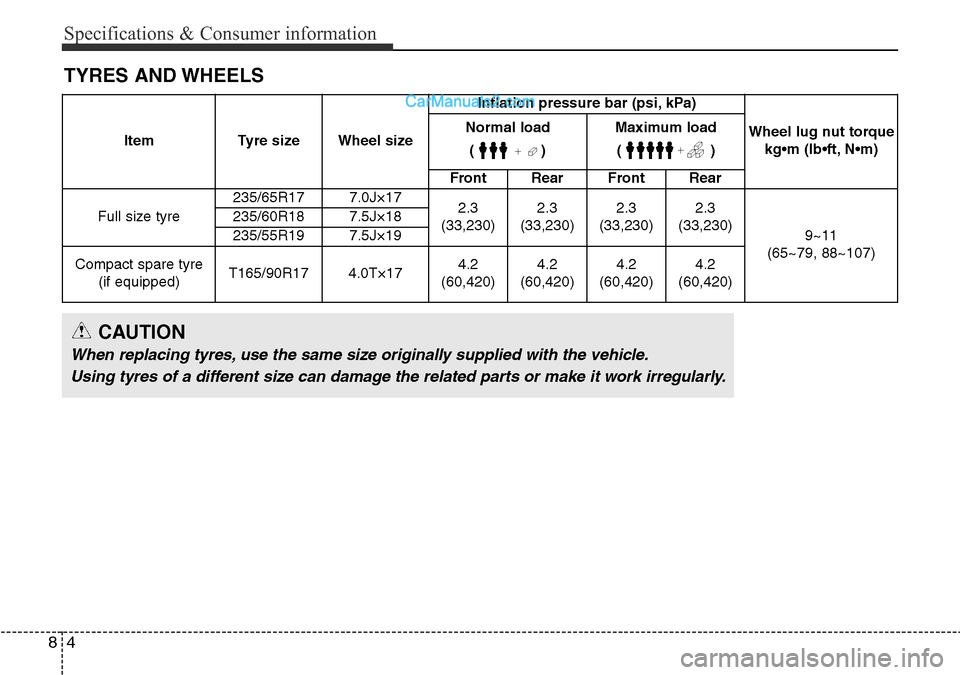

TYRES AND WHEELS
Item Tyre size Wheel sizeInflation pressure bar (psi, kPa)
Wheel lug nut torque
kg•m (lb•ft, N•m) Normal load
()Maximum load
()
Front Rear Front Rear
Full size tyre235/65R17 7.0J×17
2.3
(33,230)2.3
(33,230)2.3
(33,230)2.3
(33,230)
9~11
(65~79, 88~107) 235/60R18 7.5J×18
235/55R19 7.5J×19
Compact spare tyre
(if equipped)T165/90R17 4.0T×174.2
(60,420)4.2
(60,420)4.2
(60,420)4.2
(60,420)
CAUTION
When replacing tyres, use the same size originally supplied with the vehicle.
Using tyres of a different size can damage the related parts or make it work irregularly.

85
Specifications & Consumer information
*1LI : LOAD INDEX
*2SS : SPEED SYMBOLItem Tyre size Wheel sizeLoad Capacity Speed Capacity
LI *
1kg (lbs.) SS *2MPH ( km/h)
Full size tyre235/65R17 7.0J×17 104 900 (1984)T 118 (190)
H 130 (210)
235/60R18 7.5J×18 103 875 (1929) H 130 (210)
235/55R197.5J×19101825 (1818)H130 (210)

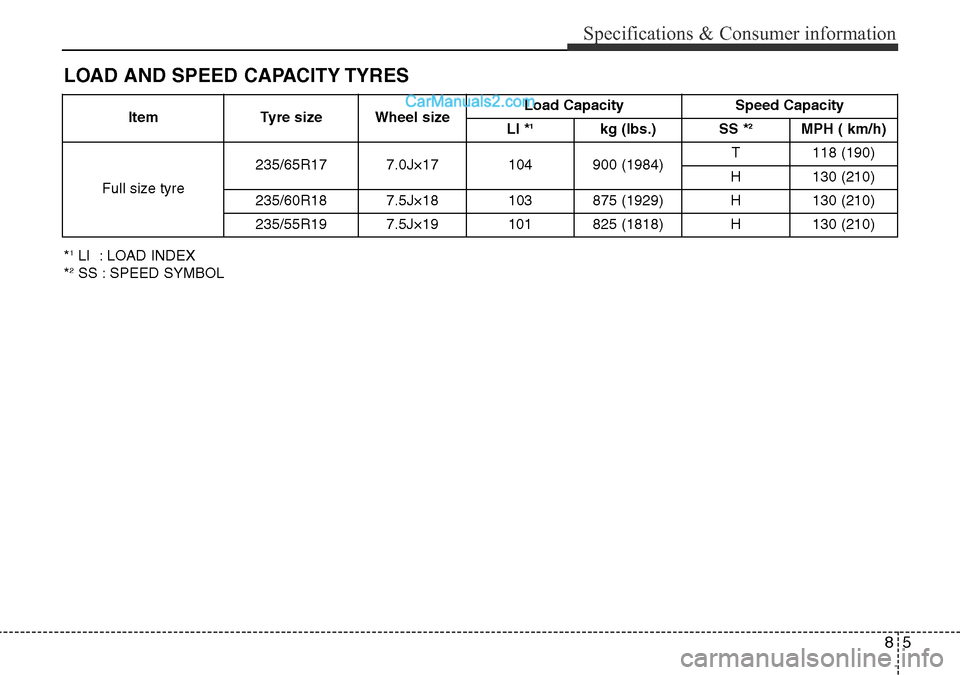

LOAD AND SPEED CAPACITY TYRES

Specifications & Consumer information
6 8

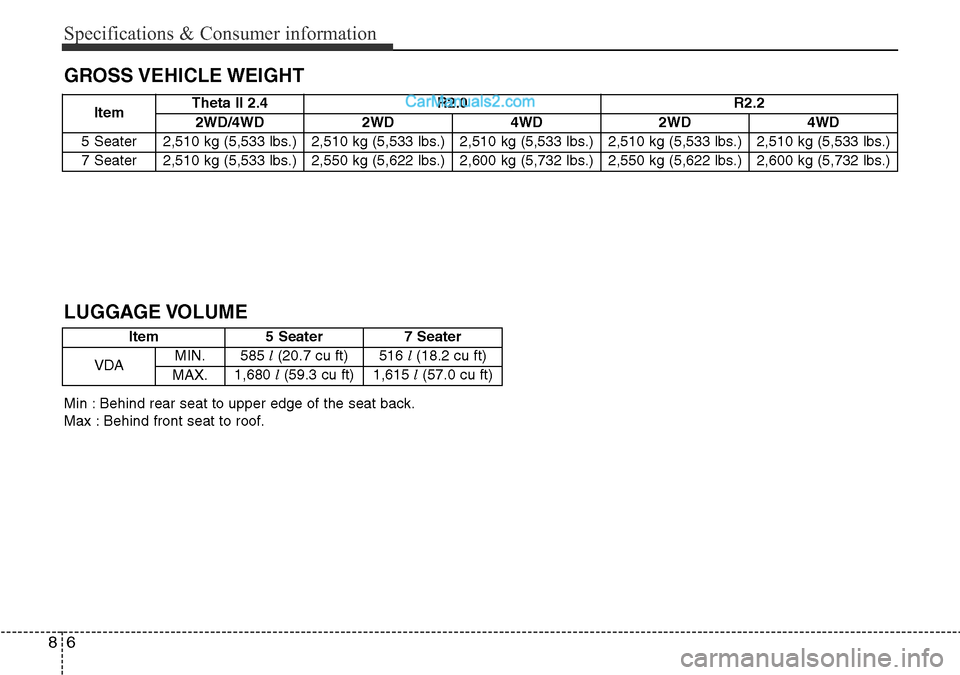

GROSS VEHICLE WEIGHT
ItemTheta II 2.4 R2.0 R2.2
2WD/4WD 2WD 4WD 2WD 4WD
5 Seater 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.) 2,510 kg (5,533 lbs.)
7 Seater 2,510 kg (5,533 lbs.) 2,550 kg (5,622 lbs.) 2,600 kg (5,732 lbs.) 2,550 kg (5,622 lbs.) 2,600 kg (5,732 lbs.)
ltem 5 Seater 7 Seater
VDAMIN.585 l(20.7 cu ft) 516 l(18.2 cu ft)
MAX.1,680 l(59.3 cu ft) 1,615 l(57.0 cu ft)
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
LUGGAGE VOLUME

87
Specifications & Consumer information

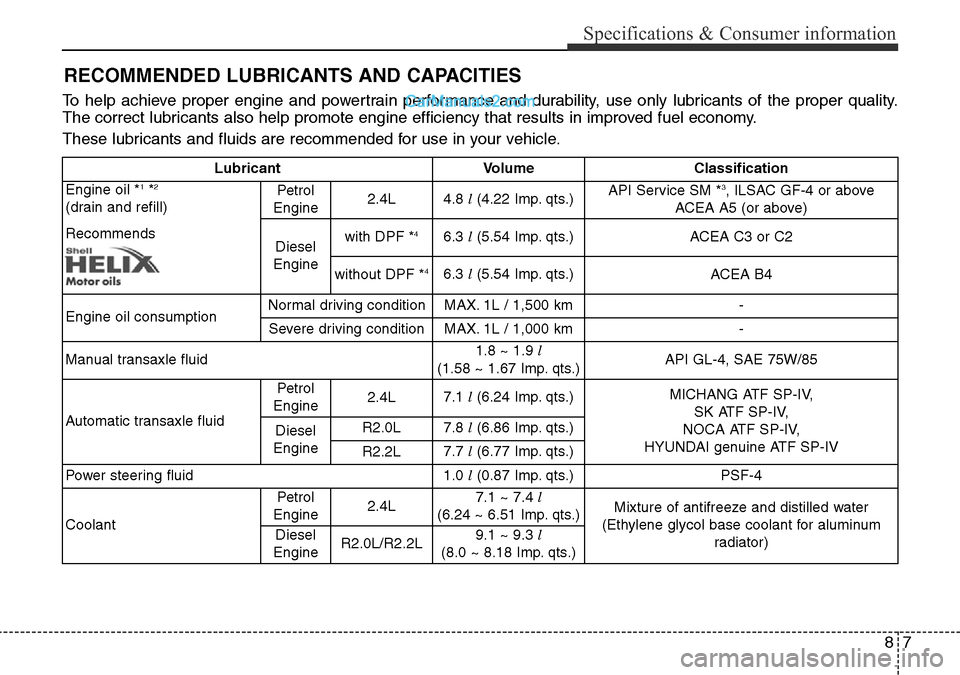

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
RecommendsPetrol
Engine2.4L4.8 l(4.22 Imp. qts.)API Service SM *
3, ILSAC GF-4 or above
ACEA A5 (or above)
Diesel
Enginewith DPF *
46.3 l(5.54 Imp. qts.)
ACEA C3 or C2
without DPF *
46.3 l(5.54 Imp. qts.)
ACEA B4
Engine oil consumption Normal driving condition MAX. 1L / 1,500 km -
Severe driving condition MAX. 1L / 1,000 km -
Manual transaxle fluid 1.8 ~ 1.9 l
(1.58 ~ 1.67 Imp. qts.)API GL-4, SAE 75W/85
Automatic transaxle fluid Petrol
Engine2.4L7.1 l(6.24 Imp. qts.)MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV
Diesel
EngineR2.0L7.8 l(6.86 Imp. qts.)
R2.2L7.7 l(6.77 Imp. qts.)
Power steering fluid 1.0 l(0.87 Imp. qts.)PSF-4
Coolant
Petrol
Engine2.4L7.1 ~ 7.4 l
(6.24 ~ 6.51 Imp. qts.)Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum
radiator)
Diesel
EngineR2.0L/R2.2L9.1 ~ 9.3 l
(8.0 ~ 8.18 Imp. qts.)

Specifications & Consumer information
8 8

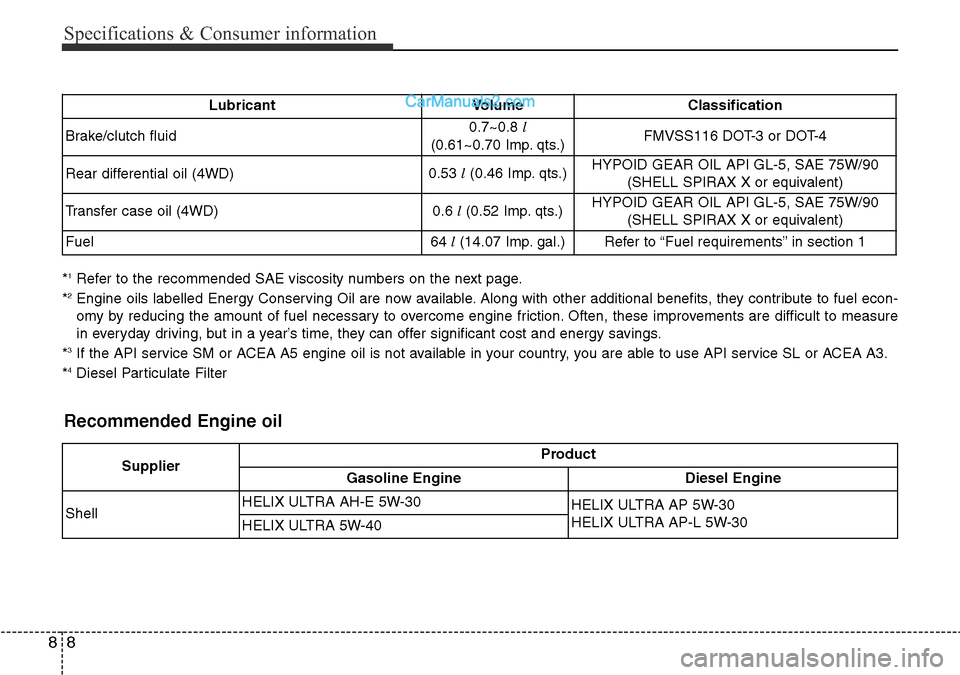

*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labelled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM or ACEA A5 engine oil is not available in your country, you are able to use API service SL or ACEA A3.
*4Diesel Particulate FilterLubricant Volume Classification
Brake/clutch fluid0.7~0.8 l
(0.61~0.70 Imp. qts.)FMVSS116 DOT-3 or DOT-4
Rear differential oil (4WD)0.53 l(0.46 Imp. qts.)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Transfer case oil (4WD) 0.6 l(0.52 Imp. qts.)HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel64 l(14.07 Imp. gal.)
Refer to “Fuel requirements” in section 1
Recommended Engine oil
SupplierProduct
Gasoline Engine Diesel Engine
ShellHELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA AP-L 5W-30
HELIX ULTRA 5W-40

89
Specifications & Consumer information

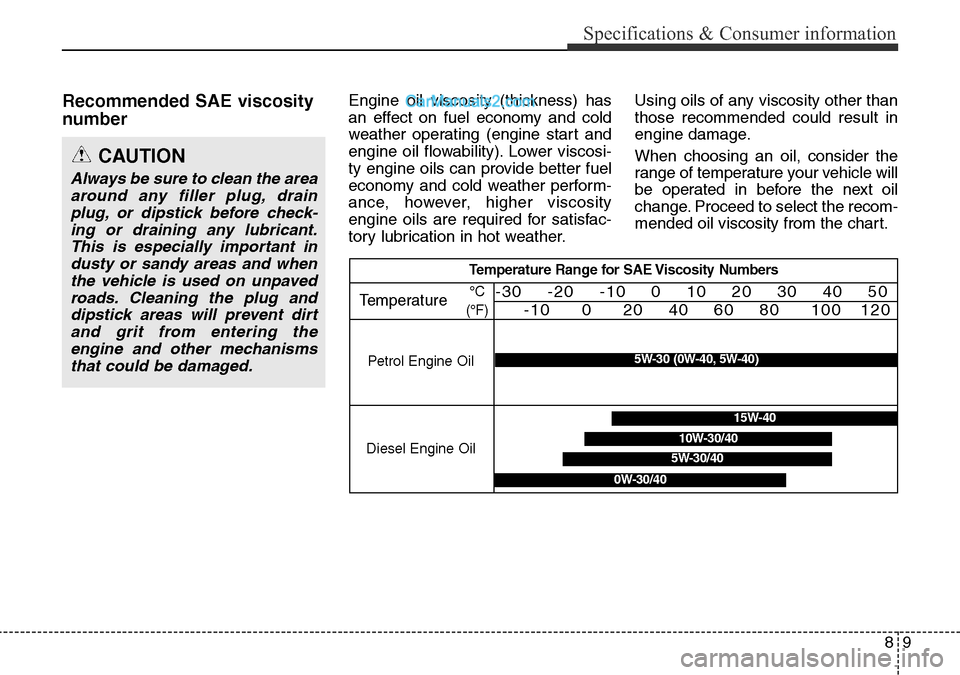

Recommended SAE viscosity
number Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Petrol Engine Oil°C
(°F)
-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Diesel Engine Oil5W-30/40
15W-40
10W-30/40
0W-30/40
5W-30 (0W-40, 5W-40)
