A WARNING
For safety reasons, the windshield wiper
blades should be replaced once or tw ice each
year.
Digital compass
Switching the compass on and off
Appl ies to vehicles: with digital compass
Fig. 45 Rea rview mirro r: digital compass activated
0
~ 0
rt (0
.. To turn the compass on or off, press the button
@ until the compass in the mir ror appears o r
disappears.
The digital compass only works when the ign ition
is turned on. The direct ions are indicated with ab­
breviations : N (north), NE (northeast), E (east),
SE (southeast), S (south), SW (southwest), W
(west), NW (northwest).
You must recalibrate the compass if it does not
display the correct direction
¢ page 55, Cali­
brating the compass.
@ Tips
To prevent inaccu rate compass readings, do
not bring any remote controls , e lectr ical devi­
ces or metallic objects near the mirror.
Lights and V ision
Adjusting the magnetic zone
Applies to vehicles: with digita l compass
The magnetic zone must be adjusted correctly
for the compass to read accurately.
Fig. 46 North Amer ica: mag netic zone map
.. Press and hold the button@¢ page 55, fig. 45
until the number of the magnetic zone appears
in the rearview m irror.
.. Press the button @ repeatedly to select the
correct magnetic zone. The se lection mode
turns off after a few seconds.
Calibrating the compass
Applies to vehicles: with digital compass
You must recalibrate the compass if it does not
display the correct direction.
.. Press and hold the button @¢ page 55, fig . 45
until a C appears in the interior rearv iew mirror .
.. Dr ive in a circle at about 5 mph (10 km/h) until
a direction is displayed in the rearv iew mirror.
.8_ WARNING
- To avoid endangering yourself and other
d rivers, calibrate the compass in an area
where there is no traffic .
55

Lights and Vi sion
- The dig ita l compass shou ld only be used as
an orientation aid . If you want to chec k th e
compass while dr iv ing, you must still pay at­
tent io n to traffic, the road, the weathe r and
any othe r possi ble hazards .
56

,....,
N
0 > co ,...., Seats and storage
General information
Important information
A WARNING
Refer to the chapter Driving Safely
r::!> page 166, Driving safety for important in­
formation, tips, suggestions and warnings
that you should read and follow for your own
safety and the safety of your passengers.
Why is your seat adjustment so important?
The safety belts and the airbag system con only
provide maximum protection if the front seats ore correctly adjusted.
There are various ways of adjusting the front
seats to provide safe and comfortable support
for the driver and the front passenger. Adjust
your seat properly so that:
- you can easily and quick ly reach all the switches
and contro ls in the instrument pane l
- your body is properly supported thus reducing
physical stress and fatigue
- the safety belts and airbag system can offer
maximum protection
r::!> page 184.
I n the following sections, you will see exact ly
how you can best adjust your seats.
There are spec ial regulations and instructions for
in stalling a ch ild seat on the front passenger's
seat. Always fo llow the information rega rding
chi ld safety provided in
r::!> page 209, Child safe ­
ty.
A WARNING
Incorrect seating position of the driver and all
other passengers can result in serious person­
al injury.
- Always keep yo ur feet on the floor when the
vehicle is in motion -never put your feet on
top of the instrument pane l, out of the win­
dow or on top of the seat cushion. Th is ap­
plies especially to the passengers. If your
seating pos it ion is inco rrect, you increase
Seat s and sto rage
the risk of injury in the case of sudden bra k­
ing or an accident. If the airbag inflates and
the seating posit ion is incorrect, th is could
result in persona l injury or even death.
- It is important for both the driver and front
passenger to keep a distance of at least
10 inches (25 cm) between themselves and
the steering wheel and/or instrument pan­
el. If you're sitt ing any closer than this, the
ai rbag system cannot protect you properly.
I n addition, the front seats and head re­
str aints must be adjusted to you r body
height so that they can give you maximum
protection.
- Always try to keep as much dis tance as pos ­
sible between yourself and the steering
wheel or instrument pane l.
- Do not adjust the driver's o r front passeng­
er's seat while the vehicle is moving . Your
seat may move unexpectedly, causing sud­
den loss of vehicle contro l and personal in­
jury. If you ad just your seat while the veh icle
is moving, you are o ut of pos ition.
Driver's seat
The correct seat position is important for safe
and relaxed driving.
We recommend that you adjust the driver's seat
in the following manner:
.. Adj ust the seat in fore and aft direction so that
you can easi ly push the pedals to the f loor
while keeping yo ur knees slight ly bent
r::!> A in
Why is your seat adjustment so important? on
page
57.
.. Adjust the backrest so that when you sit w ith
your back against the backrest, yo u can st ill
grasp the top of the stee ring wheel.
.. For ad justab le head rest raints: adjust the head
restraint so the upper edge is as even as possi­
b le with the top o f your head . If tha t is not pos­
sible, t ry to adjust the head rest raint so that it
is as close to this position as possible
r::!> page 60. Move the head restraint so that it
is as close to the back of the head as poss ible.
Ill>
57

Seats and storage
_& WARNING
Never place any objects in the driver's foot­
well. An object could get into the pedal area and interfere with pedal function. In case of
sudden braking or an accident, you would not
be able to brake or accelerate.
Front passenger's seat
Always move the front passenger seat into the
rearmost position.
To avoid contact with the airbag while it is de­
p loy ing, do not sit any closer to the instrument
panel than necessary and always wear the three­
point safety belt provided adjusted correctly. We
recommend that you adjust the passenger's seat
in the following manner:
• Bring the backrest up to an (almost) upright
position.
Do not ride with the seat reclined .
• For adjustable head restraints: adjust the head
restraint so the upper edge is as even as possi­
ble with the top of your head . If that is not pos­
sible, try to adjust the head restraint so that it
is as close to this position as possible
q page 60. Move the head restraint so that it
is as close to the back of the head as possible.
• Place your feet on the floor in front of the pas­
senger's seat .
Front seats
Manual seat adjustment
Appl ies to v eh icles : w ith manu ally a djustabl e seats
Fig . 47 Front seat: manual seat ad jus tm ent
~ 0
>
"' m
@ -Moving the seat forward/back: pull the lever
and slide the seat.
58
@-Lengthening/shorteni ng the upper thigh
support*:
lift the handle.
@-Adjusting the angle of the seat surface*.
Pull/press the lever.
@-Adjusting the lumbar support*: press the
button in the desired direction.
®-Moving the seat up/down : pull/press the lev­
er.
® -Adjusting the backrest angle: turn the ad­
justing wheel.
_& WARNING
- Only adjust the front seat with when the ve­
hicle is stationary. Otherwise, this increases
the risk of an accident
- Exercise caution when adjusting the seat
height. Adjusting the seat carelessly or
w ithout check ing can p inch hands and fin­
gers.
- The front seat backrests must not be re­
clined too far back when driving, because
this impairs the effectiveness of the safety
belts and airbag system, which increases
th e risk of injury.
- To reduce the risk of injury during sudden
braking or in a collision, the driver and front
passenger should not have their backrests in
the reclined position while driving or riding.
The safety belts and airbag system can pro­
vide the greatest protection possible when
the backrests are in the upright position and
the safety belts are worn correctly. The more a backrest is reclined, the greater the
risk of injury due to an incorrect seating po­
sition and safety belt position.

.... N
0 > CX)
rl I.Cl U"I
rl I.Cl ....

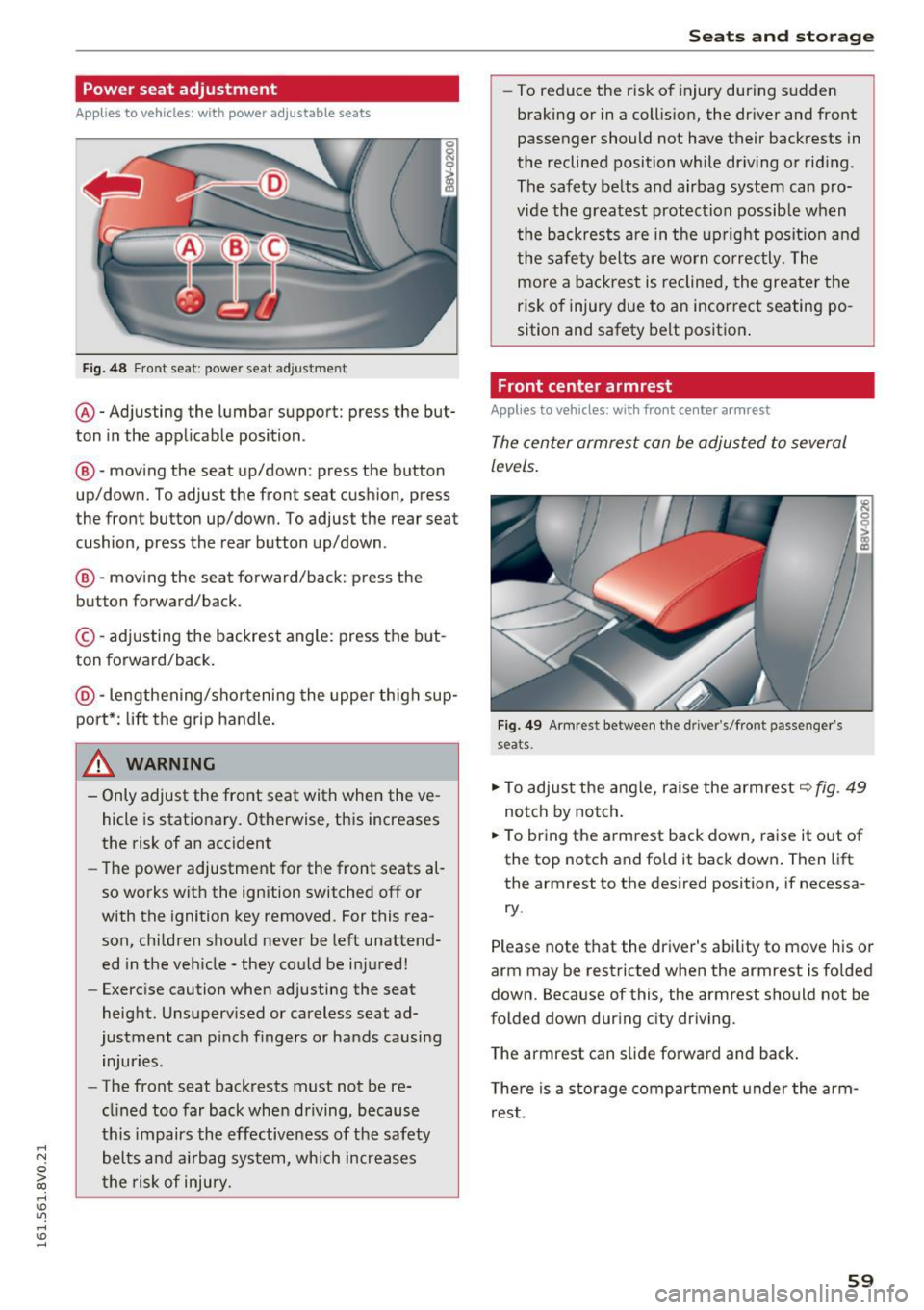

Power seat adjustment
Applies to vehicles: with power adjustable seats
Fig. 48 Front se at: po wer se at adjust men t
@ -Adjusting the lumbar support: press the but­
ton in the applicable position .
@-moving the seat up/down : press the button
up/down. To adjust the front seat cushion, press
t he fron t button up/down. To adjust the rear seat
cushion, press the rear button up/down .
@-moving the seat forward/back: press the
but ton forward/back.
© -adjusting the backrest angle : press the but­
ton forward/back.
@ -lengthening/shortening the upper thigh sup­
port* : lift the grip handle.
A WARNING
- Only adjust the front seat with when the ve­
hicle is stationary. Otherwise, this increases
the risk of an accident
- The power adjustment for the front seats al­
so works with the ignition switched off or
with the ignition key removed. For this rea­
son, children should never be left unattend­
ed in the vehicle - they could be injured!
- Exercise caution when adjusting the seat
height. Unsupervised or careless seat ad­
justment can pinch fingers or hands causing
injuries .
- The front seat backrests must not be re­
clined too far back when driving, because
this impairs the effectiveness of the safety
belts and airbag system, which increases
the risk of injury.
Seats and storage
-To reduce the risk of injury during sudden
braking or in a collision, the driver and front
passenger should not have their backrests in
the reclined position while driving or riding .
The safety belts and airbag system can pro­
vide the greatest protection possible when
the backrests are in the upright position and
the safety belts are worn correctly. The
more a backrest is reclined, the greater the
risk of injury due to an incorrect seating po­
sition and safety belt position.
Front center armrest
Applies to vehicles: with front center a rm rest
The center armrest can be adjusted to several
l e ve ls.
Fig. 49 Armre st between th e driv er's /fro nt pa ssenger 's
s eats.
.,. To adjust the angle, raise the armrest~ fig. 49
notch by notch.
.,. To bring the armrest back down, raise it out of
the top notch and fold it back down. Then
lift
the armrest to the desired position, if necessa­
ry.
Please note that the driver 's ability to move his or
arm may be restricted when the armrest is folded
down. Because of this, the armrest should not be
folded down during city driving .
The armrest can slide forward and back.
There is a storage compartment under the arm­
rest .
59

Seats and storage
Rear center armrest
Applies to vehicles: with rear center armrest
The storage compartment and cup holder are in­
tegrated in the armrest.
Fig. SO Rear a rmrest
Folding the armrest down
• Tilt the armrest all the way down.
Opening the storage compartment
• Lift the cover on the upper rim.
~I
gl
~
For more information on the use of the cup hold­
ers , see ¢
page 62 .
Head restraints
Front head restraints
Applies to veh icles: with adjustable head restraints
-
'
' F ig. 51 Front seat: adjust ing the head restra int
Applies to vehicles w ith super sport seats* (not
pictured): the head restraint is integ rated in the
backrest and is therefore not adjustable
Adjust the head restra ints so the upper edge is as
even as possible with the top of your head. If that
is not possible, try to adjust as close to this posi­
tion as possible . Push the head restraint as close
as poss ible to the back of the head.
60
• To move the head restra int up or forward, slide
it unti l it locks into place.
• To move the head restra int down or back, press
the side button -arrow-¢
fig. 51 and slide the
head restraint until it locks into place.
Refer to ¢
page 170, Proper adjustment of head
restraints
for guidelines on how to adjust the
height of the front head restraints to suit the oc­
cupant's body size.
A WARNING
- Dr iving without head restra ints or head re­
stra ints that are not adjusted correctly dra­
matically increases the risk of serious or fa­
tal nec k injuries.
- Read and following the WARNINGS in
¢ page 170, Proper adjustment of head re­
straints.
@ Tips
Head restraints that are adjusted correctly
and safety belts are an extremely effective
combination of safety equipment.
Rear head restraints
ro -0
Fig. 52 Outer rea r head restra ints : re lease point
- 0 > :g
If there are passengers in the rear seat, fold the
head restraints up on the occ upied seats at least
to the next notch ¢
,& .
Adjusting the head restraints
• To move the head restra int up, hold it at the
sides with both hands and slide it upward until
you feel it click into place . .,.

.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....
.. To move the head restraint down, press the
button ®
¢fig . 52 and slide the head restraint
downward .
Removing the head restraints
To remove the head res tra ints, the back res t must
be folded forward partially .
.. Remove the screwdriver from the vehicle tool
kit
r:::;, page 280 .
.. Release the backrest r:::;, page 65 .
.. Press the button @ r:::;, fig . 52 and slide the head
restraint up as far as it can go
c::> ,& .
.. Place the screwdriver in position@ in the
opening, press the button ® and pull the head
restraint out of the backrest at the same time
r:::;, _& .
.. Fold the backrest down until it latches securely
r:::;, ,& in Increasing the size of the luggage
compartment on page 65 .
Installing the head restraints
To install the head restraints , the backrest must
be folded forward partially .
.. Release the backrest
c::> page 65.
.. Slide the posts on the head restraint down into
the gu ides until you feel the posts click into
place . You should not be able to pull the head
restra int out of the backrest .
.,. Fold the backrest down until it latches securely
r:::;, ,&. in Increasing the size of the luggage
compartment on page 65 .
A WARNING
- Only remove the rear seat head restraints
when necessary in order to install a child
seat . Install the head restraint again imme­
diately once the child seat is removed. Driv­
ing with the head restra ints removed or
head restraints not in the highest position
increases the risk of serious injury .
- Read and following the WARNINGS in
r:::;, poge 170 .
-
Seats and storag e
Cigarette lighter
Applies to vehicles: with cigarette lighter
Fig. 53 Center conso le : cigarette lighte r
.,. Press the c igarette lighter in .
.,. Remove the cigarette lighter when it pops out.
The cigarette lighter should only be used as a
power source when it is absol utely necessary.
A WARNING
The cigarette lighter only works when the ig­
ni tion is switched on. Inco rrect usage can lead
to serious inj uries or burns. To reduce the ris k
of injuries, never leave children unattended in
the vehicle with the vehicle key .
(D Note
- To red uce the risk of damage to the sockets,
only use plugs that fit correctly .
- T he ciga rette lighte r socket should only be
used as a powe r source fo r electr ical acces­
sories for a short pe riod of time. The sock­
ets* in the vehicle should be used for longe r
use of power supply .
(D Tips
The vehicle battery dra ins when accessories
are tu rned on but the engine is off.
.
61

Seats and storage
Socket
Applies to vehicles: with socket
Electrical accessories con be connected in the 12
volt socket.
-
--:,: -_-,--,-~
' ' I
Fig . 54 Center console: front/rear 12 volt socket•
Fig. 55 Luggage compartment s ide trim panel: 12 volt
socket * (example)
... Remove the plug from the center console sock­
et
¢ fig. 54, or
... Open the cover on the luggage compartment
socket*
¢ fig . 55 .
... Insert the plug for the electr ical device into the
socket.
The 12 volt socket can be used for electrical ac­ cessories. The power consumption at the outlet
m ust not exceed 120 watts.
A WARNING
The socket works only when the ignition is
switched on. Incorrect usage can lead to seri­
ous injur ies or burns. To reduce the risk of in­
jur ies, never leave children unattended in the
vehicle with the vehicle key.
(D Note
- To prevent damage to the socket, only use
the correct type of plugs.
62
- Never connect devices that generate electri­
cal power such as solar pane ls or a battery
charger to the 12 vo lt socket. They can dam­
age the vehicle e lectrica l system.
(D Tips
The vehicle battery drains when accessories
are turned on but the eng ine is off.
Storage
Beverage holders
Fig. 56 Center console: front cup holders
Fig. 57 Sect ion of the rear bench seat: rear cup holde rs*
Front cup holders
... Place beverages in the holder ¢fig. 56. There is
space for two beverages. A larger plast ic bottle
can be placed in the door trim.
Rear* cup holders
... To open the cup holders, tap on the rim@
¢fig . 57.
... To place the beverage container in the cup
holder, push the arm @ outward .
... Then push the arm against the beverage con­
tainer so that the arm lies closely against it .
... To close the cup holders, push them back into
t he slot . .,.
