Tire pressure monitoring system 5-32 Features and controls
5
Driving on a significantly under-inflated tire causes the tire to overheat and can lead to tirefailure. Under-inflation also re
duces alternative fuel
efficiency and tire tread life, and may affectthe vehicle’s handling and stopping ability. Please note that the TP
MS is not a substitute
for proper tire mainte
nance, and it is the
driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to tri
gger illumination of the
TPMS low tire pressure telltale. Your vehicle has also been equipped with a TPMS malfunction indicator to indicate whenthe system is not operating properly. The TPMS malfunction indicator is combined with the low tire pressure telltale.When the system detects a malfunction, the telltale will flash for
approximately one min-
ute and then remain continuously illuminated.This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction
exists.When the malfunction indicator is illumi- nated, the system may not
be able to detect or
signal low tire pressure as intended.TPMS malfunctions may
occur for a variety
of reasons, including the installation of replacement or alternate tires or wheels on thevehicle that prevent the TPMS from function- ing properly. Always check the TPMS mal- function telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheelsallow the TPMS to continue to function prop- erly.
N00532800484
1. If the low tire pressure monitoring system warning light illumi
nates, avoid hard
braking, sharp steering maneuvers and high speeds. You should stop and adjustthe tires to the proper inflation pressure as soon as possible. Refer to “Tires” on page 9-10.
2. If the tire pressure monitoring system warning light remains illuminated afteryou have been driving for about 20 min- utes after you adjust the tire inflation pres- sure, one or more of
the tires may have a
puncture. Inspect the tire and if it has a puncture, have it repaired by a certified i- MiEV dealer as soon as possible.
If the warning light illuminates while driving
NOTE
 When inspecting or adjusting the tire pres- sure, to avoid breakage, do not apply exces-sive force to the valve stem.  After inspecting or adju
sting the tire pres-
sure, always reinstall the valve cap on the valve stem. Without the valve cap, dirt or moisture couldget into the valve, resulting in damage to the tire inflation pressure sensor.  Do not use metal valve caps, which may cause a metal reaction, resulting in corrosion and damage of the tire
inflation pressure sen-
sors.  Once adjustments have
been made, the warn-
ing light will go off after a few minutes of driving.
WA R N I N G If the tire pressure monitoring system warning light illumi
nates while you are
driving, avoid hard br
aking, sharp steer-
ing maneuvers and high speeds. Drivingwith an under-inflated tire adversely affects vehicle performance and can result in an accident.CAUTION The tire pressure monitoring system warning light may not illuminate
immediately in the
event of a tire blowout or rapid leak.NOTE
 To avoid the risk of damage to the tire infla- tion pressure sensors, have any punctured tire repaired by a cert
ified i-MiEV dealer. If
the tire repair is not done by a certified i- MiEV dealer, it is not
covered by your war-
ranty.
BK0209800US.book 32 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Tire pressure monitoring system
Features and controls 5-33
5
The tire pressure monitoring system may not work normally in the following circum- stances:  A wireless facility or device using the same frequency is near the vehicle.  Snow or ice is stuck inside the fenders and/or on the wheels. The tire inflation pre
ssure sensors’ battery
is exhausted.  Wheels other than Mitsubishi Motors gen- uine wheels are being used.  Wheels that are not fitted with tire infla- tion pressure sensors are being used. Wheels whose ID codes are not memo- rized by the vehicle are used.  A window tint that affects the radio wave signals is installed.
N00532900182
If you use new wheels with new tire inflationpressure sensors, their ID codes must be pro- grammed into the tire pressure monitoring system. Have tire and
wheel replacement per-
formed by a certified i-MiEV dealer to avoid the risk of damaging the tire inflation pres- sure sensors.
N00533000207
Your tire pressure monitoring system oper- ates on a radio frequenc
y subject to Federal
Communications Commission (FCC) Rules(For vehicles sold in
U.S.A.) and Industry
Canada Rules (For vehicles sold in Canada). This device complies wi
th Part 15 of the FCC
Rules and RSS- Gen of the Industry Canada Rules. Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference. This device must ac
cept any interference
received, including interference that may cause undesired operation.
 Do not use an aerosol puncture-repair spray on any tire. Such a spray could damage thetire inflation pressure sensors.  Using the tire repair kit may damage the tire inflation pressure sensor. The vehicle mustpromptly be inspected and repaired by a cer- tified i-MiEV dealer after using the tire repair kit.NOTE
NOTE
 Tire inflation pressures vary with the ambi- ent temperature. If the vehicle is subjected tolarge variations in ambient temperature, thetire inflation pressures may be under-inflated (causing the warning light to come on) when the ambient temperature is relatively low. Ifthe warning light comes on, adjust the tire inflation pressure.
Whenever the tires and wheels are replaced with new ones
CAUTION The use of non-genuine wheels will prevent the proper fit of the tire inflation pressure sensors, resulting air
leakage or damage of
the sensors.
General information
CAUTION Changes or modifica
tions not expressly
approved by the manufacturer for compli- ance could void the user
’s authority to oper-
ate the equipment.
BK0209800US.book 33 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instrument cluster 5-34 Features and controls
5
N00519000375 N00519100246
When the electric motor switch is in the “ON” position, the speedometer indicates thevehicle’s speed in mi
les per hour (mph) or
kilometers per hour (km/h).
N00572000013
It is possible to select
the speedometer’s dis-
play unit. 1. Press the reset button (A) to display the odometer (B). (Refer to “To change the display” on page5-35.)
2. Keep the reset button pressed for 2 sec- onds or longer to change the display unitfrom MPH to km/h or from km/h to MPH.
The display unit for the cruising range will change to match the selected speedometer’sdisplay unit.
Instrument cluster 1- Energy level gauge2- Energy usage indicator3- Odometer/Trip odom
eter/Dash lights
brightness indi
cator/Service
reminder/Cruising ra
nge indicator/Out-
side temperature display
4- Speedometer 5- Reset button/Dash
lights illumination
button/Select
or button
Speedometer
NOTE
The display setting can be changed to the preferred units (miles or km).Refer to “Changing the
display unit” on page
5-34.
Changing the display unit Type 1 Type 2
NOTE
 Once the display unit
has changed, keeping
the reset button pressed will not cause thedisplay unit to change again.Speedometer
Cruising range
MPH miles km/h km
BK0209800US.book 34 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instrument cluster
Features and controls 5-35
5
N00572101037
The power consumption of the electric motor, the air conditioning, and power generation by the regenerative brake are indicated. When the ready indicator comes on, the redneedle will move to th
e neutral point (A) and
then move to the right or left according to the amount of power consumption or power gen-eration. [When the red needle moves to the right of the neutral point] This indicates that the electric motor unitand/or the air conditioning are consuming electric energy from the main drive lithium- ion battery.The more the needle moves to the right, the more electrical energy
is being consumed.
[When the red needle moves to the left of the neutral point]This indicates that electric energy is being generated by the regenerative brake and charged to the main dr
ive lithium-ion battery.
The more the needle moves to the left, the more electric energy is being generated.
N00519501449
Odometer, trip odometer
, dash lights bright-
ness indicator, serv
ice reminder, cruising
range indicator, and outside temperature are displayed.
N00572201025
The display is changed every time the reset button (A) is briefly pressed.
NOTE
 Even if speedometer
’s display unit is
changed, the display units for the odometer,trip odometer, and service reminder do notchange.
Energy usage indicator
NOTE
 When the main drive lithium-ion battery is at or near full charge, or
the main drive lithium-
ion battery temperature is too high or too low, the needle in the energy usage indicatormay not move to the left of the neutral point, since the main drive lithium-ion battery can- not receive charge.
Odometer/Trip
odometer/Dash
lights brightness indicator/Ser-vice reminder/Cruising range indicator/Outside temperature display To change the display
BK0209800US.book 35 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instrument cluster 5-36 Features and controls
5
N00572300016
The odometer indicates the total distance the vehicle has traveled.
N00572400020
The trip odometer shows the distance traveled since the last time it was reset. There are two trip odometer displays: and
.
Trip odometer can be used to measure the distance traveled since the current trip began. At the same time, Trip odometer can be used to measure the distance from a second location.
To zero the counter, press and hold the reset button for more than 1 second. Only the cur- rently displayed value will be reset. If trip odometer is displayed, for exam-ple, only trip odometer
will be reset.
N00572500021
The service reminder s
hows the driving dis-
tance or number of m
onths remaining until
the next recommended
periodic maintenance
inspection is required. When the next inspection is nearly due, the display shows “------”.

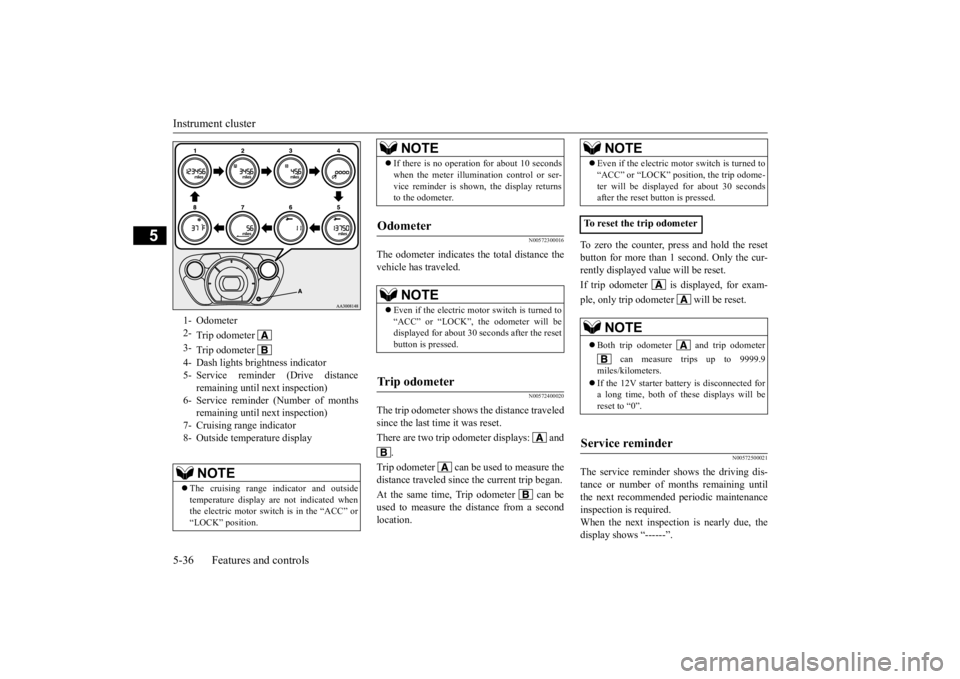

1- Odometer 2-
Trip odometer
3-
Trip odometer
4- Dash lights brightness indicator 5- Service reminder
(Drive distance
remaining until
next inspection)
6- Service reminder
(Number of months
remaining until
next inspection)
7- Cruising range indicator 8- Outside temperature display
NOTE
 The cruising range indicator and outside temperature display are not indicated when the electric motor switch is in the “ACC” or “LOCK” position.
 If there is no operati
on for about 10 seconds
when the meter illumination control or ser-vice reminder is shown,
the display returns
to the odometer.
Odometer
NOTE
 Even if the electric motor switch is turned to “ACC” or “LOCK”, the odometer will be displayed for about 30 se
conds after the reset
button is pressed.
Trip odometer
NOTE
NOTE
 Even if the electric mo
tor switch is turned to
“ACC” or “LOCK” position, the trip odome-ter will be displaye
d for about 30 seconds
after the reset button is pressed.
To reset the trip odometer
NOTE
 Both trip odometer and trip odometer
can measure trips up to 9999.9
miles/kilometers.  If the 12V starter battery is disconnected for a long time, both of th
ese displays will be
reset to “0”.
Service reminder
BK0209800US.book 36 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instrument cluster
Features and controls 5-37
5
1. The display shows the driving distance or number of months remaining until the next periodic inspection.
2. This informs you that a periodic inspec- tion is due. Contact a certified i-MiEVdealer to have the system checked. At this time, a spanner mark is shown for a few seconds whenever the electric motor switch is turned from the “LOCK”position or the “ACC” position to the “ON” position. 3. After your vehicle is inspected at a certi- fied i-MiEV dealer, it displays the time and miles (km) until the next periodic inspection.
With the electric motor switch in the “LOCK” position or the
“ACC” position, it is
possible to reset the sp
anner mark (A) and “--
----” indication (B). When they have been reset, the driving dis-tance or number of m
onths remaining until
the next periodic inspection are shown and the spanner mark (A) is no longer shownevery time the electric motor switch is turned from the “LOCK” position or the “ACC” position to the “ON” position. 1. Push the reset button (D) to view the driv- ing distance or number of months remain- ing until the next periodic inspection.
NOTE
 The service reminder ti
me can be modified
by a certified i-MiEV dealer, to adjust forsevere usage, etc. Refer to “Severe mainte-nance schedule” in you
r vehicle’s Warranty
and Maintenance Manual.
For further infor-
mation, please contac
t a certified i-MiEV
dealer.  Even if the electric motor switch is turned to “ACC” or “LOCK” pos
ition, the service
reminder will be disp
layed for about 30 sec-
onds after reset button is pressed.Driving distance Number of months
NOTE
 The indicated di
stance decreases in steps of
100miles (100 km). The indicated number ofmonths decreases in steps of one month.  It is possible to change the settings for the service reminder. For further information, we recommend you to consult a certified i-MiEV dealer.
Resetting the service reminder
BK0209800US.book 37 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instrument cluster 5-38 Features and controls
5
2. Give the reset button (D) a long push (at least 2 seconds) to make the spanner mark(A) start flashing. (If you do not touch the reset button for about 10 seconds while the spanner mark is
flashing, the display
will revert to its
original indication.)
3. Give the reset butt
on (D) a gentle push
while the spanner mark is flashing. The “------” indication (B) will change to “cLEAr” (C). 4. The driving distance or number of months remaining until the ne
xt periodic inspec-
tion will be shown.
N00572600019
Each time you press the dash lights illumina-tion button (B), the brightness of the instru- ments changes.
N00572700036
This displays the approximate cruising range (how many more miles
or kilometres you can
drive). When the cruising range becomes short, the indicatio
n changes to “---”.
CAUTIONThe customer is responsible for making sure that regular inspections
and maintenance are
performed. Inspections and mainte
nance must be per-
formed to prevent accidents and malfunc-tions.NOTE
 It is not possible to re
set the “------” indica-
tion (B) with the electric motor switch in the “ON” position.  When a certain distance has been driven and a certain period has elapsed after appearance of the “------” indicati
on (B), the indication
is automatically re
set and the number of
months until the next
periodic inspection is
shown.
 If you accidentally rese
t the display, consult
a certified i-MiEV dealer for assistance.
Dash lights brightness indicator A- Brightness display B- Dash lights illumination button
NOTE
Bright Dim
NOTE
 You can adjust to 4 different levels for when the parking lights or
headlights are illumi-
nated and 4 for when they are not.  If you press and hold the button for longer than about 1 second, the brightness automati-cally scrolls through its different levels, and stops scrolling when you release the button. Select your desired
level of brightness.
 When the combination headlights and dim- mer switch is in the “AUTO” position, themeter illumination switches automatically to the adjusted bright
ness, depending on the
brightness outside the vehicle.  The brightness level
of the instruments is
stored when the electric motor switch isturned off.  If the 12V starter battery is disconnected for a long time, these level of brightness will be reset.
Cruising range indicator
BK0209800US.book 38 ページ ２０１４年１月１４日　火曜日　午前９時２６分

Instrument cluster
Features and controls 5-39
5
N00573000010
This value (A) shows the outside temperature of the vehicle.
If the outside temperature drops below approximately 37 °F (3 °C), the alarm sounds and the outside air temperature warning indi- cator (B) flash for a
pproximately 10 seconds
to show there is a danger the road might be icy.
N00573100011
When the electric motor switch is in the “ACC” or “ON” position,
pressing the selec-
tor button (A) for more than 2 seconds will switch the outside temperature unit between °F and °C.
NOTE
 The cruising range is
displayed based on the
past drive data. It ma
y vary depending on the
driving condition (roa
d condition, driving
situation, etc.) and
air conditioning operation
status. For example, the cruising range can be short-ened by driving on congested roads, by driv- ing uphill, by repeated ha
rd acceleration, and
by use of the air c
onditioner and heater.
When the 12V starter battery terminal is dis- connected, the power
consumption data of
the main drive lithium-ion battery in the pastis deleted. A different
value from before may
be displayed. Be sure
to use the display only
for reference.  When the main drive lithium-ion battery is charged, the approximate cruising range isupdated.
Outside temperature display
NOTE
 The outside temperatur
e can be displayed
from -40 °F (-40 °C) to 122 °F (50 °C).  When the outside temperature is over 122 °F (50 °C) or below -40 °F (-40 °C), the displaywill remain 122 °F (50 °C) or -40 °F (-40 °C).  The outside temperatur
e displayed may dif-
fer from the actual temperature on account of surrounding conditions,
driving conditions,
etc.
CAUTION Even when the outside air temperature warn- ing indicator (B) indica
tions do not flash, the
road may be icy, so please take care when driving.
Change of the outside temperature unit
BK0209800US.book 39 ページ ２０１４年１月１４日　火曜日　午前９時２６分
