2015 MITSUBISHI iMiEV Owner's Manual (in English)

MiEV Remote System 3-42 General information/Charging
3
N01203901022
There are two methods to cancel Charging Timer.  By using the MiEV Remote  By operating the electric motor switch on the vehicle
A. By using the MiEV Remote
1. When the power of MiEV Remote is off, turn the power ON. Refer to “To turn the MiEV Remote ON/OFF” onpage 3-38. 2. Press the manual charging switch (J), then press the power/communicationswitch (B) for less than 1 second.
3. Canceling Charging Timer is com- plete, and the MiEV Remote willsound two different melodies. 4. Turn off the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF”on page 3-38.
B. By operating the electric motor switch on the vehicleTurn the electric motor switch to the “ACC” or “ON” position, then turn back to the “LOCK” position. Canceling the Charging Timer is now complete.
To cancel Charging Timer
NOTE
 If the Charging Timer is canceled during charging, the charging wi
ll continue until the
Main Drive Lithium-ion Battery is fullycharged.  If the Charging Timer is canceled before charging starts, charging
will start immedi-
ately and continue until the Main Drive Lith- ium-ion Battery is fully charged.
 Charging Timer cannot be canceled by dis- connecting the charge
connector before the
time set by the ON timer. The ChargingTimer will resume when the charging con- nector is again connected to the vehicle.NOTE
 If the manual charging sw
itch (J) is pressed,
the symbol of MiEV Remote will blink. Remote Climate Control is also stopped.NOTE
BK0209800US.book 42 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System
General information/Charging 3-43
3
N01204201035
N01204301036
The following conditions must be met to operate the Remote Climate Control.  Selector lever:
P (PARK) position.
 Electric motor switch: LOCK position.  EV charging cable (re
gular charger): Con-
nected.  Quick charging: Not used.  Main Drive Lithium-ion Battery Level Indicator: Shows one bar or more. Refer to “Main Drive Lithium-ion Battery LevelIndicator” on page 3-45.  All doors and the liftgate: Closed. 1. Start charging. Refer to “Regular charging (charging method with rated AC 120 V outlet)” on page 3-15.
Remote Climate Control

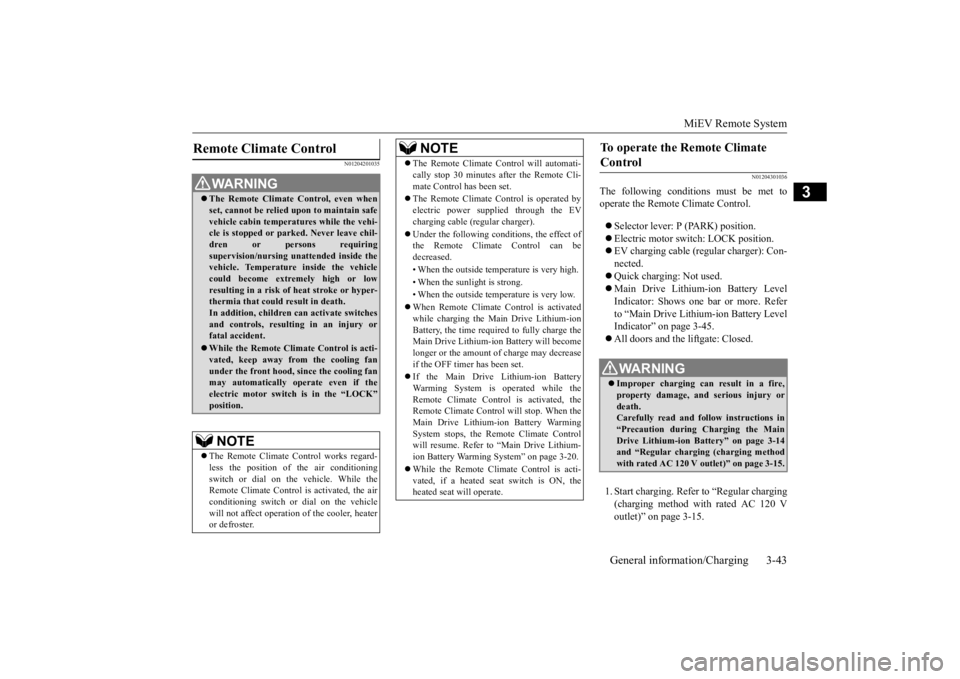

WA R N I N G The Remote Climate Control, even when set, cannot be relied upon to maintain safevehicle cabin temperatures while the vehi- cle is stopped or park
ed. Never leave chil-
dren or persons requiringsupervision/nursing unattended inside the vehicle. Temperature inside the vehicle could become extremely high or lowresulting in a risk of
heat stroke or hyper-
thermia that could result in death. In addition, children
can activate switches
and controls, resulting in an injury or fatal accident. While the Remote Climate Control is acti- vated, keep away from
the cooling fan
under the front hood,
since the cooling fan
may automatically operate even if the electric motor switch is in the “LOCK” position.NOTE
 The Remote Climate Control works regard- less the position of the air conditioningswitch or dial on the vehicle. While the Remote Climate Control is activated, the air conditioning switch or di
al on the vehicle
will not affect operation
of the cooler, heater
or defroster.
 The Remote Climate Control will automati- cally stop 30 minutes after the Remote Cli-mate Control has been set.  The Remote Climate Control is operated by electric power s
upplied through the EV
charging cable (regular charger).  Under the following c
onditions, the effect of
the Remote Climate Control can be decreased. • When the outside temperature is very high. • When the sunlight is strong.• When the outside temperature is very low.  When Remote Climate Control is activated while charging the Main Drive Lithium-ion Battery, the time required to fully charge theMain Drive Lithium-ion Battery will become longer or the amount of charge may decrease if the OFF timer has been set.  If the Main Drive Lithium-ion Battery Warming System is operated while theRemote Climate Control is activated, the Remote Climate Control will stop. When the Main Drive Lithium-ion Battery WarmingSystem stops, the Remote Climate Control will resume. Refer to “Main Drive Lithium- ion Battery Warming System” on page 3-20.  While the Remote Climate Control is acti- vated, if a heated seat switch is ON, theheated seat will operate.NOTE
To operate the Remote Climate Control
WA R N I N G Improper charging can result in a fire, property damage, and serious injury ordeath. Carefully read and fo
llow instructions in
“Precaution during Charging the MainDrive Lithium-ion Battery” on page 3-14 and “Regular chargi
ng (charging method
with rated AC 120 V ou
tlet)” on page 3-15.
BK0209800US.book 43 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System 3-44 General information/Charging
3
2. Turn on the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page3-38. 3. Press the MODE switch (G) to change the mode to Remote Climate Control (3).
4. Select a desired
mode by pressing UP
switch (C) or DOWN switch (D). The modes will be changed in the order from 1 to 4 by pushing the UP switch.
5. Press the power/c
ommunication switch
(B) for less than 1 second to send the set-ting to the vehicle. The MiEV Remote will sound melodies on transmission and reception. 6. Turn off the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38.
N01204401024
The Remote Climate C
ontrol can be stopped
by either of the following methods.
1_ Shown the ON timer 2_ Shown the OFF timer3_ Shown the Remote Climate Control
1_ COOL: Pre-Cooling Mode2_ HEAT: Pre-Heating Mode 3_
: Pre-Defroster Mode
4_ A/C OFF: Remote Climate Control
OFF
NOTE
 The melodies can be turned off. Refer to “To turn on/off melody
and buzzer” on page
3-45.  If a communication error occurs or the MiEV Remote System is not
functioning properly,
the buzzer will sound. Refer to “Display of MiEV Remote during communicating with vehicle” on page 3-41.
To stop the Remote Climate Con- trol
BK0209800US.book 44 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System
General information/Charging 3-45
3
A. By using the MiEV Remote, after press-
ing the manual charging switch (J), pressthe power/communica
tion switch (B) for
less than 1 second. B. By using the MiEV Remote, select the A/C OFF mode and send the setting. Refer to “To operate the Remote Climate Control” on page 3-43.C. Turn the electric motor switch to the “ACC” or the “ON” position.
D. Disconnect the regul
ar charge connector
from the vehicle.
N01204100024
1. Turn on the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38.• To turn off the sounds, press the UP switch (C) while pressing MODE switch (G).• To turn on the sounds, press the DOWN switch (D) while pressing MODE switch (G).
2. Turn off the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38.
N01204500015
The remaining energy in the Main Drive Lith-ium-ion Battery can be
checked using the
MiEV Remote. 1. If the MiEV Remote has been turned off, turn on the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38. 2. Current remaining energy in the MainDrive Lithium-ion Battery is shown on the display while the MiEV Remote is ON. The remening energy is shown by the number of segments displayed.
NOTE
 The Remote Climate Control will not stop if the doors or liftgate are opened after the Remote Climate Control has started.
To turn on/off melody and buzzer
Main Drive Lithium-ion Bat- tery Level Indicator
: 3 segments: Full or near full : 2 segments: Moderate
BK0209800US.book 45 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System 3-46 General information/Charging
3
3. Turn off the MiEV Remote. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38.
N01205400011
Your MiEV Remote
System operates on a
radio frequency subject
to Federal Communi-
cations Commission (FCC) Rules (For vehi- cles sold in U.S.A.) and Industry CanadaRules (For vehicles so
ld in Canada). This
device complies with
Part 15 of the FCC
Rules and RSS-Gen of the Industry CanadaRules. Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference.  This device must ac
cept any interference
received, including interference that maycause undesired operation.
N01204600016 N01204700017
Two coin type batteries are used. Replace as necessary to assure proper operation.
N01204800021
1. Before replacing
the batteries, remove
static electricity from your body by touch- ing a metal grounded object.2. Battery cover (B) lifts when the slide por- tion (A) is moved to the arrow direction. 3. By moving the battery cover (B) in the arrow direction, tabs (C) on the battery cover will come out
and the battery cover
can be removed.
: 1 segment: Low : 0 segments: Empty or near empty
NOTE
 More than remained quantity in the Main Drive Lithium-ion Battery is necessary to operate the Remote Climate Control.
General information
CAUTION Changes or modifica
tions not expressly
approved by the manufacturer for compli-ance could void the user’s authority to oper-ate the equipment.
Replacement of batteries for the MiEV Remote
CAUTION MiEV Remote is a
precision electronic
device with a built-in
signal transmitter. Do
not disassemble or touc
h an internal parts.
Keep away from water or dust. Be careful not to break the tab on the battery cover when removing or
installing the bat-
tery cover.
About battery
NOTE
 Standard battery life on the MiEV Remote is about 1 year. Battery li
fe can vary depending
on environmental and usage conditions.
To replace the batteries
BK0209800US.book 46 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System
General information/Charging 3-47
3
4. Remove the old batteries. 5. Install two new coin type CR2032 batter-ies (D) with the “+” side up. 6. Attach the battery c
over (A) in the reverse
order from the way you have detached it.7. Confirm the MiEV Remote can be turned ON. Refer to “To turn the MiEV Remote ON/OFF” on page 3-38.NOTE
 Replace both batt
eries with new ones at the
same time.  A certified i-MiEV de
aler can replace the
batteries for you if you prefer.
Coin type batteriesCR2032
BK0209800US.book 47 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System 3-48 General information/Charging
3
N01204901032
Take the following actions when the system does not operate correctly. If the system still does not operate correctly after the
action(s) have been
taken, a system component may not be wo
rking properly. Please consult with a
certified i-MiEV de
aler to check it.
Actions to be taken when the MiEV Remo
te system does not operate correctly
Phenomena
Cause
Remedy
Charging does not start when regular charge connector is inserted.
“ON” timer has been set. Cancel the “ON” timer. The regular charge connector is not locked completely.
Lock the regular charge connector securely.
A household electrical
outlet, which the
EV charging cable is connected to, is shut down.(e.g. disconnected plug)
Turn on the household elec
trical outlet and make
sure the plug is securely connected.
MiEV Remote does not operate normally.
MiEV Remote is not powered on.
Batteries in the MiEV Remote are defec- tive or the batteries are discharged.
Replace the batteries in the MiEV Remote. Refer to “Replacement of batteries for the MiEV Remote” on page 3-46.
No indicator lights come on when the remote is turned on. Melody or buzzer does not sound.
Melody or buzzer has been disabl
ed. Enable the melody or buzzer.
Refer to “To turn on/off melody and buzzer” on page 3-45.
BK0209800US.book 48 ページ ２０１４年１月１４日　火曜日　午前９時２６分

MiEV Remote System
General information/Charging 3-49
3
The following symbol blinks when the power supply/communi- cation switch on the MiEV Remote is pressed.  ERROR sym- bol 
symbol
Blinks after about 1 sec- ond.
 Electrical noise source is present in the vicinity of the MiEV Remote. (e.g. personal computer)  Electrical noise s
ource is present
between the vehicl
e and the MiEV
Remote.
Move away from the noise source.
Blinks after about 10 seconds.
The MiEV Remote antenna is not extended.
Extend the MiEV Remote
antenna to communicate.
Out of effective
communication range.
(e.g. too far away from the vehicle, or radio signal is interfered)
Move to the location where the system reaches the effective communication range.
The electric motor switch is at the position other than “LOCK” position.
Turn the electric motor switch to the “LOCK” posi- tion.
 Electrical noise source is present in the vicinity of the vehicle. Electrical noise s
ource is present
between the vehicl
e and the MiEV
Remote.
Move away from the noise source.
12V starter battery is discharged. Charg
e or replace the 12V starter battery.
Refer to “Jump-starting” on page 8-2, “12V starter battery” on page 11-5.
The below symbol blinks about 10 seconds after the power/communi
cation switch on the
MiEV Remote is pressed.  ERROR symbol
Some errors occur while
the system is in
processing.
Press the power/communication switch again.
Phenomena
Cause
Remedy
