2015 MERCEDES-BENZ SLK-CLASS ROADSTER Owners Manual

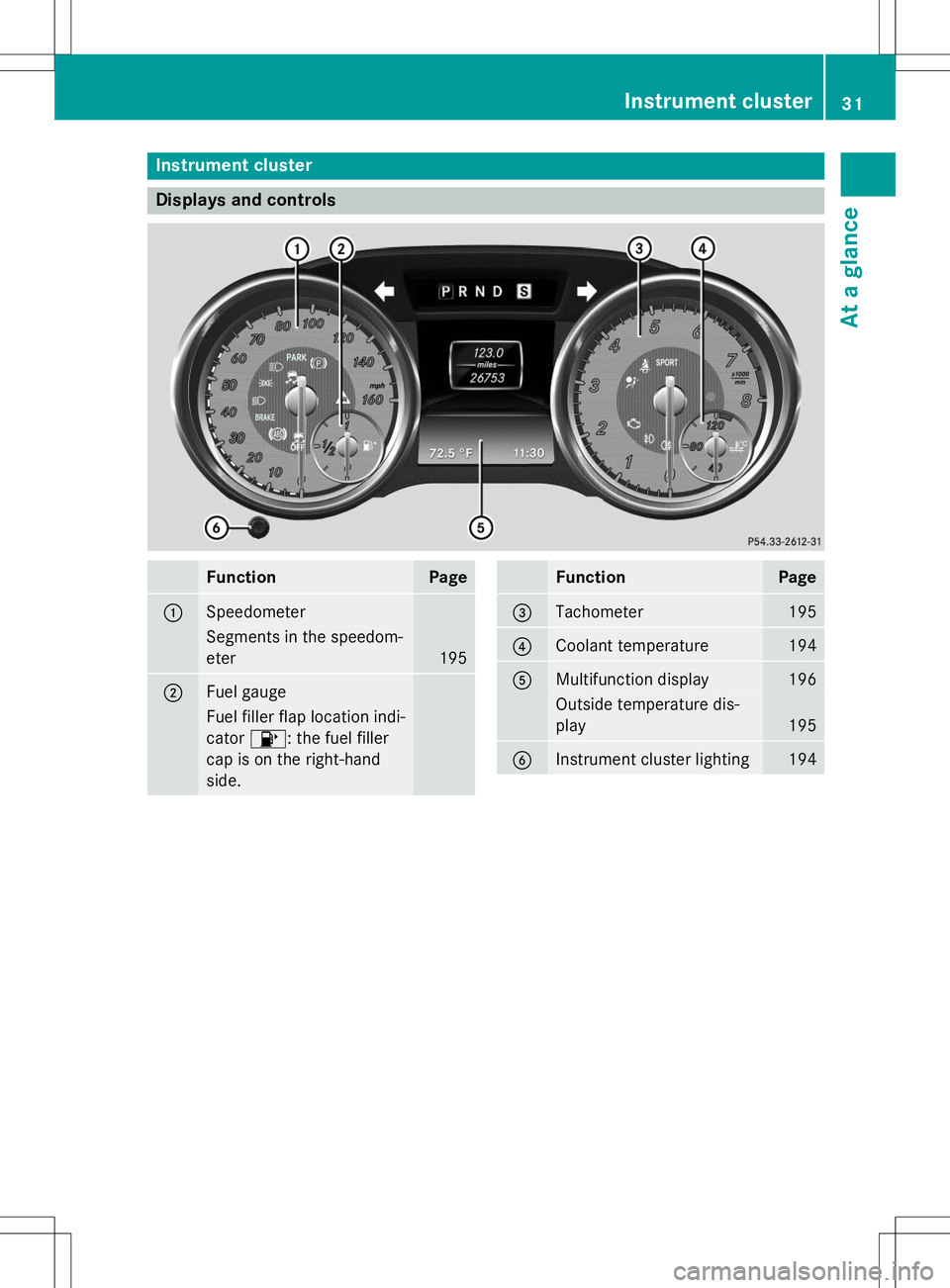

Instrument cluster
Displays and controls
FunctionPage
:Speedometer
Segments in the speedom-
eter
195
;Fuel gauge
Fuel filler flap location indi-
cator8: the fuel filler
cap is on the right-hand
side.
FunctionPage
=Tachometer195
?Coolant temperature194
AMultifunction display196
Outside temperature dis- play
195
BInstrument cluster lighting194
Instrument cluster31
At a glance

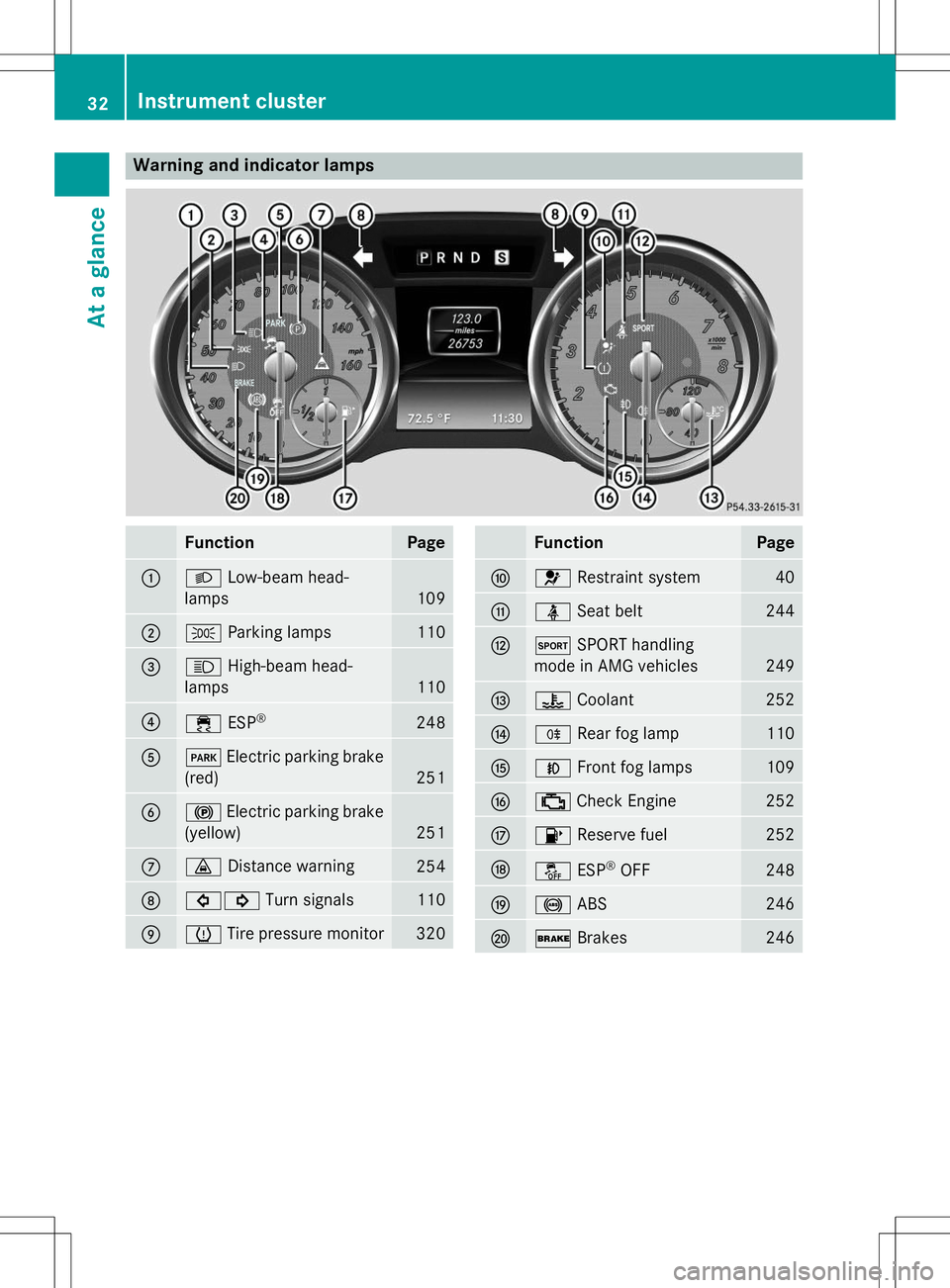

Warning and indicator lamps
FunctionPage
:LLow-beam head-
lamps
109
;T Parking lamps110
=KHigh-beam head-
lamps
110
?÷ ESP®248
AF
Electric parking brake
(red)
251
B! Electric parking brake
(yellow)
251
C· Distance warning254
D#! Turn signals110
EhTire pressure monitor320
FunctionPage
F6 Restraint system40
GüSeat belt244
HMSPORT handling
mode in AMG vehicles
249
I? Coolant252
JRRear fog lamp110
KNFront fog lamps109
L;Check Engine252
M8 Reserve fuel252
NåESP®
OFF248
O! ABS246
P$Brakes246
32Instrument cluster
At a glance

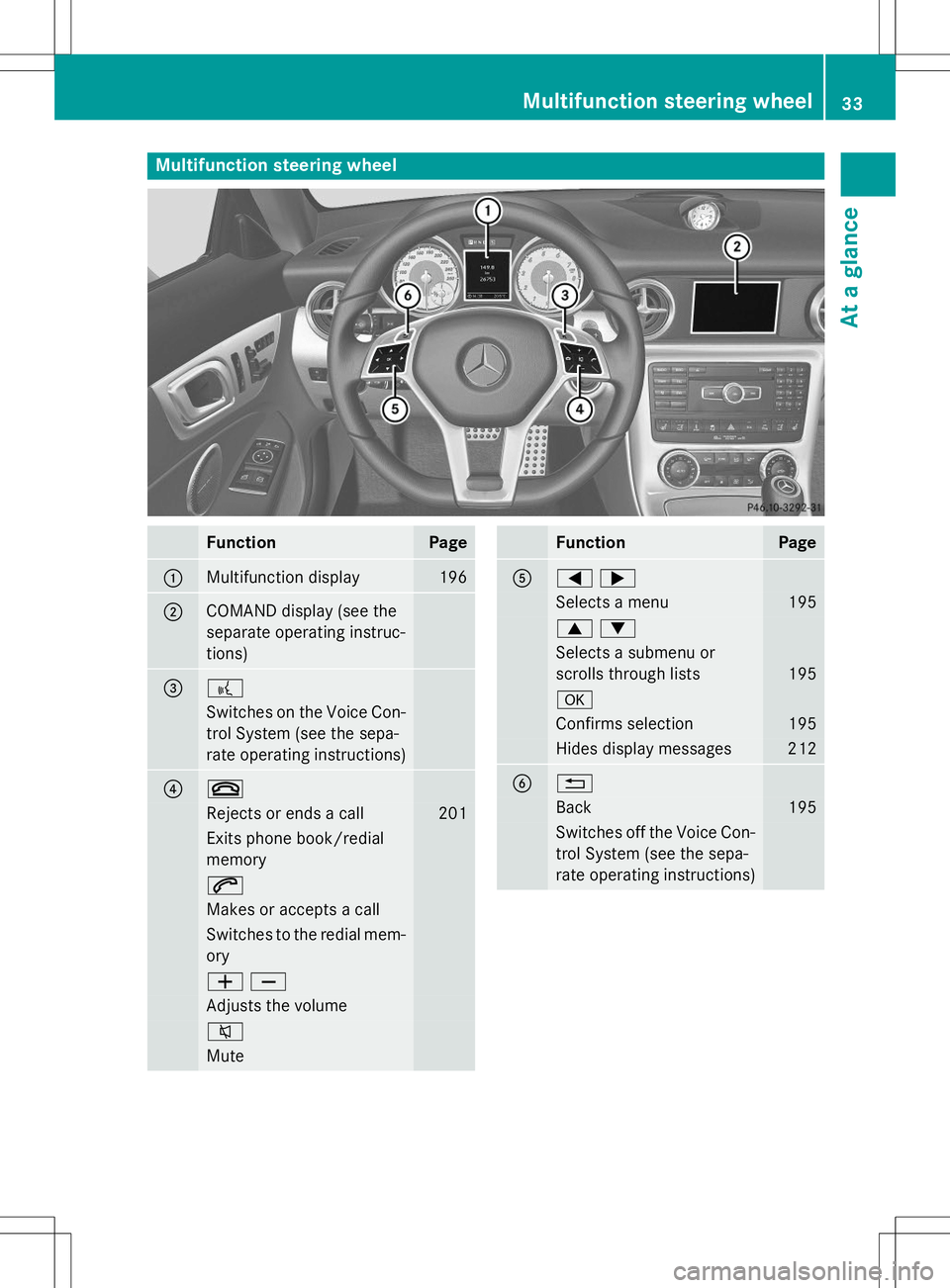

Multifunction steering wheel
FunctionPage
:Multifunction display196
;COMAND display (see the
separate operating instruc-tions)
=?
Switches on the Voice Con-
trol System (see the sepa-
rate operating instructions)
?~
Rejects or ends a call201
Exits phone book/redial memory
6
Makes or accepts a call
Switches to the redial mem- ory
WX
Adjusts the volume
8
Mute
FunctionPage
A=;
Selects a menu195
9:
Selects a submenu or
scrolls through lists
195
a
Confirms selection195
Hides display messages212
B%
Back195
Switches off the Voice Con-
trol System (see the sepa-
rate operating instructions)
Multifunction steering wheel33
At a glance

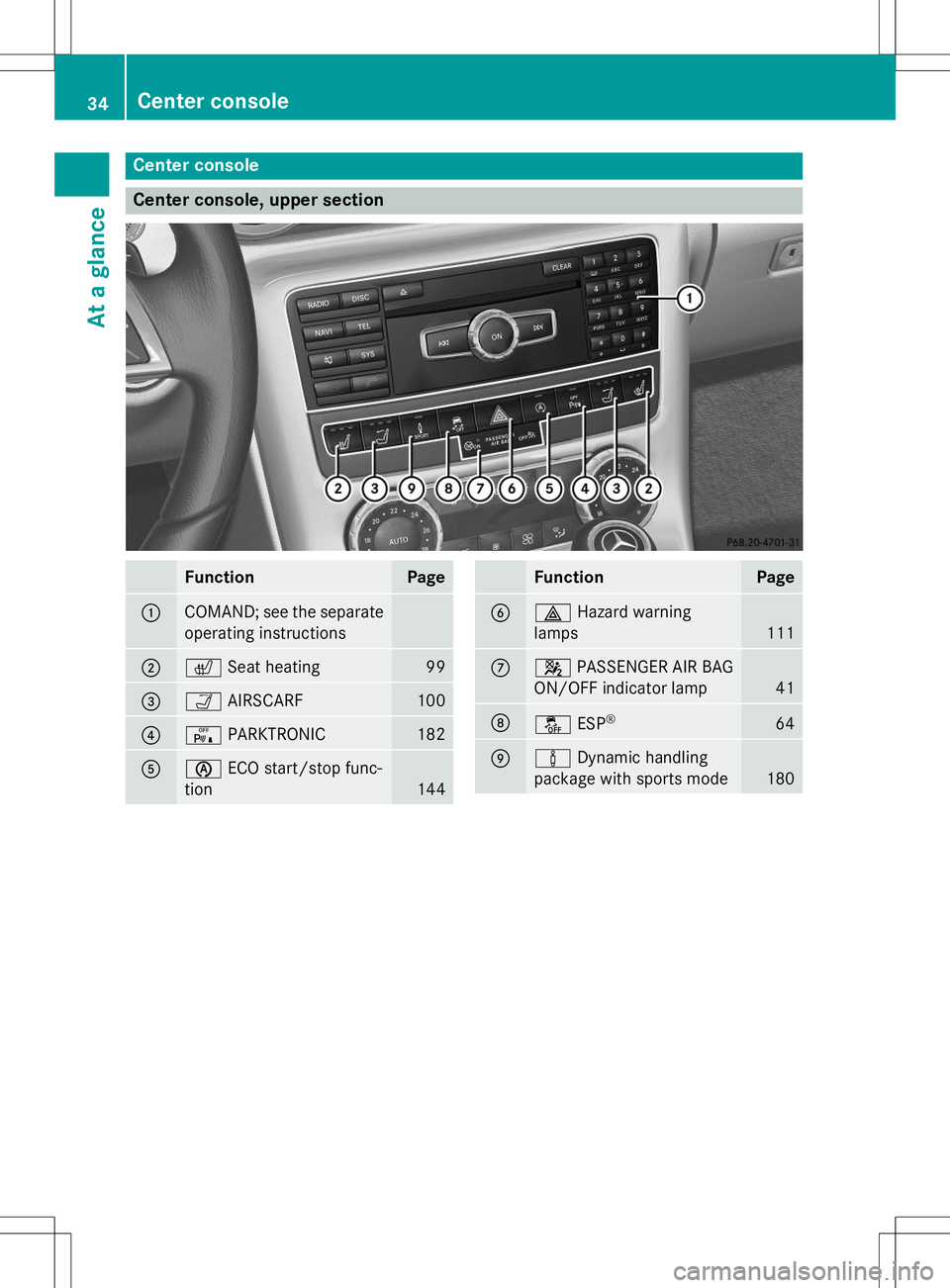

Center console
Center console, upper section
FunctionPage
:COMAND; see the separateoperating instructions
;c Seat heating99
=ÒAIRSCARF100
?cPARKTRONIC182
AèECO start/stop func-
tion
144
FunctionPage
B£ Hazard warning
lamps
111
C4 PASSENGER AIR BAG
ON/OFF indicator lamp
41
Då ESP®64
Eà
Dynamic handling
package with sports mode
180
34Center console
At a glance

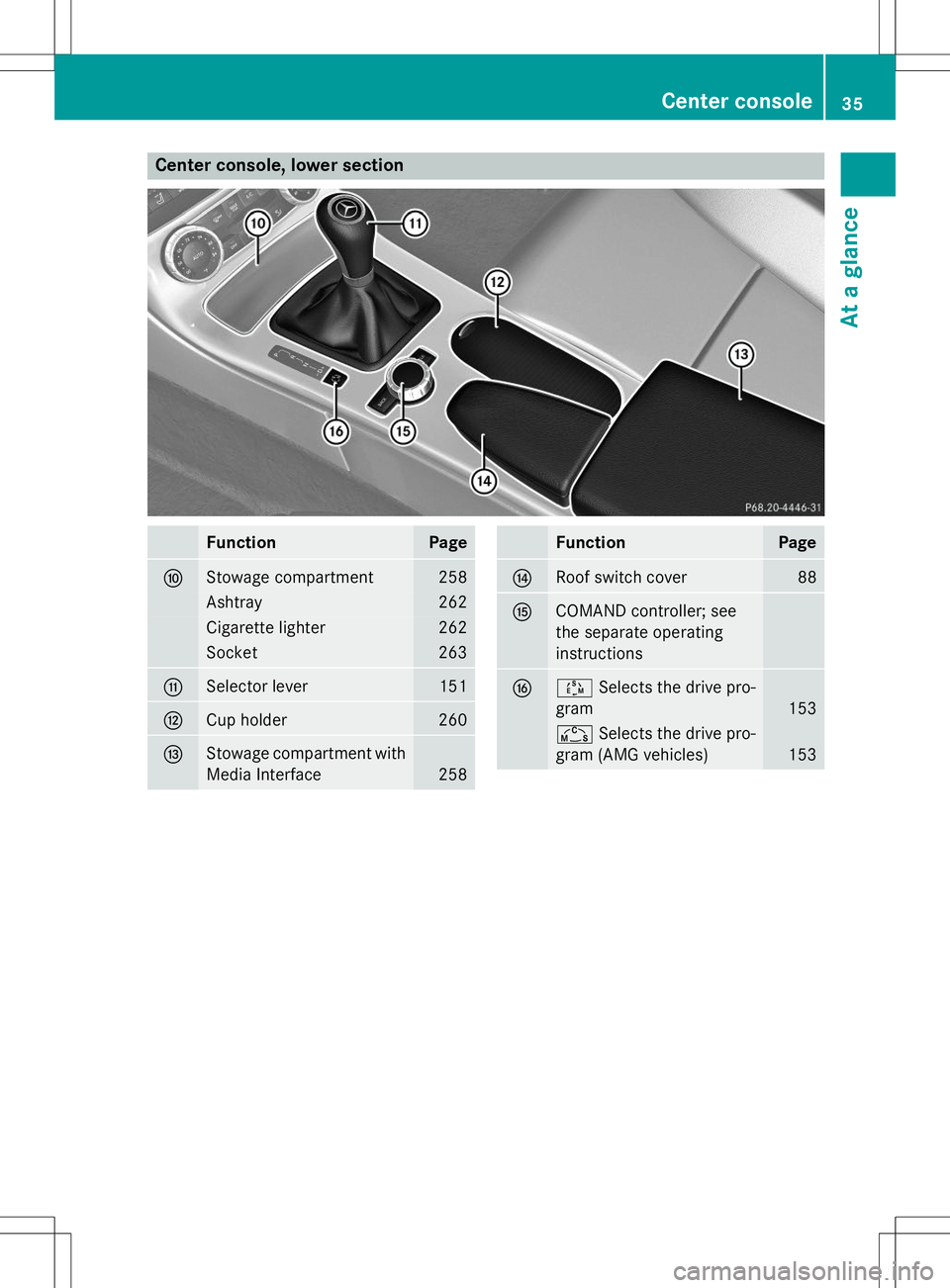

Center console, lower section
FunctionPage
FStowage compartment258
Ashtray262
Cigarette lighter262
Socket263
GSelector lever151
HCup holder260
IStowage compartment with
Media Interface
258
FunctionPage
JRoof switch cover88
KCOMAND controller; see
the separate operating
instructions
LÚSelects the drive pro-
gram
153
Ñ Selects the drive pro-
gram (AMG vehicles)
153
Center console35
At a glance

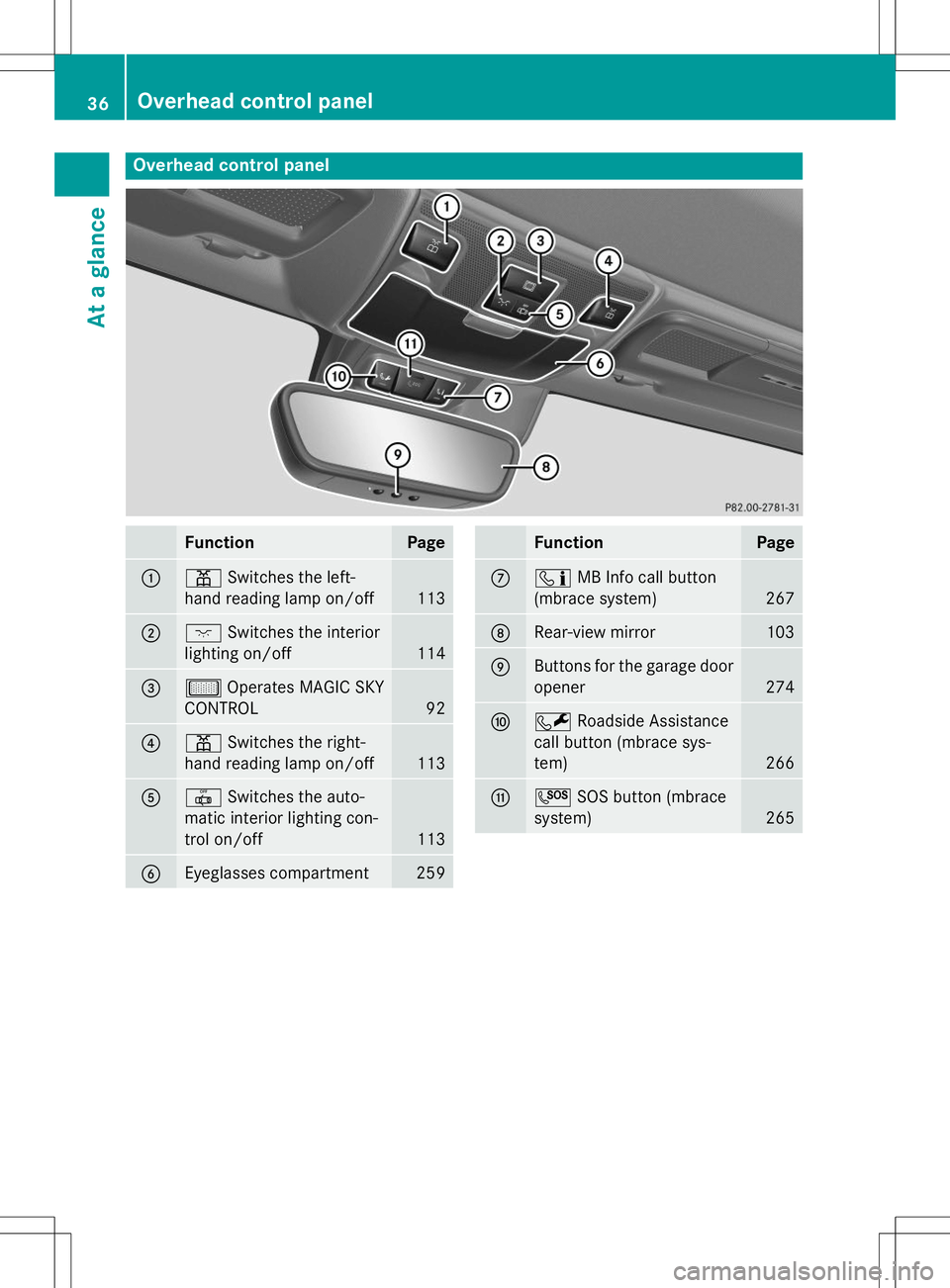

Overhead control panel
FunctionPage
:pSwitches the left-
hand reading lamp on/off
113
;c Switches the interior
lighting on/off
114
=µ Operates MAGIC SKY
CONTROL
92
?p Switches the right-
hand reading lamp on/off
113
A| Switches the auto-
matic interior lighting con-
trol on/off
113
BEyeglasses compartment259
FunctionPage
Cï MB Info call button
(mbrace system)
267
DRear-view mirror103
EButtons for the garage door opener
274
FF Roadside Assistance
call button (mbrace sys- tem)
266
GG SOS button (mbrace
system)
265
36Overhead control panel
At a glance

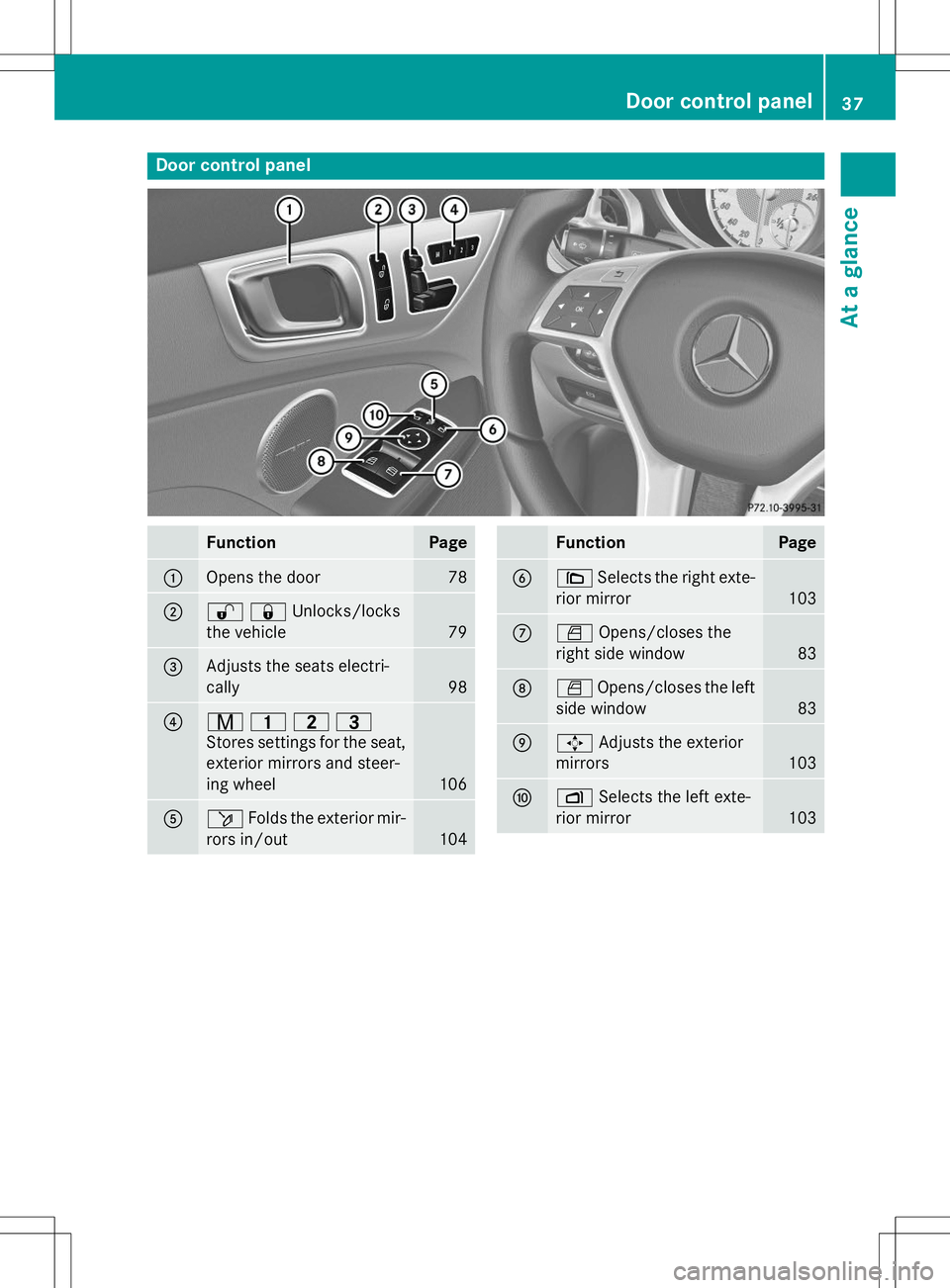

Door control panel
FunctionPage
:Opens the door78
;%&Unlocks/locks
the vehicle
79
=Adjusts the seats electri- cally
98
?r 45=
Stores settings for the seat,
exterior mirrors and steer-
ing wheel
106
Aö Folds the exterior mir-
rors in/out
104
FunctionPage
B\ Selects the right exte-
rior mirror
103
CW Opens/closes the
right side window
83
DW Opens/closes the left
side window
83
E7 Adjusts the exterior
mirrors
103
FZ Selects the left exte-
rior mirror
103
Door control panel37
At a glance
