2015 MERCEDES-BENZ SLK-CLASS ROADSTER Owners Manual

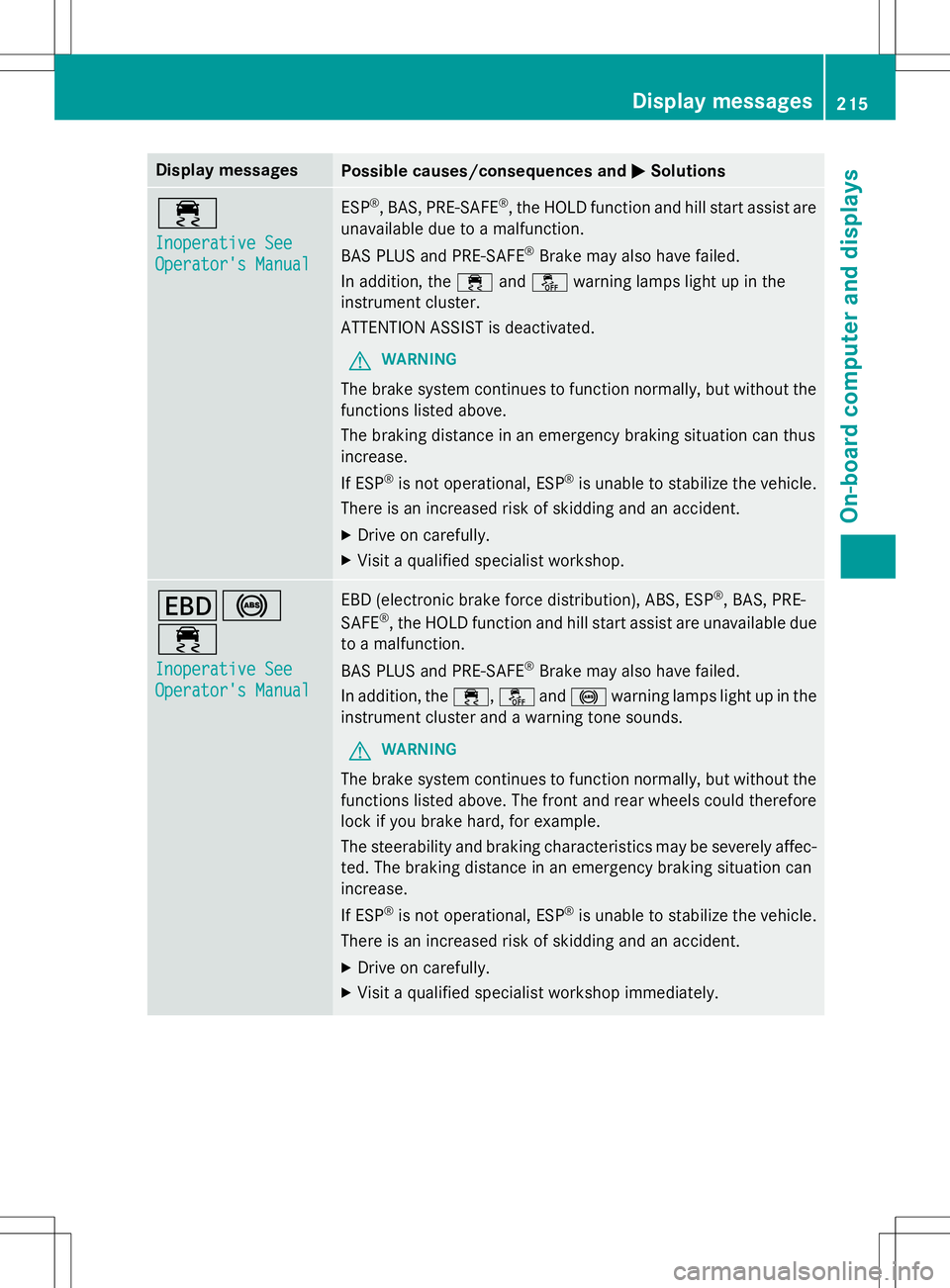

Display messagesPossible causes/consequences andMSolutions
÷
Inoperative See
Operator's Manual
ESP®
, BAS, PRE

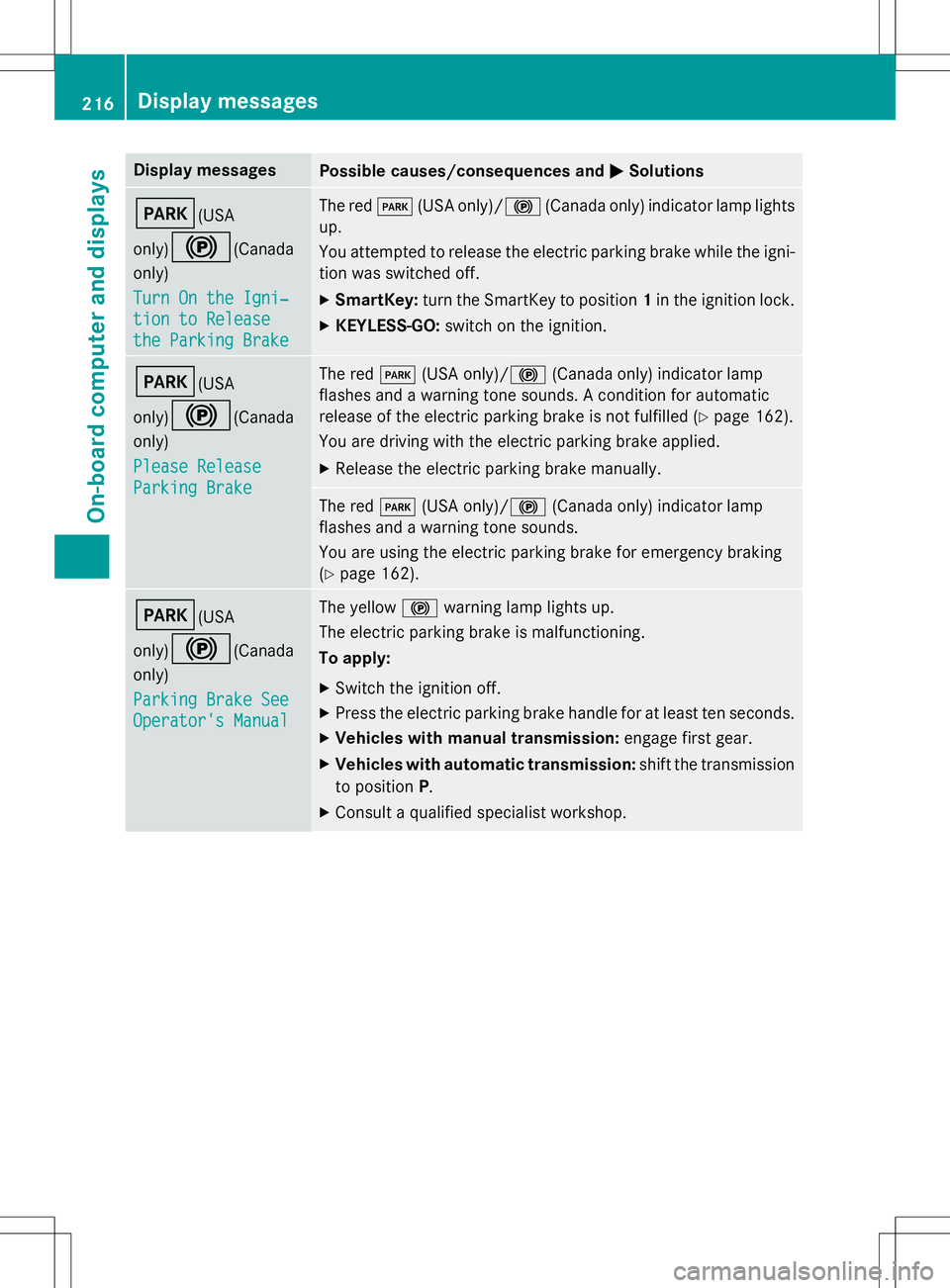

Display messagesPossible causes/consequences andMSolutions
F(USA
only)
!(Canada
only)
Turn On the IgniZ
tion to Release
the Parking Brake
The red F(USA only)/ !(Canada only) indicator lamp lights
up.
You attempted to release the electric parking brake while the igni-
tion was switched off.
X SmartKey: turn the SmartKey to position 1in the ignition lock.
X KEYLESS-GO: switch on the ignition.
F(USA
only)
!(Canada
only)
Please Release
Parking Brake
The red F(USA only)/ !(Canada only) indicator lamp
flashes and a warning tone sounds. A condition for automatic
release of the electric parking brake is not fulfilled ( Ypage 162).
You are driving with the electric parking brake applied.
X Release the electric parking brake manually.
The red F(USA only)/ !(Canada only) indicator lamp
flashes and a warning tone sounds.
You are using the electric parking brake for emergency braking ( Y page 162).
F(USA
only)
!(Canada
only)
Parking Brake See
Operator's Manual
The yellow !warning lamp lights up.
The electric parking brake is malfunctioning.
To apply:
X Switch the ignition off.
X Press the electric parking brake handle for at least ten seconds.
X Vehicles with manual transmission: engage first gear.
X Vehicles with automatic transmission: shift the transmission
to position P.
X Consult a qualified specialist workshop.
216Display messages
On-board computer and displays

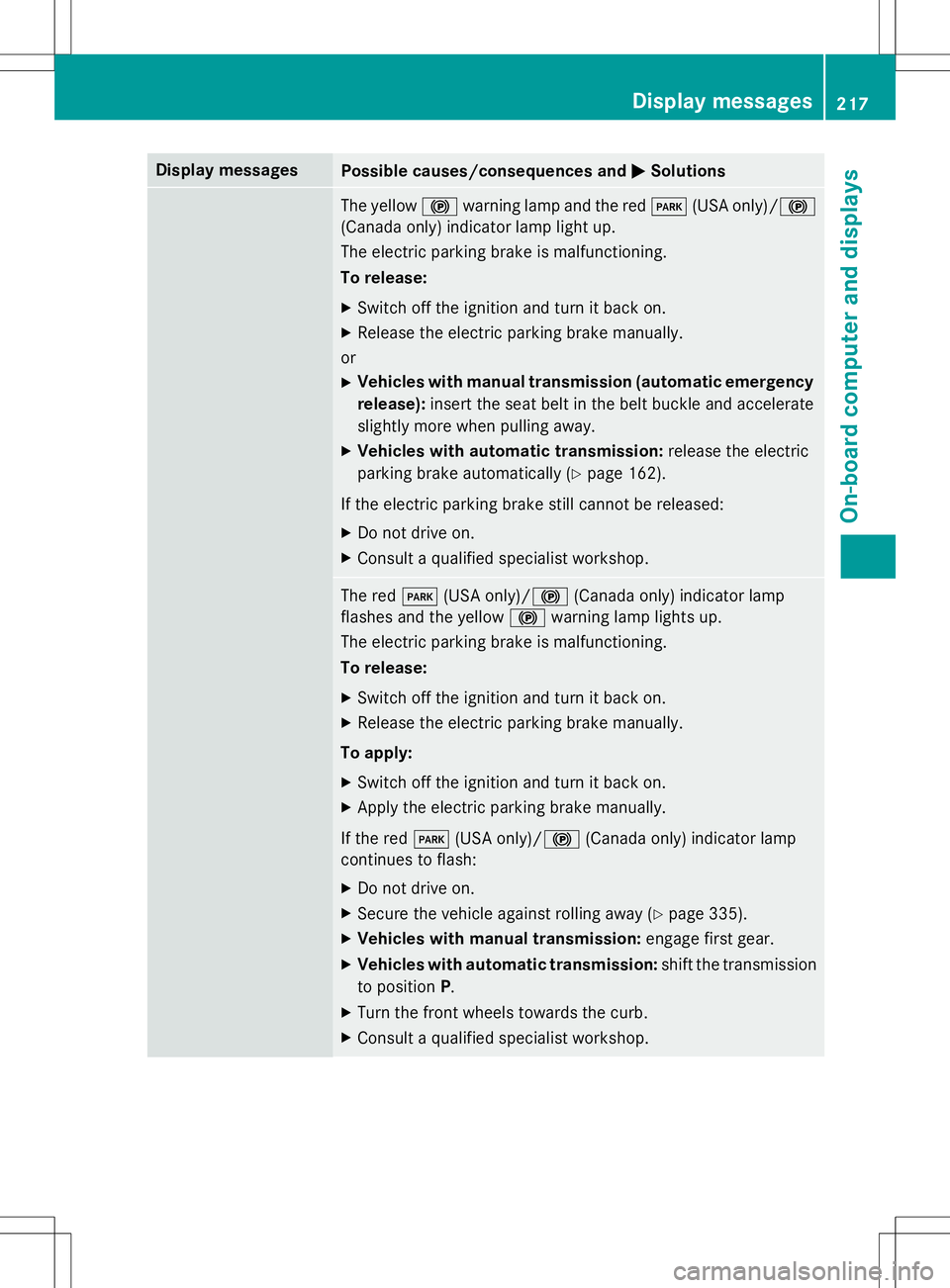

Display messagesPossible causes/consequences andMSolutions
The yellow!warning lamp and the red F(USA only)/ !
(Canada only) indicator lamp light up.
The electric parking brake is malfunctioning.
To release:
X Switch off the ignition and turn it back on.
X Release the electric parking brake manually.
or X Vehicles with manual transmission (automatic emergency
release): insert the seat belt in the belt buckle and accelerate
slightly more when pulling away.
X Vehicles with automatic transmission: release the electric
parking brake automatically ( Ypage 162).
If the electric parking brake still cannot be released: X Do not drive on.
X Consult a qualified specialist workshop.
The red F(USA only)/ !(Canada only) indicator lamp
flashes and the yellow !warning lamp lights up.
The electric parking brake is malfunctioning.
To release:
X Switch off the ignition and turn it back on.
X Release the electric parking brake manually.
To apply: X Switch off the ignition and turn it back on.
X Apply the electric parking brake manually.
If the red F(USA only)/ !(Canada only) indicator lamp
continues to flash:
X Do not drive on.
X Secure the vehicle against rolling away ( Ypage 335).
X Vehicles with manual transmission: engage first gear.
X Vehicles with automatic transmission: shift the transmission
to position P.
X Turn the front wheels towards the curb.
X Consult a qualified specialist workshop.
Display messages217
On-board computer and displays
Z

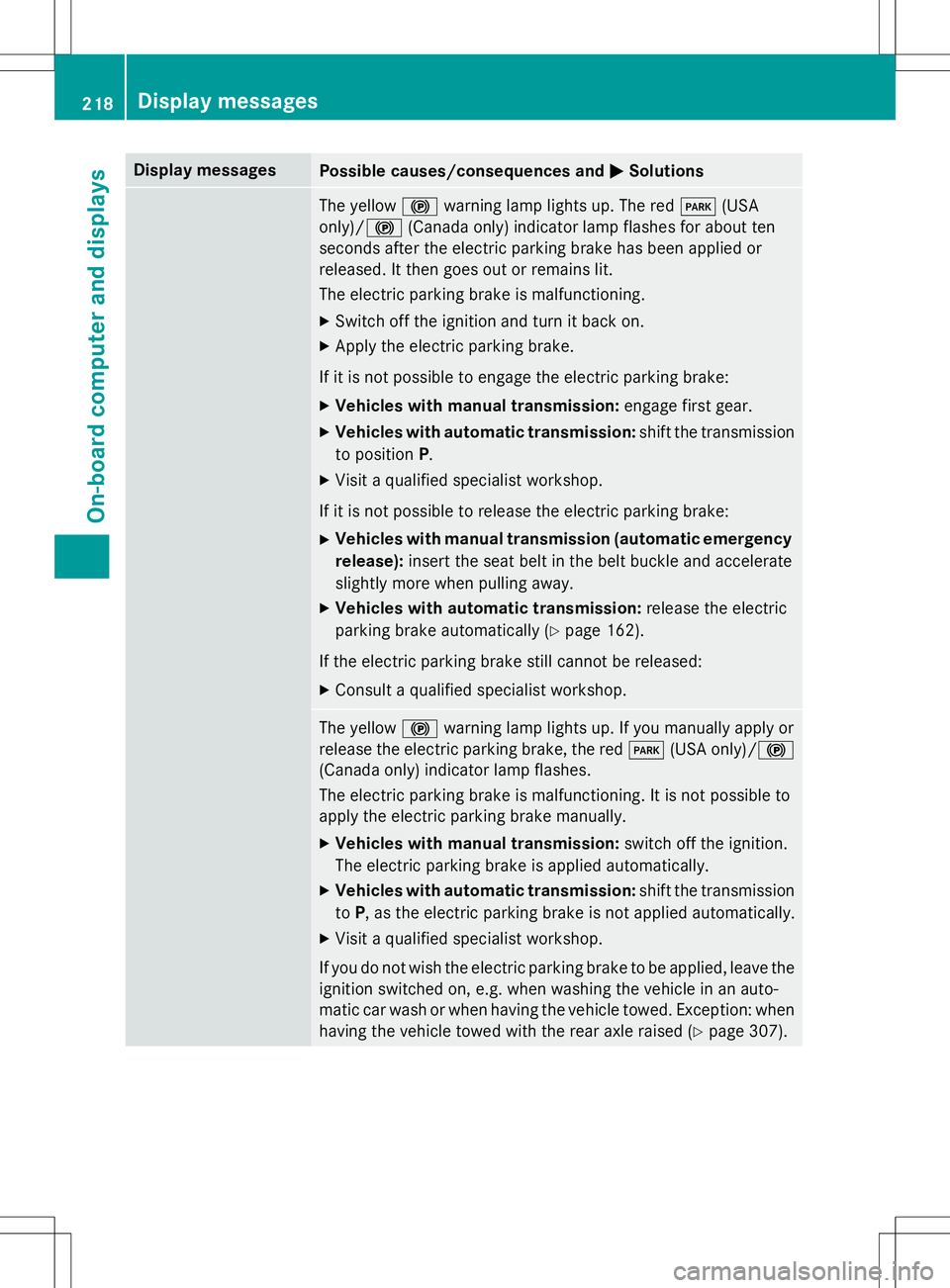

Display messagesPossible causes/consequences andMSolutions
The yellow!warning lamp lights up. The red F(USA
only)/ !(Canada only) indicator lamp flashes for about ten
seconds after the electric parking brake has been applied or
released. It then goes out or remains lit.
The electric parking brake is malfunctioning. X Switch off the ignition and turn it back on.
X Apply the electric parking brake.
If it is not possible to engage the electric parking brake:
X Vehicles with manual transmission: engage first gear.
X Vehicles with automatic transmission: shift the transmission
to position P.
X Visit a qualified specialist workshop.
If it is not possible to release the electric parking brake:
X Vehicles with manual transmission (automatic emergency
release): insert the seat belt in the belt buckle and accelerate
slightly more when pulling away.
X Vehicles with automatic transmission: release the electric
parking brake automatically ( Ypage 162).
If the electric parking brake still cannot be released: X Consult a qualified specialist workshop.
The yellow !warning lamp lights up. If you manually apply or
release the electric parking brake, the red F(USA only)/ !
(Canada only) indicator lamp flashes.
The electric parking brake is malfunctioning. It is not possible to
apply the electric parking brake manually.
X Vehicles with manual transmission: switch off the ignition.
The electric parking brake is applied automatically.
X Vehicles with automatic transmission: shift the transmission
to P, as the electric parking brake is not applied automatically.
X Visit a qualified specialist workshop.
If you do not wish the electric parking brake to be applied, leave the
ignition switched on, e.g. when washing the vehicle in an auto-
matic car wash or when having the vehicle towed. Exception: when
having the vehicle towed with the rear axle raised ( Ypage 307).
218Display messages
On-board computer and displays

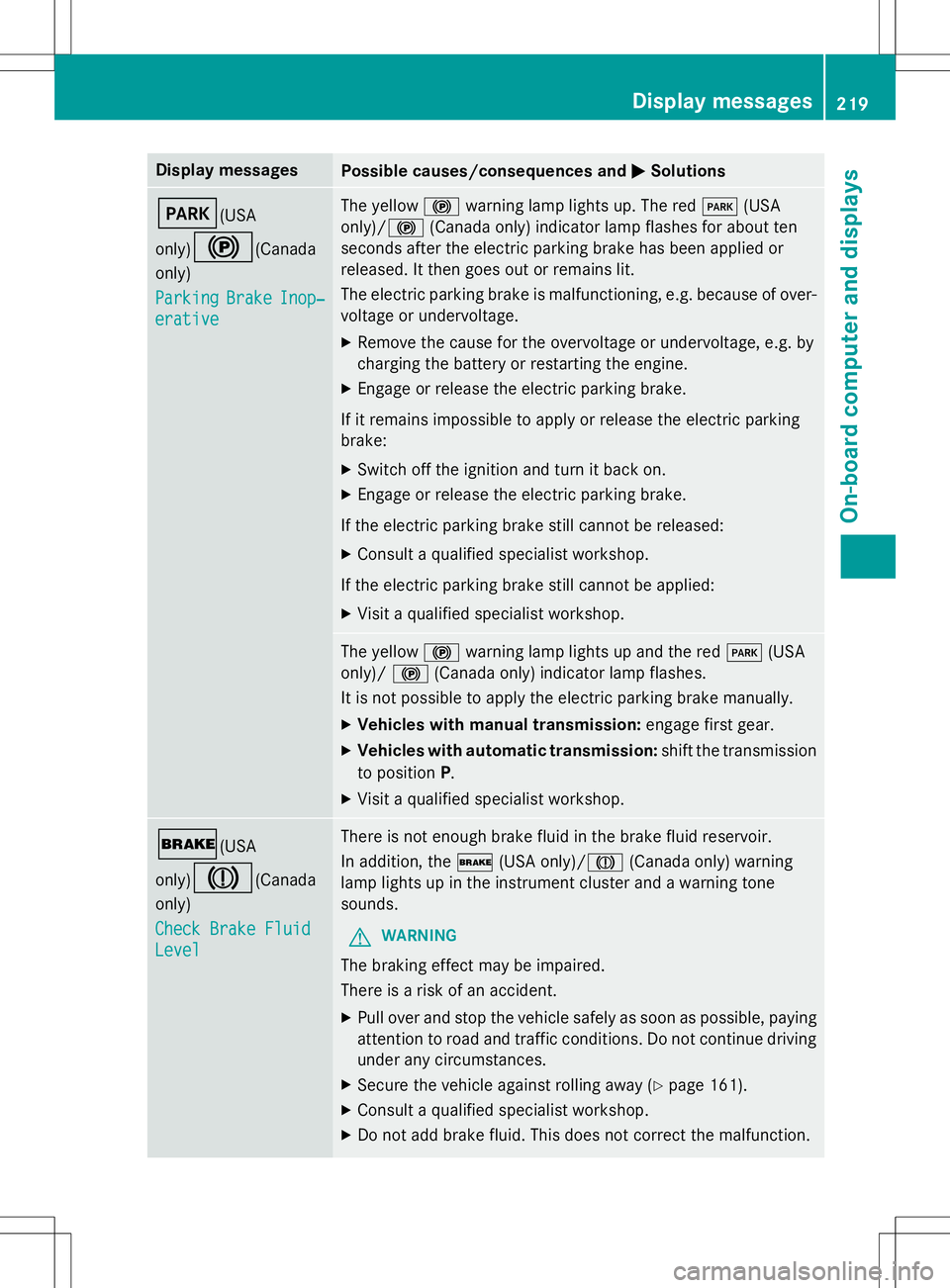

Display messagesPossible causes/consequences andMSolutions
F(USA
only)
!(Canada
only)
ParkingBrakeInopZ
erative
The yellow !warning lamp lights up. The red F(USA
only)/ !(Canada only) indicator lamp flashes for about ten
seconds after the electric parking brake has been applied or
released. It then goes out or remains lit.
The electric parking brake is malfunctioning, e.g. because of over-
voltage or undervoltage.
X Remove the cause for the overvoltage or undervoltage, e.g. by
charging the battery or restarting the engine.
X Engage or release the electric parking brake.
If it remains impossible to apply or release the electric parking
brake:
X Switch off the ignition and turn it back on.
X Engage or release the electric parking brake.
If the electric parking brake still cannot be released: X Consult a qualified specialist workshop.
If the electric parking brake still cannot be applied: X Visit a qualified specialist workshop.
The yellow !warning lamp lights up and the red F(USA
only)/ !(Canada only) indicator lamp flashes.
It is not possible to apply the electric parking brake manually.
X Vehicles with manual transmission: engage first gear.
X Vehicles with automatic transmission: shift the transmission
to position P.
X Visit a qualified specialist workshop.
$(USA
only)
J(Canada
only)
Check Brake Fluid
Level
There is not enough brake fluid in the brake fluid reservoir.
In addition, the $(USA only)/ J(Canada only) warning
lamp lights up in the instrument cluster and a warning tone
sounds.
GWARNING
The braking effect may be impaired.
There is a risk of an accident.
X Pull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
X Secure the vehicle against rolling away ( Ypage 161).
X Consult a qualified specialist workshop.
X Do not add brake fluid. This does not correct the malfunction.
Display messages219
On-board computer and displays
Z

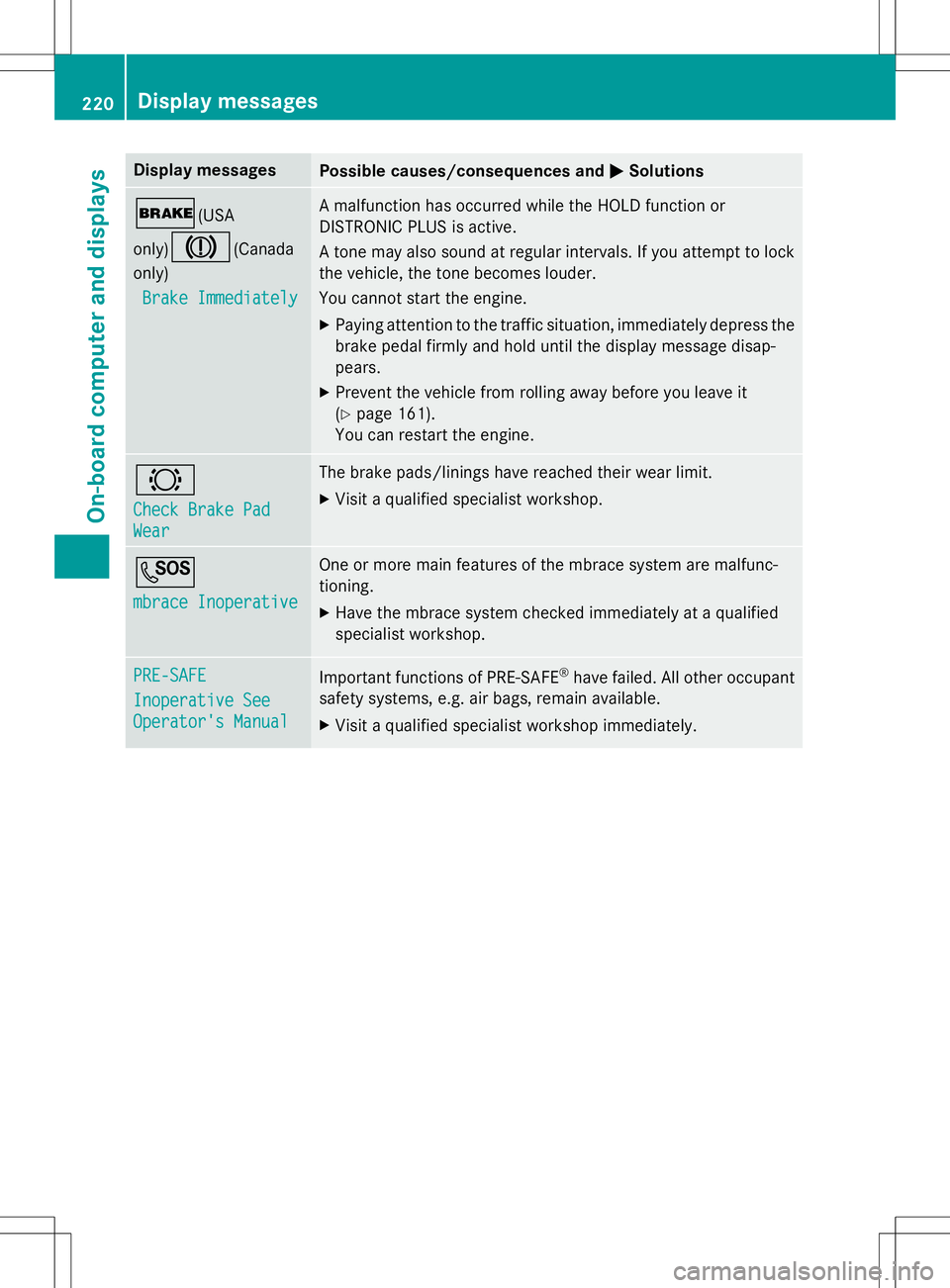

Display messagesPossible causes/consequences andMSolutions
$(USA
only)
J(Canada
only)
Brake Immediately
A malfunction has occurred while the HOLD function or
DISTRONIC PLUS is active.
A tone may also sound at regular intervals. If you attempt to lock the vehicle, the tone becomes louder.
You cannot start the engine.
X Paying attention to the traffic situation, immediately depress the
brake pedal firmly and hold until the display message disap-
pears.
X Prevent the vehicle from rolling away before you leave it(Y page 161).
You can restart the engine.
#
Check Brake Pad
Wear
The brake pads/linings have reached their wear limit.
X Visit a qualified specialist workshop.
G
mbrace Inoperative
One or more main features of the mbrace system are malfunc-
tioning.
X Have the mbrace system checked immediately at a qualified
specialist workshop.
PRE-SAFE
Inoperative See
Operator's Manual
Important functions of PRE-SAFE ®
have failed. All other occupant
safety systems, e.g. air bags, remain available.
X Visit a qualified specialist workshop immediately.
220Display messages
On-board computer and displays

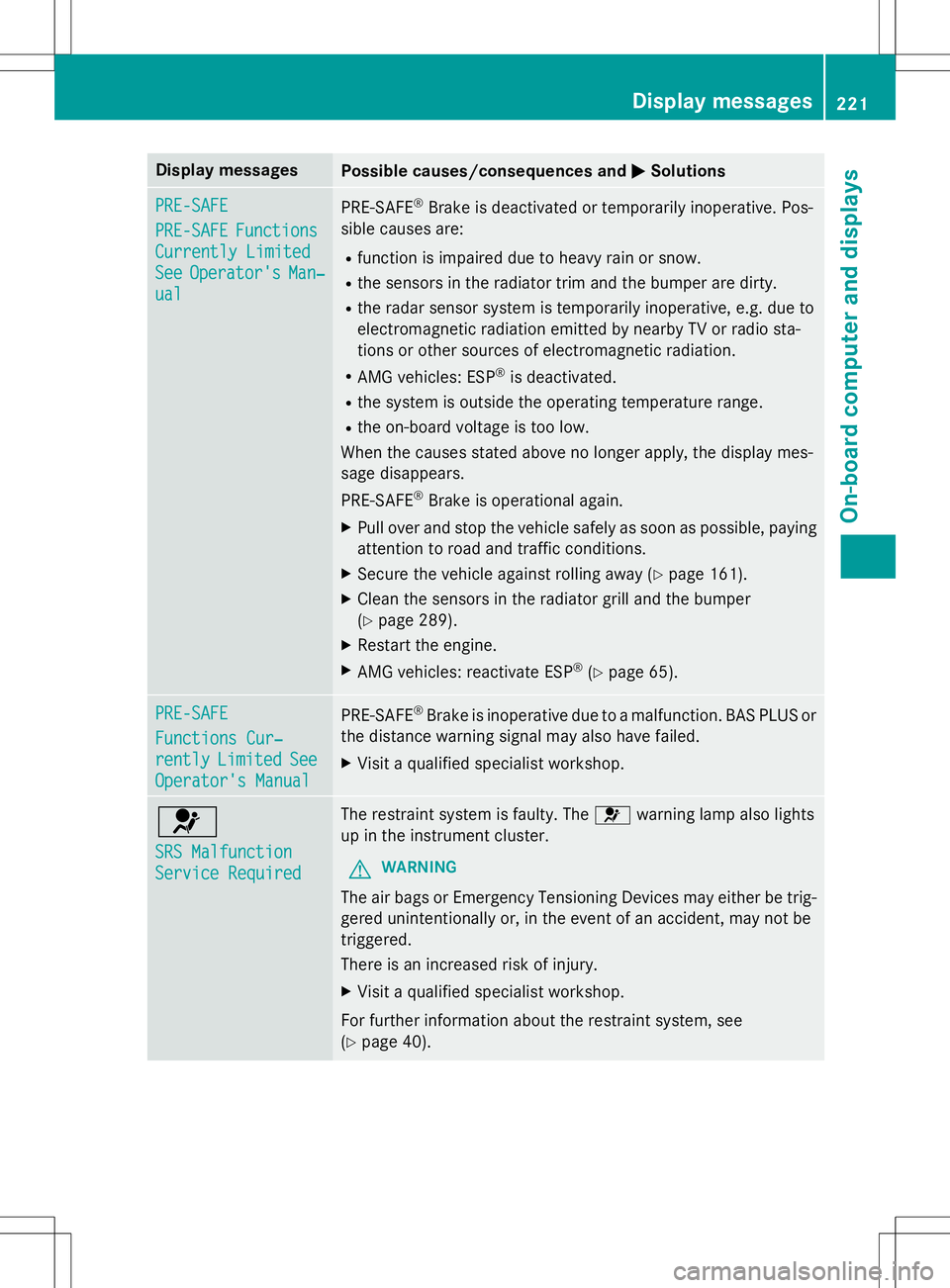

Display messagesPossible causes/consequences andMSolutions
PRE-SAFE
PRE-SAFEFunctions
Currently Limited
SeeOperator'sManZ
ual
PRE

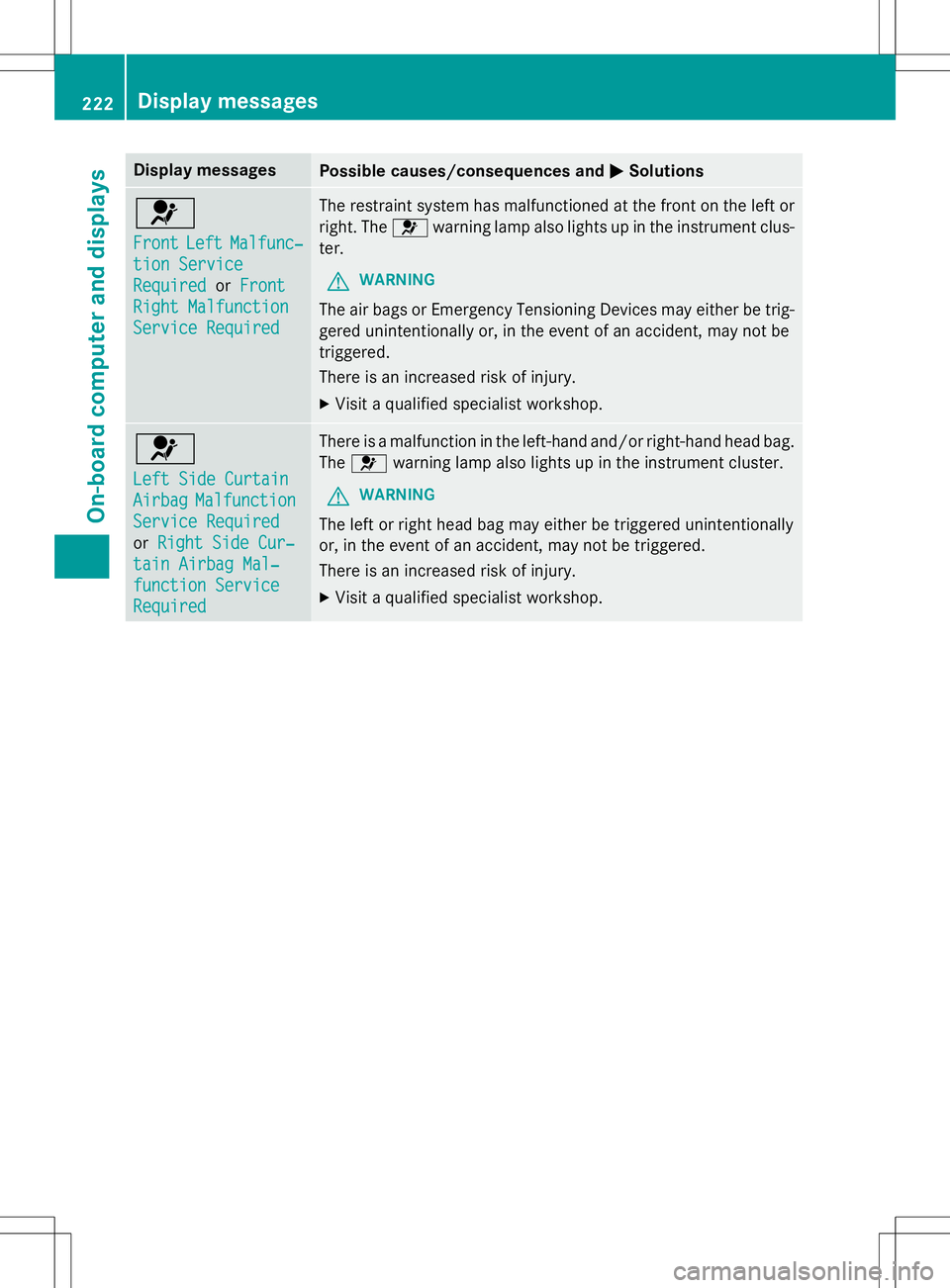

Display messagesPossible causes/consequences andMSolutions
6
FrontLeftMalfuncZ
tion Service
RequiredorFront
Right Malfunction
Service Required
The restraint system has malfunctioned at the front on the left or
right. The 6warning lamp also lights up in the instrument clus-
ter.
GWARNING
The air bags or Emergency Tensioning Devices may either be trig- gered unintentionally or, in the event of an accident, may not be
triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
6
Left Side Curtain
AirbagMalfunction
Service Required
orRight Side CurZ
tain Airbag MalZ
function Service
Required
There is a malfunction in the left-hand and/or right-hand head bag.
The 6 warning lamp also lights up in the instrument cluster.
GWARNING
The left or right head bag may either be triggered unintentionally
or, in the event of an accident, may not be triggered.
There is an increased risk of injury.
X Visit a qualified specialist workshop.
222Display messages
On-board computer and displays
