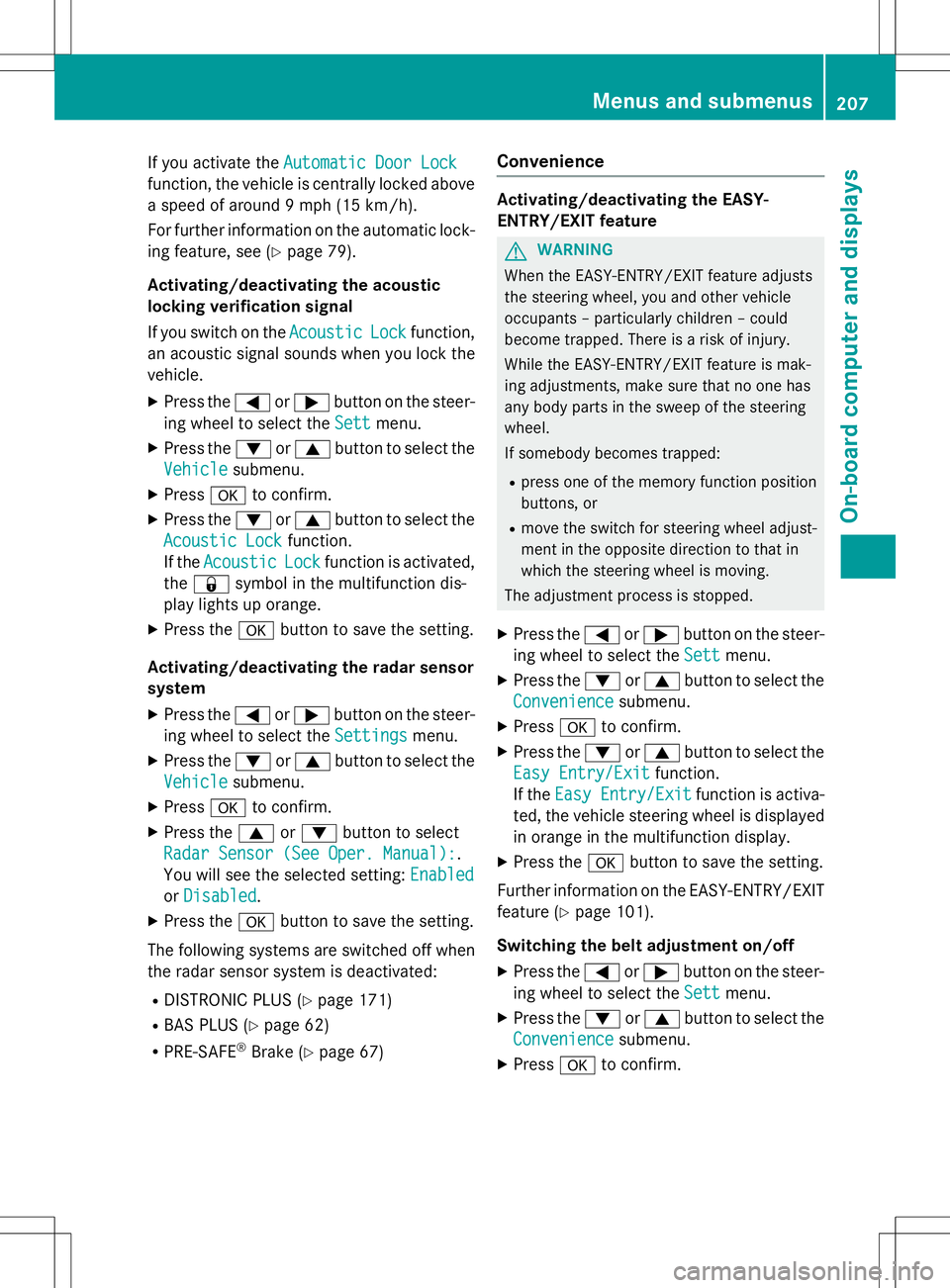

If you activate theAutomatic Door Lock
function, the vehicle is centrally locked above
a speed of around 9 mph (15 km/h).
For further information on the automatic lock- ing feature, see ( Ypage 79).
Activating/deactivating the acoustic
locking verification signal
If you switch on the
AcousticLockfunction,
an acoustic signal sounds when you lock the
vehicle.
X Press the =or; button on the steer-
ing wheel to select the
Settmenu.
X Press the :or9 button to select the
Vehiclesubmenu.
X Press ato confirm.
X Press the :or9 button to select the
Acoustic Lockfunction.
If the
AcousticLockfunction is activated,
the & symbol in the multifunction dis-
play lights up orange.
X Press the abutton to save the setting.
Activating/deactivating the radar sensor system X Press the =or; button on the steer-
ing wheel to select the
Settingsmenu.
X Press the :or9 button to select the
Vehiclesubmenu.
X Press ato confirm.
X Press the 9or: button to select
Radar Sensor (See Oper. Manual):.
You will see the selected setting:
Enabled
orDisabled.
X Press the abutton to save the setting.
The following systems are switched off when
the radar sensor system is deactivated: R DISTRONIC PLUS ( Ypage 171)
R BAS PLUS ( Ypage 62)
R PRE-SAFE ®
Brake ( Ypage 67)
Convenience
Activating/deactivating the EASY-
ENTRY/EXIT feature
GWARNING
When the EASY-ENTRY/EXIT feature adjusts
the steering wheel, you and other vehicle
occupants – particularly children – could
become trapped. There is a risk of injury.
While the EASY-ENTRY/EXIT feature is mak-
ing adjustments, make sure that no one has
any body parts in the sweep of the steering
wheel.
If somebody becomes trapped:
R press one of the memory function position
buttons, or
R move the switch for steering wheel adjust-
ment in the opposite direction to that in
which the steering wheel is moving.
The adjustment process is stopped.
X Press the =or; button on the steer-
ing wheel to select the
Settmenu.
X Press the :or9 button to select the
Conveniencesubmenu.
X Press ato confirm.
X Press the :or9 button to select the
Easy Entry/Exitfunction.
If the
Easy Entry/Exitfunction is activa-
ted, the vehicle steering wheel is displayed
in orange in the multifunction display.
X Press the abutton to save the setting.
Further information on the EASY-ENTRY/EXIT feature ( Ypage 101).
Switching the belt adjustment on/off X Press the =or; button on the steer-
ing wheel to select the
Settmenu.
X Press the :or9 button to select the
Conveniencesubmenu.
X Press ato confirm.
Menus and submenus207
On-board computer and displays
Z

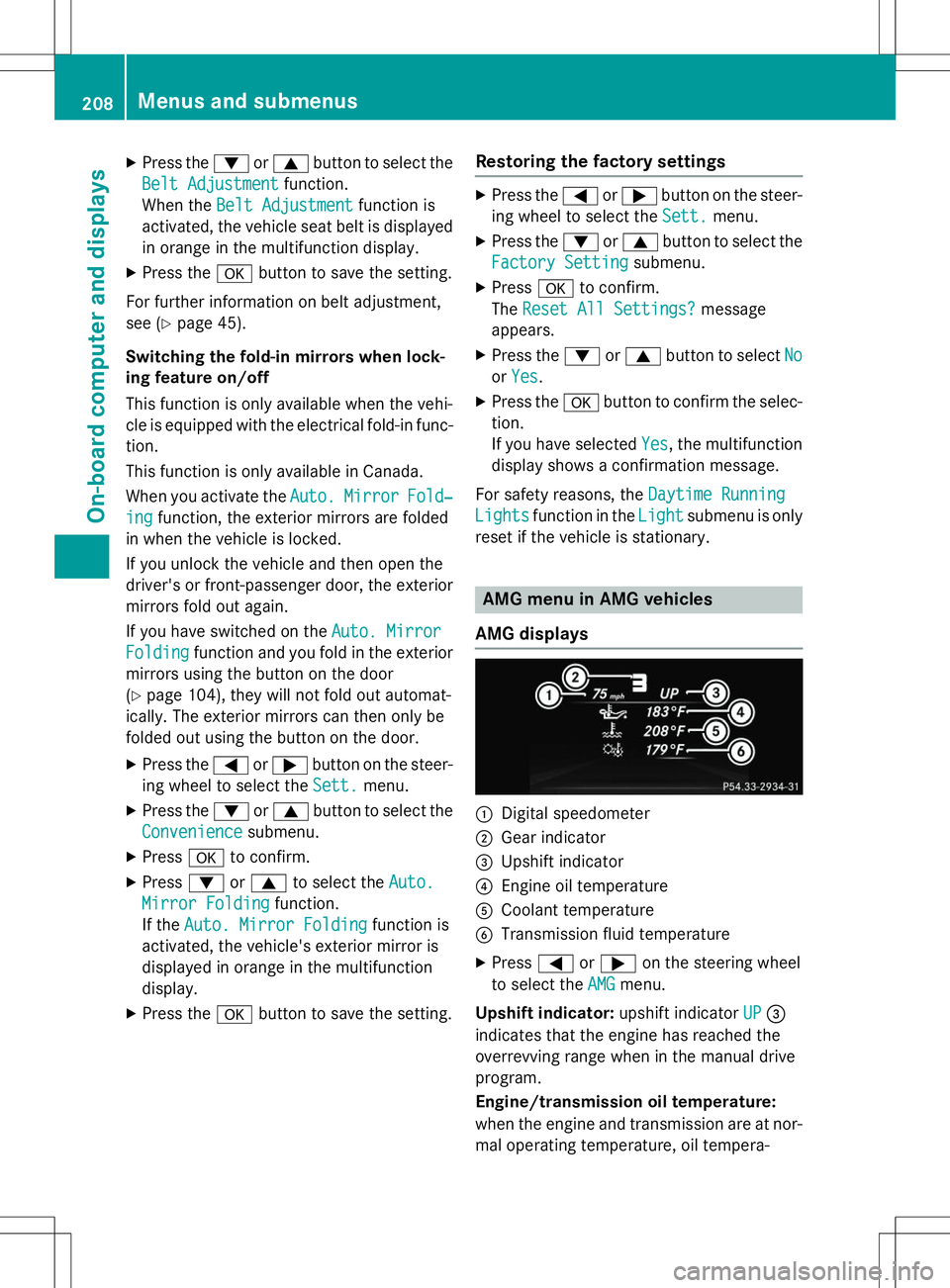

XPress the :or9 button to select the
Belt Adjustmentfunction.
When the
Belt Adjustmentfunction is
activated, the vehicle seat belt is displayed in orange in the multifunction display.
X Press the abutton to save the setting.
For further information on belt adjustment,
see ( Ypage 45).
Switching the fold-in mirrors when lock-
ing feature on/off
This function is only available when the vehi-
cle is equipped with the electrical fold-in func-
tion.
This function is only available in Canada.
When you activate the
Auto.MirrorFoldZ
ingfunction, the exterior mirrors are folded
in when the vehicle is locked.
If you unlock the vehicle and then open the
driver's or front-passenger door, the exterior
mirrors fold out again.
If you have switched on the
Auto. Mirror
Foldingfunction and you fold in the exterior
mirrors using the button on the door ( Y page 104), they will not fold out automat-
ically. The exterior mirrors can then only be
folded out using the button on the door.
X Press the =or; button on the steer-
ing wheel to select the
Sett.menu.
X Press the :or9 button to select the
Conveniencesubmenu.
X Press ato confirm.
X Press :or9 to select the
Auto.
Mirror Foldingfunction.
If the
Auto. Mirror Foldingfunction is
activated, the vehicle's exterior mirror is
displayed in orange in the multifunctiondisplay.
X Press the abutton to save the setting.
Restoring the factory settings
X
Press the =or; button on the steer-
ing wheel to select the
Sett.menu.
X Press the :or9 button to select the
Factory Settingsubmenu.
X Press ato confirm.
The
Reset All Settings?message
appears.
X Press the :or9 button to select
No
orYes.
X Press the abutton to confirm the selec-
tion.
If you have selected
Yes, the multifunction
display shows a confirmation message.
For safety reasons, the
Daytime Running
Lightsfunction in theLightsubmenu is only
reset if the vehicle is stationary.
AMG menu in AMG vehicles
AMG displays
:Digital speedometer
;Gear indicator
=Upshift indicator
?Engine oil temperature
ACoolant temperature
BTransmission fluid temperature
X Press =or; on the steering wheel
to select the
AMGmenu.
Upshift indicator: upshift indicator
UP=
indicates that the engine has reached the
overrevving range when in the manual driveprogram.
Engine/transmission oil temperature:
when the engine and transmission are at nor-
mal operating temperature, oil tempera-
208Menus and submenus
On-board computer and displays

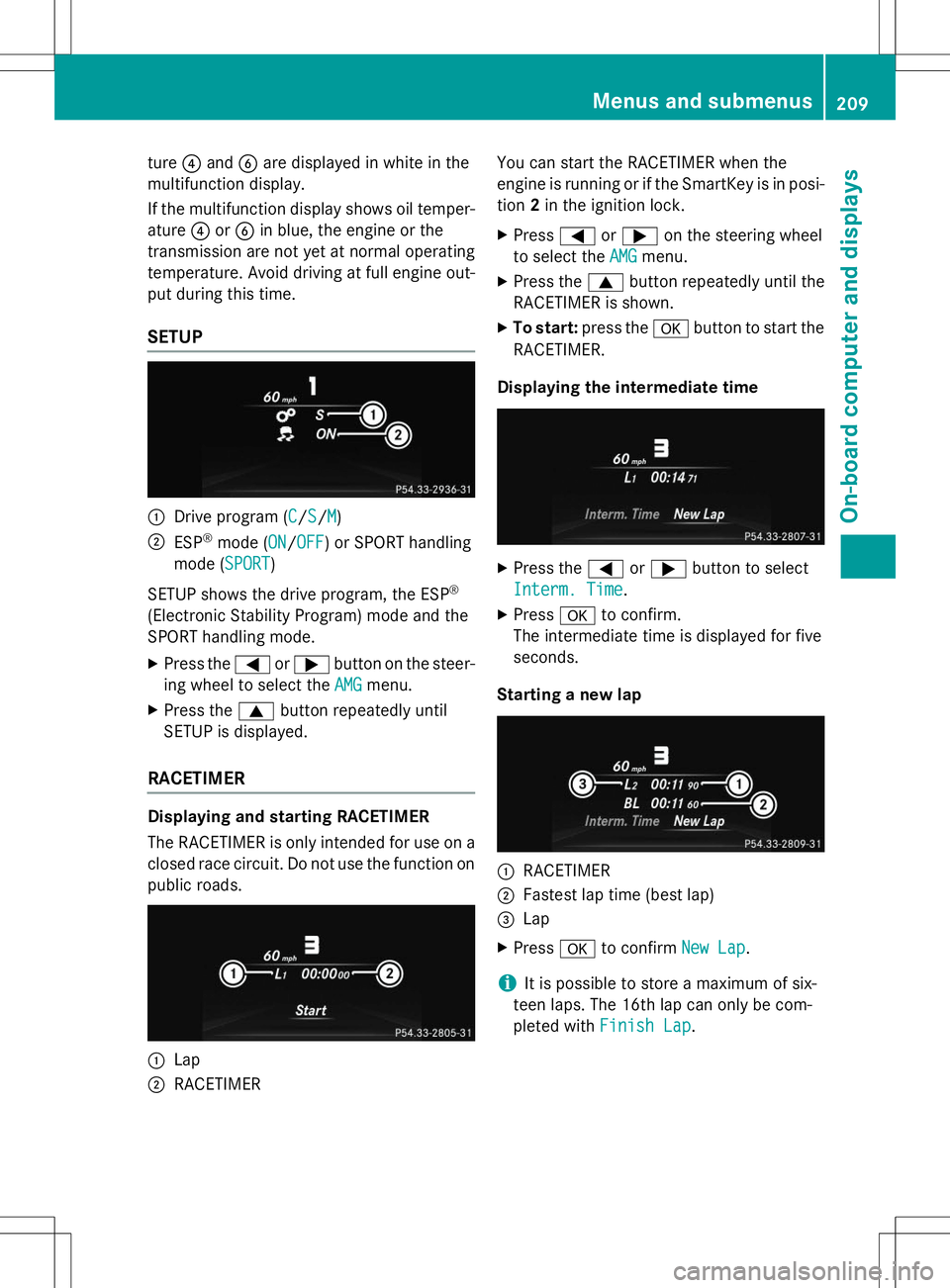

ture?and Bare displayed in white in the
multifunction display.
If the multifunction display shows oil temper- ature ?orB in blue, the engine or the
transmission are not yet at normal operating
temperature. Avoid driving at full engine out-
put during this time.
SETUP
:Drive program (C/S/M)
;ESP ®
mode (ON/OFF) or SPORT handling
mode (
SPORT)
SETUP shows the drive program, the ESP ®
(Electronic Stability Program) mode and the
SPORT handling mode. X Press the =or; button on the steer-
ing wheel to select the
AMGmenu.
X Press the 9button repeatedly until
SETUP is displayed.
RACETIMER
Displaying and starting RACETIMER
The RACETIMER is only intended for use on a closed race circuit. Do not use the function on
public roads.
:Lap
;RACETIMER You can start the RACETIMER when the
engine is running or if the SmartKey is in posi-
tion 2in the ignition lock.
X Press =or; on the steering wheel
to select the
AMGmenu.
X Press the 9button repeatedly until the
RACETIMER is shown.
X To start: press the abutton to start the
RACETIMER.
Displaying the intermediate time
X Press the =or; button to select
Interm. Time.
X Press ato confirm.
The intermediate time is displayed for five
seconds.
Starting a new lap
:RACETIMER
;Fastest lap time (best lap)
=Lap
X Press ato confirm
New Lap.
iIt is possible to store a maximum of six-
teen laps. The 16th lap can only be com-
pleted with
Finish Lap.
Menus and submenus209
On-board computer and displays
Z

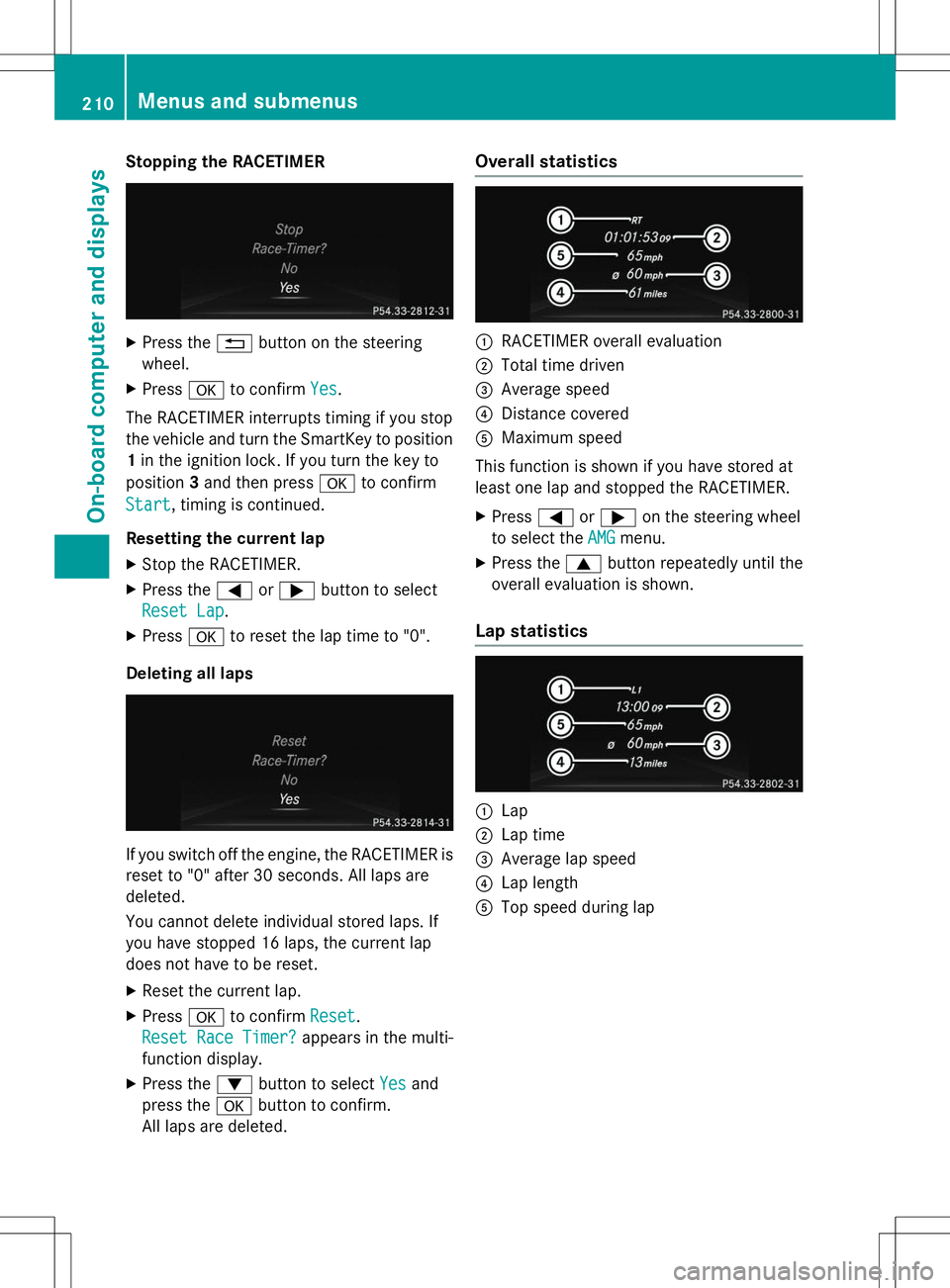

Stopping the RACETIMER
XPress the %button on the steering
wheel.
X Press ato confirm
Yes.
The RACETIMER interrupts timing if you stop
the vehicle and turn the SmartKey to position
1 in the ignition lock. If you turn the key to
position 3and then press ato confirm
Start, timing is continued.
Resetting the current lap X Stop the RACETIMER.
X Press the =or; button to select
Reset Lap.
X Press ato reset the lap time to "0".
Deleting all laps
If you switch off the engine, the RACETIMER is reset to "0" after 30 seconds. All laps are deleted.
You cannot delete individual stored laps. If
you have stopped 16 laps, the current lap
does not have to be reset.
X Reset the current lap.
X Press ato confirm
Reset.
Reset Race Timer?appears in the multi-
function display.
X Press the :button to select
Yesand
press the abutton to confirm.
All laps are deleted.
Overall statistics
:RACETIMER overall evaluation
;Total time driven
=Average speed
?Distance covered
AMaximum speed
This function is shown if you have stored at
least one lap and stopped the RACETIMER.
X Press =or; on the steering wheel
to select the
AMGmenu.
X Press the 9button repeatedly until the
overall evaluation is shown.
Lap statistics
:Lap
;Lap time
=Average lap speed
?Lap length
ATop speed during lap
210Menus and submenus
On-board computer and displays

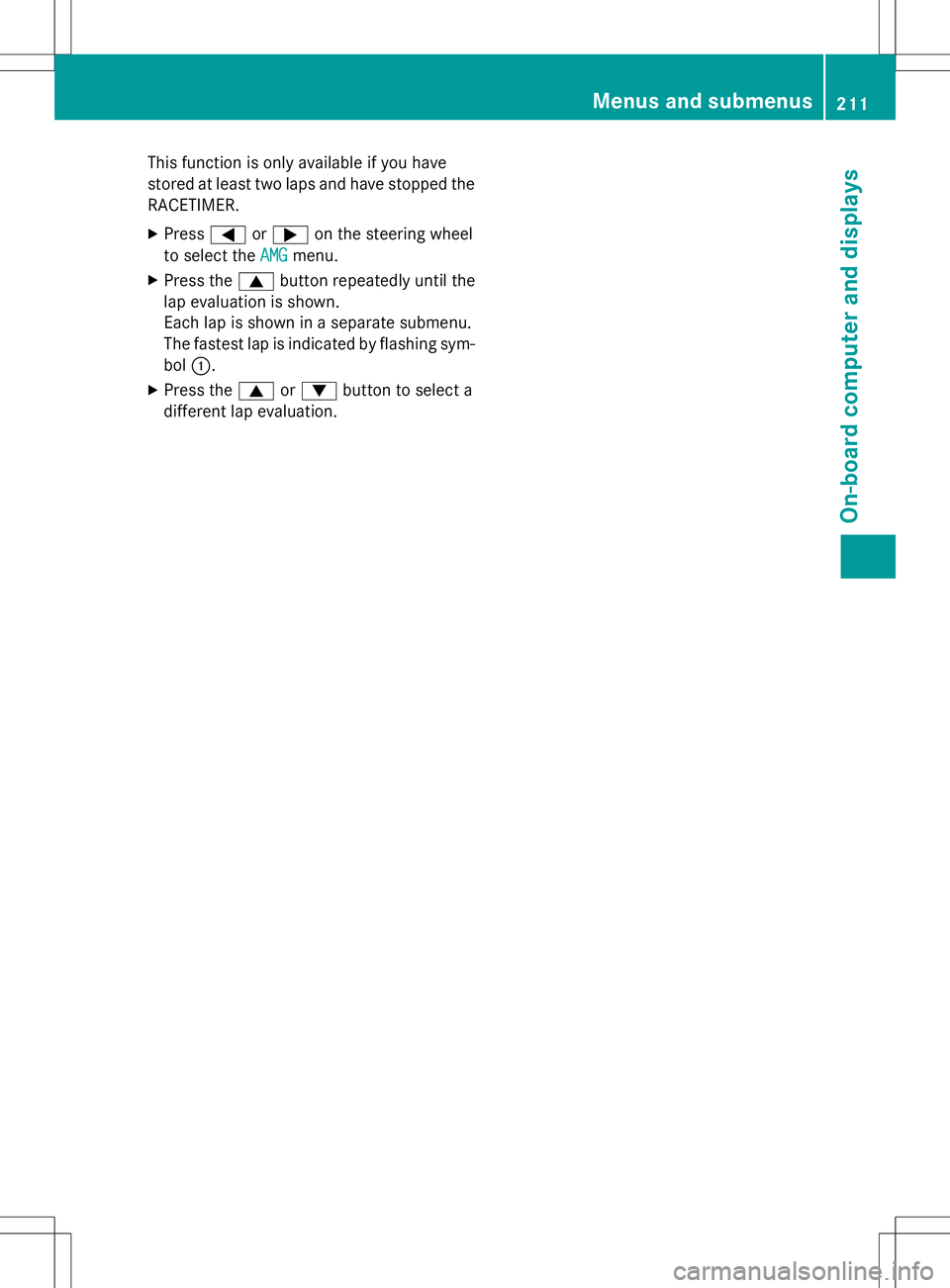

This function is only available if you have
stored at least two laps and have stopped the
RACETIMER.
X Press =or; on the steering wheel
to select the
AMGmenu.
X Press the 9button repeatedly until the
lap evaluation is shown.
Each lap is shown in a separate submenu.
The fastest lap is indicated by flashing sym-
bol :.
X Press the 9or: button to select a
different lap evaluation.
Menus and submenus211
On-board computer and displays
Z

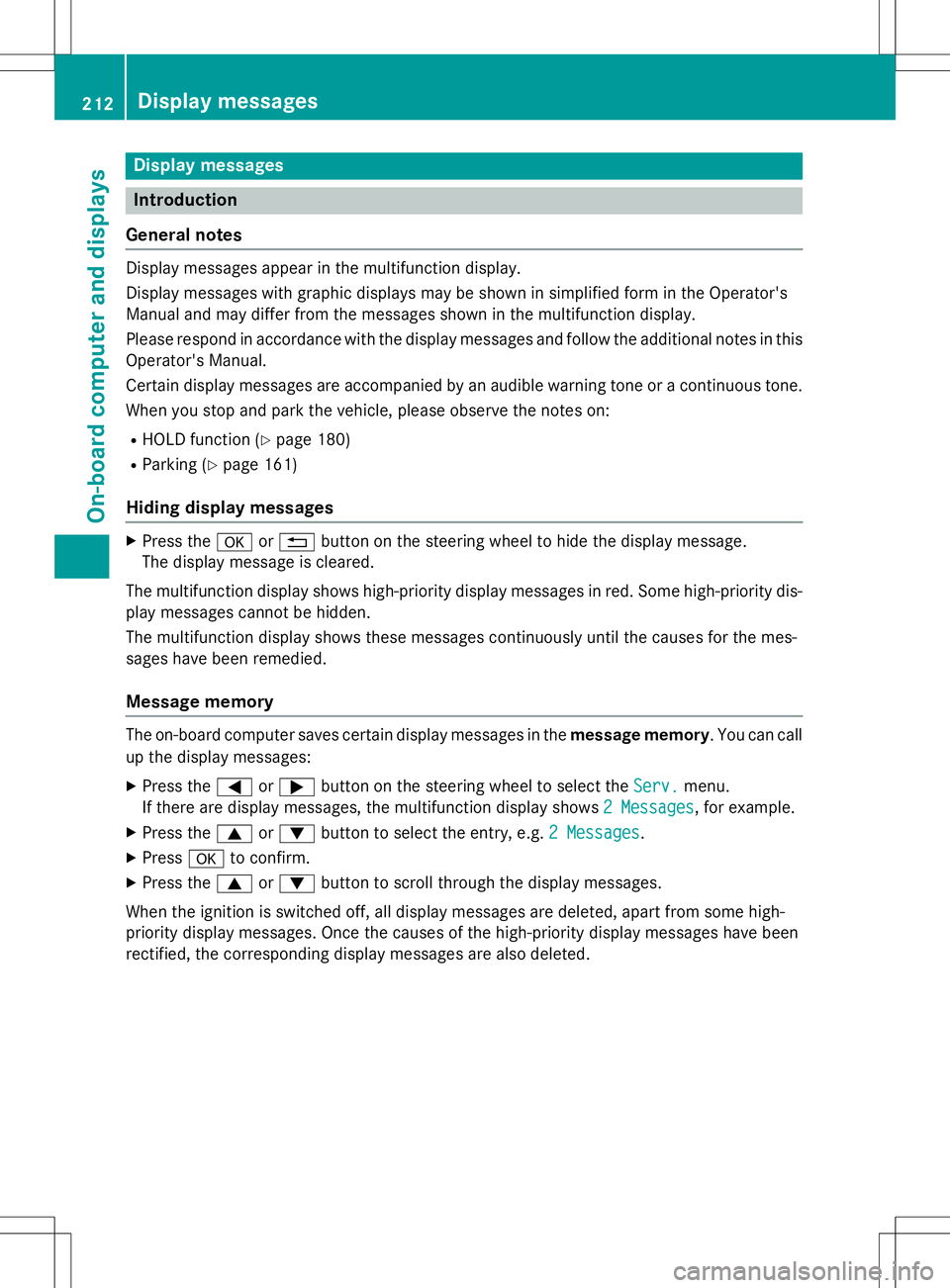

Display messages
Introduction
General notes
Display messages appear in the multifunction display.
Display messages with graphic displays may be shown in simplified form in the Operator's
Manual and may differ from the messages shown in the multifunction display.
Please respond in accordance with the display messages and follow the additional notes in this Operator's Manual.
Certain display messages are accompanied by an audible warning tone or a continuous tone.
When you stop and park the vehicle, please observe the notes on:
R HOLD function ( Ypage 180)
R Parking ( Ypage 161)
Hiding display messages
X
Press the aor% button on the steering wheel to hide the display message.
The display message is cleared.
The multifunction display shows high-priority display messages in red. Some high-priority dis- play messages cannot be hidden.
The multifunction display shows these messages continuously until the causes for the mes-
sages have been remedied.
Message memory
The on-board computer saves certain display messages in the message memory. You can call
up the display messages:
X Press the =or; button on the steering wheel to select the
Serv.menu.
If there are display messages, the multifunction display shows
2 Messages, for example.
X Press the 9or: button to select the entry, e.g.
2 Messages.
X Press ato confirm.
X Press the 9or: button to scroll through the display messages.
When the ignition is switched off, all display messages are deleted, apart from some high-
priority display messages. Once the causes of the high-priority display messages have been
rectified, the corresponding display messages are also deleted.
212Display messages
On-board computer and displays

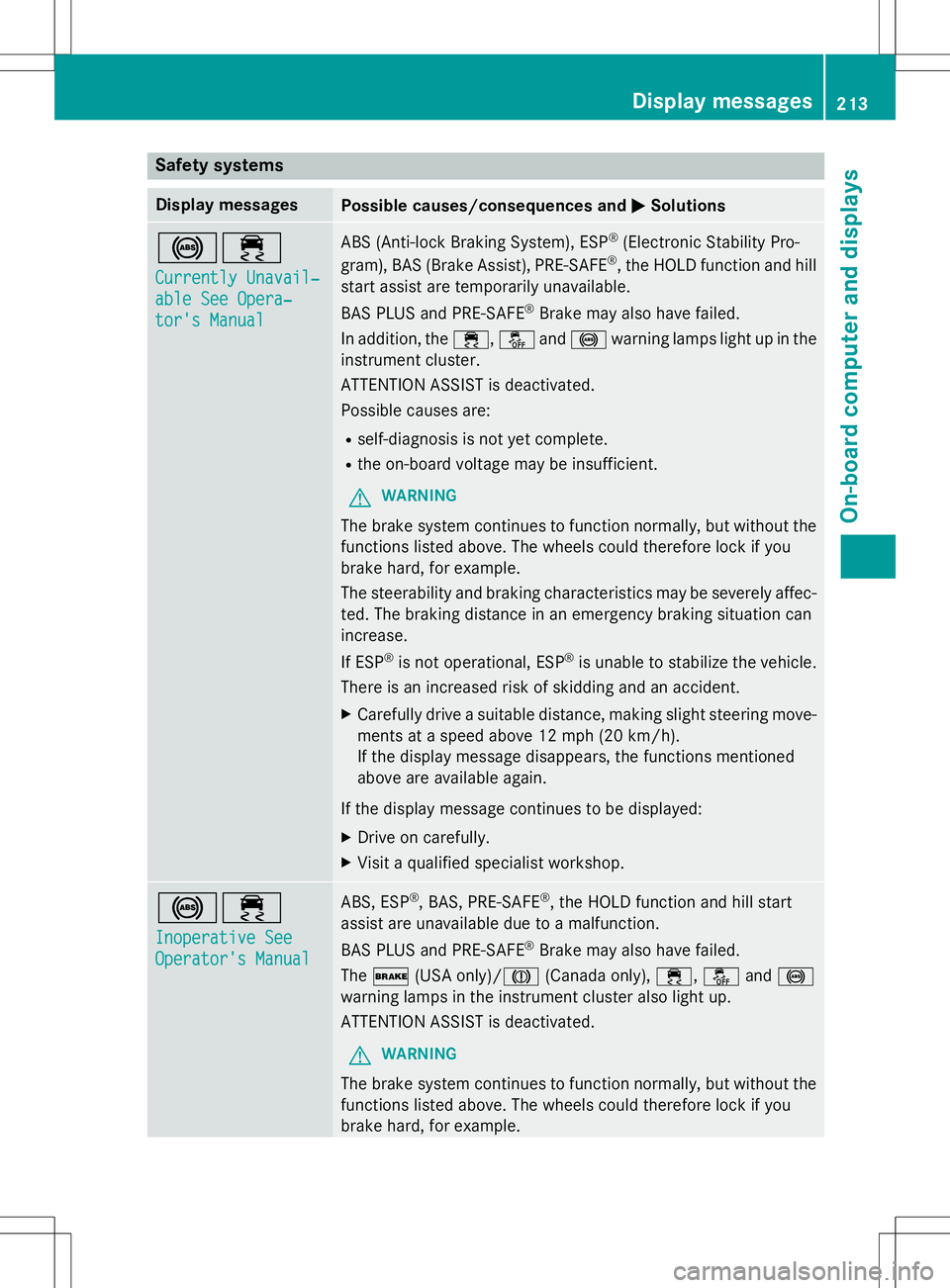

Safety systems
Display messagesPossible causes/consequences andMSolutions
!÷
Currently UnavailZ
able See OperaZ
tor's Manual
ABS (Anti-lock Braking System), ESP®
(Electronic Stability Pro-
gram), BAS (Brake Assist), PRE

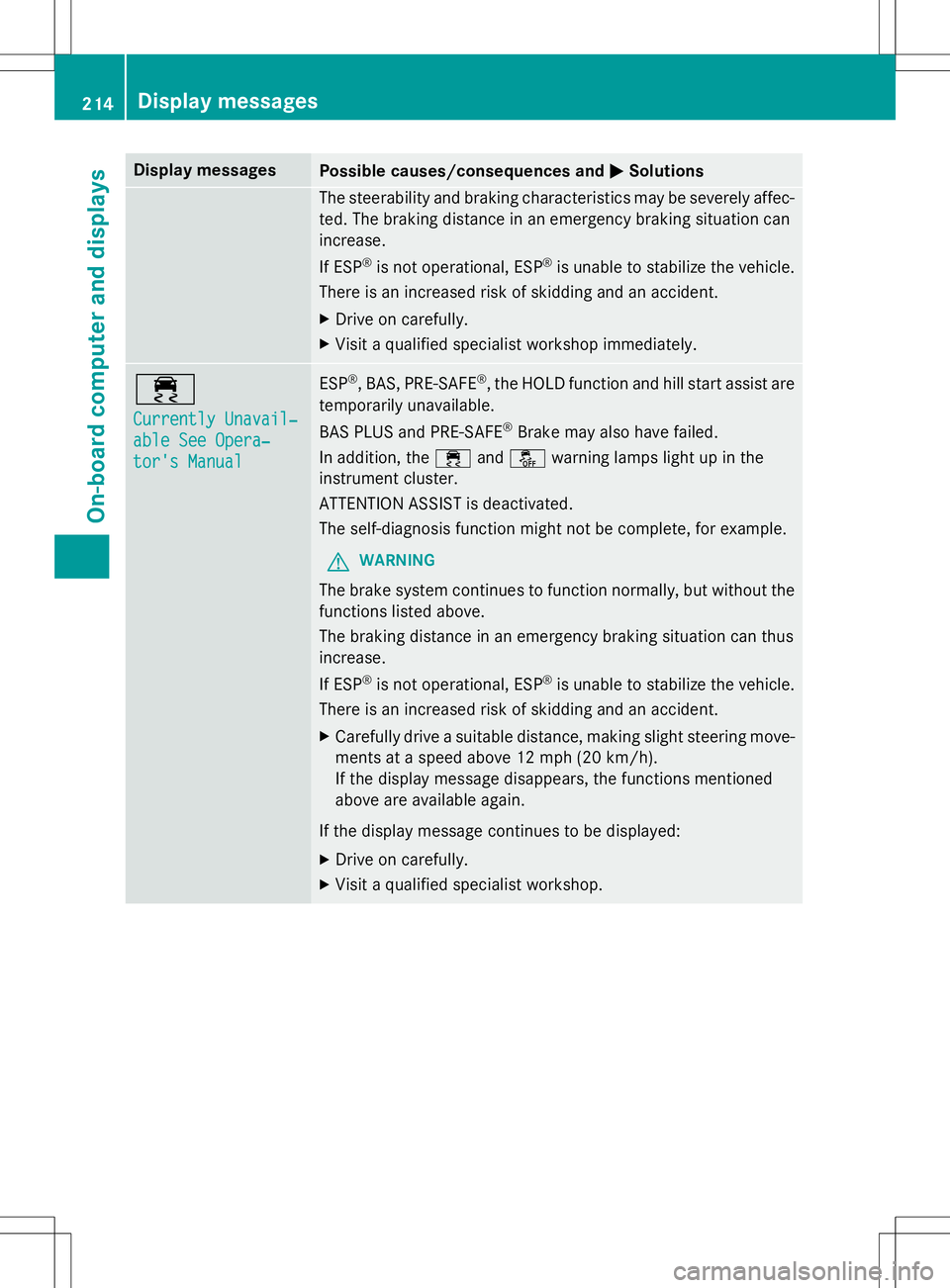

Display messagesPossible causes/consequences andMSolutions
The steerability and braking characteristics may be severely affec-
ted. The braking distance in an emergency braking situation can
increase.
If ESP ®
is not operational, ESP ®
is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
X Drive on carefully.
X Visit a qualified specialist workshop immediately.
÷
Currently UnavailZ
able See OperaZ
tor's Manual
ESP ®
, BAS, PRE
