2015 HONDA CROSSTOUR Owners Manual

Visual Index
8
Quick Reference Guide
❙Windshield Wipers (P 123, 493)
❙Maintenance Under the Hood (P 469)
❙Fog Lights (P 122, 486)
❙Front Turn Signal/Parking Lights (P 119, 489)
❙Side Marker Lights (P 119, 488)
❙Tires (P 497, 517)
❙How to Refuel (P 457)
❙Opening/Closing the Tailgate (P 105)
❙Rear Wiper (P 124, 495)
❙Back-Up Lights (P 490)
❙Brake/Taillights (P 490)
❙Rear Turn Signal Lights (P 490)
❙Rear Side Marker Lights (P 490)
❙Multi-View Rear Camera (P 455)
❙Rearview Camera (P 454)
❙Rear License Plate Lights (P 492)
❙Headlights (P 119, 484)
❙Power Door Mirrors (P 131)
❙Door Lock/Unlock Control (P 94)
❙High-Mount Brake Light (P 492)
❙Tailgate Release Button (P 106)
15 CROSSTOUR-31TP66500.book 8 ページ ２０１４年７月３１日　木曜日　午後３時２３分

9
Quick Reference Guide

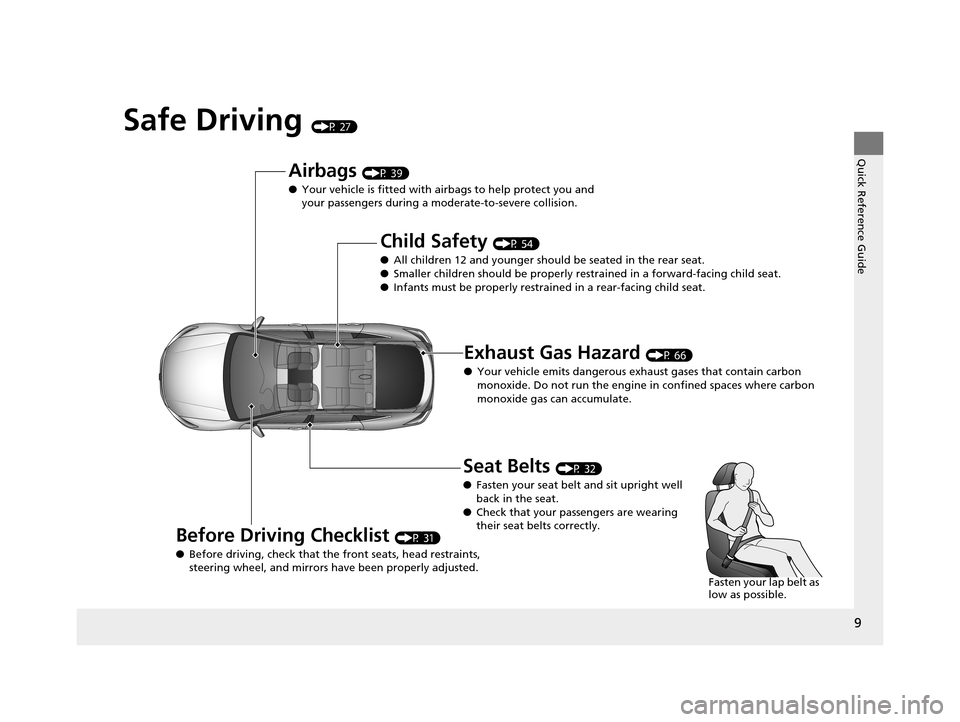

Safe Driving (P 27)
Airbags (P 39)
● Your vehicle is fitted with ai rbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 54)
● All children 12 and younger should be seated in the rear seat.
● Smaller children should be properly restra ined in a forward-facing child seat.
● Infants must be properly restraine d in a rear-facing child seat.
Exhaust Gas Hazard (P 66)
● Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 31)
● Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 32)
● Fasten your seat belt and sit upright well
back in the seat.
● Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
15 CROSSTOUR-31TP66500.book 9 ページ ２０１４年７月３１日　木曜日　午後３時２３分

10
Quick Reference Guide
Instrument Panel (P 69)
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
Indicator
Charging System
Indicator
Anti-lock Brake
System (ABS)
Indicator
Vehicle Stability
Assist (VSA ®) System
Indicator
VSA ® OFF Indicator
Low Tire Pressure
Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
CRUISE CONTROL

Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Side Airbag Off
Indicator
CRUISE MAIN

Indicator
Tachometer Speedometer
Fuel Gauge
Security System Alarm
Indicator Shift Lever Position Indicator
Low Fuel Indicator
Gauges (P 83)/Information Display (P 84)/System Indicators (P 70)
Fuel Economy
Indicator
*
TPMS Indicator
Maintenance Minder
Indicator
Washer Level
Indicator
*
Temperature Gauge
Electric Power
Steering (EPS) System
Indicator
*
Turn Signal and
Hazard Warning
Indicators
System Indicators
CanadaU.S.
Canada
U.S.
Starter System
Indicator*
Door and Tailgate
Open Indicator
Smart Entry System
Indicator
*
Canada U.S.
Forward Collision
Warning (
FCW) Indicator*
Lane Departure Warning
(LDW ) Indicator*
M (Sequential shift mode) Indicator/
Shift Indicator*
Daytime Running
Lights Indicator
15 CROSSTOUR-31TP66500.book 10 ページ ２０１４年７月３１日　木曜日　午後３時２３分

11
Quick Reference Guide
Controls (P 87)
Clock (P88 )
aPress the DISP button, then select Info
Settings .
bSelect Clock Adjustment .
cRotate to change hour, then press
.
dRotate to change minute, then
press .
Models without navigation systemAudio system with touch screen
aPress the CLOCK button until you hear
a beep. The displayed time begins
flashing.
bPress the ( 4 (Hour) or (5 (Minute)
button to set the time. Press the
( 6
(Reset) button to set the time to the
nearest hour.
cPress the CLOCK button again to set
the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Audio system without touch screen
Models with navigation system
These indicators are used to show how to
operate the selector knob or the MENU/SEL
(Menu/Selector) knob.
Rotate to select.
Press to enter.
* Not available on all models
15 CROSSTOUR-31TP66500.book 11 ページ ２０１４年７月３１日　木曜日　午後３時２３分

12
Quick Reference Guide
ENGINE START/STOP
Button
* (P115 )
Turn Signals (P119)
Turn Signal Control Lever
Right
Left
Lights (P119)
Wipers and Washers
(P123)
Light Control Switches
Low Beam High Beam
Flashing
Wiper/Washer Control Lever Adjustment Ring: Long Delay
: Short Delay
MIST
OFF
INT : Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Steering Wheel (P129)
● To adjust, push the adjustment lever
down, adjust to the de sired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P99)
● Pull either front door inner handle to
unlock and open it in one motion.
15 CROSSTOUR-31TP66500.book 12 ページ ２０１４年７月３１日　木曜日　午後３時２３分

13
Quick Reference Guide
Tailgate (P105)
● With all the doors unlocked, press the
tailgate release button and lift open the
tailgate.
● Press the tailgate release button to
unlock and open the tailgate when you
carry the smart entry remote.
Models with smart entry system
Power Door Mirrors
(P131)
●With the ignition switch in ON
(w*1, move
the selector switch to L or R .
● Push the appropriate edge of the
adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
Power Windows (P110)
● With the ignition switch in ON
(w*1, open
and close the power windows.
● If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
● If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
*1:Models with the smart entry system have
an ENGINE START/STOP button
instead of an ignition switch.
Power Window Lock Button
Window
Switch Indicator
*
Not available on all models
15 CROSSTOUR-31TP66500.book 13 ページ ２０１４年７月３１日　木曜日　午後３時２３分

14
Quick Reference Guide
Heating and Cooling System* (P154)
● Rotate the fan control dial to adjust the fan speed and airflow.
● Press the Mode buttons ( / / / ) to select the vents air flows from.
● Rotate the temperature control dial to adjust the temperature.
● Use the button for ma ximum cool setting.
● Rotate the fan co ntrol dial to OFF to turn the system off.
● Press the button to de frost the windshield.
Fan Control Dial (Windshield Defroster) Button
A/C
(Air Conditioning) Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents, and back of the
center console. Air flows from dashboard vents,
and back of the center console.
Button
Button
Button
(Recirculation) Button
Temperature Control Dial
Button
Button
Mode Buttons
15 CROSSTOUR-31TP66500.book 14 ページ ２０１４年７月３１日　木曜日　午後３時２３分

15
Quick Reference Guide
Climate Control System* (P157)
● Press the AUTO button to activate th e climate control system.
● Press the button to tu rn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. (P 226)
Models with audio touch screen
Driver’s Side Temperature
Control Switch (Windshield De
froster) Button
SYNC (Synchronized) Button
Air flows from floor and windshield
defroster vents.
Air flows from floor vents. Air flows from floor and dashboard
vents, and back of the center console. Air flows from dashboard vents and
back of the center console.
AUTO
Button (On/Off) Button
(Recirculation) Button
MODE Control Button
/ (Fan Control)
Buttons
A/C (Air Conditioning) Button
Passenger’s Side Temperature Control Switch
Models with navigation system
* Not available on all models
15 CROSSTOUR-31TP66500.book 15 ページ ２０１４年７月３１日　木曜日　午後３時２３分
