uuIndicator, Coming On/Blinking uIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action . If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
6-cylinder models
15 CROSSTOUR-31TP66500.book 536 ページ ２０１４年７月３１日　木曜日　午後３時２３分

537
uuIndicator, Comin g On/BlinkinguIf the Low Tire Pressure Indicator Comes On
Handling the Unexpected

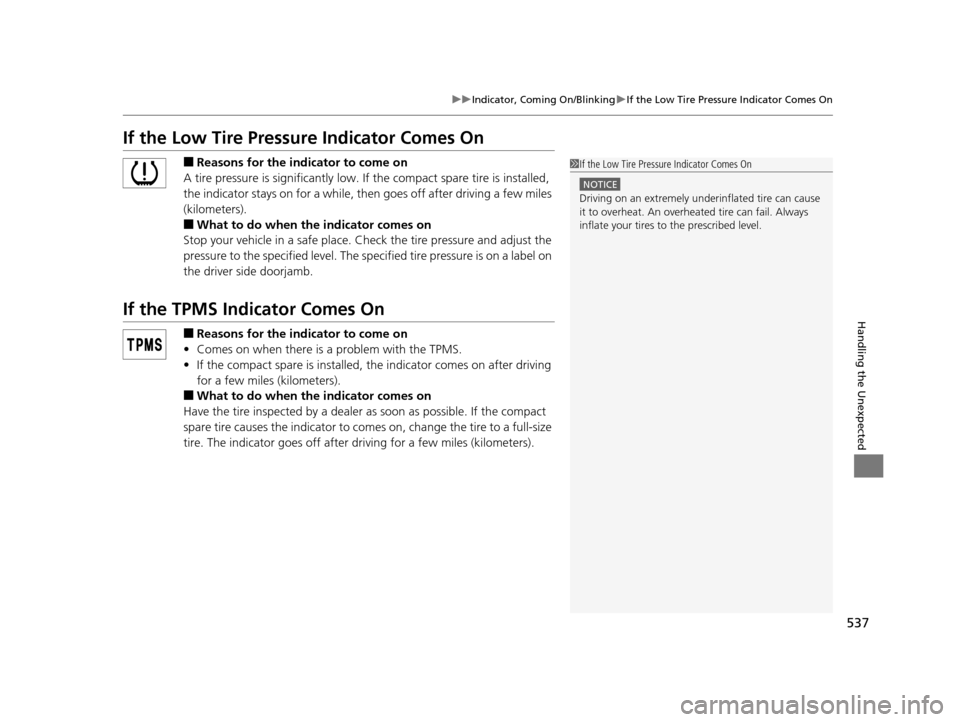

If the Low Tire Pressure Indicator Comes On
■Reasons for the indicator to come on
A tire pressure is significantly low. If the compact spare tire is installed,
the indicator stays on for a while, th en goes off after driving a few miles
(kilometers).
■What to do when th e indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The spec ified tire pressure is on a label on
the driver side doorjamb.
If the TPMS Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the TPMS.
• If the compact spare is installed, the indicator comes on after driving
for a few miles (kilometers).
■What to do when th e indicator comes on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indi cator to comes on, change the tire to a full-size
tire. The indicator goes off after driving for a few miles (kilometers).
1If the Low Tire Pressure Indicator Comes On
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
15 CROSSTOUR-31TP66500.book 537 ページ ２０１４年７月３１日　木曜日　午後３時２３分

538
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Battery120 A*3
Battery100 A*2
Passenger’s Fuse Box40 A
2
ESP MTR70 A
VSA SFR40 A
VSA Motor30 A
AS F/B OP40 A
Headlight washer*30 A
−−
3
IG Main50 A
−−
Passenger Side Light Main30 A
DR F/B STD60 A
Driver Side Light Main30 A
Main Fan30 A
Wiper Motor30 A
Sub Fan30 A
4 Fan Relay 7.5 A
5Rear Defroster40 A
6Sub Fan Motor*220 A
*1:Models with the sma rt entry system have
an ENGINE START/STOP button
instead of an ignition switch.
*2:4-cylinder models
*3:6-cylinder models
7Hazard15 A
8 Horn, STOP 20 A
9−−
10 Trailer 15 A
11IG Coil15 A
12 FI Sub 15 A
13IGI Main 1*330 A
14 IGI Main 2*330 A
15Back up10 A
16 Interior Lights 7.5 A
17FI Main15 A
18 DBW 15 A
19ACM*320 A
20 Heater Motor 40 A
21MG Clutch7.5 A
Circuit ProtectedAmps
* Not available on all models
15 CROSSTOUR-31TP66500.book 538 ページ ２０１４年７月３１日　木曜日　午後３時２３分

539
uuFuses uFuse Locations
Continued
Handling the Unexpected
Locate the fuse in question by the fuse
number and label number.
Located under the dashboard.
Fuse locations are shown on the label under
the dashboard.
■Interior Fuse Box
Fuse Label
Fuse Box
Driver side
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the fuse box
cover.
Passenger side
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2Seat Memory*7.5 A
3Washer15 A
4Wiper10 A
5ODS7.5 A
6ABS/VSA7.5 A
7−−
8−−
9Fuel Pump20 A
10VB SOL 210 A
11Meter7.5 A
12ACG15 A
13SRS10 A
14−−
15Daytime Running Lights7.5 A
16A/C7.5 A
Driver side
* Not available on all models
15 CROSSTOUR-31TP66500.book 539 ページ ２０１４年７月３１日　木曜日　午後３時２３分

540
uuFuses uFuse Locations
Handling the Unexpected
*1:4-cylinder models
*2:6-cylinder models
*3:Sub fuse box
17Accessory, Key, Lock7.5 A
18Accessory7.5 A
19Left Power Seat Sliding20 A
20Moonroof20 A
21Left Power Seat Reclining20 A
22Rear Left Power Window20 A
23Front Accessory Power
Socket15 A
24Front Left Power Window20 A
25Left Door Lock15 A
26Front Left Fog Light10 A
27Left Small Lights (Exterior)10 A
28Left Headlight High Beam10 A
29TPMS7.5 A
30Left Headlight Low Beam15 A
31−−
32*3ST MG DIODE*, *17.5 A
Stop*, *27.5 A
33*3STRLD*7.5 A
Circuit ProtectedAmps
Circuit ProtectedAmps
1Right Headlight High Beam10 A
2Right Small Lights (Exterior)10 A
3Front Right Fog Light10 A
4Right Headlight Low Beam15 A
5−−
6Interior Lights7.5 A
7−−
8Right Power Seat Reclining20 A
9Right Power Seat Sliding20 A
10Right Door Lock10 A
11Rear Right Power Window20 A
12SMART*10 A
13Front Right Power Window20 A
14−−
15Audio Amp20 A
16Accessory Power Socket (Cargo Area)15 A
17−−
18Power Lumbar*7.5 A
19Seat Heaters*15 A
20−−
21−−
22−−
Passenger side
* Not available on all models
15 CROSSTOUR-31TP66500.book 540 ページ ２０１４年７月３１日　木曜日　午後３時２３分

541
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

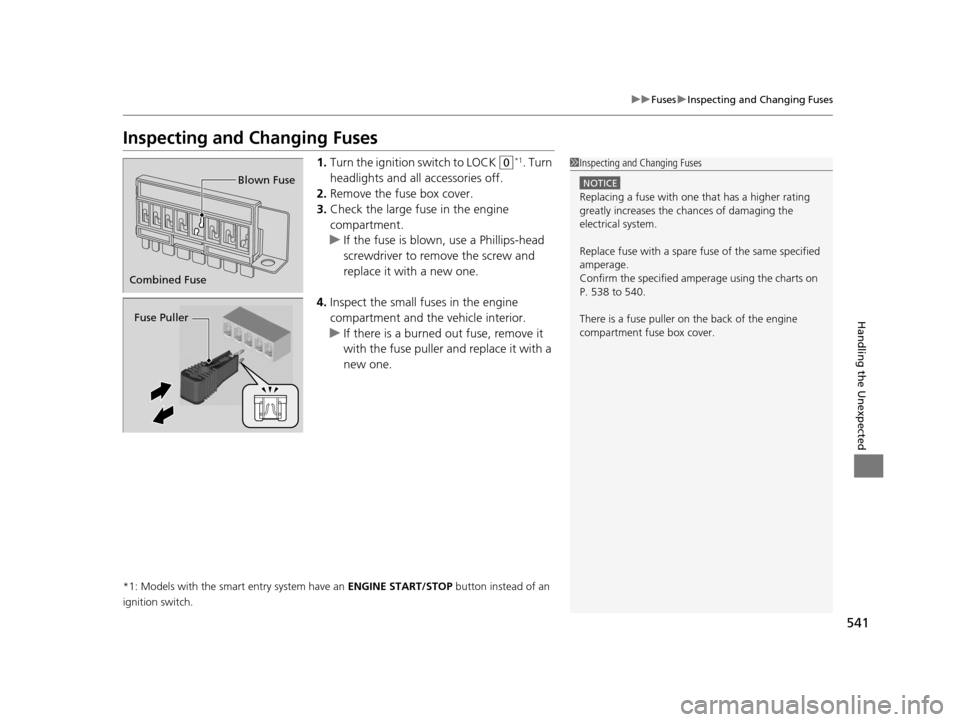

Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 538 to 540.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
15 CROSSTOUR-31TP66500.book 541 ページ ２０１４年７月３１日　木曜日　午後３時２３分

542
Handling the Unexpected

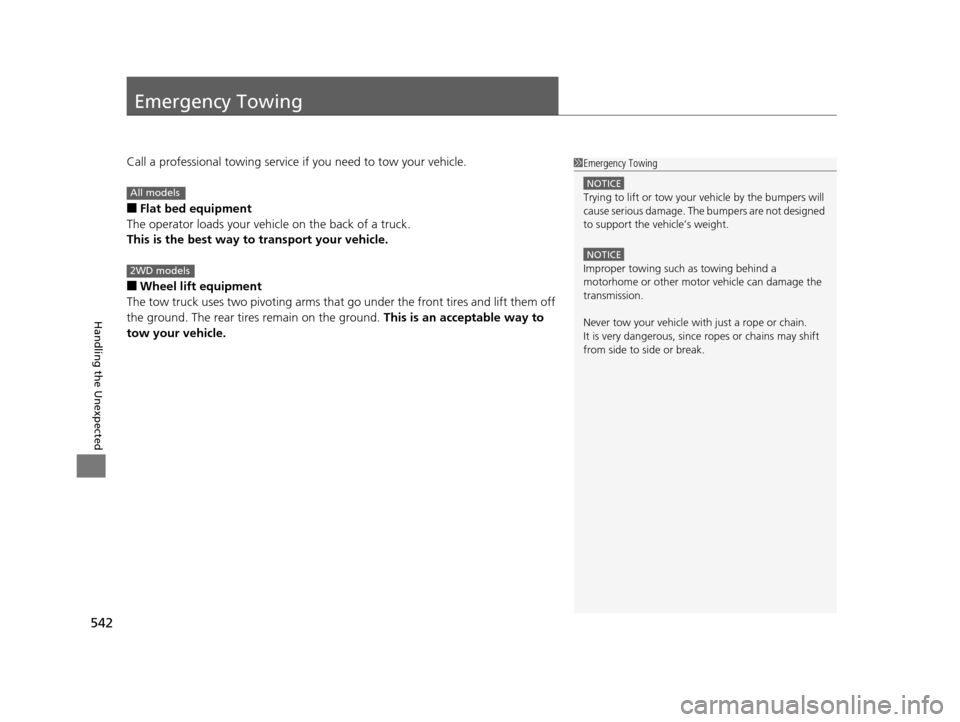

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
All models
2WD models
15 CROSSTOUR-31TP66500.book 542 ページ ２０１４年７月３１日　木曜日　午後３時２３分

543
Handling the Unexpected

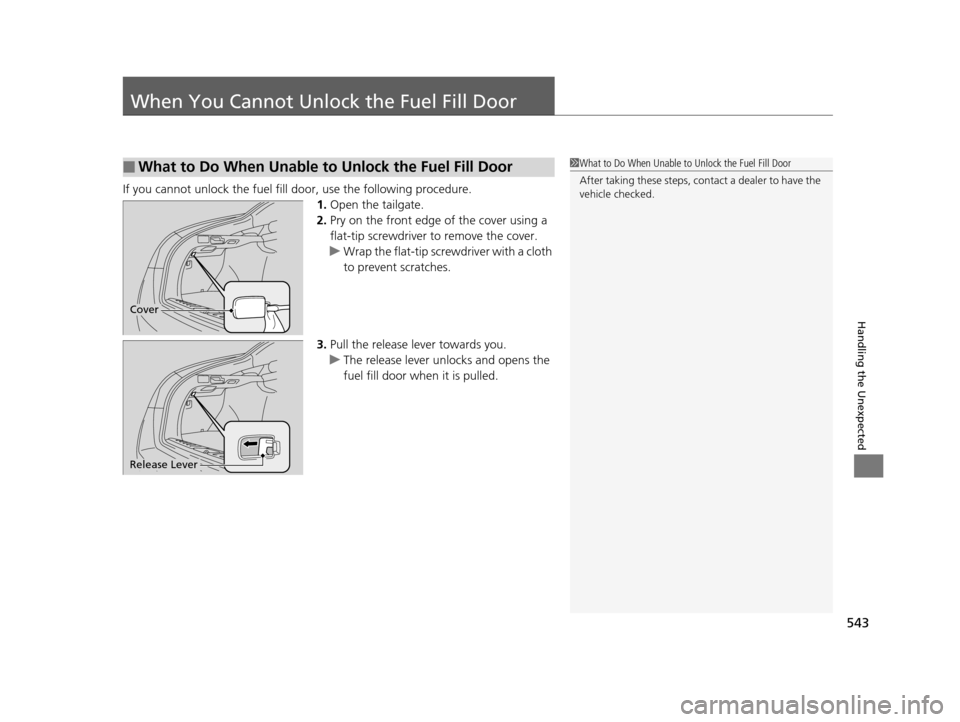

When You Cannot Unlock the Fuel Fill Door
