2015 HONDA CROSSTOUR Owners Manual

544
Handling the Unexpected

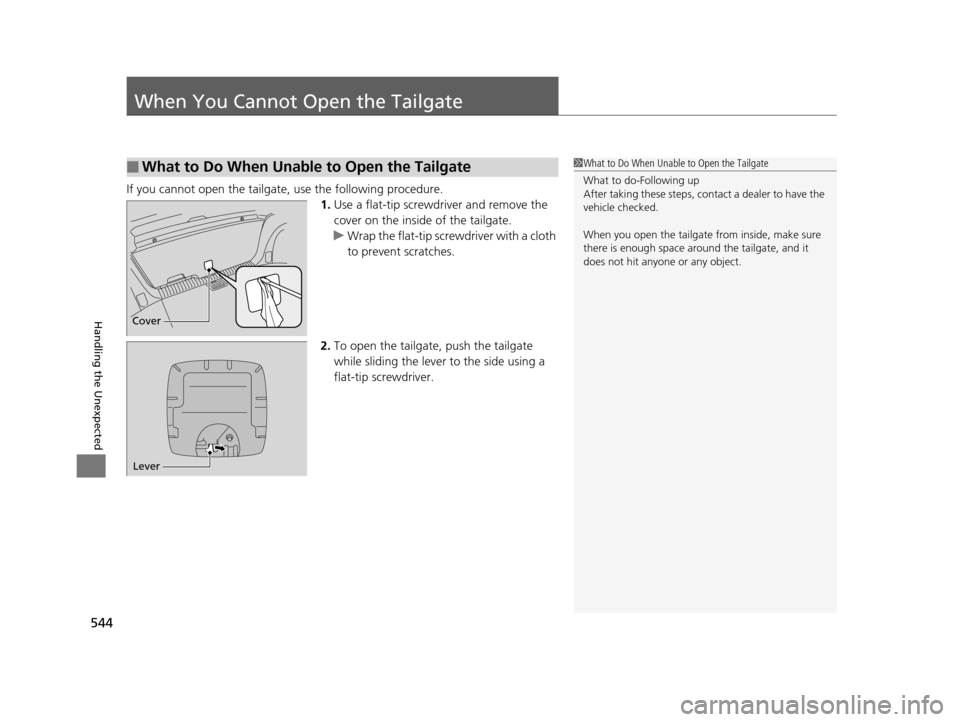

When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while sliding the lever to the side using a
flat-tip screwdriver.
■What to Do When Unable to Open the Tailgate1What to Do When Unable to Open the Tailgate
What to do-Following up
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
15 CROSSTOUR-31TP66500.book 544 ページ ２０１４年７月３１日　木曜日　午後３時２３分

545
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 546
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 550
Devices that Emit Radio Waves ....... 551
Reporting Safety Defects ................. 552Emissions Testing
Testing of Readiness Codes.............. 553
Warranty Coverages ........................ 555
Authorized Manuals ......................... 557
Customer Service Information ......... 558
15 CROSSTOUR-31TP66500.book 545 ページ ２０１４年７月３１日　木曜日　午後３時２３分

546
Information
Specifications
■Vehicle Specifications
ModelCrosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,784 lbs (2,170 kg)
Canada: 2,170 kg
Gross Axle Weight
Rating (Front)U.S.: 2,469 lbs (1,120 kg)
Canada: 1,120 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,381 lbs (1,080 kg)
Canada: 1,080 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 8
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B11S
DENSO SXU22HCR11S
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity5.3 US qt (5.0 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights3CP
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Cargo Area Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WGlove Box Light1.4WAmbient LightLEDCourtesy Lights2CP
15 CROSSTOUR-31TP66500.book 546 ページ ２０１４年７月３１日　木曜日　午後３時２３分

547
uuSpecifications u
Continued
Information
■Brake Fluid
■ Automatic Transmission Fluid
■ Power Steering Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid ATF
DW-1
Capacity Change 2.6 US qt (2.5 ℓ)
SpecifiedHonda Power Steering Fluid
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.0 US qt (3.8 ℓ)
Change
including
filter
4.2 US qt (4.0 ℓ)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.66 US gal (6.3 ℓ)
(change including the remaining 0.18 US gal
(0.68 ℓ) in the reserve tank)
■ Tire
Regular
Size225/65R17 102TPressure
psi (kPa [kgf/cm2])Front32 (220 [2.2])Rear32 (220 [2.2])
Compact
Spare Size
T155/90D16 110M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 6 1/2JCompact Spare16 x 4T
15 CROSSTOUR-31TP66500.book 547 ページ ２０１４年７月３１日　木曜日　午後３時２３分

548
uuSpecifications u
Information
■Vehicle Specifications
*1: 2WD models
*2: 4WD models
ModelCrosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,938 lbs (2,240 kg)*1
5,115 lbs (2,320 kg)*2
Canada: 2,240 kg*1
2,320 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,623 lbs (1,190 kg)*1
2,668 lbs (1,210 kg)*2
Canada: 1,190 kg*1
1,210 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 2,381 lbs (1,080 kg)*1
2,513 lbs (1,140 kg)*2
Canada: 1,080 kg*1
1,140 kg*2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 8
6-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity5.3 US qt (5.0 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights3CP
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Cargo Area Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WGlove Box Light1.4WAmbient LightLEDCourtesy Lights2CP
15 CROSSTOUR-31TP66500.book 548 ページ ２０１４年７月３１日　木曜日　午後３時２３分

549
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
■ Rear Differential Fluid
■ Transfer Assembly Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid ATF
DW-1
Capacity Change 3.28 US qt (3.1 ℓ)
SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.3 US qt (1.2 ℓ)
SpecifiedHonda Hypoid Gear Oil HGO-1
Capacity Change 0.43 US qt (0.41 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.92 US gal (7.3 ℓ)
(change including the remaining 0.17 US gal
(0.64 ℓ) in the reserve tank)
■ Tire
*1: 2WD models
*2: 4WD models
Regular
Size225/60R18 100HPressure
psi (kPa [kgf/cm2])33 (230 [2.3])FrontRear33 (230 [2.3])
Compact
Spare Size
T155/90D16 110M*1
T155/90D17 101M*2
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular18 x 7J
Compact Spare16 x 4T*1
17 x 4T*2
15 CROSSTOUR-31TP66500.book 549 ページ ２０１４年７月３１日　木曜日　午後３時２３分

550
Information

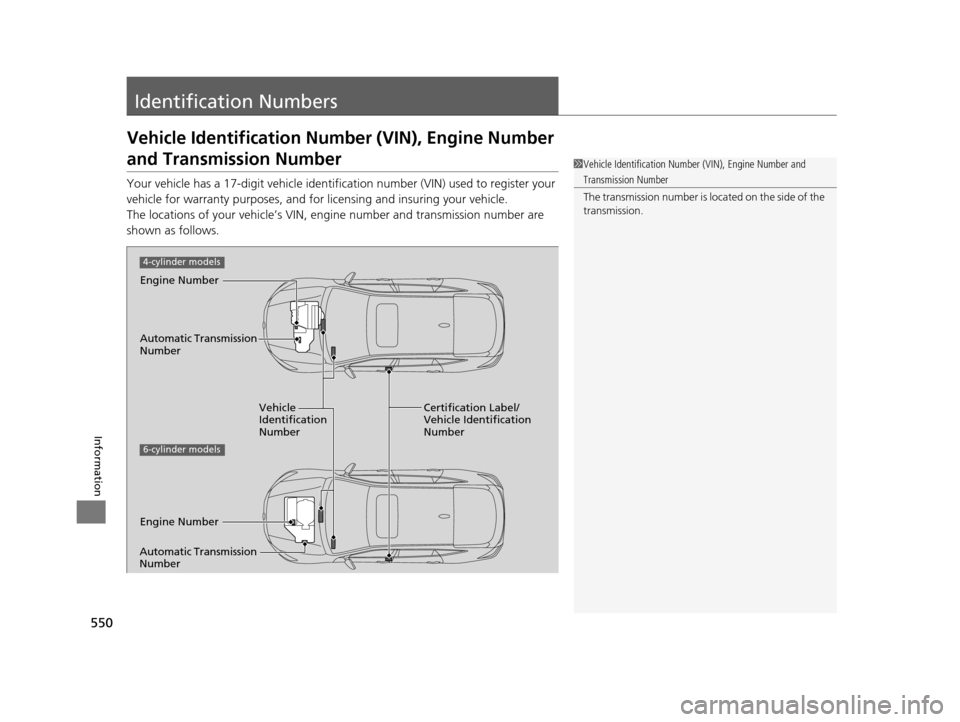

Identification Numbers
Vehicle Identification Number (VIN), Engine Number
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number and transmission number are
shown as follows.
Vehicle
Identification
Number
Engine Number
Certification Label/
Vehicle Identification
Number
Automatic Transmission
Number
6-cylinder models
4-cylinder models
Engine Number
Automatic Transmission
Number
1 Vehicle Identification Number (VIN), Engine Number and
Transmission Number
The transmission number is located on the side of the
transmission.
15 CROSSTOUR-31TP66500.book 550 ページ ２０１４年７月３１日　木曜日　午後３時２３分

551
Information

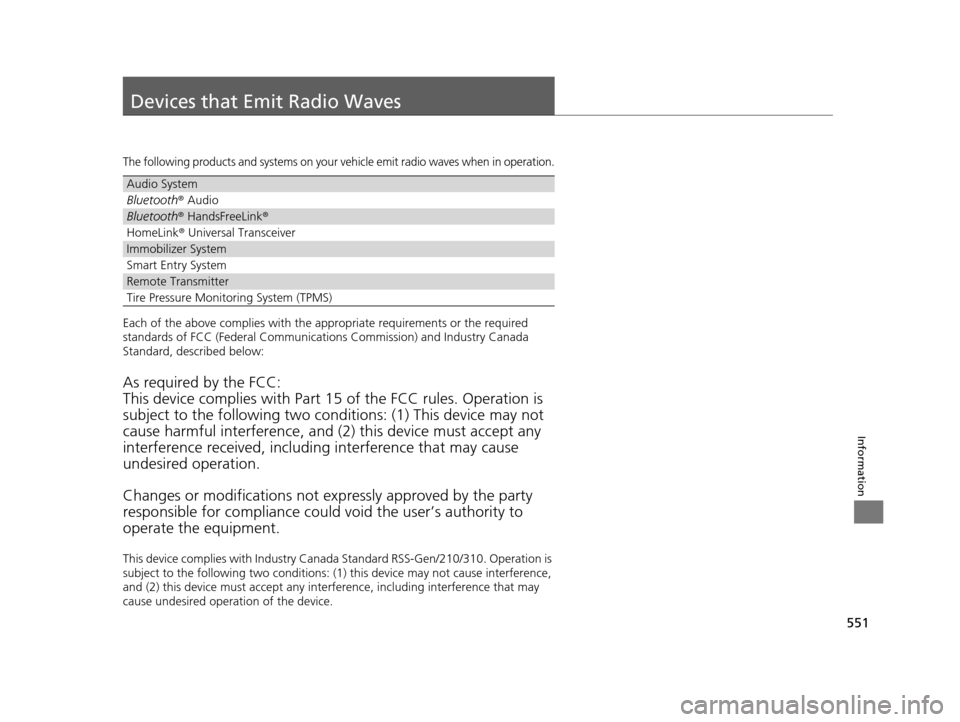

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any inte rference, including interference that may
cause undesired operation of the device.
Audio System
Bluetooth ® Audio
Bluetooth® HandsFreeLink ®
HomeLink® Universal Transceiver
Immobilizer System
Smart Entry System
Remote Transmitter
Tire Pressure Monitoring System (TPMS)
15 CROSSTOUR-31TP66500.book 551 ページ ２０１４年７月３１日　木曜日　午後３時２３分
