2015 HONDA CROSSTOUR Owners Manual

488
uuReplacing Light Bulbs uFront Side Marker Light Bulb
Maintenance

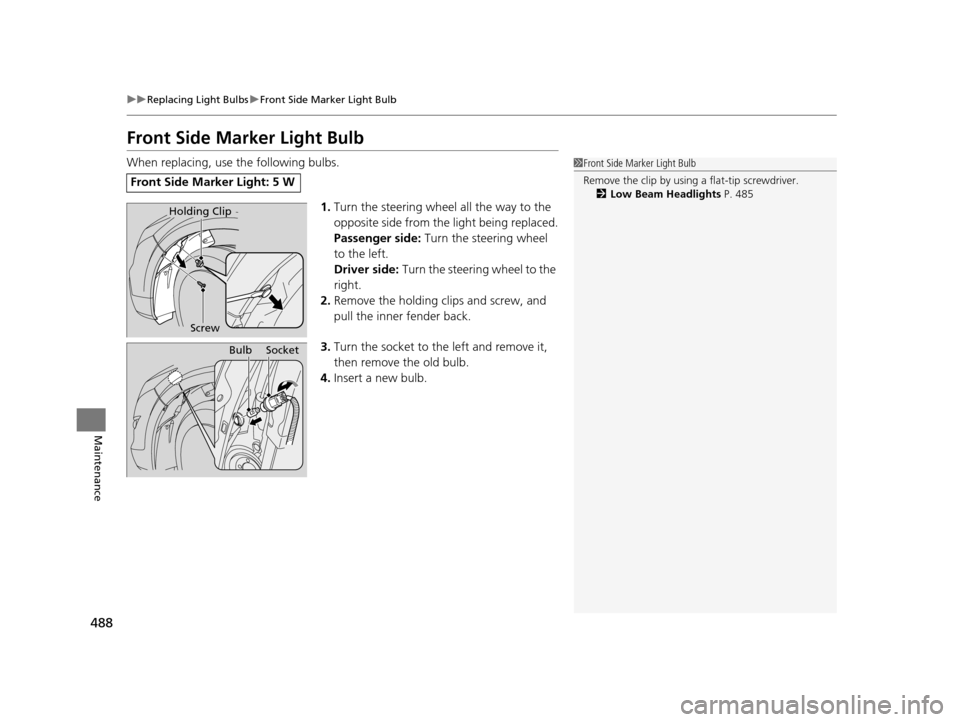

Front Side Marker Light Bulb
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2. Remove the holding clips and screw, and
pull the inner fender back.
3. Turn the socket to the left and remove it,
then remove the old bulb.
4. Insert a new bulb.
Front Side Marker Light: 5 W
1Front Side Marker Light Bulb
Remove the clip by using a flat-tip screwdriver.
2 Low Beam Headlights P. 485
Holding Clip
Screw
BulbSocket
15 CROSSTOUR-31TP66500.book 488 ページ ２０１４年７月３１日　木曜日　午後３時２３分

489
uuReplacing Light Bulbs uFront Turn Signal/Parking Light Bulbs
Continued
Maintenance

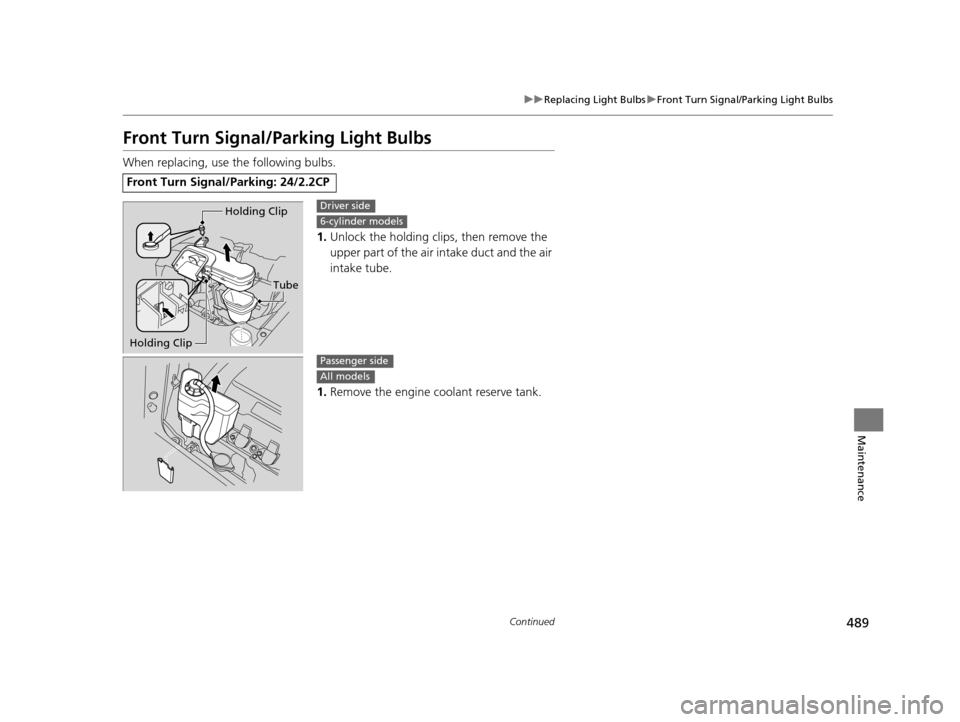

Front Turn Signal/ Parking Light Bulbs
When replacing, use the following bulbs.
1.Unlock the holding clips, then remove the
upper part of the air intake duct and the air
intake tube.
1. Remove the engine coolant reserve tank.
Front Turn Signal/Parking: 24/2.2CP
Tube
Holding Clip
Holding Clip
Driver side
6-cylinder models
Passenger side
All models
15 CROSSTOUR-31TP66500.book 489 ページ ２０１４年７月３１日　木曜日　午後３時２３分

490

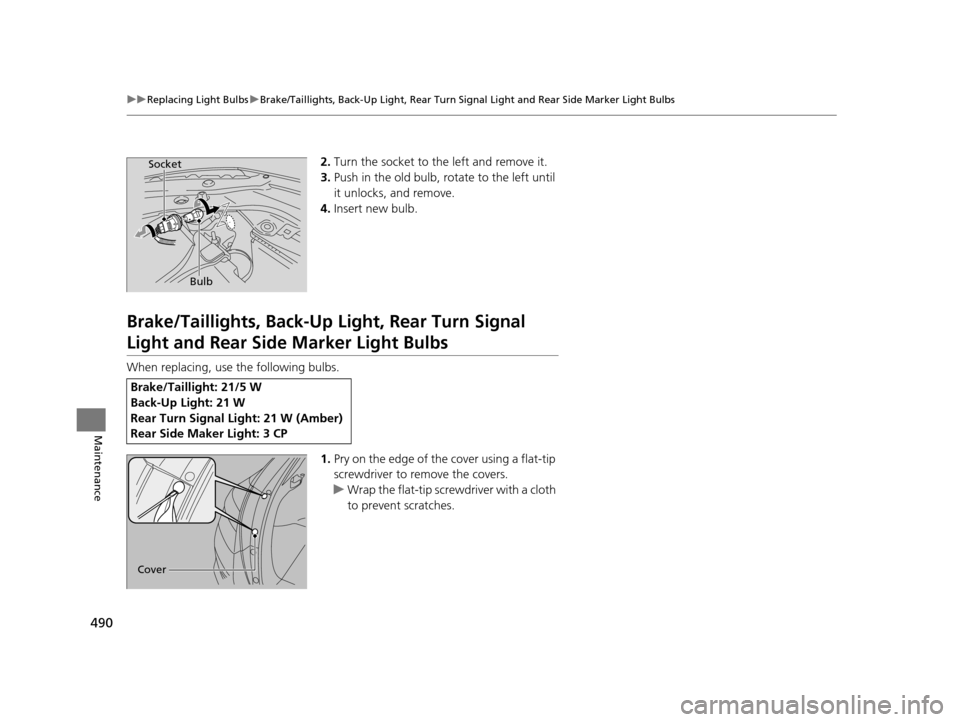

uuReplacing Light Bulbs uBrake/Taillights, Back-Up Light, Rear Turn Signal Light and Rear Side Marker Light Bulbs
Maintenance
2. Turn the socket to the left and remove it.
3. Push in the old bulb, rotate to the left until
it unlocks, and remove.
4. Insert new bulb.
Brake/Taillights, Back-Up Li ght, Rear Turn Signal
Light and Rear Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Pry on the edge of the cover using a flat-tip
screwdriver to remove the covers.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
Bulb
Socket
Brake/Taillight: 21/5 W
Back-Up Light: 21 W
Rear Turn Signal Light: 21 W (Amber)
Rear Side Maker Light: 3 CP
Cover
15 CROSSTOUR-31TP66500.book 490 ページ ２０１４年７月３１日　木曜日　午後３時２３分

491

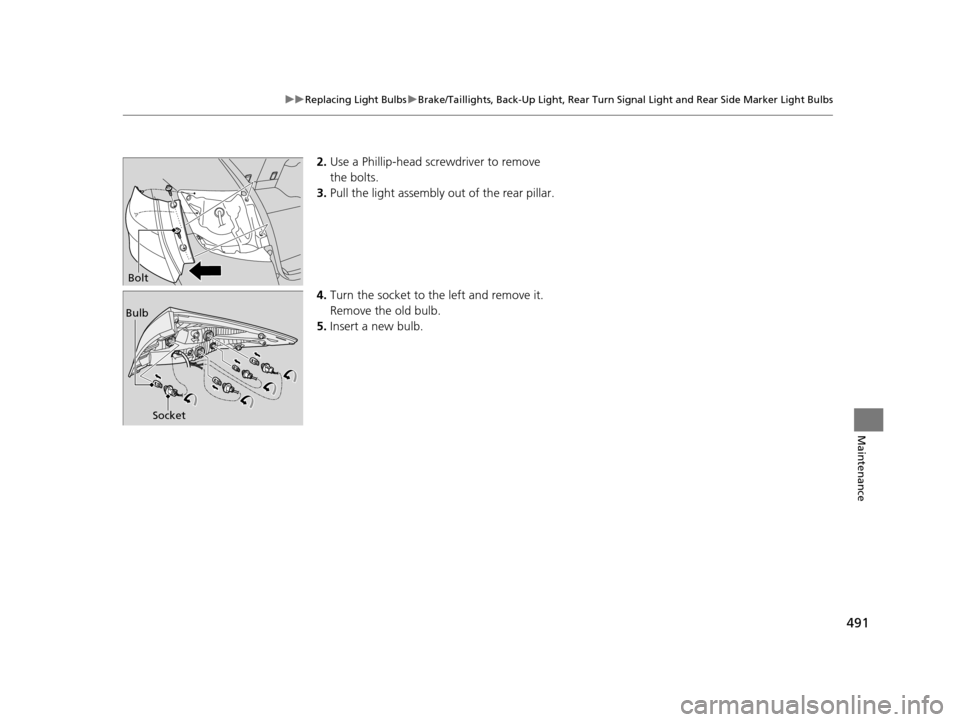

uuReplacing Light Bulbs uBrake/Taillights, Back-Up Light, Rear Turn Si gnal Light and Rear Side Marker Light Bulbs
Maintenance
2.Use a Phillip-head screwdriver to remove
the bolts.
3. Pull the light assembly out of the rear pillar.
4. Turn the socket to th e left and remove it.
Remove the old bulb.
5. Insert a new bulb.
Bolt
Bulb
Socket
15 CROSSTOUR-31TP66500.book 491 ページ ２０１４年７月３１日　木曜日　午後３時２３分

492
uuReplacing Light Bulbs uRear License Plate Light Bulb
Maintenance

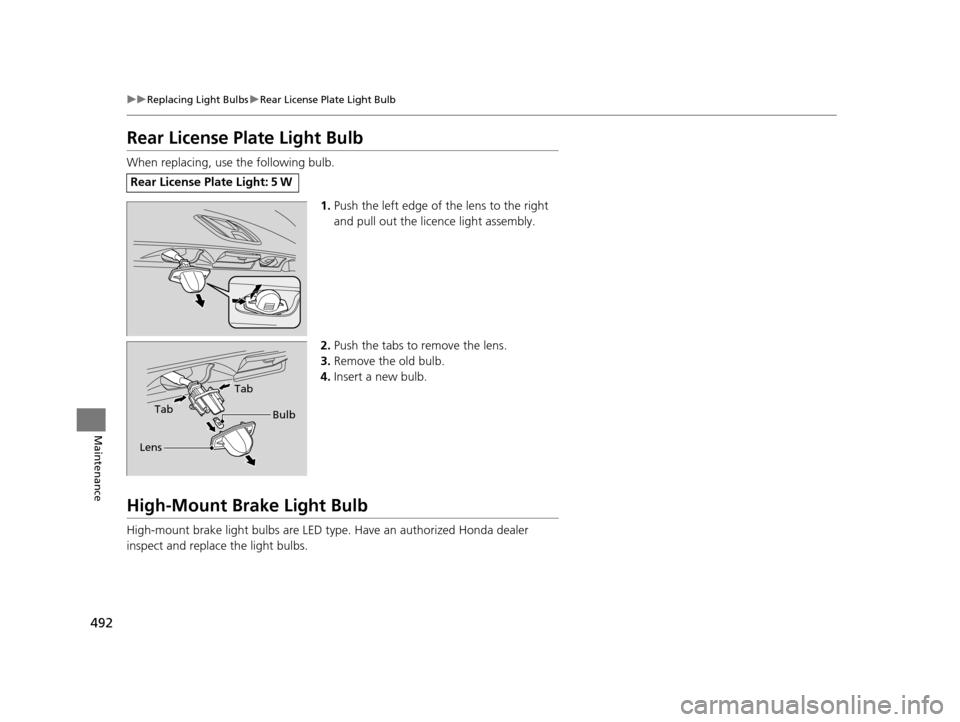

Rear License Plate Light Bulb
When replacing, use the following bulb.
1.Push the left edge of the lens to the right
and pull out the licence light assembly.
2. Push the tabs to remove the lens.
3. Remove the old bulb.
4. Insert a new bulb.
High-Mount Brake Light Bulb
High-mount brake light bulbs are LED type . Have an authorized Honda dealer
inspect and replace the light bulbs.
Rear License Plate Light: 5 W
Bulb
Tab Tab
Lens
15 CROSSTOUR-31TP66500.book 492 ページ ２０１４年７月３１日　木曜日　午後３時２３分

493Continued
Maintenance

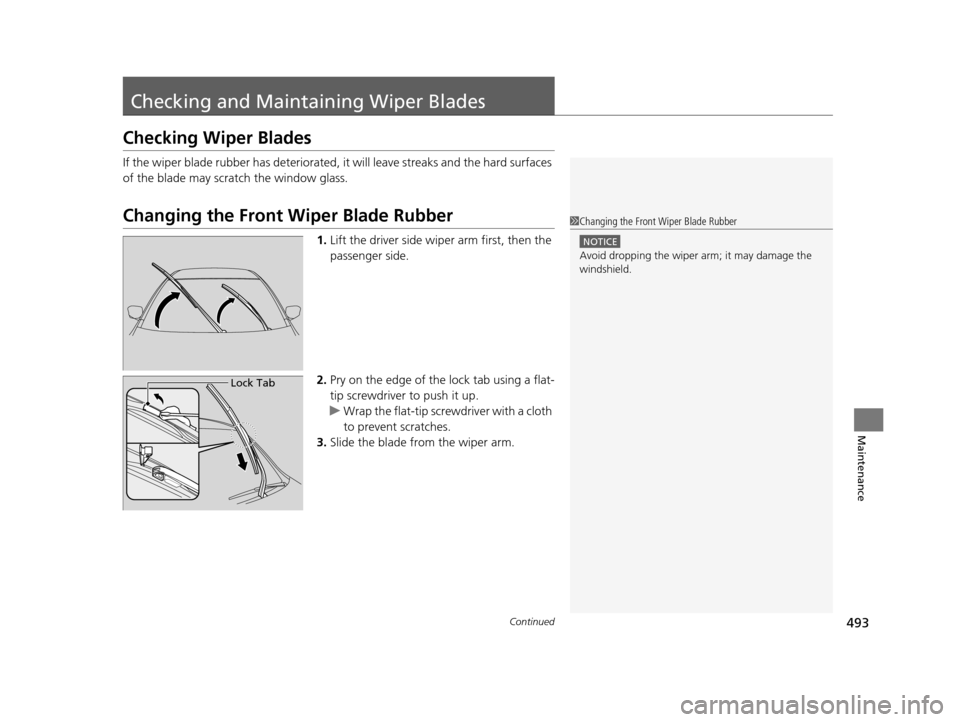

Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Front Wiper Blade Rubber
1.Lift the driver side wiper arm first, then the
passenger side.
2. Pry on the edge of the lock tab using a flat-
tip screwdriver to push it up.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
3. Slide the blade from the wiper arm.
1Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
Lock Tab
15 CROSSTOUR-31TP66500.book 493 ページ ２０１４年７月３１日　木曜日　午後３時２３分

494

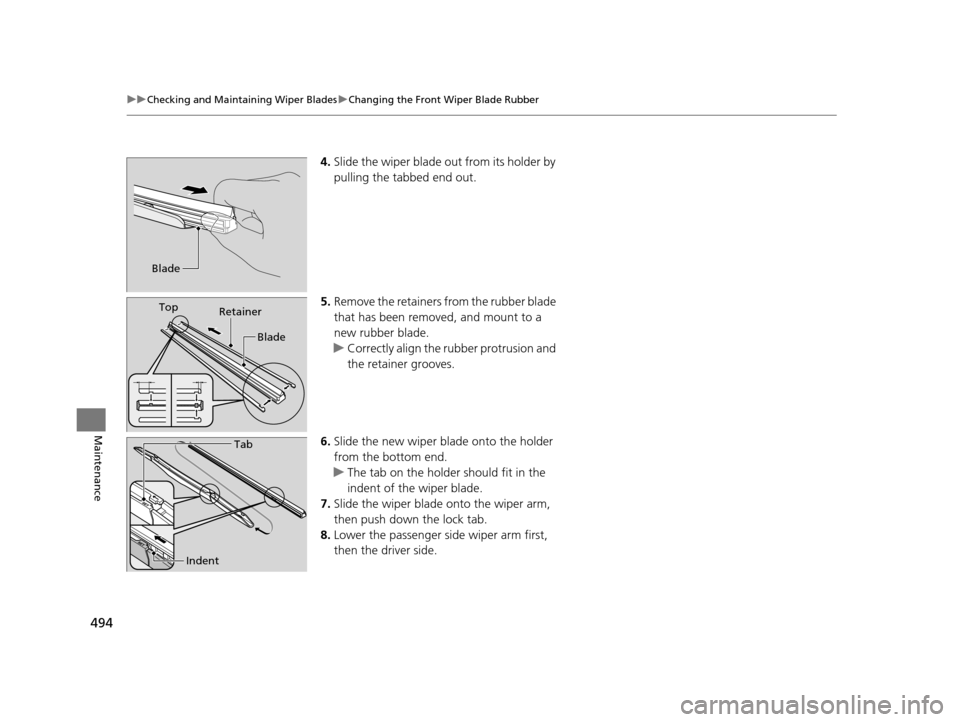

uuChecking and Maintaining Wiper Blades uChanging the Front Wiper Blade Rubber
Maintenance
4. Slide the wiper blade out from its holder by
pulling the tabbed end out.
5. Remove the retainers from the rubber blade
that has been removed, and mount to a
new rubber blade.
u Correctly align the rubber protrusion and
the retainer grooves.
6. Slide the new wiper blade onto the holder
from the bottom end.
u The tab on the holder should fit in the
indent of the wiper blade.
7. Slide the wiper blade onto the wiper arm,
then push down the lock tab.
8. Lower the passenger side wiper arm first,
then the driver side.
Blade
Top
Retainer
Blade
Tab
Indent
15 CROSSTOUR-31TP66500.book 494 ページ ２０１４年７月３１日　木曜日　午後３時２３分

495
uuChecking and Maintaining Wiper Blades uChanging the Rear Wiper Blade Rubber
Continued
Maintenance

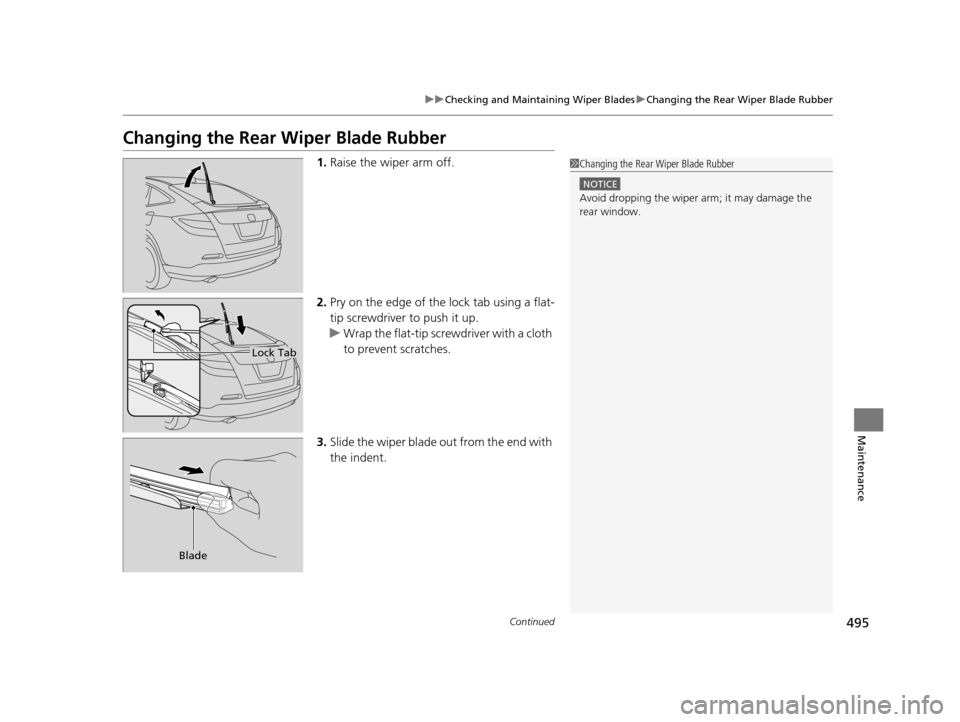

Changing the Rear Wiper Blade Rubber
1.Raise the wiper arm off.
2. Pry on the edge of the lock tab using a flat-
tip screwdriver to push it up.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
3. Slide the wiper blade out from the end with
the indent.1Changing the Rear Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
rear window.
Lock Tab
Blade
