2015 HONDA CROSSTOUR air conditioning

14
Quick Reference Guide
Heating and Cooling System* (P154)
● Rotate the fan control dial to adjust the fan speed and airflow.
● Press the Mode buttons ( / / / ) to select the vents air flows from.
● Rotate the temperature control dial to adjust the temperature.
● Use the button for ma ximum cool setting.
● Rotate the fan co ntrol dial to OFF to turn the system off.
● Press the button to de frost the windshield.
Fan Control Dial (Windshield Defroster) Button
A/C
(Air Conditioning) Button
Air flows from floor and
windshield defroster vents. Air flows from floor vents. Air flows from floor and
dashboard vents, and back of the
center console. Air flows from dashboard vents,
and back of the center console.
Button
Button
Button
(Recirculation) Button
Temperature Control Dial
Button
Button
Mode Buttons
15 CROSSTOUR-31TP66500.book 14 ページ ２０１４年７月３１日　木曜日　午後３時２３分

15
Quick Reference Guide
Climate Control System* (P157)
● Press the AUTO button to activate th e climate control system.
● Press the button to tu rn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. (P 226)
Models with audio touch screen
Driver’s Side Temperature
Control Switch (Windshield De
froster) Button
SYNC (Synchronized) Button
Air flows from floor and windshield
defroster vents.
Air flows from floor vents. Air flows from floor and dashboard
vents, and back of the center console. Air flows from dashboard vents and
back of the center console.
AUTO
Button (On/Off) Button
(Recirculation) Button
MODE Control Button
/ (Fan Control)
Buttons
A/C (Air Conditioning) Button
Passenger’s Side Temperature Control Switch
Models with navigation system
* Not available on all models
15 CROSSTOUR-31TP66500.book 15 ページ ２０１４年７月３１日　木曜日　午後３時２３分

16
Quick Reference Guide
●Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to de frost the windshield.
Models without audio touch screen
Driver’s Side Temperature
Control Switch / (Fan Control) Buttons
(Windshield De
froster) Button
A/C (Air Conditioning) Button
SYNC
(Synchronized) Button
(Recirculation) Button
AUTO Button Passenger’s Side Temperature
Control Switch
MODE Control Button
(On/Off) Button
Air flows from floor and
dashboard vents, and back of the
center console. Air flows from dashboard vents,
and back of the center console.
Air flows from floor and
windshield defroster vents. Air flows from floor vents.
15 CROSSTOUR-31TP66500.book 16 ページ ２０１４年７月３１日　木曜日　午後３時２３分

Continued155
uuHeating and Cooling System*uUsing Vents, Heating and A/C
Controls
The heater uses heat from the engine coolant
to warm the air.
1. Adjust the fan speed using the fan control
dial.
2. Select .
3. Adjust the temperature using the
temperature control dial.
■To rapidly warm up the interior
1. Set the fan to the maximum speed.
2. Select .
3. Set the temperature to maximum warm.
4. Press the button (the indicator on).
■To dehumidify the interior
When used in combination with the heat er, the air conditioning system makes the
interior warm and dry and can prev ent the windows from fogging up.
1. Adjust the fan speed using the fan control dial.
2. Press the A/C button to turn on the air conditioning.
3. Select .
4. Adjust the temperature using the temperature control dial.
■Heating1Heating
When you select , th e mode automatically
switches to fresh air.
1 To rapidly warm up the interior
Change to fresh air mode as soon as the interior gets
warm enough. The windows may fog up if kept in
recirculation mode.
15 CROSSTOUR-31TP66500.book 155 ページ ２０１４年７月３１日　木曜日　午後３時２３分

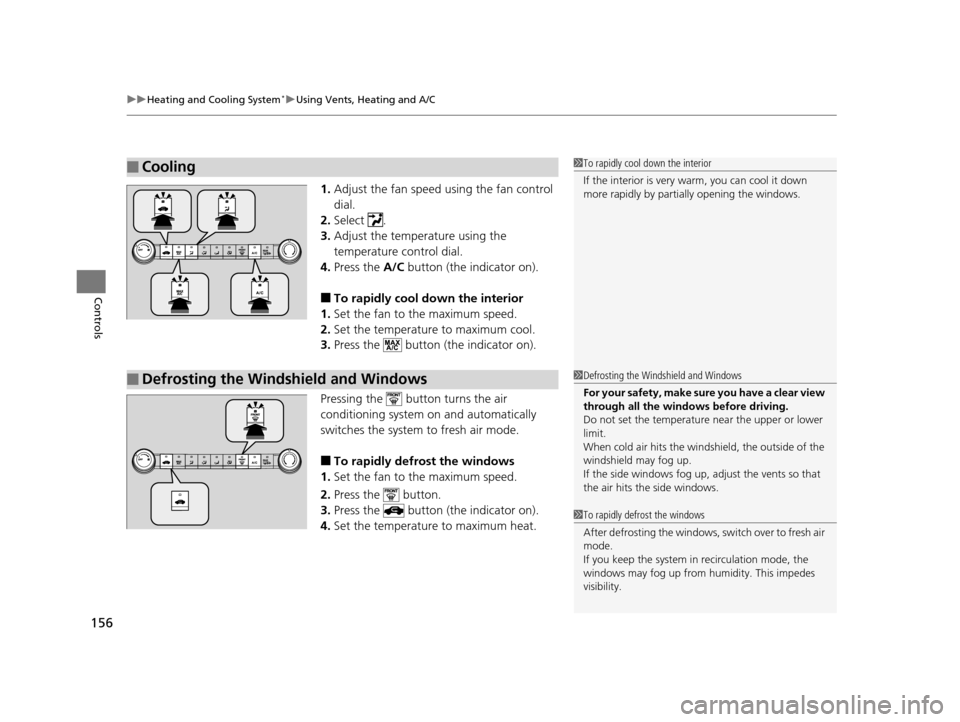

uuHeating and Cooling System*uUsing Vents, Heating and A/C
156
Controls
1. Adjust the fan speed using the fan control
dial.
2. Select .
3. Adjust the temperature using the
temperature control dial.
4. Press the A/C button (the indicator on).
■To rapidly cool down the interior
1. Set the fan to the maximum speed.
2. Set the temperature to maximum cool.
3. Press the button (the indicator on).
Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
■To rapidly defrost the windows
1. Set the fan to the maximum speed.
2. Press the button.
3. Press the button (the indicator on).
4. Set the temperature to maximum heat.
■Cooling1To rapidly cool down the interior
If the interior is very warm, you can cool it down
more rapidly by parti ally opening the windows.
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode.
If you keep the system in recirculation mode, the
windows may fog up from humidity. This impedes
visibility.
15 CROSSTOUR-31TP66500.book 156 ページ ２０１４年７月３１日　木曜日　午後３時２３分

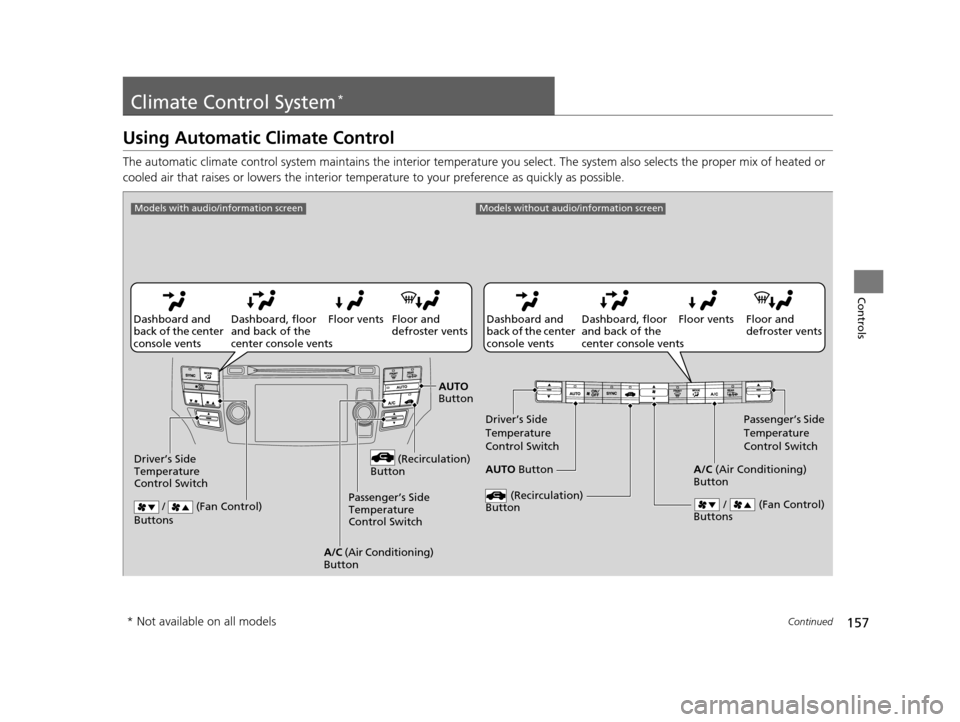

157Continued
Controls
Climate Control System*
Using Automatic Climate Control
The automatic climate control system maintains the interior te mperature you select. The system al so selects the proper mix of heated or
cooled air that raises or lowers the interior temp erature to your preference as quickly as possible.
Floor and
defroster vents
Floor vents
Dashboard, floor
and back of the
center console vents
Dashboard and
back of the center
console vents
AUTO Button
Driver’s Side
Temperature
Control Switch
Passenger’s Side
Temperature
Control Switch
/ (Fan Control)
Buttons
(Recirculation)
Button
A/C (Air Conditioning)
Button
Models without audio/information screen
Floor and
defroster vents
Floor vents
Dashboard, floor
and back of the
center console vents
Dashboard and
back of the center
console vents
AUTO
Button
Driver’s Side
Temperature
Control Switch (Recirculation)
Button
/ (Fan Control)
Buttons
A/C (Air Conditioning)
Button Passenger’s Side
Temperature
Control Switch
Models with audio/information screen
* Not available on all models
15 CROSSTOUR-31TP66500.book 157 ページ ２０１４年７月３１日　木曜日　午後３時２３分

Continued159
uuClimate Control System*uUsing Automatic Climate Control
Controls
Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
Pressing the button again to turn off, the
system returns to the previous settings.
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
Models without audio/
information screen
Models with audio/
information screen
15 CROSSTOUR-31TP66500.book 159 ページ ２０１４年７月３１日　木曜日　午後３時２３分

546
Information
Specifications
■Vehicle Specifications
ModelCrosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,784 lbs (2,170 kg)
Canada: 2,170 kg
Gross Axle Weight
Rating (Front)U.S.: 2,469 lbs (1,120 kg)
Canada: 1,120 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,381 lbs (1,080 kg)
Canada: 1,080 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 8
4-cylinder models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement144 cu-in (2,354 cm3)
Spark Plugs NGK ILZKR7B11S
DENSO SXU22HCR11S
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity5.3 US qt (5.0 ℓ)
■ Light Bulbs
Headlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights3CP
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Cargo Area Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WGlove Box Light1.4WAmbient LightLEDCourtesy Lights2CP
