2015 HONDA CROSSTOUR Owners Manual

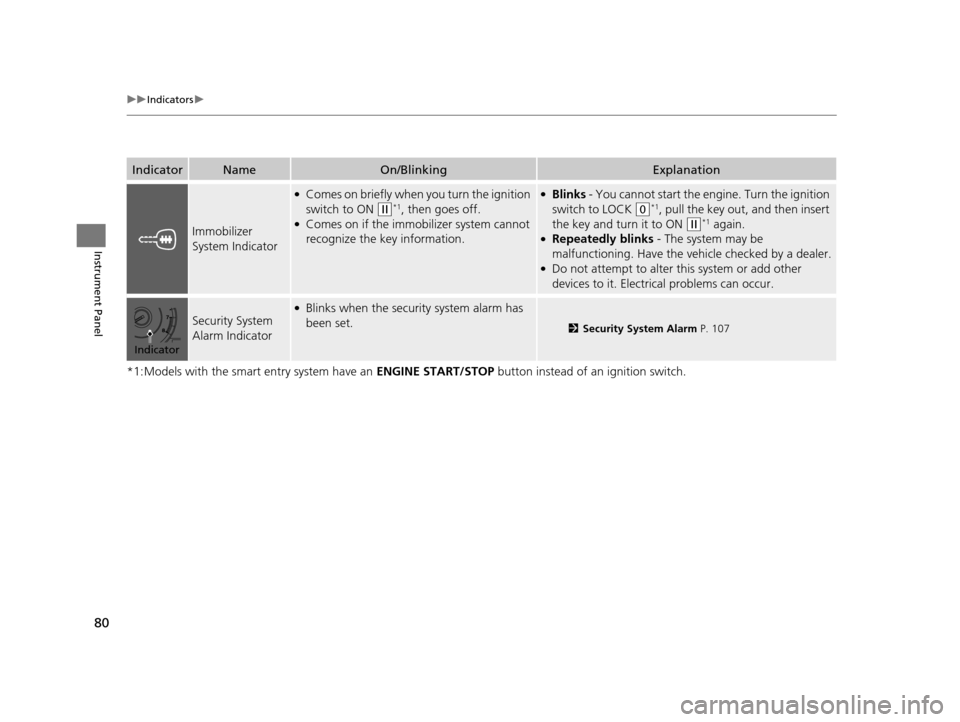

80
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanation
Immobilizer
System Indicator
●Comes on briefly when you turn the ignition
switch to ON
(w*1, then goes off.●Comes on if the immobilizer system cannot
recognize the key information.
●Blinks - You cannot start the engine. Turn the ignition
switch to LOCK
(0*1, pull the key out, and then insert
the key and turn it to ON
(w*1 again.●Repeatedly blinks - The system may be
malfunctioning. Have the ve hicle checked by a dealer.
●Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.
Security System
Alarm Indicator
●Blinks when the security system alarm has
been set.
2Security System Alarm P. 107
Indicator
15 CROSSTOUR-31TP66500.book 80 ページ ２０１４年７月３１日　木曜日　午後３時２３分

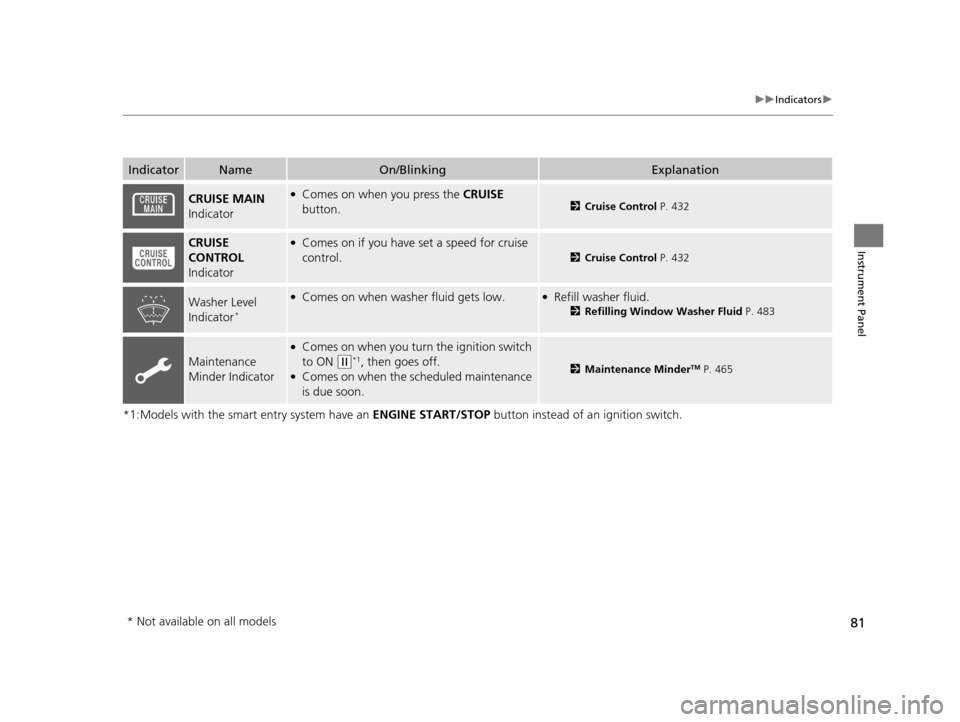

81
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanation
CRUISE MAIN
Indicator●Comes on when you press the CRUISE
button.2 Cruise Control P. 432
CRUISE
CONTROL
Indicator●Comes on if you have set a speed for cruise
control.
2 Cruise Control P. 432
Washer Level
Indicator*
●Comes on when washer fluid gets low.●Refill washer fluid.
2Refilling Window Washer Fluid P. 483
Maintenance
Minder Indicator
●Comes on when you turn the ignition switch
to ON
(w*1, then goes off.●Comes on when the scheduled maintenance
is due soon.2 Maintenance MinderTM P. 465
* Not available on all models
15 CROSSTOUR-31TP66500.book 81 ページ ２０１４年７月３１日　木曜日　午後３時２３分

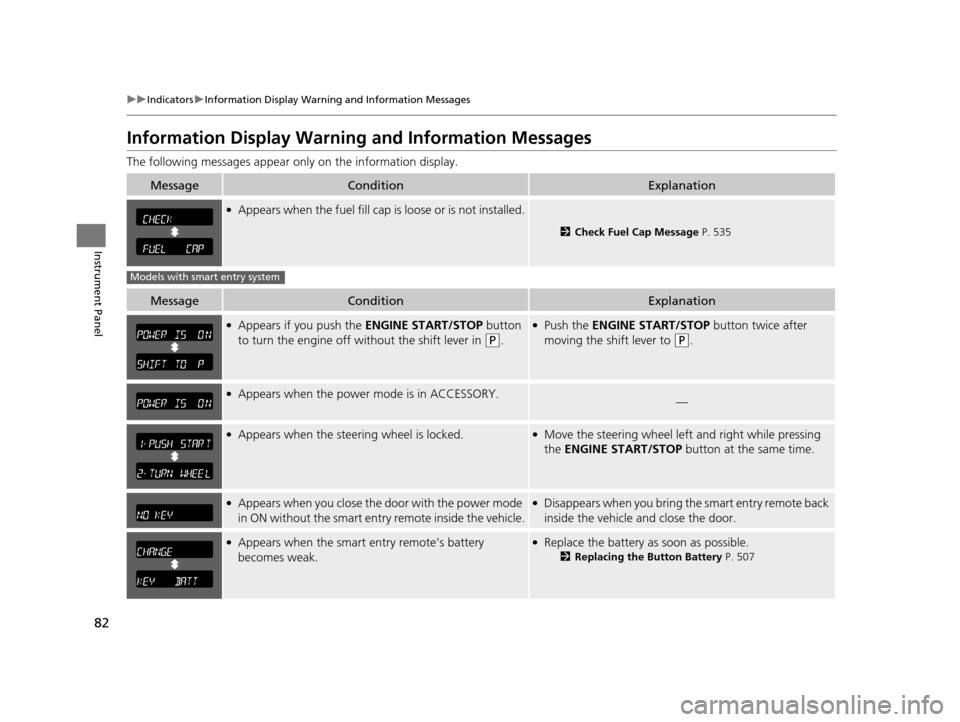

82
uuIndicators uInformation Display Warning and Information Messages
Instrument Panel
Information Display Warning and Information Messages
The following messages appear on ly on the information display.
MessageConditionExplanation
●Appears when the fuel fill cap is loose or is not installed.
2Check Fuel Cap Message P. 535
MessageConditionExplanation
●Appears if you push the ENGINE START/STOP button
to turn the engine off wi thout the shift lever in
(P.
●Push the ENGINE START/STOP button twice after
moving the shift lever to
(P.
●Appears when the power mode is in ACCESSORY.—
●Appears when the steer ing wheel is locked.●Move the steering wheel left and right while pressing
the ENGINE START/STOP button at the same time.
●Appears when you close the door with the power mode
in ON without the smart entry remote inside the vehicle.●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
●Appears when the smart entry remote’s battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 507
Models with smart entry system
15 CROSSTOUR-31TP66500.book 82 ページ ２０１４年７月３１日　木曜日　午後３時２３分

83
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 532
15 CROSSTOUR-31TP66500.book 83 ページ ２０１４年７月３１日　木曜日　午後３時２３分

84
uuGauges and Displays uInformation Display
Instrument Panel
Information Display
The information display sh ows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the (Select/Reset) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Some of the items on the information display also
appear on the audio/information screen
*. They also
change along with the info rmation display changes
while the fuel consumption is shown.
Outside Temperature*,
Trip Meter B
Engine Oil Life Odometer, Trip Meter A
Outside Temperature
*,
Trip Meter A
■Odometer
Select/Reset
Knob
* Not available on all models
15 CROSSTOUR-31TP66500.book 84 ページ ２０１４年７月３１日　木曜日　午後３時２３分

Continued85
uuGauges and Displays uInformation Display
Instrument Panel
Shows the total number of miles (U.S.) or k ilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 465
Appears when the fuel fill cap is loose or is not installed.
2Check Fuel Cap Message P. 535
■Trip Meter
■Engine Oil Life
■Check Fuel Cap
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
15 CROSSTOUR-31TP66500.book 85 ページ ２０１４年７月３１日　木曜日　午後３時２３分

uuGauges and Displays uInformation Display
86
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
1. Turn the ignition switch to ON
(w*1.
2. Press and hold the (Select/Reset) k nob for 10 seconds or more while the
outside temperature is shown on the information display.
u The information display goes into temp erature adjustment mode. The display
starts showing from -5°F to +5°F (U.S.) or -3°C to +3°C (Canada).
3. Release the knob when the ri ght adjustment amount is shown.
u The adjustment is complete.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Outside Temperature*1 Outside Temperature*
The temperature sensor is in the front bumper. Road
heat and exhaust from anothe r vehicle can affect the
temperature reading when your vehicle speed is less
than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the audio/information screen’s customized
features to correct the temperature. 2 Customized Features
* P. 280
Models with audio touch screen
* Not available on all models
15 CROSSTOUR-31TP66500.book 86 ページ ２０１４年７月３１日　木曜日　午後３時２３分

87
Controls
This chapter explains how to operate the various controls necessary for driving.
Setting the Clock................................ 88
Locking and Unlocking the Doors Key Types and Functions .................... 91
Low Smart Entry Remote Signal Strength*.. 93Locking/Unlocking the Doors from the Outside ............................................ 94
Locking/Unlocking the Doors from the
Inside ............................................... 99
Childproof Door Locks ..................... 100
Auto Door Locking/Unlocking .......... 101
Opening and Closing the Tailgate ... 105
Security System ................................ 107
Immobilizer System .......................... 107
Security System Alarm ...................... 107
Opening and Closing the Windows ..... 110
Opening and Closing the Moonroof.. 113Operating the Switches Around the
Steering Wheel
Ignition Switch
*............................... 114
ENGINE START/STOP Button*........... 115
Ignition Switch and Power Mode Comparison ................................... 118
Turn Signals ..................................... 119
Light Switches.................................. 119
Fog Lights ........................................ 122
Daytime Running Lights ................... 122
Wipers and Washers ........................ 123
Brightness Control ........................... 125
Rear Defogger/Heated Door Mirror Button.. 126Driving Position Memory System*.... 127 Adjusting the Steering Wheel .......... 129
Adjusting the Mirrors ....................... 130
Interior Rearview Mirror ................... 130
Power Door Mirrors ......................... 131
Adjusting the Seats .......................... 133
Adjusting the Seat Positions ............. 133
Interior Lights/Interior Convenience Items ................................................ 142
Interior Lights .................................. 142
Interior Convenience Items .............. 144
Heating and Cooling System
*......... 154
Using Vents, Heating and A/C.......... 154
Climate Control System
*.................. 157
Using Automatic Climate Control .... 157
Automatic Climate Control Sensors ... 162
* Not available on all models
