2015 HONDA CROSSTOUR reset

5
Quick Reference Guide
❙Wipers/Washers (P 123)
❙Navigation System Voice Control Buttons*
(P224) See the Navigation System Manual
❙(+ / (- / / Buttons (P 168)
❙SOURCE Button (P 168)
❙ (Display) Button* (P 186, 218)
❙Headlights/Turn Signals (P 119)
❙Fog Lights (P 122)
❙Paddle Shifter (Shift down)* (P 431)
❙Paddle Shifter (Shift up)* (P 431)
❙Lane WatchTM * (P 444)
❙Horn (Press an area around .)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 319, 331, 366)
❙ (Select/Reset) Knob (P 84)
❙Brightness Control (P 125)
❙Cruise Control Buttons (P 432)
* Not available on all models
15 CROSSTOUR-31TP66500.book 5 ページ ２０１４年７月３１日　木曜日　午後３時２３分

11
Quick Reference Guide
Controls (P 87)
Clock (P88 )
aPress the DISP button, then select Info
Settings .
bSelect Clock Adjustment .
cRotate to change hour, then press
.
dRotate to change minute, then
press .
Models without navigation systemAudio system with touch screen
aPress the CLOCK button until you hear
a beep. The displayed time begins
flashing.
bPress the ( 4 (Hour) or (5 (Minute)
button to set the time. Press the
( 6
(Reset) button to set the time to the
nearest hour.
cPress the CLOCK button again to set
the time.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Audio system without touch screen
Models with navigation system
These indicators are used to show how to
operate the selector knob or the MENU/SEL
(Menu/Selector) knob.
Rotate to select.
Press to enter.
* Not available on all models
15 CROSSTOUR-31TP66500.book 11 ページ ２０１４年７月３１日　木曜日　午後３時２３分

17
Quick Reference Guide
Features (P 163)
Audio Remote Controls
(P 168)
●
(+ / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM/AM/
CD/SiriusXM ®
*/HDD*/USB/iPod/Bluetooth/
Pandora ®*/AhaTM */AUX.
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
CD/HDD
*/USB device:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
( + / (- / / Button
SOURCE
Button
Audio System (P169, 182, 215)
(P169)Audio system without touch screen
RETURN Button
FM
Button
SCAN Button
Selector Knob
AM
Button
VOL
/PWR
(Volume/Power)
Knob
CD Button AUX Button
CD Slot
(CD Eject)
Button
Preset Buttons
( 1- 6)
TITLE
Button
/ (Skip)
Bar
MENU Button
LOAD Button
FOLDER Bar A.SEL
(Auto Select)
Button
* Not available on all models
15 CROSSTOUR-31TP66500.book 17 ページ ２０１４年７月３１日　木曜日　午後３時２３分

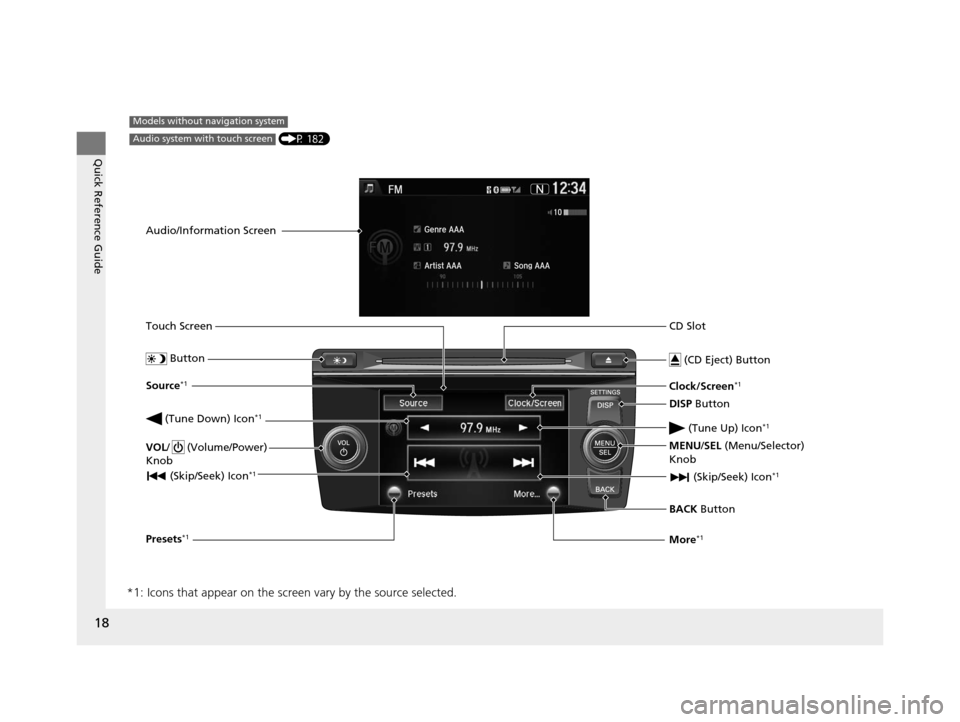

18
Quick Reference Guide
*1: Icons that appear on the screen vary by the source selected.
CD Slot
(CD Eject) Button
BACK Button
MENU/SEL
(Menu/Selector)
Knob
(Tune Down) Icon
*1
(Skip/Seek) Icon*1
Models without navigation system
Audio/Information Screen
Touch Screen
Button
Source*1
VOL/ (Volume/Power)
Knob
(Skip/Seek) Icon*1
Presets*1
Clock/Screen*1
DISP Button
(Tune Up) Icon
*1
More*1
(P 182)Audio system with touch screen
15 CROSSTOUR-31TP66500.book 18 ページ ２０１４年７月３１日　木曜日　午後３時２３分

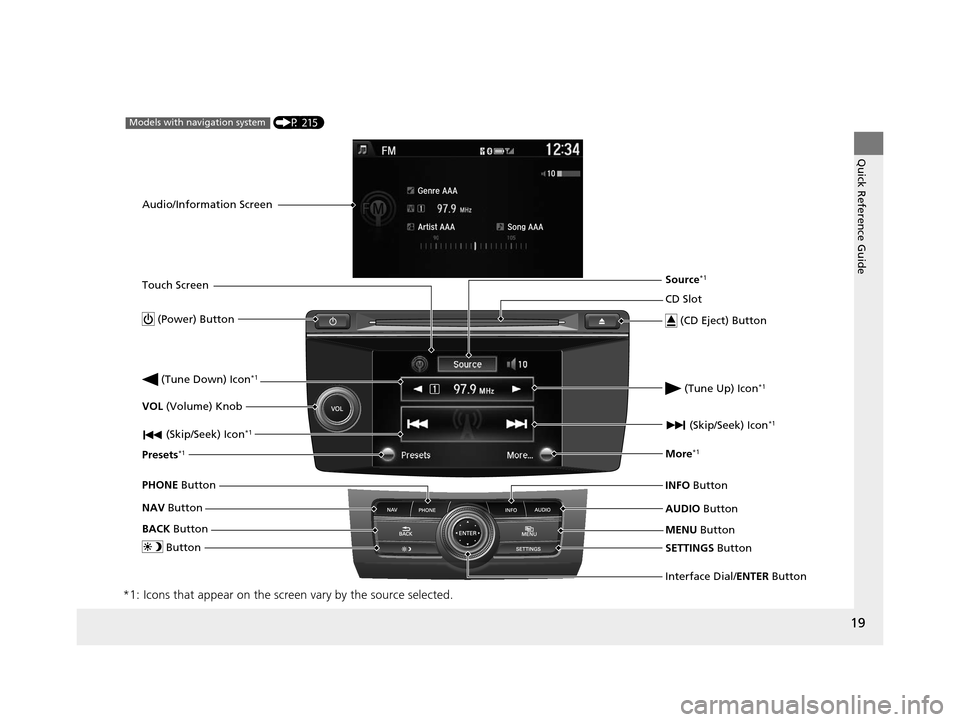

19
Quick Reference Guide
*1: Icons that appear on the screen vary by the source selected.
CD Slot
(CD Eject) Button
MENU Button
Interface Dial/ENTER Button
(Skip/Seek) Icon
*1
(P 215)Models with navigation system
Audio/Information Screen
Touch Screen
Button
Source*1
VOL (Volume) Knob
(Skip/Seek) Icon
*1
Presets*1
(Tune Up) Icon*1
More*1
(Power) Button
(Tune Down) Icon*1
INFO Button
AUDIO Button
SETTINGS Button
BACK
Button
NAV
Button
PHONE
Button
15 CROSSTOUR-31TP66500.book 19 ページ ２０１４年７月３１日　木曜日　午後３時２３分

84
uuGauges and Displays uInformation Display
Instrument Panel
Information Display
The information display sh ows the odometer, trip meter, engine oil life and
maintenance service item codes, and other gauges.
Press the (Select/Reset) knob to change the display.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Switching the Display
1Switching the Display
Each time you press the knob, the information
display changes as follows:
Some of the items on the information display also
appear on the audio/information screen
*. They also
change along with the info rmation display changes
while the fuel consumption is shown.
Outside Temperature*,
Trip Meter B
Engine Oil Life Odometer, Trip Meter A
Outside Temperature
*,
Trip Meter A
■Odometer
Select/Reset
Knob
* Not available on all models
15 CROSSTOUR-31TP66500.book 84 ページ ２０１４年７月３１日　木曜日　午後３時２３分

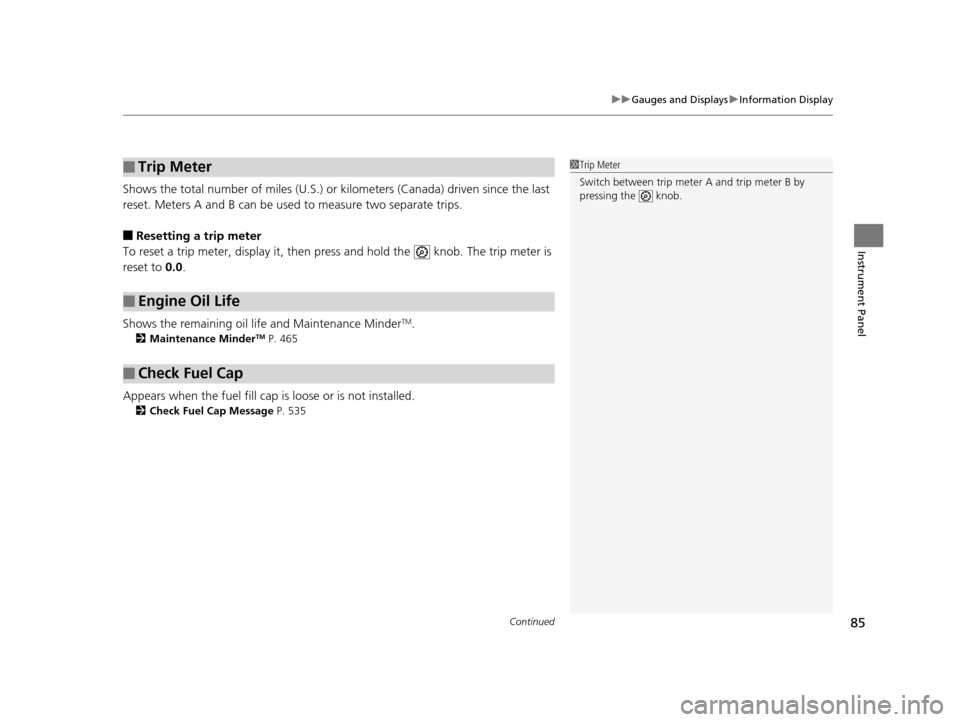

Continued85
uuGauges and Displays uInformation Display
Instrument Panel
Shows the total number of miles (U.S.) or k ilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 465
Appears when the fuel fill cap is loose or is not installed.
2Check Fuel Cap Message P. 535
■Trip Meter
■Engine Oil Life
■Check Fuel Cap
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
15 CROSSTOUR-31TP66500.book 85 ページ ２０１４年７月３１日　木曜日　午後３時２３分

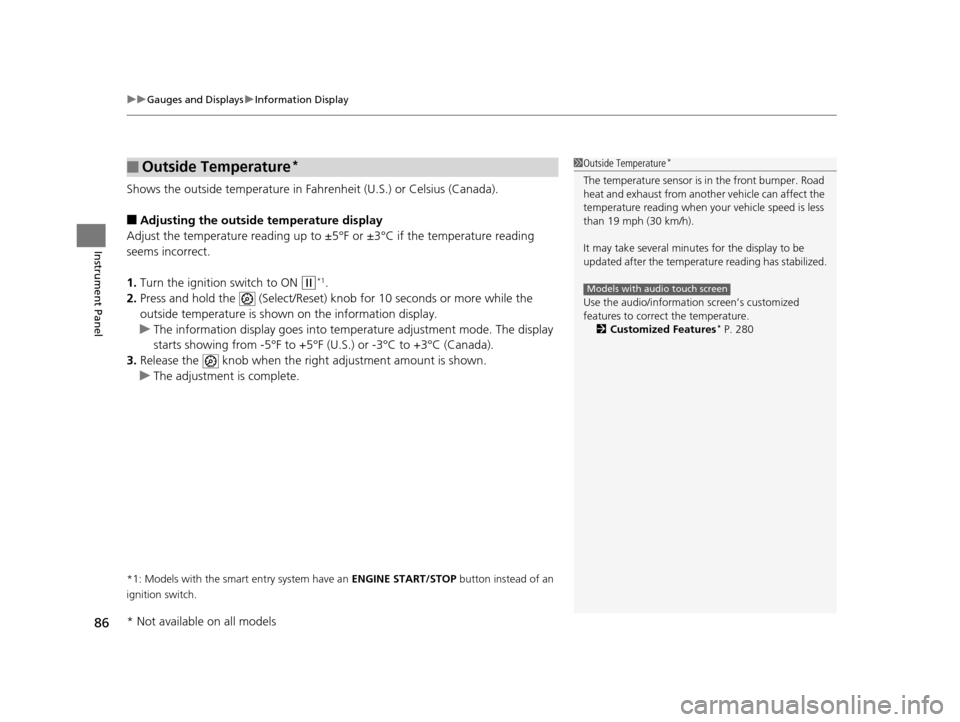

uuGauges and Displays uInformation Display
86
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5°F or ±3°C if the temperature reading
seems incorrect.
1. Turn the ignition switch to ON
(w*1.
2. Press and hold the (Select/Reset) k nob for 10 seconds or more while the
outside temperature is shown on the information display.
u The information display goes into temp erature adjustment mode. The display
starts showing from -5°F to +5°F (U.S.) or -3°C to +3°C (Canada).
3. Release the knob when the ri ght adjustment amount is shown.
u The adjustment is complete.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Outside Temperature*1 Outside Temperature*
The temperature sensor is in the front bumper. Road
heat and exhaust from anothe r vehicle can affect the
temperature reading when your vehicle speed is less
than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the audio/information screen’s customized
features to correct the temperature. 2 Customized Features
* P. 280
Models with audio touch screen
* Not available on all models
15 CROSSTOUR-31TP66500.book 86 ページ ２０１４年７月３１日　木曜日　午後３時２３分
