2015 HONDA CROSSTOUR Owners Manual

uuBluetooth ® HandsFreeLink ®u HFL Menus
400
Features

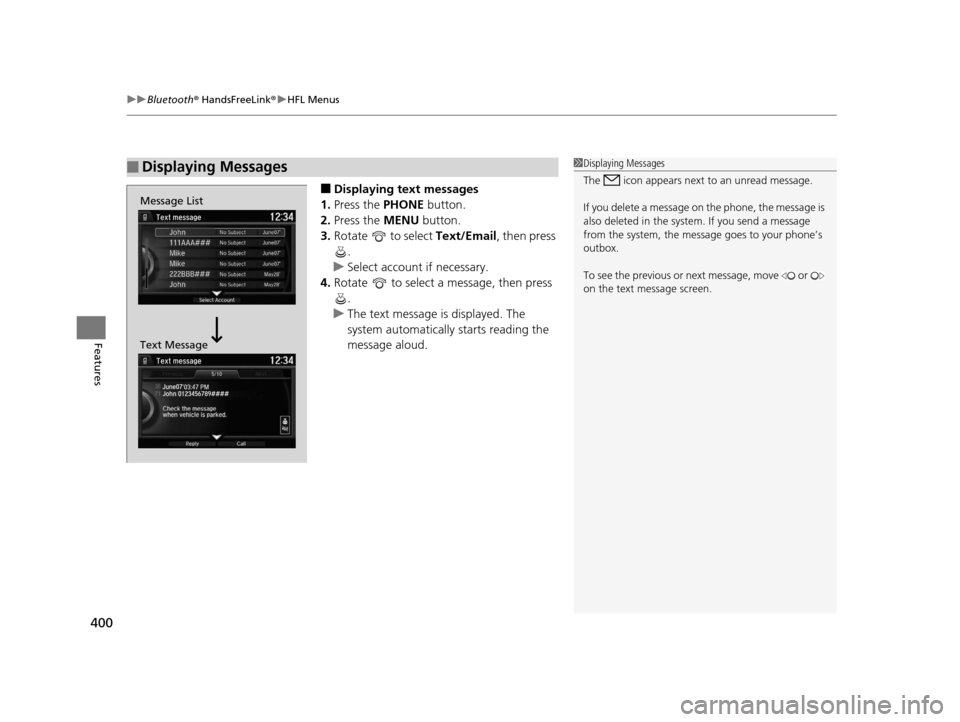

■Displaying text messages
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Text/Email, then press
.
u Select account if necessary.
4. Rotate to select a message, then press
.
u The text message is displayed. The
system automatically starts reading the
message aloud.
■Displaying Messages1Displaying Messages
The icon appears next to an unread message.
If you delete a message on the phone, the message is
also deleted in the system. If you send a message
from the system, the message goes to your phone’s
outbox.
To see the previous or ne xt message, move or
on the text message screen.
Message List
Text Message
15 CROSSTOUR-31TP66500.book 400 ページ ２０１４年７月３１日　木曜日　午後３時２３分

Continued401
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

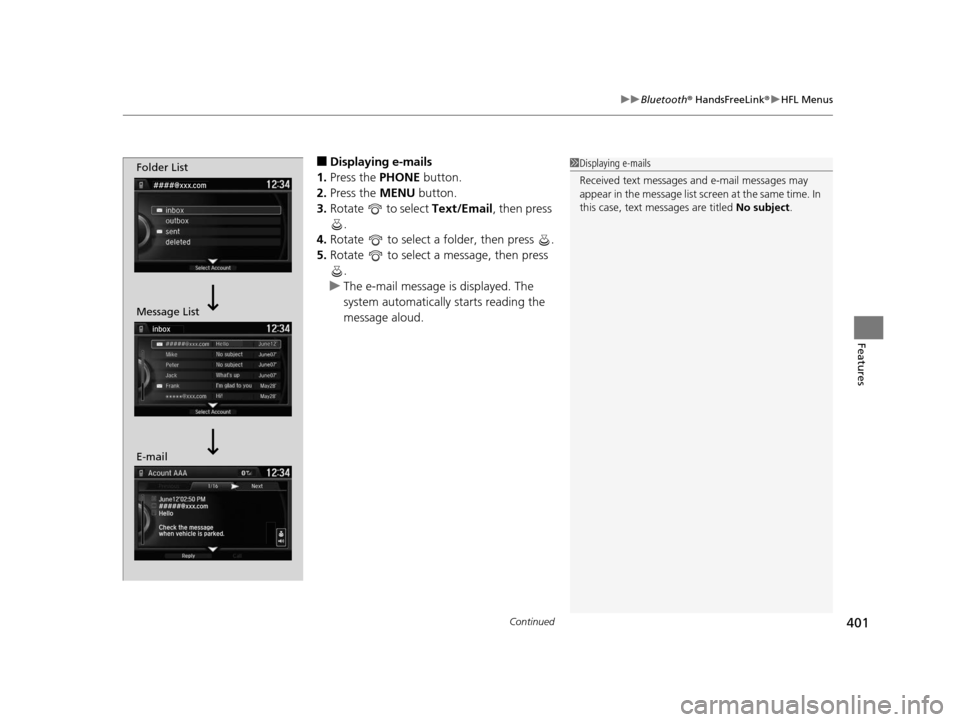

■Displaying e-mails
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Text/Email, then press
.
4. Rotate to select a folder, then press .
5. Rotate to select a message, then press
.
u The e-mail message is displayed. The
system automatically starts reading the
message aloud.1Displaying e-mails
Received text messages and e-mail messages may
appear in the message list screen at the same time. In
this case, text messages are titled No subject.Folder List
Message List
E-mail
15 CROSSTOUR-31TP66500.book 401 ページ ２０１４年７月３１日　木曜日　午後３時２３分

uuBluetooth ® HandsFreeLink ®u HFL Menus
402
Features

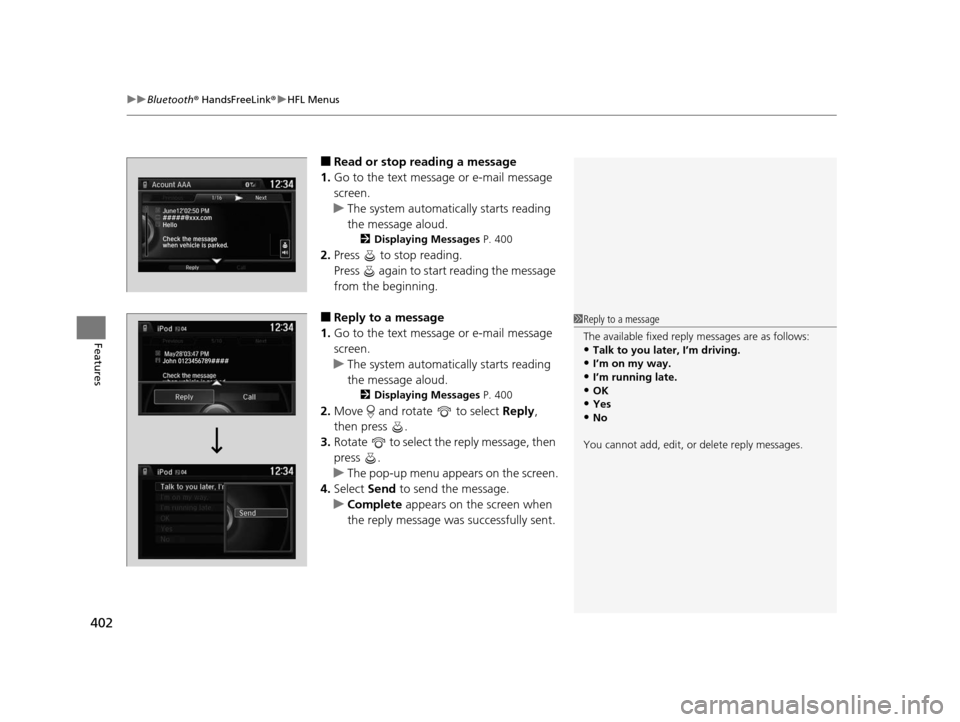

■Read or stop re ading a message
1. Go to the text message or e-mail message
screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 400
2.Press to stop reading.
Press again to start reading the message
from the beginning.
■Reply to a message
1. Go to the text message or e-mail message
screen.
u The system automatically starts reading
the message aloud.
2 Displaying Messages P. 400
2.Move and rotate to select Reply,
then press .
3. Rotate to select the reply message, then
press .
u The pop-up menu appears on the screen.
4. Select Send to send the message.
u Complete appears on the screen when
the reply message was successfully sent.
1 Reply to a message
The available fixed reply messages are as follows:
•Talk to you later, I’m driving.•I’m on my way.
•I’m running late.
•OK•Yes
•No
You cannot add, edit, or delete reply messages.
15 CROSSTOUR-31TP66500.book 402 ページ ２０１４年７月３１日　木曜日　午後３時２３分

403
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features

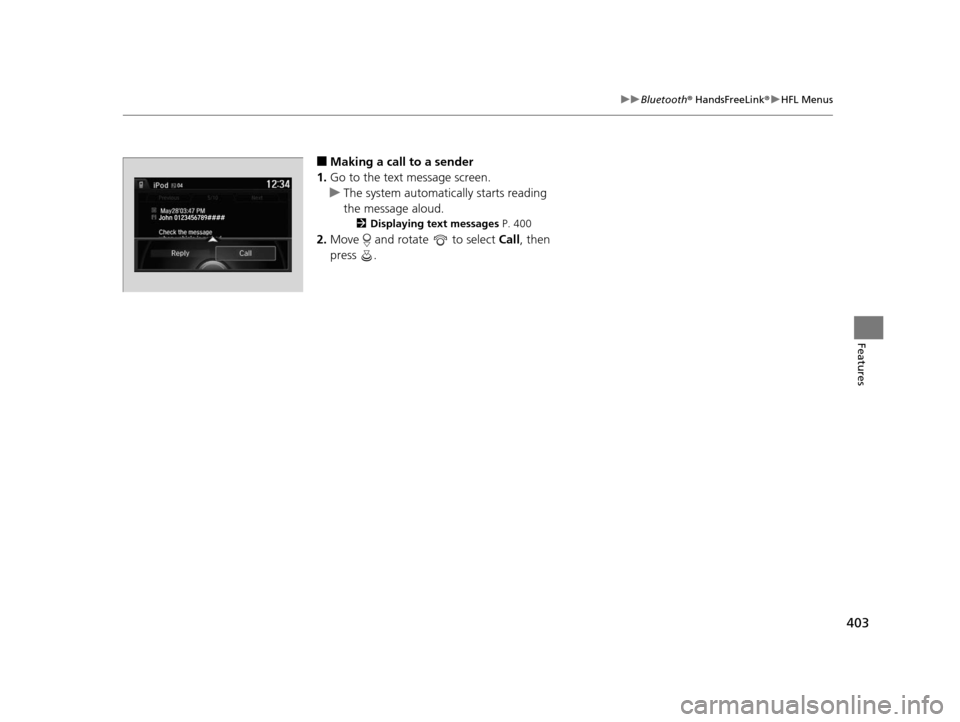

■Making a call to a sender
1. Go to the text message screen.
u The system automatically starts reading
the message aloud.
2 Displaying text messages P. 400
2.Move and rotate to select Call, then
press .
John 0123456789####
Reply Call
15 CROSSTOUR-31TP66500.book 403 ページ ２０１４年７月３１日　木曜日　午後３時２３分

404
Features

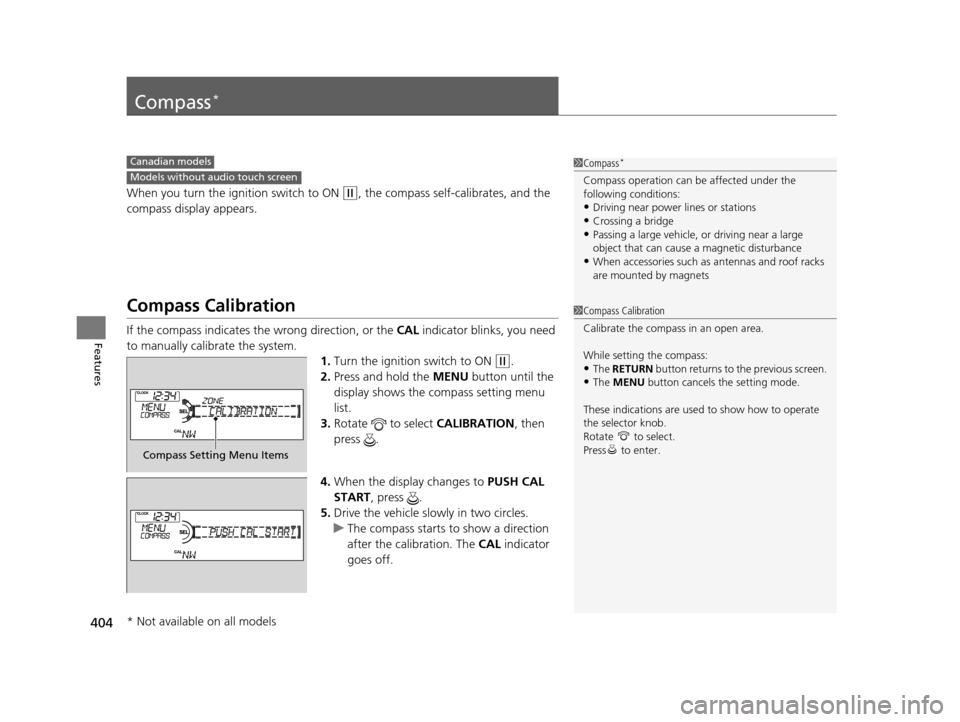

Compass*
When you turn the ignition switch to ON (w, the compass self-calibrates, and the
compass display appears.
Compass Calibration
If the compass indicates the wrong direction, or the CAL indicator blinks, you need
to manually calibrate the system. 1.Turn the ignition switch to ON
(w.
2. Press and hold the MENU button until the
display shows the compass setting menu
list.
3. Rotate to select CALIBRATION, then
press .
4. When the display changes to PUSH CAL
START, press .
5. Drive the vehicle slowly in two circles.
u The compass starts to show a direction
after the calibration. The CAL indicator
goes off.
1 Compass*
Compass operation can be affected under the
following conditions:
•Driving near power lines or stations
•Crossing a bridge•Passing a large vehicle, or driving near a large
object that can cause a magnetic disturbance
•When accessories such as antennas and roof racks
are mounted by magnets
Canadian models
Models without audio touch screen
1 Compass Calibration
Calibrate the compass in an open area.
While setting the compass:
•The RETURN button returns to the previous screen.
•The MENU button cancels the setting mode.
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Compass Setting Menu Items
* Not available on all models
15 CROSSTOUR-31TP66500.book 404 ページ ２０１４年７月３１日　木曜日　午後３時２３分

405
uuCompass*uCompass Zone Selection
Features

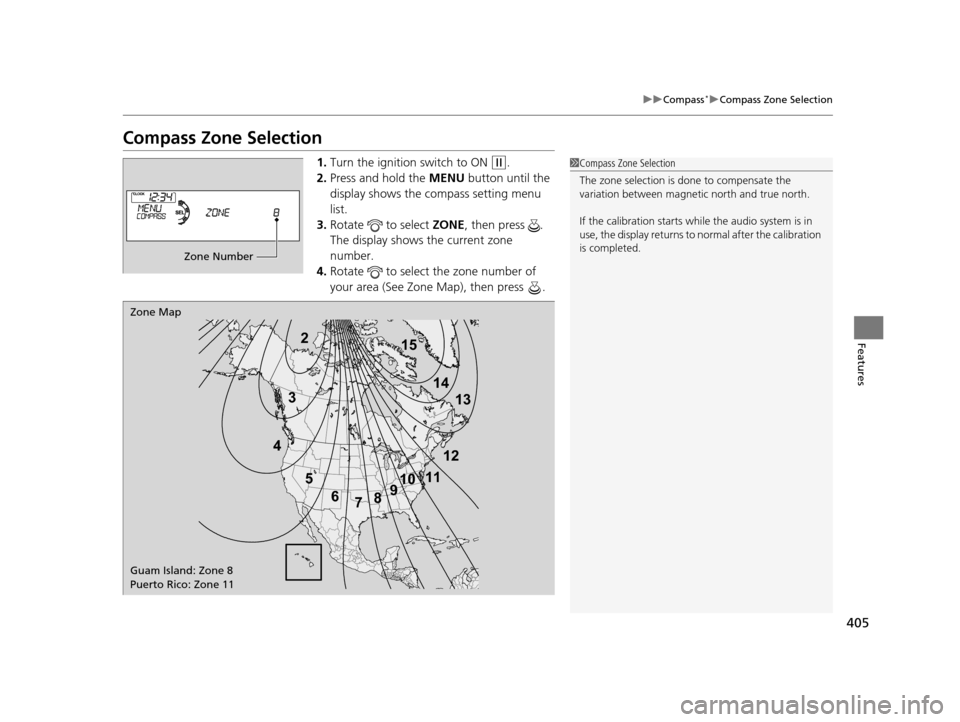

Compass Zone Selection
1. Turn the ignition switch to ON (w.
2. Press and hold the MENU button until the
display shows the compass setting menu
list.
3. Rotate to select ZONE, then press .
The display shows the current zone
number.
4. Rotate to select the zone number of
your area (See Zone Map), then press .1Compass Zone Selection
The zone selection is done to compensate the
variation between magneti c north and true north.
If the calibration starts while the audio system is in
use, the display returns to normal after the calibration
is completed.
Zone Number
2
3
4 5678910
111213
14
15
Zone Map
Guam Island: Zone 8
Puerto Rico: Zone 11
15 CROSSTOUR-31TP66500.book 405 ページ ２０１４年７月３１日　木曜日　午後３時２３分

406
Features

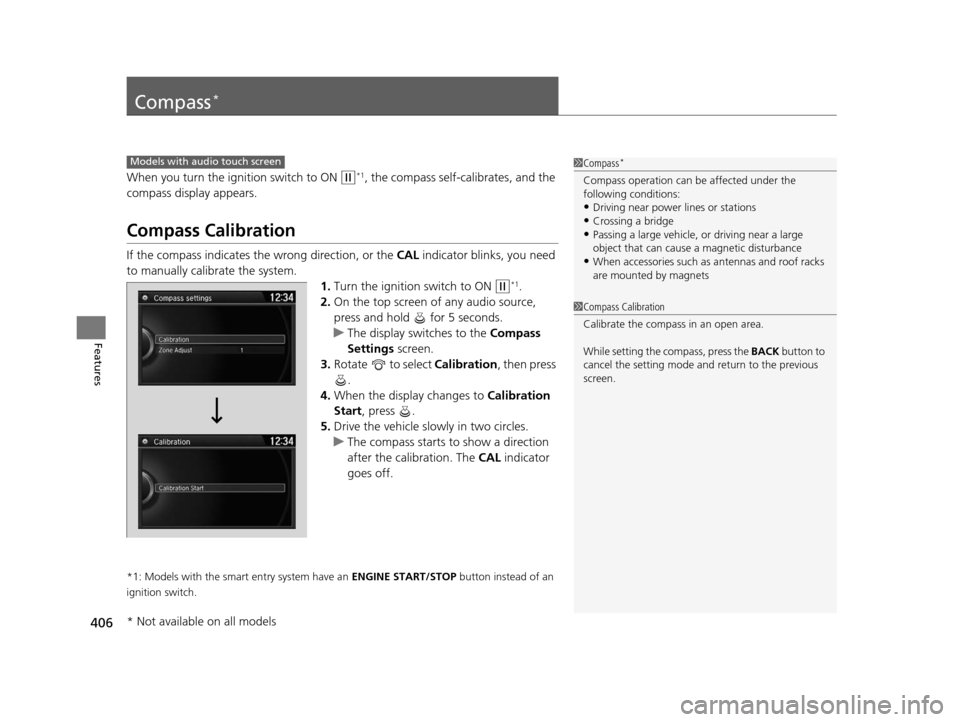

Compass*
When you turn the ignition switch to ON (w*1, the compass self-calibrates, and the
compass display appears.
Compass Calibration
If the compass indicates the wrong direction, or the CAL indicator blinks, you need
to manually calibrate the system. 1.Turn the ignition switch to ON
(w*1.
2. On the top screen of any audio source,
press and hold for 5 seconds.
u The display switches to the Compass
Settings screen.
3. Rotate to select Calibration , then press
.
4. When the display changes to Calibration
Start, press .
5. Drive the vehicle slowly in two circles.
u The compass starts to show a direction
after the calibration. The CAL indicator
goes off.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with audio touch screen1 Compass*
Compass operation can be affected under the
following conditions:
•Driving near power lines or stations
•Crossing a bridge•Passing a large vehicle, or driving near a large
object that can cause a magnetic disturbance
•When accessories such as antennas and roof racks
are mounted by magnets
1 Compass Calibration
Calibrate the compass in an open area.
While setting the compass, press the BACK button to
cancel the setting mode a nd return to the previous
screen.
* Not available on all models
15 CROSSTOUR-31TP66500.book 406 ページ ２０１４年７月３１日　木曜日　午後３時２３分

407
uuCompass*uCompass Zone Selection
Features

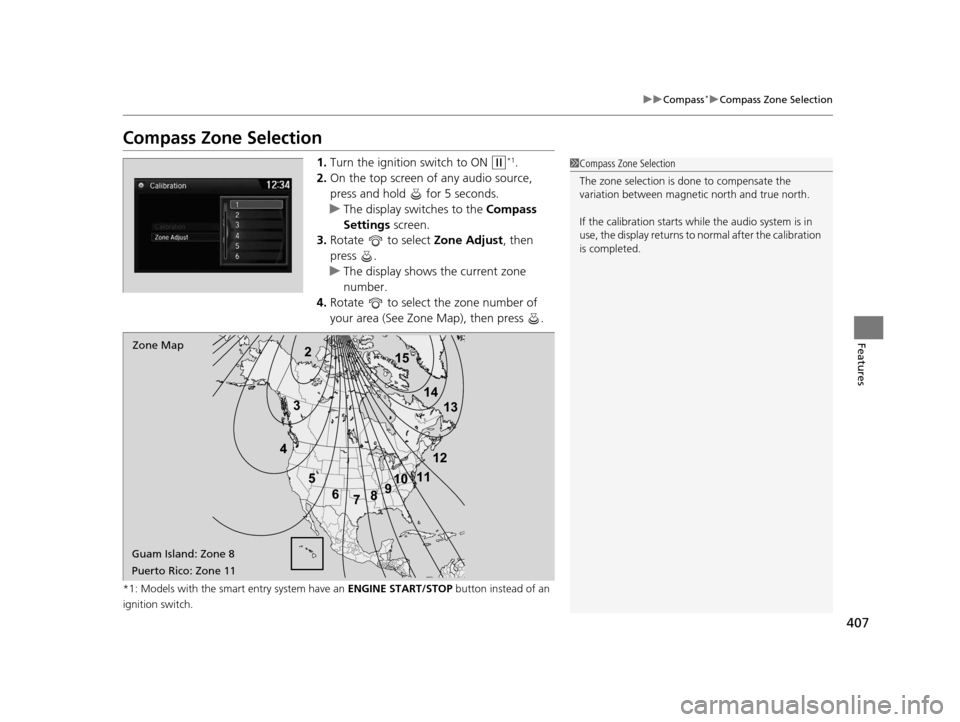

Compass Zone Selection
1. Turn the ignition switch to ON (w*1.
2. On the top screen of any audio source,
press and hold for 5 seconds.
u The display swit ches to the Compass
Settings screen.
3. Rotate to select Zone Adjust, then
press .
u The display shows the current zone
number.
4. Rotate to select the zone number of
your area (See Zone Map), then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
2
3
4 5678910
111213
14
15Zone Map
Guam Island: Zone 8
Puerto Rico: Zone 11
1 Compass Zone Selection
The zone selection is done to compensate the
variation between magneti c north and true north.
If the calibration starts while the audio system is in
use, the display returns to normal after the calibration
is completed.
