uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
■Automatic Transmission Fluid
Specified fluid: Honda Automatic Transmission Fluid ATF DW-1
1Automatic Transmission Fluid
NOTICE
Do not mix Honda ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Honda ATF
DW-1 may adversely af fect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Honda ATF DW-1 is not covered
by Honda’s new vehicle warranty.
15 CROSSTOUR-31TP66500.book 480 ページ ２０１４年７月３１日　木曜日　午後３時２３分

547
uuSpecifications u
Continued
Information
■Brake Fluid
■ Automatic Transmission Fluid
■ Power Steering Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid ATF
DW-1
Capacity Change 2.6 US qt (2.5 ℓ)
SpecifiedHonda Power Steering Fluid
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.0 US qt (3.8 ℓ)
Change
including
filter
4.2 US qt (4.0 ℓ)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.66 US gal (6.3 ℓ)
(change including the remaining 0.18 US gal
(0.68 ℓ) in the reserve tank)
■ Tire
Regular
Size225/65R17 102TPressure
psi (kPa [kgf/cm2])Front32 (220 [2.2])Rear32 (220 [2.2])
Compact
Spare Size
T155/90D16 110M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular17 x 6 1/2JCompact Spare16 x 4T
15 CROSSTOUR-31TP66500.book 547 ページ ２０１４年７月３１日　木曜日　午後３時２３分

549
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
■ Rear Differential Fluid
■ Transfer Assembly Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid ATF
DW-1
Capacity Change 3.28 US qt (3.1 ℓ)
SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.3 US qt (1.2 ℓ)
SpecifiedHonda Hypoid Gear Oil HGO-1
Capacity Change 0.43 US qt (0.41 ℓ)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.92 US gal (7.3 ℓ)
(change including the remaining 0.17 US gal
(0.64 ℓ) in the reserve tank)
■ Tire
*1: 2WD models
*2: 4WD models
Regular
Size225/60R18 100HPressure
psi (kPa [kgf/cm2])33 (230 [2.3])FrontRear33 (230 [2.3])
Compact
Spare Size
T155/90D16 110M*1
T155/90D17 101M*2
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular18 x 7J
Compact Spare16 x 4T*1
17 x 4T*2
15 CROSSTOUR-31TP66500.book 549 ページ ２０１４年７月３１日　木曜日　午後３時２３分

Index
562
Index
Index
A
ABS (Anti-lock Brake System)................... 451
Accessories and Modifications ................. 460
Accessory Power Sockets .......................... 147
Additives
Coolant ................................................... 478
Engine Oil ................................................ 472
Washer .................................................... 483
Additives, Engine Oil ................................ 472
Adjusting Armrest ................................................... 141
Front Seats .............................................. 133
Head Restraints........................................ 136
Mirrors .................................................... 130
Rear Seats................................................ 139
Steering Wheel ........................................ 129
Aha
TM................................................. 209, 262
Air Conditioning System (Climate Control System) .................................................... 157
Changing the Mode ........................ 157, 158
Defrosting the Windshield and Windows ............................................... 159
Dust and Pollen Filter ............................... 509
Recirculation/Fresh Air Mode ........... 157, 158
Sensors .................................................... 162
Synchronized Mode ................................. 161
Using Automatic Climate Control ............ 157
Air Conditioning System (Heating and
Cooling System) ...................................... 154
Cooling ................................................... 156 Defrosting the Windshield and
Windows ............................................... 156
Dust and Pollen Filter............................... 509
Heating ................................................... 155
Air Pressure ............................... 498, 547, 549
Airbags ........................................................ 39
Advanced Airbags ..................................... 45
Airbag Care............................................... 53
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 42
Indicator........................................ 50, 73, 79
Passenger Airbag Off Indicator .................. 51
Sensors ..................................................... 39
Side Airbag Cutoff System......................... 48
Side Airbag Off Indicator ........................... 52
Side Airbags .............................................. 46
Side Curtain Airbags.................................. 49
AM/FM Radio ............................ 171, 193, 232
Anti-lock Brake System (ABS) .................. 451
Indicator.................................................... 73
Armrest ..................................................... 141
Audio Remote Controls ........................... 168
Audio System ............................................ 164
Adjusting the Sound................ 170, 191, 222
Auxiliary Input Jack.................................. 165
Error Messages ........................................ 268
General Information ................................ 276
HDD ........................................................ 242
Internet Radio ................................. 207, 260
iPod ................................................ 203, 252
MP3/WMA/AAC ...................... 179, 210, 263 Reactivating ............................................ 166
Recommended CDs ................................ 277
Recommended Devices ........................... 279
Remote Controls ..................................... 168
Security Code ......................................... 166
Theft Protection ...................................... 166
Touch Screen .................................. 183, 216
USB Adapter Cable ................................. 165
USB Flash Drives...................................... 279
Authorized Manuals ................................ 557
Auto Door Locking/Unlocking ................ 101
Customize ...................................... 297, 308
Automatic Lighting .................................. 120
Automatic Transmission .......................... 425
Creeping................................................. 425
Fluid ....................................................... 480
Kickdown ............................................... 425
Operating the Shift Lever .......... 20, 427, 429
Shift Lever Does Not Move ...................... 531
Shifting ........................................... 426, 428
Auxiliary Input Jack ................................. 165
B
Battery...................................................... 506
Charging System Indicator ................ 71, 534
Jump Starting ......................................... 528
Maintenance (Checking the Battery) ....... 506
Maintenance (Replacing) ......................... 507
Belts (Seat) .................................................. 32
Beverage Holders ..................................... 146
15 CROSSTOUR-31TP66500.book 562 ページ ２０１４年７月３１日　木曜日　午後３時２３分

563
Index
Bluetooth® Audio ............................. 213, 266
Bluetooth ® HandsFreeLink ®.... 319, 331, 366
Booster Seats (For Children) ...................... 65
Brake System ............................................ 449
Anti-lock Brake System (ABS) .................. 451
Brake Assist System................................. 452
Fluid ....................................................... 481
Foot Brake .............................................. 450
Indicator ........................................... 70, 536
Parking Brake.......................................... 449
Brightness Control (Instrument Panel) ... 125
Bulb Replacement .................................... 484
Brake Light, Taillight, Back-Up Light, Rear
Turn Signal Light and Lower Rear Side
Marker Light ....................................... 490
Fog Lights ............................................... 486
Front Turn Signal/Parking Light ............... 489
Headlights .............................................. 484
High-Mount Brake Light.......................... 492
Rear License Plate Light ........................... 492
Side Marker Lights .................................. 488
Bulb Specifications ........................... 546, 548
C
Carbon Monoxide Gas ............................... 66
Cargo Hook .............................................. 149
Carrying Cargo ................................. 411, 413
CD Player .................................. 173, 200, 239
Center Pocket ........................................... 152
Certification Label ................................... 550 Changing Bulbs
......................................... 484
Charging System Indicator ................. 71, 534
Child Safety ................................................. 54
Childproof Door Locks ............................. 100
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 61
Larger Children .......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Childproof Door Locks ............................. 100
Cleaning the Exterior ............................... 512
Cleaning the Interior ................................ 510
Climate Control System ............................ 157
Changing the Mode ................................ 157
Defrosting the Windshield and Windows ............................................... 159
Dust and Pollen Filter ............................... 509
Recirculation and Fresh Air Mode ............ 158
Recirculation/Fresh Air Mode ................... 157
Sensors .................................................... 162
Synchronized Mode ................................. 161
Using Automatic Climate Control ............ 157
Clock ............................................................ 88
Coat Hook ................................................. 148
Compact Spare Tire .................. 517, 547, 549
Compass ............................................ 404, 406
Console Compartment ............................. 145 Controls
....................................................... 87
Coolant (Engine) ...................................... 478
Adding to the Radiator ............................ 479
Adding to the Reserve Tank..................... 478
Overheating ............................................ 532
Creeping (Automatic Transmission) ........ 425
Cruise Control ........................................... 432
Indicator.................................................... 81
Cup Holders .............................................. 146
Customer Service Information ................. 558
Customized Features ................................ 280
D
Daytime Running Lights .......................... 122
Dead Battery ............................................. 528
Defrosting the Windshield and Windows ......................................... 156, 159
Devices that Emit Radio Waves ............... 551
Dimming Headlights ............................................... 119
Rearview Mirror....................................... 130
Dipstick (Engine Oil) ................................. 473
Directional Signals (Turn Signal) ............. 119
Display Button .................................. 186, 218
Door Mirrors ............................................. 131
15 CROSSTOUR-31TP66500.book 563 ページ ２０１４年７月３１日　木曜日　午後３時２３分

564
Index
Doors........................................................... 91
Auto Door Locking .................................. 101
Auto Door Unlocking ............................... 101
Door and Tailgate Open Indicator .............. 74
Door Open Indicator .................................. 31
Keys .......................................................... 91
Locking/Unlocking the Doors from the Inside ....................................................... 99
Locking/Unlocking the Doors from the Outside .................................................... 94
Lockout Prevention System ........................ 98
DOT Tire Quality Grading ........................ 500
Driver’s Seat Lumbar Support .................. 133
Driving ....................................................... 409
Automatic Transmission ........................... 425
Braking .................................................... 449
Cruise Control ......................................... 432
Shifting Gear ................................... 426, 428
Starting the Engine .......................... 420, 422
Driving Position Memory System ............. 127
Dust and Pollen Filter ............................... 509
E
Electric Power Steering (EPS) System
Indicator ............................................ 74, 536
Electronic Stability Control (ESC) ............. 442
Emergency ................................................. 542
Emissions Testing (Readiness Codes) ....... 553
Engine ....................................................... 550
Coolant ................................................... 478 Jump Starting .......................................... 528
Oil ........................................................... 472
Starting ........................................... 420, 422
Switch Buzzer.......................................... 114
Engine Coolant ......................................... 478
Adding to the Radiator ............................ 479
Adding to the Reserve Tank..................... 478
Overheating ............................................ 532
Temperature Gauge .................................. 83
Engine Oil ................................................. 472
Adding .................................................... 475
Checking................................................. 473
Displaying Oil Life .................................... 465
Low Oil Pressure Indicator ................. 70, 534
Recommended Engine Oil ....................... 472
ENGINE START/STOP Button .................... 115
EPS (Electric Power Steering)
System ............................................... 74, 536
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Exterior Care (Cleaning) ........................... 512
Exterior Mirrors ........................................ 131
F
Features.................................................... 163
Filters Dust and Pollen ....................................... 509
Oil ........................................................... 476
Flat Tire ..................................................... 517
Floor Mats ................................................. 511 Fluids
Automatic Transmission .......................... 480
Brake ...................................................... 481
Engine Coolant ....................................... 478
Windshield Washer ................................. 483
Fog Light Indicator .................................... 79
Folding Down the Rear Seats .................. 139
Foot Brake ................................................ 450
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 133
Adjusting ................................................ 133
Fuel ..................................................... 21, 456
Economy................................................. 459
Gauge ...................................................... 83
Low Fuel Indicator ..................................... 72
Recommendation.................................... 456
Refueling ................................................ 456
Fuel Economy ........................................... 459
Fuel Fill Cap ........................................ 21, 458
Message ................................................. 535
Fuel Fill Door ............................................ 457
Fuses ......................................................... 538
Inspecting and Changing ........................ 541
Locations ........................................ 538, 539
G
Gasoline (Fuel) Economy................................................. 459
Gauge ...................................................... 83
Information............................................. 456
15 CROSSTOUR-31TP66500.book 564 ページ ２０１４年７月３１日　木曜日　午後３時２３分

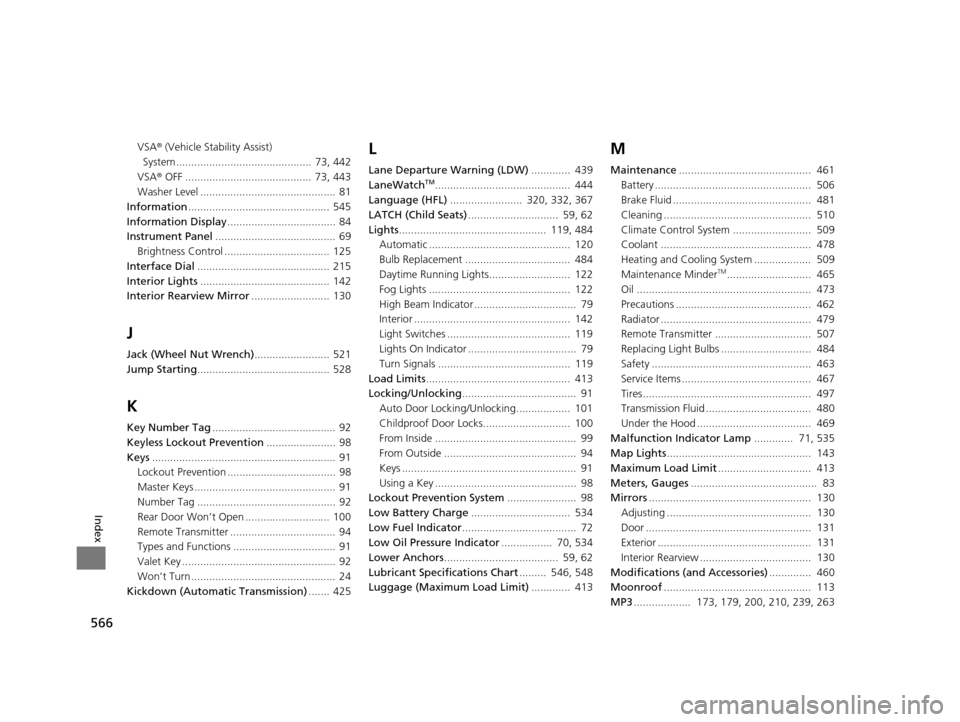

566
Index
VSA® (Vehicle Stability Assist)
System ............................................. 73, 442
VSA ® OFF .......................................... 73, 443
Washer Level ............................................. 81
Information ............................................... 545
Information Display .................................... 84
Instrument Panel ........................................ 69
Brightness Control ................................... 125
Interface Dial ............................................ 215
Interior Lights ........................................... 142
Interior Rearview Mirror .......................... 130
J
Jack (Wheel Nut Wrench) ......................... 521
Jump Starting ............................................ 528
K
Key Number Tag ......................................... 92
Keyless Lockout Prevention ....................... 98
Keys ............................................................. 91
Lockout Prevention .................................... 98
Master Keys ............................................... 91
Number Tag .............................................. 92
Rear Door Won’t Open ............................ 100
Remote Transmitter ................................... 94
Types and Functions .................................. 91
Valet Key ................................................... 92
Won’t Turn ................................................ 24
Kickdown (Automatic Transmission) ....... 425
L
Lane Departure Warning (LDW)............. 439
LaneWatchTM............................................. 444
Language (HFL) ........................ 320, 332, 367
LATCH (Child Seats) .............................. 59, 62
Lights ................................................. 119, 484
Automatic ............................................... 120
Bulb Replacement ................................... 484
Daytime Running Lights........................... 122
Fog Lights ............................................... 122
High Beam Indicator .................................. 79
Interior .................................................... 142
Light Switches ......................................... 119
Lights On Indicator .................................... 79
Turn Signals ............................................ 119
Load Limits ................................................ 413
Locking/Unlocking ...................................... 91
Auto Door Locking/Unlocking.................. 101
Childproof Door Locks............................. 100
From Inside ............................................... 99
From Outside ............................................ 94
Keys .......................................................... 91
Using a Key ............................................... 98
Lockout Prevention System ....................... 98
Low Battery Charge ................................. 534
Low Fuel Indicator ...................................... 72
Low Oil Pressure Indicator ................. 70, 534
Lower Anchors ...................................... 59, 62
Lubricant Specifications Chart ......... 546, 548
Luggage (Maximum Load Limit) ............. 413
M
Maintenance............................................ 461
Battery .................................................... 506
Brake Fluid .............................................. 481
Cleaning ................................................. 510
Climate Control System .......................... 509
Coolant .................................................. 478
Heating and Cooling System ................... 509
Maintenance Minder
TM............................ 465
Oil .......................................................... 473
Precautions ............................................. 462
Radiator .................................................. 479
Remote Transmitter ................................ 507
Replacing Light Bulbs .............................. 484
Safety ..................................................... 463
Service Items ........................................... 467
Tires........................................................ 497
Transmission Fluid ................................... 480
Under the Hood ...................................... 469
Malfunction Indicator Lamp ............. 71, 535
Map Lights ................................................ 143
Maximum Load Limit ............................... 413
Meters, Gauges .......................................... 83
Mirrors ...................................................... 130
Adjusting ................................................ 130
Door ....................................................... 131
Exterior ................................................... 131
Interior Rearview ..................................... 130
Modifications (and Accessories) .............. 460
Moonroof ................................................. 113
MP3 ................... 173, 179, 200, 210, 239, 263
15 CROSSTOUR-31TP66500.book 566 ページ ２０１４年７月３１日　木曜日　午後３時２３分

568
Index
Security System......................................... 107
Immobilizer System Indicator ..................... 80
Security System Alarm Indicator ................. 80
Select Lever ................................. 20, 426, 428
Operation .................................. 20, 427, 429
Releasing ................................................. 531
Won’t Move ............................................ 531
Select/Reset Knob ....................................... 84
Selecting a Child Seat ................................. 58
Selector Knob (Audio) ...................... 169, 182
Sequential Shift Mode .............................. 430
Setting the Clock ........................................ 88
Shift Lever ................................... 20, 426, 428
Shift Lever Position Indicator ........... 427, 429
Shifting (Transmission) ..................... 426, 428
Shoulder Anchor ......................................... 36
Side Airbags ................................................ 46
Cutoff System............................................ 48
Off Indicator .............................................. 48
Side Curtain Airbags ................................... 49
Smart Entry with Push Button Start System ........................................................ 96
Snow Tires ................................................. 505
Spare Tire .................................. 517, 547, 549
Spark Plugs ........................................ 546, 548
Specifications ............................................ 546
Specified Fuel ............................ 456, 546, 548
Speedometer ............................................... 83
SRS Airbags (Airbags) ................................. 42
Starting the Engine .......................... 420, 422
Does Not Start ......................................... 525 Engine Switch Buzzer .............................. 114
Jump Starting .......................................... 528
Steering Wheel ......................................... 129
Adjusting ................................................ 129
Stopping ................................................... 453
Summer Tires ............................................ 505
Sunglasses Holder ..................................... 152
Supplemental Restraint System (SRS) ........ 42
Switches (Around the Steering Wheel) ............................................. 4, 5, 114
Synchronized Mode ................................. 161
T
Tachometer................................................. 83
Tailgate ..................................................... 105
Light Bulb........................................ 546, 548
Unable to Open....................................... 544
Temperature Gauge ................................... 83
Temperature Sensor ................................. 162
Time (Setting) ............................................. 88
Tire Pressure Monitoring System (TPMS) ..................................................... 446
Indicator............................................ 75, 537
Tires ........................................................... 497
Air Pressure ............................. 498, 547, 549
Checking and Maintaining ...................... 497
Inspection ............................................... 497
Labeling .................................................. 498
Puncture (Flat Tire) .................................. 517
Regulations ............................................. 500 Rotation.................................................. 504
Spare Tire ............................... 517, 547, 549
Summer .................................................. 505
Tire Chains.............................................. 505
Wear Indicators....................................... 502
Winter .................................................... 505
Tools ......................................................... 516
Towing a Trailer ....................................... 415
Equipment and Accessories ..................... 416
Load Limits ............................................. 415
Towing Your Vehicle ............................... 419
Emergency .............................................. 542
TPMS (Tire Pressure Monitoring System) .................................................... 446
Indicator ........................................... 75, 537
Transmission ..................................... 426, 428
Automatic....................................... 426, 428
Fluid ....................................................... 480
Number .................................................. 550
Shift Lever Position Indicator ........... 427, 429
Trip Meter .................................................. 85
Troubleshooting ...................................... 515
Blown Fuse ..................................... 538, 539
Brake Pedal Vibrates ................................. 24
Buzzer Sounds When Opening Door ......... 25
Emergency Towing ................................. 542
Engine Won’t Start ................................. 525
Noise When Braking ................................. 25
Overheating ............................................ 532
Puncture/Flat Tire .................................... 517
Rear Door Won’t Open ..................... 24, 100
15 CROSSTOUR-31TP66500.book 568 ページ ２０１４年７月３１日　木曜日　午後３時２３分
