2015 HONDA CROSSTOUR fold seats

139
uuAdjusting the Seats uRear Seats
Continued
Controls

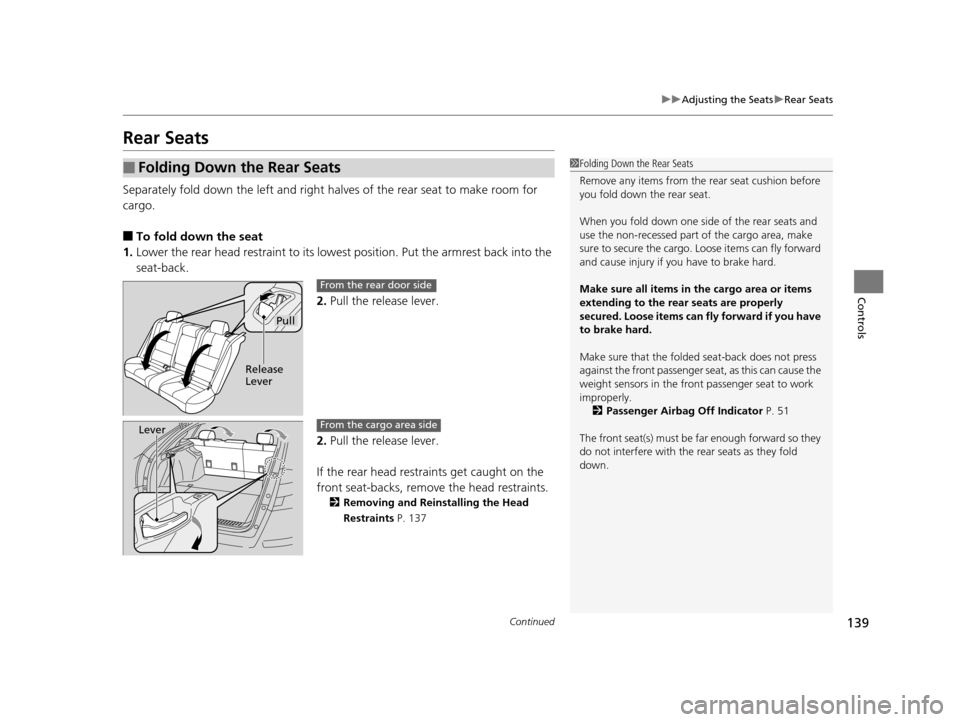

Rear Seats
Separately fold down the left and right ha lves of the rear seat to make room for
cargo.
■To fold down the seat
1. Lower the rear head restraint to its lowest position. Put the armrest back into the
seat-back.
2.Pull the release lever.
2. Pull the release lever.
If the rear head restraints get caught on the
front seat-backs, remove the head restraints.
2Removing and Reinstalling the Head
Restraints P. 137
■Folding Down the Rear Seats1Folding Down the Rear Seats
Remove any items from the rear seat cushion before
you fold down the rear seat.
When you fold down one side of the rear seats and
use the non-recessed part of the cargo area, make
sure to secure the cargo. Loose items can fly forward
and cause injury if you have to brake hard.
Make sure all items in the cargo area or items
extending to the rear seats are properly
secured. Loose items can fly forward if you have
to brake hard.
Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly. 2 Passenger Airbag Off Indicator P. 51
The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.
Pull
Release
Lever
From the rear door side
LeverFrom the cargo area side
15 CROSSTOUR-31TP66500.book 139 ページ ２０１４年７月３１日　木曜日　午後３時２３分

564
Index
Doors........................................................... 91
Auto Door Locking .................................. 101
Auto Door Unlocking ............................... 101
Door and Tailgate Open Indicator .............. 74
Door Open Indicator .................................. 31
Keys .......................................................... 91
Locking/Unlocking the Doors from the Inside ....................................................... 99
Locking/Unlocking the Doors from the Outside .................................................... 94
Lockout Prevention System ........................ 98
DOT Tire Quality Grading ........................ 500
Driver’s Seat Lumbar Support .................. 133
Driving ....................................................... 409
Automatic Transmission ........................... 425
Braking .................................................... 449
Cruise Control ......................................... 432
Shifting Gear ................................... 426, 428
Starting the Engine .......................... 420, 422
Driving Position Memory System ............. 127
Dust and Pollen Filter ............................... 509
E
Electric Power Steering (EPS) System
Indicator ............................................ 74, 536
Electronic Stability Control (ESC) ............. 442
Emergency ................................................. 542
Emissions Testing (Readiness Codes) ....... 553
Engine ....................................................... 550
Coolant ................................................... 478 Jump Starting .......................................... 528
Oil ........................................................... 472
Starting ........................................... 420, 422
Switch Buzzer.......................................... 114
Engine Coolant ......................................... 478
Adding to the Radiator ............................ 479
Adding to the Reserve Tank..................... 478
Overheating ............................................ 532
Temperature Gauge .................................. 83
Engine Oil ................................................. 472
Adding .................................................... 475
Checking................................................. 473
Displaying Oil Life .................................... 465
Low Oil Pressure Indicator ................. 70, 534
Recommended Engine Oil ....................... 472
ENGINE START/STOP Button .................... 115
EPS (Electric Power Steering)
System ............................................... 74, 536
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Exterior Care (Cleaning) ........................... 512
Exterior Mirrors ........................................ 131
F
Features.................................................... 163
Filters Dust and Pollen ....................................... 509
Oil ........................................................... 476
Flat Tire ..................................................... 517
Floor Mats ................................................. 511 Fluids
Automatic Transmission .......................... 480
Brake ...................................................... 481
Engine Coolant ....................................... 478
Windshield Washer ................................. 483
Fog Light Indicator .................................... 79
Folding Down the Rear Seats .................. 139
Foot Brake ................................................ 450
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 133
Adjusting ................................................ 133
Fuel ..................................................... 21, 456
Economy................................................. 459
Gauge ...................................................... 83
Low Fuel Indicator ..................................... 72
Recommendation.................................... 456
Refueling ................................................ 456
Fuel Economy ........................................... 459
Fuel Fill Cap ........................................ 21, 458
Message ................................................. 535
Fuel Fill Door ............................................ 457
Fuses ......................................................... 538
Inspecting and Changing ........................ 541
Locations ........................................ 538, 539
G
Gasoline (Fuel) Economy................................................. 459
Gauge ...................................................... 83
Information............................................. 456
15 CROSSTOUR-31TP66500.book 564 ページ ２０１４年７月３１日　木曜日　午後３時２３分

567
Index
Multi-View Rear Camera......................... 455
N
Numbers (Identification)......................... 550
O
Odometer................................................... 84
Oil (Engine) .............................................. 472
Adding ................................................... 475
Checking ................................................ 473
Displaying Oil Life ................................... 465
Low Oil Pressure Indicator ................. 70, 534
Recommended Engine Oil ....................... 472
Viscosity.................................................. 472
Opening/Closing
Hood ...................................................... 471
Moonroof ............................................... 113
Power Windows...................................... 110
Tailgate................................................... 105
Outside Temperature ................................ 86
Adjusting .................................................. 86
Overheating ............................................. 532
P
Paddle Shifters (Sequential Shift
Mode) ..................................................... 430
Pandora ®.......................................... 208, 261
Panic Mode ............................................... 109
Parking ..................................................... 453 Parking Brake
........................................... 449
Parking Brake and Brake System
Indicator ............................................ 70, 536
Passenger Airbag Off Indicator ................. 51
Passing Indicators ..................................... 119
Power Windows ........................................ 110
Precautions While Driving ....................... 424
Rain ......................................................... 424
Pregnant Women ....................................... 37
Puncture (Tire) .......................................... 517
R
Radiator.................................................... 479
Radio (AM/FM) .......................... 171, 193, 232
Radio (XM ®) ...................................... 197, 236
Radio Data System (RDS) .......... 172, 195, 234
RDS (Radio Data System) .......... 172, 195, 234
Readiness Codes (Emissions Testing) ....... 553
Rear Defogger/Heated Door Mirror Button ..................................................... 126
Rear Seats (Folding Down) ....................... 139
Rearview Mirror ........................................ 130
Refueling ................................................... 456
Fuel Gauge ................................................ 83
Gasoline .................................. 456, 546, 548
Low Fuel Indicator ..................................... 72
Regulations ............................... 447, 500, 551
Remote Transmitter ................................... 94
Replacement
Battery .................................................... 507 Bulbs ....................................................... 484
Front Wiper Blade Rubber ....................... 493
Fuses ............................................... 538, 539
Rear Wiper Blade Rubber......................... 495
Tires ........................................................ 503
Reporting Safety Defects ......................... 552
Resetting a Trip Meter ............................... 85
S
Safe Driving................................................ 27
Safety Check ............................................... 31
Safety Labels ............................................... 67
Safety Message ............................................. 1
Seat Belts .................................................... 32
Adjusting the Shoulder Anchor.................. 36
Automatic Seat Belt Tensioners ................. 34
Checking................................................... 38
Fastening .................................................. 35
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 61
Pregnant Women ...................................... 37
Reminder .................................................. 33
Warning Indicator ............................... 33, 71
Seat Heaters .............................................. 153
Seats .......................................................... 133
Adjusting ................................................ 133
Driver’s Seat Lumbar Support .................. 133
Front Seats .............................................. 133
Rear Seats ............................................... 139
Seat Heaters ............................................ 153
15 CROSSTOUR-31TP66500.book 567 ページ ２０１４年７月３１日　木曜日　午後３時２３分
