2015 HONDA CROSSTOUR engine overheat

Quick Reference Guide
23
Handling the Unexpected (P 515)
Flat Tire (P 517)
● Park in a safe location and replace the
flat tire with the comp act spare tire in the
cargo area.
Indicators Come On
(P 534)
● Identify the indica tor and consult the
owner’s manual.
Engine Won’t Start
(P 525)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 538)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 532)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing
(P 542)
●Call a professional towing service if you
need to tow your vehicle.
15 CROSSTOUR-31TP66500.book 23 ページ ２０１４年７月３１日　木曜日　午後３時２３分

83
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
■Fuel Gauge
■Temperature Gauge
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal. 2 Overheating P. 532
15 CROSSTOUR-31TP66500.book 83 ページ ２０１４年７月３１日　木曜日　午後３時２３分

Continued147
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The accessory power so ckets can be used when the i gnition switch is in ACCESSORY
(q or ON (w*1.
■Accessory power socket (console panel)
Open the cover to use it.
■Accessory power socket (console
compartment)
Open the console lid and the cover to use it.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 120
watts or less (10 amps).
To prevent battery drain, only use the power socket
with the engine running.
When each sockets is being used simultaneously, the
combined power rating of the accessories should not
exceed 120 watts (10 amps).
15 CROSSTOUR-31TP66500.book 147 ページ ２０１４年７月３１日　木曜日　午後３時２３分

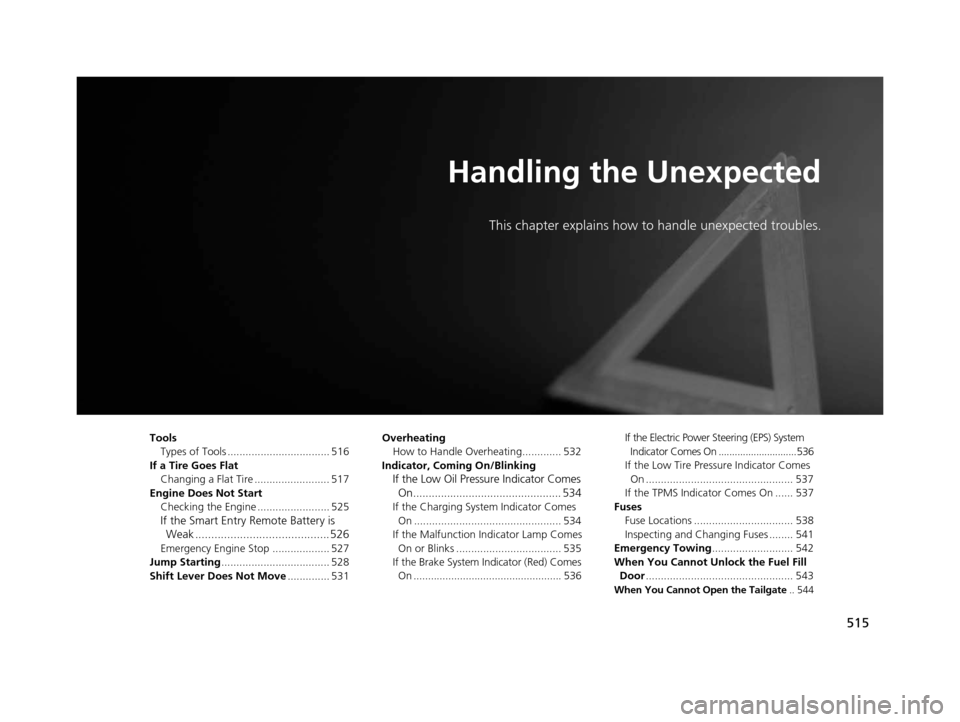

515
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 516
If a Tire Goes Flat Changing a Flat Tire ......................... 517
Engine Does Not Start Checking the Engine ........................ 525
If the Smart Entry Remote Battery is Weak .......................................... 526
Emergency Engine Stop ................... 527
Jump Starting .................................... 528
Shift Lever Does Not Move .............. 531Overheating
How to Handle Overheating............. 532
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On................................................ 534
If the Charging System Indicator Comes
On ................................................. 534
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 535
If the Brake System Indicator (Red) Comes On ................................................... 536 If the Electric Power Steering (EPS) System
Indicator Comes On .............................536
If the Low Tire Pressure Indicator Comes On ................................................. 537
If the TPMS Indicator Comes On ...... 537
Fuses Fuse Locations ................................. 538
Inspecting and Changing Fuses ........ 541
Emergency Towing ........................... 542
When You Cannot Unlock the Fuel Fill Door ................................................. 543
When You Cannot Open the Tailgate .. 544
15 CROSSTOUR-31TP66500.book 515 ページ ２０１４年７月３１日　木曜日　午後３時２３分

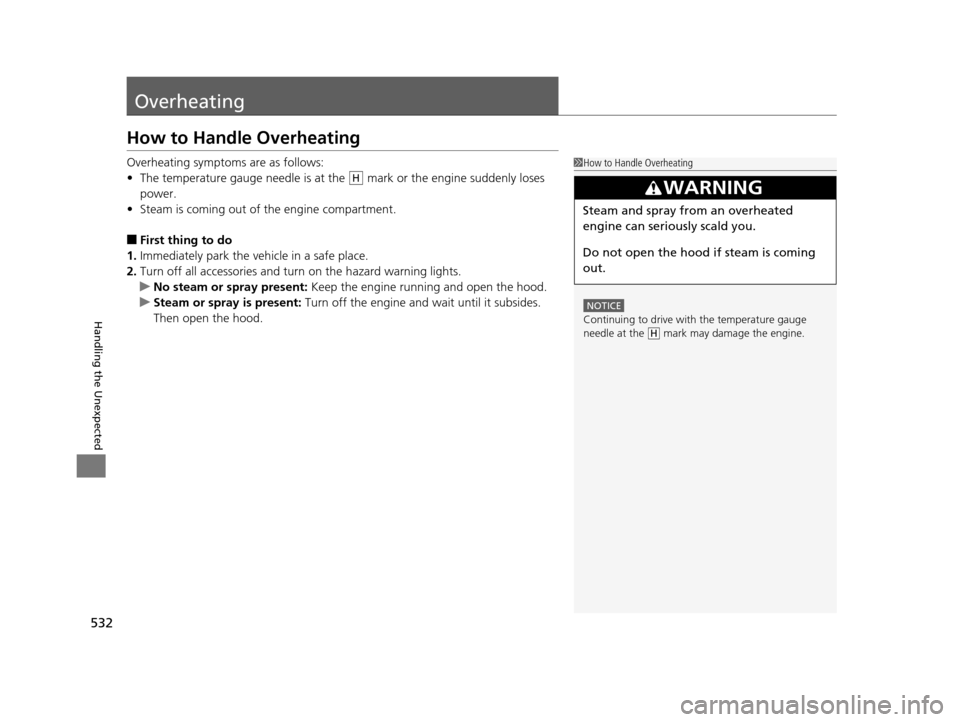

532
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperature gauge needle is at the mark or the engine suddenly loses
power.
• Steam is coming out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the engine running and open the hood.
u Steam or spray is present: Turn off the engine and wait until it subsides.
Then open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge
needle at the mark may damage the engine.
3WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the hood if steam is coming
out.
H
H
15 CROSSTOUR-31TP66500.book 532 ページ ２０１４年７月３１日　木曜日　午後３時２３分

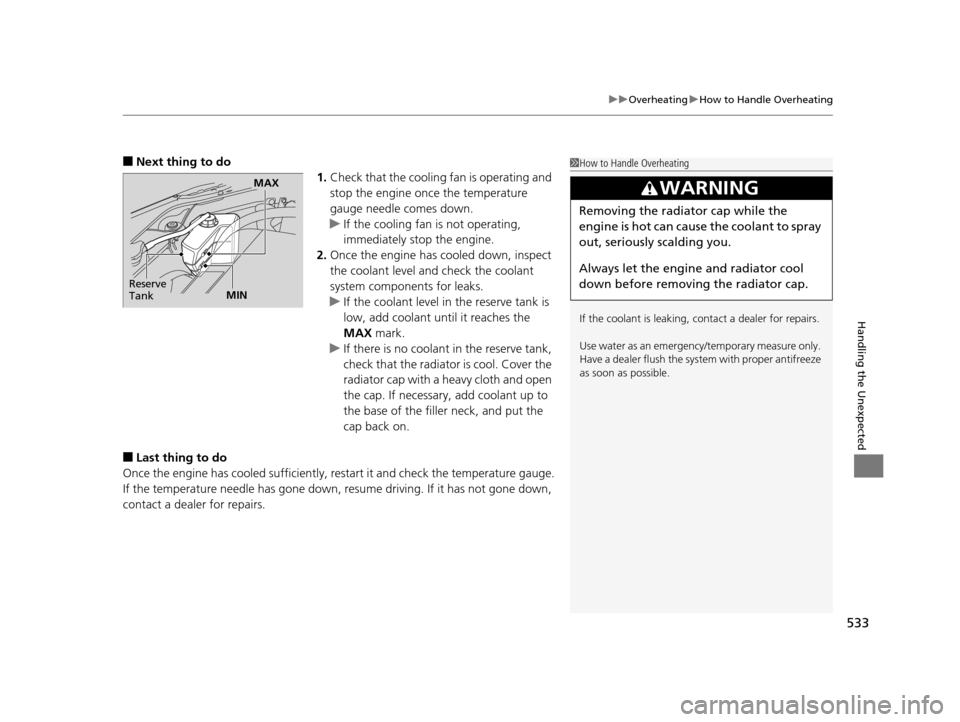

533
uuOverheating uHow to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the coolant
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature needle has gone down, resume driving. If it has not gone down,
contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergen cy/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
Tank
MAX
MIN
15 CROSSTOUR-31TP66500.book 533 ページ ２０１４年７月３１日　木曜日　午後３時２３分

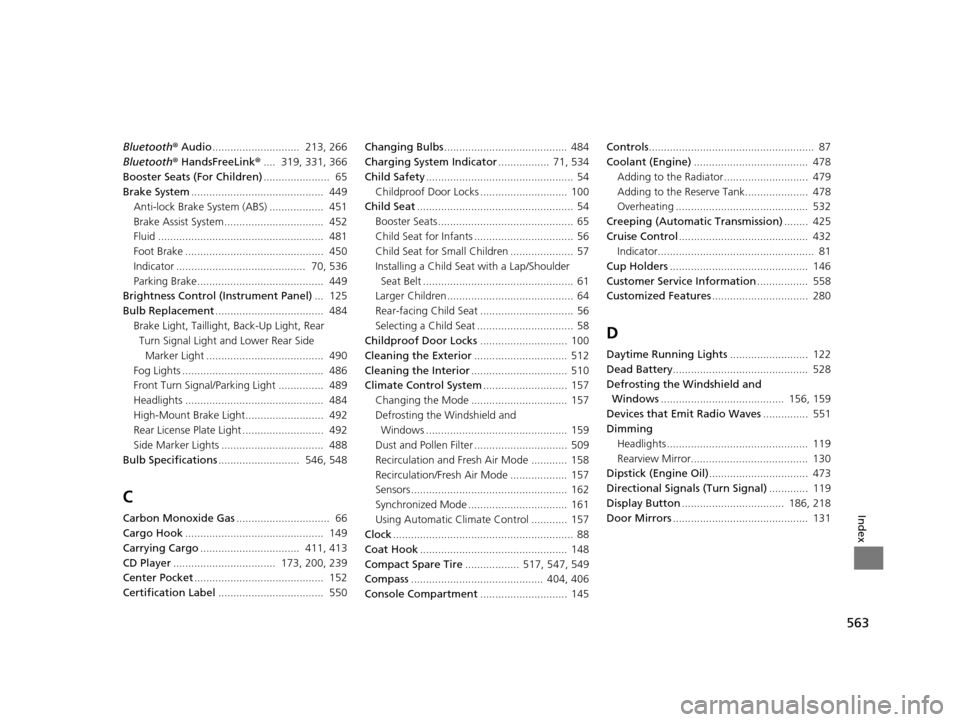

563
Index
Bluetooth® Audio ............................. 213, 266
Bluetooth ® HandsFreeLink ®.... 319, 331, 366
Booster Seats (For Children) ...................... 65
Brake System ............................................ 449
Anti-lock Brake System (ABS) .................. 451
Brake Assist System................................. 452
Fluid ....................................................... 481
Foot Brake .............................................. 450
Indicator ........................................... 70, 536
Parking Brake.......................................... 449
Brightness Control (Instrument Panel) ... 125
Bulb Replacement .................................... 484
Brake Light, Taillight, Back-Up Light, Rear
Turn Signal Light and Lower Rear Side
Marker Light ....................................... 490
Fog Lights ............................................... 486
Front Turn Signal/Parking Light ............... 489
Headlights .............................................. 484
High-Mount Brake Light.......................... 492
Rear License Plate Light ........................... 492
Side Marker Lights .................................. 488
Bulb Specifications ........................... 546, 548
C
Carbon Monoxide Gas ............................... 66
Cargo Hook .............................................. 149
Carrying Cargo ................................. 411, 413
CD Player .................................. 173, 200, 239
Center Pocket ........................................... 152
Certification Label ................................... 550 Changing Bulbs
......................................... 484
Charging System Indicator ................. 71, 534
Child Safety ................................................. 54
Childproof Door Locks ............................. 100
Child Seat .................................................... 54
Booster Seats ............................................. 65
Child Seat for Infants ................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 61
Larger Children .......................................... 64
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Childproof Door Locks ............................. 100
Cleaning the Exterior ............................... 512
Cleaning the Interior ................................ 510
Climate Control System ............................ 157
Changing the Mode ................................ 157
Defrosting the Windshield and Windows ............................................... 159
Dust and Pollen Filter ............................... 509
Recirculation and Fresh Air Mode ............ 158
Recirculation/Fresh Air Mode ................... 157
Sensors .................................................... 162
Synchronized Mode ................................. 161
Using Automatic Climate Control ............ 157
Clock ............................................................ 88
Coat Hook ................................................. 148
Compact Spare Tire .................. 517, 547, 549
Compass ............................................ 404, 406
Console Compartment ............................. 145 Controls
....................................................... 87
Coolant (Engine) ...................................... 478
Adding to the Radiator ............................ 479
Adding to the Reserve Tank..................... 478
Overheating ............................................ 532
Creeping (Automatic Transmission) ........ 425
Cruise Control ........................................... 432
Indicator.................................................... 81
Cup Holders .............................................. 146
Customer Service Information ................. 558
Customized Features ................................ 280
D
Daytime Running Lights .......................... 122
Dead Battery ............................................. 528
Defrosting the Windshield and Windows ......................................... 156, 159
Devices that Emit Radio Waves ............... 551
Dimming Headlights ............................................... 119
Rearview Mirror....................................... 130
Dipstick (Engine Oil) ................................. 473
Directional Signals (Turn Signal) ............. 119
Display Button .................................. 186, 218
Door Mirrors ............................................. 131
15 CROSSTOUR-31TP66500.book 563 ページ ２０１４年７月３１日　木曜日　午後３時２３分

564
Index
Doors........................................................... 91
Auto Door Locking .................................. 101
Auto Door Unlocking ............................... 101
Door and Tailgate Open Indicator .............. 74
Door Open Indicator .................................. 31
Keys .......................................................... 91
Locking/Unlocking the Doors from the Inside ....................................................... 99
Locking/Unlocking the Doors from the Outside .................................................... 94
Lockout Prevention System ........................ 98
DOT Tire Quality Grading ........................ 500
Driver’s Seat Lumbar Support .................. 133
Driving ....................................................... 409
Automatic Transmission ........................... 425
Braking .................................................... 449
Cruise Control ......................................... 432
Shifting Gear ................................... 426, 428
Starting the Engine .......................... 420, 422
Driving Position Memory System ............. 127
Dust and Pollen Filter ............................... 509
E
Electric Power Steering (EPS) System
Indicator ............................................ 74, 536
Electronic Stability Control (ESC) ............. 442
Emergency ................................................. 542
Emissions Testing (Readiness Codes) ....... 553
Engine ....................................................... 550
Coolant ................................................... 478 Jump Starting .......................................... 528
Oil ........................................................... 472
Starting ........................................... 420, 422
Switch Buzzer.......................................... 114
Engine Coolant ......................................... 478
Adding to the Radiator ............................ 479
Adding to the Reserve Tank..................... 478
Overheating ............................................ 532
Temperature Gauge .................................. 83
Engine Oil ................................................. 472
Adding .................................................... 475
Checking................................................. 473
Displaying Oil Life .................................... 465
Low Oil Pressure Indicator ................. 70, 534
Recommended Engine Oil ....................... 472
ENGINE START/STOP Button .................... 115
EPS (Electric Power Steering)
System ............................................... 74, 536
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Exterior Care (Cleaning) ........................... 512
Exterior Mirrors ........................................ 131
F
Features.................................................... 163
Filters Dust and Pollen ....................................... 509
Oil ........................................................... 476
Flat Tire ..................................................... 517
Floor Mats ................................................. 511 Fluids
Automatic Transmission .......................... 480
Brake ...................................................... 481
Engine Coolant ....................................... 478
Windshield Washer ................................. 483
Fog Light Indicator .................................... 79
Folding Down the Rear Seats .................. 139
Foot Brake ................................................ 450
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 133
Adjusting ................................................ 133
Fuel ..................................................... 21, 456
Economy................................................. 459
Gauge ...................................................... 83
Low Fuel Indicator ..................................... 72
Recommendation.................................... 456
Refueling ................................................ 456
Fuel Economy ........................................... 459
Fuel Fill Cap ........................................ 21, 458
Message ................................................. 535
Fuel Fill Door ............................................ 457
Fuses ......................................................... 538
Inspecting and Changing ........................ 541
Locations ........................................ 538, 539
G
Gasoline (Fuel) Economy................................................. 459
Gauge ...................................................... 83
Information............................................. 456
15 CROSSTOUR-31TP66500.book 564 ページ ２０１４年７月３１日　木曜日　午後３時２３分
