2015 HONDA CROSSTOUR radiator cap

67
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models Canadian models
Radiator Cap U.S. models
U.S. models only
Dashboard
Canadian models
Doorjambs
15 CROSSTOUR-31TP66500.book 67 ページ ２０１４年７月３１日　木曜日　午後３時２３分

469Continued
Maintenance
Maintenance Under the Hood
Maintenance Items Under the Hood
4-cylinder models
Brake Fluid
(Black Cap)
Engine Coolant
Reserve Tank Radiator Cap
Washer Fluid
(Blue Cap) Engine Oil Dipstick
(Orange) Engine Oil Fill Cap
Battery
Power Steering Fluid
(Red Cap)
15 CROSSTOUR-31TP66500.book 469 ページ ２０１４年７月３１日　木曜日　午後３時２３分

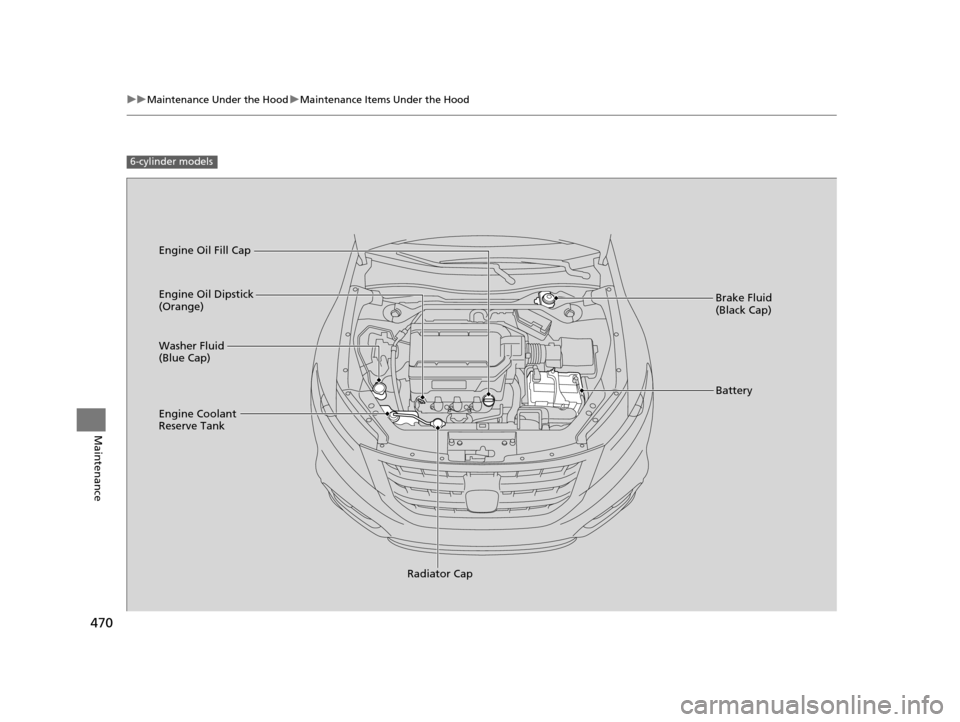

470
uuMaintenance Under the Hood uMaintenance Items Under the Hood
Maintenance
6-cylinder models
Engine Oil Dipstick
(Orange)
Washer Fluid
(Blue Cap)
Engine Coolant
Reserve Tank
Radiator Cap Brake Fluid
(Black Cap)
Engine Oil Fill Cap
Battery
15 CROSSTOUR-31TP66500.book 470 ページ ２０１４年７月３１日　木曜日　午後３時２３分

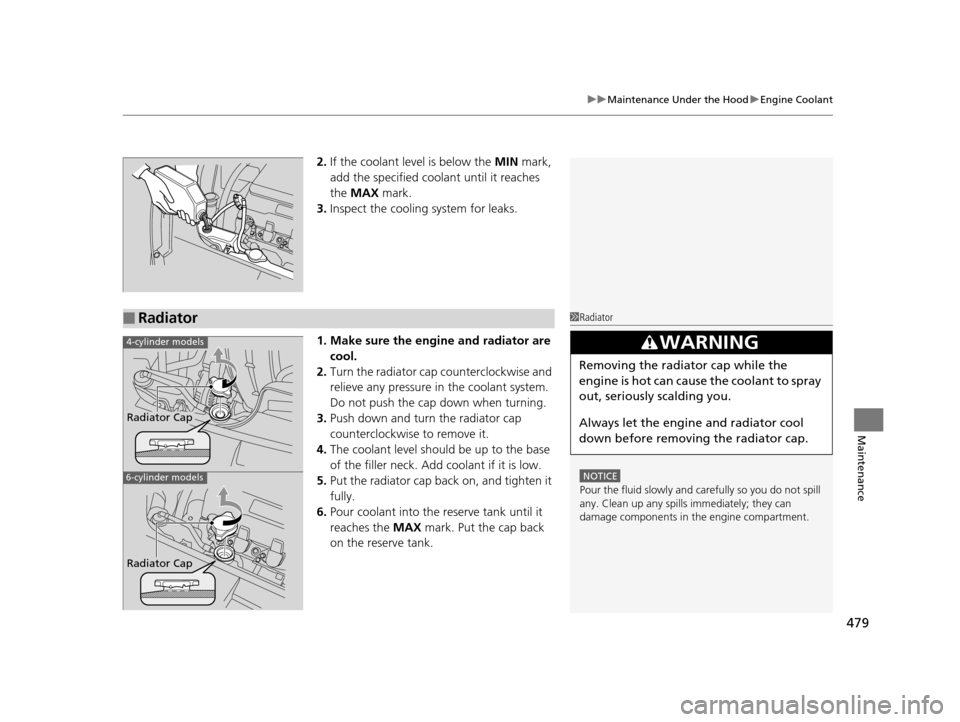

479
uuMaintenance Under the Hood uEngine Coolant
Maintenance
2. If the coolant level is below the MIN mark,
add the specified coolant until it reaches
the MAX mark.
3. Inspect the cooling system for leaks.
1. Make sure the engine and radiator are cool.
2. Turn the radiator cap counterclockwise and
relieve any pressure in the coolant system.
Do not push the cap down when turning.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it
fully.
6. Pour coolant into the reserve tank until it
reaches the MAX mark. Put the cap back
on the reserve tank.
■Radiator1 Radiator
NOTICE
Pour the fluid slowly and ca refully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
4-cylinder models
6-cylinder models
Radiator Cap
Radiator Cap
15 CROSSTOUR-31TP66500.book 479 ページ ２０１４年７月３１日　木曜日　午後３時２３分

533
uuOverheating uHow to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge needle comes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level an d check the coolant
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature needle has gone down, resume driving. If it has not gone down,
contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergen cy/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
Tank
MAX
MIN
15 CROSSTOUR-31TP66500.book 533 ページ ２０１４年７月３１日　木曜日　午後３時２３分

564
Index
Doors........................................................... 91
Auto Door Locking .................................. 101
Auto Door Unlocking ............................... 101
Door and Tailgate Open Indicator .............. 74
Door Open Indicator .................................. 31
Keys .......................................................... 91
Locking/Unlocking the Doors from the Inside ....................................................... 99
Locking/Unlocking the Doors from the Outside .................................................... 94
Lockout Prevention System ........................ 98
DOT Tire Quality Grading ........................ 500
Driver’s Seat Lumbar Support .................. 133
Driving ....................................................... 409
Automatic Transmission ........................... 425
Braking .................................................... 449
Cruise Control ......................................... 432
Shifting Gear ................................... 426, 428
Starting the Engine .......................... 420, 422
Driving Position Memory System ............. 127
Dust and Pollen Filter ............................... 509
E
Electric Power Steering (EPS) System
Indicator ............................................ 74, 536
Electronic Stability Control (ESC) ............. 442
Emergency ................................................. 542
Emissions Testing (Readiness Codes) ....... 553
Engine ....................................................... 550
Coolant ................................................... 478 Jump Starting .......................................... 528
Oil ........................................................... 472
Starting ........................................... 420, 422
Switch Buzzer.......................................... 114
Engine Coolant ......................................... 478
Adding to the Radiator ............................ 479
Adding to the Reserve Tank..................... 478
Overheating ............................................ 532
Temperature Gauge .................................. 83
Engine Oil ................................................. 472
Adding .................................................... 475
Checking................................................. 473
Displaying Oil Life .................................... 465
Low Oil Pressure Indicator ................. 70, 534
Recommended Engine Oil ....................... 472
ENGINE START/STOP Button .................... 115
EPS (Electric Power Steering)
System ............................................... 74, 536
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Exterior Care (Cleaning) ........................... 512
Exterior Mirrors ........................................ 131
F
Features.................................................... 163
Filters Dust and Pollen ....................................... 509
Oil ........................................................... 476
Flat Tire ..................................................... 517
Floor Mats ................................................. 511 Fluids
Automatic Transmission .......................... 480
Brake ...................................................... 481
Engine Coolant ....................................... 478
Windshield Washer ................................. 483
Fog Light Indicator .................................... 79
Folding Down the Rear Seats .................. 139
Foot Brake ................................................ 450
Front Airbags (SRS) .................................... 42
Front Seats ................................................ 133
Adjusting ................................................ 133
Fuel ..................................................... 21, 456
Economy................................................. 459
Gauge ...................................................... 83
Low Fuel Indicator ..................................... 72
Recommendation.................................... 456
Refueling ................................................ 456
Fuel Economy ........................................... 459
Fuel Fill Cap ........................................ 21, 458
Message ................................................. 535
Fuel Fill Door ............................................ 457
Fuses ......................................................... 538
Inspecting and Changing ........................ 541
Locations ........................................ 538, 539
G
Gasoline (Fuel) Economy................................................. 459
Gauge ...................................................... 83
Information............................................. 456
