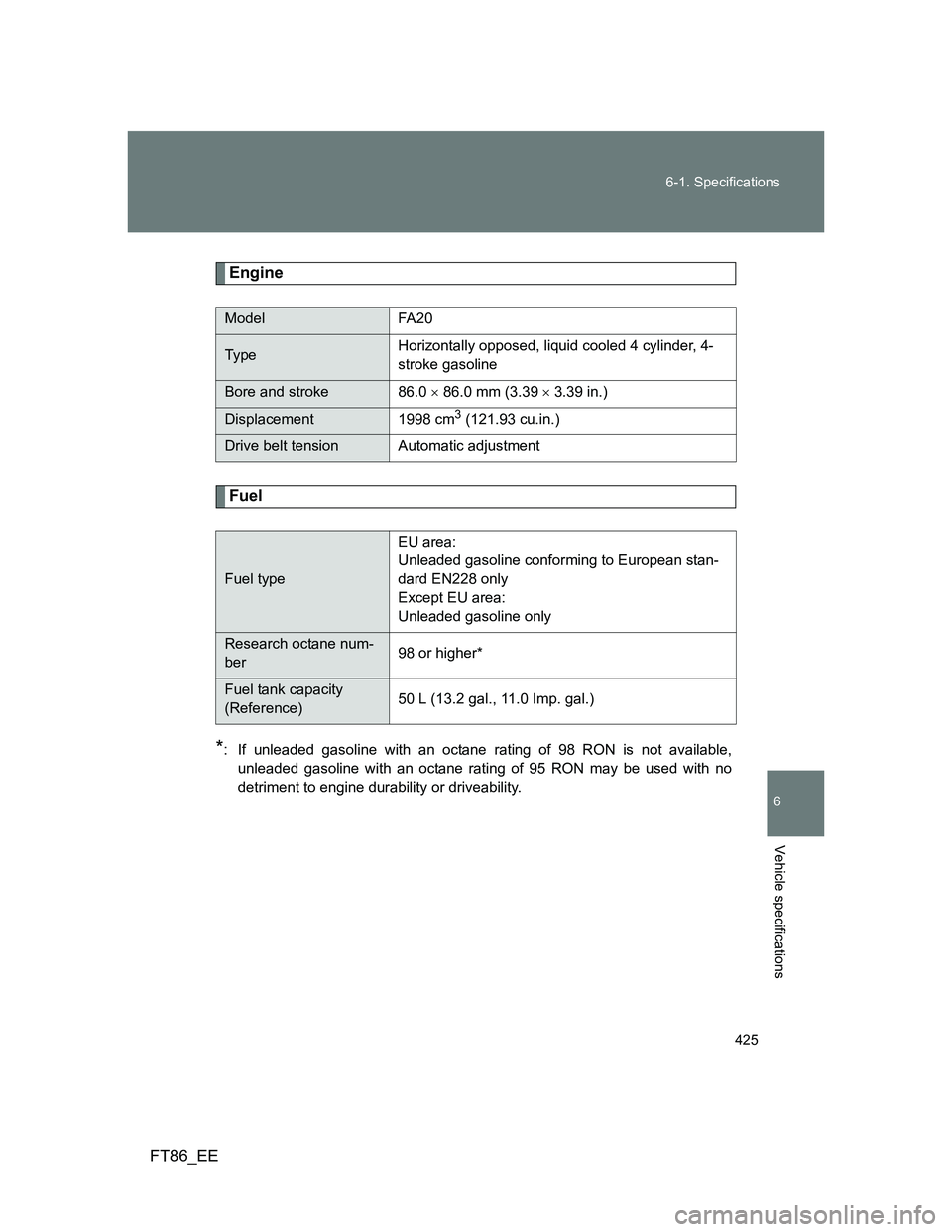

Engine
Fuel
*: If unleaded gasoline with an octane rating of 98 RON is not available,
unleaded gasoline with an octane rating of 95 RON may be used with no
detriment to engine durability or driveability.
Model FA20
Ty p eHorizontally opposed, liquid cooled 4 cylinder, 4-
stroke gasoline
Bore and stroke 86.0 86.0 mm (3.39 3.39 in.)
Displacement 1998 cm3 (121.93 cu.in.)
Drive belt tension Automatic adjustment
Fuel typeEU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane num-
ber98 or higher*
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)
Page 426 of 452
426 6-1. Specifications
FT86_EE

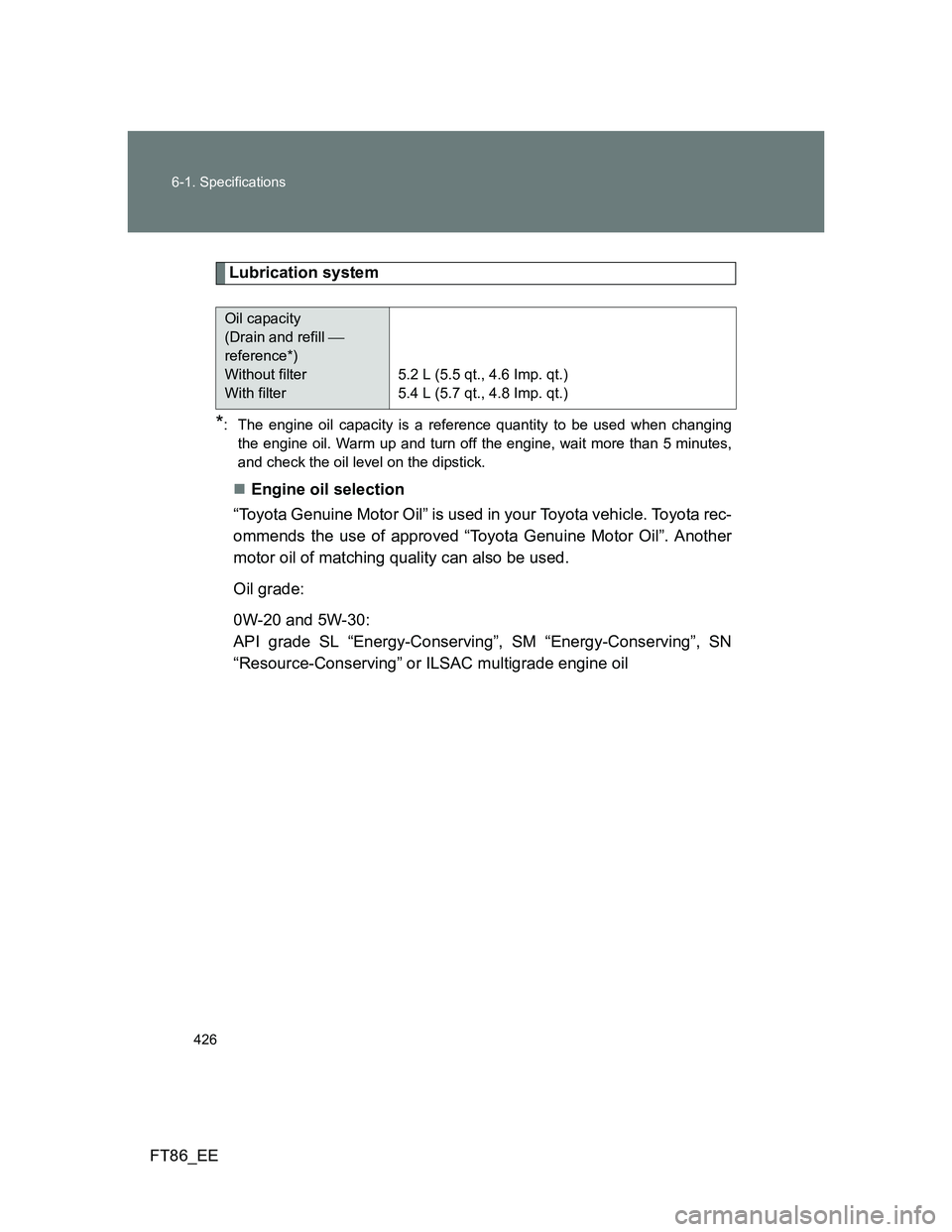

Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
Oil grade:
0W-20 and 5W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving” or ILSAC multigrade engine oil
Oil capacity
(Drain and refill
reference*)
Without filter
With filter 5.2 L (5.5 qt., 4.6 Imp. qt.)
5.4 L (5.7 qt., 4.8 Imp. qt.)
Page 427 of 452
427 6-1. Specifications
6
Vehicle specifications

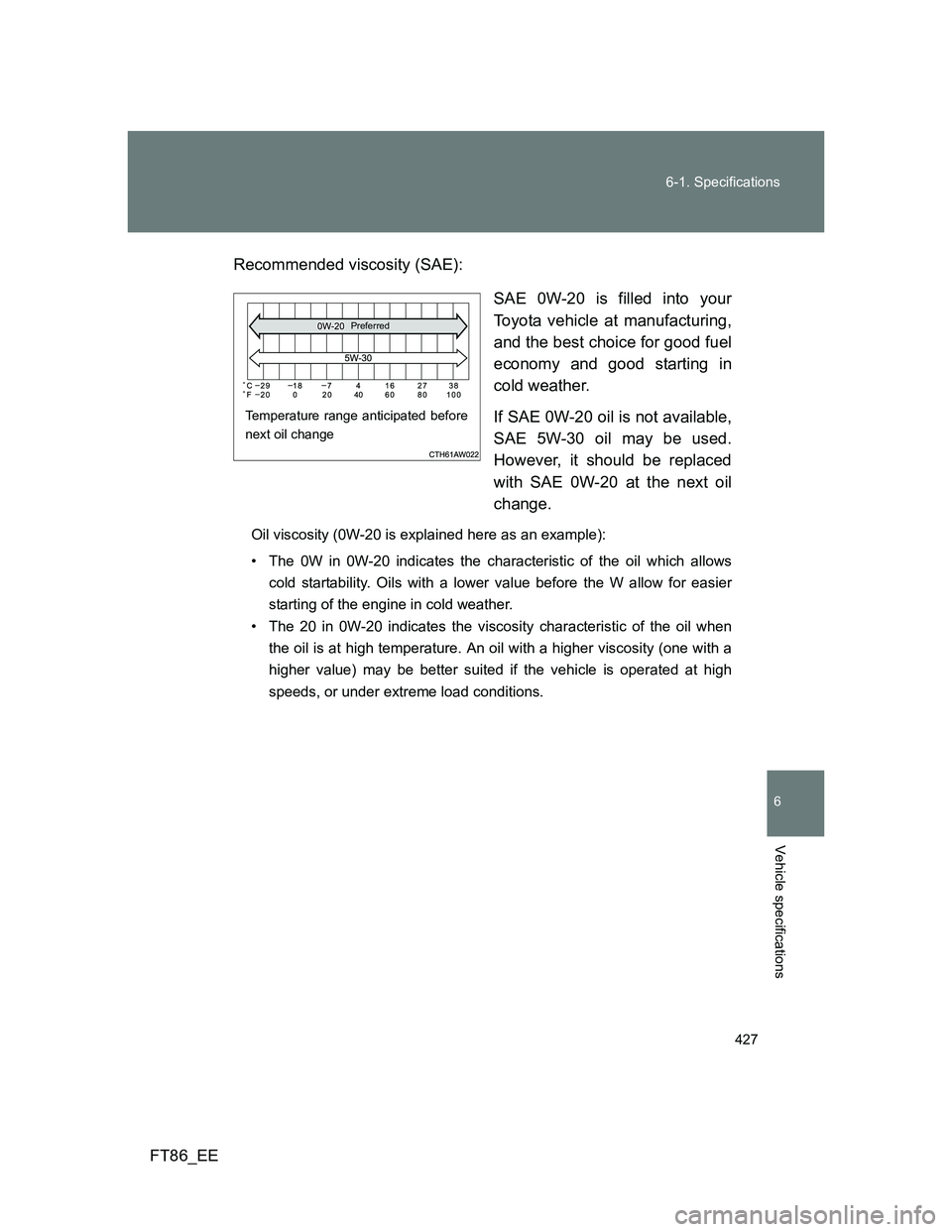

FT86_EERecommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change
Preferred
Page 428 of 452
428 6-1. Specifications

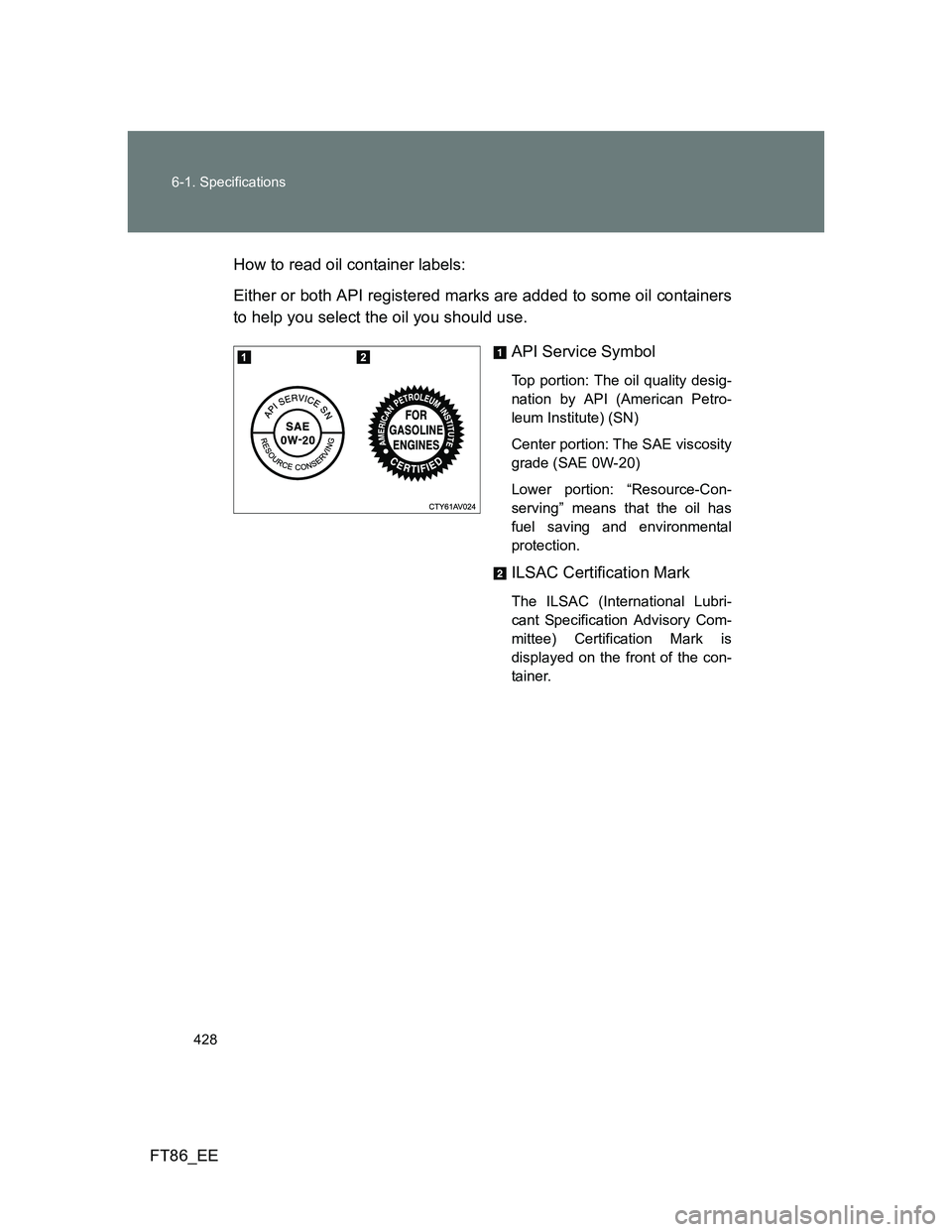

FT86_EEHow to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SN)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Resource-Con-
serving” means that the oil has
fuel saving and environmental
protection.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Specification Advisory Com-
mittee) Certification Mark is
displayed on the front of the con-
tainer.
Page 429 of 452
429 6-1. Specifications
6
Vehicle specifications
FT86_EE
Cooling system
Ignition system
CapacityVehicles with an automatic transmission
7.5 L (7.9 qt., 6.6 Imp. qt.)
Vehicles with a manual transmission
7.2 L (7.6 qt., 6.3 Imp. qt.)
Coolant typeUse either of the following.
• “TOYOTA Genuine 50/50 Pre-mixed Super Long
Life Coolant BLUE”
• Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
GapDENSO ZXE27HBR8
0.8 mm (0.031 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Page 430 of 452
430 6-1. Specifications
FT86_EE
Electrical system
Differential
*: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisfy the above specification. Please con-
tact any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for further details.
Battery
Specific gravity reading at
20C (68F):1.250 1.290 Fully charged
1.160 1.200 Half charged
1.060 1.100 Discharged
Charging rates
Quick charge
Slow charge15 A max.
5 A max.
Oil capacity (Reference) 1.15 L (1.22 qt., 1.01 Imp. qt.)
Oil type and viscosity*Without LSD
• Toyota Genuine Differential Gear
Oil LT
• Other gear oil that meets API GL-5
and SAE 75W-85 or GL-5 and SAE
75W-90 specifications
With LSD
• Toyota Genuine Differential Gear
Oil LX
• Other gear oil that meets API GL-5
and SAE 75W-85 or GL-5 and SAE
75W-90 specifications
Page 431 of 452
431 6-1. Specifications
6
Vehicle specifications
FT86_EE
Automatic transmission
*: The fluid capacity is provided as a reference.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
NOTICE
Differential gear oil
Using a differential gear oil other than “Toyota Genuine Differential Gear Oil”
may cause occurrences of rattling noises while idling and poor fuel con-
sumption.
Never use different brands together.
Fluid capacity* 7.5 L (7.9 qt., 6.6 Imp. qt.)
Fluid type TOYOTA Genuine ATF WS
NOTICE
Using automatic transmission fluid other than “TOYOTA Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately damage the automatic transmission of your
vehicle.
Page 432 of 452
432 6-1. Specifications
FT86_EE

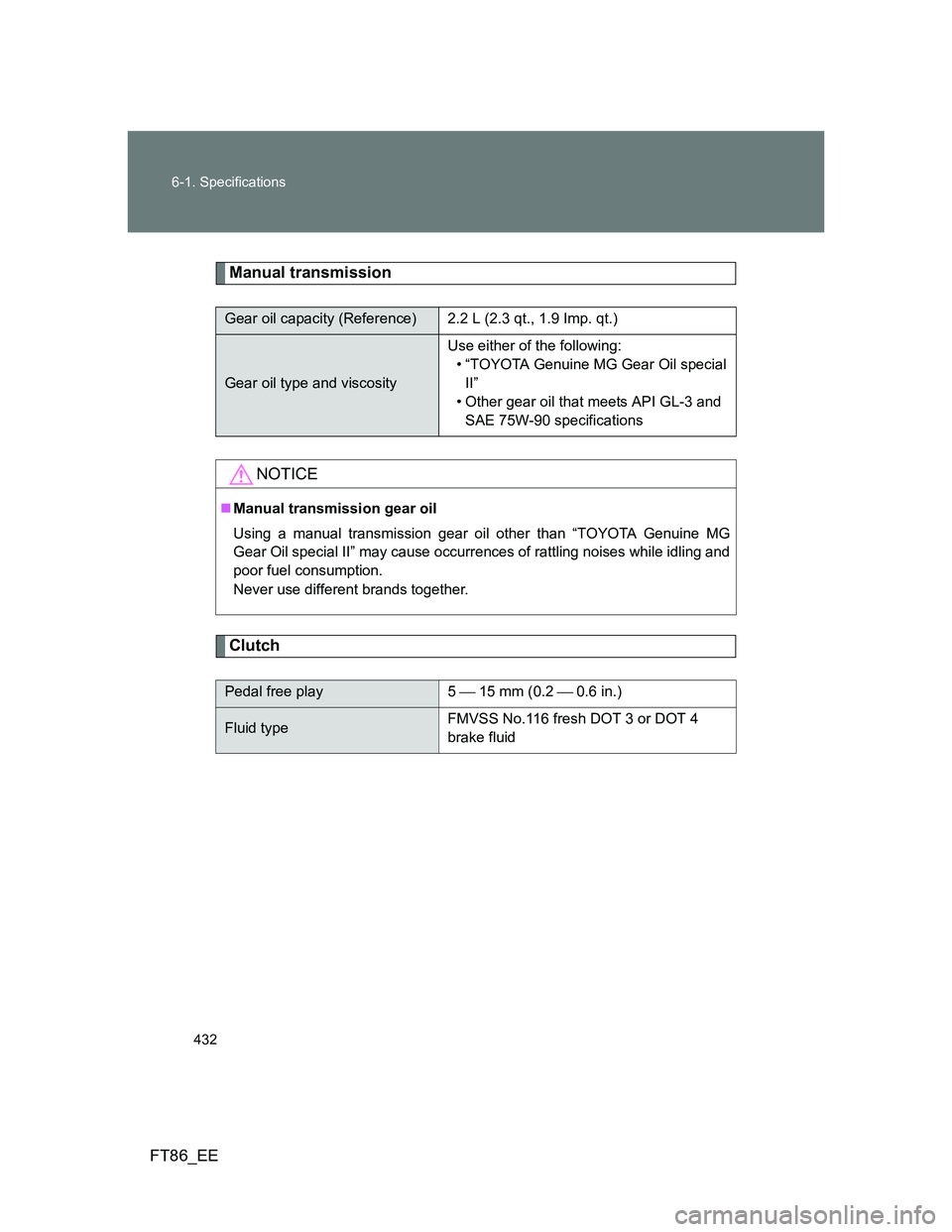

Manual transmission
Clutch
Gear oil capacity (Reference) 2.2 L (2.3 qt., 1.9 Imp. qt.)
Gear oil type and viscosityUse either of the following:
• “TOYOTA Genuine MG Gear Oil special
II”
• Other gear oil that meets API GL-3 and
SAE 75W-90 specifications
NOTICE
Manual transmission gear oil
Using a manual transmission gear oil other than “TOYOTA Genuine MG
Gear Oil special II” may cause occurrences of rattling noises while idling and
poor fuel consumption.
Never use different brands together.
Pedal free play 5 15 mm (0.2 0.6 in.)
Fluid typeFMVSS No.116 fresh DOT 3 or DOT 4
brake fluid
