2014 TOYOTA GT86 Owners Manual (in English)

Page 377 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
377
5-2. Steps to take in an emergency
When trouble arises
FT86_EE
If you have a flat tire (vehicles with a spare tire)
Remove the flat tire and replace it with the spare provided.
Before jackin

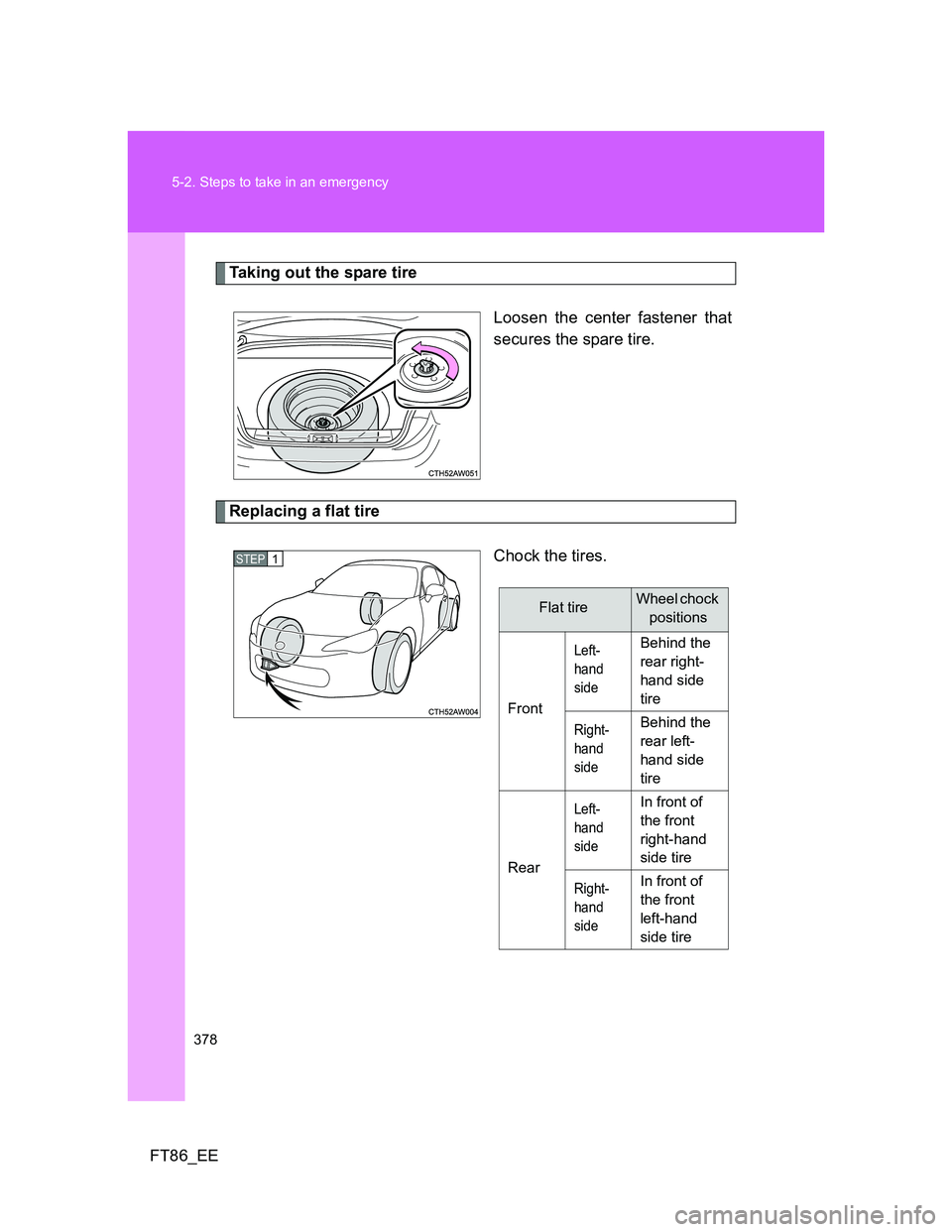

Page 378 of 452

TOYOTA GT86 2014  Owners Manual (in English) 378 5-2. Steps to take in an emergency
FT86_EE
Taking out the spare tire
Loosen the center fastener that
secures the spare tire.
Replacing a flat tire
Chock the tires.
STEP 1
Flat tireWheel chock
po

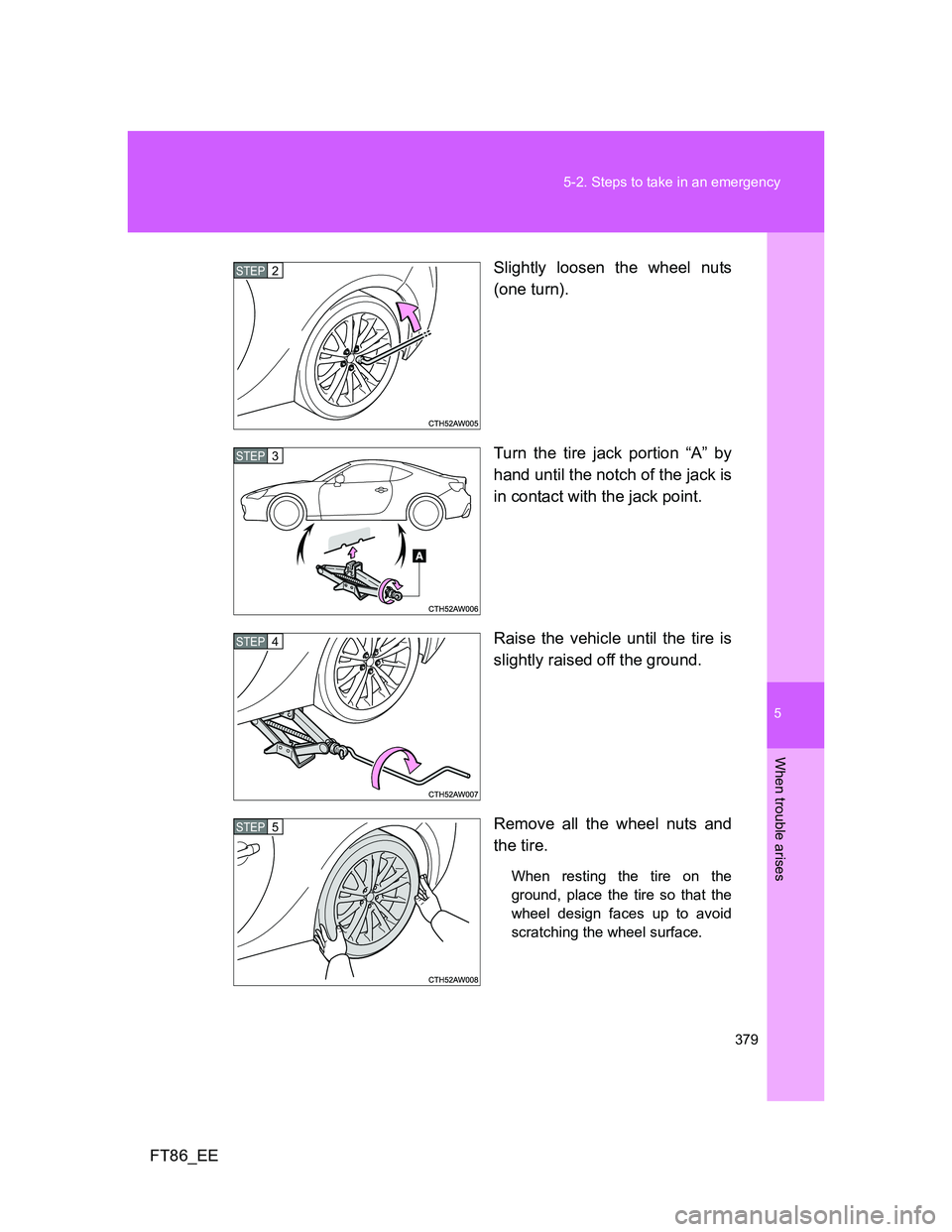

Page 379 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
379 5-2. Steps to take in an emergency
When trouble arises
FT86_EESlightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with

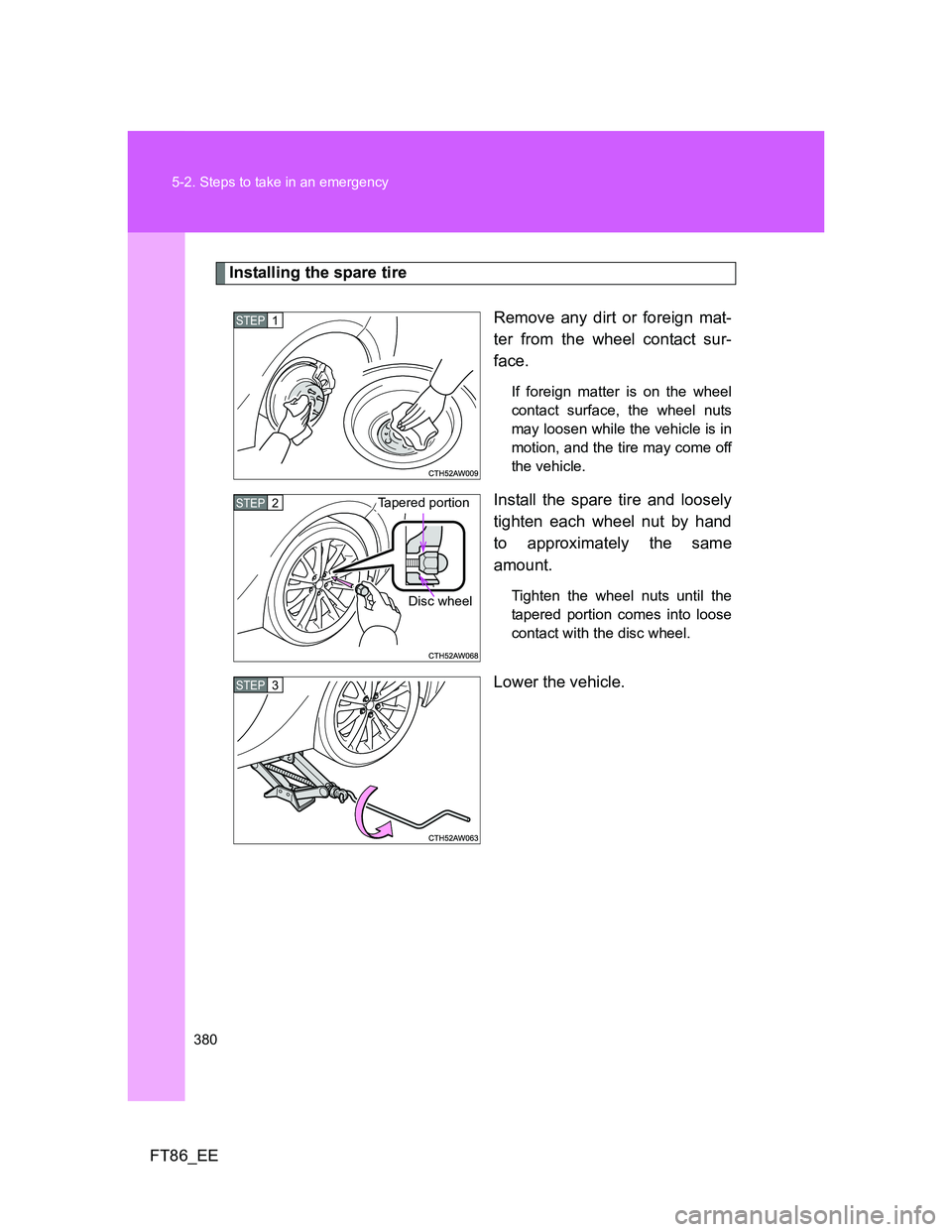

Page 380 of 452

TOYOTA GT86 2014  Owners Manual (in English) 380 5-2. Steps to take in an emergency
FT86_EE
Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wh

Page 381 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
381 5-2. Steps to take in an emergency
When trouble arises
FT86_EEFirmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
120 N•m (12.2 kgf•m, 89 ft

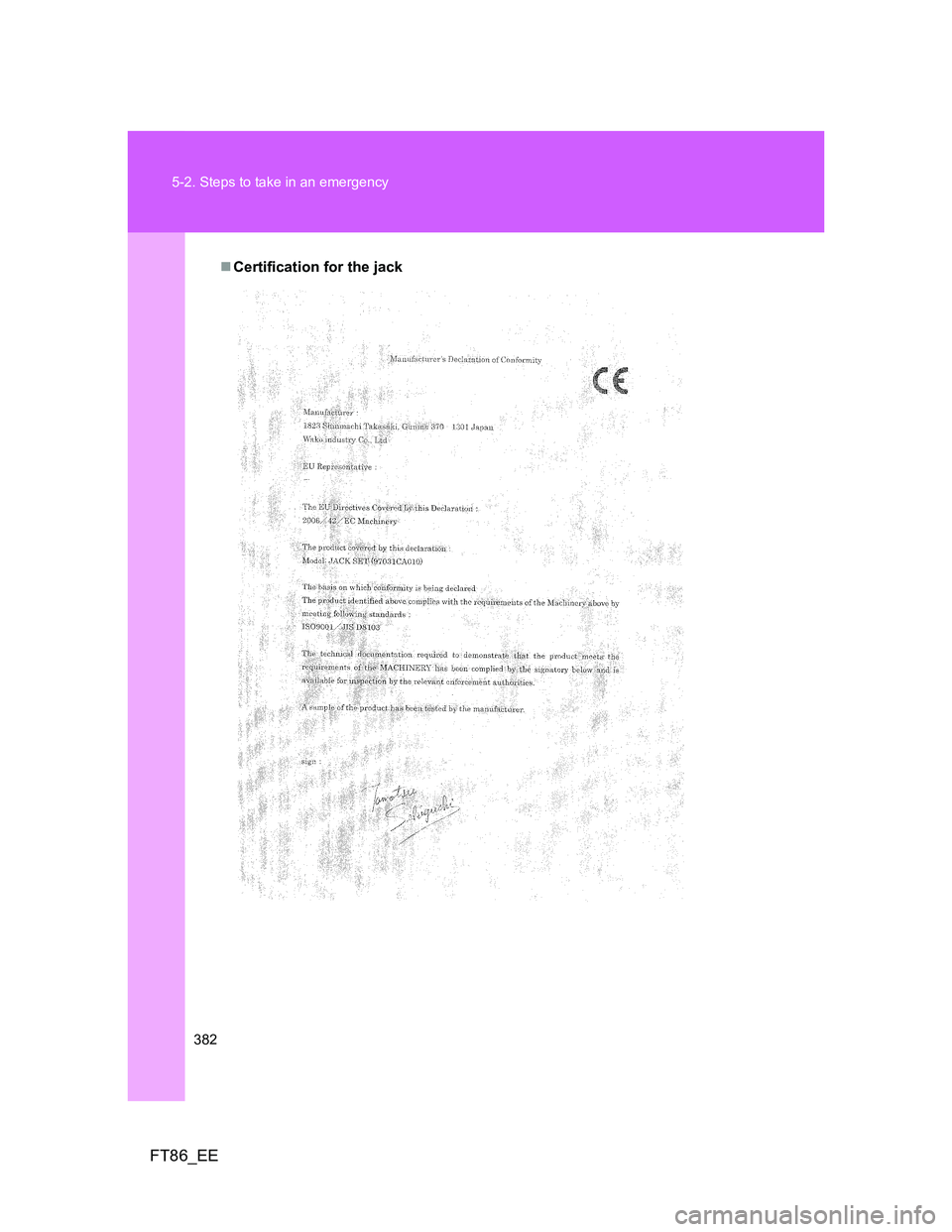

Page 382 of 452

TOYOTA GT86 2014  Owners Manual (in English) 382 5-2. Steps to take in an emergency
FT86_EE
Certification for the jack

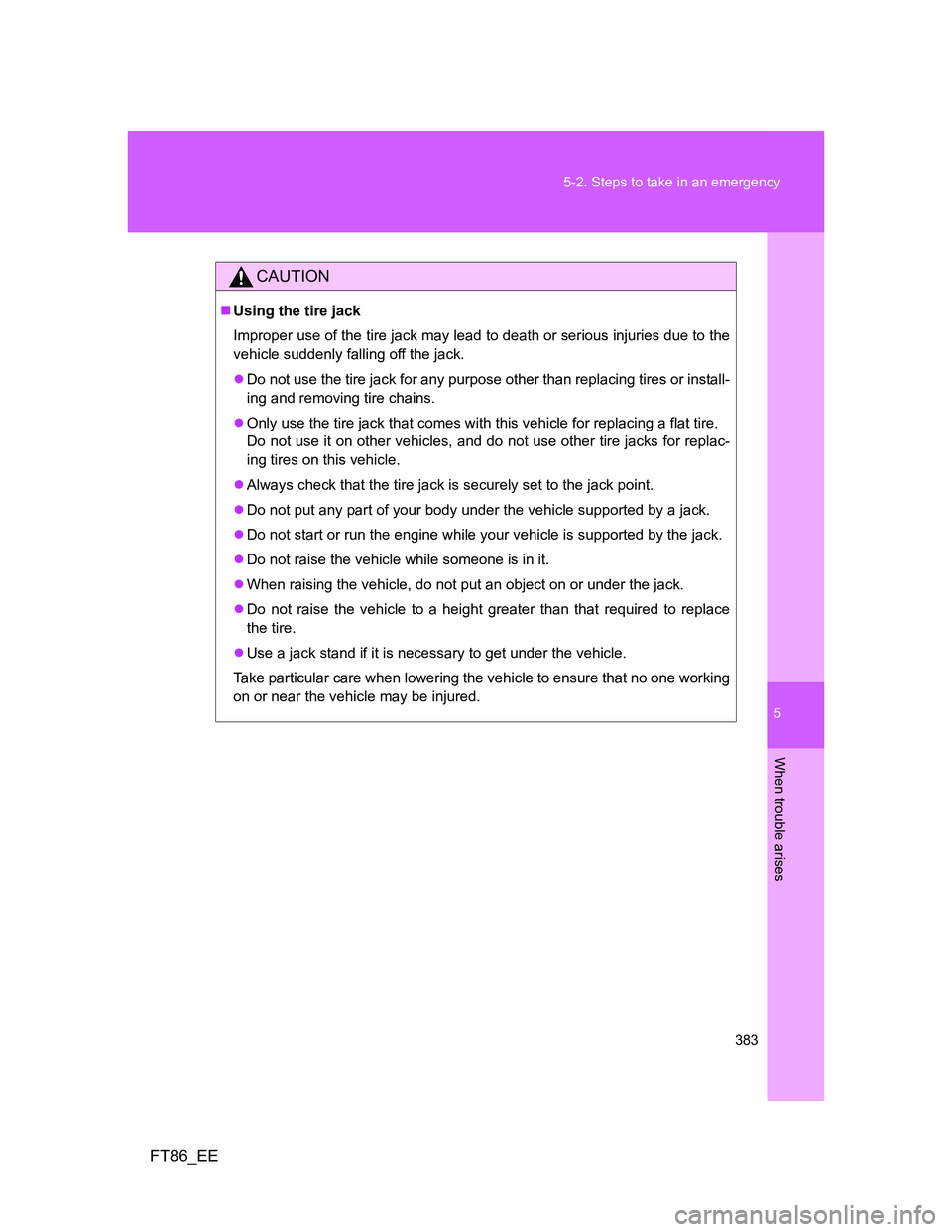

Page 383 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
383 5-2. Steps to take in an emergency
When trouble arises
FT86_EE
CAUTION
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly fall

Page 384 of 452

TOYOTA GT86 2014  Owners Manual (in English) 384 5-2. Steps to take in an emergency
FT86_EE
CAUTION
Replacing a flat tire
Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the
