393 5-2. Steps to take in an emergency
When trouble arises

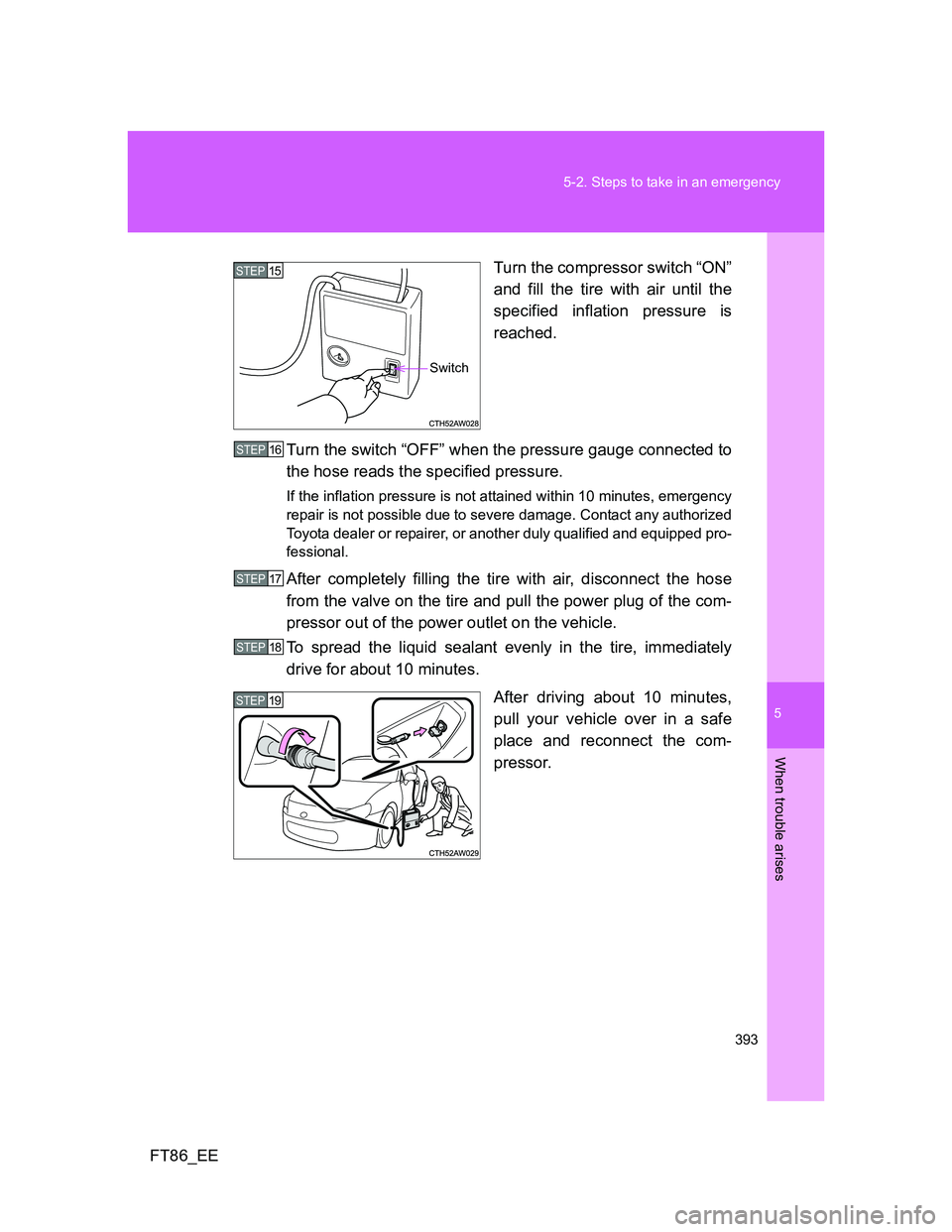

FT86_EETurn the compressor switch “ON”
and fill the tire with air until the
specified inflation pressure is
reached.
Turn the switch

Page 394 of 452

TOYOTA GT86 2014  Owners Manual (in English) 394 5-2. Steps to take in an emergency

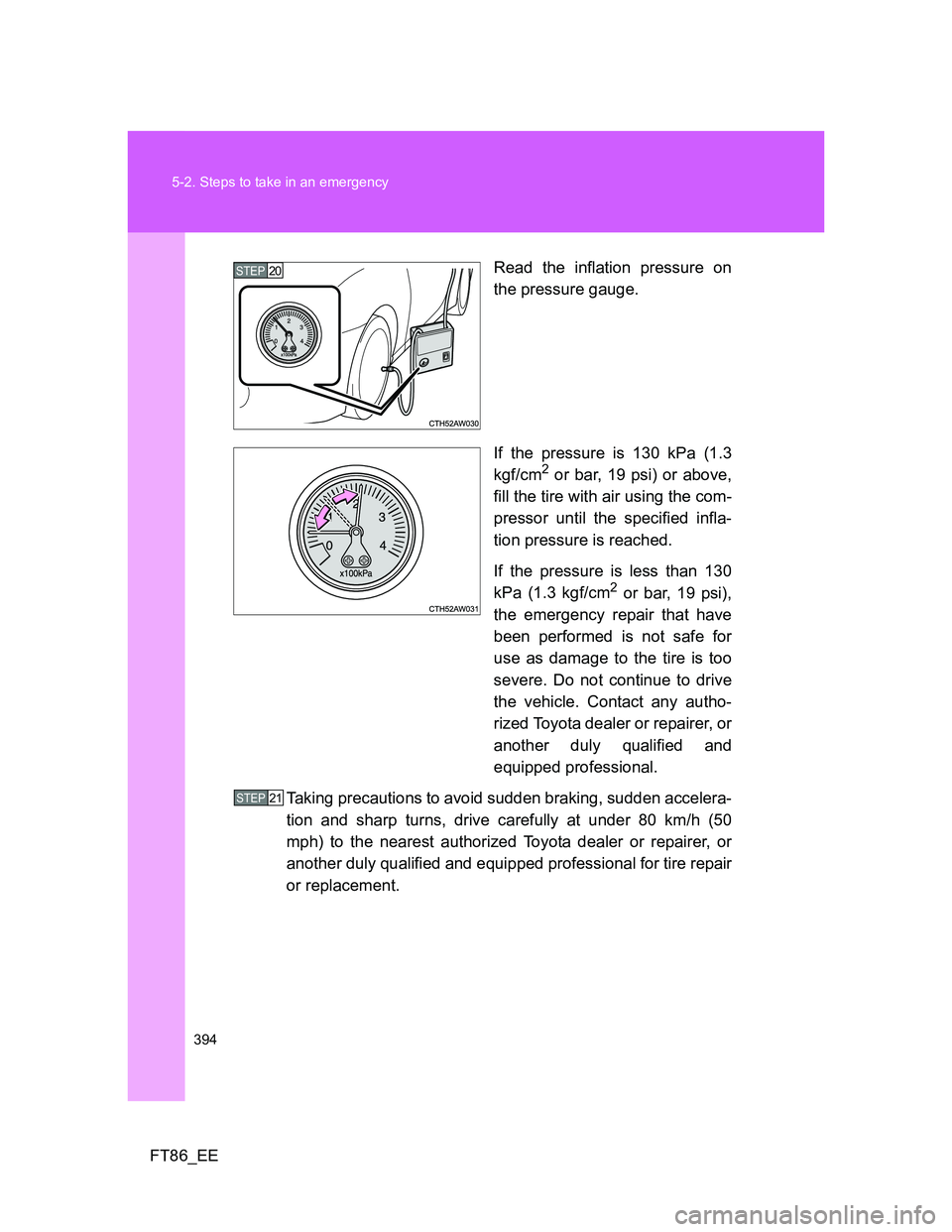

FT86_EERead the inflation pressure on
the pressure gauge.
If the pressure is 130 kPa (1.3
kgf/cm
2 or bar, 19 psi) or above,
fill the tire with air using the com

Page 395 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
395 5-2. Steps to take in an emergency
When trouble arises
FT86_EE
The valve of a tire that has been repaired
After a tire is repaired with the emergency tire puncture repair kit, the valve
shoul

Page 396 of 452

TOYOTA GT86 2014  Owners Manual (in English) 396 5-2. Steps to take in an emergency
FT86_EE

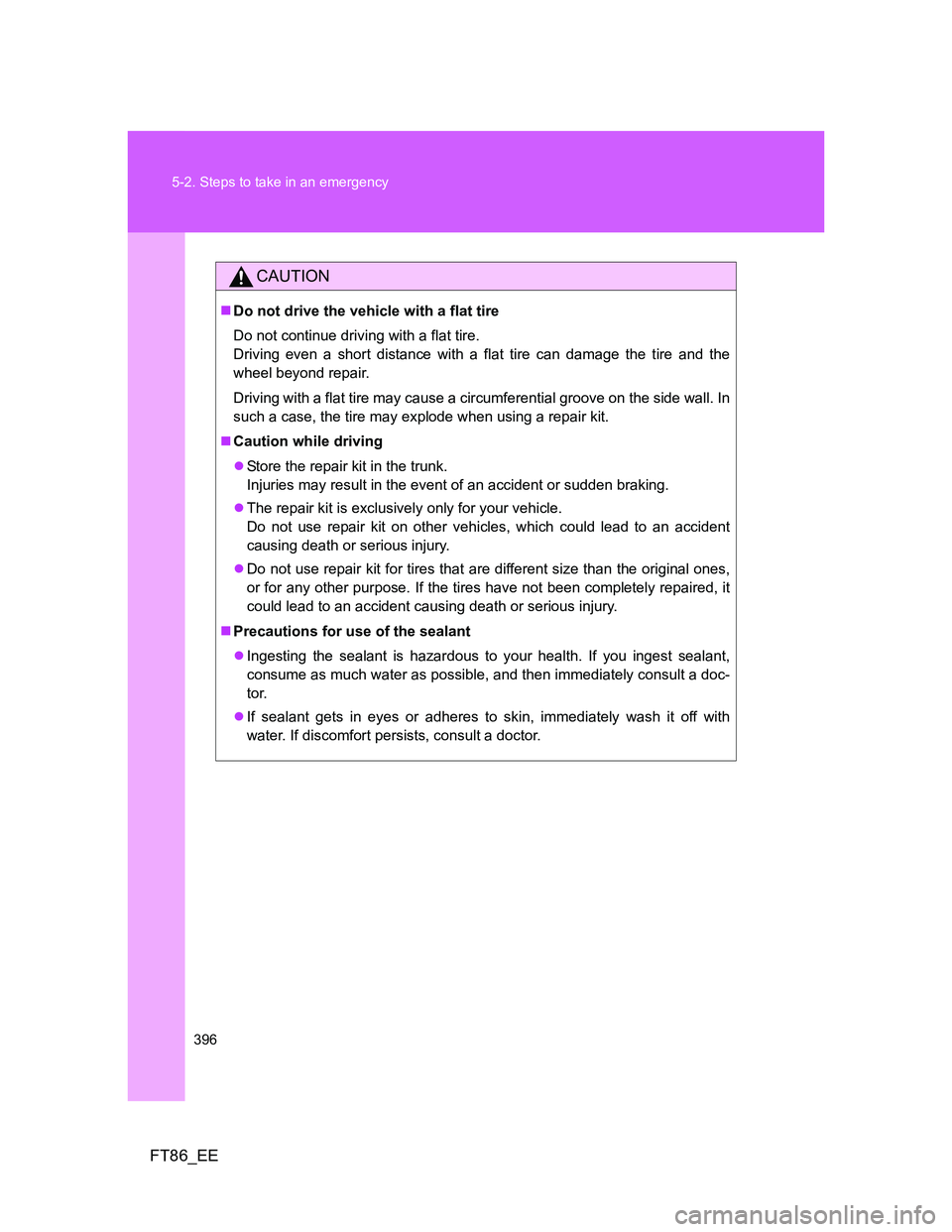

CAUTION
Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage

Page 397 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
397 5-2. Steps to take in an emergency
When trouble arises
FT86_EE

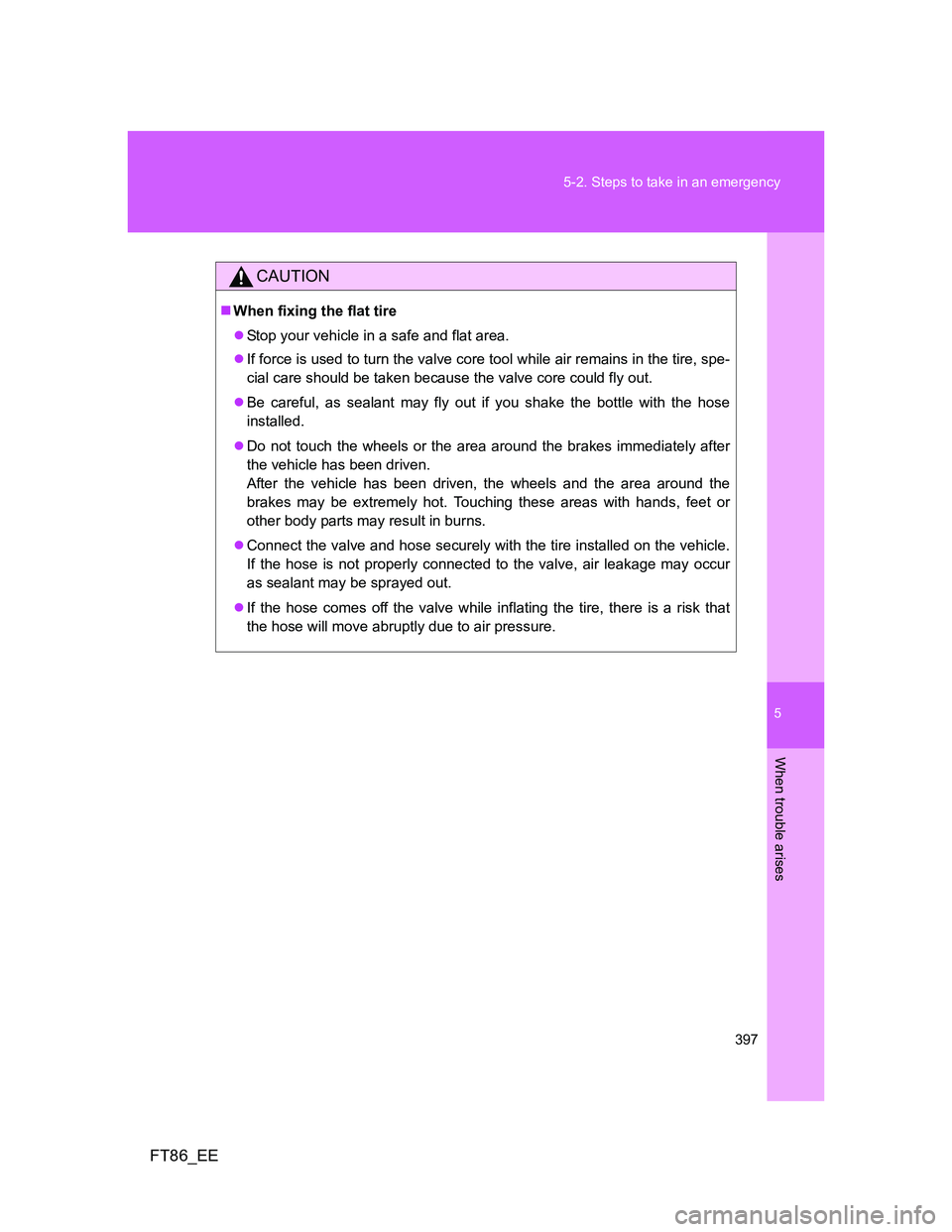

CAUTION
When fixing the flat tire
Stop your vehicle in a safe and flat area.
If force is used to turn the valve core tool

Page 398 of 452

TOYOTA GT86 2014  Owners Manual (in English) 398 5-2. Steps to take in an emergency
FT86_EE

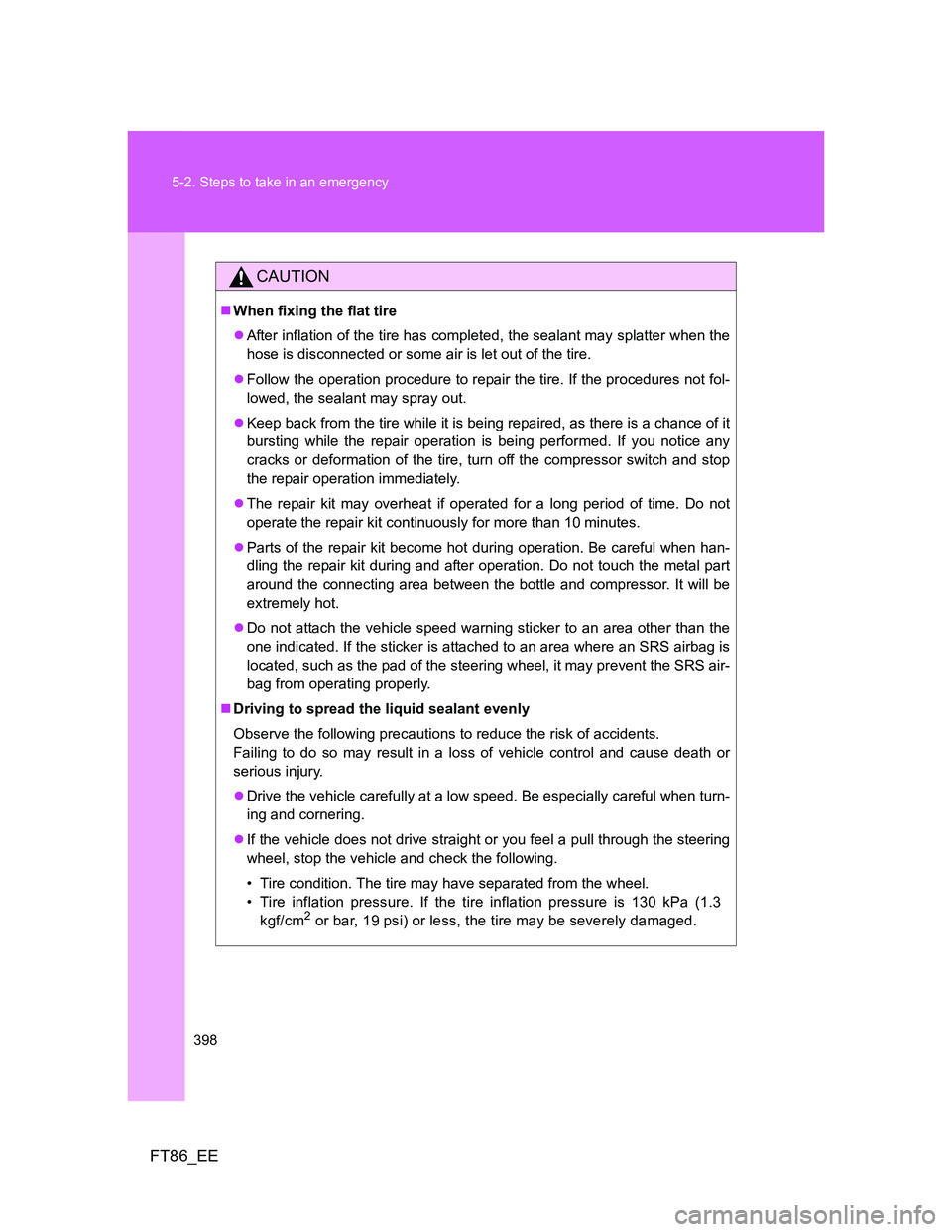

CAUTION
When fixing the flat tire
After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is

Page 399 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
399 5-2. Steps to take in an emergency
When trouble arises
FT86_EE

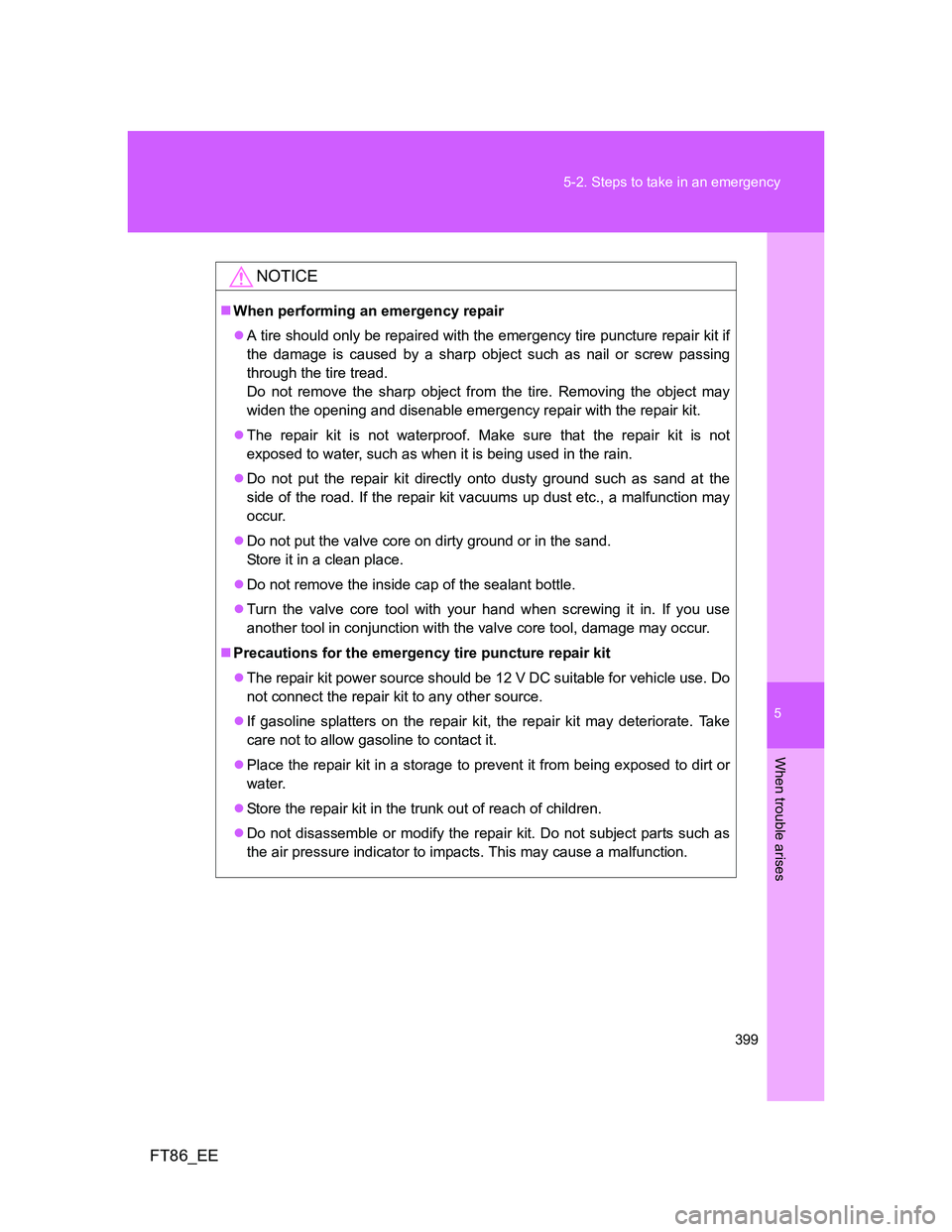

NOTICE
When performing an emergency repair
A tire should only be repaired with the emergency tire puncture repair kit if
the

Page 400 of 452

TOYOTA GT86 2014  Owners Manual (in English) 400
5-2. Steps to take in an emergency
FT86_EE

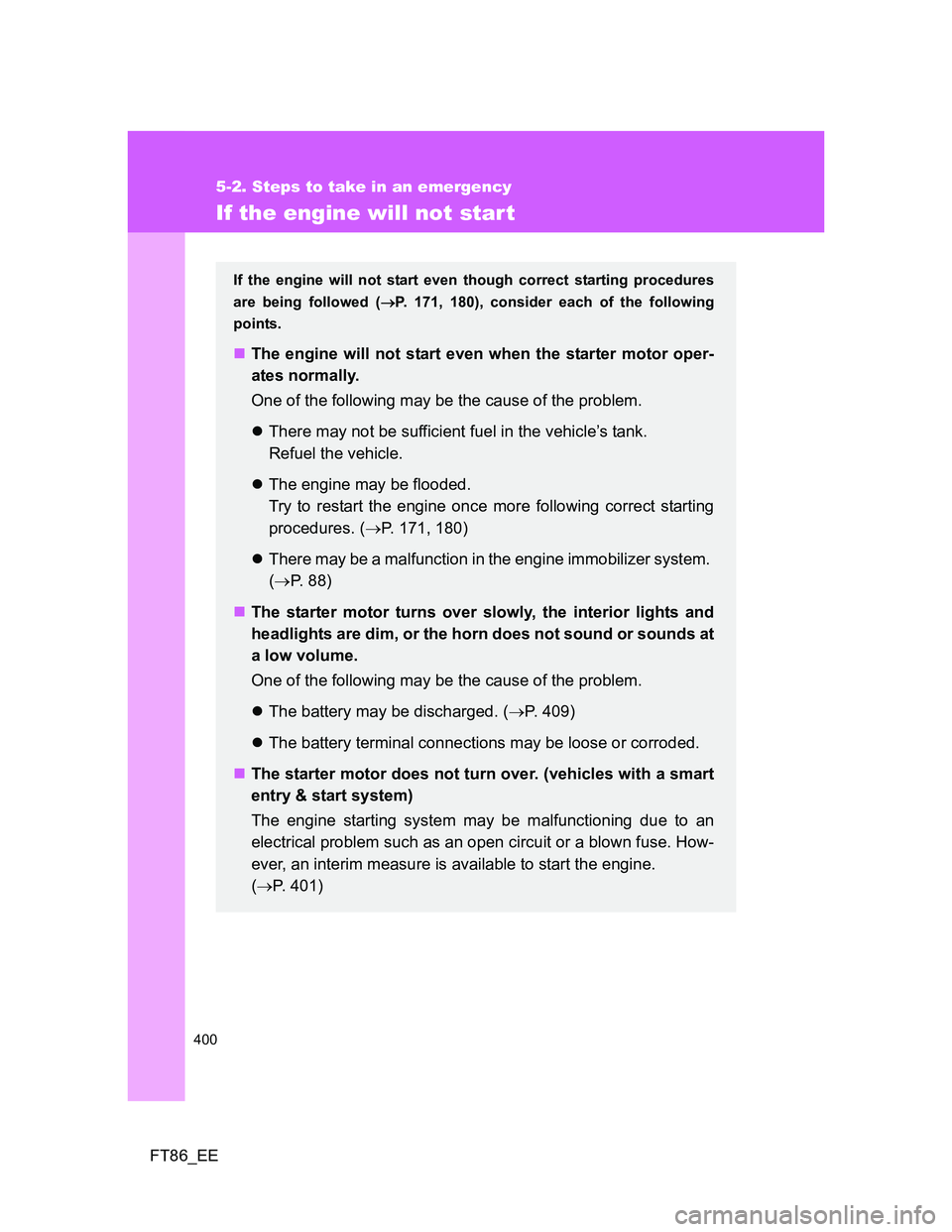

If the engine will not start
If the engine will not start even though correct starting procedures
are being followed (P. 171, 180), consider each of t
