Page 201 of 452
201
2-2. Instrument cluster
2
When driving
FT86_EE

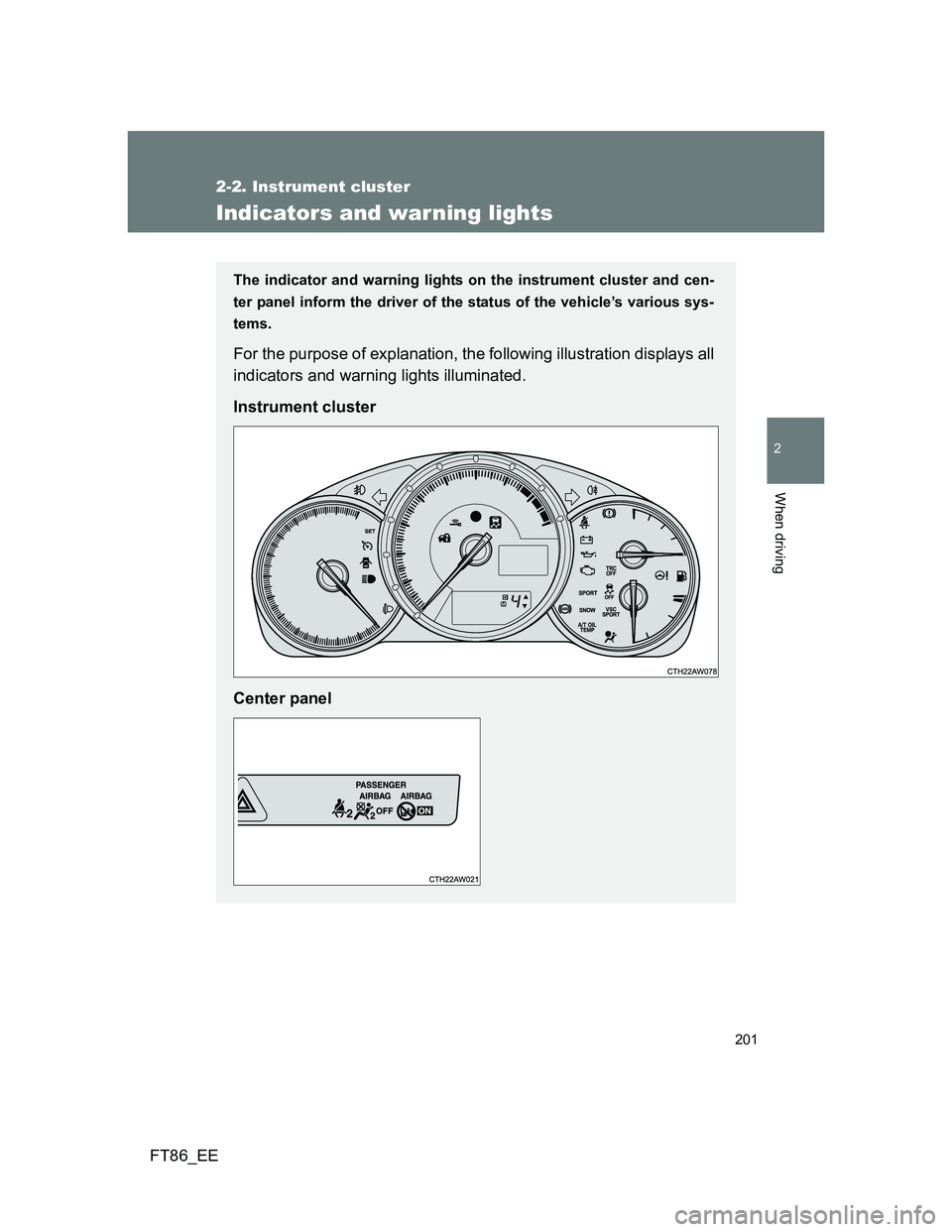

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster
Center panel
Page 202 of 452

202 2-2. Instrument cluster
FT86_EE

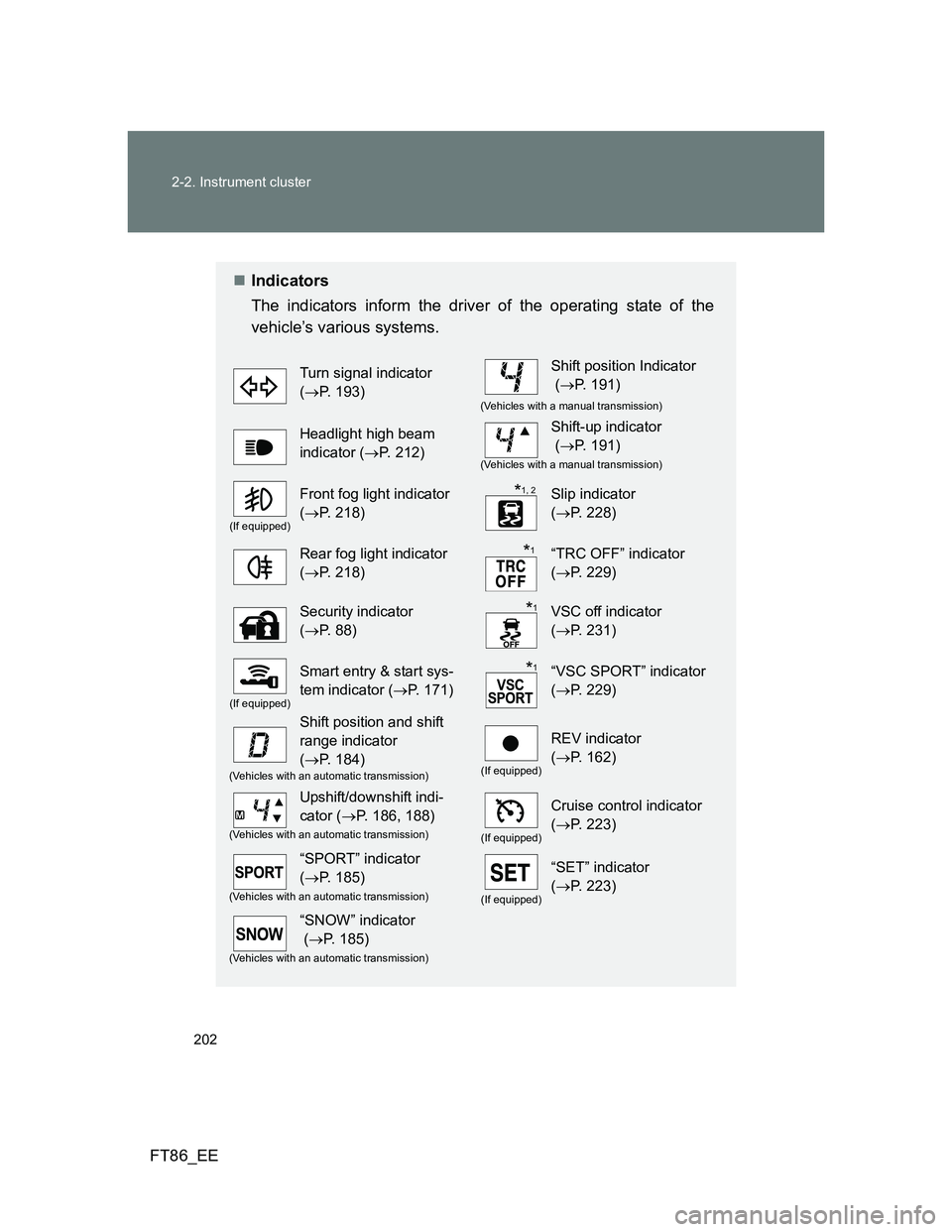

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 193)Shift position Indicator
(P. 191)
(Vehicles with a manual transmission)
Headlight high beam
indicator (P. 212)Shift-up indicator
(P. 191)
(Vehicles with a manual transmission)
(If equipped)
Front fog light indicator
(P. 218)Slip indicator
(P. 228)
Rear fog light indicator
(P. 218)“TRC OFF” indicator
(P. 229)
Security indicator
(P. 88)VSC off indicator
(P. 231)
(If equipped)
Smart entry & start sys-
tem indicator (P. 171)“VSC SPORT” indicator
(P. 229)
Shift position and shift
range indicator
(P. 184)
(If equipped)
REV indicator
(P. 162)
(Vehicles with an automatic transmission)
Upshift/downshift indi-
cator (P. 186, 188)
(If equipped)
Cruise control indicator
(P. 223)
(Vehicles with an automatic transmission)
“SPORT” indicator
(P. 185)
(If equipped)
“SET” indicator
(P. 223)
(Vehicles with an automatic transmission)
“SNOW” indicator
(P. 185)
(Vehicles with an automatic transmission)
*1, 2
*1
*1
*1
Page 203 of 452

203 2-2. Instrument cluster
2
When driving
FT86_EE

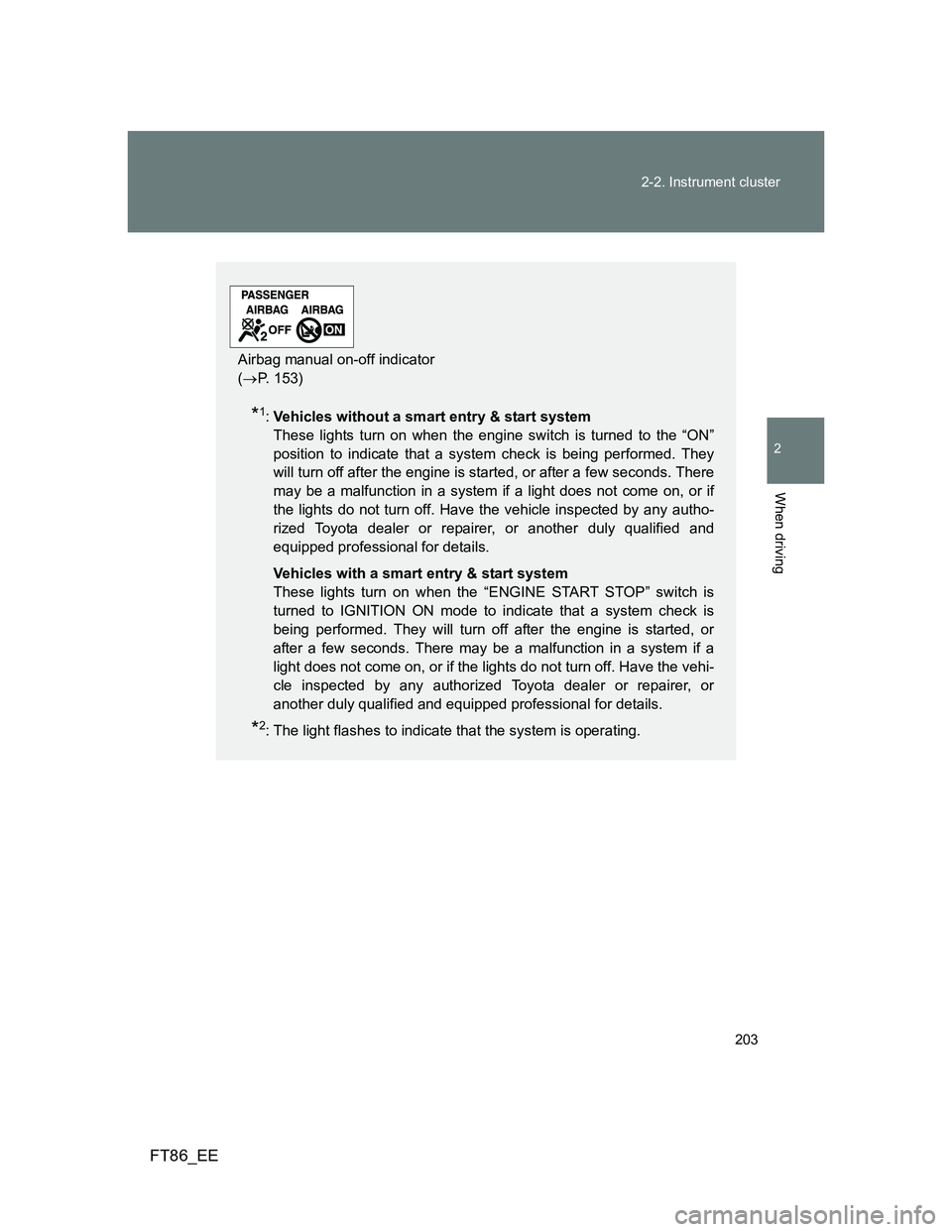

*1:Vehicles without a smart entry & start system
These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
Vehicles with a smart entry & start system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for details.
*2: The light flashes to indicate that the system is operating.
Airbag manual on-off indicator
(P. 153)
Page 204 of 452

204 2-2. Instrument cluster
FT86_EE
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 368)
*1:Vehicles without a smart entry & start system
These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
Vehicles with a smart entry & start system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for details.
*2: The light flashes in yellow to indicate a malfunction. The light
flashes quickly in green to indicate that the steering lock has not
been released.
*3: The light comes on in yellow to indicate a malfunction.
(If equipped)(If equipped)(for driver)(for front
passen-
ger)(If equipped)(If equipped)
*1*1*1*1*1*1*1
*2*3*1*1*1*1
Page 205 of 452
205 2-2. Instrument cluster
2
When driving
FT86_EE

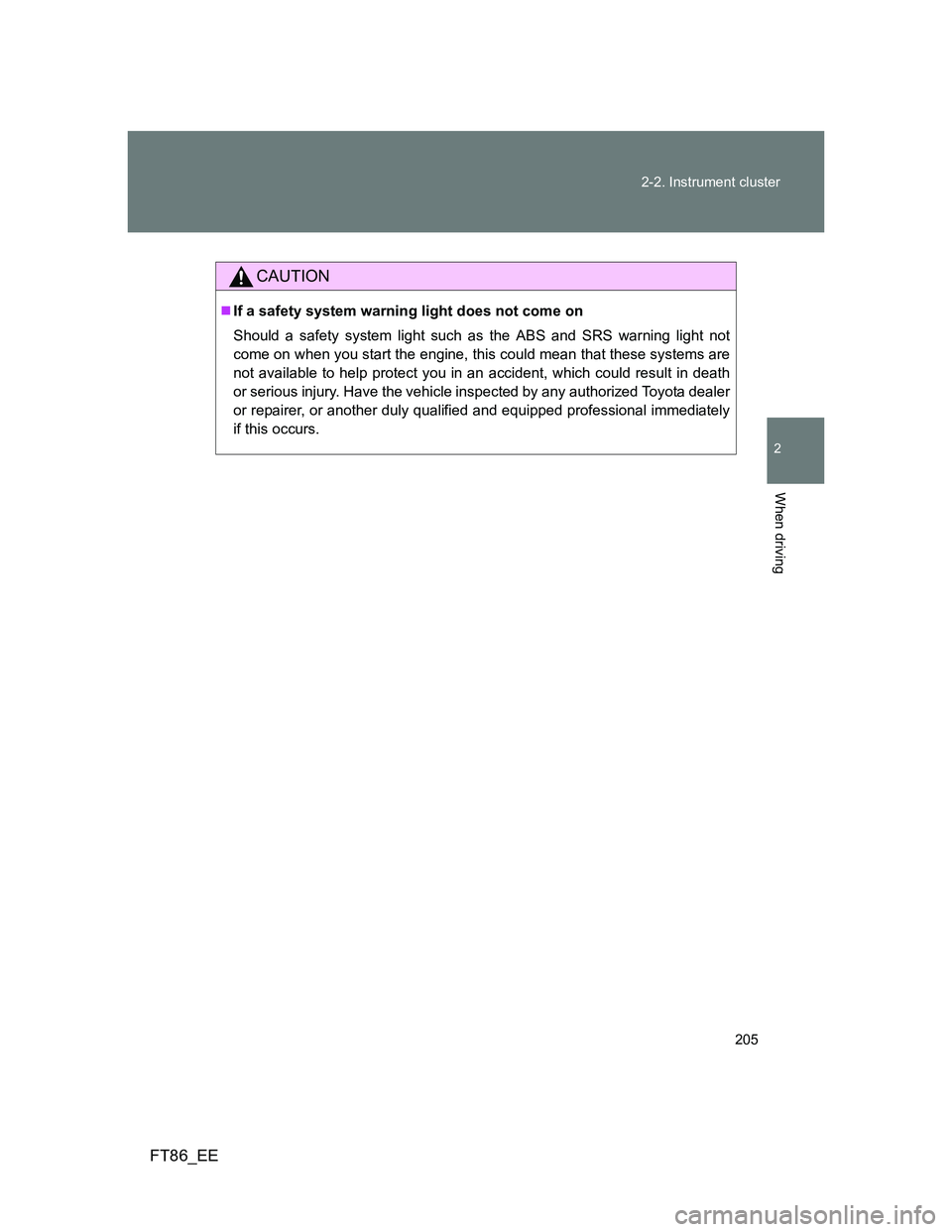

CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional immediately
if this occurs.
Page 206 of 452
206
2-2. Instrument cluster
FT86_EE

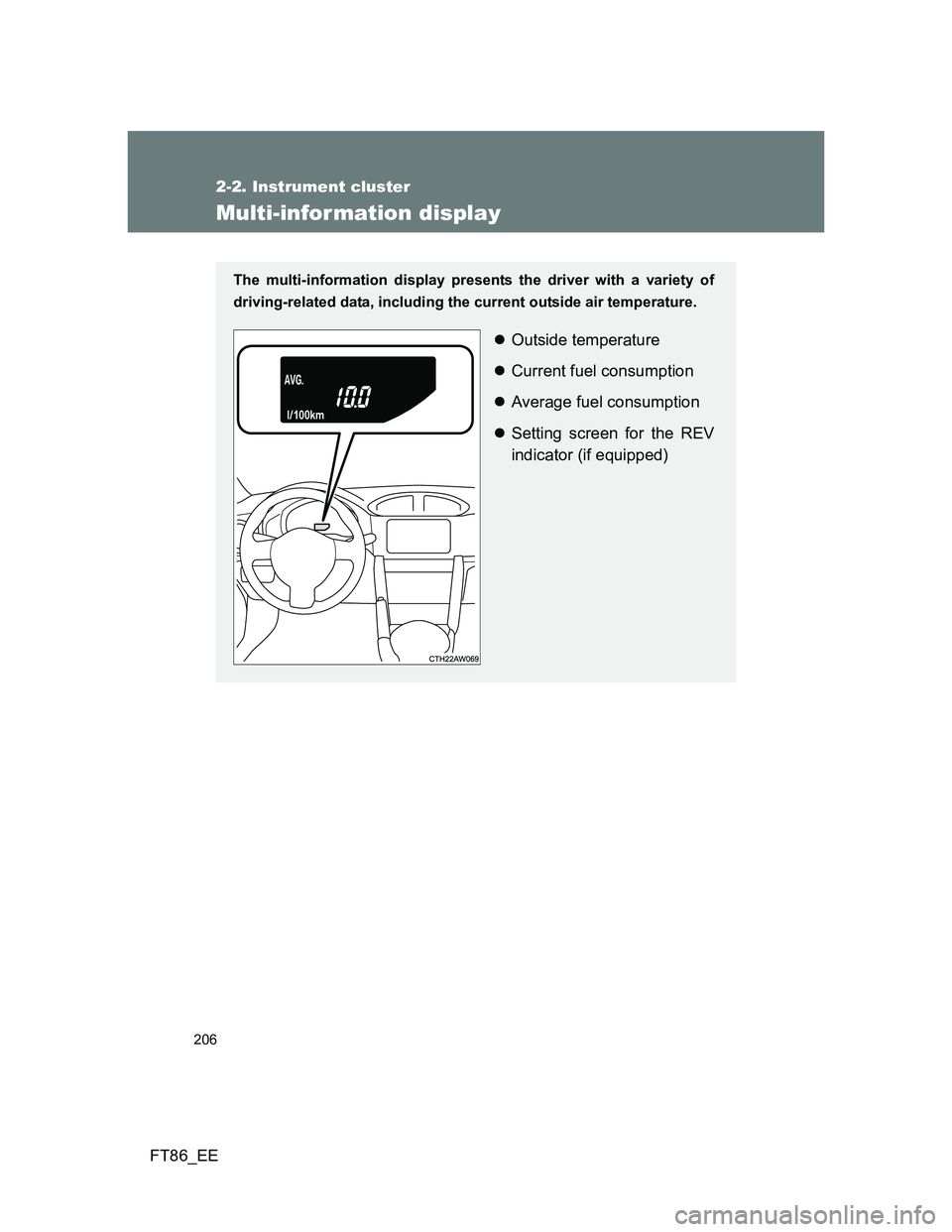

Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data, including the current outside air temperature.
Outside temperature
Current fuel consumption
Average fuel consumption
Setting screen for the REV
indicator (if equipped)
Page 207 of 452
207 2-2. Instrument cluster
2
When driving
FT86_EE

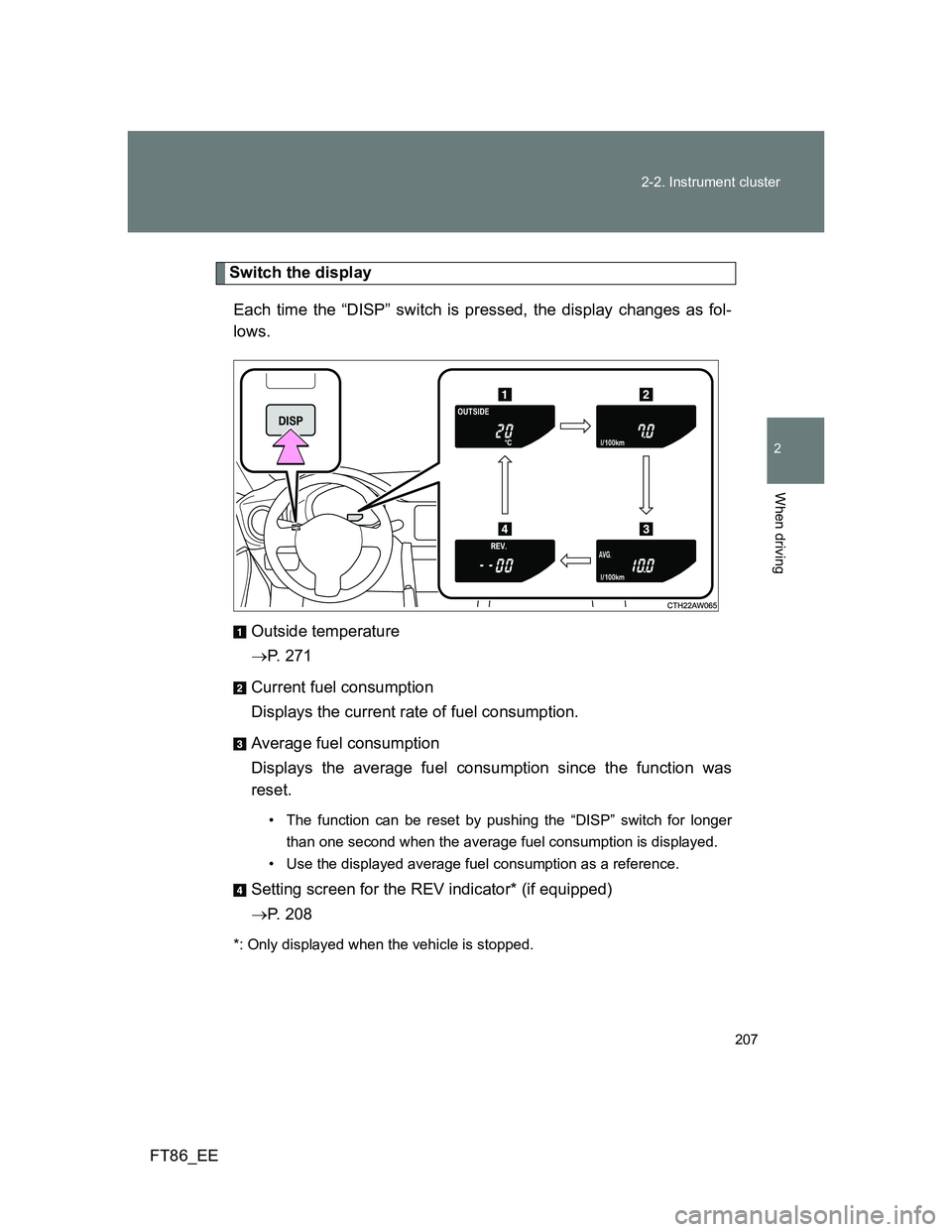

Switch the display
Each time the “DISP” switch is pressed, the display changes as fol-
lows.
Outside temperature
P. 271
Current fuel consumption
Displays the current rate of fuel consumption.
Average fuel consumption
Displays the average fuel consumption since the function was
reset.
• The function can be reset by pushing the “DISP” switch for longer
than one second when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
Setting screen for the REV indicator* (if equipped)
P. 208
*: Only displayed when the vehicle is stopped.
Page 208 of 452
208 2-2. Instrument cluster
FT86_EE

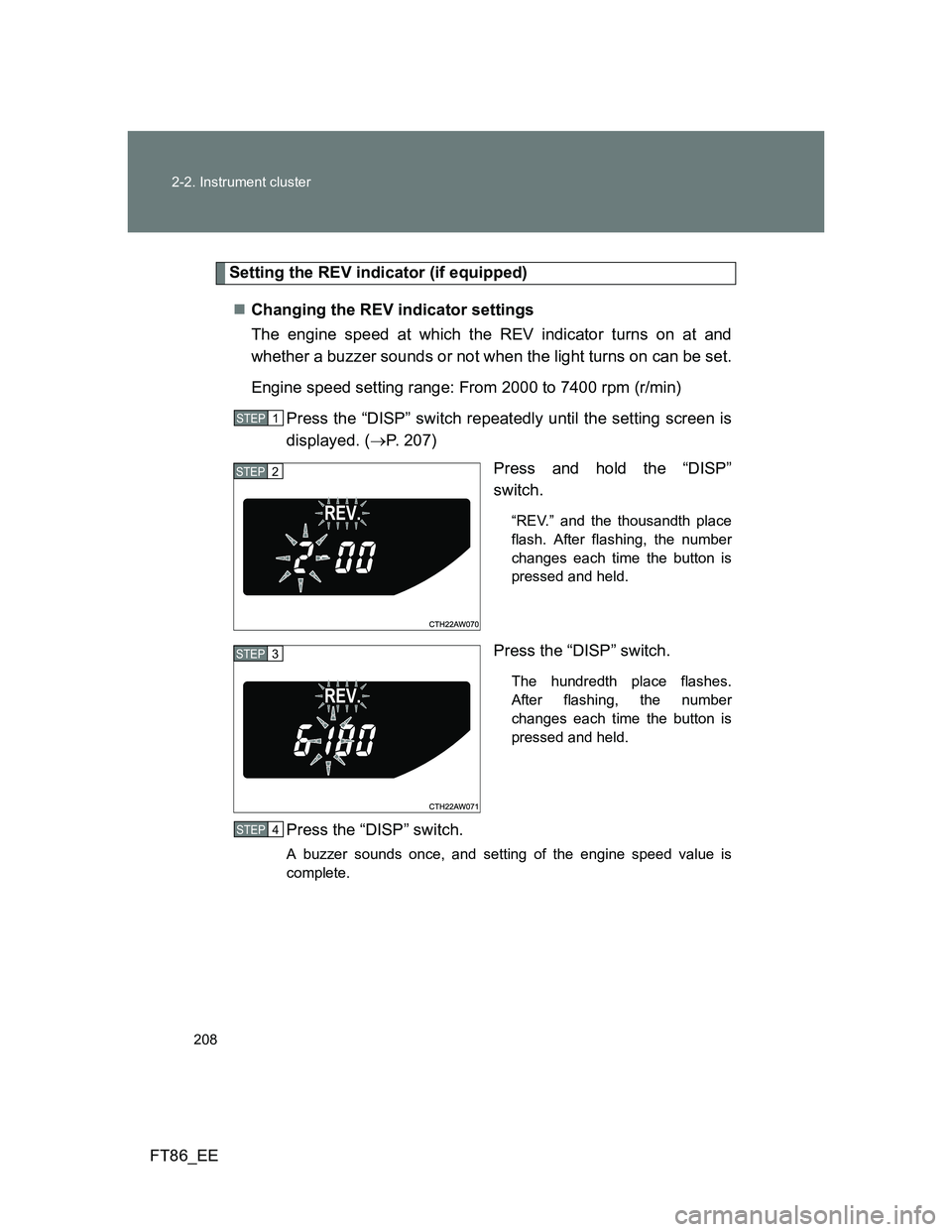

Setting the REV indicator (if equipped)
Changing the REV indicator settings
The engine speed at which the REV indicator turns on at and
whether a buzzer sounds or not when the light turns on can be set.
Engine speed setting range: From 2000 to 7400 rpm (r/min)
Press the “DISP” switch repeatedly until the setting screen is
displayed. (P. 207)
Press and hold the “DISP”
switch.
“REV.” and the thousandth place
flash. After flashing, the number
changes each time the button is
pressed and held.
Press the “DISP” switch.
The hundredth place flashes.
After flashing, the number
changes each time the button is
pressed and held.
Press the “DISP” switch.
A buzzer sounds once, and setting of the engine speed value is
complete.
STEP 1
STEP 2
STEP 3
STEP 4
