2014 TOYOTA GT86 Owners Manual (in English)

Page 305 of 452

TOYOTA GT86 2014  Owners Manual (in English) 305 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE

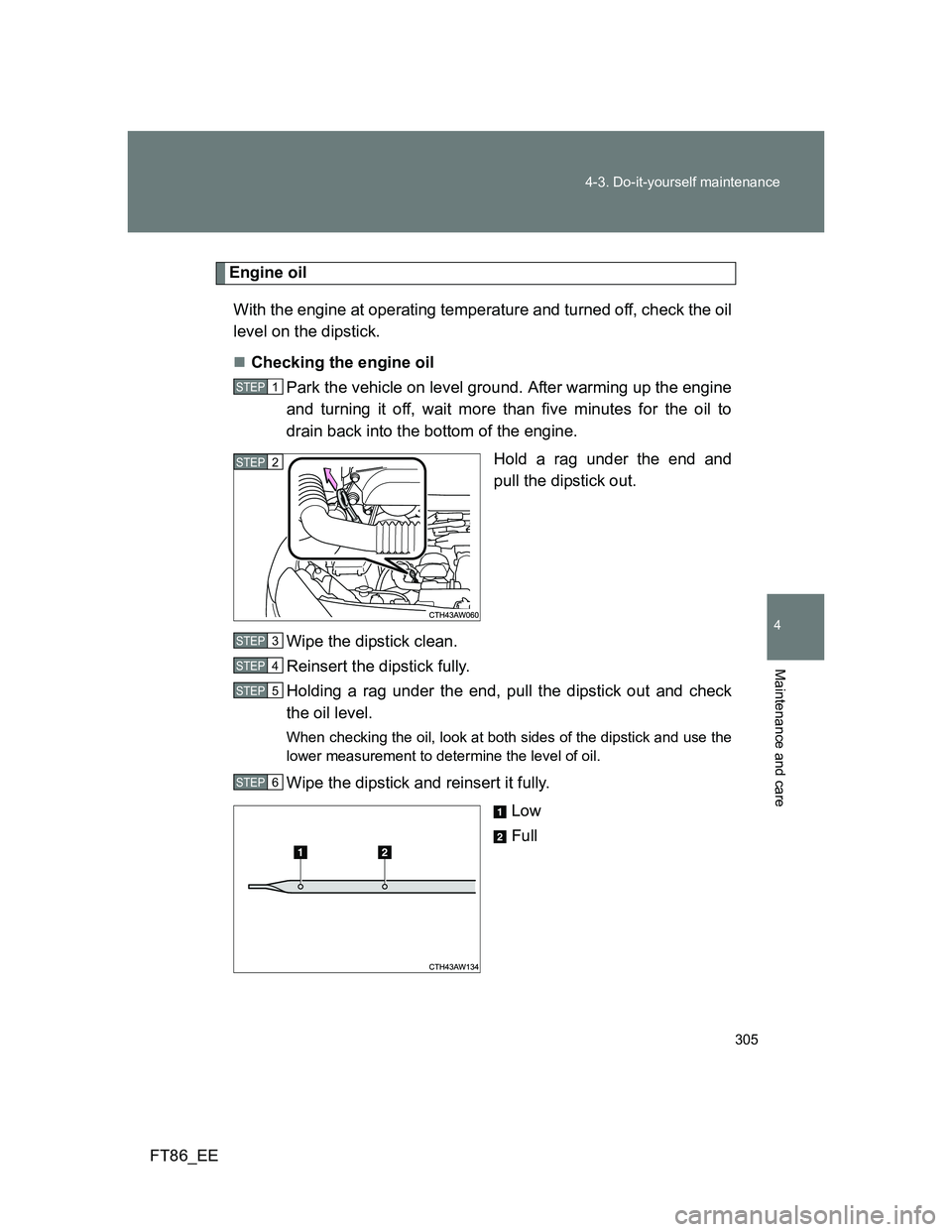

Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
Checking the engine oil
P

Page 306 of 452

TOYOTA GT86 2014  Owners Manual (in English) 306 4-3. Do-it-yourself maintenance

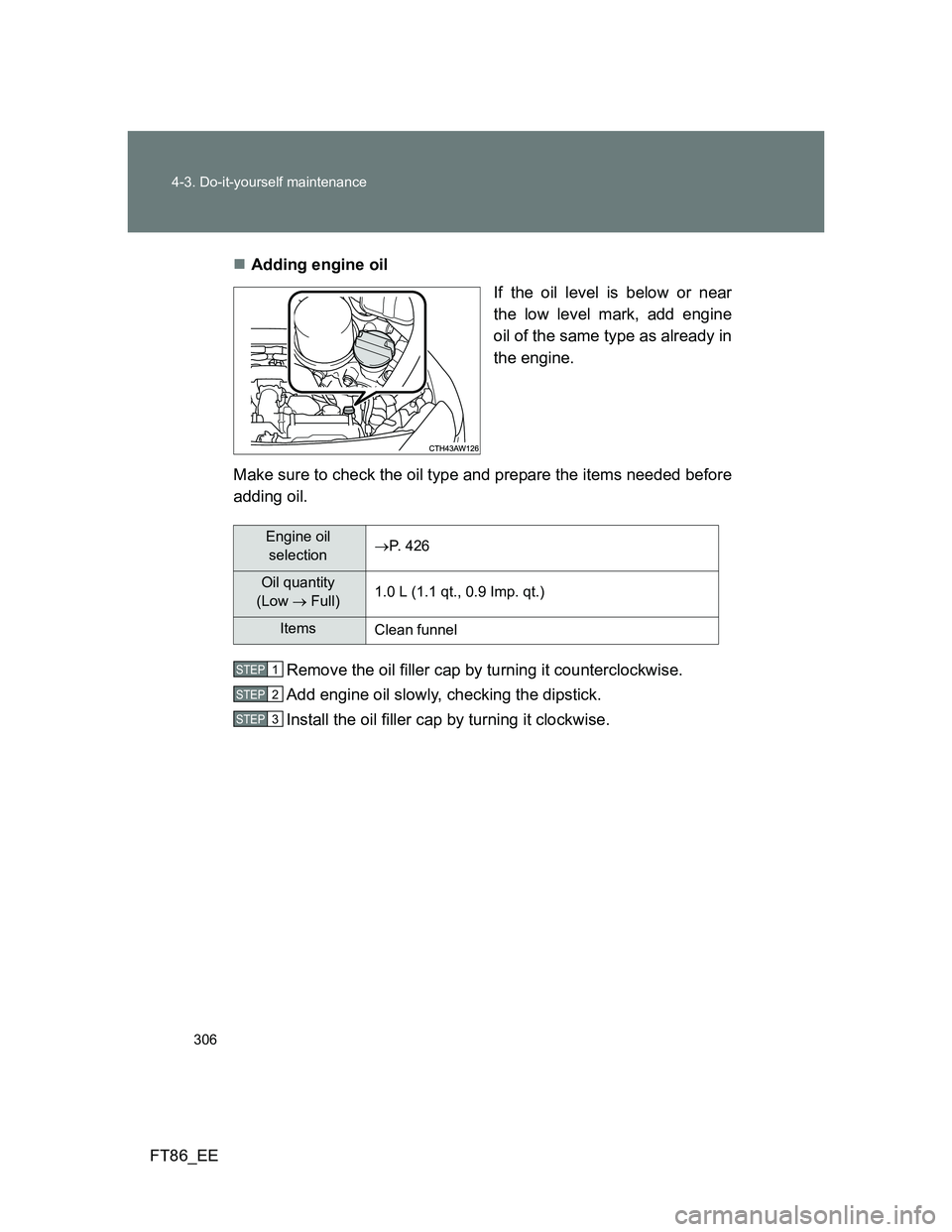

FT86_EEAdding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the o

Page 307 of 452

TOYOTA GT86 2014  Owners Manual (in English) 307 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE
Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the follow-
ing situations, oil consumpti

Page 308 of 452

TOYOTA GT86 2014  Owners Manual (in English) 308 4-3. Do-it-yourself maintenance
FT86_EE

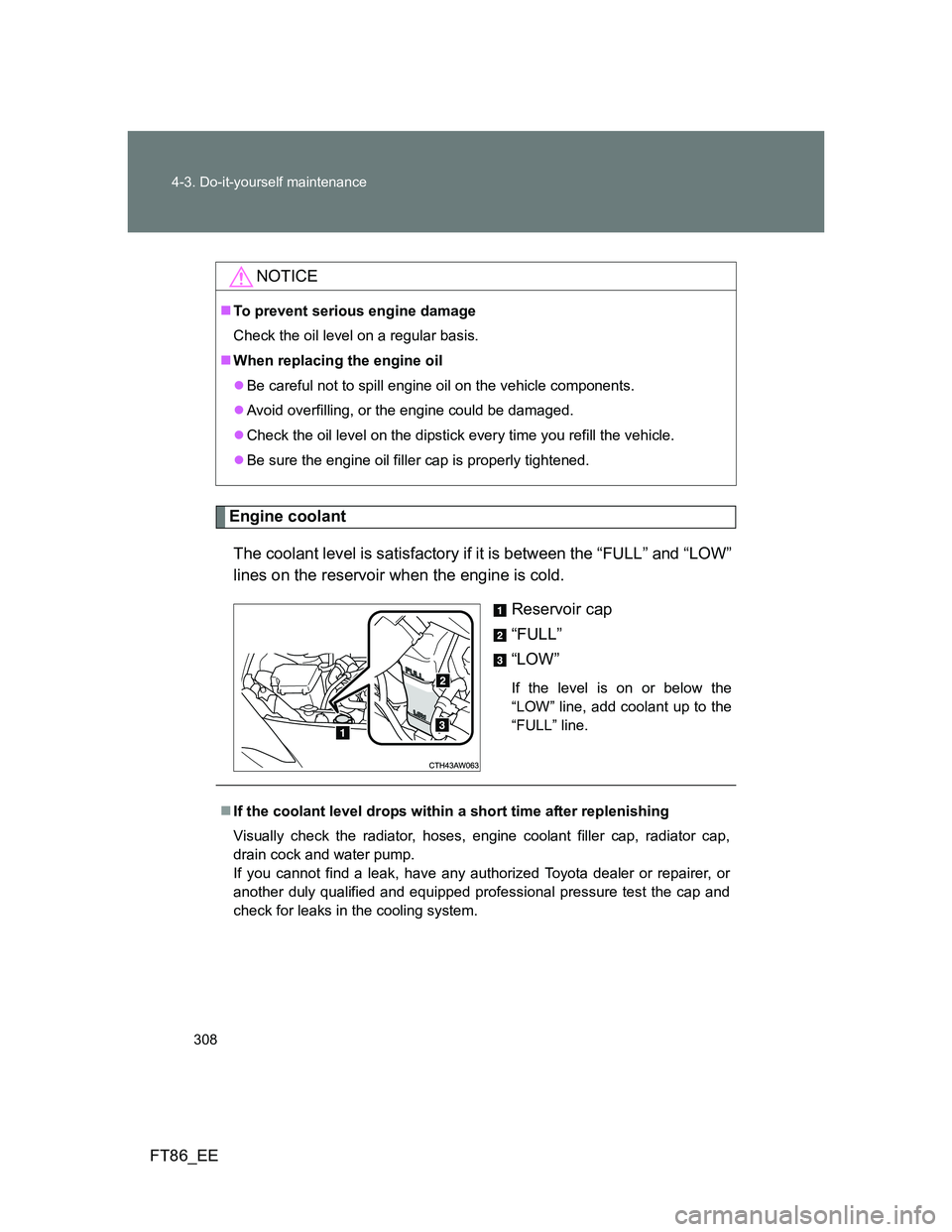

Engine coolant
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Reservoir cap

Page 309 of 452

TOYOTA GT86 2014  Owners Manual (in English) 309 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE

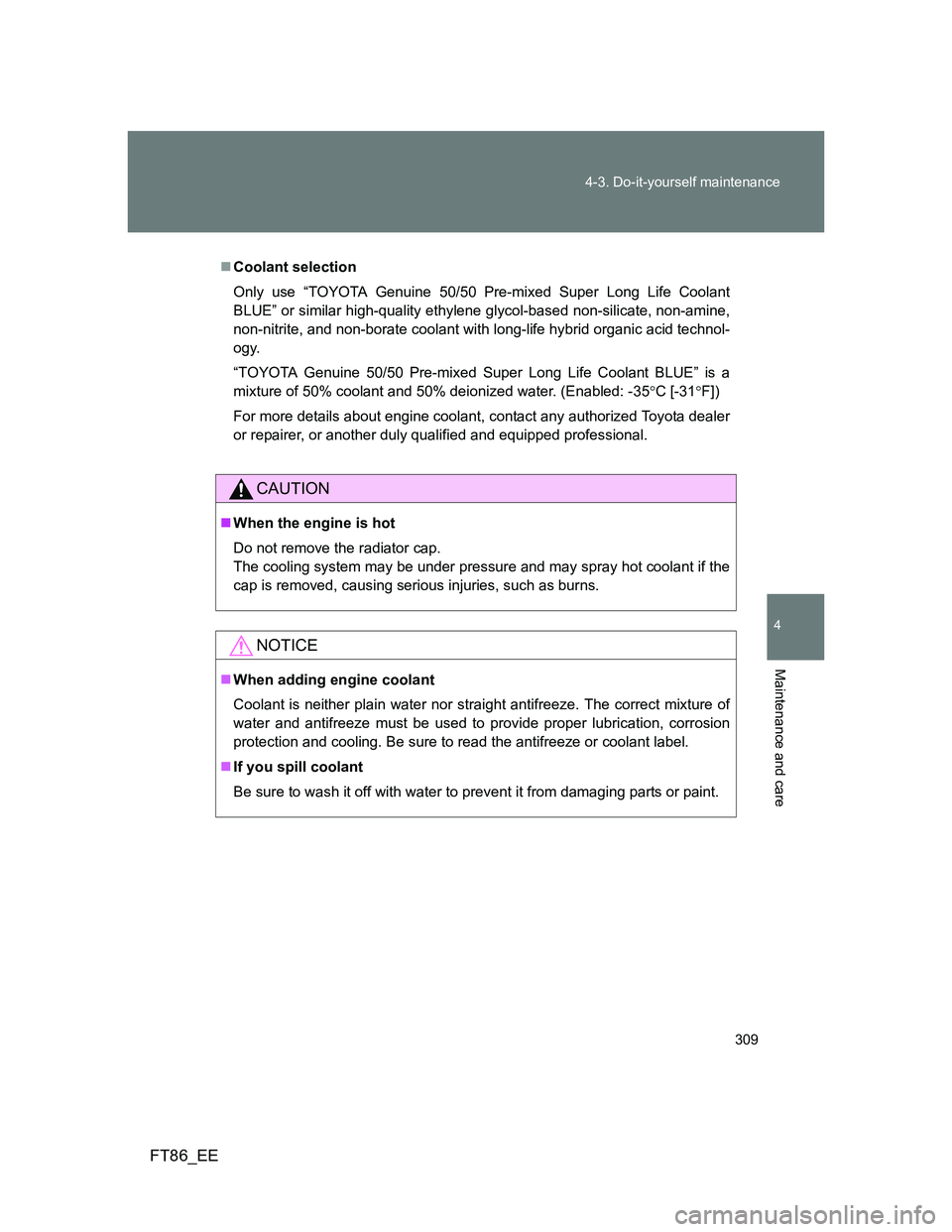

Coolant selection
Only use “TOYOTA Genuine 50/50 Pre-mixed Super Long Life Coolant
BLUE” or similar high-quality ethylene glyc

Page 310 of 452

TOYOTA GT86 2014  Owners Manual (in English) 310 4-3. Do-it-yourself maintenance
FT86_EE

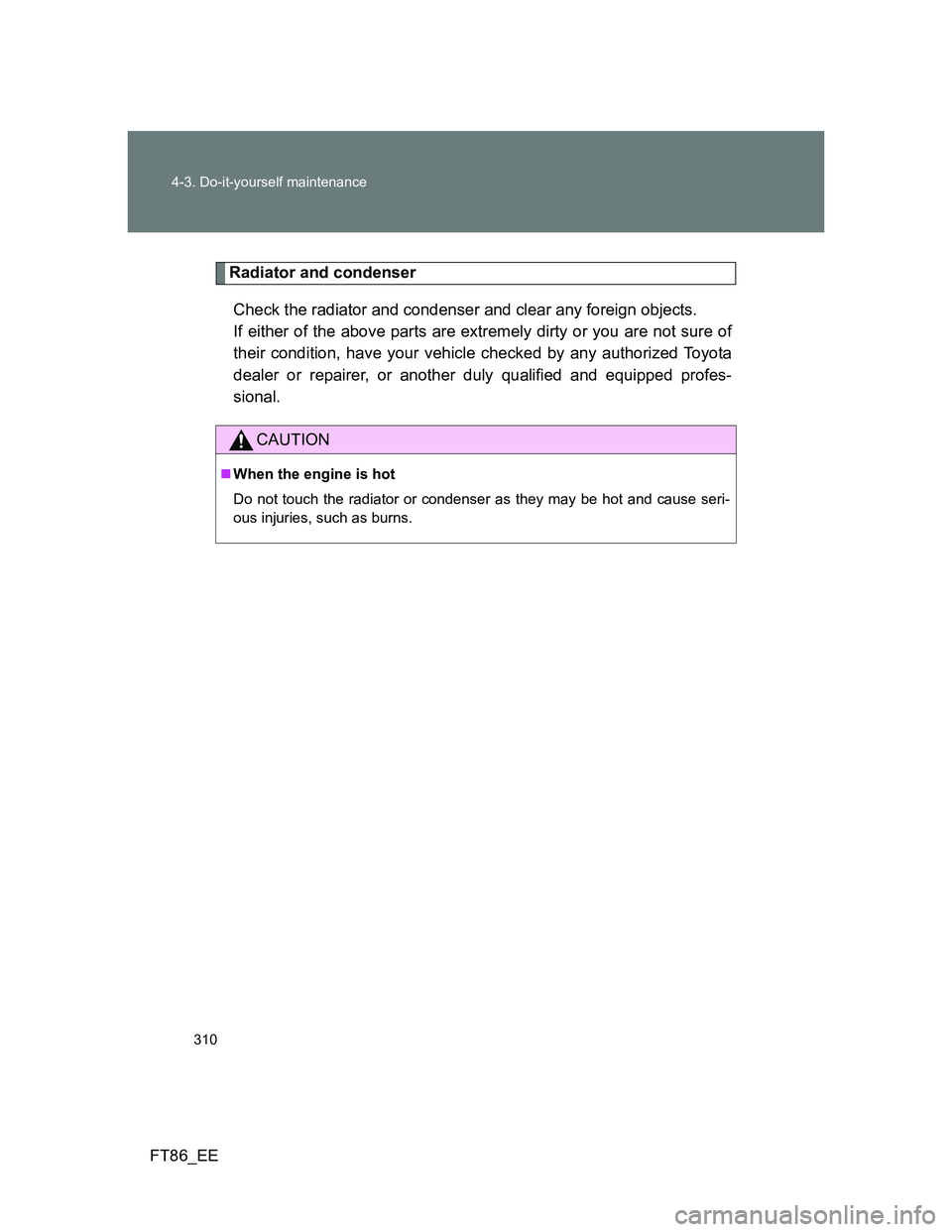

Radiator and condenser
Check the radiator and condenser and clear any foreign objects.
If either of the above parts are extremely dirty or you are not sure

Page 311 of 452

TOYOTA GT86 2014  Owners Manual (in English) 311 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE

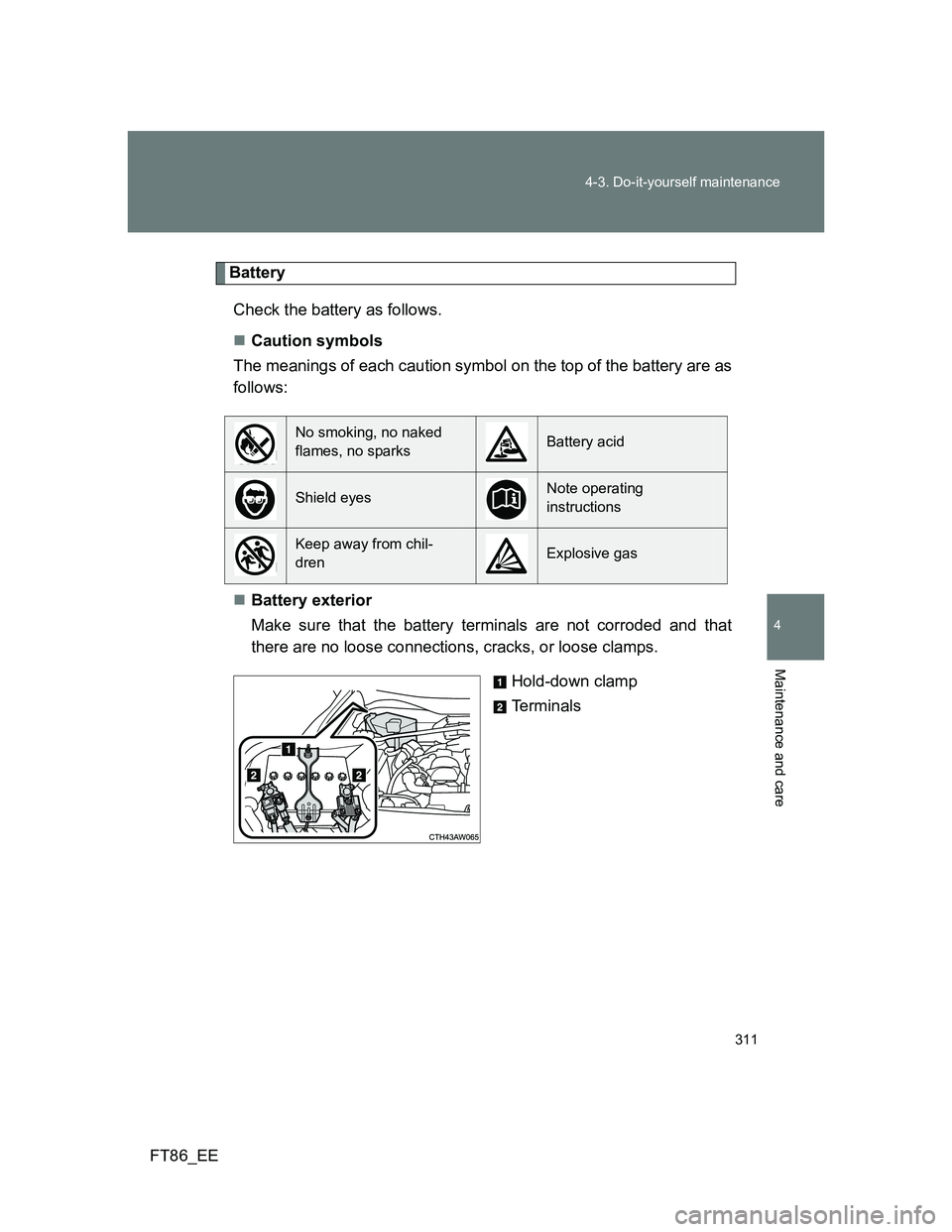

Battery
Check the battery as follows.
Caution symbols
The meanings of each caution symbol on the top of the battery are as
follows

Page 312 of 452

TOYOTA GT86 2014  Owners Manual (in English) 312 4-3. Do-it-yourself maintenance

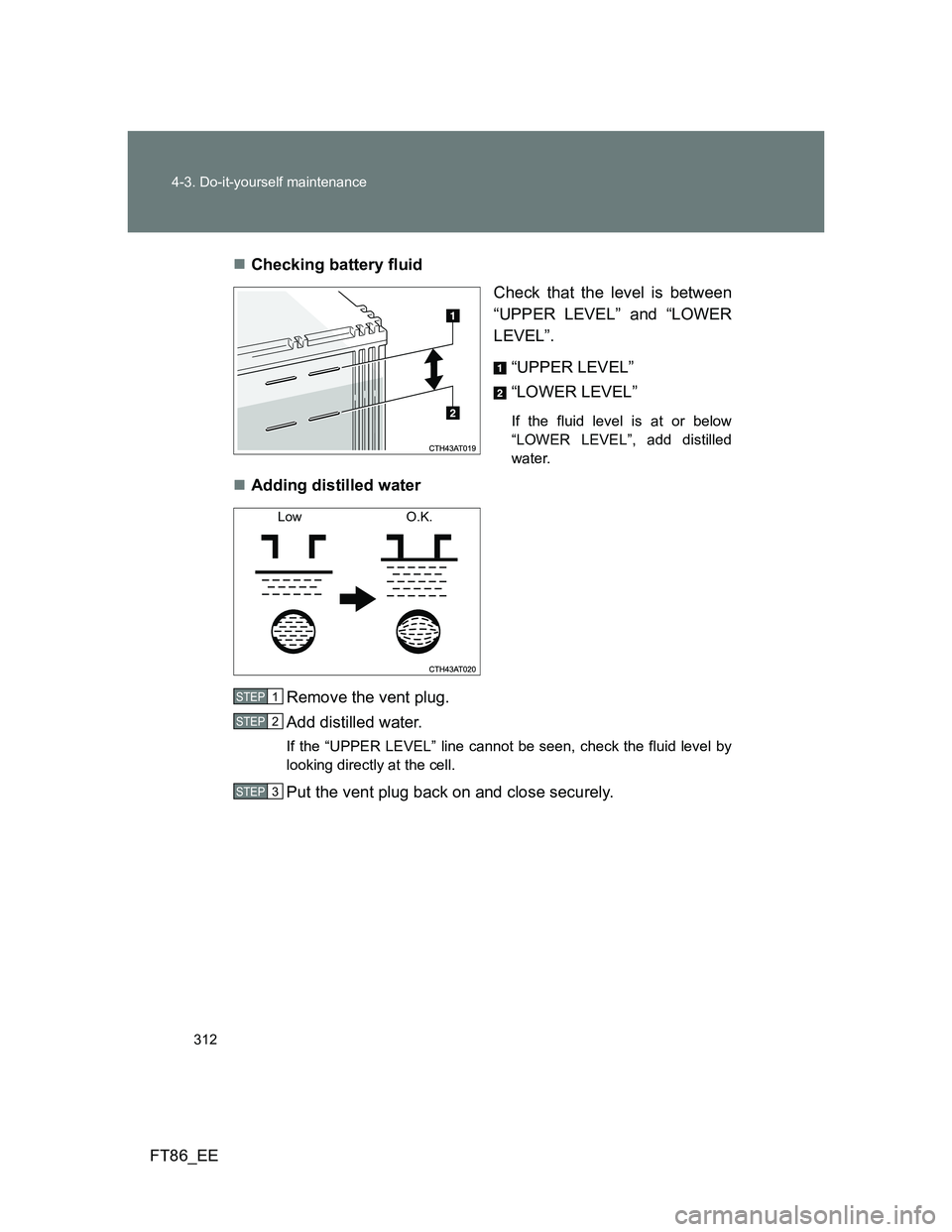

FT86_EEChecking battery fluid
Check that the level is between
“UPPER LEVEL” and “LOWER
LEVEL”.
“UPPER LEVEL”
“LOWER LEVEL”
If the fluid level is
