2014 TOYOTA GT86 Owners Manual (in English)

65
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
FT86_EE
Rear seats
Seat dust cover
Always remove the seat dust cover that may be attached at the time of pur-
chase before using the seat.
CAUTION
When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not fold the seatbacks down while driving.
Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (automatic transmission) or N (manual transmission).
Do not allow anyone to sit on a folded seatback or in the trunk while driv-
ing.
Do not allow children to enter the trunk.
The seatbacks of the rear seats can be folded down.
Press the seatback lock
release buttons and fold the
seatback down.
Press the button until the lock
is released.
To return the seatbacks to its
original position, lift it up until it
locks.

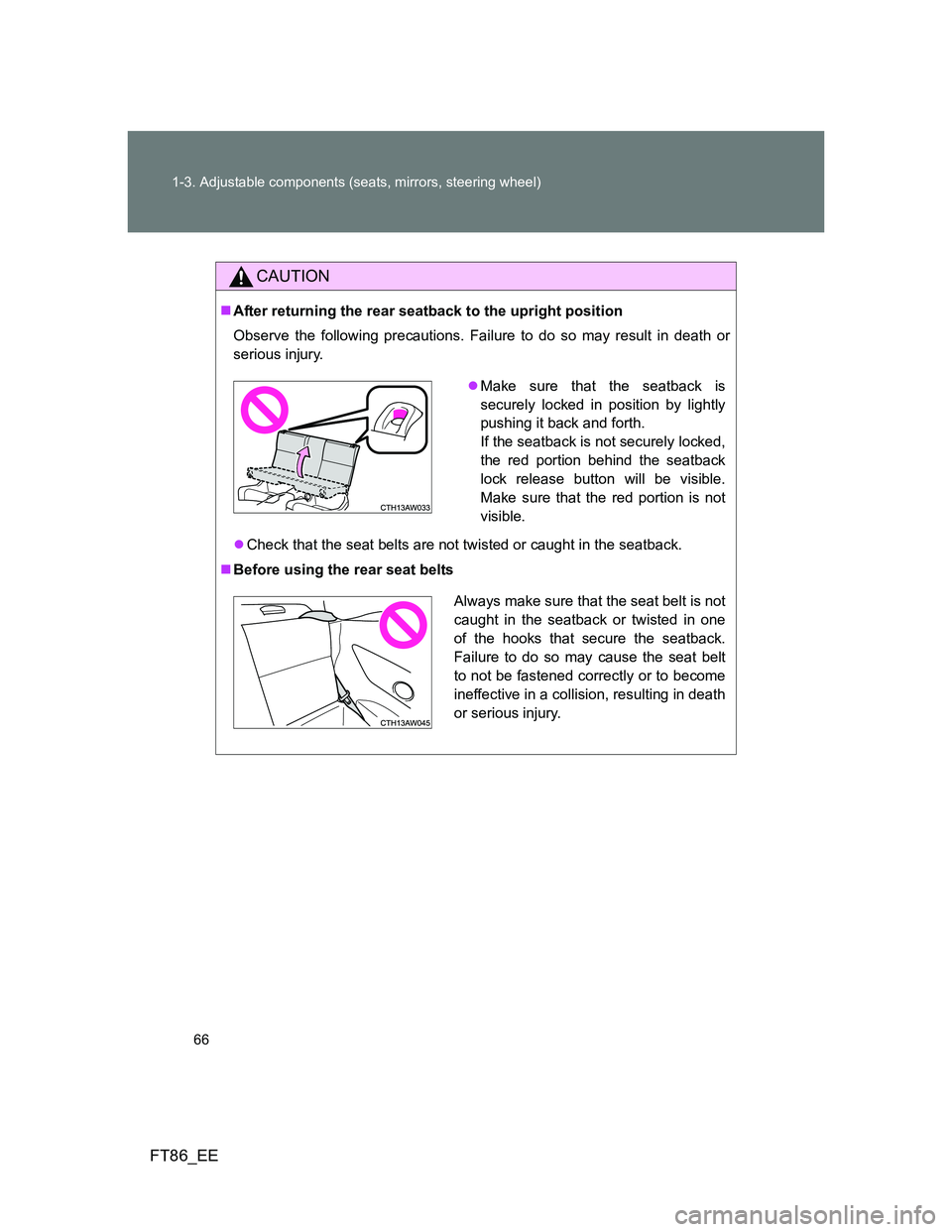

66 1-3. Adjustable components (seats, mirrors, steering wheel)
FT86_EE
CAUTION
After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
Check that the seat belts are not twisted or caught in the seatback.
Before using the rear seat belts
Make sure that the seatback is
securely locked in position by lightly
pushing it back and forth.
If the seatback is not securely locked,
the red portion behind the seatback
lock release button will be visible.
Make sure that the red portion is not
visible.
Always make sure that the seat belt is not
caught in the seatback or twisted in one
of the hooks that secure the seatback.
Failure to do so may cause the seat belt
to not be fastened correctly or to become
ineffective in a collision, resulting in death
or serious injury.

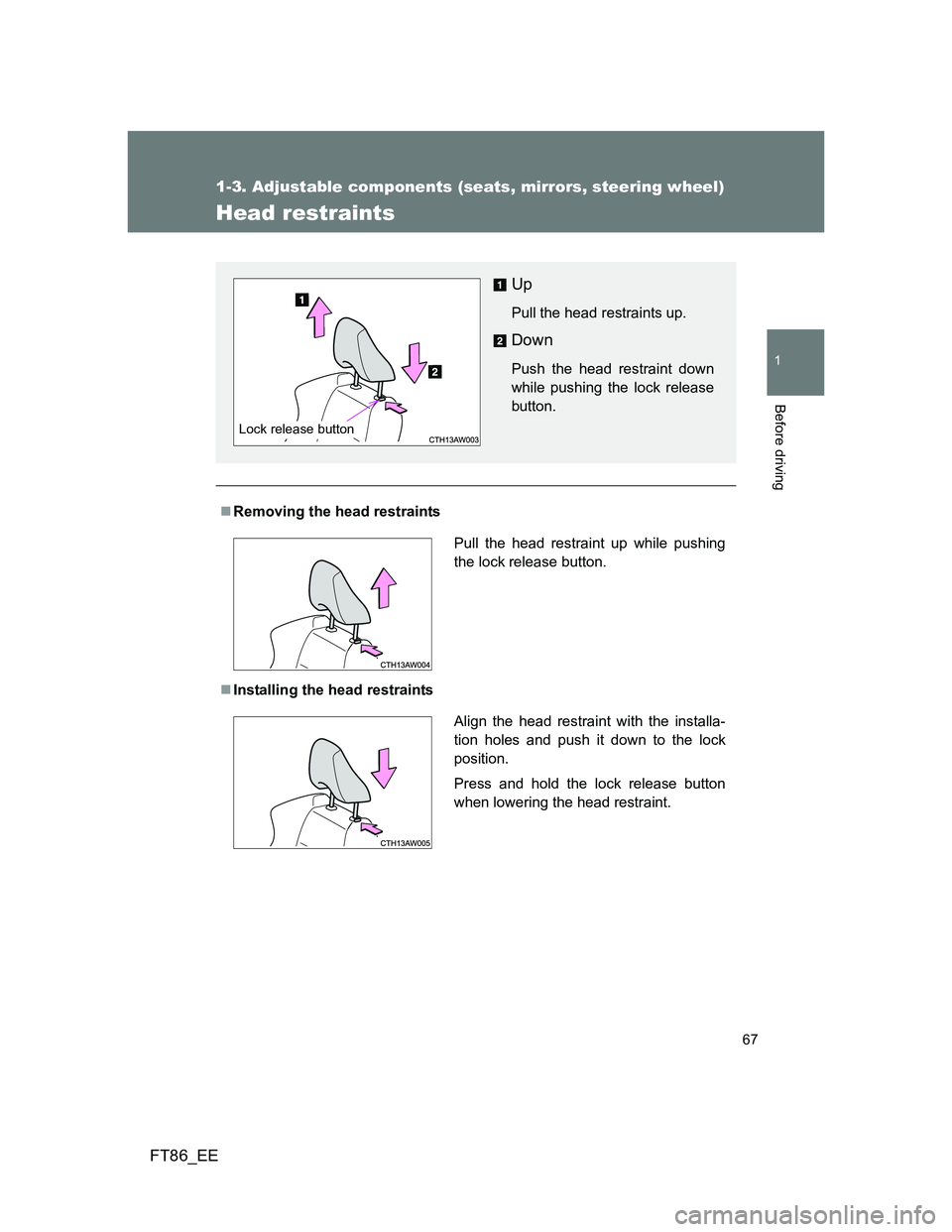

67
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
FT86_EE
Head restraints
Removing the head restraints
Installing the head restraints
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Lock release button
Pull the head restraint up while pushing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.

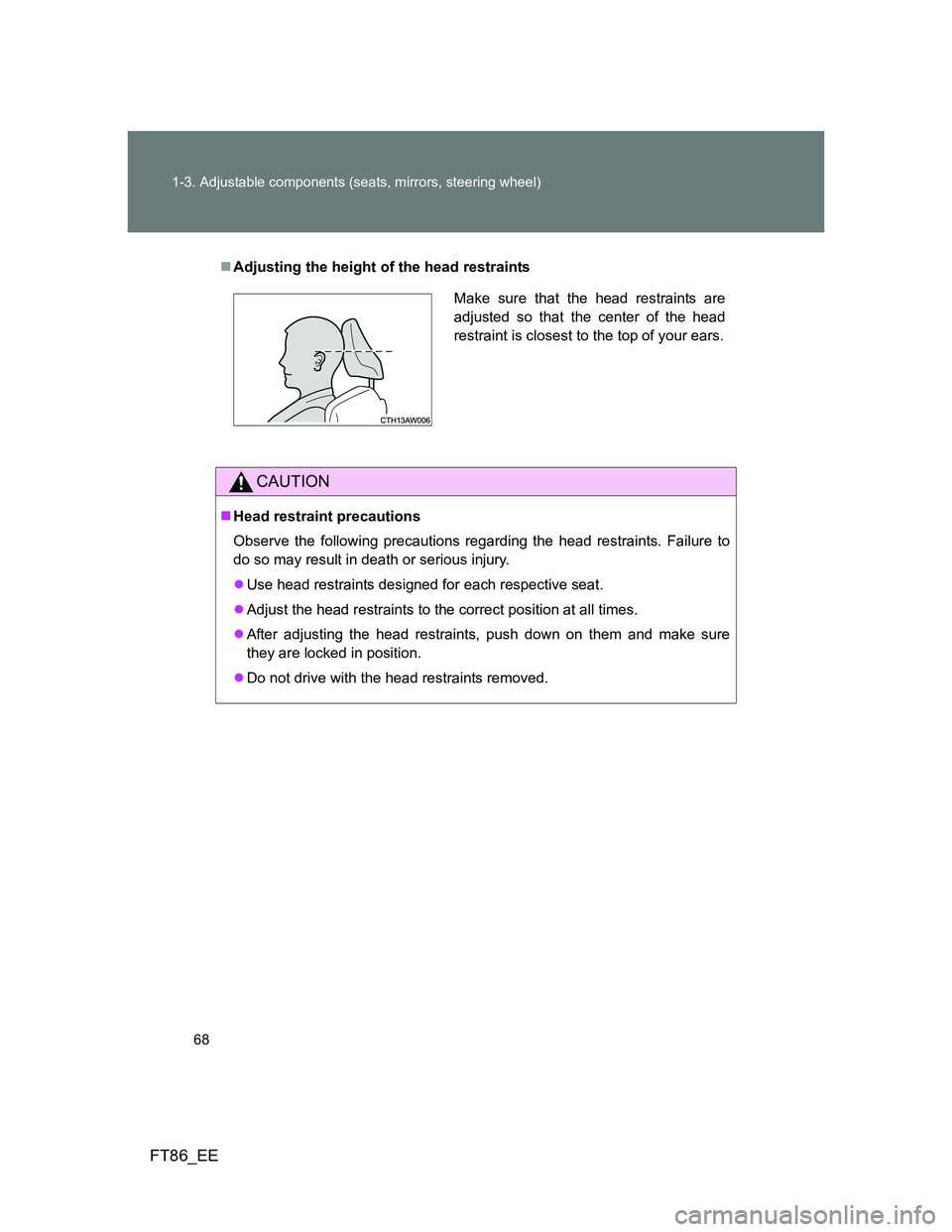

68 1-3. Adjustable components (seats, mirrors, steering wheel)
FT86_EE
Adjusting the height of the head restraints
CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
Use head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure
they are locked in position.
Do not drive with the head restraints removed.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

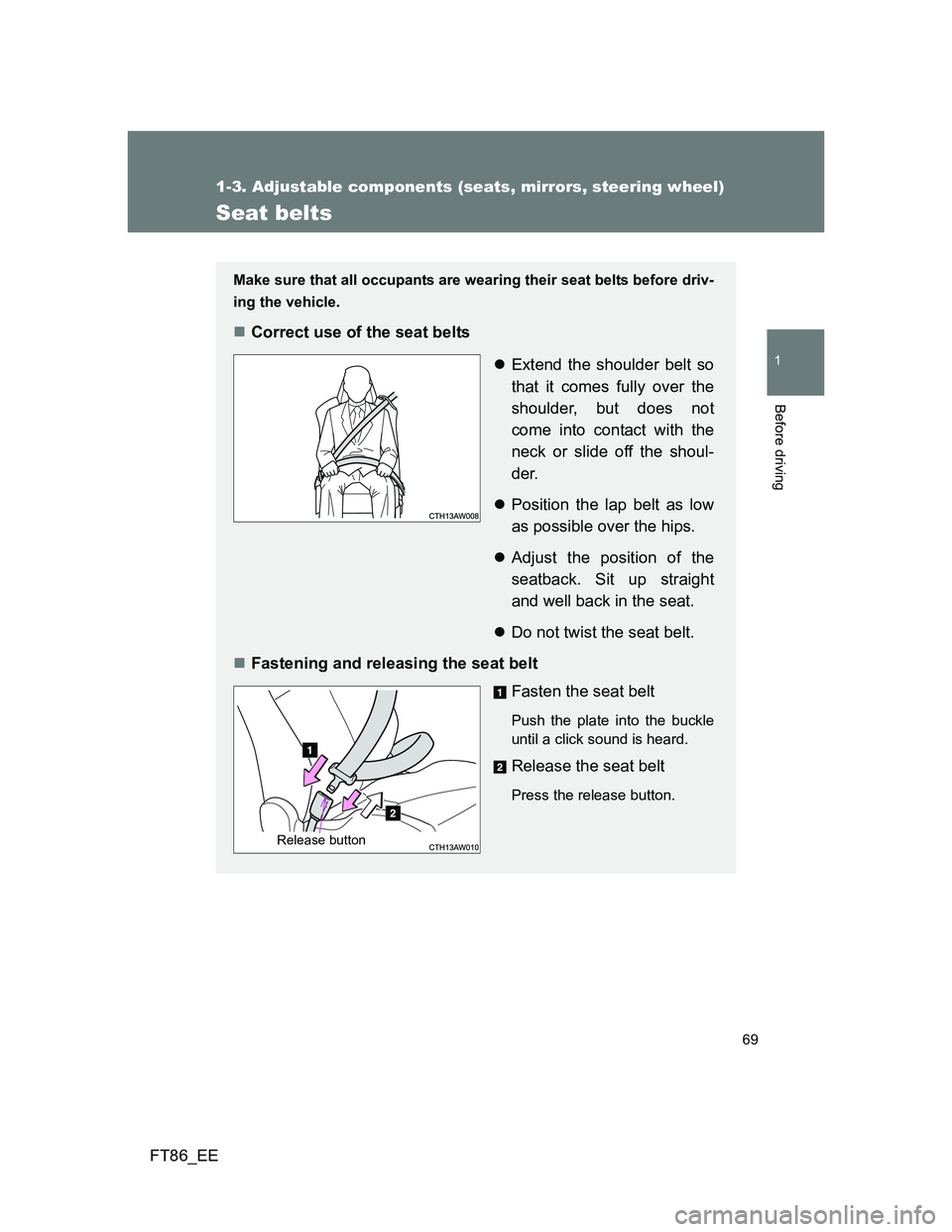

69
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
FT86_EE
Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
Fastening and releasing the seat belt
Fasten the seat belt
Push the plate into the buckle
until a click sound is heard.
Release the seat belt
Press the release button.
Release button

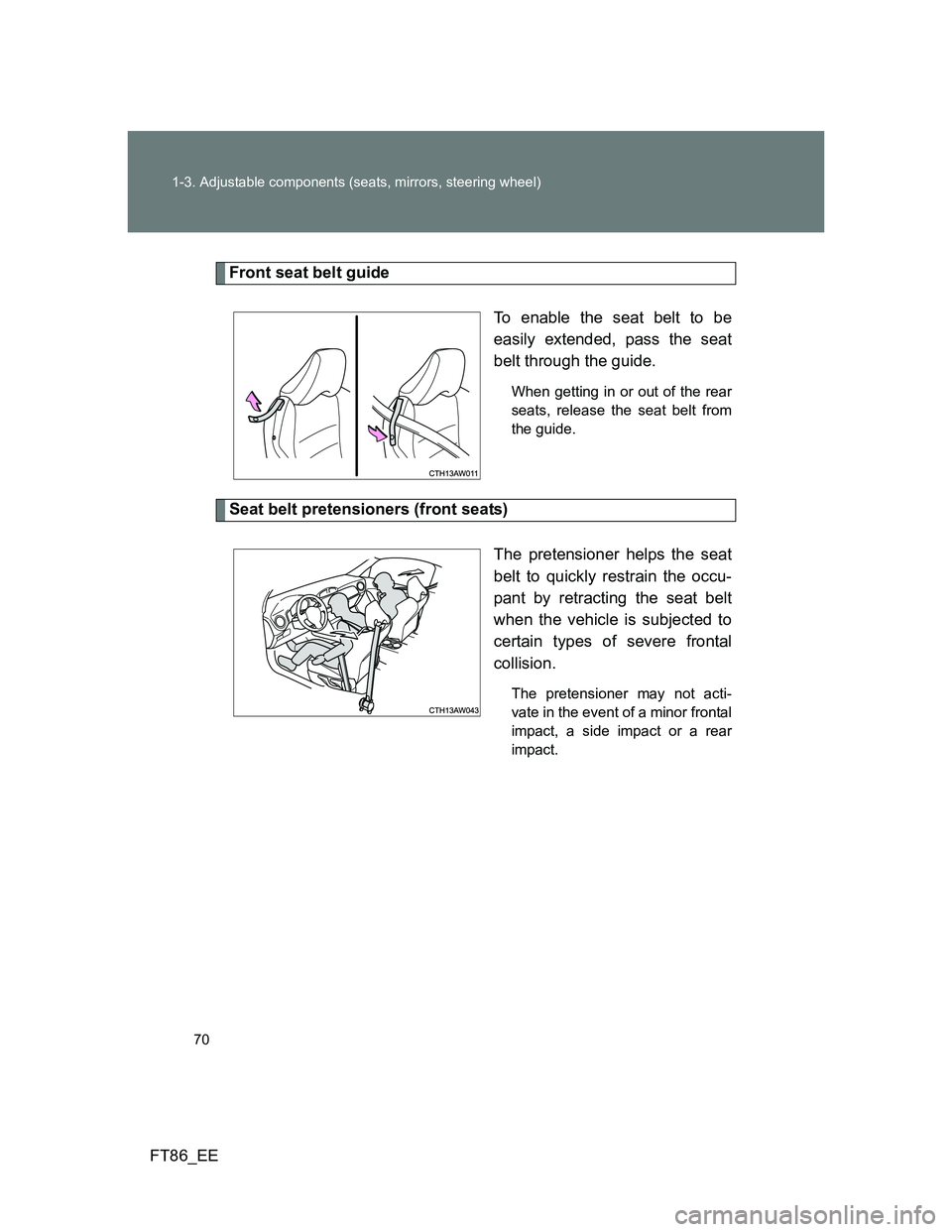

70 1-3. Adjustable components (seats, mirrors, steering wheel)
FT86_EE
Front seat belt guide
To enable the seat belt to be
easily extended, pass the seat
belt through the guide.
When getting in or out of the rear
seats, release the seat belt from
the guide.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.

71 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
FT86_EE
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
Child seat belt usage
The seat belts of your vehicle are principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle's seat belt. (P. 130)
When the child becomes large enough to properly wear the vehicle's seat
belt, follow the instructions on P. 69 regarding seat belt usage.
Seat belt pretensioners
Seat belt pretensioners are not designed to activate in minor frontal or
side impact, in side or rear impacts or in roll-over accidents.
The following four components operate simultaneously.
• Seat belt pretensioner for driver
• Seat belt pretensioner for front passenger
• SRS frontal airbag for driver
• SRS frontal airbag for front passenger
Pretensioners are designed to function on a one-time-only basis. In the
event that a pretensioner is activated, both the driver’s and front passen-
ger’s seat belt retractor assemblies must be replaced only by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional. When replacing seat belt retractor assemblies, use only
genuine Toyota parts.
If either front seat belt does not retract or cannot be pulled out due to a
malfunction or activation of the pretensioner, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional as soon as possible.
If the front seat belt retractor assembly or surrounding area has been
damaged, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional as soon as possible.
When you sell your vehicle, we urge you to explain to the buyer that it
has seat belt pretensioners by alerting the buyer to the contents of this
section.

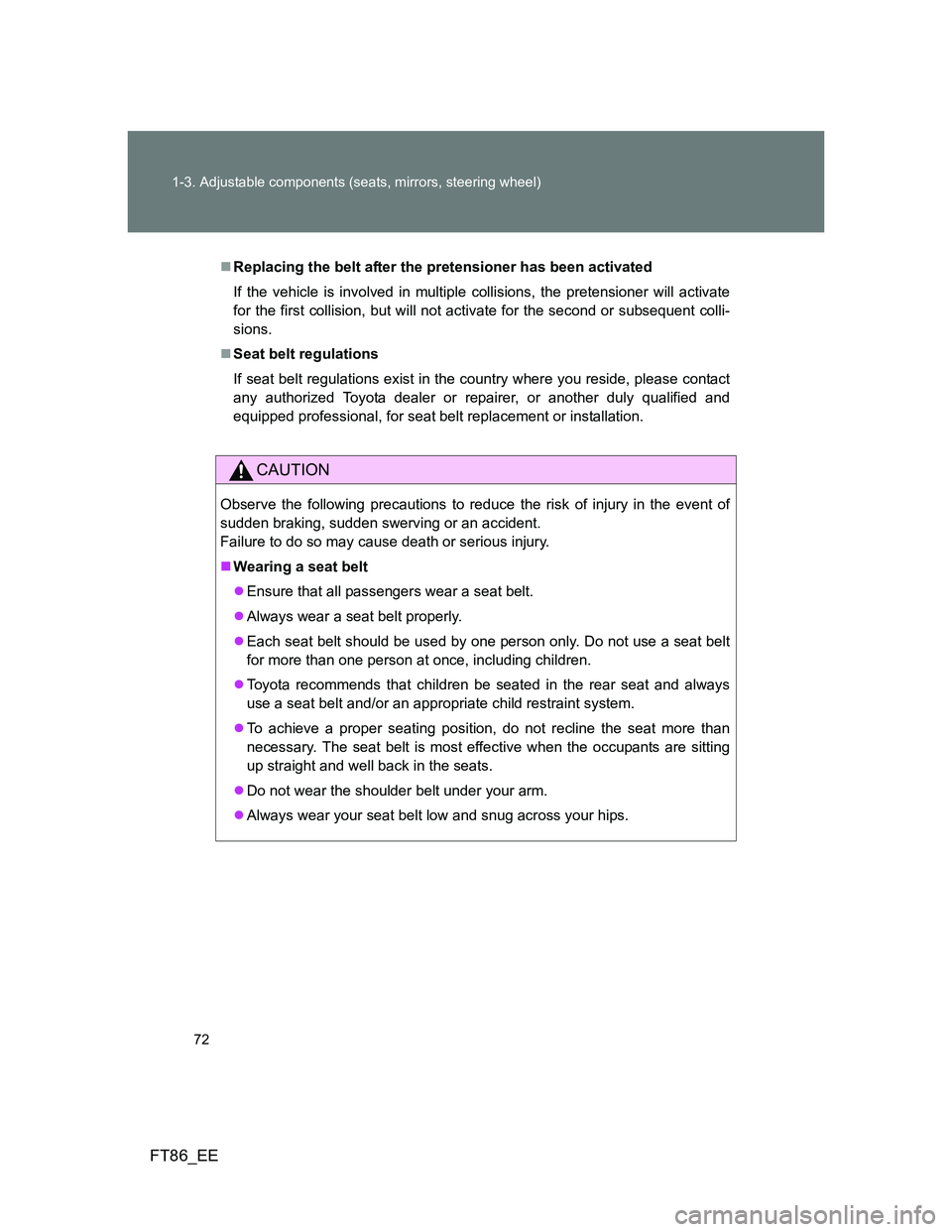

72 1-3. Adjustable components (seats, mirrors, steering wheel)
FT86_EE
Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.
Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, for seat belt replacement or installation.
CAUTION
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
Wearing a seat belt
Ensure that all passengers wear a seat belt.
Always wear a seat belt properly.
Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
To achieve a proper seating position, do not recline the seat more than
necessary. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
Do not wear the shoulder belt under your arm.
Always wear your seat belt low and snug across your hips.
