2014 TOYOTA GT86 Owners Manual (in English)

Page 409 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
409
5-2. Steps to take in an emergency
When trouble arises
FT86_EE
If the batter y is discharged
The following procedures may be used to start the engine if the vehi-
cles battery is discharged.
Y

Page 410 of 452

TOYOTA GT86 2014  Owners Manual (in English) 410 5-2. Steps to take in an emergency
FT86_EE
Right-hand drive vehicles
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal

Page 411 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
411 5-2. Steps to take in an emergency
When trouble arises
FT86_EE
Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
Avoiding a discharged batte

Page 412 of 452

TOYOTA GT86 2014  Owners Manual (in English) 412 5-2. Steps to take in an emergency
FT86_EE
The “ENGINE START STOP” switch mode is memorized by the vehicle.
When the battery is reconnected, the system will return to the mode it
was in bef

Page 413 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
413 5-2. Steps to take in an emergency
When trouble arises
FT86_EE
CAUTION
To prevent damage to the vehicle
Do not pull- or push-start the vehicle as the three-way catalytic converter
may overhea

Page 414 of 452

TOYOTA GT86 2014  Owners Manual (in English) 414
5-2. Steps to take in an emergency
FT86_EE

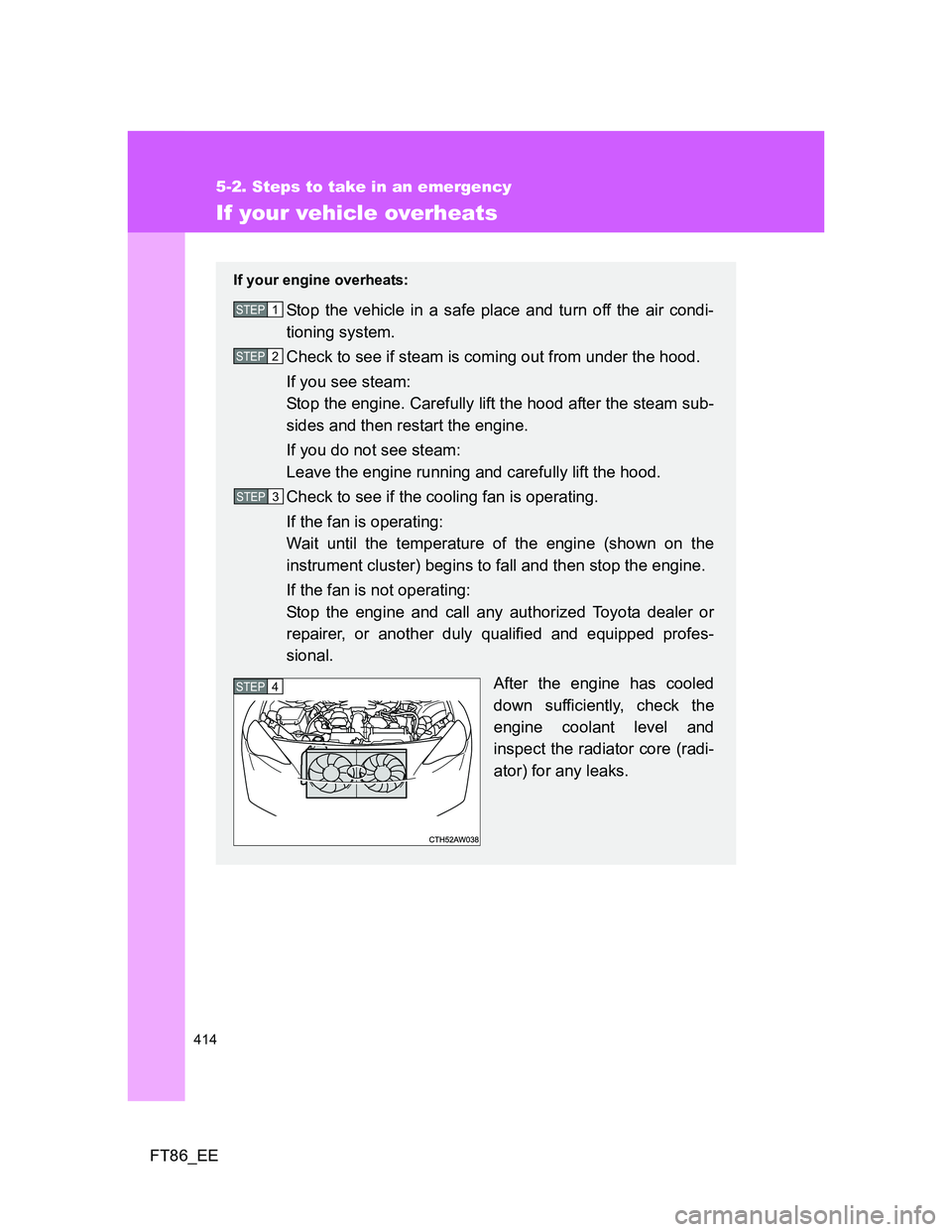

If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air condi-
tioning system.
Check to see if steam is

Page 415 of 452

TOYOTA GT86 2014  Owners Manual (in English) 5
415 5-2. Steps to take in an emergency
When trouble arises
FT86_EE

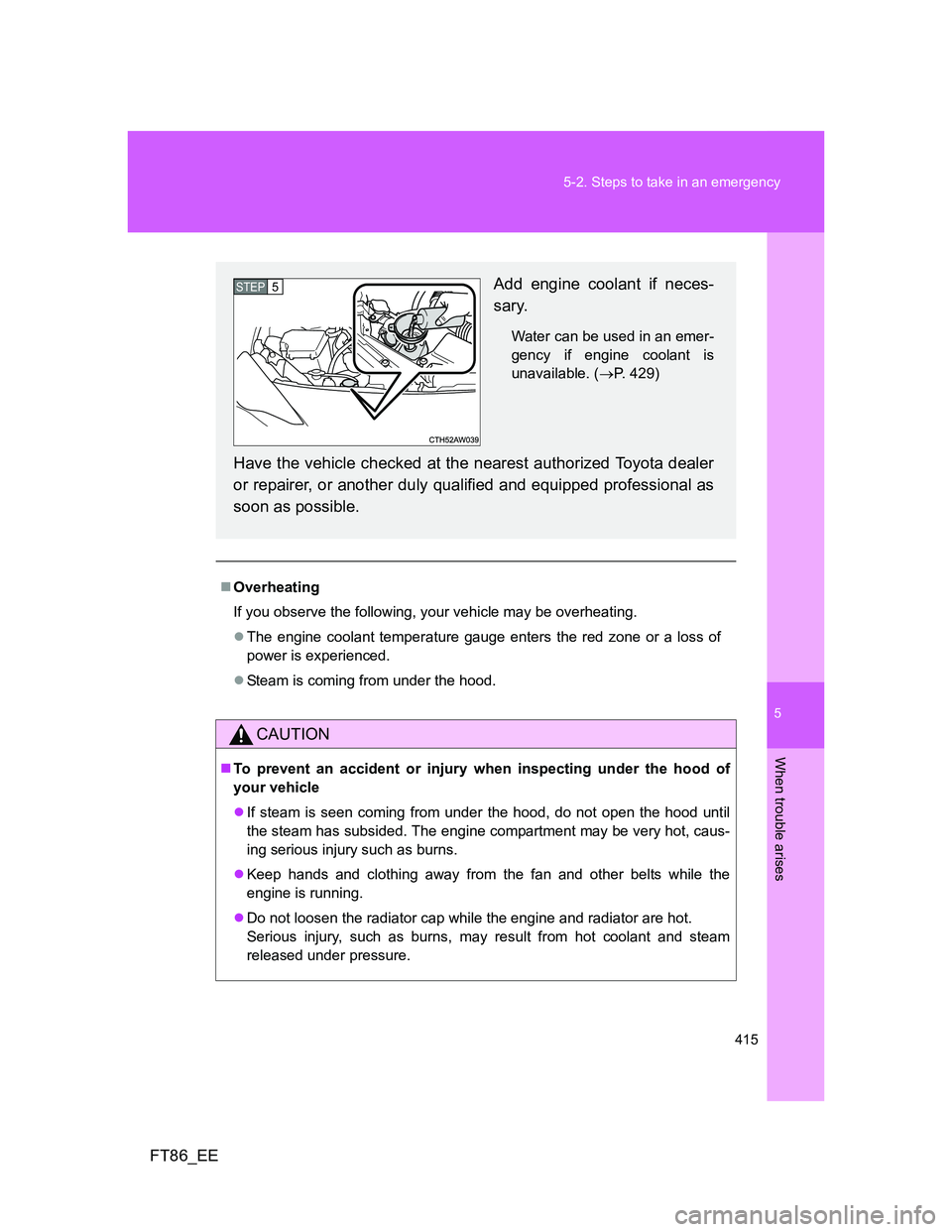

Overheating
If you observe the following, your vehicle may be overheating.
The engine coolant temperature gauge enters the re

Page 416 of 452

TOYOTA GT86 2014  Owners Manual (in English) 416 5-2. Steps to take in an emergency
FT86_EE

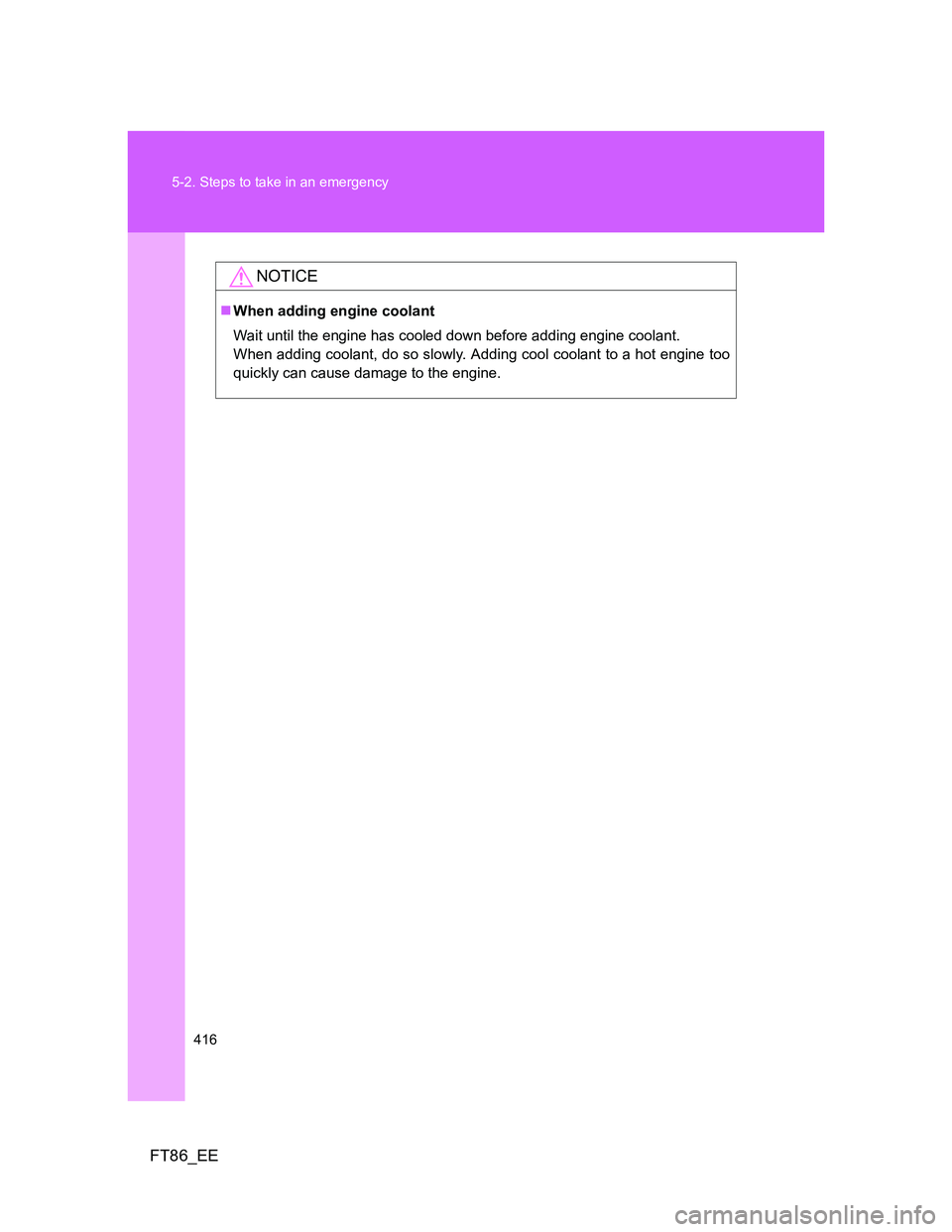

NOTICE
When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool
