Pictorial index
Interior
(Left-hand drive vehicles)
: If equipped
C
Shift lever P. 183, 190
Parking brake lever P. 194
VSC/TRC off switch P. 229
Seat heater switches  P. 275
“VSC SPORT” switch P. 229
Power outlet P. 273
Shift lock override button  P. 403
Driving pattern selector switch  P. 185

FT86_EE
16
C
Shift lock override button  P. 403
Shift lever P. 183, 190
Parking brake lever P. 194
VSC/TRC off switch P. 229
Seat heater switches  P. 275
Driving pattern selector switch  P. 185
“VSC SPORT” switch P. 229
Power outlet P. 273
: If equipped

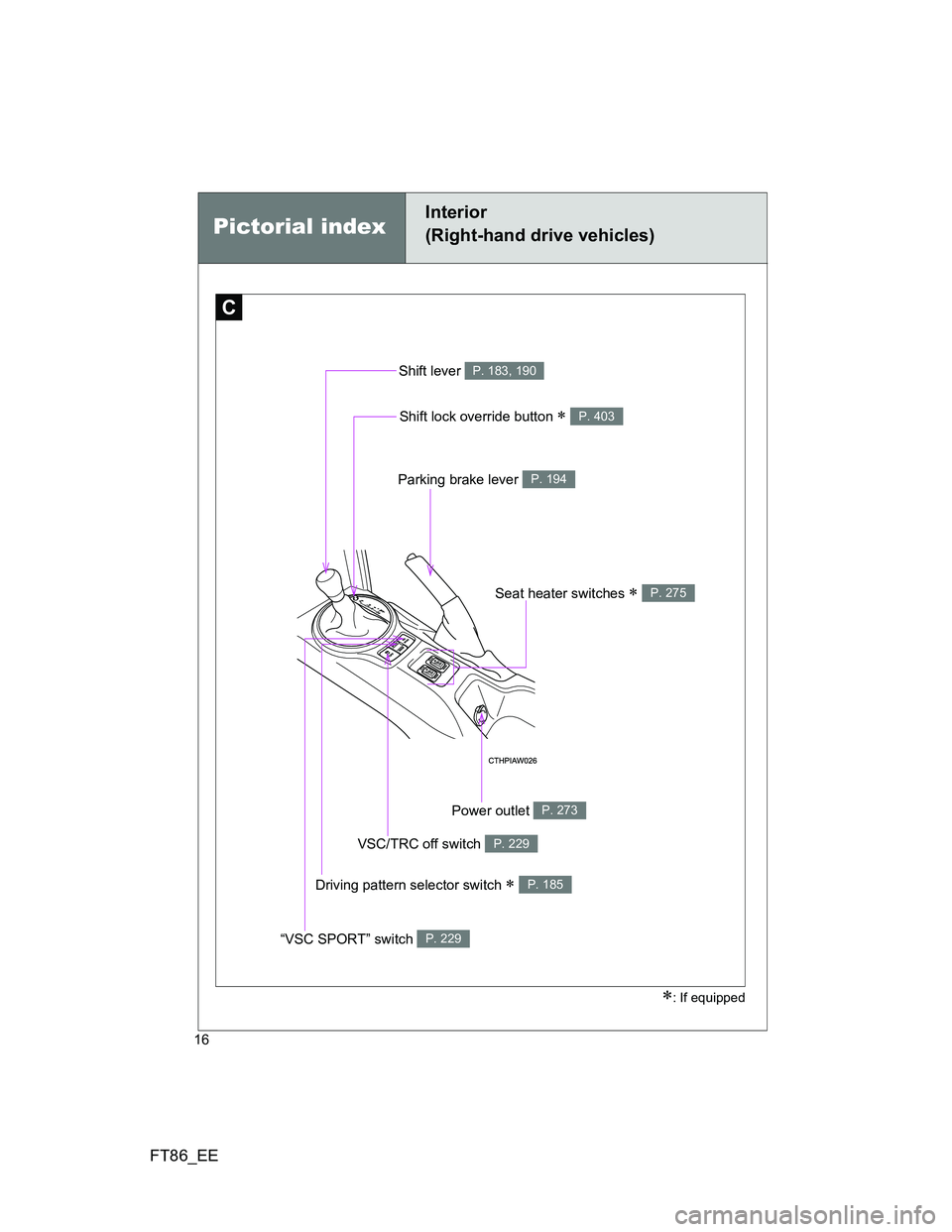

Pictorial index
Interior
(Right-hand drive vehicles)

3Interior features
241
FT86_EE
3-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................ 242
Automatic air conditioning
system ............................ 250
Rear window and
outside rear view
mirror defoggers ............. 258
3-2. Using the audio system
Using the AUX/USB
port ................................. 260
3-3. Using the interior lights
Interior lights list................ 261
• Interior light ..................... 2623-4. Using the storage
features
List of storage features ..... 263
• Glove box ....................... 264
• Bottle holders.................. 265
• Cup holders/
console tray .................... 266
3-5. Other interior features
Sun visors ......................... 268
Vanity mirrors.................... 269
Clock ................................. 270
Outside temperature
display ............................ 271
Ashtray.............................. 272
Power outlets .................... 273
Seat heaters ..................... 275
Floor mat........................... 277
Trunk features................... 280

275
3-5. Other interior features
3
Interior features
FT86_EE
Seat heaters
The seat heaters can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
When not in use
Turn the seat heater off. The indicator light goes off.
CAUTION
Burns
Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
: If equipped
Press the switch to warm the
seats.
The indicator light comes on
when a seat heater is turned
on.
Rapid heating
Normal heating

276 3-5. Other interior features
FT86_EE
NOTICE
To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
To prevent battery discharge
Turn the seat heaters off when the engine is not running.

291 4-1. Maintenance and care
4
Maintenance and care
FT86_EE
NOTICE
Cleaning the inside of the rear window
Be careful not to scratch or damage the heater wires.
Do not use glass cleaner to clean the rear window, as this may cause
damage to the rear window defogger heater wires. Use a cloth dampened
with lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
When cleaning the instrument panel
When small grains of sand and so forth have gotten into instrument panel’s
surface and cannot be wiped away using a cloth, use a clay bar without add-
ing water. Forcibly trying to wipe the surface clean with a brush or sponge
may scratch the surface or fragments of the cloth may be left in the surface.

333 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE

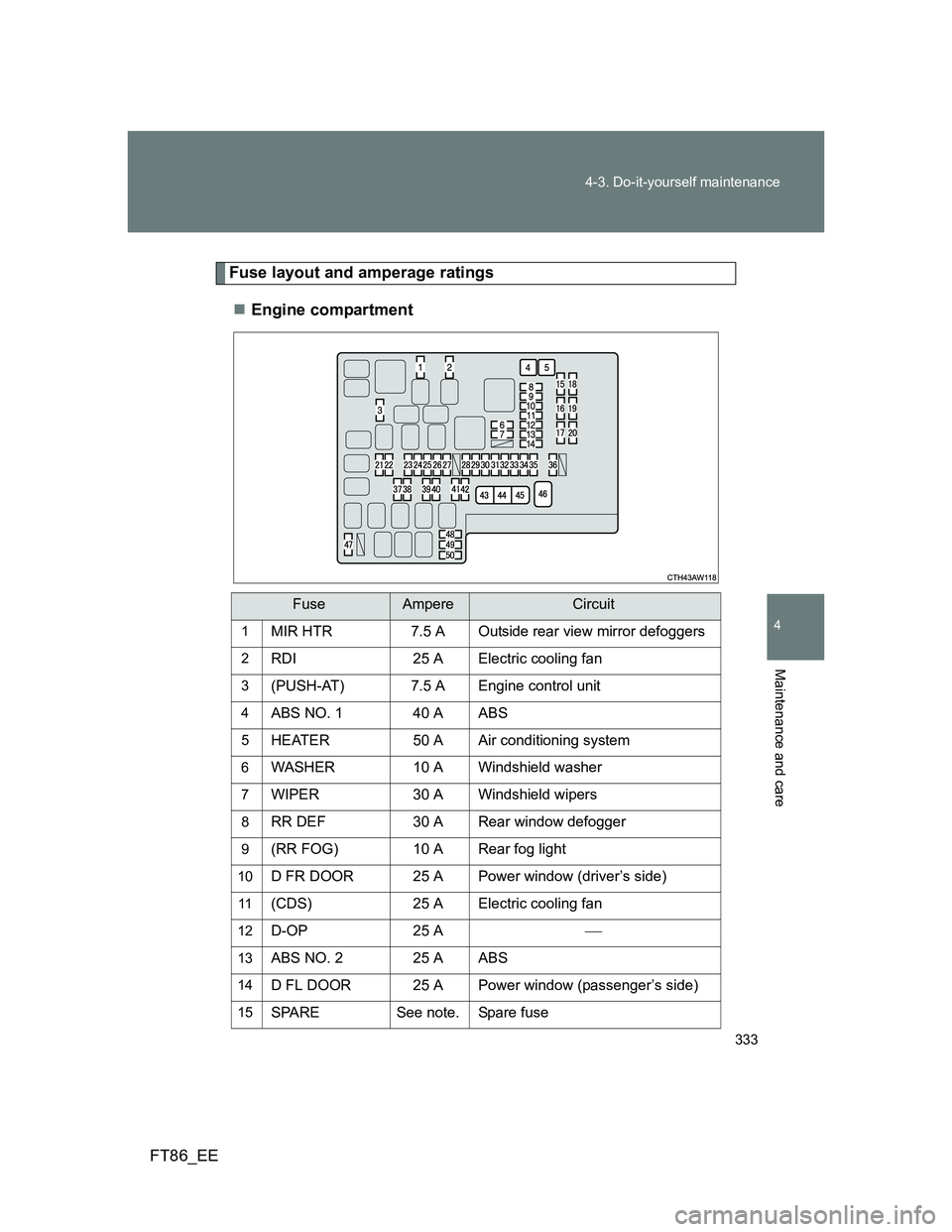

Fuse layout and amperage ratings
