249 3-1. Using the air conditioning system and defogger
3
Interior features
FT86_EE

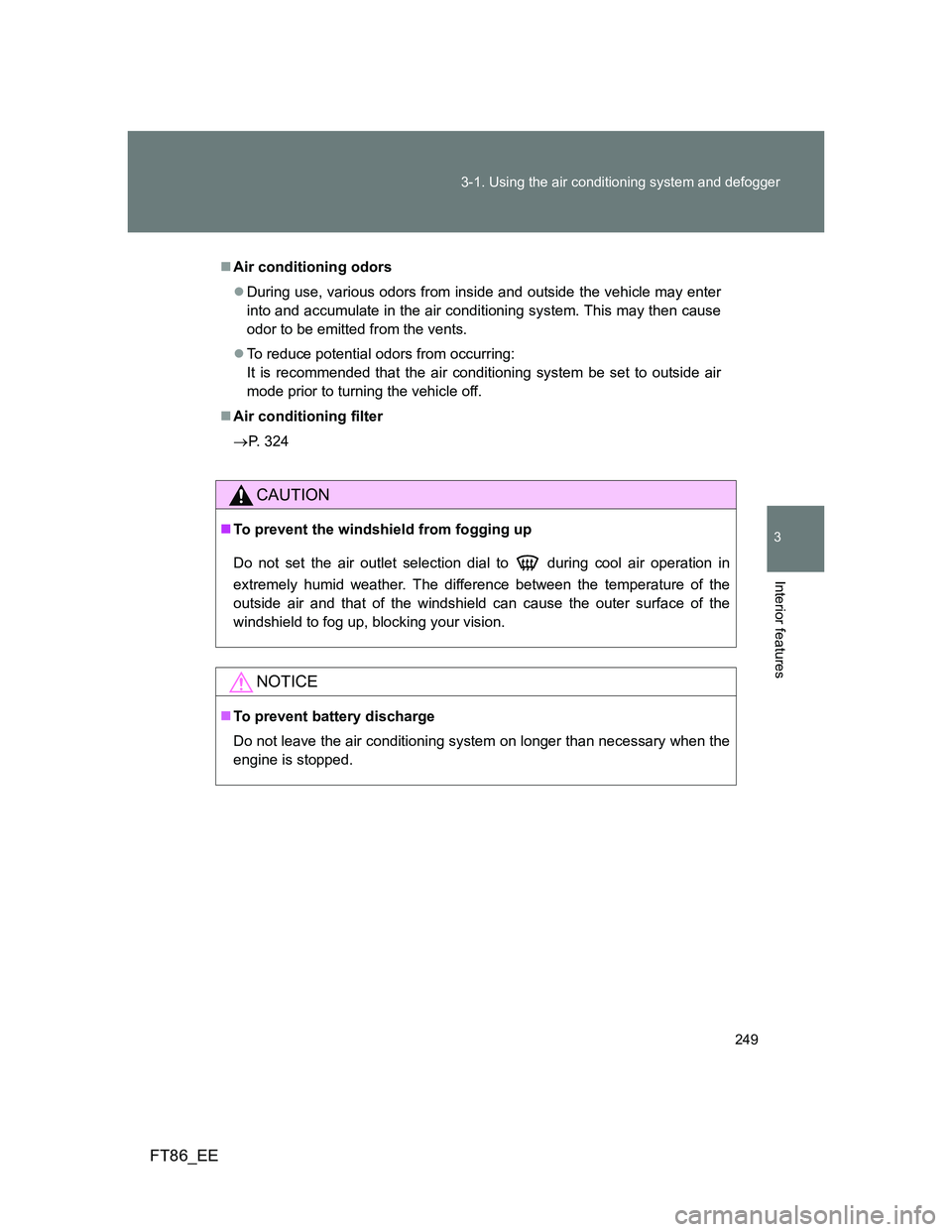

Air conditioning odors
During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
Air conditioning filter
P. 324
CAUTION
To prevent the windshield from fogging up
Do not set the air outlet selection dial to during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

250
3-1. Using the air conditioning system and defogger
FT86_EE

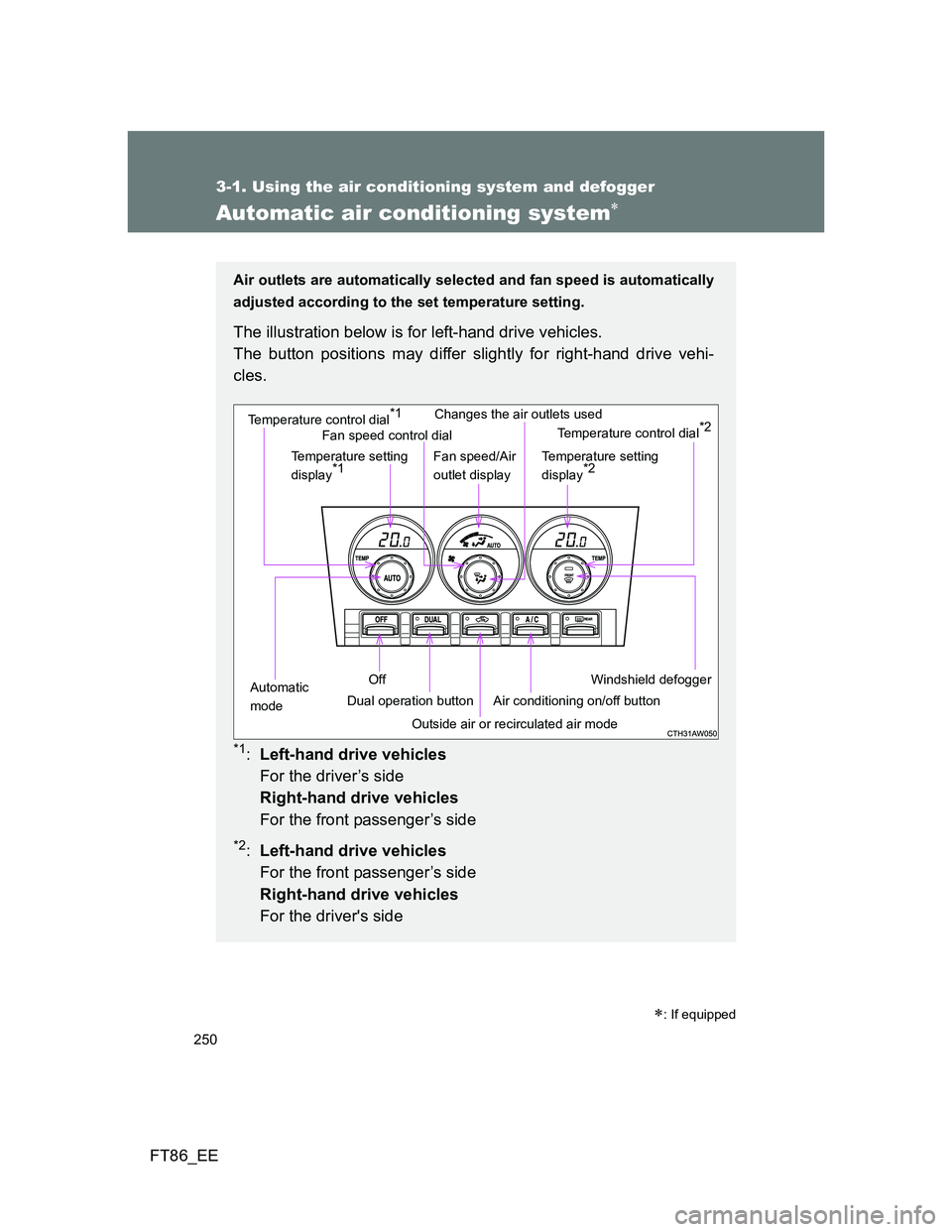

Automatic air conditioning system
Air outlets are automatically selected and fan speed is automatically
adjusted according to the set temperature setting.
The illustration below is for left-hand drive vehicles.
The button positions may differ slightly for right-hand drive vehi-
cles.
*1: Left-hand drive vehicles
For the driver’s side
Right-hand drive vehicles
For the front passenger’s side
*2: Left-hand drive vehicles
For the front passenger’s side
Right-hand drive vehicles
For the driver's side
Windshield defogger Temperature control dial
*1
Outside air or recirculated air mode Temperature setting
display
*1
Off
Automatic
modeDual operation buttonChanges the air outlets used
Air conditioning on/off buttonTemperature control dial
*2
Temperature setting
display*2
Fan speed control dial
Fan speed/Air
outlet display

: If equipped

251 3-1. Using the air conditioning system and defogger
3
Interior features
FT86_EE
Using the automatic air conditioning system
Press .
The dehumidification function begins to operate. Air outlets
and fan speed are automatically adjusted according to the
temperature setting.
Turn temperature control dial clockwise to increases the tem-
perature and turn temperature control dial counterclockwise to
decreases the temperature on the driver’s side.
When is pressed (the indicator on is on) or the pas-
senger’s side temperature control dial is turned, the temperature for
the driver and passenger seats can be adjusted separately.
Adjusting the settings manually
To adjust the fan speed, turn the fan speed control dial clock-
wise (increase) or counter-clock wise (decrease).
Press to turn the fan off.
To adjust the temperature settings, turn the temperature con-
trol dial clockwise (warm) or counter-clock wise (cool).
To adjust the temperature control dial clockwise (warm) or counter-
clockwise (cool) on the passenger side to separately adjust the tem-
perature for the passenger and driver sides (dual mode).
Press (the indicator on turns off) to return the driver
and passenger side temperatures to the same setting (simultaneous
mode).
The air conditioning system switches between dual and simultane-
ous modes each time is pressed.
STEP 1
STEP 2
STEP 1
STEP 2

252 3-1. Using the air conditioning system and defogger

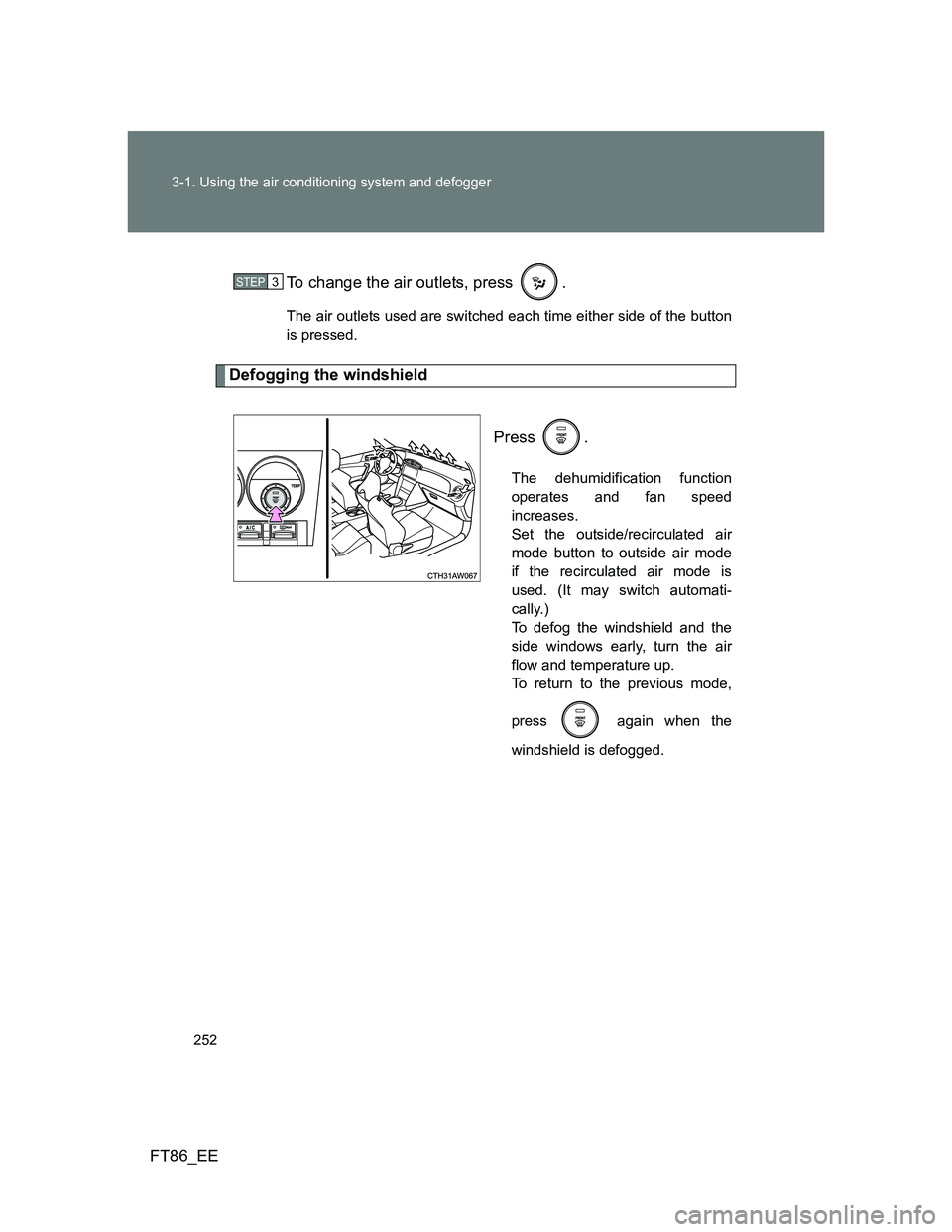

FT86_EETo change the air outlets, press .
The air outlets used are switched each time either side of the button
is pressed.
Defogging the windshield
Press .
The dehumidification function
operates and fan speed
increases.
Set the outside/recirculated air
mode button to outside air mode
if the recirculated air mode is
used. (It may switch automati-
cally.)
To defog the windshield and the
side windows early, turn the air
flow and temperature up.
To return to the previous mode,
press
again when the
windshield is defogged.
STEP 3

253 3-1. Using the air conditioning system and defogger
3
Interior features
FT86_EE

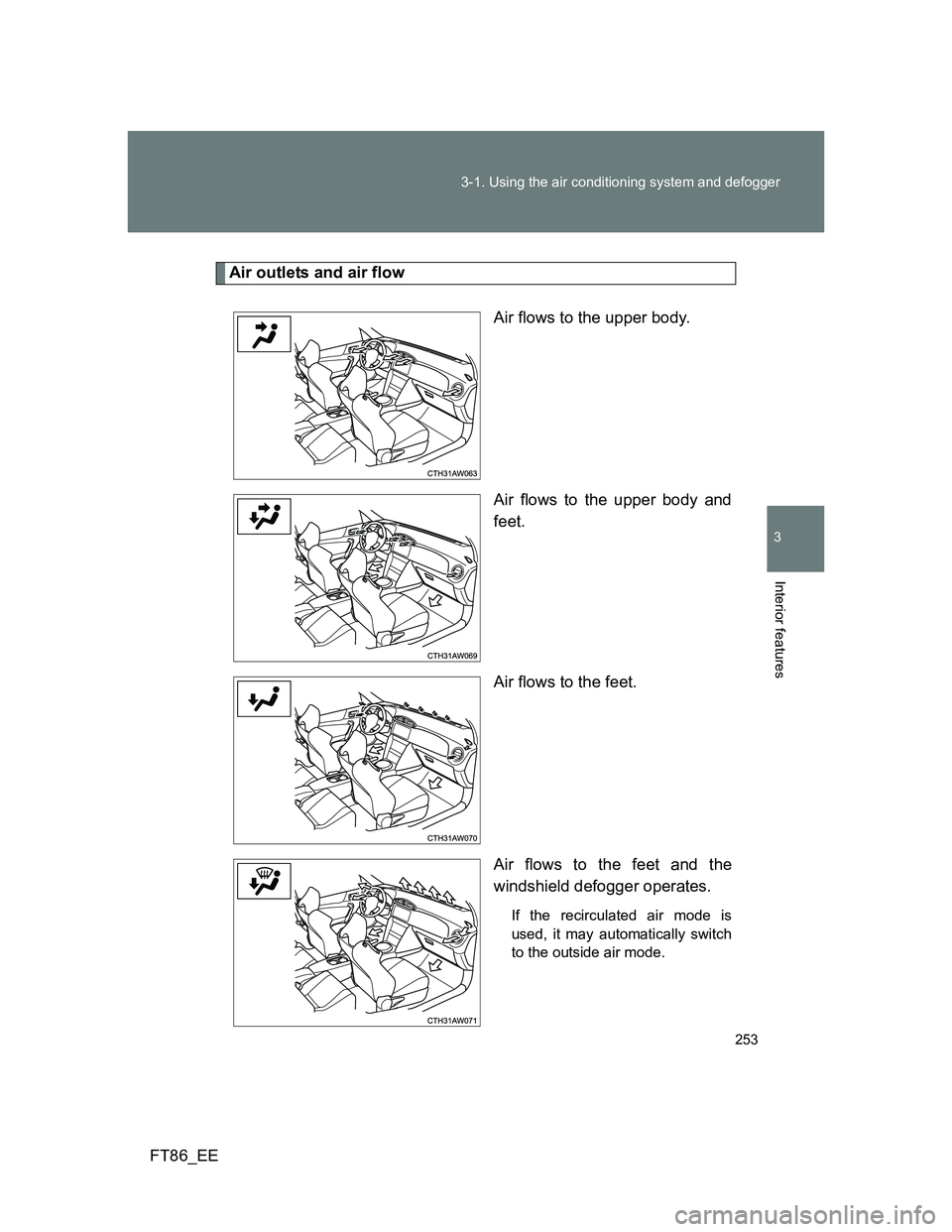

Air outlets and air flow
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
If the recirculated air mode is
used, it may automatically switch
to the outside air mode.

254 3-1. Using the air conditioning system and defogger
FT86_EE

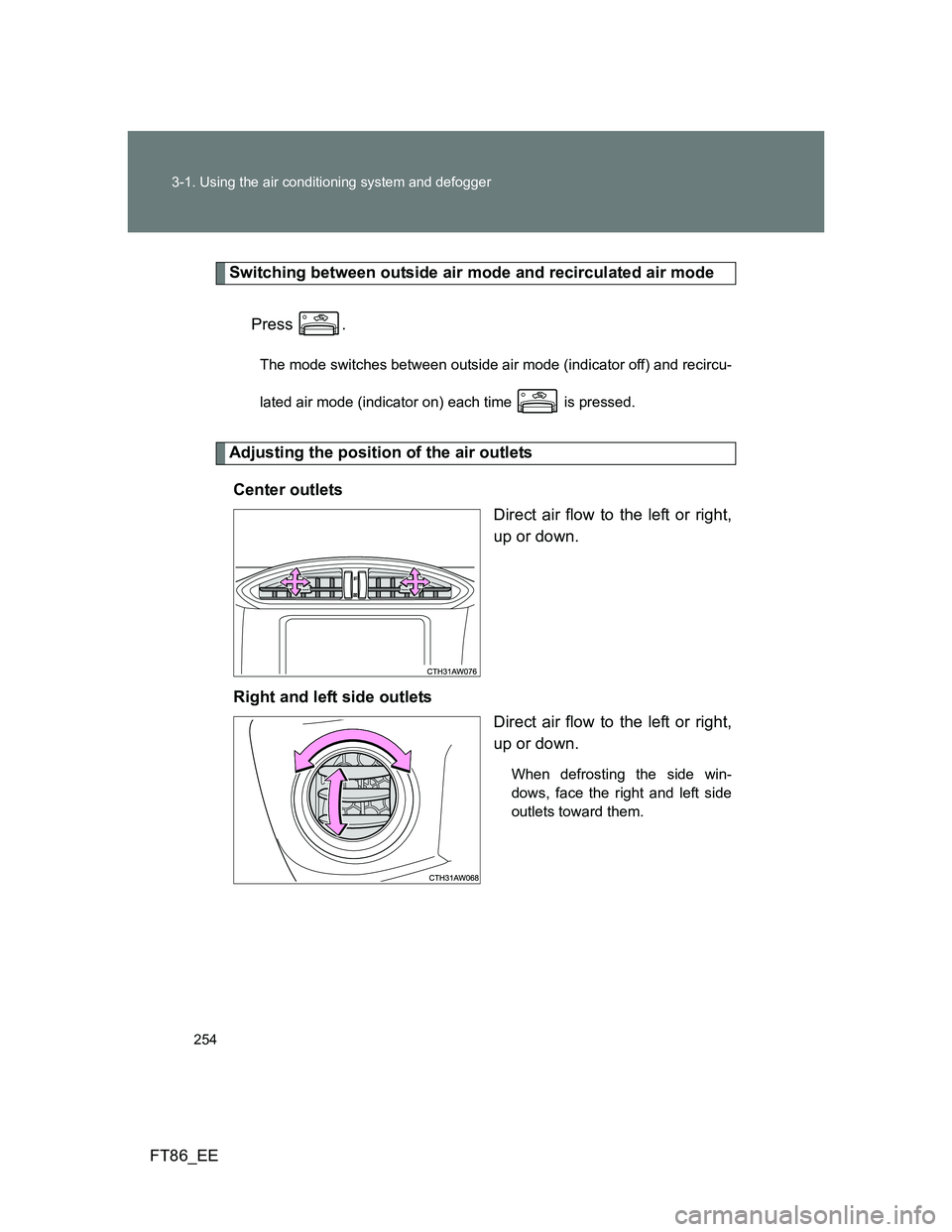

Switching between outside air mode and recirculated air mode
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.
Adjusting the position of the air outlets
Center outlets
Direct air flow to the left or right,
up or down.
Right and left side outlets
Direct air flow to the left or right,
up or down.
When defrosting the side win-
dows, face the right and left side
outlets toward them.

255 3-1. Using the air conditioning system and defogger
3
Interior features
FT86_EE

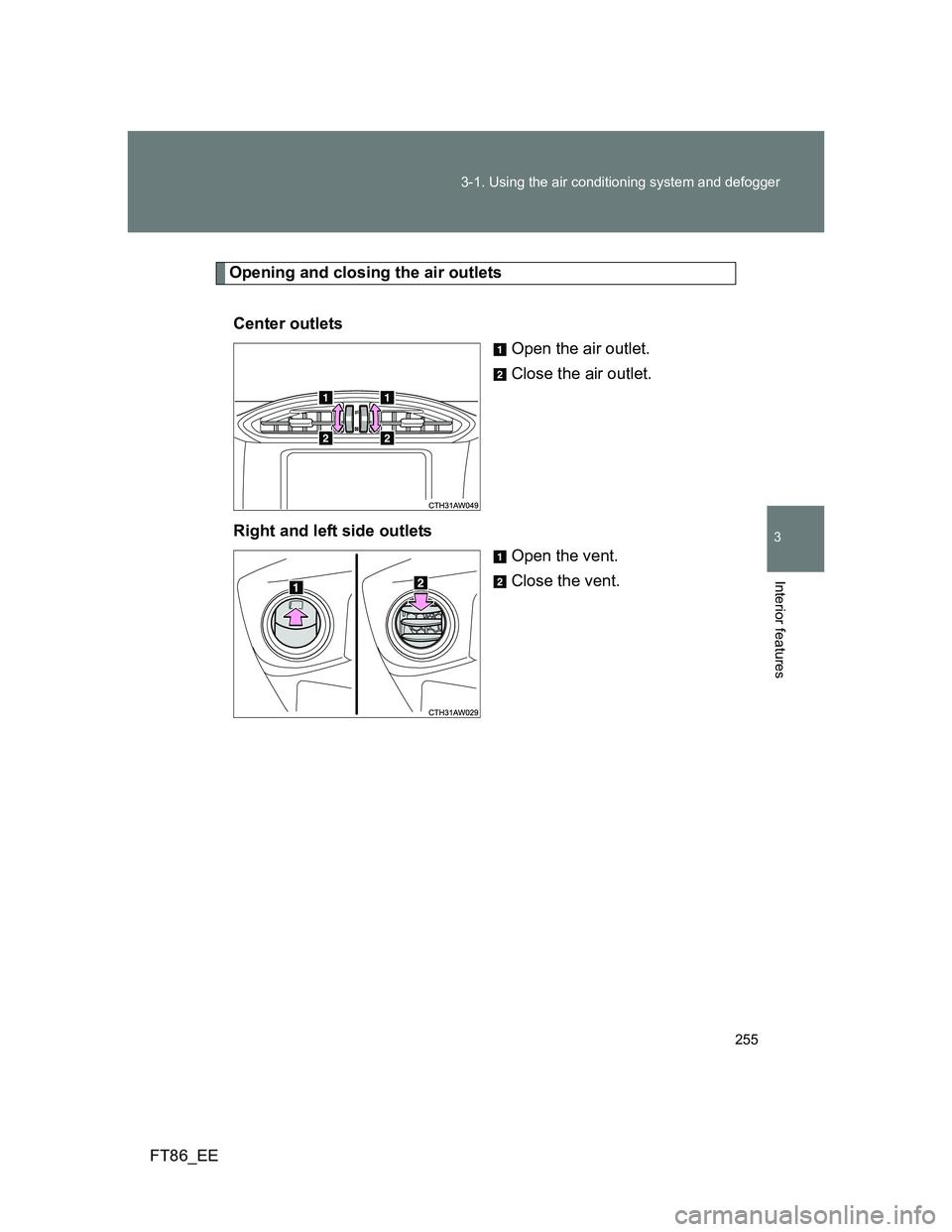

Opening and closing the air outlets
Center outlets
Open the air outlet.
Close the air outlet.
Right and left side outlets
Open the vent.
Close the vent.

256 3-1. Using the air conditioning system and defogger
FT86_EE

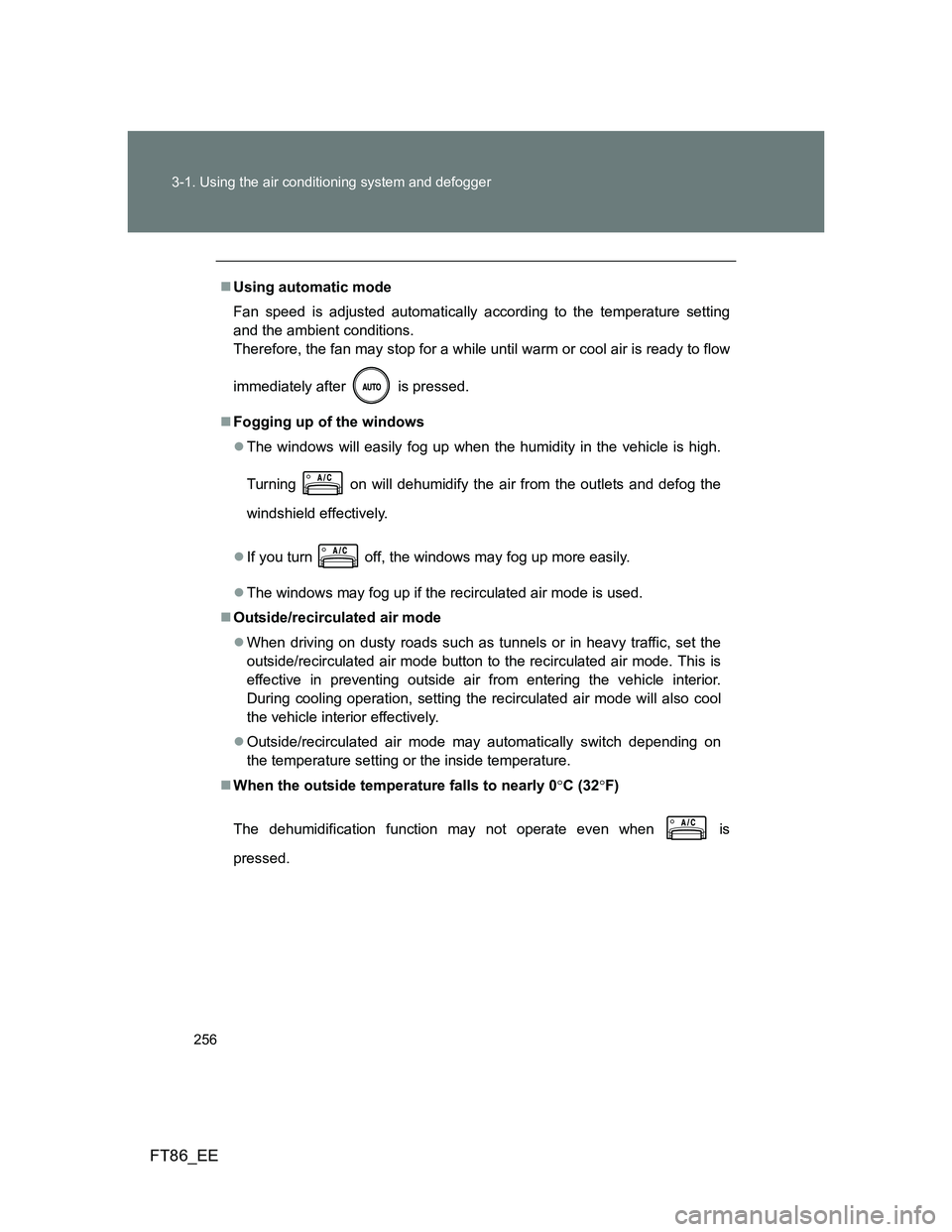

Using automatic mode
Fan speed is adjusted automatically according to the temperature setting
and the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after is pressed.
Fogging up of the windows
The windows will easily fog up when the humidity in the vehicle is high.
Turning on will dehumidify the air from the outlets and defog the
windshield effectively.
If you turn
off, the windows may fog up more easily.
The windows may fog up if the recirculated air mode is used.
Outside/recirculated air mode
When driving on dusty roads such as tunnels or in heavy traffic, set the
outside/recirculated air mode button to the recirculated air mode. This is
effective in preventing outside air from entering the vehicle interior.
During cooling operation, setting the recirculated air mode will also cool
the vehicle interior effectively.
Outside/recirculated air mode may automatically switch depending on
the temperature setting or the inside temperature.
When the outside temperature falls to nearly 0C (32F)
The dehumidification function may not operate even when
is
pressed.
