345 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EETurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 3
STEP 4
STEP 5
Page 346 of 452
346 4-3. Do-it-yourself maintenance

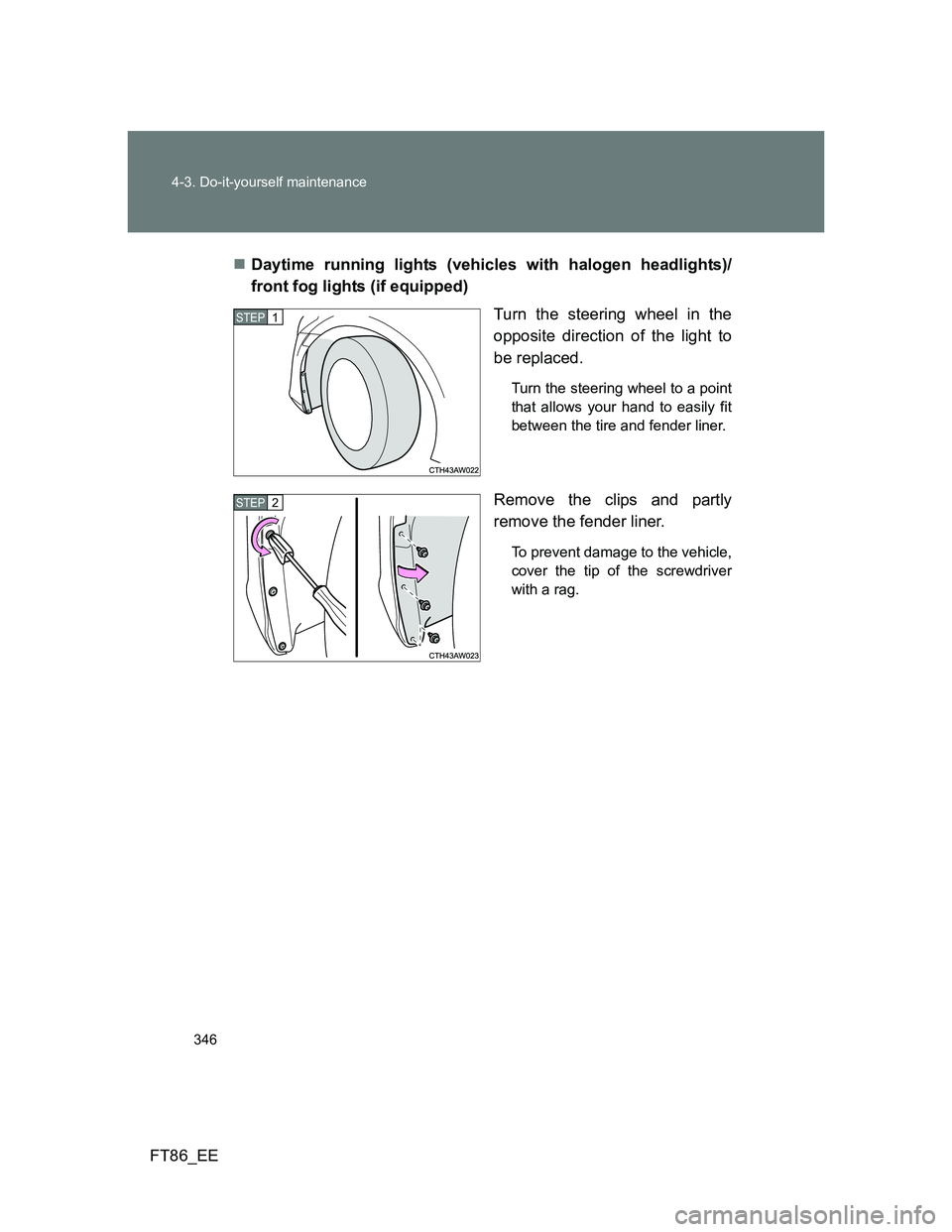

FT86_EEDaytime running lights (vehicles with halogen headlights)/
front fog lights (if equipped)
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clips and partly
remove the fender liner.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
STEP 1
STEP 2
Page 347 of 452
347 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EEDaytime running lights/front
fog lights
Front fog lights
Unplug the connector and
remove the light bulb.
Daytime running lights
Remove the light bulb.
Daytime running lights
Remove the light bulb.
Replace the light bulb with a new one.
Daytime running lights/front fog lights
Turn and secure the bulb. Install the connector.
Daytime running lights
Turn and secure the bulb.
When installing the fender liner, install by conducting
with the directions reversed.
STEP 3
STEP 3
STEP 5 STEP 4
STEP 5 STEP 5
STEP 5 STEP 6 STEP 5 STEP 2
Page 348 of 452
348 4-3. Do-it-yourself maintenance

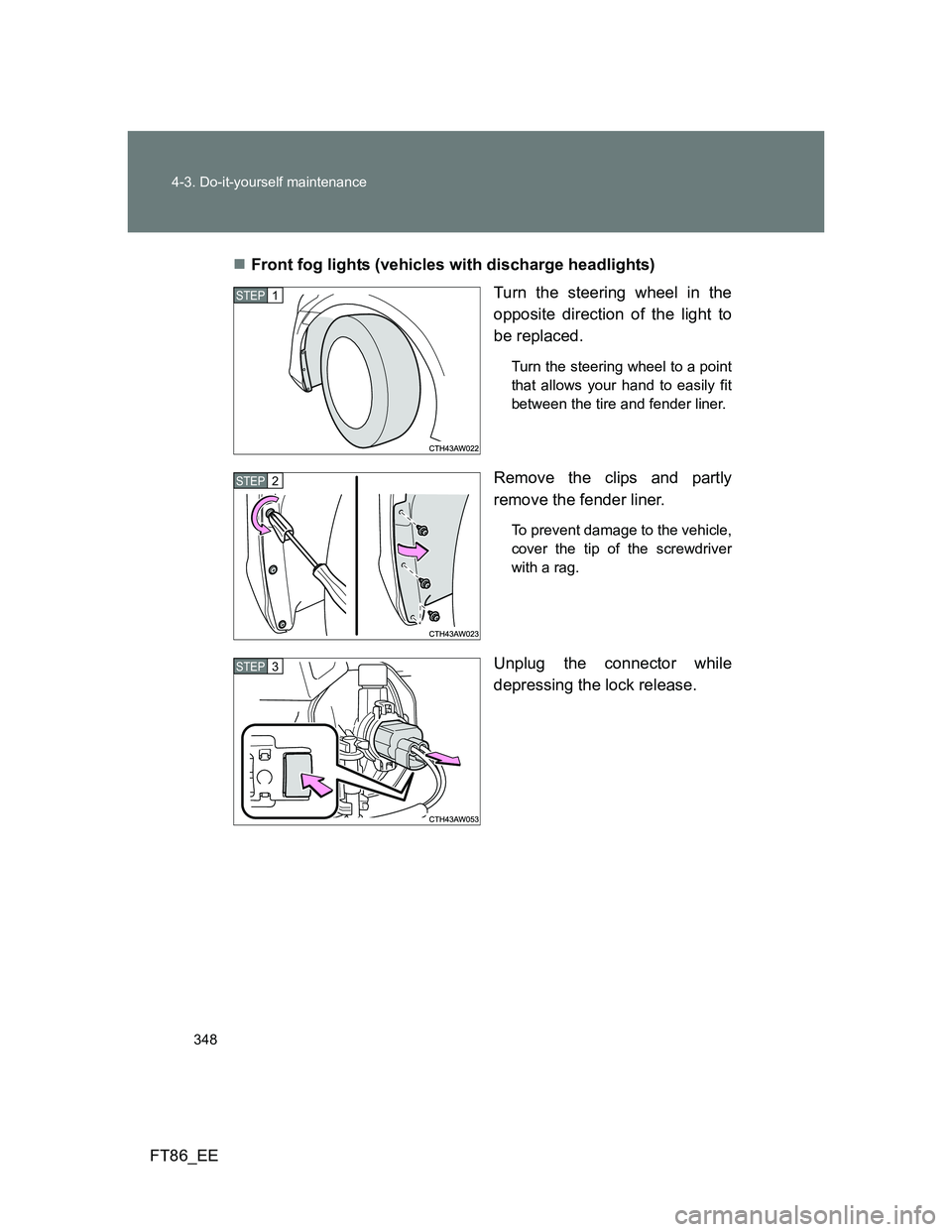

FT86_EEFront fog lights (vehicles with discharge headlights)
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clips and partly
remove the fender liner.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Unplug the connector while
depressing the lock release.
STEP 1
STEP 2
STEP 3
Page 349 of 452
349 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EERemove the light bulb.
When installing, reverse the steps listed.
Rear turn signal lights
On some models, remove a clip
and partly remove the cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.

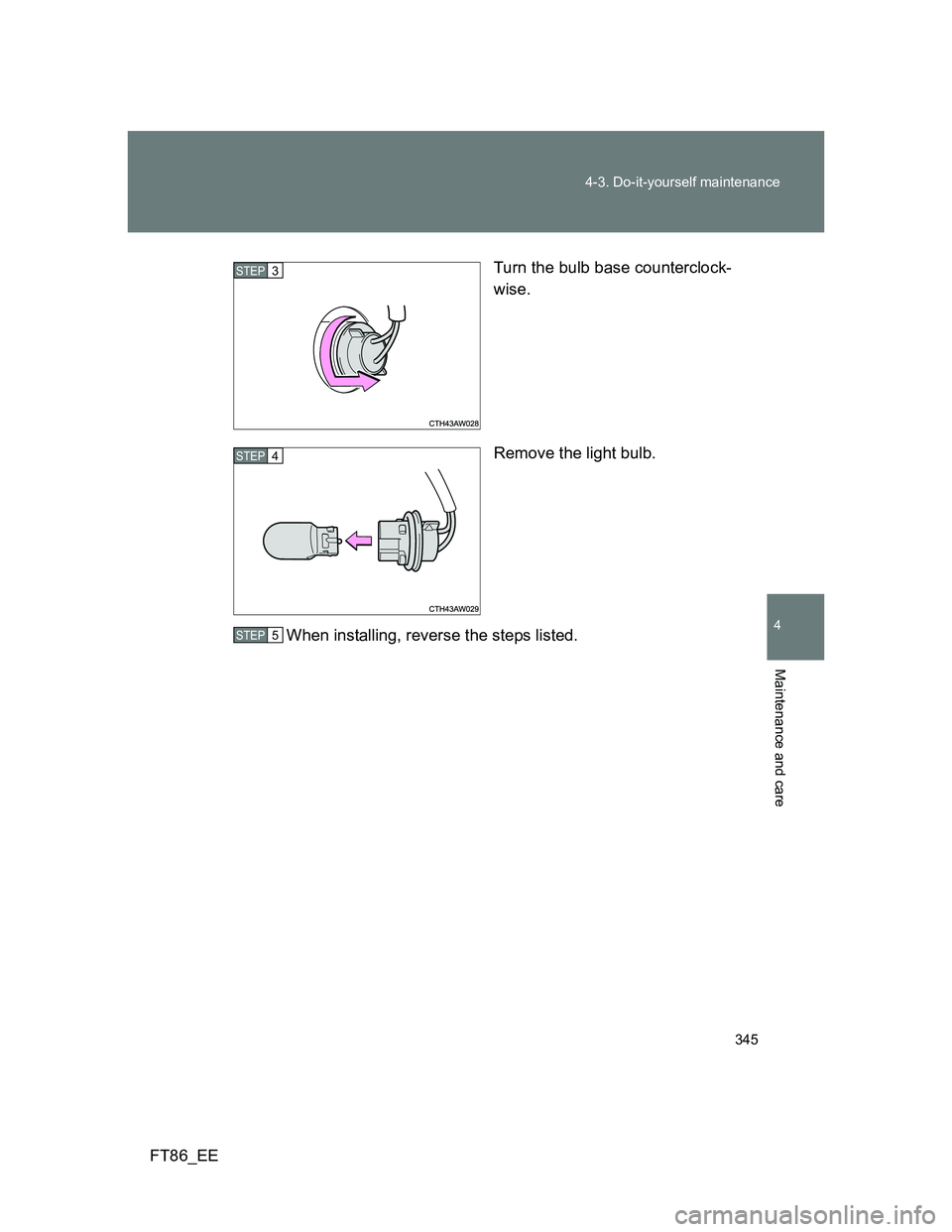

Turn the bulb base counterclock-
wise.
STEP 4
STEP 5
STEP 1
STEP 2
Page 350 of 452
350 4-3. Do-it-yourself maintenance
FT86_EERemove the light bulb.
When installing, reverse the steps listed.

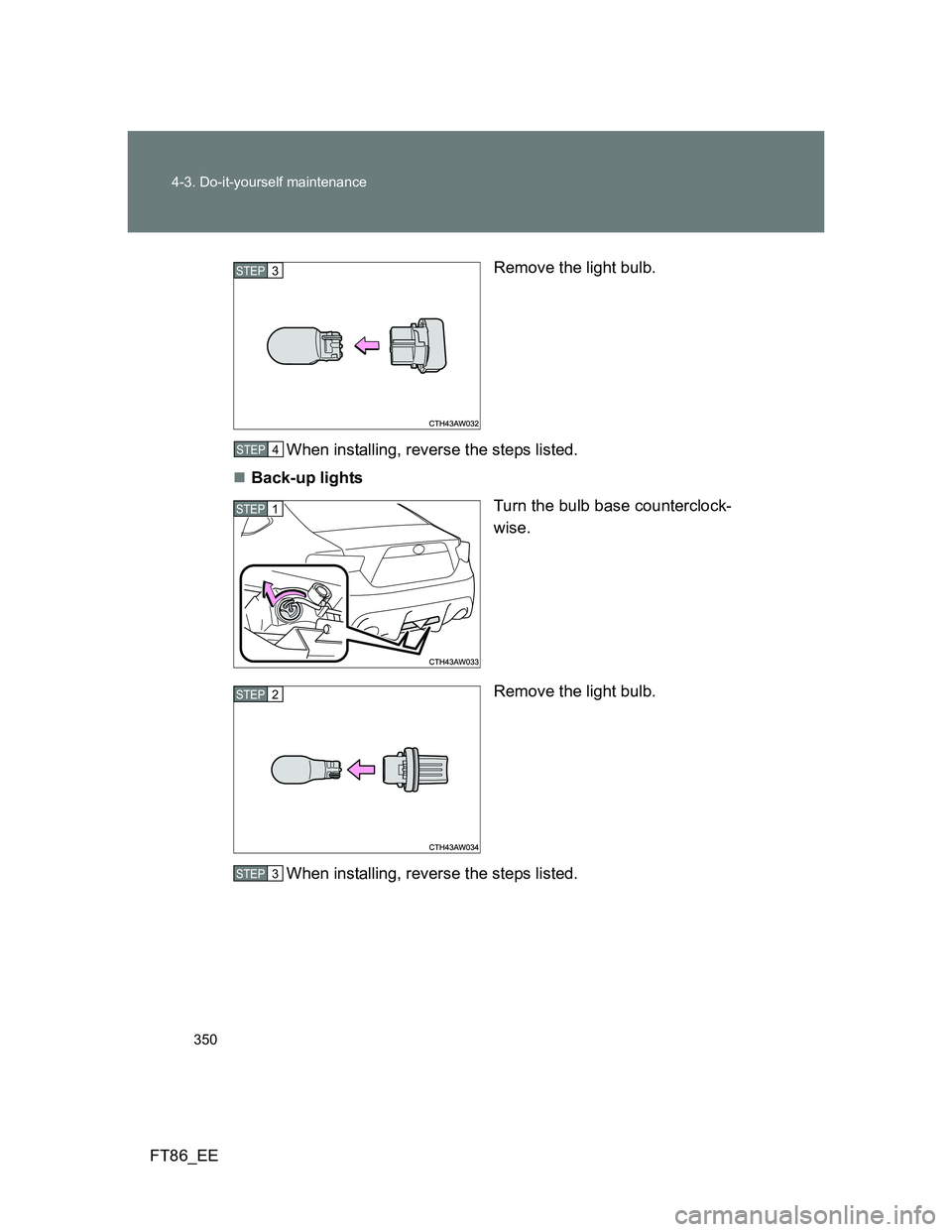

Back-up lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 3
STEP 4
STEP 1
STEP 3 STEP 2
STEP 3
Page 351 of 452
351 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EERear fog light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 3 STEP 2
STEP 3
Page 352 of 452
352 4-3. Do-it-yourself maintenance

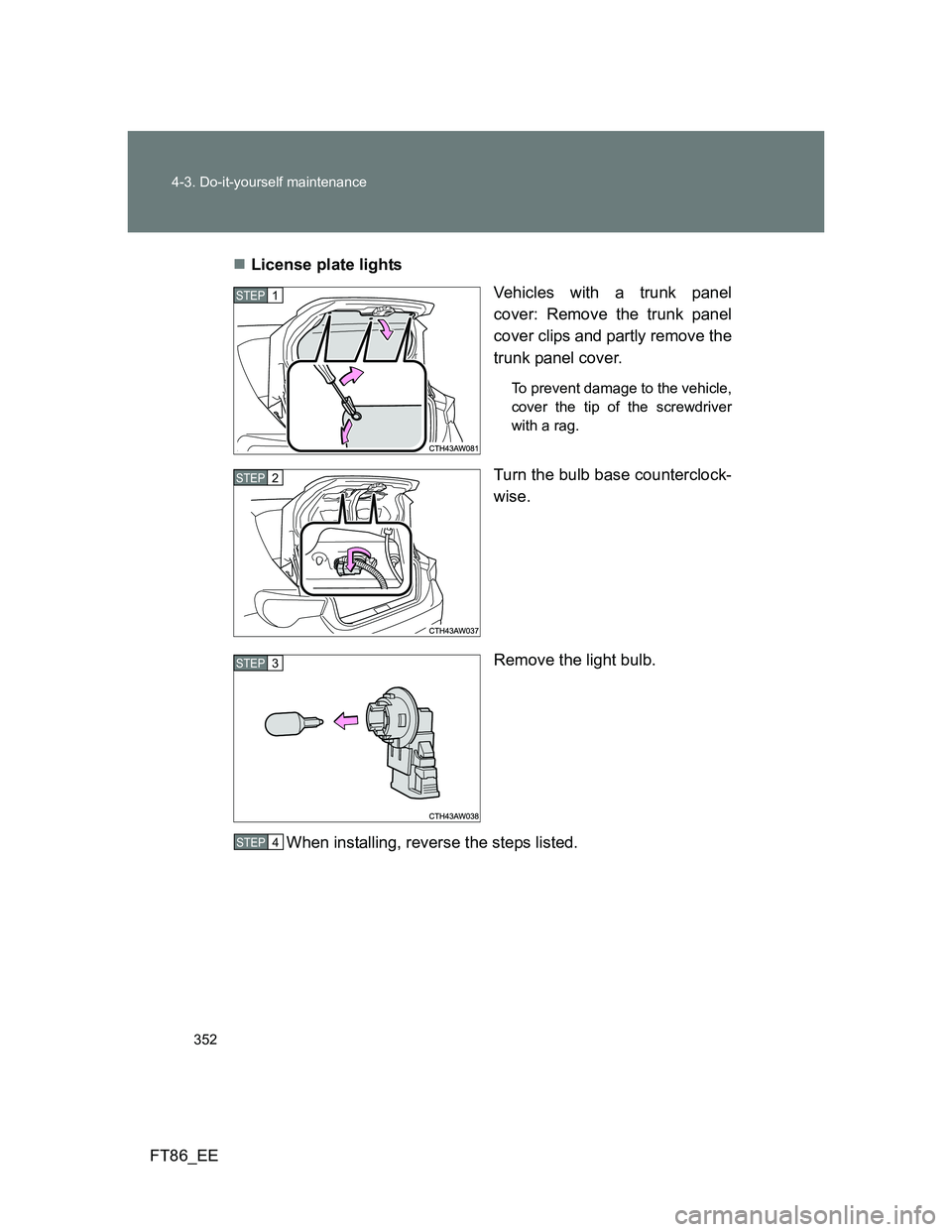

FT86_EELicense plate lights
Vehicles with a trunk panel
cover: Remove the trunk panel
cover clips and partly remove the
trunk panel cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4
